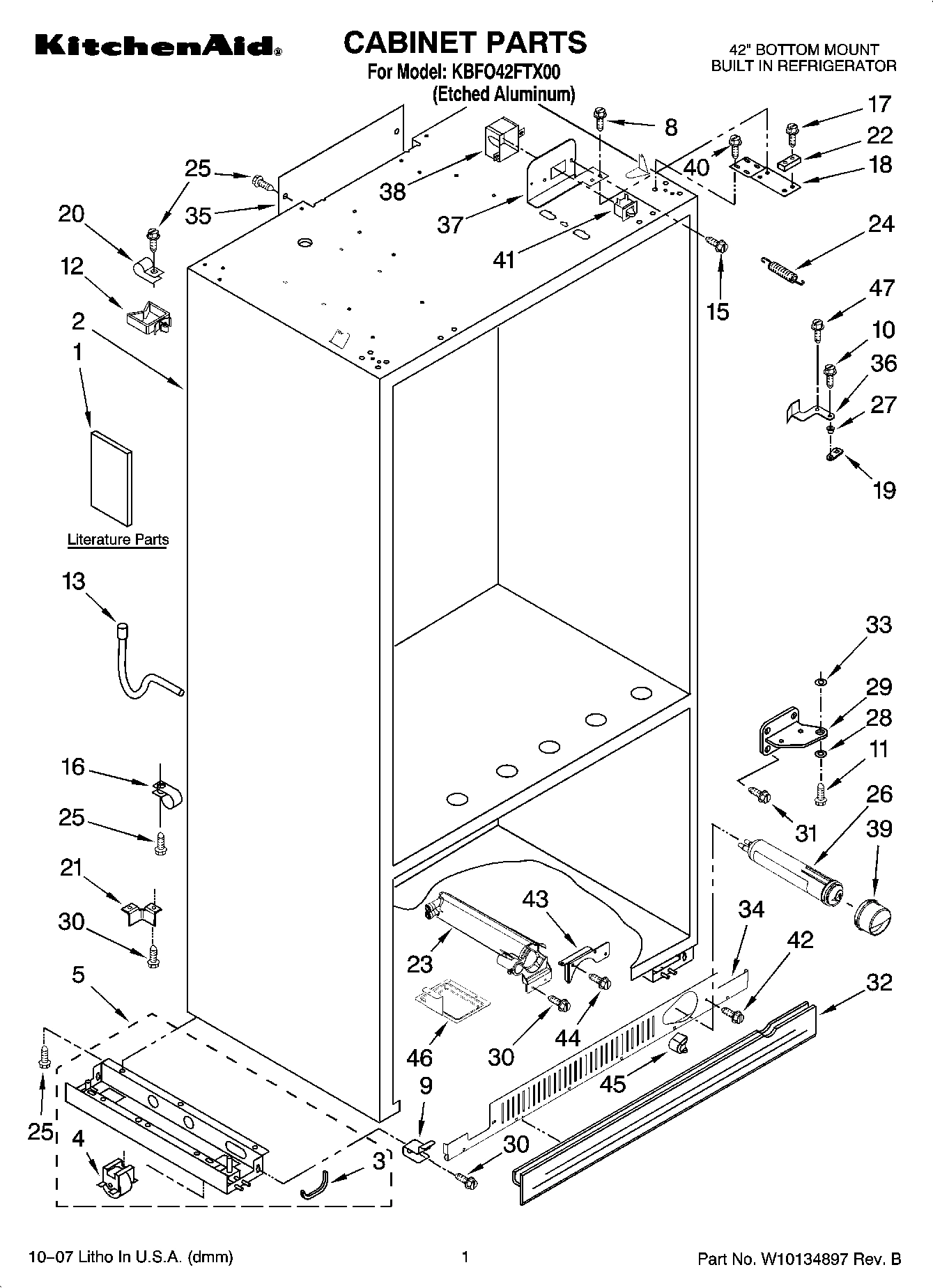

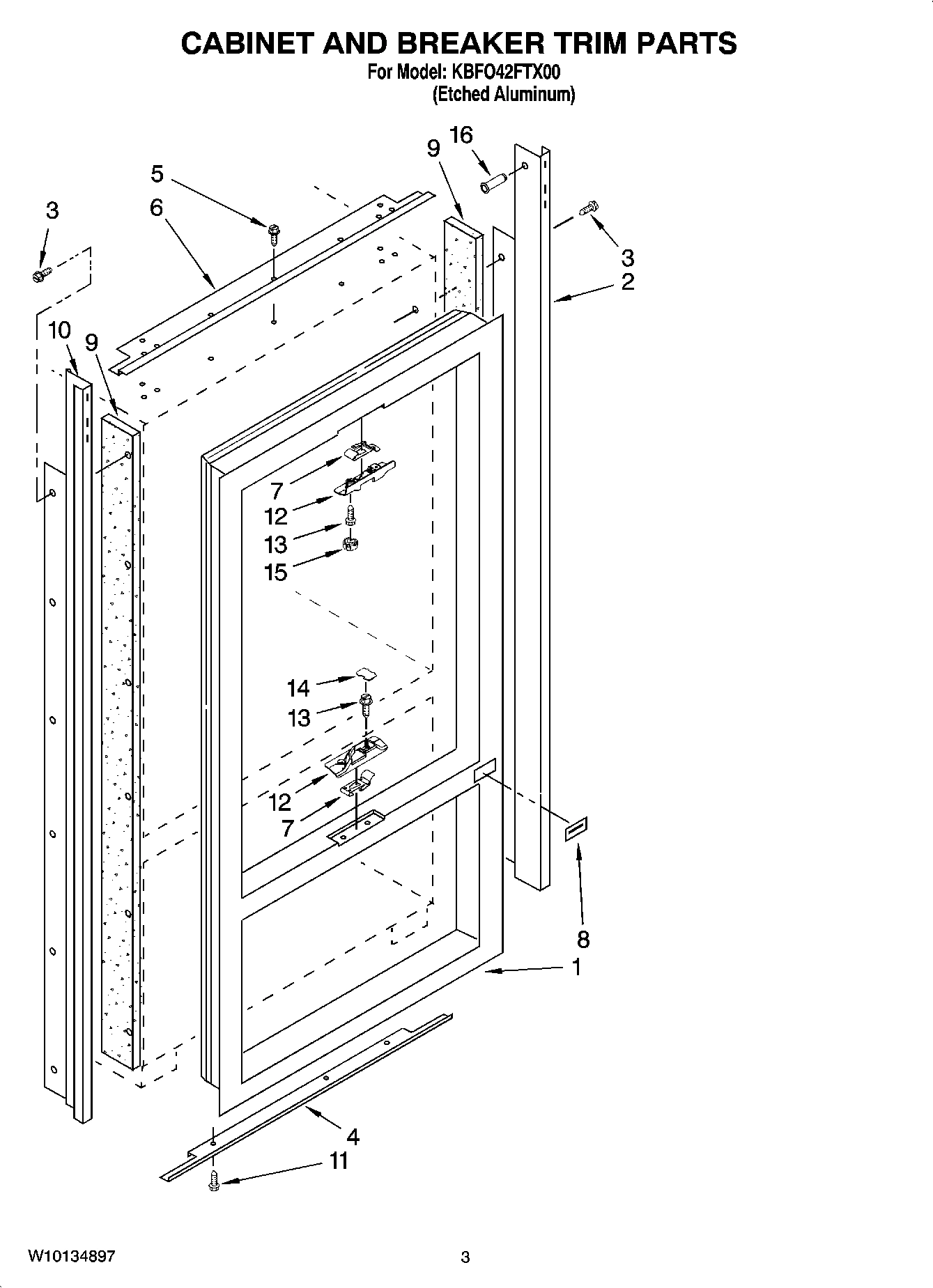

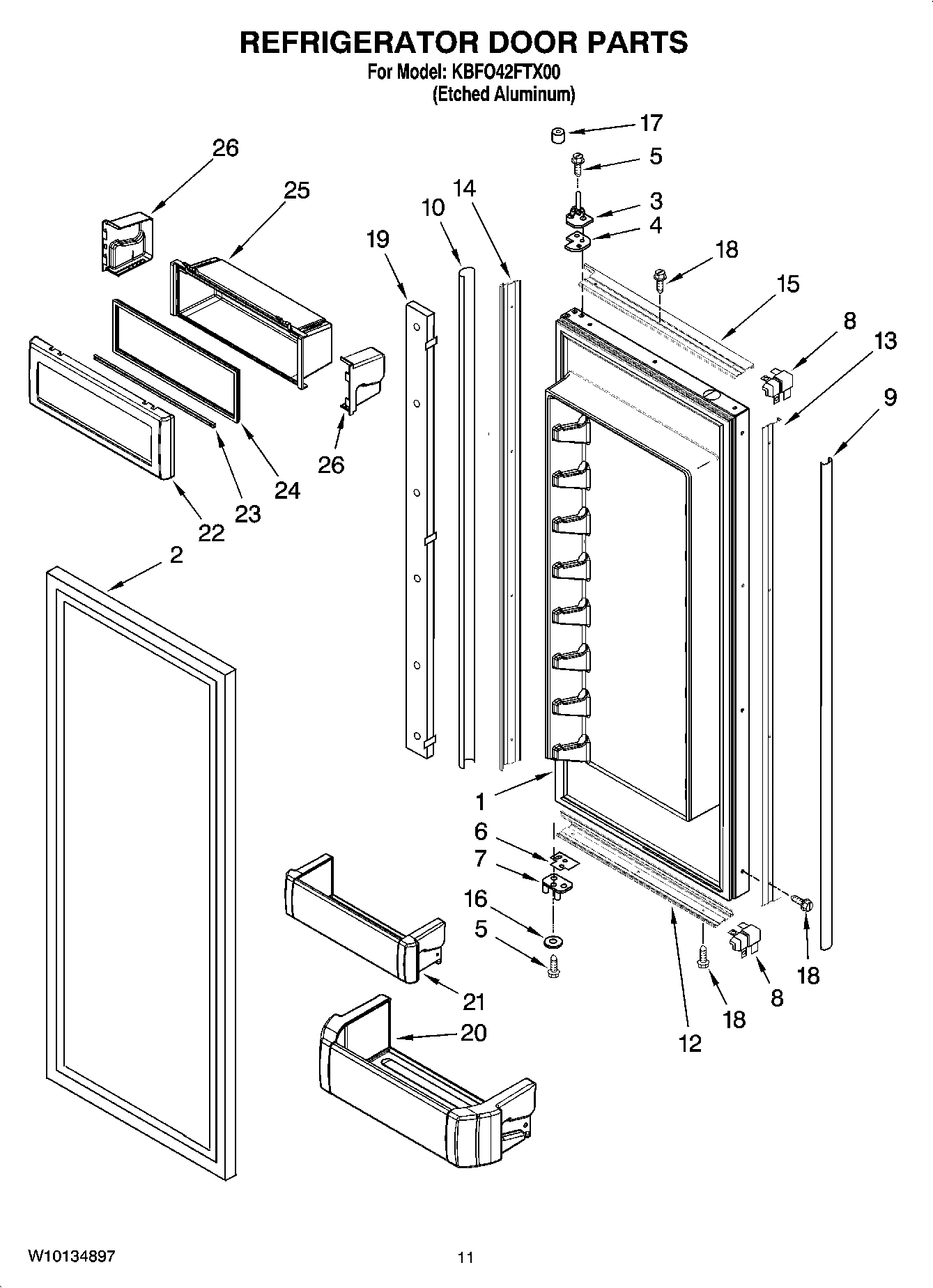

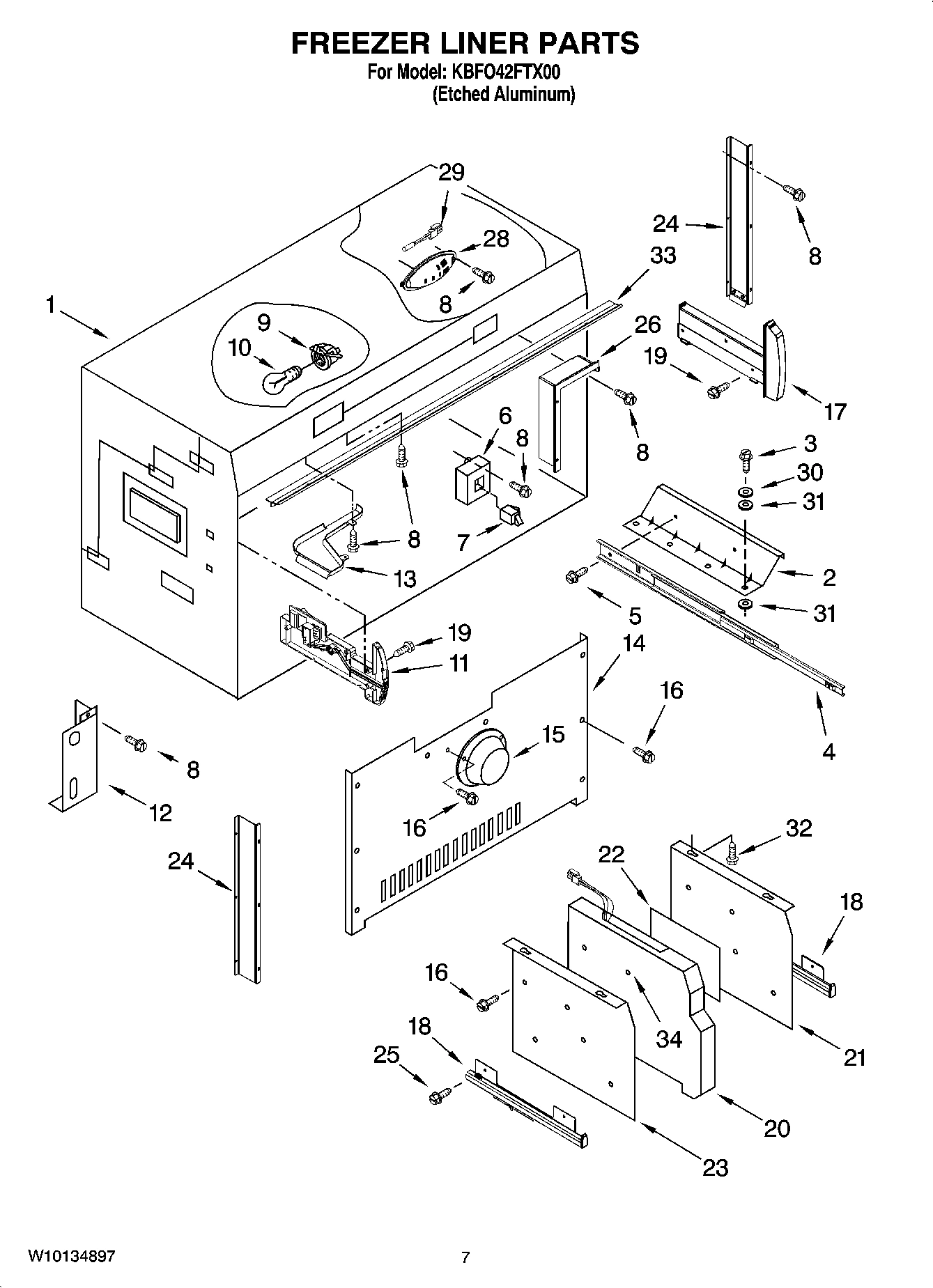

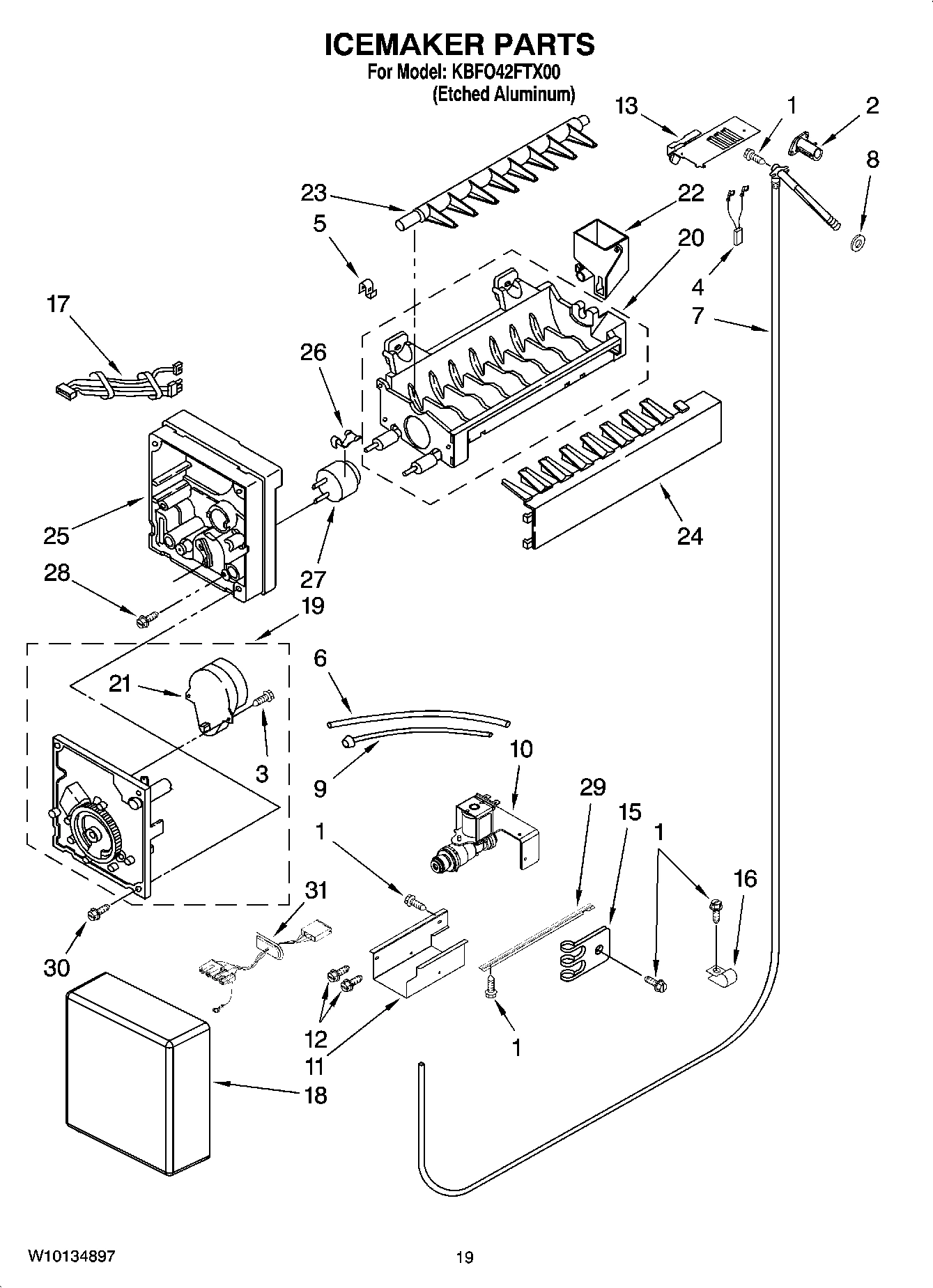

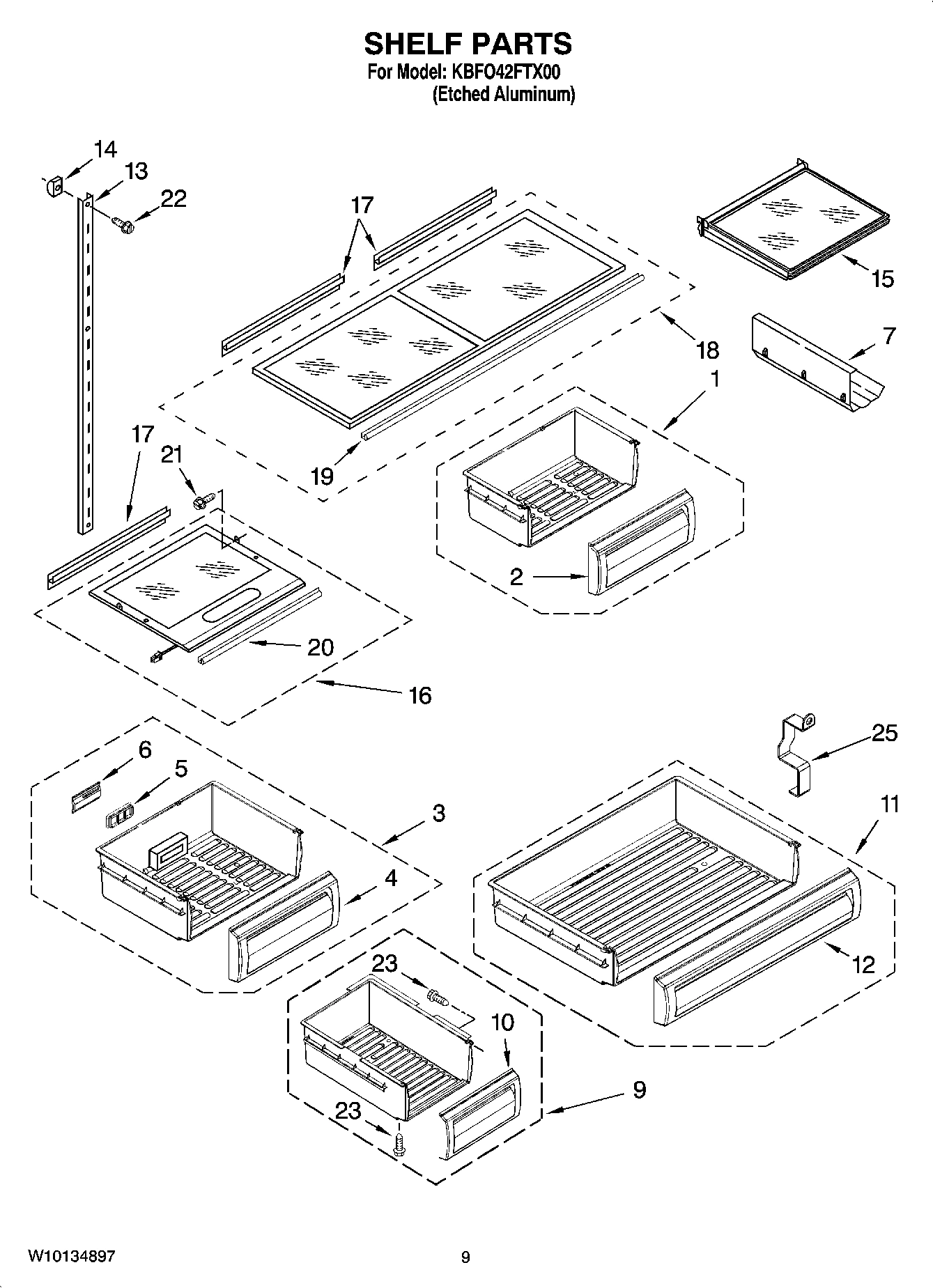

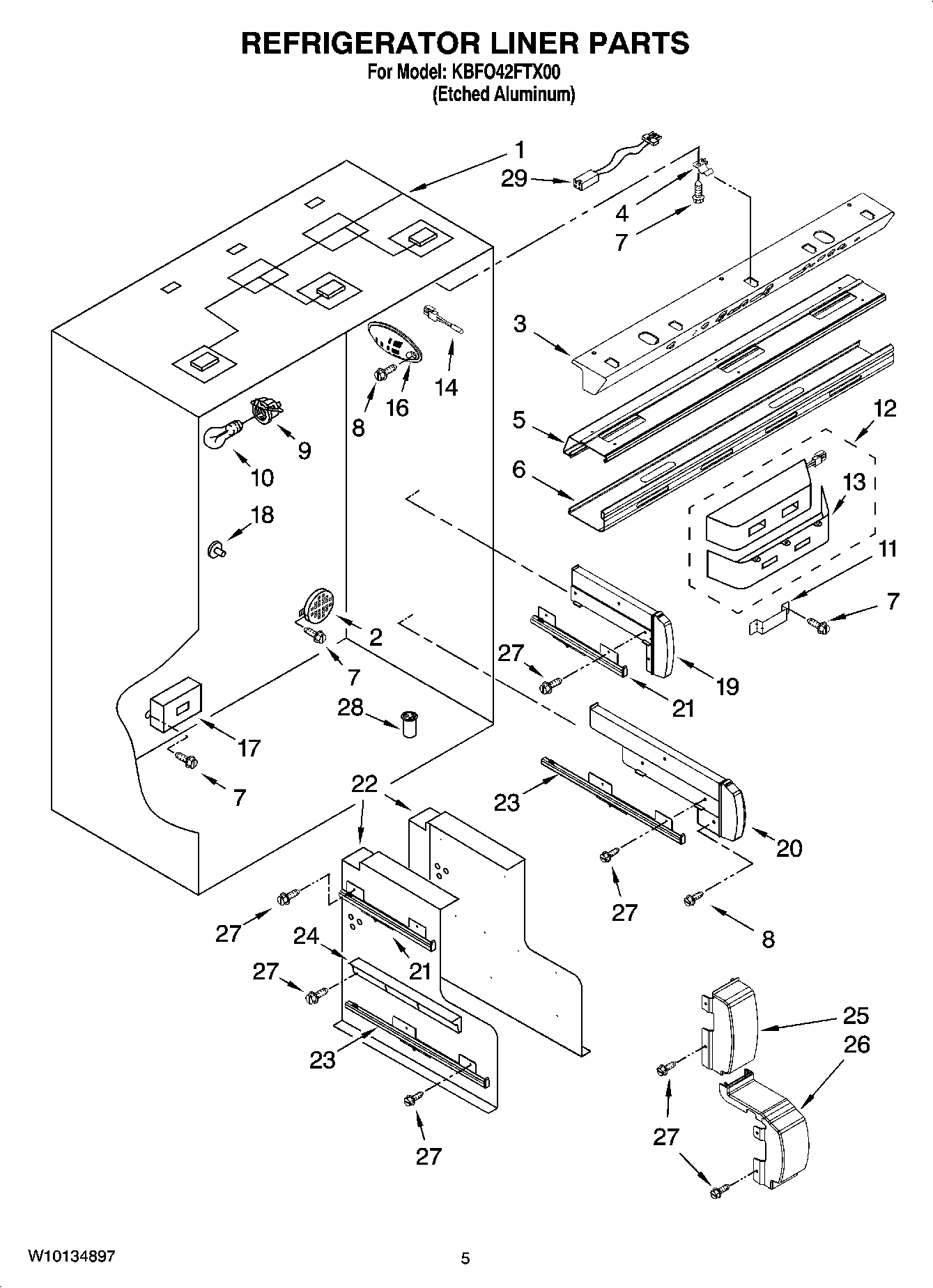

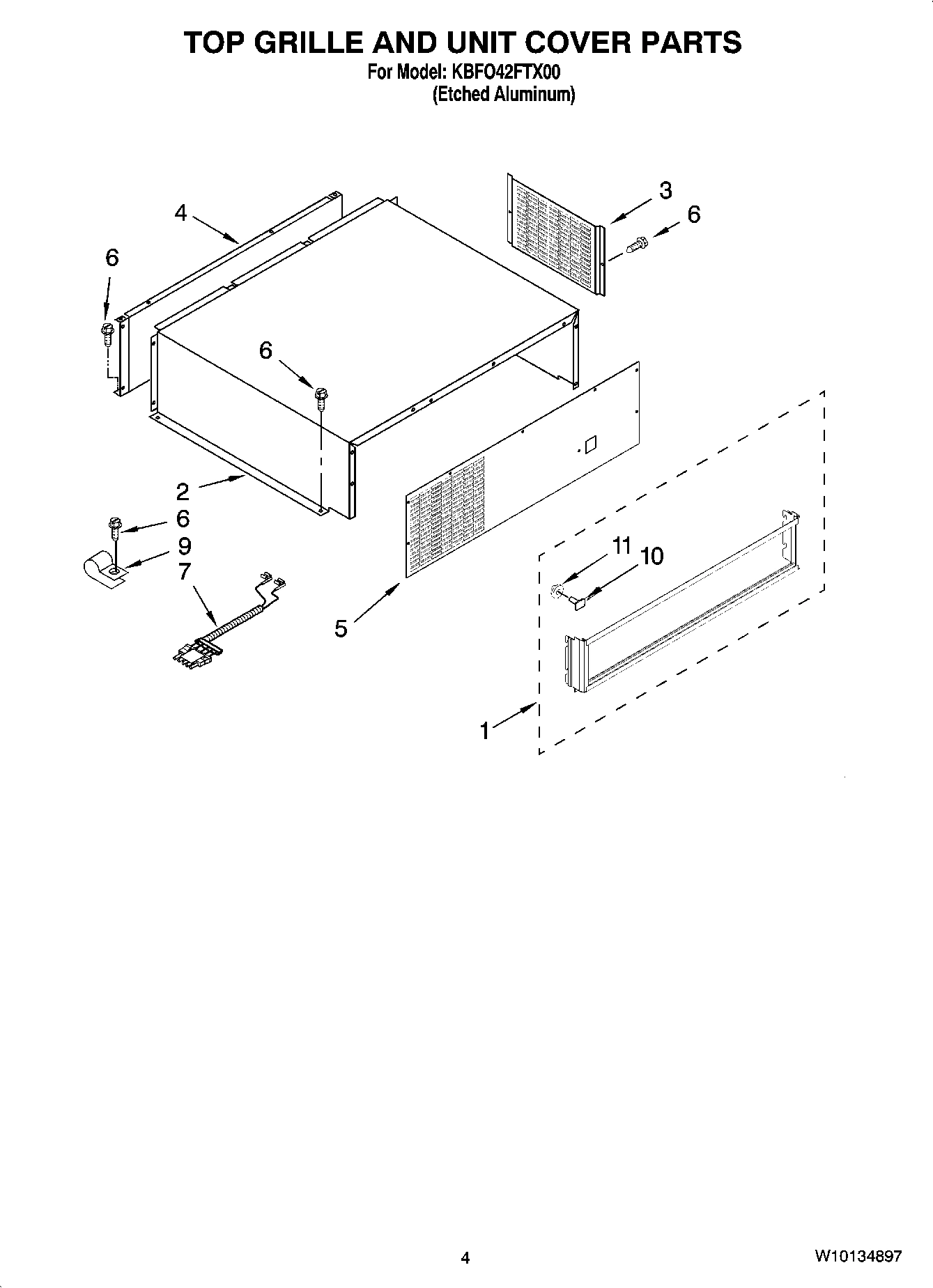

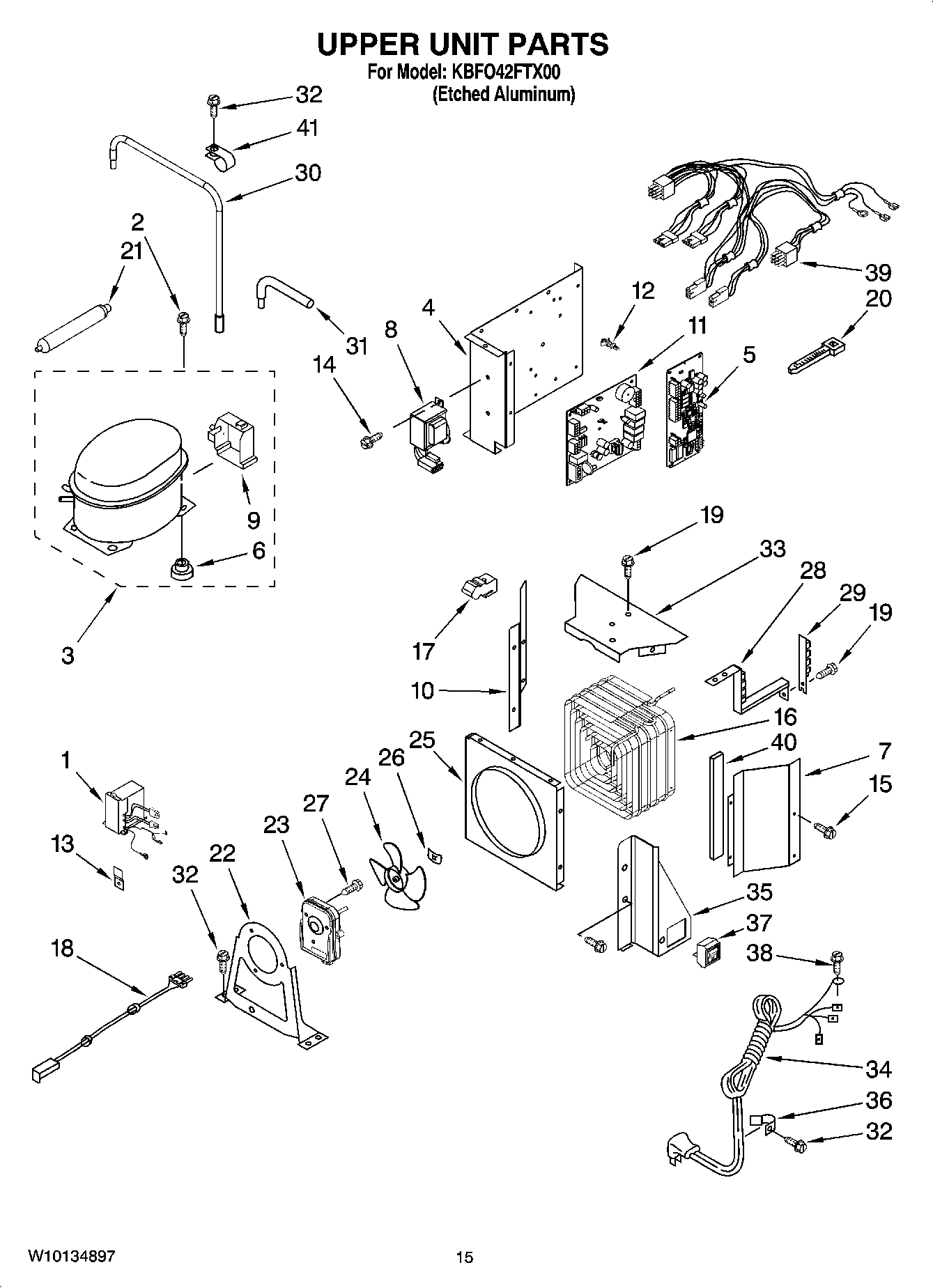

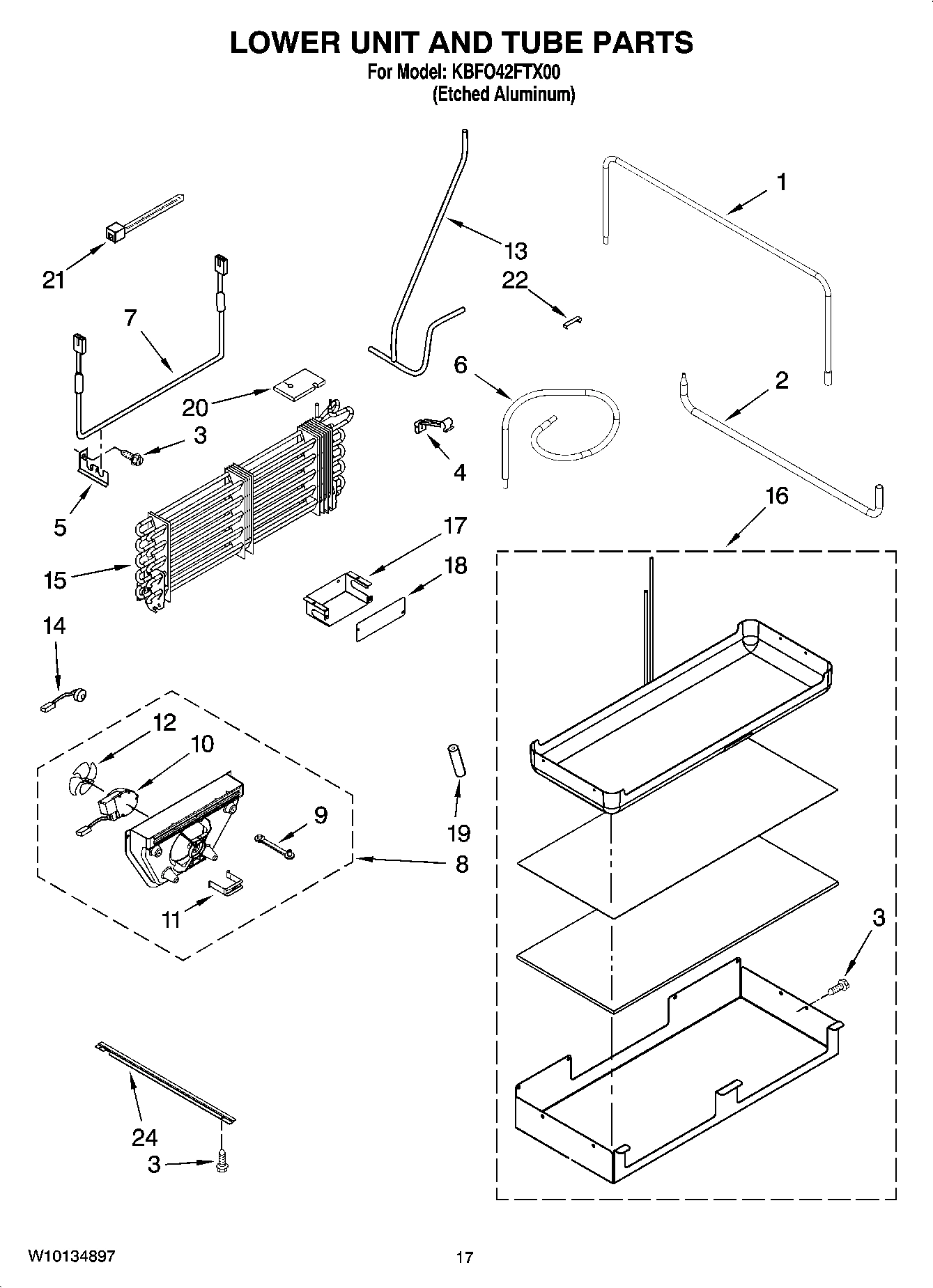

Model Whirlpool KBFO42FTX00 42`` BOTTOM MOUNT BUILT IN REFRIGERATOR – Common Parts &amp; Diagrams

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $34.75

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $28.02

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

1

Crisper Pan Assembly (Includes 2) (Right) WPL 2268171 Contact Us For Availability

1

Service & Wiring Sheet WPL 2316852 Contact Us For Availability

1

Modular Icemaker Service Sheet WPL 2317840 Contact Us For Availability

1

Main Control Service Sheet WPL 2317849 Contact Us For Availability

1

Installation Instructions WPL 2320680 Contact Us For Availability

1

Use & Care Guide WPL 2320682 Contact Us For Availability

1

Energy Guide WPL 2320685 Contact Us For Availability

1

Crisper Pan Assembly (Includes 2) (Left) WPL 2268173 Contact Us For Availability

1

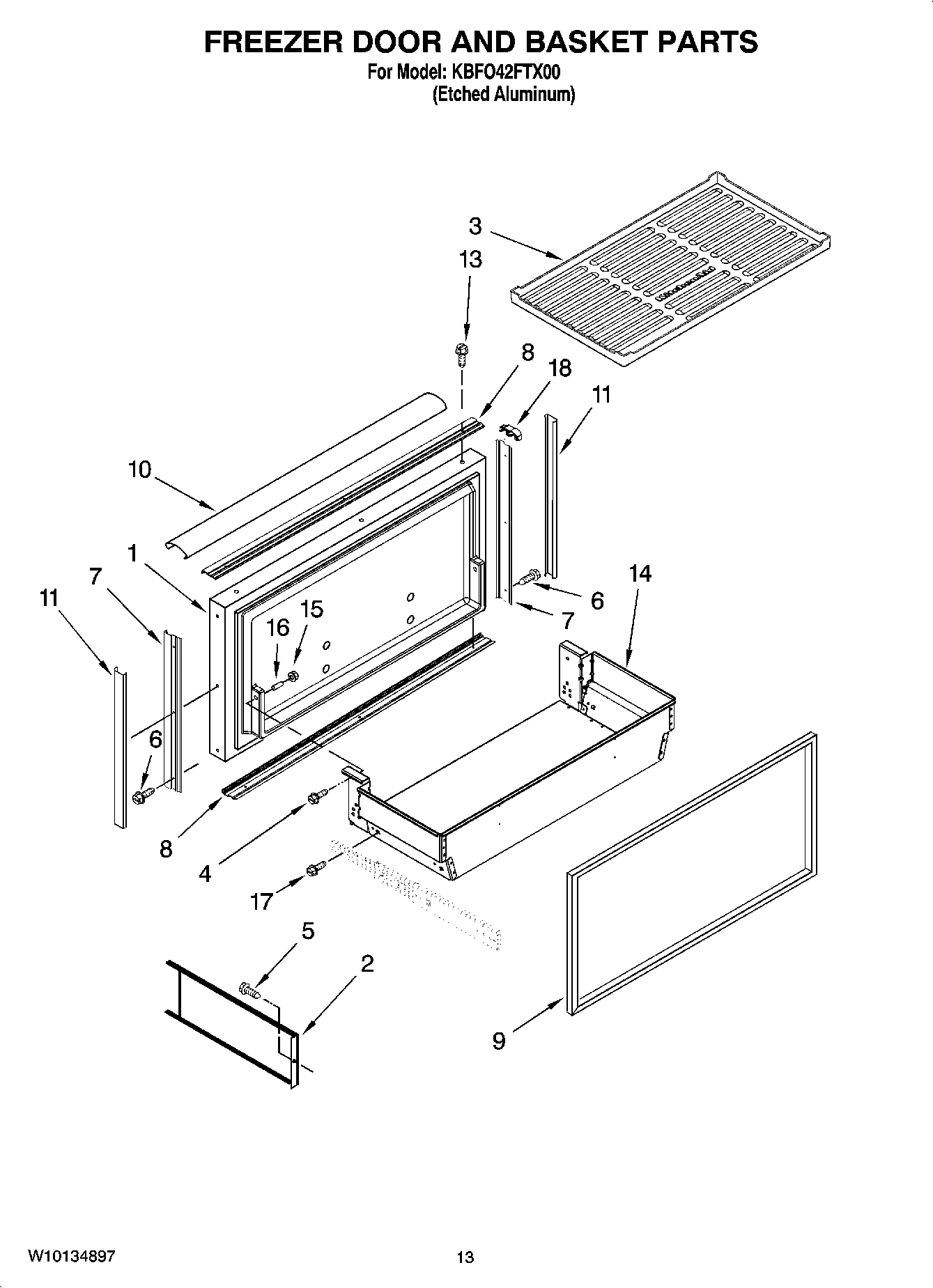

Freezer Door (Includes 9) WPL 2327400 Contact Us For Availability

2

W10744329 Whirlpool Refrigerator Support In Stock WPL W10744329 $125.33

2

WP2221240 Whirlpool Refrigerator Heater In Stock WPL WP2221240 $75.78

2

WP2256247 Whirlpool Front Pan Backorder WPL WP2256247 $53.36

2

Cabinet, (Not A Serviceable Part) WPL ARI78248A3 Contact Us For Availability

2

Divider, Basket (2) WPL 2317101 Contact Us For Availability

3

2307584 Whirlpool Refrigerator Grommet Backorder WPL 2307584 $12.70

3

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

3

W10665413 Whirlpool Refrigerator Mat Backorder WPL W10665413 $148.63

3

W11673500 Whirlpool Door Hinge In Stock WPL W11673500 $65.52

3

WP1163283 Whirlpool Air Conditioner Screw Backorder WPL WP1163283 $2.51

3

Deli Pan Assembly (Incl. 4, 5 & 6) (Left) WPL 2317940 Contact Us For Availability

3

Deli Pan Assembly (Incl. 4, 5 & 6) (Right) WPL 2317941 Contact Us For Availability

4

W10135775 Whirlpool Refrigerator Screw Backorder WPL W10135775 $8.73

4

WP2256365 Whirlpool Refrigerator Front Pan Backorder WPL WP2256365 $63.73

4

WP2320616 Whirlpool Refrigerator Slide In Stock WPL WP2320616 $142.00

4

WPW10138054 Whirlpool Refrigerator Cabinet Ro In Stock WPL WPW10138054 $17.40

4

Spacer-Hinge, Top WPL 2256381 Contact Us For Availability

5

2307810 Whirlpool Refrigerator Air Duct Backorder WPL 2307810 $27.52

5

W10860229 Whirlpool Refrigerator Support Backorder WPL W10860229 $177.18

5

W10860448 Whirlpool Refrigerator Support Backorder WPL W10860448 $137.10

5

WP2303091 Whirlpool Refrigerator Electronic C Backorder WPL WP2303091 $153.06

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

Screw WPL W10061370 Contact Us For Availability

6

2313961S Whirlpool Refrigerator Cabinet Trim Backorder WPL 2313961S $126.70

6

2317939 Whirlpool Refrigerator Deflector Backorder WPL 2317939 $52.76

6

W10109030 Whirlpool Refrigerator Screw Backorder WPL W10109030 $8.73

6

Tube, Suction WPL 2309076 Contact Us For Availability

6

Tube, Filter Inlet WPL 2325170 Contact Us For Availability

7

2313999S Whirlpool Refrigerator Door Trim Backorder WPL 2313999S $78.90

7

2316752 Whirlpool Refrigerator Door Hinge Backorder WPL 2316752 $83.59

7

W10777924 Whirlpool Refrigerator Wine Rack Backorder WPL W10777924 $8.47

7

Bottom Hinge Assembly (Right) WPL 2316751 Contact Us For Availability

7

Cam, Mullion (Bottom) WPL 2316858 Contact Us For Availability

7

Cam, Mullion (Top) WPL 2316857 Contact Us For Availability

8

2207457 Whirlpool Refrigerator Door Trim Backorder WPL 2207457 $42.33

8

2313998S Whirlpool Refrigerator Door Trim Backorder WPL 2313998S $118.49

8

WP1106508 Whirlpool Refrigerator Gasket Backorder WPL WP1106508 $4.14

8

WP8281164 Whirlpool Refrigerator Screw In Stock WPL WP8281164 $5.38

8

Transformer WPL 2303033 Contact Us For Availability

9

2215676 Whirlpool Refrigerator Terminal Cover Backorder WPL 2215676 $30.25

9

2309021S Whirlpool Refrigerator Cover Trim Backorder WPL 2309021S $30.89

9

2309216 Whirlpool Refrigerator Door Gasket In Stock WPL 2309216 $120.01

9

W10839844 Whirlpool Refrigerator Bracket Backorder WPL W10839844 $12.44

9

W11533506 Whirlpool Refrigerator Water Tube In Stock WPL W11533506 $12.11

9

Seal, Side Trim WPL 2005925 Contact Us For Availability

9

Ice Pan Assembly (Includes 10) WPL 2306174 Contact Us For Availability

2306175 Whirlpool Refrigerator Front Pan Backorder WPL 2306175 $34.18

2309022S Whirlpool Refrigerator Trim Cover Backorder WPL 2309022S $44.21

Cover-Trim, Top WPL 2309033S No Longer Available

WP2307650 Whirlpool Refrigerator Inlet Valve In Stock WPL WP2307650 $97.02

SCREW WPL W10004850 Contact Us For Availability

11

2309213S Whirlpool Refrigerator Cover Trim Backorder WPL 2309213S $30.25

11

2327511 Whirlpool Refrigerator Pan Backorder WPL 2327511 $205.65

11

WP488234 Whirlpool Air Conditioner Screw Backorder WPL WP488234 $3.09

2309230 Whirlpool Refrigerator Clip Backorder WPL 2309230 $9.33

2309231 Whirlpool Refrigerator Clip Backorder WPL 2309231 $32.12

2314031S Whirlpool Refrigerator Door Trim Backorder WPL 2314031S $107.31

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $27.11

WP2256367 Whirlpool Refrigerator Front Pan Backorder WPL WP2256367 $72.33

Diffuser Assembly WPL 2320523 Contact Us For Availability

Clip (6) WPL W10129069 Contact Us For Availability

13

2314030S Whirlpool Refrigerator Door Trim Backorder WPL 2314030S $131.08

13

2314064 Whirlpool Refrigerator Drain Tube Backorder WPL 2314064 $30.25

13

Ladder, Shelf (4) WPL 2327314 Contact Us For Availability

2309031S Whirlpool Refrigerator Door Trim Backorder WPL 2309031S $193.37

520965 Whirlpool Refrigerator Support Backorder WPL 520965 $10.14

Defrost Bi-Metal WPL 2310137 Contact Us For Availability

Basket Assembly, Freezer WPL 2327532 Contact Us For Availability

2314028S Whirlpool Refrigerator Door Trim Backorder WPL 2314028S $103.08

2317829 Whirlpool Refrigerator Cover Backorder WPL 2317829 $12.35

489348 Whirlpool Refrigerator Tube Clamp Backorder WPL 489348 $5.38

WP2207454 Whirlpool Refrigerator Nut Backorder WPL WP2207454 $4.58

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

Shelf (4) WPL 2268246 Contact Us For Availability

2307998 Whirlpool Refrigerator Condenser Backorder WPL 2307998 $262.35

W10757973-includeCORE Whirlpool W10757973 Ref Backorder WPL W10757973-includeCORE $462.17

W10757993-includeCORE Whirlpool W10757993 Ref Backorder WPL W10757993-includeCORE $462.17

WP2006346 Whirlpool Refrigerator Washer Backorder WPL WP2006346 $5.42

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $4.81

WPW10121451 Whirlpool Refrigerator Insert Backorder WPL WPW10121451 $3.70

WASHER WPL W10001190 Contact Us For Availability

2309400 Whirlpool Pan Gasket Backorder WPL 2309400 $36.18

2310136 Whirlpool Refrigerator Wire Harness In Stock WPL 2310136 $67.17

W11500952 Whirlpool Refrigerator Hinge Bushin Backorder WPL W11500952 $12.32

DIFFUSER, CRISPER (COMPLETE)(2) WPL 2268249 Contact Us For Availability

Screw, Door Stop WPL W10005070 Contact Us For Availability

Screw, 5/16-24 x 1 (Basket to Slide) WPL W10001170 Contact Us For Availability

2258903 Whirlpool Refrigerator Door Trim Backorder WPL 2258903 $87.01

2306116 Whirlpool Refrigerator Slide Backorder WPL 2306116 $122.91

2306117 Whirlpool Refrigerator Slide Backorder WPL 2306117 $116.41

W11218690 Whirlpool Refrigerator Door Hinge In Stock WPL W11218690 $27.89

W11430640 Whirlpool Glass Shelf Backorder WPL W11430640 $172.05

WP2196483 Whirlpool Refrigerator Shelf Stud In Stock WPL WP2196483 $4.34

WP8281250 Whirlpool Refrigerator Screw In Stock WPL WP8281250 $5.38

2215648 Whirlpool Refrigerator Dampener Backorder WPL 2215648 $7.78

WP2320509 Whirlpool Refrigerator Door Cam Backorder WPL WP2320509 $9.92

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $3.33

Mullion Assembly WPL 2307938 Contact Us For Availability

Gasket, Front (Crisper Cover) WPL 2309396 Contact Us For Availability

20

W10833902 Whirlpool Refrigerator Clamp In Stock WPL W10833902 $4.45

20

Gasket, Front (2) (Deli Cover) WPL 2309395 Contact Us For Availability

2006617 Whirlpool Refrigerator Bracket Backorder WPL 2006617 $30.25

2302952 Whirlpool Refrigerator Slide Backorder WPL 2302952 $124.83

2302953 Whirlpool Refrigerator Slide Backorder WPL 2302953 $124.94

W10716209 Whirlpool Refrigerator Support In Stock WPL W10716209 $29.44

Screw WPL 8281251 Contact Us For Availability

2006475 Whirlpool Refrigerator Screw Backorder WPL 2006475 $9.13

W11403572 Whirlpool Refrigerator Bracket Backorder WPL W11403572 $26.32

WP628356 Whirlpool Refrigerator Fill Cup Backorder WPL WP628356 $17.39

WPW10131132 Whirlpool Refrigerator Door Compr Backorder WPL WPW10131132 $42.97

SHIELD WPL 2317927 Contact Us For Availability

2222795 Whirlpool Refrigerator Rail Backorder WPL 2222795 $33.31

2302956 Whirlpool Refrigerator Slide Backorder WPL 2302956 $124.19

2302957 Whirlpool Refrigerator Slide Backorder WPL 2302957 $91.88

WP488787 Whirlpool Refrigerator Screw Backorder WPL WP488787 $4.56

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $30.25

WPW10121140 Whirlpool Refrigerator Housing In Stock WPL WPW10121140 $112.14

SUPPORT, SLIDE LEFT WPL 2306105 Contact Us For Availability

WP2004517 Whirlpool Refrigerator Spring In Stock WPL WP2004517 $33.21

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $28.15

WP2222981 Whirlpool Refrigerator Gasket In Stock WPL WP2222981 $93.11

Blade, Fan WPL 2190685 Contact Us For Availability

W11624204 Whirlpool Screw Backorder WPL W11624204 $9.59

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $38.96

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

Locking Clip, Bin (Right) WPL 2327393 Contact Us For Availability

Locking Clip, Bin (Left) WPL 2327394 Contact Us For Availability

26

everydrop® Filter 3 EDR3RXD1 Whirlpool Refri In Stock WPL EDR3RXD1 $56.07

26

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

27

WP2316859 Whirlpool Refrigerator Bushing In Stock WPL WP2316859 $24.52

27

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $44.85

28

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $10.41

28

WP2004994 Whirlpool Refrigerator Hinge Bushin Backorder WPL WP2004994 $3.70

28

WP2210509 Whirlpool Refrigerator Tub Valve Backorder WPL WP2210509 $28.80

29

2310164 Whirlpool Refrigerator Wire Harness In Stock WPL 2310164 $40.68

29

W10337505 Whirlpool Refrigerator Door Hinge Backorder WPL W10337505 $65.81

29

WP2188820 Whirlpool Refrigerator Thermistor In Stock WPL WP2188820 $19.53

30

2307566 Whirlpool Refrigerator Tube Backorder WPL 2307566 $10.16

30

W10075920 Whirlpool Refrigerator Washer Backorder WPL W10075920 $5.38

30

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $4.52

31

W10528578 Whirlpool Refrigerator Tube Backorder WPL W10528578 $14.62

31

W11474472 Whirlpool Screw In Stock WPL W11474472 $3.33

32

WP8533928 Whirlpool Refrigerator Screw In Stock WPL WP8533928 $3.33

32

SKIRT, GRILLE (BOTTOM) WPL 2209025B Contact Us For Availability

33

2314023 Whirlpool Bushing Backorder WPL 2314023 $27.01

34

WP2198643 Whirlpool Refrigerator Lens In Stock WPL WP2198643 $3.33

34

WP2310251 Whirlpool Refrigerator Power Cord Backorder WPL WP2310251 $53.73

34

Grille Base, Front WPL 2325188B Contact Us For Availability

35

2215612 Whirlpool Refrigerator Duct Cover Backorder WPL 2215612 $33.31

35

W10185556 Whirlpool Refrigerator Bracket Backorder WPL W10185556 $45.29

36

W10847927 Whirlpool Refrigerator Extension In Stock WPL W10847927 $32.16

36

W11298172 Whirlpool Refrigerator Extension Backorder WPL W11298172 $31.95

37

2221096 Whirlpool Refrigerator Bracket Backorder WPL 2221096 $30.89

37

2221097 Whirlpool Refrigerator Bracket Backorder WPL 2221097 $30.89

37

WP2266802 Whirlpool Refrigerator Switch In Stock WPL WP2266802 $36.85

38

2215938 Whirlpool Refrigerator Switch Cover In Stock WPL 2215938 $30.25

39

WP2260518B Whirlpool Water Filter Cap In Stock WPL WP2260518B $12.93

40

W11721628 Whirlpool Screw Assembly Backorder WPL W11721628 $8.11

41

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $14.06

43

BRACKET Backorder WPL W11755873 $29.88

44

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $4.56

45

WP2260503B Whirlpool Refrigerator Button Backorder WPL WP2260503B $28.11

46

2318189 Whirlpool Refrigerator Drip Pan Backorder WPL 2318189 $53.53

47

WP8533980 Whirlpool Refrigerator Screw Backorder WPL WP8533980 $27.52
