Model GE JS630DF3CC Electric Range – Common Parts & Diagrams

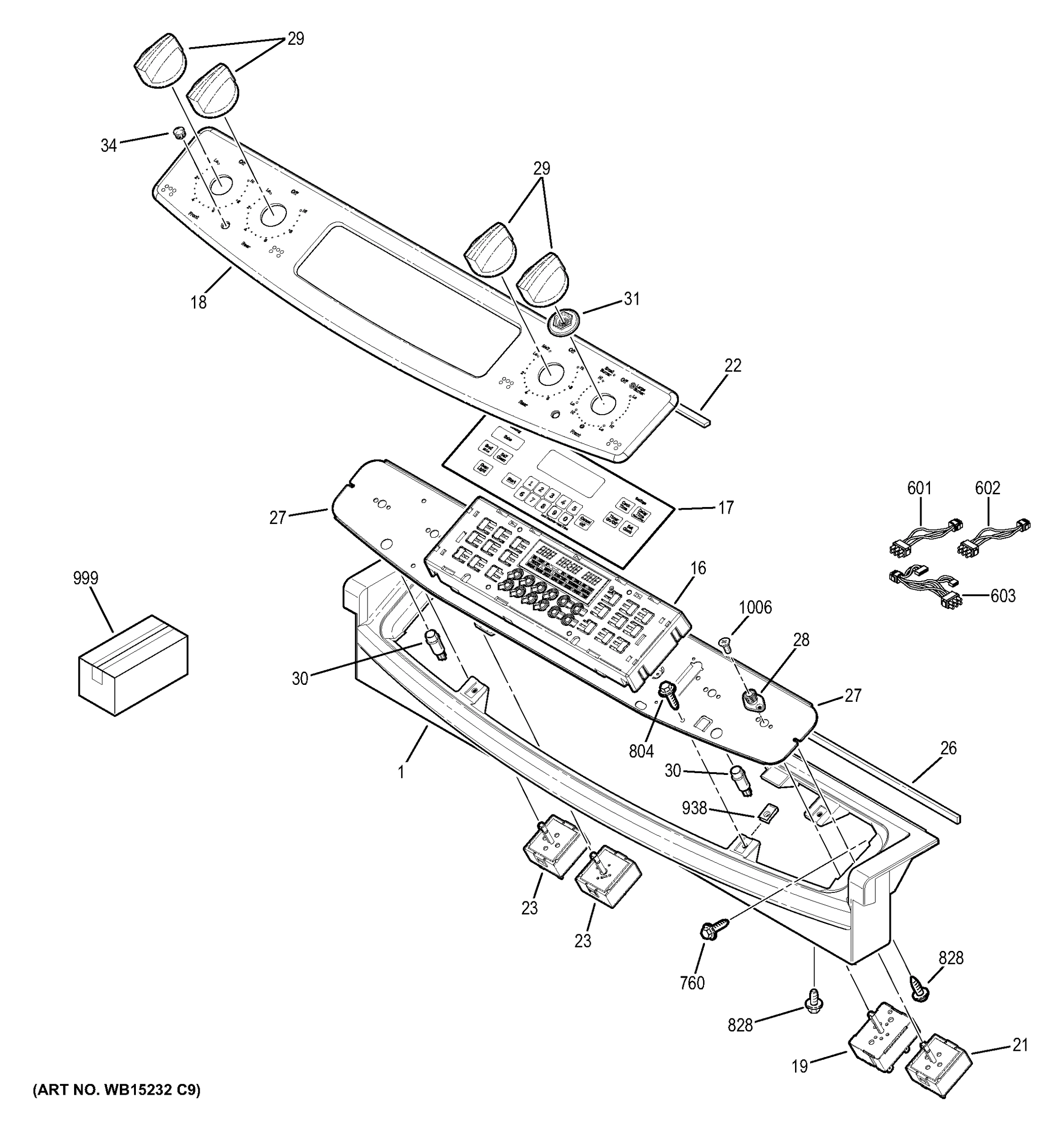

CONTROL PANEL

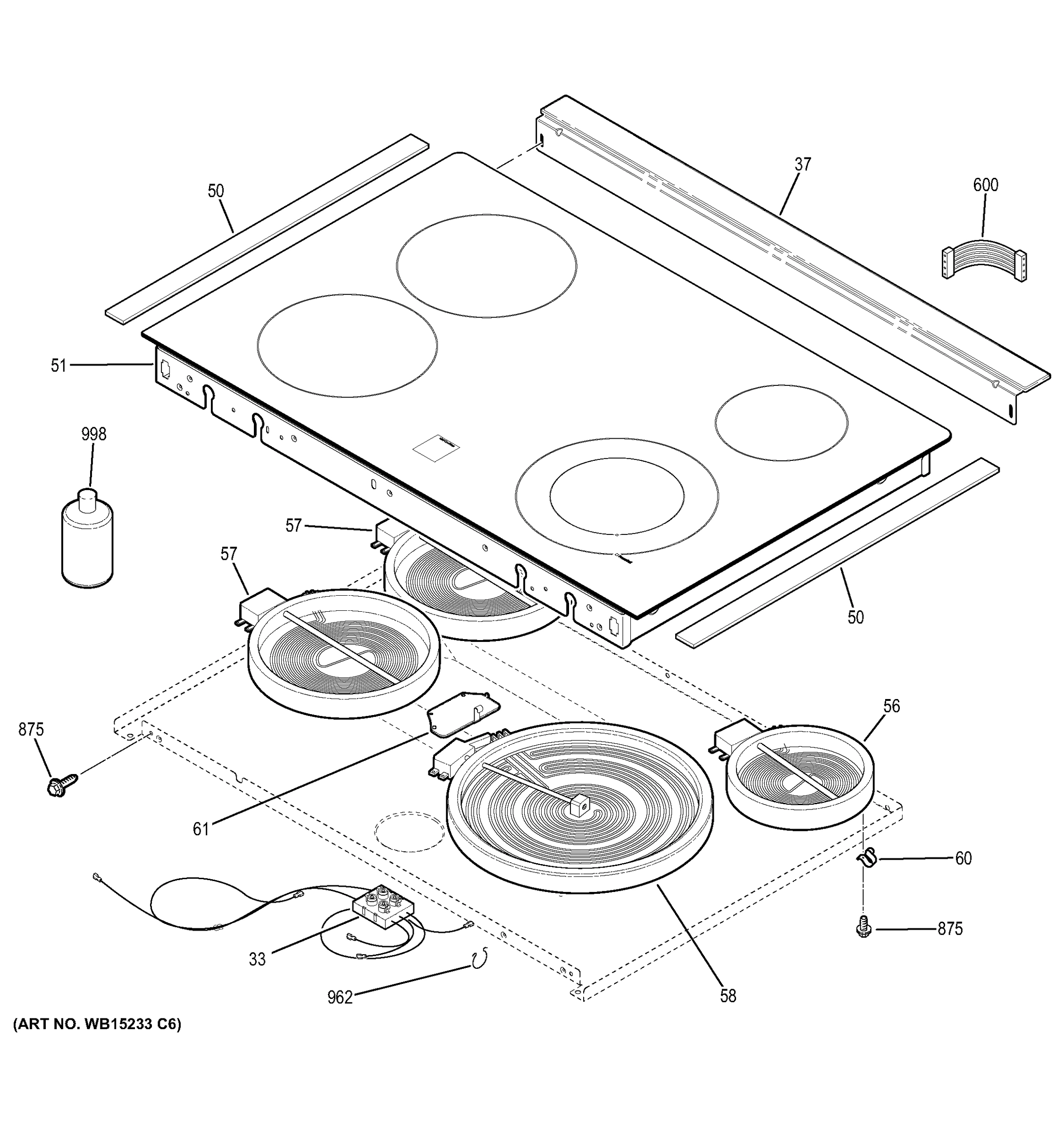

COOKTOP
COOLING FAN
BODY PARTS
DOOR
DOOR LOCK
Common parts from model GE JS630DF3CC Electric Range
1
PANEL CNTL ASM GEN WB36T10667 Contact Us For Availability
11
EXTENSION SIDE RT GEN WB07T10497 Contact Us For Availability
16
OVEN CONTROL (ERC3B) GEN WB27T10416 Contact Us For Availability
17
KEYPANEL SUPT ASM (BQ) GEN WB36X20059 Contact Us For Availability
18
FACEPLATE (SCR-BQ) GEN WB27X20058 Contact Us For Availability
19
INF SWITCH CONTROL (WM) GEN WB24T10012 Contact Us For Availability
21
SWITCH INFINITE CONTROL GEN WB24X26398 Contact Us For Availability
22
GASKET FACEPLATE GEN WB02X10744 Contact Us For Availability
23
INF SWITCH CONTROL (2000 GEN WB24T10026 Contact Us For Availability
26
CONTROL PANEL GASKET GEN WB02X10742 Contact Us For Availability
27
INSERT CNTL PNL GEN WB36T10568 Contact Us For Availability
30
LIGHT INDICATOR GEN WB25T10056 Contact Us For Availability
31
CRYSTAL RETAINER GEN WB02T10046 Contact Us For Availability
32
BLOWER ASM GEN WB26T10039 Contact Us For Availability
33
MODULE INDICATOR LIGHT GEN WB18T10349 Contact Us For Availability
34
LENS SNAP-IN GEN WB25T10022 Contact Us For Availability
50
GASKET MAINTOP RH GEN WB02T10319 Contact Us For Availability
50
GASKET MAINTOP LH GEN WB02T10320 Contact Us For Availability
56
ELEMENT RADIANT 5.5 IN GEN WB30T10145 Contact Us For Availability
57
ELEMENT RADIANT 8 IN GEN WB30T10132 Contact Us For Availability
58
ELEMENT RADIANT 9" DUAL GEN WB30X24111 Contact Us For Availability
61
BRACKET RADIANT ELEMENT GEN WB02X20902 Contact Us For Availability
101
INSULATION OVN DR SDE GEN WB35T10226 Contact Us For Availability
102
INSULATION OVEN DR SDE GEN WB35K10025 Contact Us For Availability
112
LINING OVN DR ASM GEN WB63X20052 Contact Us For Availability
113
RETAINER INSLN OVN DR GEN WB02T10371 Contact Us For Availability
131
DOOR PAD GEN WB01T10026 Contact Us For Availability
132
GASKET OVN DR GEN WB04T10076 Contact Us For Availability
133
DOOR BUMPER GEN WB01T10022 Contact Us For Availability
142
STUD COMPOSITE GEN WB02T10453 Contact Us For Availability
144
SPACER REINFORCEMENT ASM GEN WB02T10503 Contact Us For Availability
150
LATCH OVN GEN WB14T10069 Contact Us For Availability
158
SWITCH LIMIT GEN WB24T10079 Contact Us For Availability
159
LIMIT SWITCH-UPPER(LOCK) GEN WB24T10060 Contact Us For Availability
204
DRAWER BODY ASM MECH GEN WB55T10180 Contact Us For Availability
218
COVER WIRE RR LWR GEN WB34T10054 Contact Us For Availability
222
PANEL DRAWER (BQ) GEN WB56T10367 Contact Us For Availability
241
RACK OVEN GEN WB48T10095 Contact Us For Availability
242
WEDGE DRAWER GEN WB48T10068 Contact Us For Availability
250
GASKET MAINTOP OTR GEN WB02T10511 Contact Us For Availability
251
BAKE ELEMENT GEN WB44T10069 Contact Us For Availability
253
SENSOR ASM GEN WB23T10015 Contact Us For Availability
259
OVEN BULB LENS GEN WB25T10002 Contact Us For Availability
261
SWITCH SPDT HIGH AMP GEN WB24T10147 Contact Us For Availability
264
TRIM FRT FRM (BK) GEN WB07T10516 Contact Us For Availability
268
BRACKET ANTI-TIP ASM GEN WB02T10578 Contact Us For Availability
269
MOUNT TERMINAL BLOCK GEN WB17T10021 Contact Us For Availability
272
SUPPORT SIDE PANEL GEN WB02T10411 Contact Us For Availability
277
RECEIVER HINGE GEN WB10T10083 Contact Us For Availability
281
HINGE DOOR RT GEN WB10X24380 Contact Us For Availability
293
DRAWER SUPPORT FRT GEN WB48T10013 Contact Us For Availability
296
LEG LEVELER GEN WB02X10521 Contact Us For Availability
338
WINDOW PACK ASM GEN WB56X22160 Contact Us For Availability
600
HARNESS WIRE MAINTOP GEN WB18T10522 Contact Us For Availability
761
SCR 8-18X.450 AB FLT20 S GEN WB01T10110 Contact Us For Availability
804
SCR 6-20 GXB IHXW 3/8 NI GEN WB02T10324 Contact Us For Availability
1002
SCREW 8-18 AB IHW 3/8 S GEN WB01T10017 Contact Us For Availability
1005
SCREW 10-32 TR T GEN WB01T10008 Contact Us For Availability
1006
SCR 8-32 TT FLP .270 GEN WB01X23501 Contact Us For Availability
× ![]()
