Model GE JGBS10DEM2BB Gas Range Or Dual Fuel – Common Parts & Diagrams

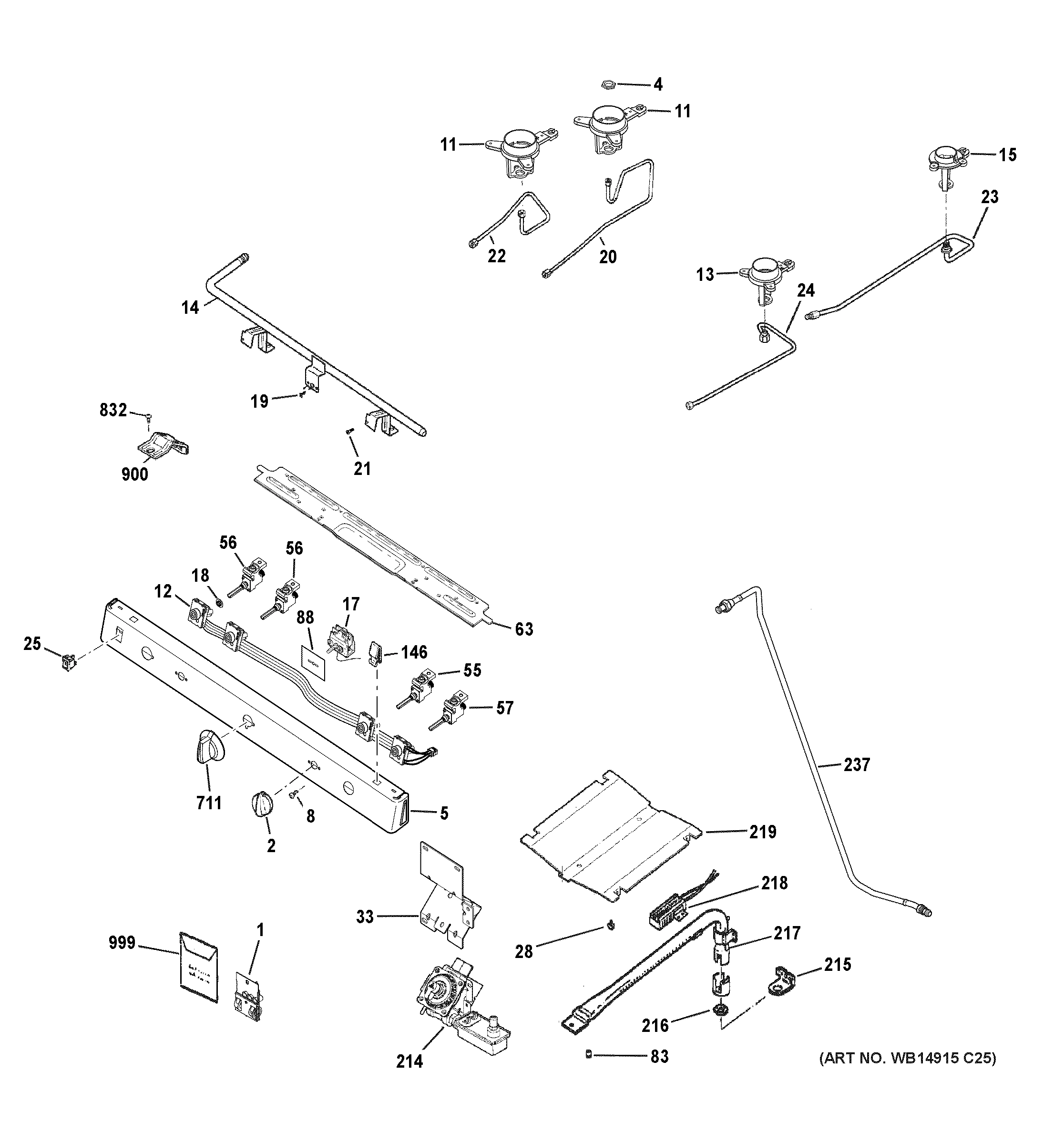

GAS & BURNER PARTS

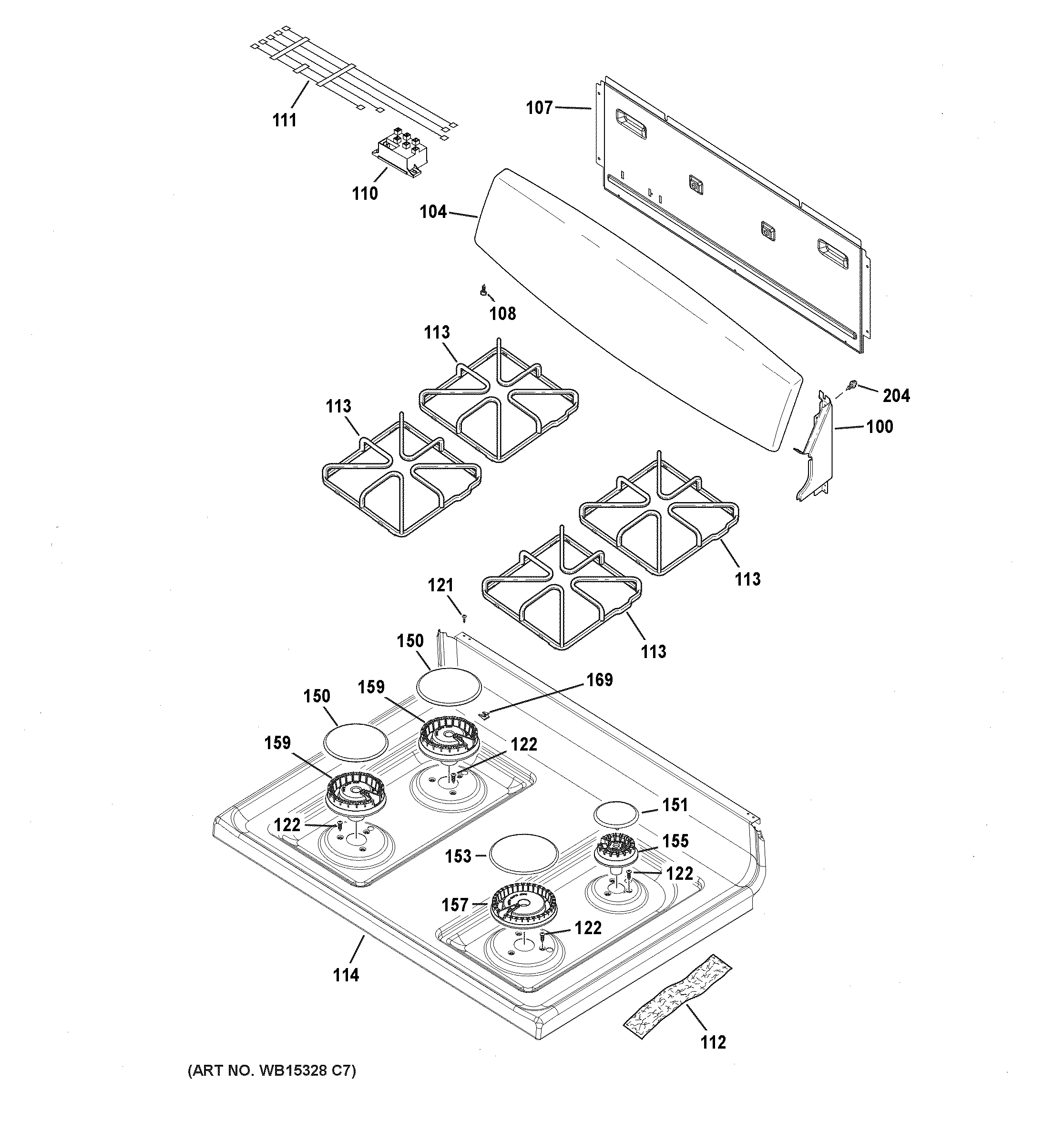

CONTROL PANEL & COOKTOP
BODY PARTS
DOOR & DRAWER PARTS
Common parts from model GE JGBS10DEM2BB Gas Range Or Dual Fuel
2
KNOB VALVE GEN WB03X21227 Contact Us For Availability
4
ECONOMIC NUT GEN WB01K10037 Contact Us For Availability
5
BLACK MANIFOLD PANEL GEN WB36X31440 Contact Us For Availability
8
SCREW 8-32 GEN WB01K10002 Contact Us For Availability
11
INJET, MEDIUM V2 GEN WB02X24727 Contact Us For Availability
12
HARNESS BURNER BOX GEN WB18X31210 Contact Us For Availability
13
INJET, LARGE V2 GEN WB02X24726 Contact Us For Availability
14
MANIFOLD PIPE GEN WB28K10427 Contact Us For Availability
15
INJET, SMALL V2 GEN WB02X24728 Contact Us For Availability
17
ELECTRIC THERMOSTAT DRL GEN WB24X24270 Contact Us For Availability
19
SCREW THERMOSTAT GEN WB01K10080 Contact Us For Availability
20
REAR ORIFICE HOLDER LEFT GEN WB28X26308 Contact Us For Availability
22
FRONT ORIFICE HOLDER LEF GEN WB28X26306 Contact Us For Availability
23
REAR ORIFICE HOLDER RIGH GEN WB28X26309 Contact Us For Availability
24
FRONT ORIFICE HOLDER GEN WB28X26604 Contact Us For Availability
25
SWITCH ROCKER SEALED GEN WB24X20458 Contact Us For Availability
33
BRACKET REGULATOR GEN WB02X22890 Contact Us For Availability
55
ROUND VALVE BURNER 140 GEN WB21K10169 Contact Us For Availability
56
ROUND VALVE BURNER 140 GEN WB28K10578 Contact Us For Availability
57
ROUND VALVE BURNER 140 GEN WB21K10170 Contact Us For Availability
83
OVEN ORIFICE SPUD GEN WB28X21079 Contact Us For Availability
90
FRAME FRONT BUMPER GEN WB02X28738 Contact Us For Availability
91
SCREW 10-32 TR T GEN WB01T10008 Contact Us For Availability
100
END SUPPORT RT GEN WB07X20194 Contact Us For Availability
104
TRIM CONTROL GEN WB36X21588 Contact Us For Availability
110
IGNITION MODULE GEN WB13X24323 Contact Us For Availability
111
ELECTRODES & HARNESS H.V. GEN WB18X26607 Contact Us For Availability
113
GRATE (BLK) GEN WB31K10033 Contact Us For Availability
114
BLACK RANGE TOP GEN WB62X31581 Contact Us For Availability
122
CKT SCREW GEN WB01X24735 Contact Us For Availability
150
CAP-BURNER MED (BLACK) GEN WB29K10001 Contact Us For Availability
151
ASM. CAP, BURNER SMALL V2 GEN WB16X29450 Contact Us For Availability
153
CAP-BURNER LARGE (BLACK) GEN WB29K10006 Contact Us For Availability
155
BURNER, SMALL V2 GEN WB16X24721 Contact Us For Availability
157
BURNER, LARGE V2 GEN WB16X24723 Contact Us For Availability
159
BURNER, MEDIUM V2 GEN WB16X24724 Contact Us For Availability
169
CLIP, IGNITER V2 GEN WB02X24976 Contact Us For Availability
200
OVEN RACK GEN WB48X20249 Contact Us For Availability
201
OVEN RACK GEN WB48X26677 Contact Us For Availability
203
LINE CORD GEN WB18K10036 Contact Us For Availability
206
SCREW GEN WB01K10091 Contact Us For Availability
209
PANEL SIDE BK GEN WB56X29128 Contact Us For Availability
217
BURNER OVEN ASSY GEN WB16X20253 Contact Us For Availability
222
HINGE DOOR GEN WB10X21977 Contact Us For Availability
230
RECEPTACLE PUSH-IN GEN WB08T10026 Contact Us For Availability
237
TUBE MANIFOLD SUPPLY ASM GEN WB28X25363 Contact Us For Availability
240
PANEL BROILER GEN WB63X26890 Contact Us For Availability
241
BOTTOM RANGE GEN WB63K10029 Contact Us For Availability
243
SUPPORT BASE RT GEN WB63X20215 Contact Us For Availability
243
SUPPORT BASE LT GEN WB63X20216 Contact Us For Availability
245
LEG LEVELER GEN WB02K10182 Contact Us For Availability
301
HINGE DOOR GEN WB10X26678 Contact Us For Availability
304
CLIP BROIL HANDLE GEN WB01X26891 Contact Us For Availability
306
PANEL DRAWER GEN WB56X26689 Contact Us For Availability
307
LINER DRAWER GEN WB56X26676 Contact Us For Availability
314
PANEL DOOR GEN WB56X21214 Contact Us For Availability
315
LINER ASM WELD DOOR GEN WB56X21217 Contact Us For Availability
327
SPEEDNUT GEN WB01K10093 Contact Us For Availability
335
SPACER GEN WB02K10156 Contact Us For Availability
339
GUARD INSULATION GEN WB56K10032 Contact Us For Availability
342
PANEL SIDE FOIL GEN WB35X26892 Contact Us For Availability
353
SCREW 8-22 PL 1HX 71 GEN WB01K10012 Contact Us For Availability
362
BARRIER DOOR GEN WB07X20288 Contact Us For Availability
365
HANDLE (LE-BK) GEN WB15T10213 Contact Us For Availability
711
KNOB THERMOSTAT ASM GEN WB03X21219 Contact Us For Availability
832
SCREW GEN WB01K10043 Contact Us For Availability
900
ROUND VALVE BRACKET GEN WB02K10263 Contact Us For Availability
999
HINGE SERVICE KIT GEN WB49X21392 Contact Us For Availability
1330
RECEIVER HINGE GEN WB10X20220 Contact Us For Availability
2000
BADGE ASM GEN WB02X29637 Contact Us For Availability
× ![]()
