Model Maytag JFC2290REP00 REFRIGERATOR, BOTTOM MOUNT – Common Parts & Diagrams

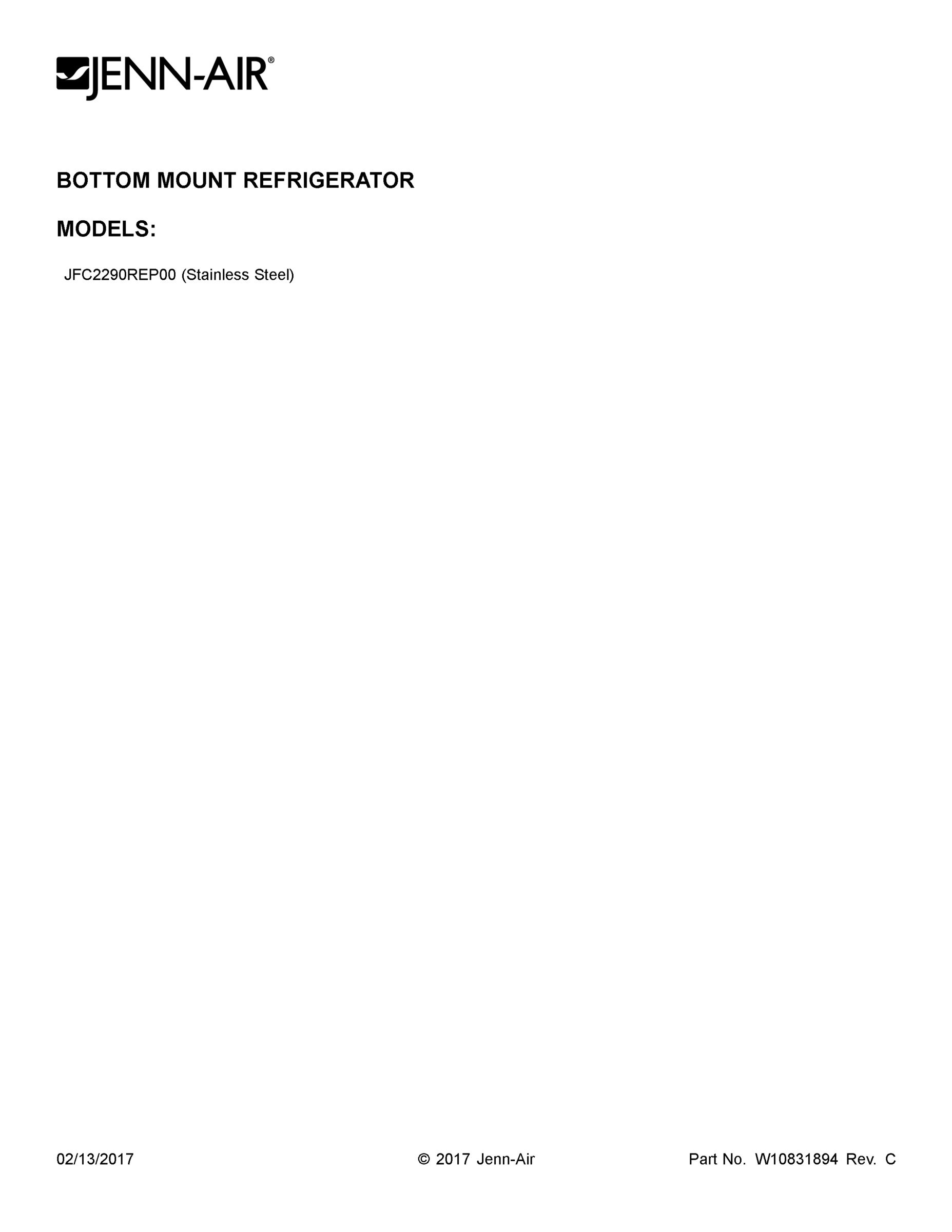

01 - COVER SHEET

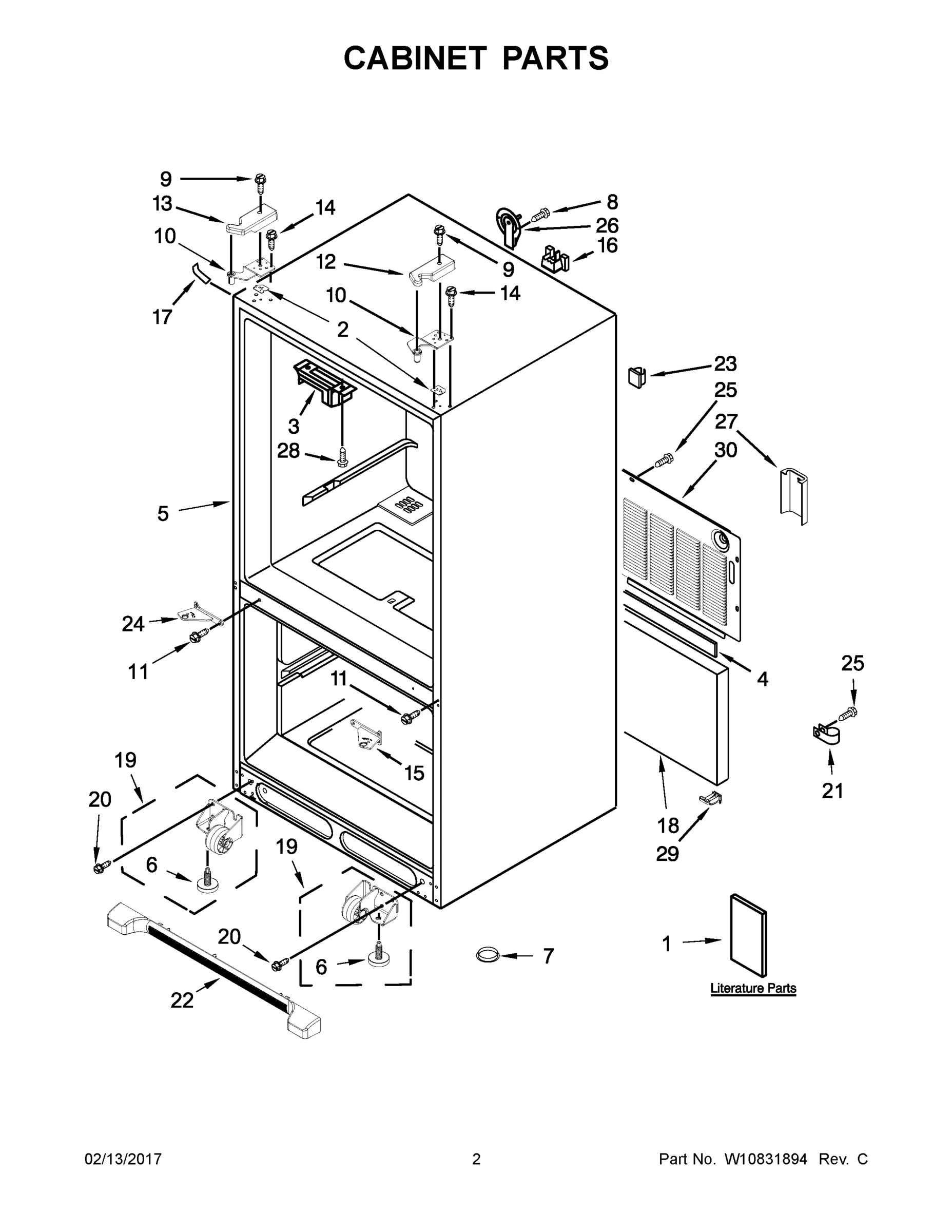

02 - CABINET PARTS

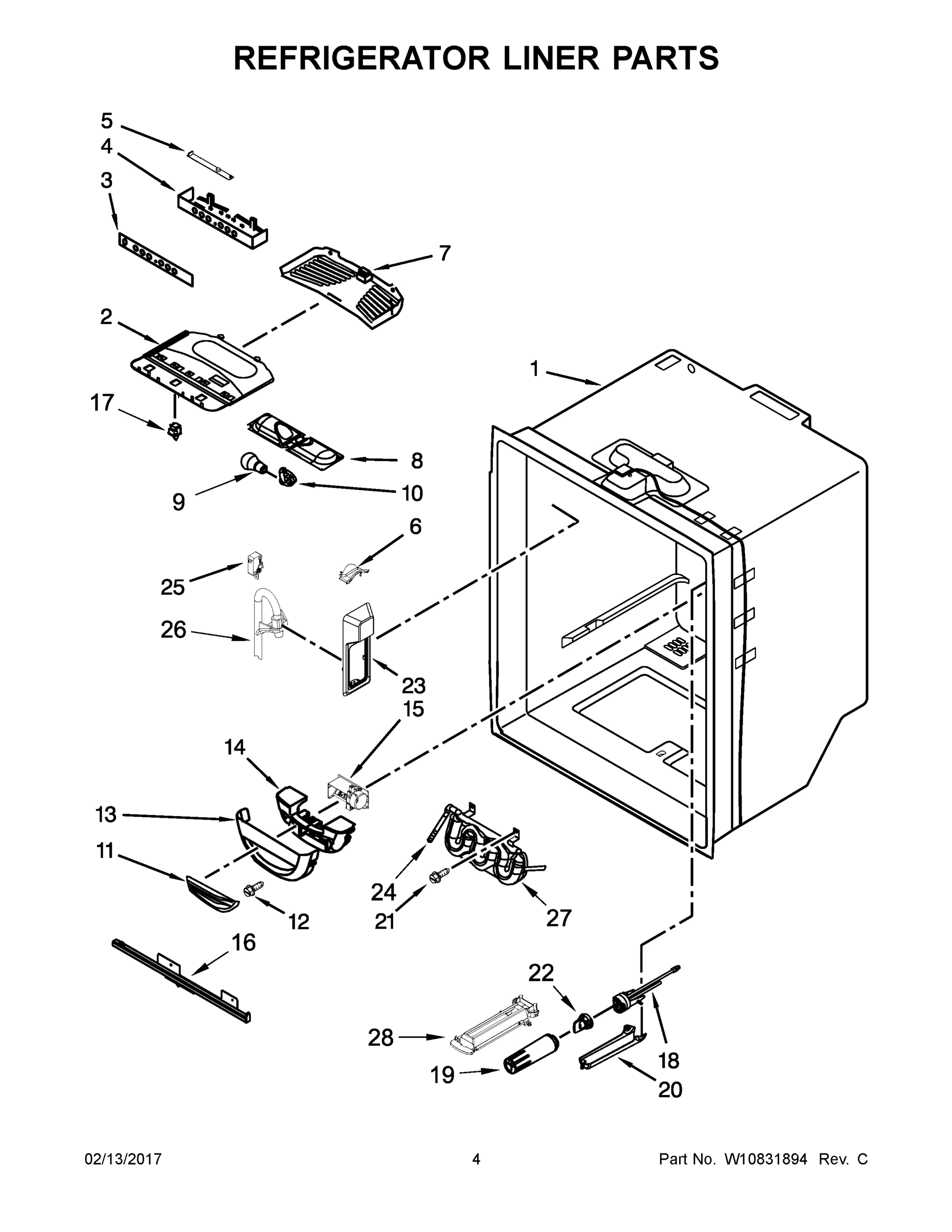

03 - REFRIGERATOR LINER PARTS

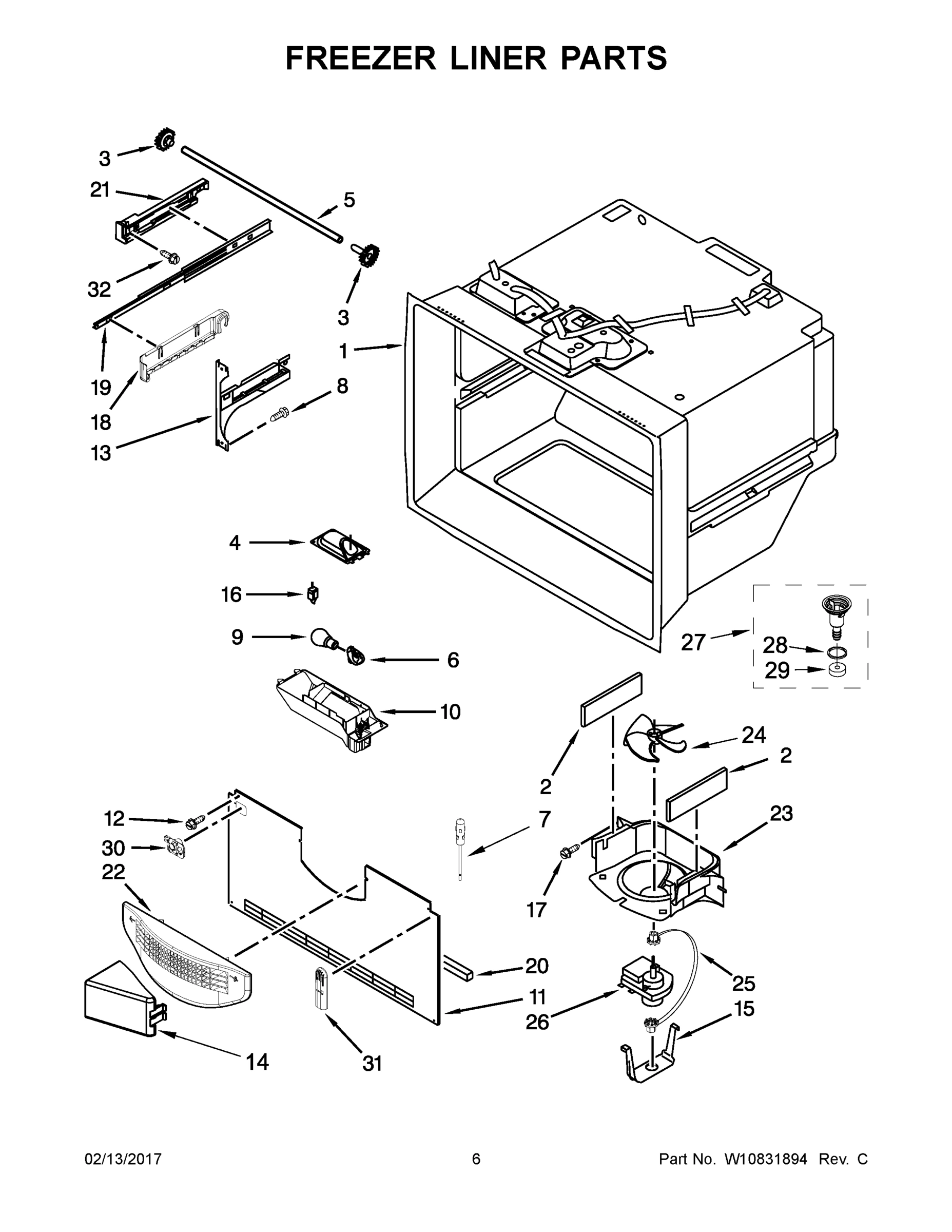

04 - FREEZER LINER PARTS

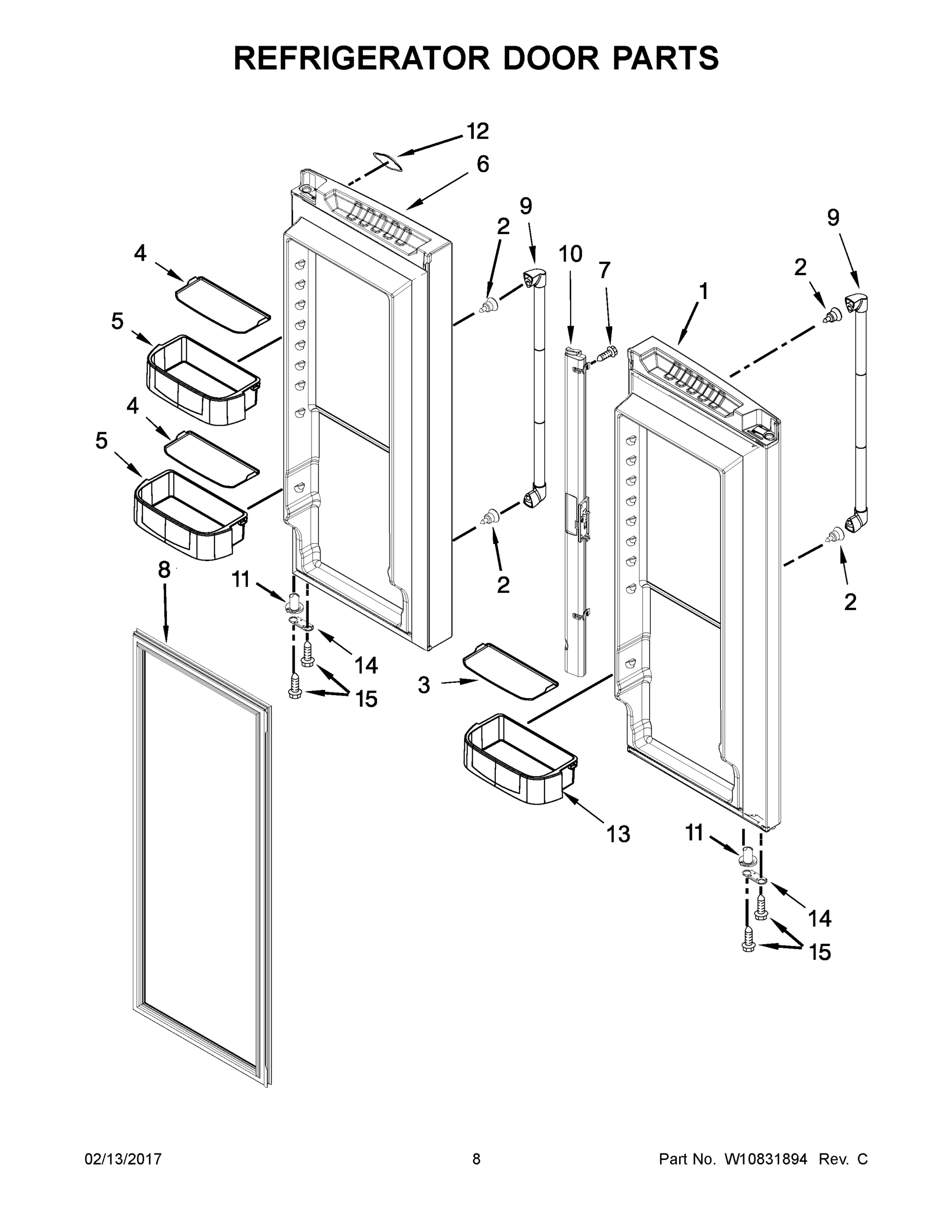

05 - REFRIGERATOR DOOR PARTS

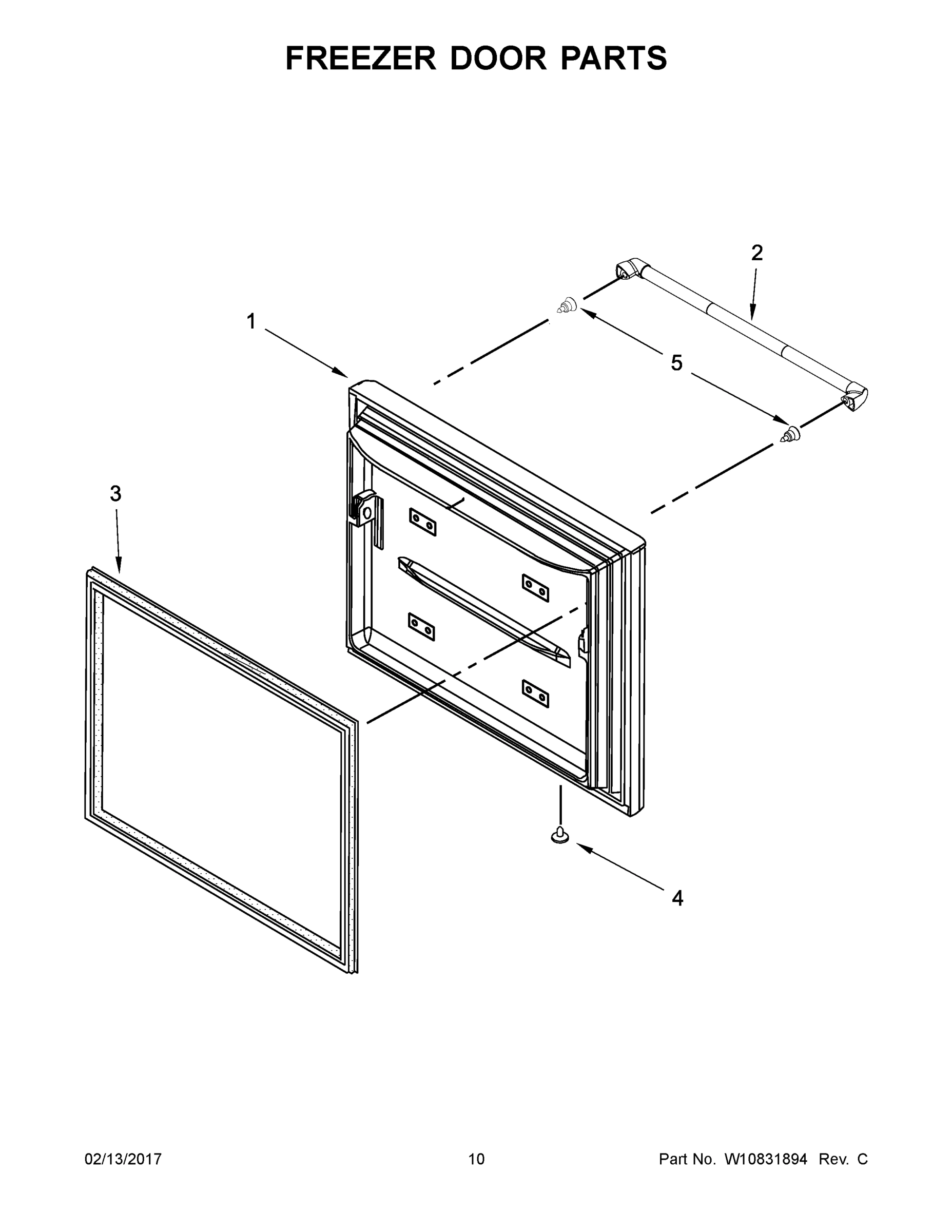

06 - FREEZER DOOR PARTS

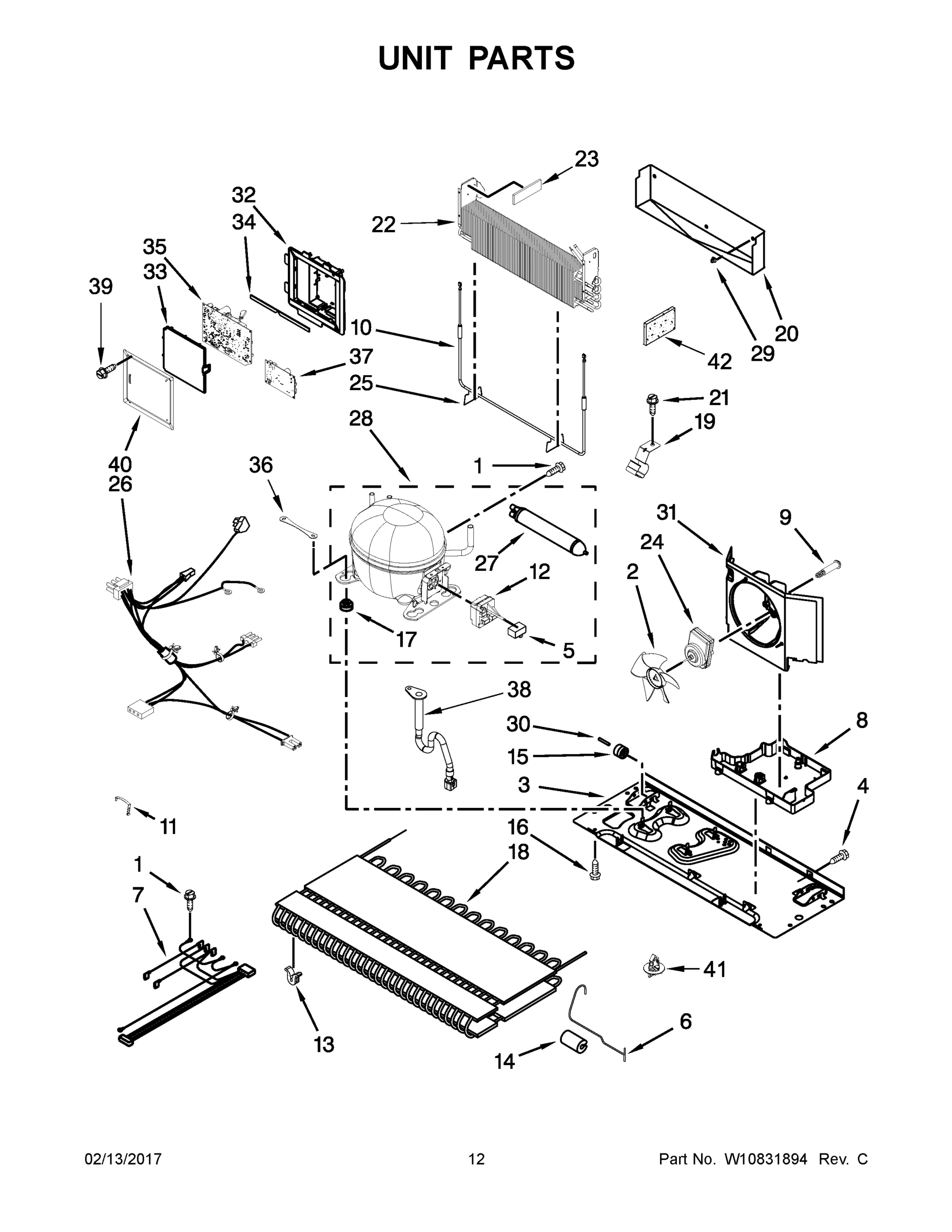

07 - UNIT PARTS

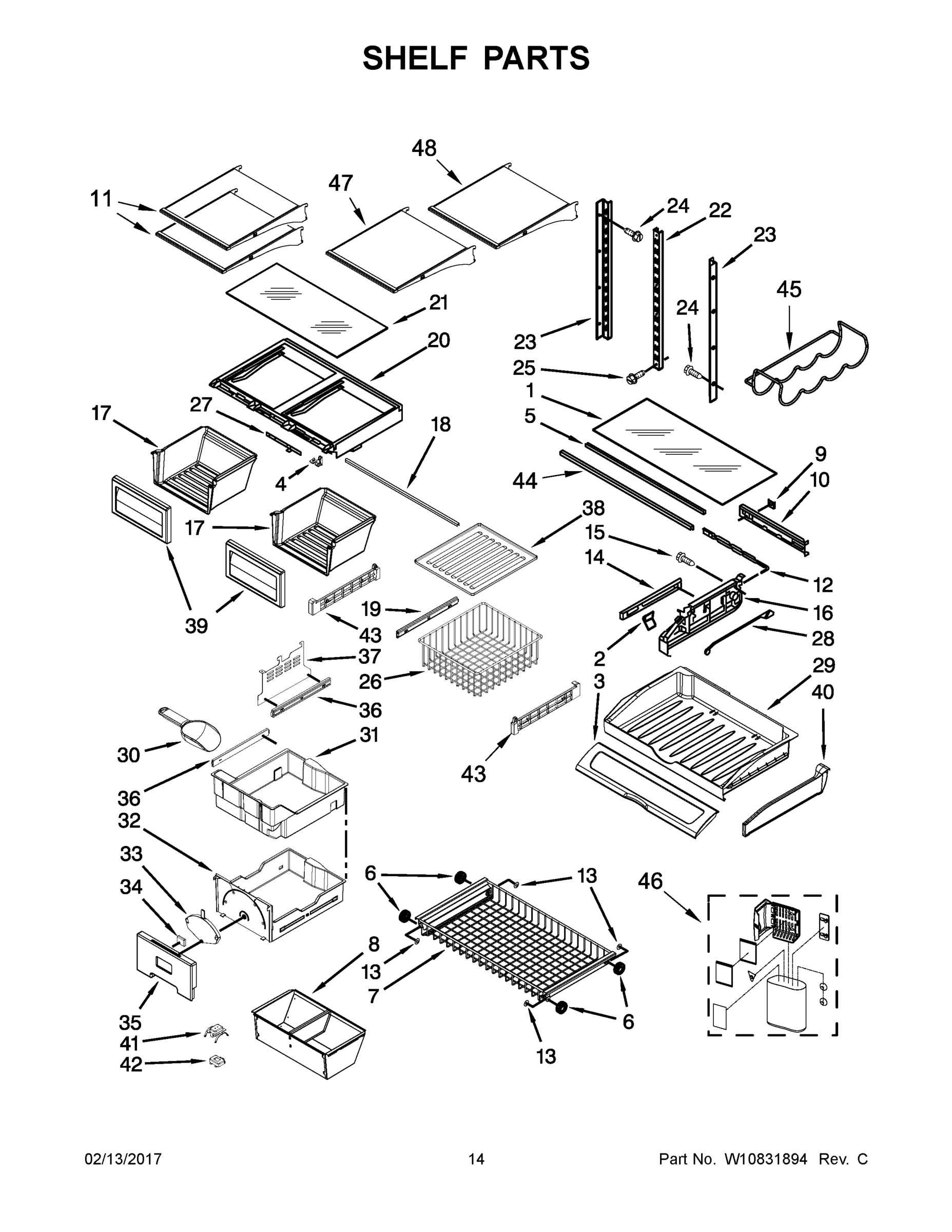

08 - SHELF PARTS

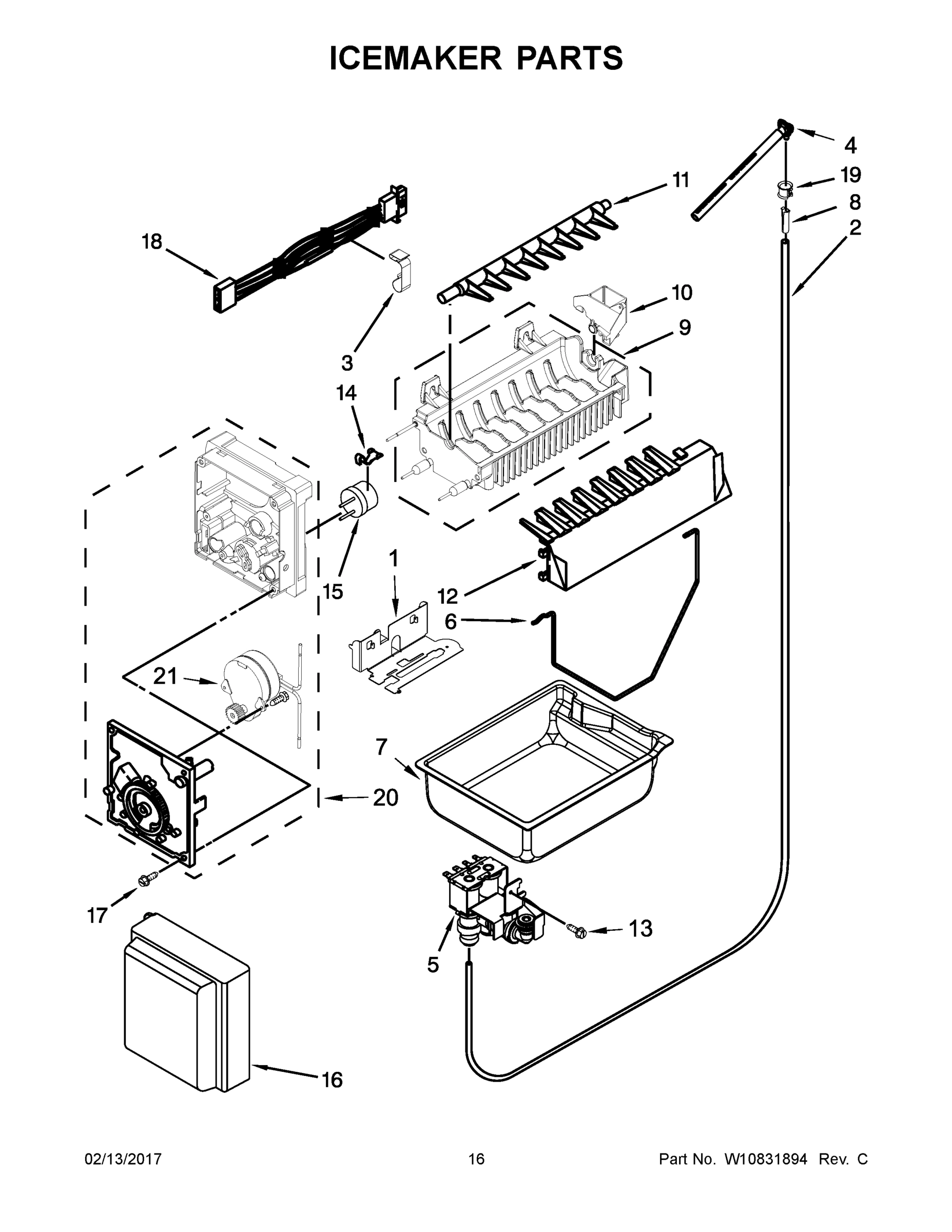

09 - ICEMAKER PARTS
10 - OPTIONAL PARTS
Common parts from model Maytag JFC2290REP00 REFRIGERATOR, BOTTOM MOUNT
1
DOOR, LEFT (STAINLESS) MAY 13094747S Contact Us For Availability
1
DOOR, FREEZER (STAINLESS) MAY 13094917S Contact Us For Availability
1
SCREW MAY 12992301 Contact Us For Availability
1
GLASS, PANTRY MAY 12204815 Contact Us For Availability
1
BRACKET, ICEMAKER MOUNTING MAY W10420084 Contact Us For Availability
2
MODULE, LIGHT MAY W10464766 Contact Us For Availability
2
GASKET, FOAM MAY A3189392 Contact Us For Availability
2

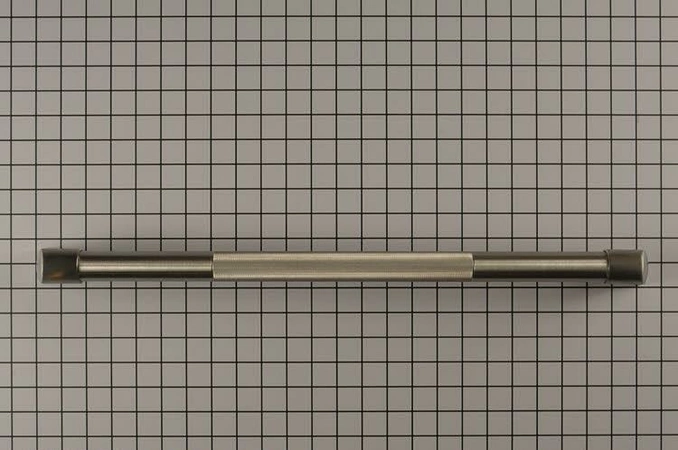

HANDLE, DOOR (STAINLESS) MAY W10446527 Contact Us For Availability
2
BLADE, FAN MAY 12825803 Contact Us For Availability
2
KNOB, TEMPERATURE CONTROL MAY 12655204 Contact Us For Availability
2
TUBING, PLASTIC MAY B5705333 Contact Us For Availability
3
OVERLAY MAY W10808269 Contact Us For Availability
3
GRIPPER, GALLON MAY W10450019 Contact Us For Availability
3
GASKET, DOOR (GREY) MAY W10443320 Contact Us For Availability
3
BASEPAN MAY W10480111 Contact Us For Availability
3
LID, PANTRY DRAWER MAY 12656822 Contact Us For Availability
3
CLAMP, WIRE MAY 10526702 Contact Us For Availability
4
SCREW MAY 12990511 Contact Us For Availability
4
MODULE, CONTROL MAY W10464767 Contact Us For Availability
4
HOUSING, FREEZER LIGHT MAY 12476401V Contact Us For Availability
4
GRIPPER, MEDIUM MAY W10450018 Contact Us For Availability
4
KNOB, HUMIDITY CONTROL MAY W10119222 Contact Us For Availability
4
ELBOW, FILL TUBE MAY 10463203 Contact Us For Availability
5
BOARD, CONTROL MAY W10116216 Contact Us For Availability
5
SHAFT, RACK MAY W10802332 Contact Us For Availability
5
SCREW MAY W10460893 Contact Us For Availability
5
BUCKET, MEDIUM MAY W10119841 Contact Us For Availability
5
CAPACITOR MAY W10350564 Contact Us For Availability
5
BRACE, PANTRY MAY 12227305WH Contact Us For Availability
5
VALVE, WATER INLET MAY W10420083 Contact Us For Availability
6
BRAKE, ROLLER MAY W10141622 Contact Us For Availability
6
COVER, WATERLINE MAY W10116529 Contact Us For Availability
6
SOCKET, LIGHT MAY 12570701V Contact Us For Availability
6
DOOR, RIGHT (STAINLESS) MAY 13094739S Contact Us For Availability
6
TUBE, DISCHARGE MAY W10233569 Contact Us For Availability
6
ROLLER, BASKET MAY 2204542 Contact Us For Availability
6
ARM, SHUT OFF MAY W10512602 Contact Us For Availability
7
COVER, LIGHT MAY 12806501 Contact Us For Availability
7
THERMISTOR MAY 12791419SP Contact Us For Availability
7
SCREW MAY 12990204 Contact Us For Availability
7
HARNESS, EVAPORATOR HEATER MAY W10292241 Contact Us For Availability
7
BASKET, MIDDLE MAY W10119854 Contact Us For Availability
7
PAN, ICE MAY W10120005 Contact Us For Availability
8
HOUSING, LIGHT MAY W10443023 Contact Us For Availability
8
SCREW MAY 12990521 Contact Us For Availability
8
GASKET, DOOR (GREY) MAY W10830046 Contact Us For Availability
8
PAN, DRAIN MAY W10655368 Contact Us For Availability
8
ASSEMBLY, BIN MAY W10144706 Contact Us For Availability
8
INSERT, TUBE MAY A3223101 Contact Us For Availability
9
SCREW MAY 12992603 Contact Us For Availability
9
LAMP, LED MAY W10805744 Contact Us For Availability
9
HANDLE, DOOR (STAINLESS) MAY W10446526 Contact Us For Availability
9
SCREW MAY W10216919 Contact Us For Availability
9
GASKET, PANTRY MAY 12656901 Contact Us For Availability
9
ASSEMBLY, MOLD AND HEATER MAY W10300025 Contact Us For Availability
10
HINGE, TOP (LEFT HAND) MAY W10210890 Contact Us For Availability
10
MODULE, FREEZER LIGHT MAY W10119832 Contact Us For Availability
10
MULLION, DOOR (GREY) MAY 12732508AP Contact Us For Availability
10
HEATER, DEFROST MAY 12729123 Contact Us For Availability
10
HOUSING, CONTROL MAY 12656202 Contact Us For Availability
10
CUP, WATER FILL MAY W10410073 Contact Us For Availability
10A
HINGE, TOP (RIGHT HAND) MAY W10210891 Contact Us For Availability
11
SCREW (STAINLESS) MAY W10673840 Contact Us For Availability
11
INSERT, DAMPER COVER MAY 12806801 Contact Us For Availability
11
COVER, EVAPORATOR MAY W10308420 Contact Us For Availability
11
CLOSURE, DOOR (GREY) MAY 12028505AP Contact Us For Availability
11
STRAP, BALE MAY W10216075 Contact Us For Availability
11
MAY W10878945 MAY W10878945 Contact Us For Availability
11
EJECTOR MAY W10318914 Contact Us For Availability
12
COVER, RIGHT HINGE (GREY) MAY W10120103 Contact Us For Availability
12
SCREW MAY 12990604 Contact Us For Availability
12
DEVICE, START MAY W10330834 Contact Us For Availability
12
SLIDE, TEMPERATURE CONTROL MAY 12655402 Contact Us For Availability
12
STRIPPER, ICE MAY W10699925 Contact Us For Availability
13
COVER, LEFT HINGE (GREY) MAY W10120102 Contact Us For Availability
13
COVER, DAMPER MAY 12806701 Contact Us For Availability
13
BRACKET, DOOR (LEFT HAND) MAY W10330994 Contact Us For Availability
13
BUCKET, GALLON MAY W10119846 Contact Us For Availability
13
GROMMET, CONDENSER MAY W10137529 Contact Us For Availability
13
NUT, HEX MAY 2207415 Contact Us For Availability
13
SCREW MAY 12991604 Contact Us For Availability
13A
BRACKET, DOOR (RIGHT HAND) MAY W10330995 Contact Us For Availability
14
SCREW MAY 12992403 Contact Us For Availability
14
INSULATION, DAMPER MAY 13012402 Contact Us For Availability
14
DIVERTER, AIR MAY W10157765 Contact Us For Availability
14
STOP, DOOR (GREY) MAY W10120097 Contact Us For Availability
14
GROMMET, CONDENSER MAY 2319835 Contact Us For Availability
14
GLIDE, DRAWER (LEFT HAND) MAY W10132653 Contact Us For Availability
14
CLIP, THERMAL FUSE MAY 628379 Contact Us For Availability
14A
GLIDE, DRAWER (RIGHT HAND) MAY W10132652 Contact Us For Availability
15
SCREW MAY 12990504 Contact Us For Availability
15
HINGE, CENTER (RIGHT) (GREY) MAY W10135097 Contact Us For Availability
15
CONTROL, DAMPER MAY W10594329 Contact Us For Availability
15
CLIP, EVAPORATOR MOTOR MAY 13058002 Contact Us For Availability
15
ROLLER MAY 12477102 Contact Us For Availability
15
THERMOSTAT MAY W10290336 Contact Us For Availability
16
BLOCK, FILL TUBE MAY W10658542 Contact Us For Availability
16
SLIDE, CRISPER (LEFT HAND) MAY 2302952 Contact Us For Availability
16
SWITCH, LIGHT MAY 12466105 Contact Us For Availability
16
SCREW MAY 12992101 Contact Us For Availability
16
ENDCAP, PANTRY (LEFT HAND) MAY W10122078 Contact Us For Availability
16
COVER, FRONT MAY W10377174 Contact Us For Availability
16A
SLIDE, CRISPER (RIGHT HAND) MAY 2302953 Contact Us For Availability
16A
ENDCAP, PANTRY (RIGHT HAND) MAY W10121977 Contact Us For Availability
17
COVER, CORNER (GREY) MAY 12587703AP Contact Us For Availability
17
GROMMET MAY 10835903 Contact Us For Availability
17
PAN, CRISPER MAY W10119219 Contact Us For Availability
17
SCREW MAY 489464 Contact Us For Availability
18
INSULATION MAY 12820505 Contact Us For Availability
18
HEAD, WATER FILTER (INCLUDES BYPASS CARTRIDGE MAY W10609243 Contact Us For Availability
18
CRADLE, BASKET (LEFT HAND) MAY W10119848 Contact Us For Availability
18
CONDENSER MAY W10505454 Contact Us For Availability
18
BRACE, CRISPER FRAME MAY W10490807 Contact Us For Availability
18
HARNESS, ICE MAKER MAY W10458985 Contact Us For Availability
18A
CRADLE, BASKET (RIGHT HAND) MAY W10119849 Contact Us For Availability
19
ROLLER ASSEMBLY (FRONT) (LEFT HAND) MAY W10515763 Contact Us For Availability
19
FILTER, WATER MAY W10735404 Contact Us For Availability
19
SLIDE, DRAWER MAY 13055901N Contact Us For Availability
19
CLIP, DRIER MAY W10281329 Contact Us For Availability
19
GLIDE, UPPER BASKET MAY W10170836 Contact Us For Availability
19
CLIP, SPEED MAY M0114003 Contact Us For Availability
19A
ROLLER ASSEMBLY (FRONT) (RIGHT HAND) MAY W10515762 Contact Us For Availability
20
SCREW MAY W10709365 Contact Us For Availability
20
COVER, FILTER MAY 12960301N Contact Us For Availability
20
GASKET MAY A3189396 Contact Us For Availability
20
TRAY, DRIP MAY W10292803 Contact Us For Availability
20
FRAME, CRISPER MAY W10119215 Contact Us For Availability
20
ASSEMBLY, MODULE AND MOTOR MAY W10281342 Contact Us For Availability
21
MOTOR (NOT AVAILABLE, ORDER #20) MAY N/P Contact Us For Availability
21
CLAMP, TUBE MAY M0108107 Contact Us For Availability
21
ADAPTER, SLIDE (LEFT HAND) MAY W10544403 Contact Us For Availability
21
SCREW MAY 12990701 Contact Us For Availability
21
GLASS, CRISPER COVER MAY 12204827 Contact Us For Availability
21A
ADAPTER, SLIDE (RIGHT HAND) MAY W10544404 Contact Us For Availability
22
GRILLE, TOE (GREY) MAY W10534155 Contact Us For Availability
22
CARTRIDGE, BYPASS MAY 12664501SP Contact Us For Availability
22
GRILLE, FREEZER AIR MAY 13024803 Contact Us For Availability
22
EVAPORATOR MAY W10669255 Contact Us For Availability
22
LADDER, CENTER MAY W10273463 Contact Us For Availability
23
FACADE, DISPENSER MAY W10204292 Contact Us For Availability
23
SHROUD, EVAPORATOR FAN MAY 13057901 Contact Us For Availability
23
GASKET, FOAM MAY A3189397 Contact Us For Availability
23
LADDER, SIDE MAY W10569182 Contact Us For Availability
24
HINGE, CENTER (LEFT) (GREY) MAY W10135096 Contact Us For Availability
24
BLADE, FAN MAY 2169142 Contact Us For Availability
24
MOTOR, CONDENSER FAN MAY W10609117 Contact Us For Availability
24
SCREW MAY 12990513 Contact Us For Availability
25
SWITCH, LIMIT MAY 12575502 Contact Us For Availability
25
GROMMET MAY W10121318 Contact Us For Availability
25
SCREW MAY 12990515 Contact Us For Availability
26
COVER, WATER LINE MAY 12726003 Contact Us For Availability
26
WATERLINE, DISPENSER MAY W10117324 Contact Us For Availability
26
MOTOR, EVAPORATOR MAY W10128551 Contact Us For Availability
26
HARNESS, WIRE MAY W10679221 Contact Us For Availability
26
BASKET, UPPER FREEZER MAY W10120003 Contact Us For Availability
27
GUARD, DUAL WATER VALVE MAY W10208593 Contact Us For Availability
27
TANK, WATER MAY 12706109 Contact Us For Availability
27
ASSEMBLY, DRAIN FUNNEL MAY W10662407 Contact Us For Availability
27
DRIER MAY W10177049 Contact Us For Availability
27
SLIDE, HUMIDITY CONTROL MAY W10119217 Contact Us For Availability
28
SCREW MAY 12990302 Contact Us For Availability
28
BRACKET, FILTER BASE MAY 12955901 Contact Us For Availability
28
SEAL MAY M0500703 Contact Us For Availability
28
COMPRESSOR MAY W10485433 Contact Us For Availability
28
BAR, TEMPERATURE CONTROL MAY 12655303 Contact Us For Availability
29
SWEEP, DUAL TUBE MAY W10528513 Contact Us For Availability
29
GASKET, DRAIN MAY B8381501 Contact Us For Availability
29
CLIP, EVAPORATOR MAY 10623002 Contact Us For Availability
29
DRAWER, PANTRY MAY 12655703 Contact Us For Availability
30
COVER, UNIT MAY W10211855 Contact Us For Availability
30
GUIDE, FILL TUBE MAY W10201550 Contact Us For Availability
30
AXLE, ROLLER MAY 12477202 Contact Us For Availability
30
SCOOP, ICE PAN MAY W10182881 Contact Us For Availability
31
COVER, THERMISTOR MAY 12815301 Contact Us For Availability
31
SHROUD, CONDENSER FAN MAY W10189184 Contact Us For Availability
32
SCREW MAY 12990501 Contact Us For Availability
32
BOX, HV CONTROL MAY W10119790 Contact Us For Availability
32
CARRIER, ICE PAN MAY W10120008 Contact Us For Availability
33
LID, HV CONTROL BOX MAY W10296541 Contact Us For Availability
33
LEVER, ICE PAN MAY W10184030 Contact Us For Availability
34
GASKET, CONTROL BOX MAY 12957801 Contact Us For Availability
34
MAGNET, LATCH MAY W10720771 Contact Us For Availability
35
CONTROL, ELECTRONIC MAY W10120827 Contact Us For Availability
35
FRONT, ICE PAN MAY W10174720 Contact Us For Availability
36
STRAP, COMPRESSOR MAY W10236396 Contact Us For Availability
36
GLIDE, ICE PAN MAY W10170835 Contact Us For Availability
37
CONTROL, POWER SUPPLY ELECTRONIC MAY W10120821 Contact Us For Availability
37
SUPPORT, FREEZER DOOR MAY W10120014 Contact Us For Availability
38
EXTENSION, DRAIN TUBE MAY W10622099 Contact Us For Availability
38
MAT, UPPER BASKET MAY W10451455 Contact Us For Availability
39
SCREW MAY 12990702 Contact Us For Availability
39
FRONT, CRISPER MAY W10212414 Contact Us For Availability
40
COVER, CONTROL BOX MAY 12961602 Contact Us For Availability
40
DIVIDER, PANTRY MAY 12709301 Contact Us For Availability
41
CLIP, CONDENSER MAY W10815863 Contact Us For Availability
41
LATCH, COUPLER MAY W10121002 Contact Us For Availability
42
SEALER, INSULATION MAY 2169104 Contact Us For Availability
42
HOUSING, COUPLER MAY W10121004 Contact Us For Availability
43
ADAPTER (LEFT HAND) MAY W10163084 Contact Us For Availability
43A
ADAPTER (RIGHT HAND) MAY W10163087 Contact Us For Availability
44
TRIM, PANTRY GLASS MAY W10528935 Contact Us For Availability
45
RACK, WINE MAY W10742811 Contact Us For Availability
46
ASSEMBLY, PRODUCE PRESERVER MAY W10826105 Contact Us For Availability
47
ASSEMBLY, SHELF MAY W10878955 Contact Us For Availability
48
ASSEMBLY, SHELF MAY W10905889 Contact Us For Availability
100
ASSEMBLY, ICEMAKER (COMPLETE) MAY W10683115 Contact Us For Availability
NI
HARNESS, CONTROL (REFRIGERATOR) MAY W10391289 Contact Us For Availability
NI
HARNESS, LIGHTS (FREEZER) MAY W10196195 Contact Us For Availability
NI
VALVE, ACCESS MAY 876764 Contact Us For Availability
NI
VALVE, ACCESS MAY 978025 Contact Us For Availability
NI
VALVE, ACCESS MAY 978026 Contact Us For Availability
NI
VALVE, ACCESS MAY 978027 Contact Us For Availability
NI
VALVE, ACCESS MAY 978028 Contact Us For Availability
NI
VALVE, ACCESS MAY 978029 Contact Us For Availability
NI
VALVE, ACCESS MAY 978030 Contact Us For Availability
NI
TORX SCREW WRENCH, TORX KEY MAY 1117510 Contact Us For Availability
NI
MISCELLANEOUS, CLEANER, STAINLESS STEEL MAY 20000008 Contact Us For Availability
NI
MISCELLANEOUS, SEALER, GUM (4 FEET) MAY 212643 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. BLACK) MAY 285006 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) MAY 350930 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. ENAMEL, BLAC MAY 350939 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE PRIMER MAY 350942 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) MAY 4392899 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. BISCUIT/BISQ MAY 4392901 Contact Us For Availability
NI
MISCELLANEOUS, TAPE, VINYL (3/4 X 108") MAY 479502 Contact Us For Availability
NI
MISCELLANEOUS, CORK, SEALER MAY 503695 Contact Us For Availability
NI
MISCELLANEOUS, SEALER, MASTIC (1 QT) MAY 505587 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE PORCELAIN (2 OZ MAY 511873 Contact Us For Availability
NI
MISCELLANEOUS, GREASE, SILICONE (1/2 OZ.) MAY 542638 Contact Us For Availability
NI
MISCELLANEOUS, CEMENT, ALUMILASTIC (1 1/4 OZ. MAY 542639 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BLACK) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE (UNCUT)) MAY 799344 Contact Us For Availability
NI
MISCELLANEOUS, KIT, WATER INLET MAY 8003RP Contact Us For Availability
NI
MISCELLANEOUS, KIT, TERMINAL CONNECTOR MAY 833938 Contact Us For Availability
NI
MISCELLANEOUS, KIT, FOAM SLAB (30" X 32 1/2" MAY 876029 Contact Us For Availability
NI
MISCELLANEOUS, INSULATION KIT (14 PIECES, 3" MAY 876305 Contact Us For Availability
NI
MISCELLANEOUS, INSULATION (2 PIECES, 3" X 24" MAY 876370 Contact Us For Availability
NI
MISCELLANEOUS, INSULATION, FIBERGLASS (63 1/2 MAY 978941 Contact Us For Availability
NI
MISCELLANEOUS MAY F2WC9I1 Contact Us For Availability
× ![]()
