Model Maytag JDB8700AWS0 DISHWASHER – Common Parts & Diagrams

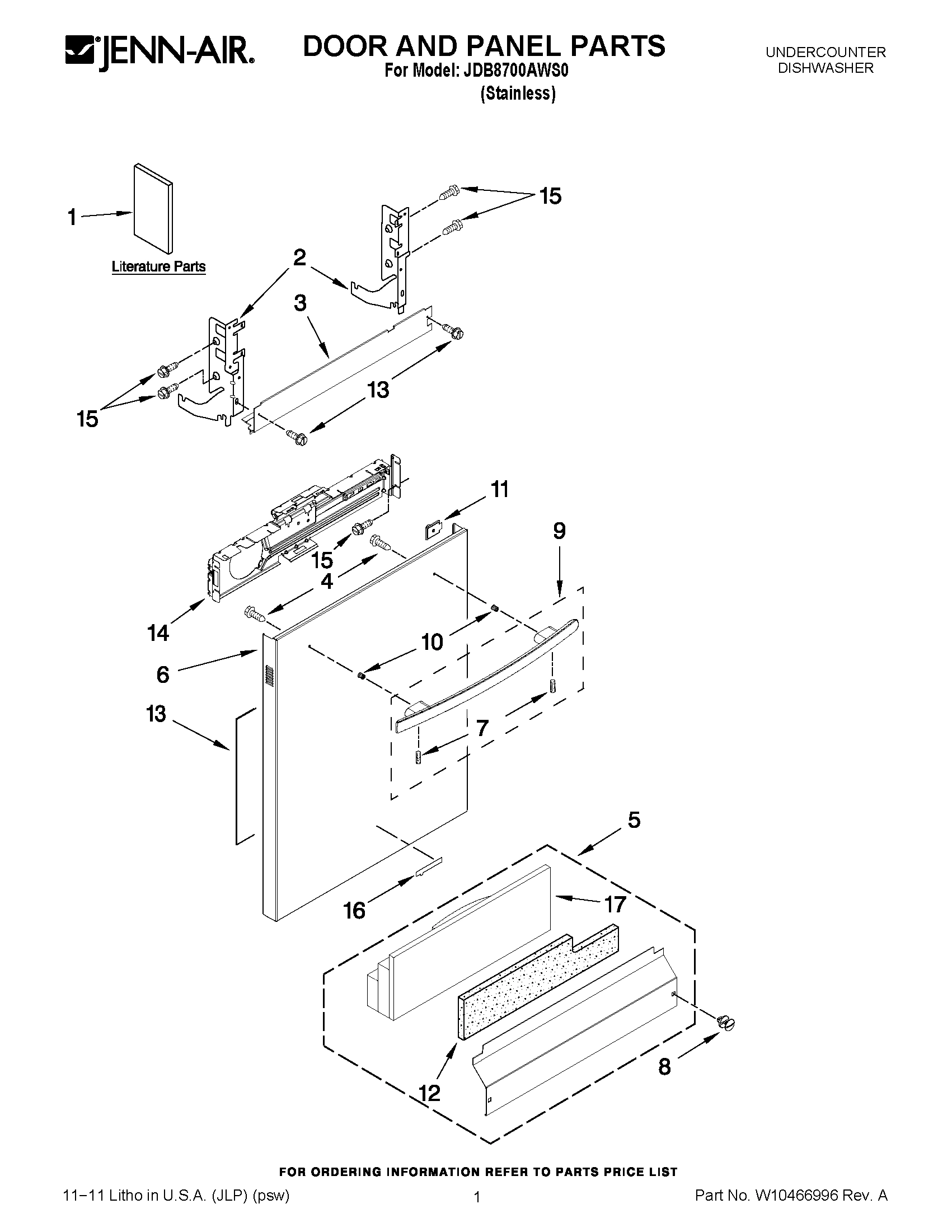

01 - DOOR AND PANEL PARTS

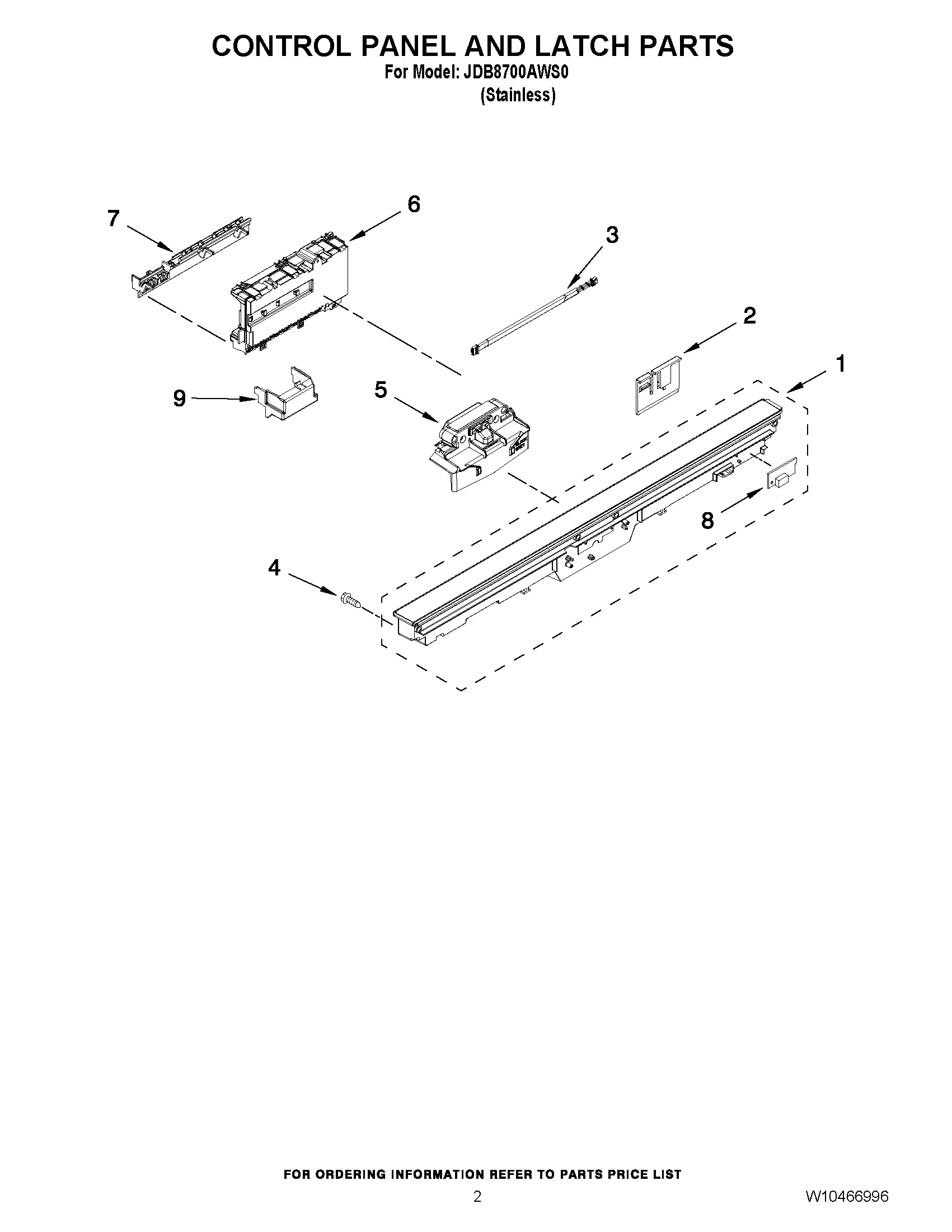

02 - CONTROL PANEL AND LATCH PARTS

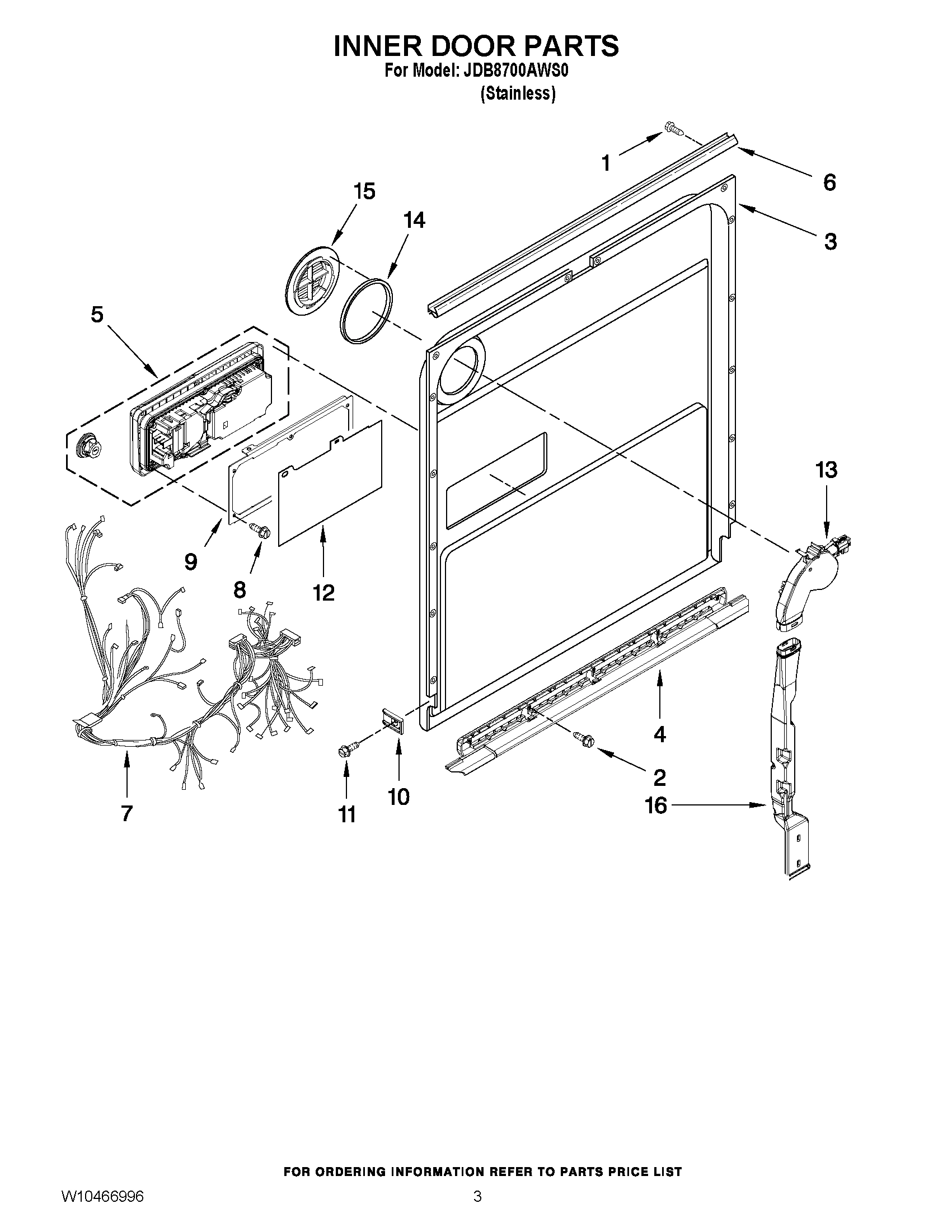

03 - INNER DOOR PARTS

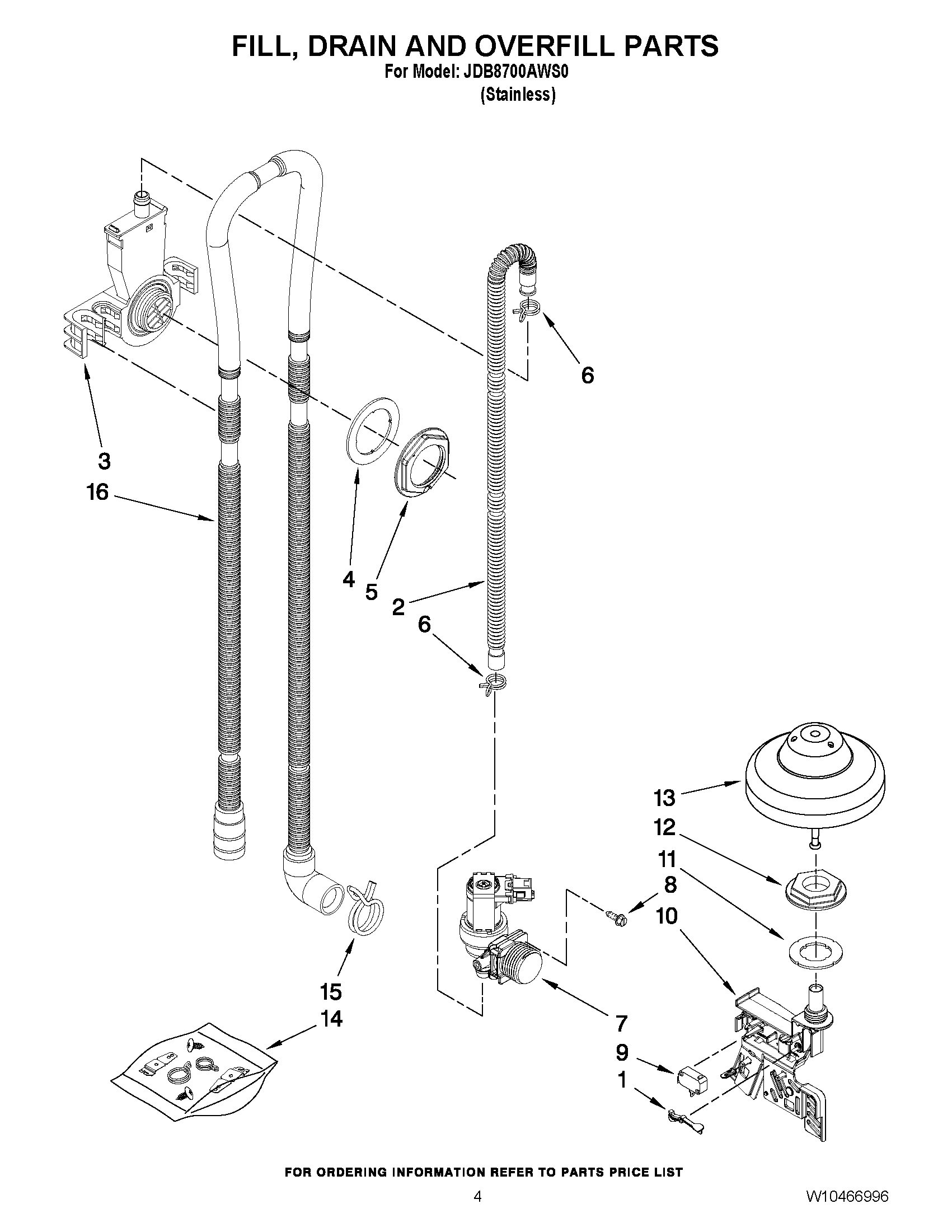

04 - FILL, DRAIN AND OVERFILL PARTS

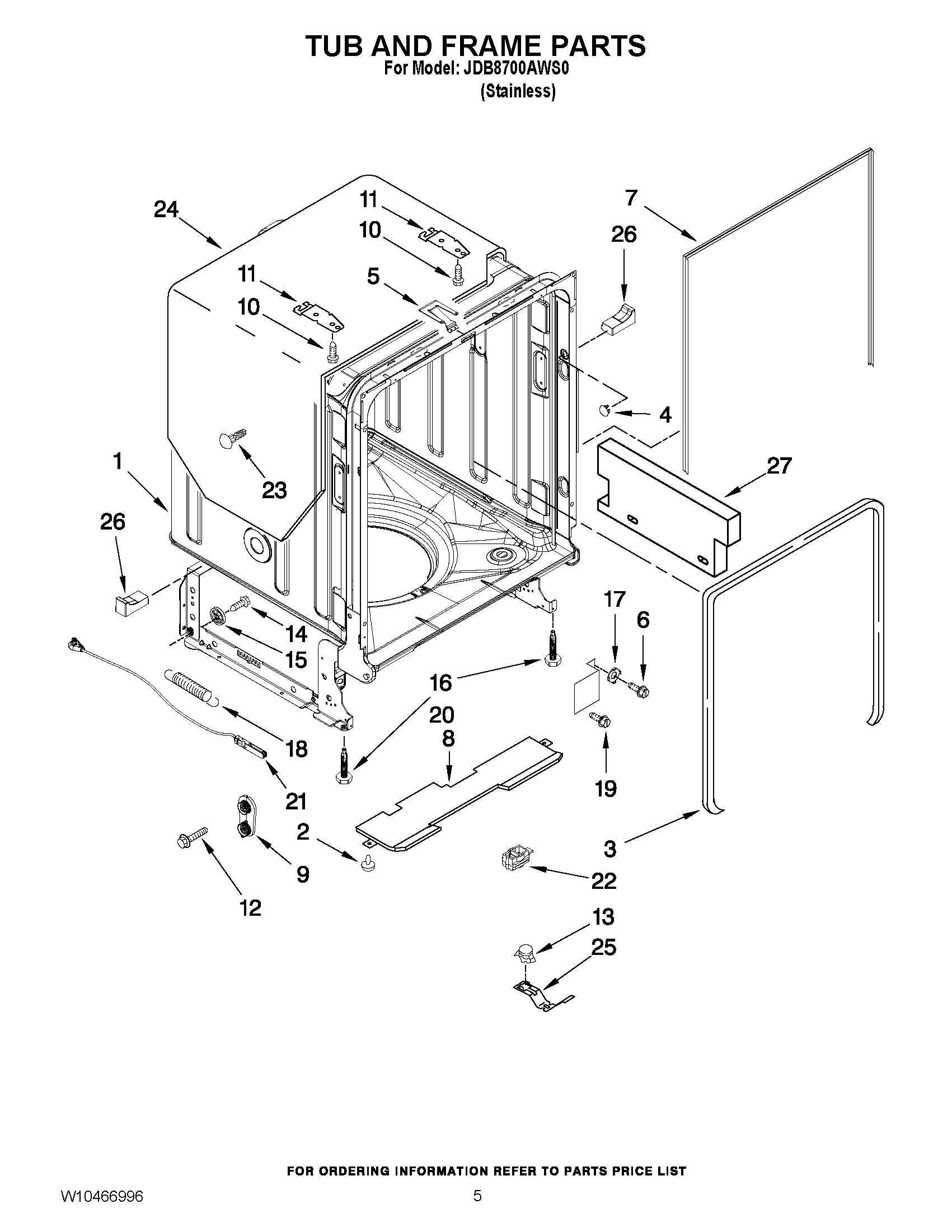

05 - TUB AND FRAME PARTS

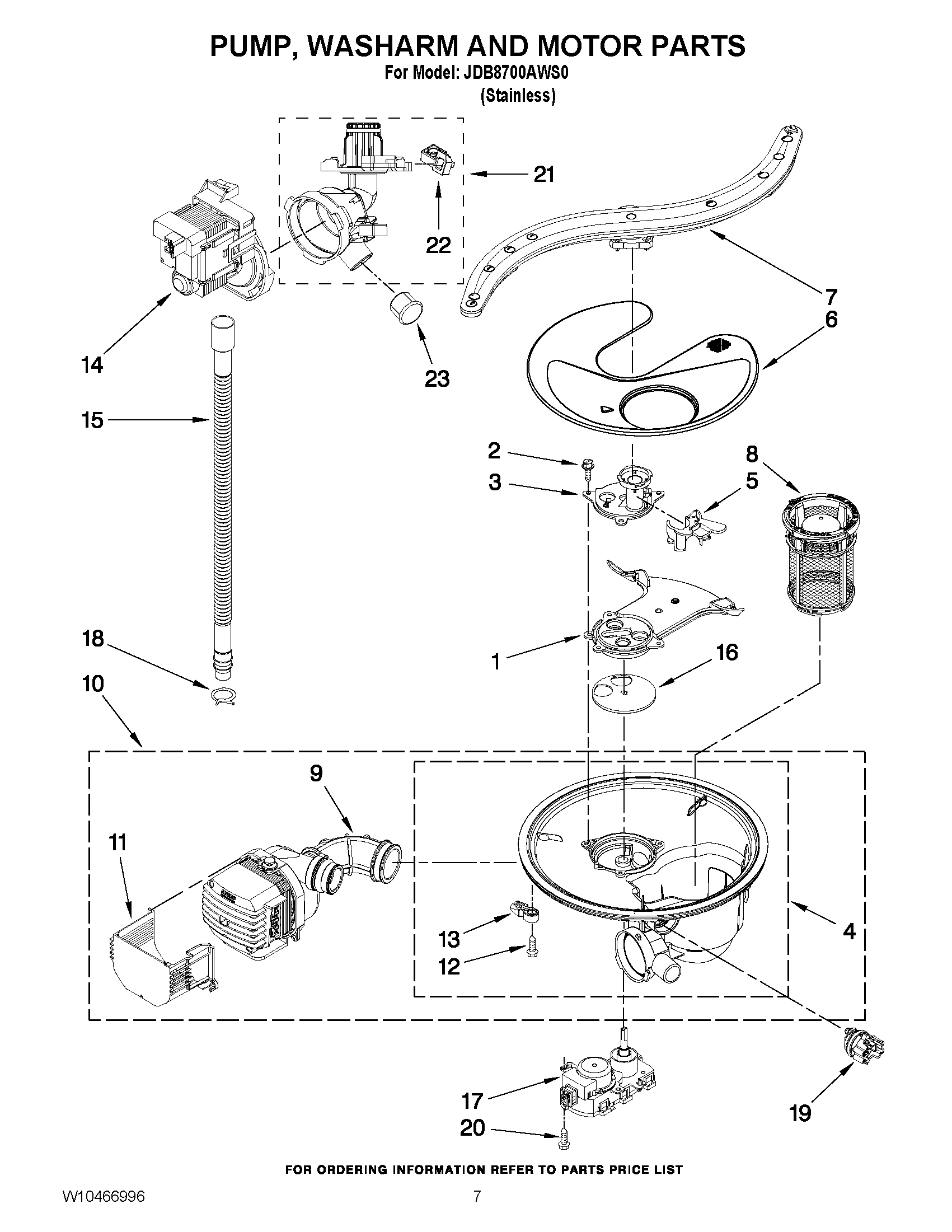

06 - PUMP, WASHARM AND MOTOR PARTS

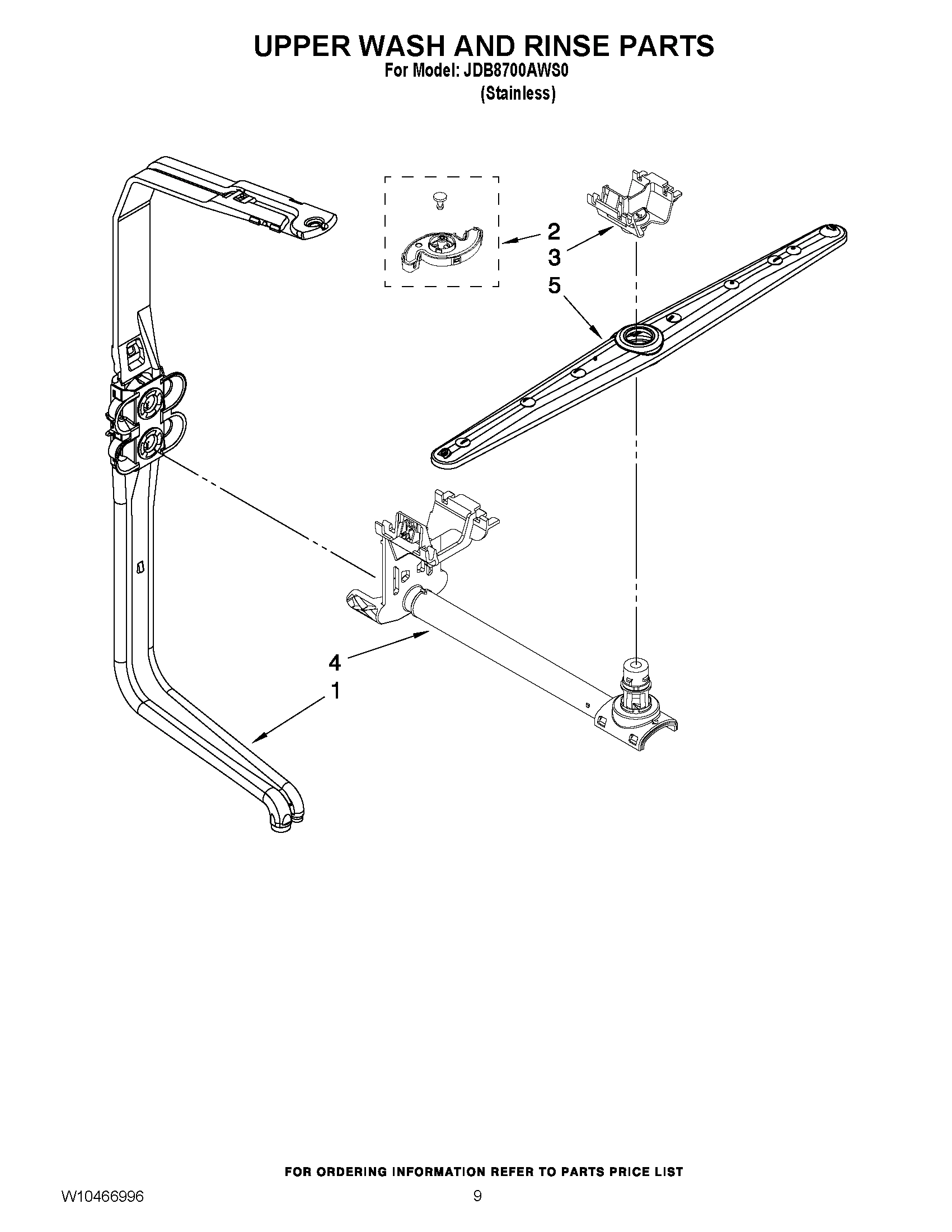

07 - UPPER WASH AND RINSE PARTS

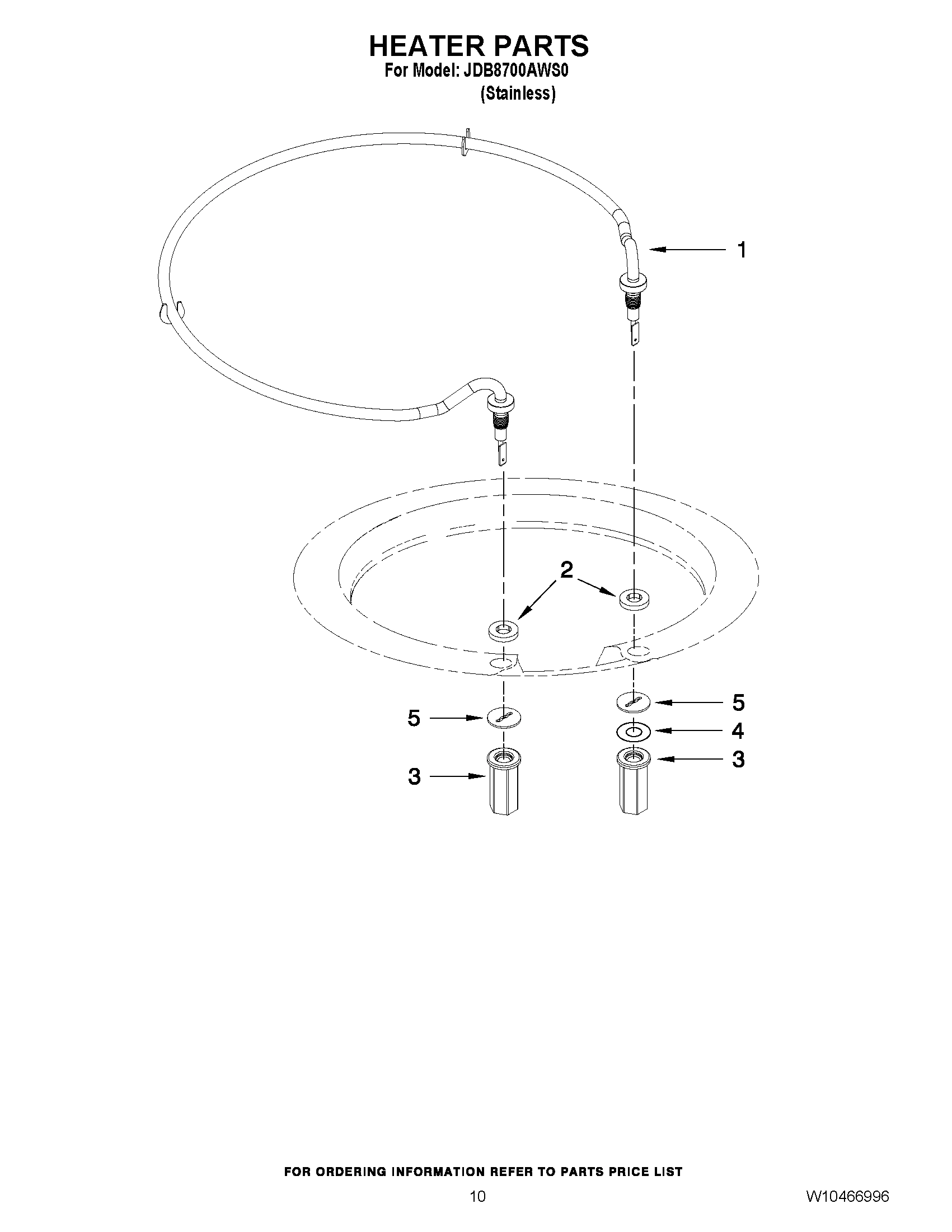

08 - HEATER PARTS

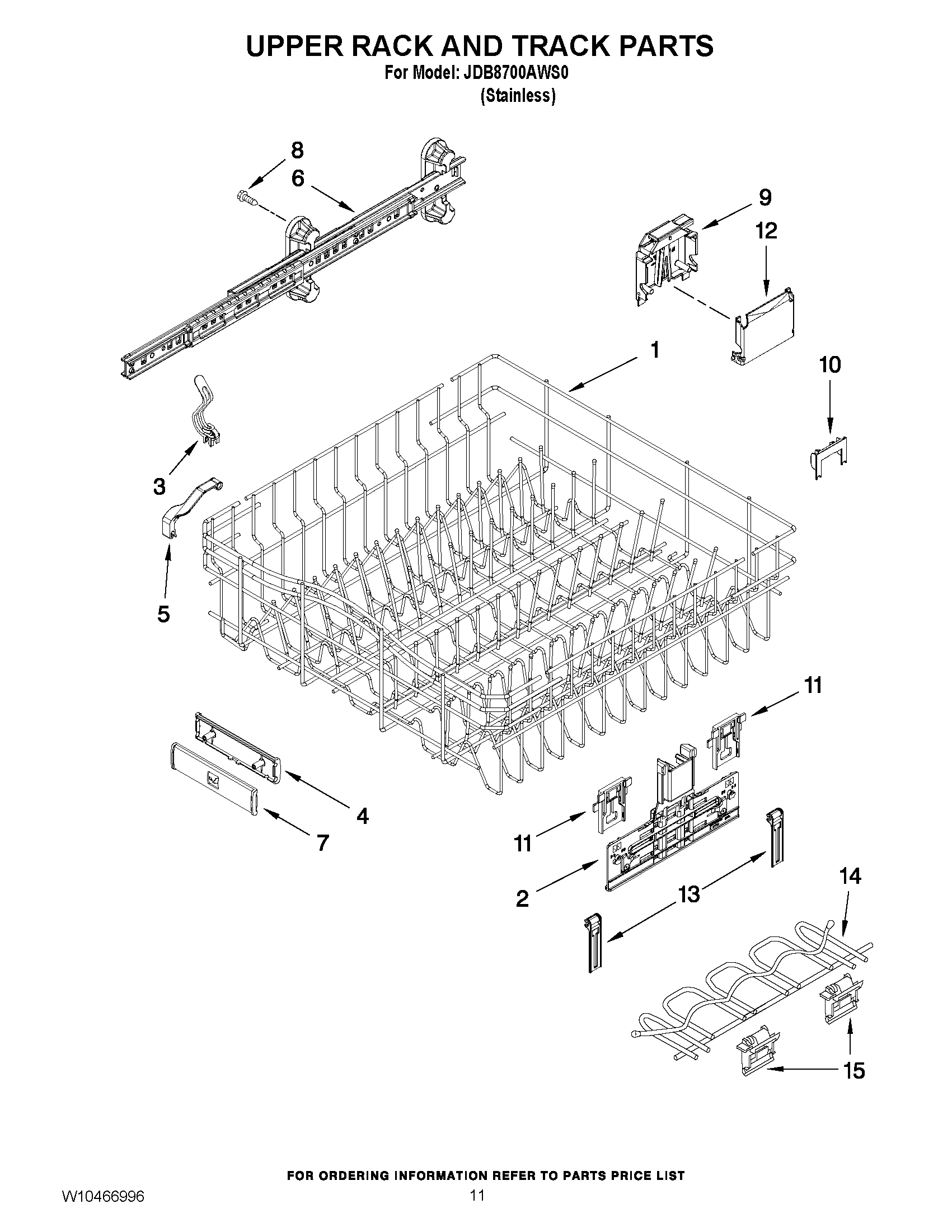

09 - UPPER RACK AND TRACK PARTS

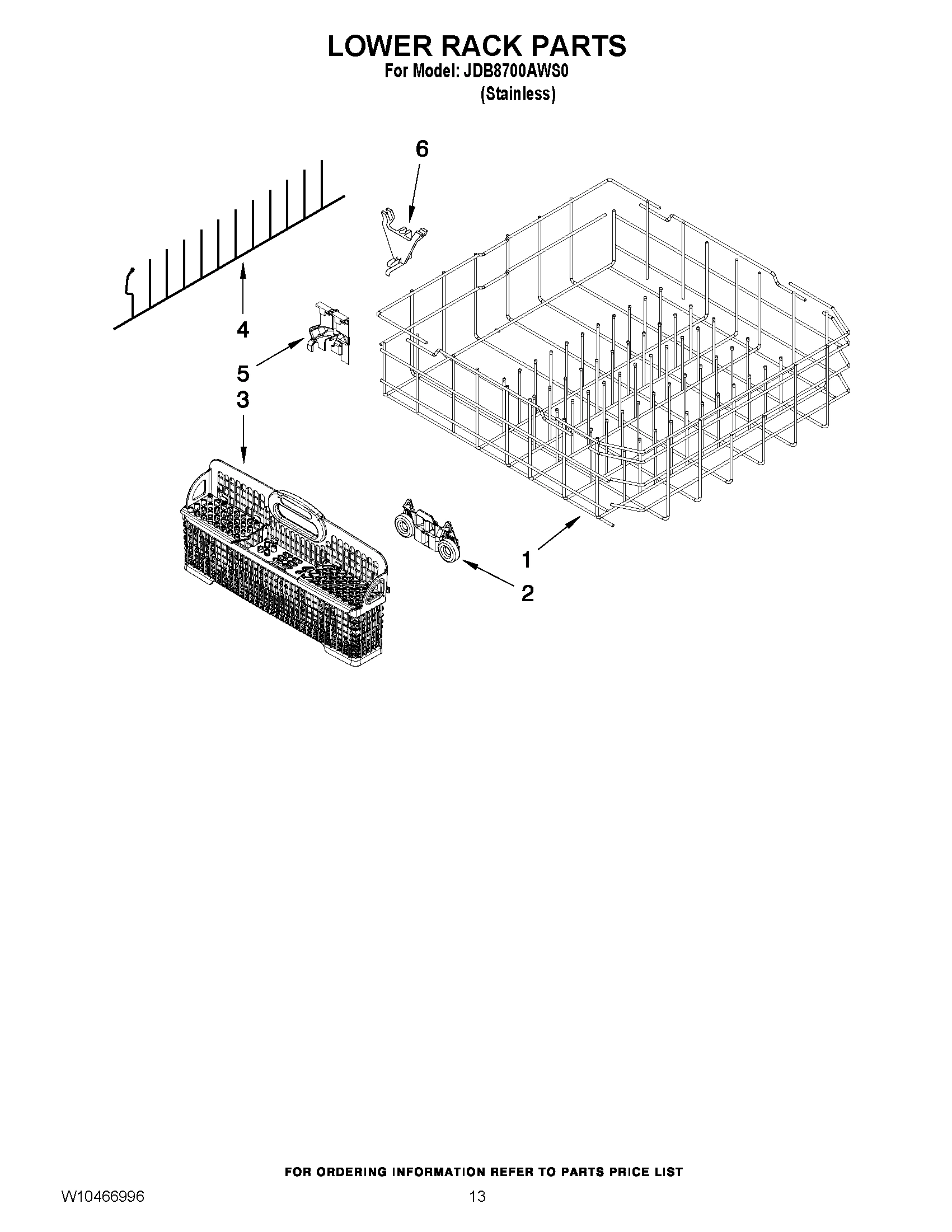

10 - LOWER RACK PARTS

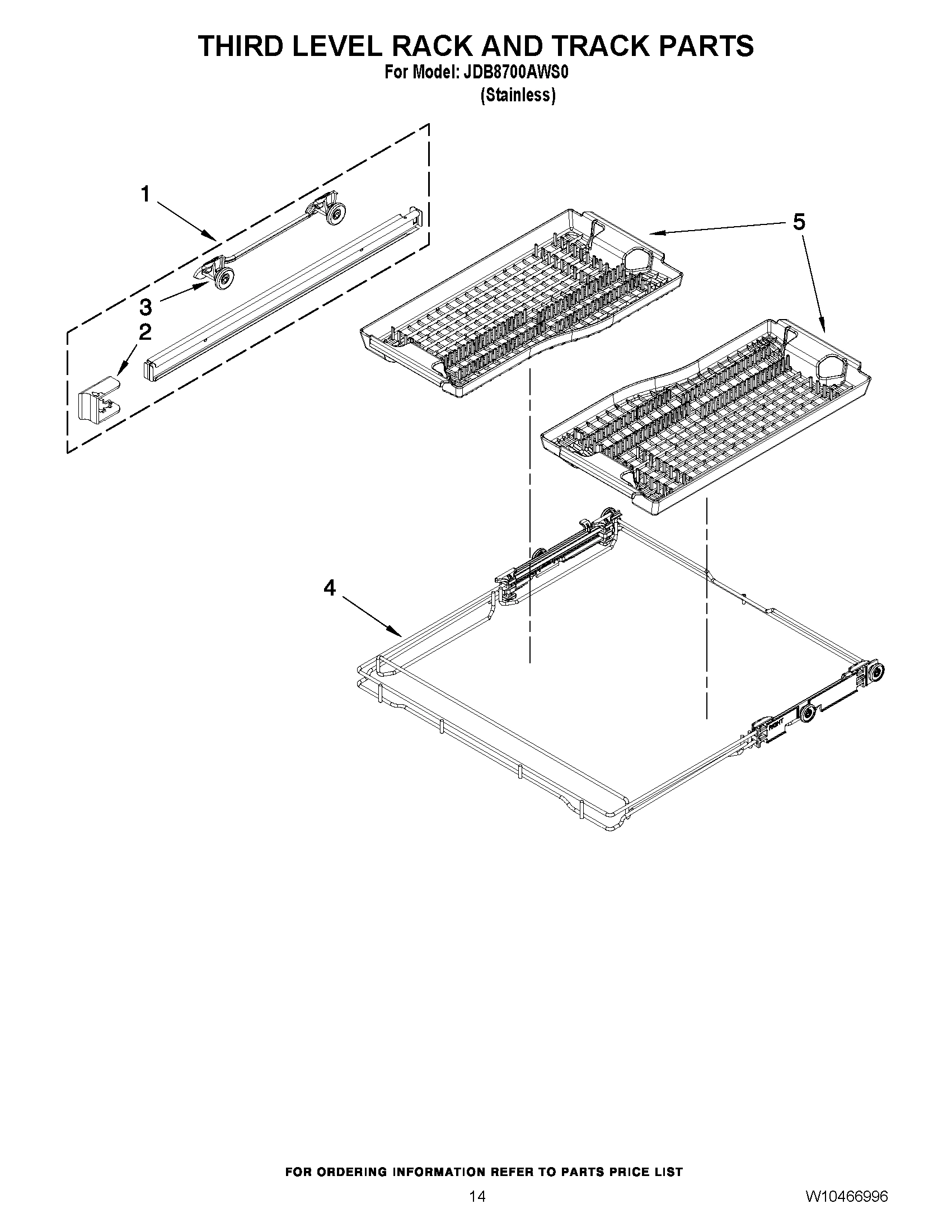

11 - THIRD LEVEL RACK AND TRACK PARTS
12 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Maytag JDB8700AWS0 DISHWASHER
1
MAY W10321874 MAY W10321874 Contact Us For Availability
1
MAY W10321875 MAY W10321875 Contact Us For Availability
1
USE & CARE GUIDE MAY W10418360 Contact Us For Availability
1
MAY W10418362 MAY W10418362 Contact Us For Availability
1
MAY W10460138 MAY W10460138 Contact Us For Availability
1
MAY W10418327 MAY W10418327 Contact Us For Availability
1
LEVER, OVERFILL SWITCH MAY W10195037 Contact Us For Availability
1
MAY W10390307 MAY W10390307 Contact Us For Availability
1
MAY 8579241 MAY 8579241 Contact Us For Availability
1
MAY 8579262 MAY 8579262 Contact Us For Availability
1
MAY W10195052 MAY W10195052 Contact Us For Availability
1
MAY W10194861 MAY W10194861 Contact Us For Availability
1
MAY W10056350 MAY W10056350 Contact Us For Availability
1
TRACK ASSEMBLY (LEFT) MAY W10195238 Contact Us For Availability
1
TRACK ASSEMBLY (RIGHT) MAY W10195240 Contact Us For Availability
2
MAY 8534853 MAY 8534853 Contact Us For Availability
2
MAY 8534854 MAY 8534854 Contact Us For Availability
2
CLIP, CONTROL MAY W10195237 Contact Us For Availability
2
MAY 8281217 MAY 8281217 Contact Us For Availability
2
MAY 8531412 MAY 8531412 Contact Us For Availability
2
MAY 3400924 MAY 3400924 Contact Us For Availability
2
MAY W10348405 MAY W10348405 Contact Us For Availability
2
SPRAYARM, 3RD LEVEL MAY 8557720 Contact Us For Availability
2
WASHER, HEATER ELEMENT MAY 717273 Contact Us For Availability
2
MAY W10418314 MAY W10418314 Contact Us For Availability
2
MAY W10195416 MAY W10195416 Contact Us For Availability
2
MAY 8564852 MAY 8564852 Contact Us For Availability
3
MAY W10321447 MAY W10321447 Contact Us For Availability
3
MAY W10195666 MAY W10195666 Contact Us For Availability
3
INNER DOOR & MASTIC ASSEMBLY MAY W10195603 Contact Us For Availability
3
WATER INLET (ALSO ORDER ITEMS 4) MAY W10195536 Contact Us For Availability
3
SEAL, DOOR MAY W10300924 Contact Us For Availability
3
MAY W10324447 MAY W10324447 Contact Us For Availability
3
MAY W10238395 MAY W10238395 Contact Us For Availability
3
NUT, HEATER ELEMENT MAY 8268548 Contact Us For Availability
3
MAY W10238406 MAY W10238406 Contact Us For Availability
3
MAY W10311153 MAY W10311153 Contact Us For Availability
3
MAY 8564899 MAY 8564899 Contact Us For Availability
4
MAY W10316572 MAY W10316572 Contact Us For Availability
4
SCREW MAY W10348409 Contact Us For Availability
4
SEAL, DOOR BOTTOM MAY W10195543 Contact Us For Availability
4
MAY 8531323 MAY 8531323 Contact Us For Availability
4
MAY W10082838 MAY W10082838 Contact Us For Availability
4
MAY W10208687 MAY W10208687 Contact Us For Availability
4
MAY W10238399 MAY W10238399 Contact Us For Availability
4
RETAINER, SPRING GRIP MAY 3400931 Contact Us For Availability
4
MAY W10056298 MAY W10056298 Contact Us For Availability
4
TINEROW MAY W10056351 Contact Us For Availability
4
MAY W10409522 MAY W10409522 Contact Us For Availability
5
ACCESS PANEL MAY W10368715 Contact Us For Availability
5
LATCH ASSEMBLY (INCLUDES SWITCH) MAY W10370003 Contact Us For Availability
5
DISPENSER ASSEMBLY MAY W10409521 Contact Us For Availability
5
MAY W10213826 MAY W10213826 Contact Us For Availability
5
STRIKE, PLATE MAY W10300779 Contact Us For Availability
5
MAY 8579298 MAY 8579298 Contact Us For Availability
5
MAY W10324454 MAY W10324454 Contact Us For Availability
5
SHIELD, HEATER NUT MAY W10343251 Contact Us For Availability
5
CLIP, DISPENSER GUARD MAY W10267076 Contact Us For Availability
5
RETAINER, TINEROW MAY W10238411 Contact Us For Availability
5
BASKET MAY W10418356 Contact Us For Availability
6
PANEL, FULL FRONT (INCLUDES ITEMS 10, 11 & 16 MAY W10409495 Contact Us For Availability
6
MAY W10375793 MAY W10375793 Contact Us For Availability
6
MAY W10195007 MAY W10195007 Contact Us For Availability
6
MAY 371505 MAY 371505 Contact Us For Availability
6
MAY 3400014 MAY 3400014 Contact Us For Availability
6
MAY 8579253 MAY 8579253 Contact Us For Availability
6
MAY W10311156 MAY W10311156 Contact Us For Availability
6
MAY W10311157 MAY W10311157 Contact Us For Availability
6
MAY W10238412 MAY W10238412 Contact Us For Availability
7
MAY W10276608 MAY W10276608 Contact Us For Availability
7
MAY W10194937 MAY W10194937 Contact Us For Availability
7
MAY W10392487 MAY W10392487 Contact Us For Availability
7
MAY W10316814 MAY W10316814 Contact Us For Availability
7
SEAL, CABINET MAY W10179427 Contact Us For Availability
7
MAY W10195665 MAY W10195665 Contact Us For Availability
7
HANDLE, FRONT MAY W10056297 Contact Us For Availability
8
FASTENER MAY W10331789 Contact Us For Availability
8
LIGHT, STATUS MAY W10195836 Contact Us For Availability
8
MAY W10309090 MAY W10309090 Contact Us For Availability
8
MAY W10177098 MAY W10177098 Contact Us For Availability
8
Screw MAY 304392 Contact Us For Availability
8
INSULATION BOTTOM MAY W10195367 Contact Us For Availability
8
MAY W10393351 MAY W10393351 Contact Us For Availability
9
HANDLE ASSEMBLY (INCLUDES ITEM 7) MAY W10409496 Contact Us For Availability
9
MAY W10401190 MAY W10401190 Contact Us For Availability
9
BRACKET, DISPENSER MAY W10341423 Contact Us For Availability
9
MAY W10195039 MAY W10195039 Contact Us For Availability
9
DOOR BALANCE ASSEMBLY MAY W10084086 Contact Us For Availability
9
MAY W10168824 MAY W10168824 Contact Us For Availability
9
MAY W10418315 MAY W10418315 Contact Us For Availability
9
MAY W10418316 MAY W10418316 Contact Us For Availability
10
MAY 8564951 MAY 8564951 Contact Us For Availability
10
BARRIER, VAPOR DOOR MAY W10195837 Contact Us For Availability
10
STANDPIPE, OVERFILL (ALSO ORDER No.11) MAY W10195035 Contact Us For Availability
10
MAY 3367670 MAY 3367670 Contact Us For Availability
10
MAY W10418332 MAY W10418332 Contact Us For Availability
10
MAY W10418320 MAY W10418320 Contact Us For Availability
11
LIGHT, PIPE MAY W10319007 Contact Us For Availability
11
SCREW MAY 3400071 Contact Us For Availability
11
MAY 8531743 MAY 8531743 Contact Us For Availability
11
MAY 8269145 MAY 8269145 Contact Us For Availability
11
MAY 8579272 MAY 8579272 Contact Us For Availability
11
MAY W10418323 MAY W10418323 Contact Us For Availability
12
INSULATION, TOE PANEL MAY W10385107 Contact Us For Availability
12
MAY W10385977 MAY W10385977 Contact Us For Availability
12
MAY W10195038 MAY W10195038 Contact Us For Availability
12
SCREW MAY 3400074 Contact Us For Availability
12
MAY W10348407 MAY W10348407 Contact Us For Availability
12
MAY W10418321 MAY W10418321 Contact Us For Availability
13
INSULATION, FRONT PANEL MAY W10315897 Contact Us For Availability
13
MAY W10375833 MAY W10375833 Contact Us For Availability
13
MAY W10195036 MAY W10195036 Contact Us For Availability
13
MAY W10339563 MAY W10339563 Contact Us For Availability
13
MAY W10372113 MAY W10372113 Contact Us For Availability
13
MAY W10418322 MAY W10418322 Contact Us For Availability
14
MAY W10194911 MAY W10194911 Contact Us For Availability
14
MAY 8269259 MAY 8269259 Contact Us For Availability
14
MISCELLANEOUS PARTS BAG (CONTAINS 2 HOSE CLAM MAY W10292152 Contact Us For Availability
14
MAY W10348411 MAY W10348411 Contact Us For Availability
14
MAY W10158351 MAY W10158351 Contact Us For Availability
14
MAY W10208697 MAY W10208697 Contact Us For Availability
15
MAY W10195032 MAY W10195032 Contact Us For Availability
15
MAY 370445 MAY 370445 Contact Us For Availability
15
WHEEL, LEG MAY 8268977 Contact Us For Availability
15
MAY 8269144 MAY 8269144 Contact Us For Availability
15
MAY W10238407 MAY W10238407 Contact Us For Availability
16
NAMEPLATE MAY W10214168 Contact Us For Availability
16
VENT MAY W10195028 Contact Us For Availability
16
MAY W10195751 MAY W10195751 Contact Us For Availability
16
MAY 8524584 MAY 8524584 Contact Us For Availability
16
MAY 8579251 MAY 8579251 Contact Us For Availability
17
INSULATION, ACCESS PANEL MAY W10350437 Contact Us For Availability
17
WASHER, PRONGED CUP MAY 3378128 Contact Us For Availability
17
MAY W10056349 MAY W10056349 Contact Us For Availability
18
MAY 8270020 MAY 8270020 Contact Us For Availability
18
HOSE CLAMP MAY 8269146 Contact Us For Availability
19
MAY 3400892 MAY 3400892 Contact Us For Availability
19
MAY W10134017 MAY W10134017 Contact Us For Availability
20
MAY 8268991 MAY 8268991 Contact Us For Availability
20
MAY 9741232 MAY 9741232 Contact Us For Availability
21
CABLE, DOOR ASSEMBLY MAY W10158291 Contact Us For Availability
21
DE-COUPLED DRAIN ASSEMBLY MAY W10179455 Contact Us For Availability
22
MAY W10292870 MAY W10292870 Contact Us For Availability
22
MAY W10179454 MAY W10179454 Contact Us For Availability
23
RETAINER, PUSH MAY 304666 Contact Us For Availability
23
PLUG, DRAIN MAY W10193605 Contact Us For Availability
24
SOUND SHIELD, TUB MAY 8573239 Contact Us For Availability
25
MAY W10300703 MAY W10300703 Contact Us For Availability
26
SPACER, TUB/BRACE (LEFT) MAY W10195630 Contact Us For Availability
26
SPACER, TUB/BRACE (RIGHT) MAY W10195631 Contact Us For Availability
27
SIDE SHIELD MAY W10275523 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (SUPERIOR B MAY 285006 Contact Us For Availability
NI
MAY 3385556 MAY 3385556 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (WHITE) MAY 350930 Contact Us For Availability
NI
MAY 4317824 MAY 4317824 Contact Us For Availability
NI
MAY 4392899 MAY 4392899 Contact Us For Availability
NI
PAINT, BULK (1 qt.) (Biscuit) MAY 4392900 Contact Us For Availability
NI
MAY 4392901 MAY 4392901 Contact Us For Availability
NI
MOISTURE BARRIER KIT MAY 4396277 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (MELEORITE) MAY 4396603 Contact Us For Availability
NI
DISHRACK REPAIR (WHITE) MAY 4396838 Contact Us For Availability
NI
DISHRACK REPAIR (GREY) MAY 4396840 Contact Us For Availability
NI
MAY 4396853 MAY 4396853 Contact Us For Availability
NI
DISHRACK REPAIR (SILVER ATLANTIS) MAY 4396854 Contact Us For Availability
NI
VINYL TOUCH-UP (4OZ.) (WHITE) MAY 676453 Contact Us For Availability
NI
VINYL TOUCH-UP (4OZ.) (GREY) MAY 676455 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ.) (WHITE) MAY 72017 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Black) MAY 72032 Contact Us For Availability
NI
PAINT, BULK (1 QT.) (WHITE UNCUT) MAY 799344 Contact Us For Availability
NI
ANTI-TIP KIT, FLOOR MOUNT KIT MAY 8171477 Contact Us For Availability
NI
MAY 8171656 MAY 8171656 Contact Us For Availability
NI
MAY 8171657 MAY 8171657 Contact Us For Availability
NI
MAY 8171658 MAY 8171658 Contact Us For Availability
NI
MAY 8171659 MAY 8171659 Contact Us For Availability
NI
CUSTOM PANEL & TRIM KIT ( BLACK) MAY 8212489 Contact Us For Availability
NI
ANTI-TIP KIT, SIDE MOUNT KIT MAY 8212560 Contact Us For Availability
NI
MAY W10195735A MAY W10195735A Contact Us For Availability
NI
MAY W10195736A MAY W10195736A Contact Us For Availability
NI
MAY W10195737A MAY W10195737A Contact Us For Availability
NI
MAY W10195738A MAY W10195738A Contact Us For Availability
× ![]()
