Model GE JD630SF8SS Electric Range – Common Parts & Diagrams
CONTROL PANEL
COOKTOP

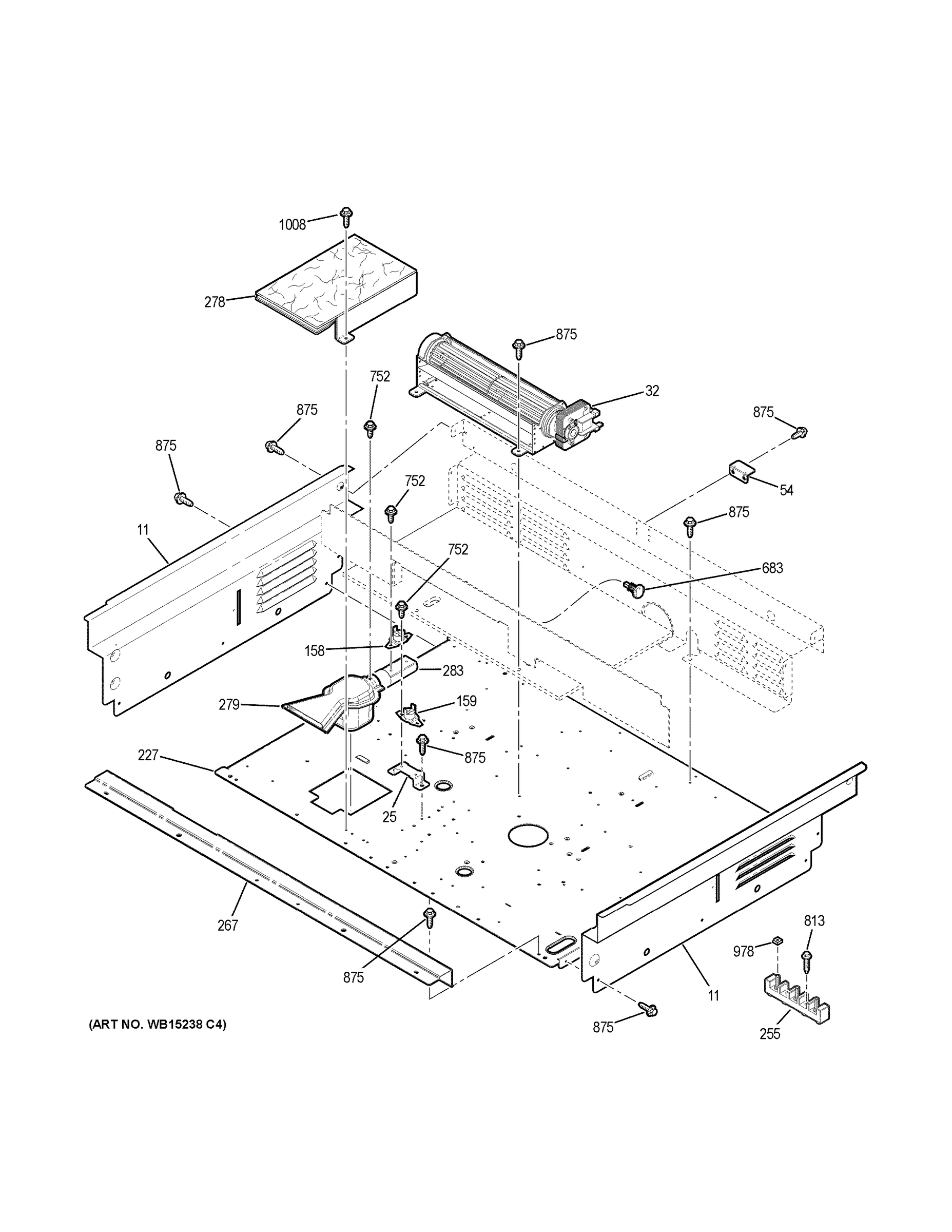

COOLING FAN

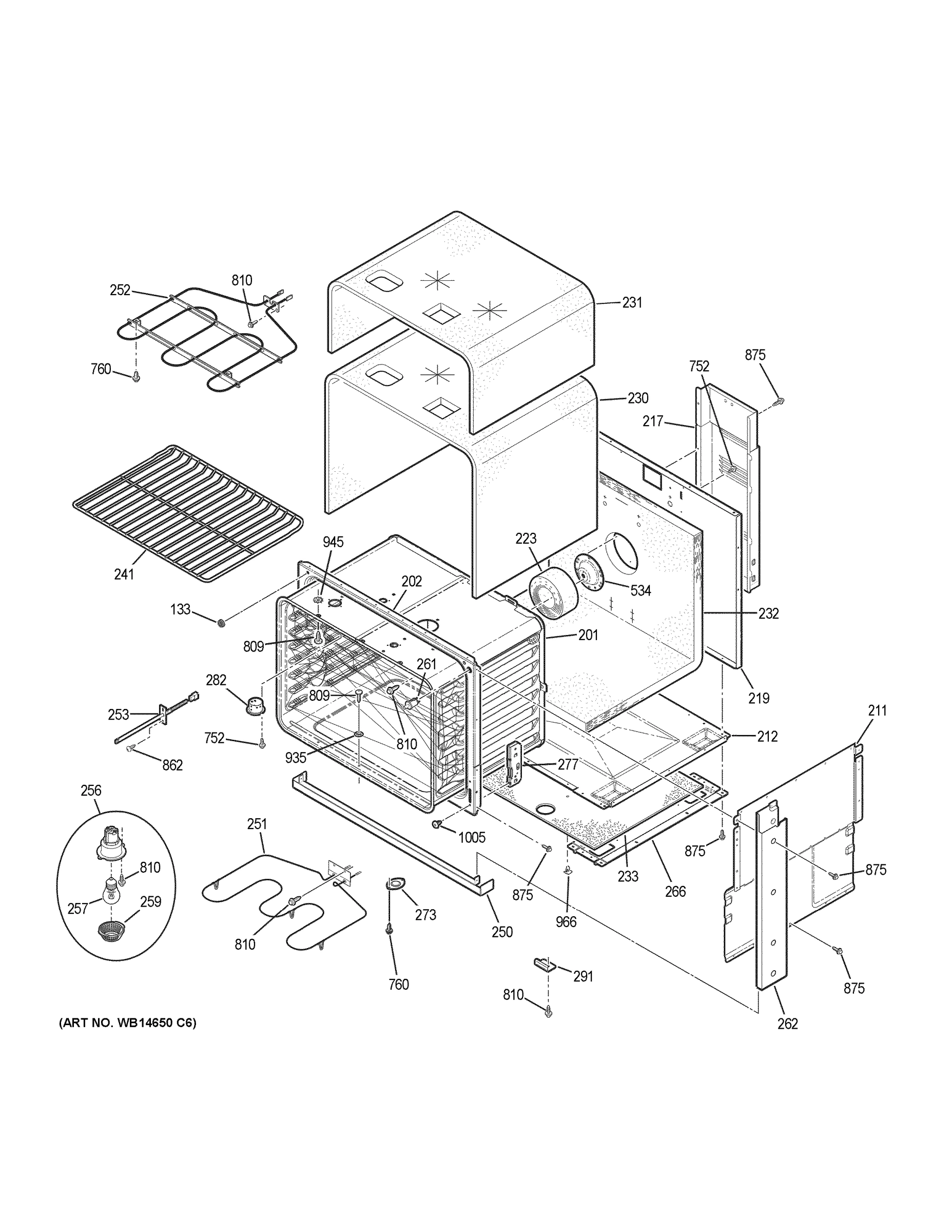

BODY PARTS

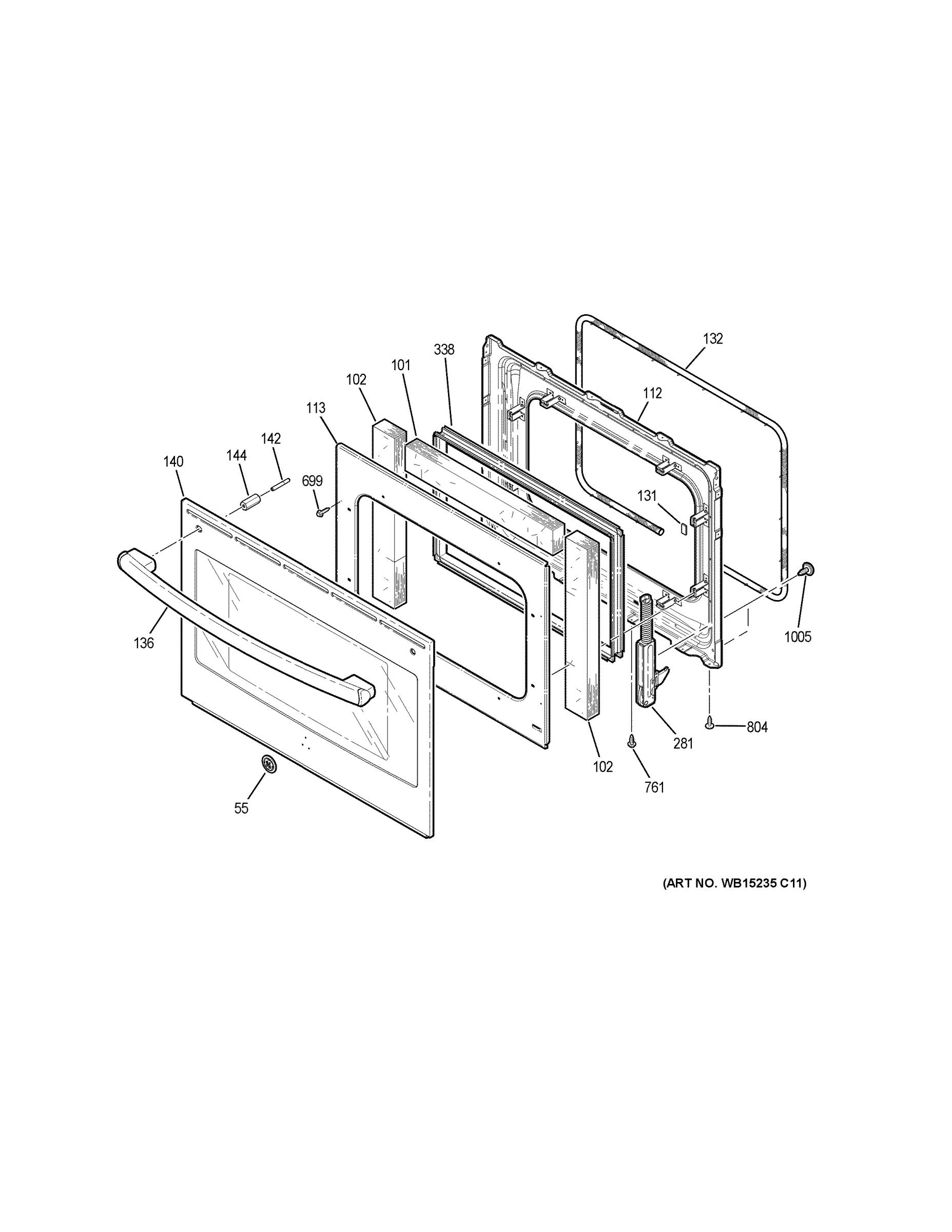

DOOR

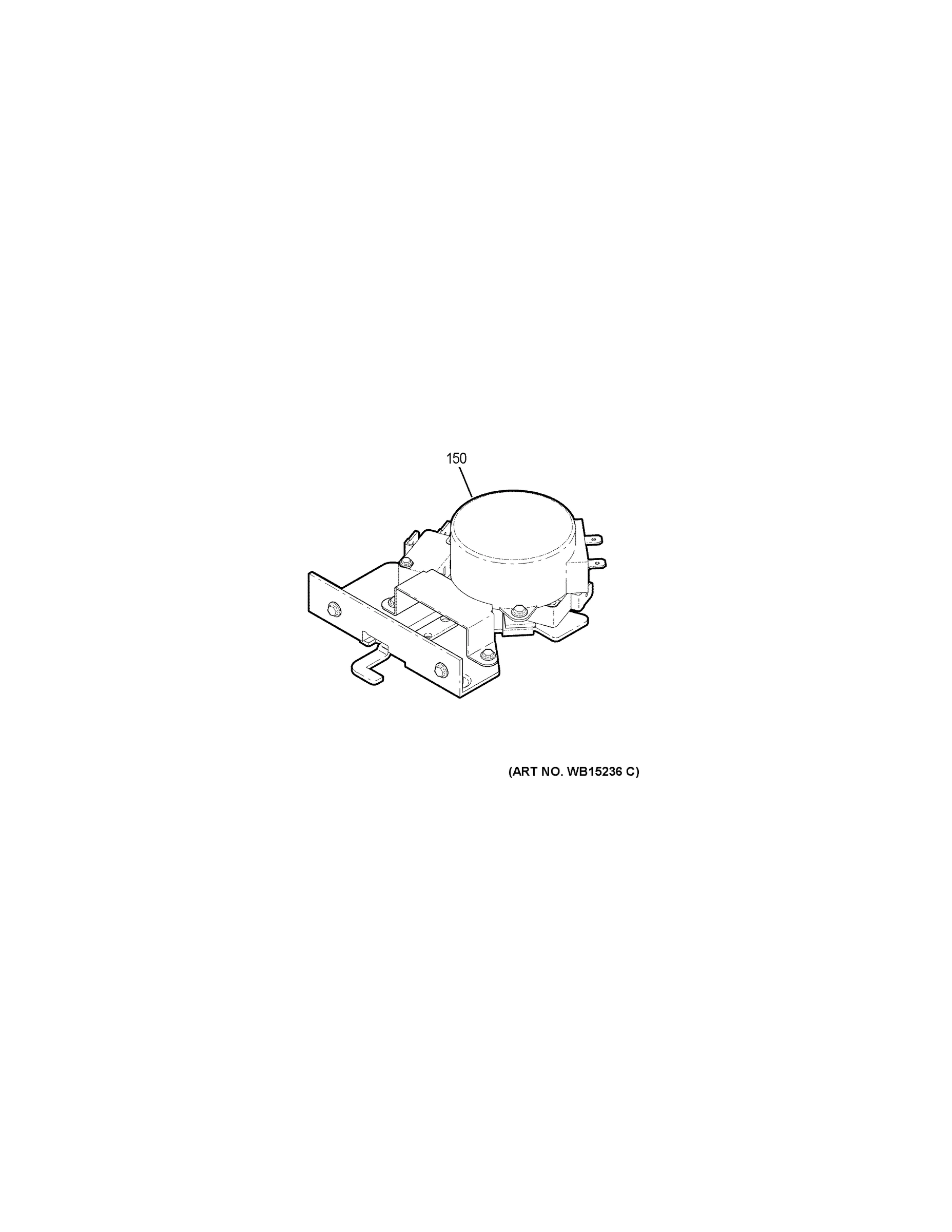

DOOR LOCK
Common parts from model GE JD630SF8SS Electric Range
1
PANEL CNTL ASM GEN WB36T10666 Contact Us For Availability
11
EXTENSION SIDE RT GEN WB07T10497 Contact Us For Availability
13
JUMPER GEN WB18X30704 Contact Us For Availability
17
FACEPLATE GRAPHICS (GY) GEN WB07X26752 Contact Us For Availability
18
PANEL OVERLAY ASM GEN WB07X26753 Contact Us For Availability
19
SWITCH INFINITE CONTROL GEN WB24X26398 Contact Us For Availability
21
INF SWITCH CONTROL (WM) GEN WB24T10012 Contact Us For Availability
22
GASKET FACEPLATE GEN WB02X10744 Contact Us For Availability
23
INF SWITCH CONTROL (2000 GEN WB24T10026 Contact Us For Availability
26
CONTROL PANEL GASKET GEN WB02X10742 Contact Us For Availability
27
INSERT CNTL PNL LT GEN WB27X20070 Contact Us For Availability
29
KNOB ASM GEN WB03T10337 Contact Us For Availability
30
LIGHT INDICATOR GEN WB25T10056 Contact Us For Availability
31
CRYSTAL RETAINER GEN WB02T10046 Contact Us For Availability
32
BLOWER ASM GEN WB26T10039 Contact Us For Availability
33
MODULE INDICATOR LIGHT GEN WB18T10349 Contact Us For Availability
37
KIT BACKSPLASH (BK) GEN WB07T10680 Contact Us For Availability
50
GASKET MAINTOP RH GEN WB02T10319 Contact Us For Availability
50
GASKET MAINTOP LH GEN WB02T10320 Contact Us For Availability
51
MAINTOP GLASS ASM (DG) GEN WB62X25962 Contact Us For Availability
55
BADGE ASM GEN WB02X29479 Contact Us For Availability
56
ELEMENT RADIANT 5.5 IN GEN WB30T10145 Contact Us For Availability
57
ELEMENT RADIANT 8 IN GEN WB30T10132 Contact Us For Availability
58
ELEMENT RADIANT 9" DUAL GEN WB30X24111 Contact Us For Availability
61
BRACKET RADIANT ELEMENT GEN WB02X20902 Contact Us For Availability
101
INSULATION OVN DR SDE GEN WB35T10226 Contact Us For Availability
102
INSULATION OVEN DR SDE GEN WB35K10025 Contact Us For Availability
112
LINING OVN DR ASM GEN WB63X20052 Contact Us For Availability
113
RETAINER INSLN OVN DR GEN WB02T10371 Contact Us For Availability
131
DOOR PAD GEN WB01T10026 Contact Us For Availability
132
GASKET OVN DR GEN WB04T10076 Contact Us For Availability
133
DOOR BUMPER GEN WB01T10022 Contact Us For Availability
136
HANDLE AND END CAP ASM GEN WB15X27140 Contact Us For Availability
140
OUTER DOOR PANEL ASM GEN WB56X28620 Contact Us For Availability
144
SPACER REINFORCEMENT GEN WB02T10452 Contact Us For Availability
150
LATCH OVN GEN WB14T10069 Contact Us For Availability
158
SWITCH LIMIT GEN WB24T10079 Contact Us For Availability
159
LIMIT SWITCH-UPPER(LOCK) GEN WB24T10060 Contact Us For Availability
241
RACK OVEN GEN WB48T10095 Contact Us For Availability
251
BAKE ELEMENT GEN WB44T10065 Contact Us For Availability
253
SENSOR ASM GEN WB23T10015 Contact Us For Availability
259
OVEN BULB LENS GEN WB25T10002 Contact Us For Availability
261
SWITCH SPDT HIGH AMP GEN WB24T10147 Contact Us For Availability
338
WINDOW PACK ASM GEN WB56X22160 Contact Us For Availability
761
SCR 8-18X.450 AB FLT20 S GEN WB01T10110 Contact Us For Availability
1005
SCREW 10-32 TR T GEN WB01T10008 Contact Us For Availability
× ![]()
