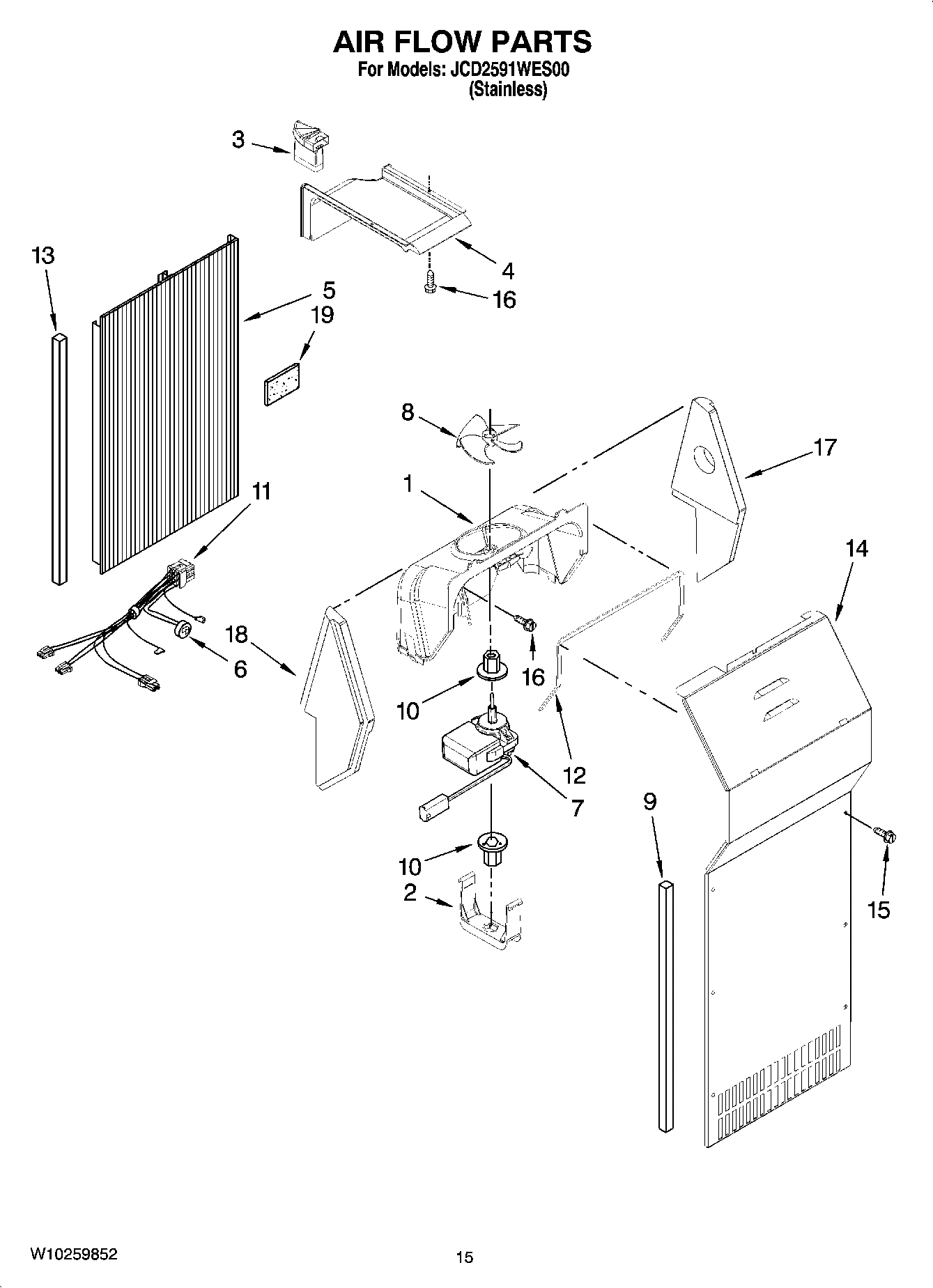

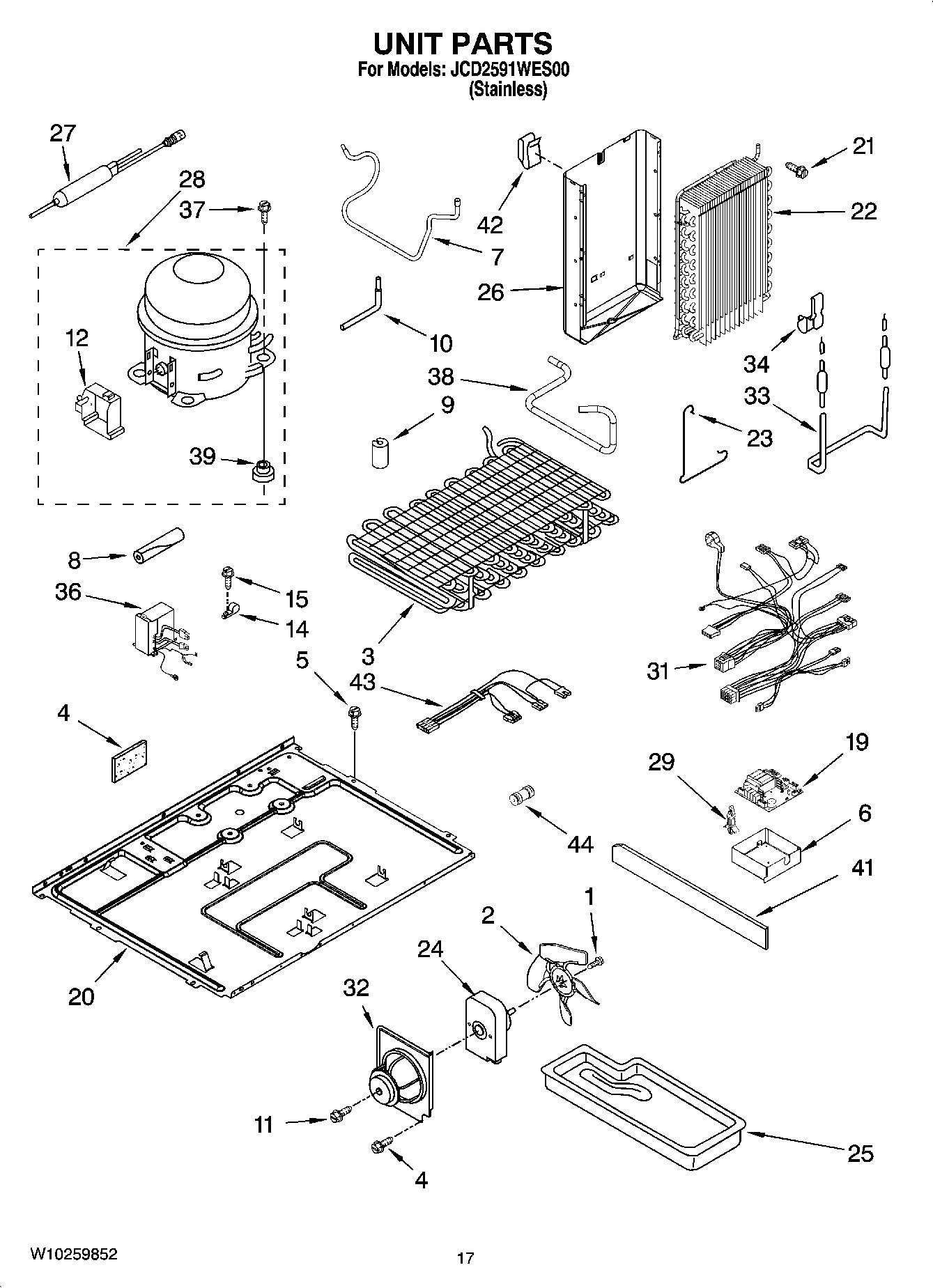

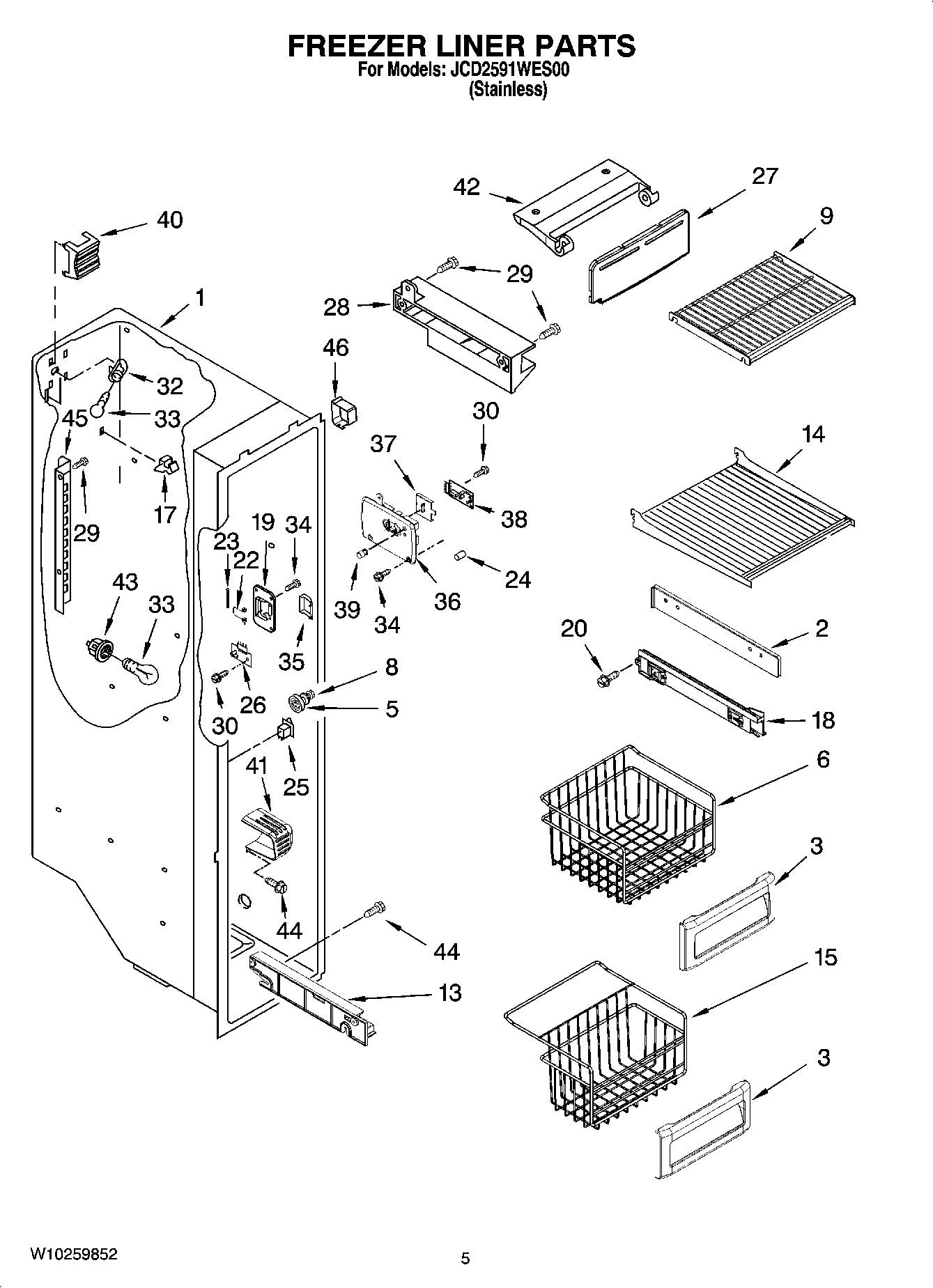

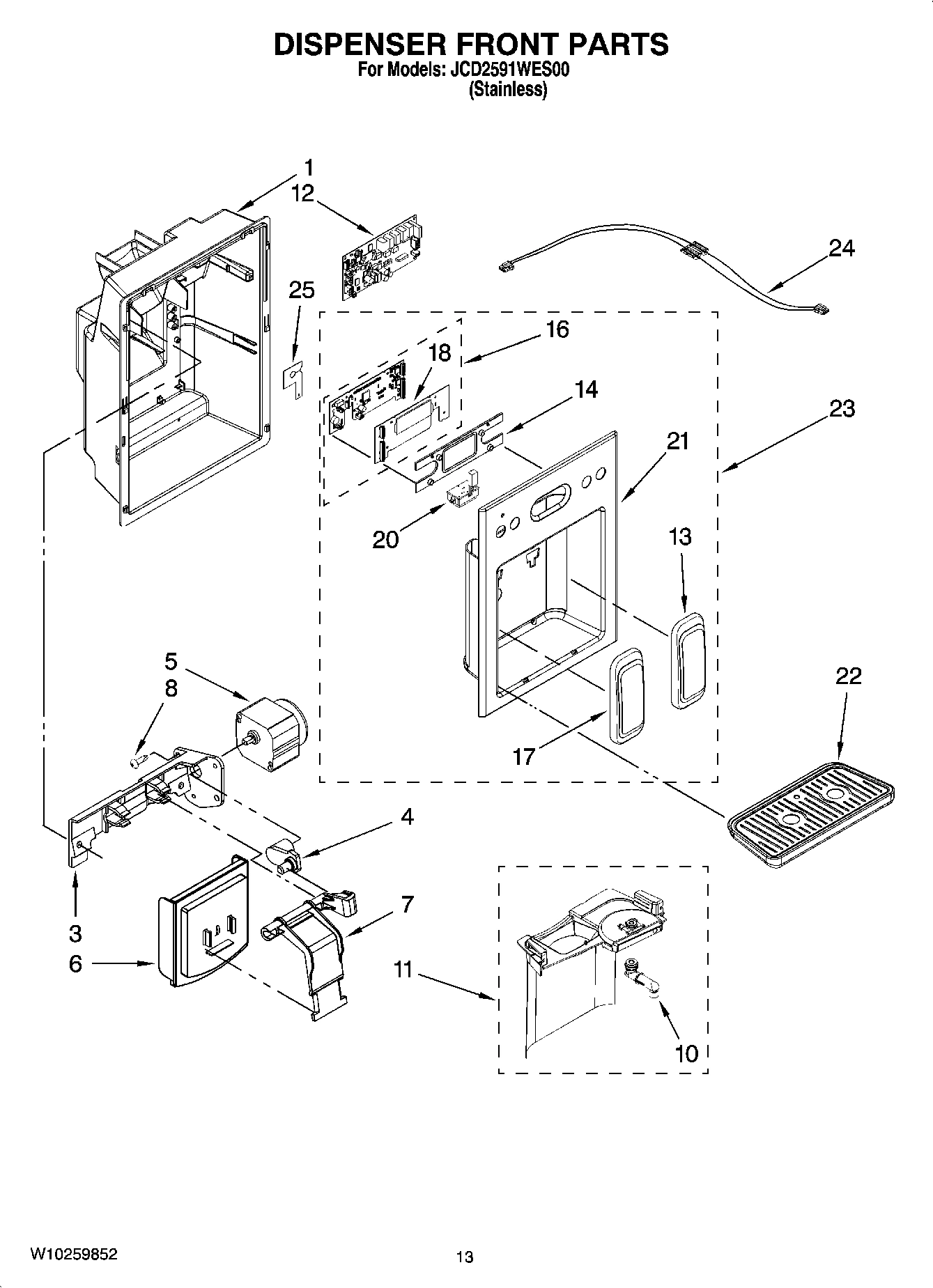

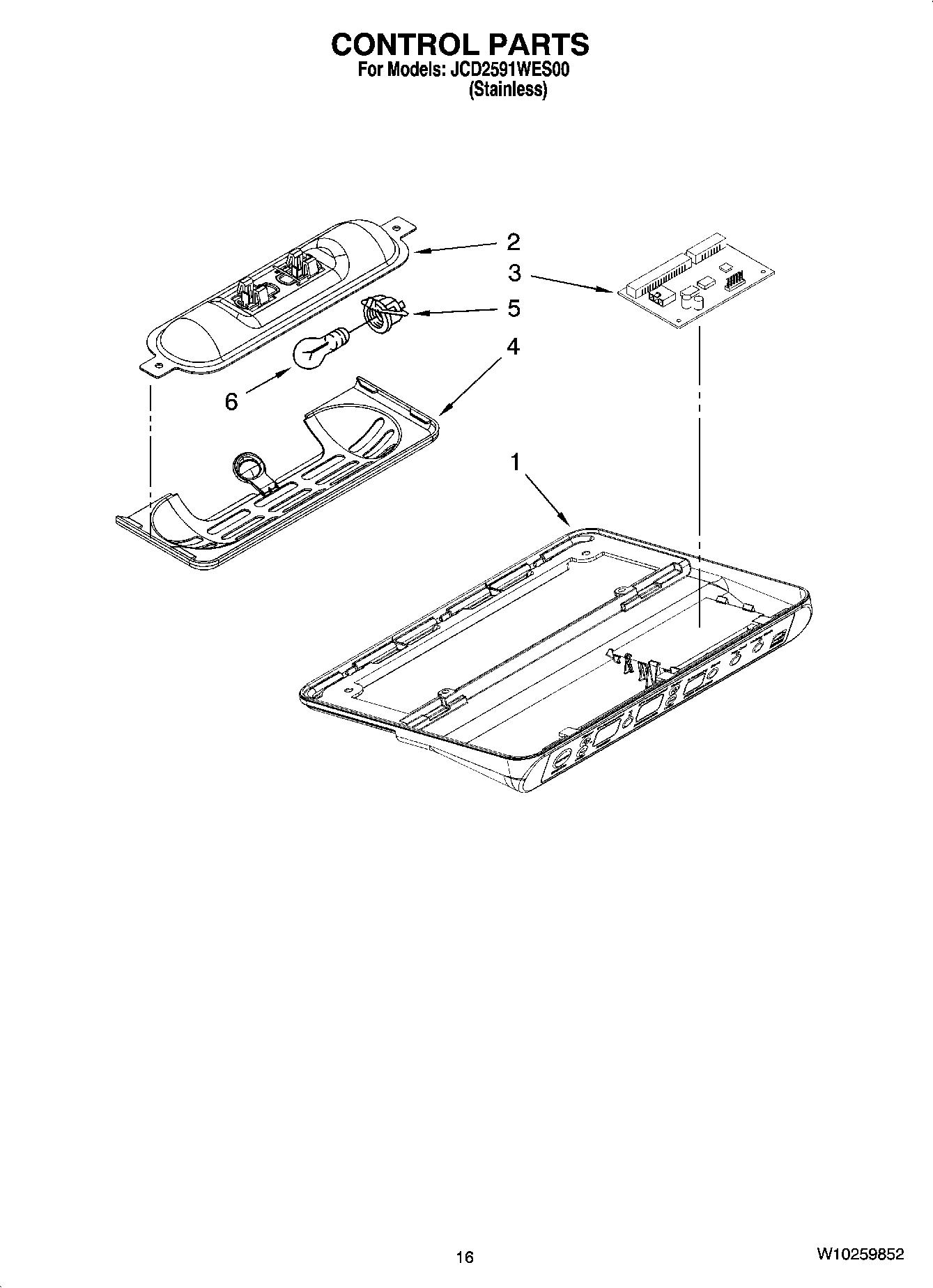

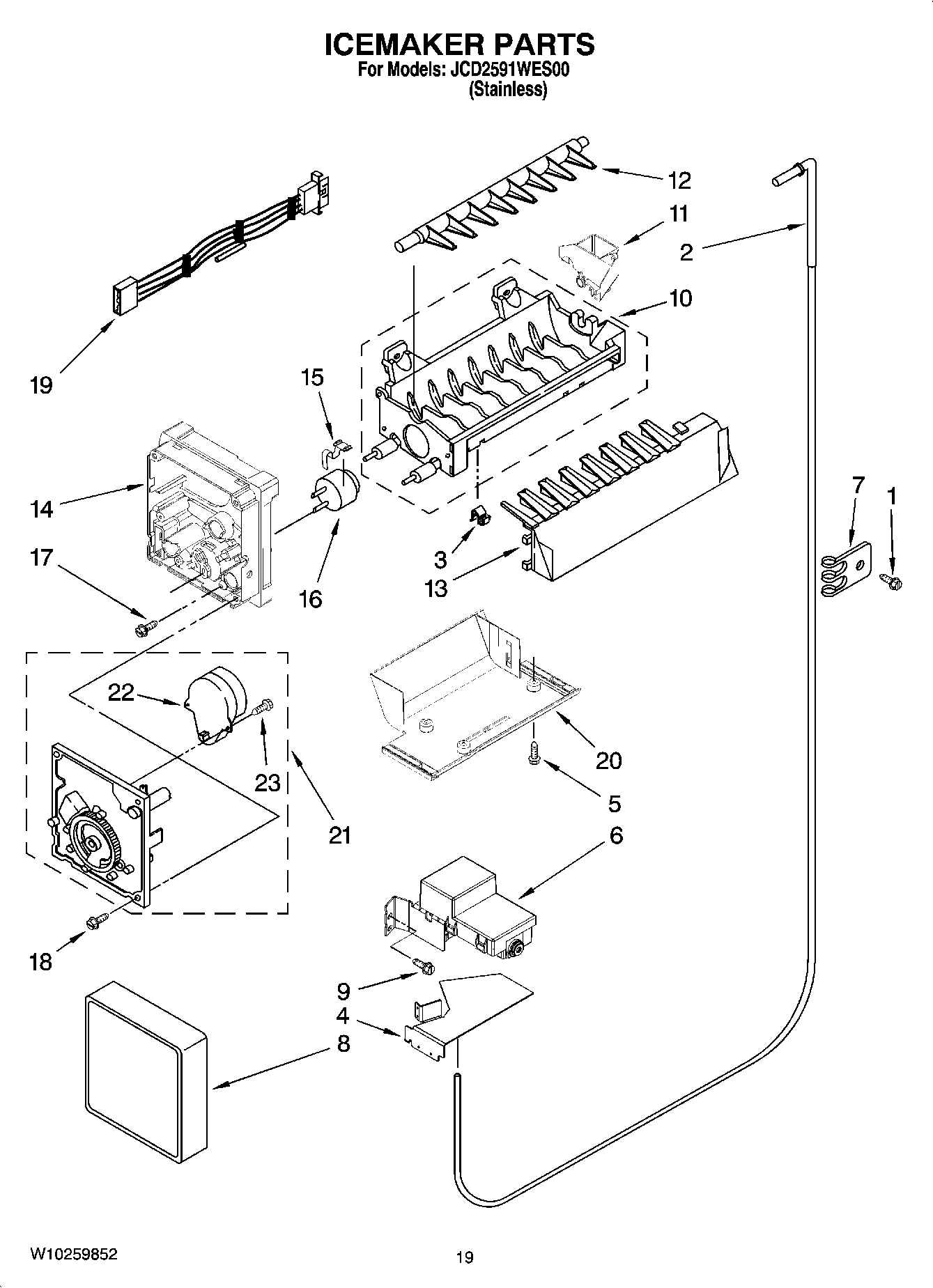

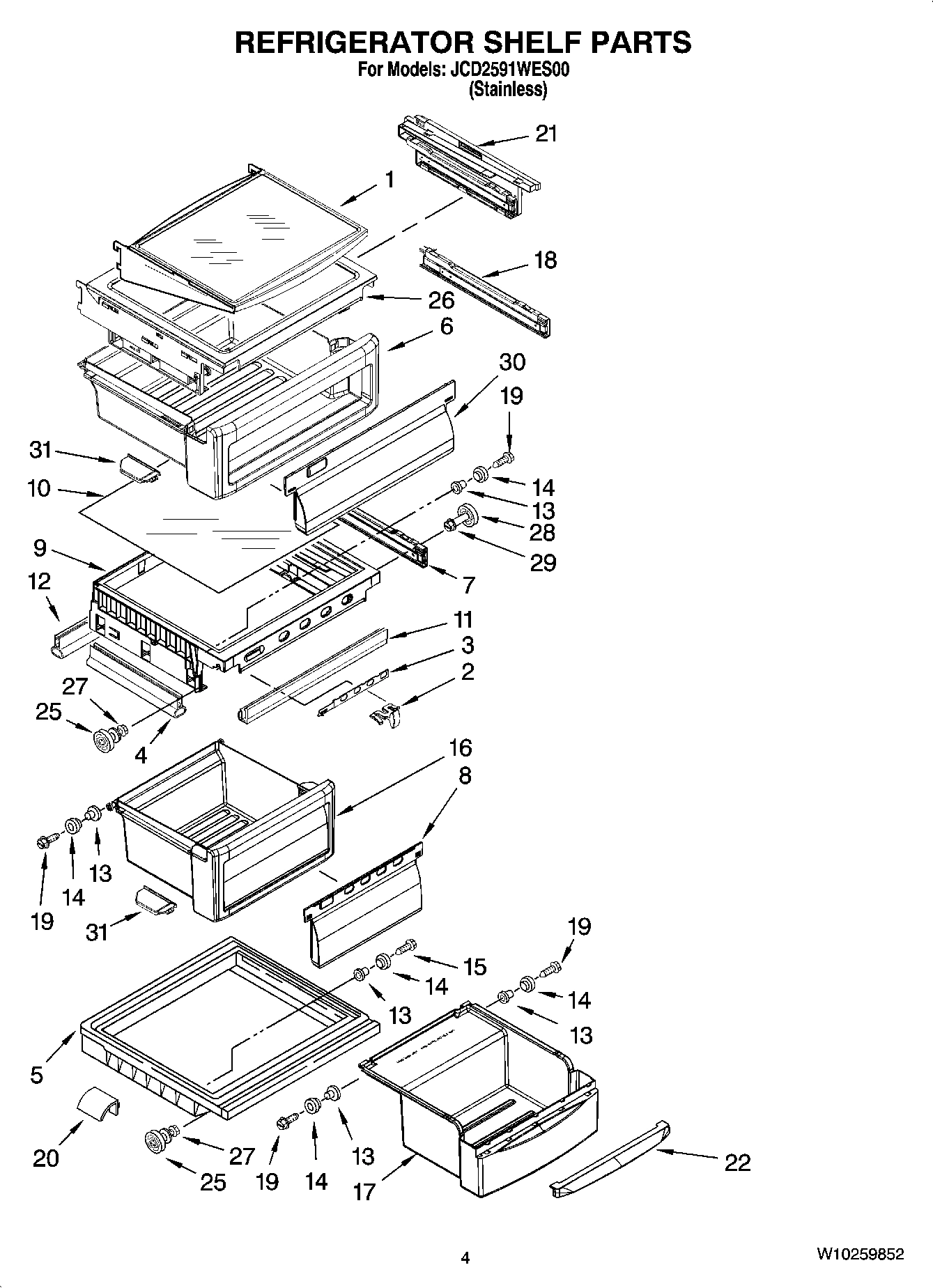

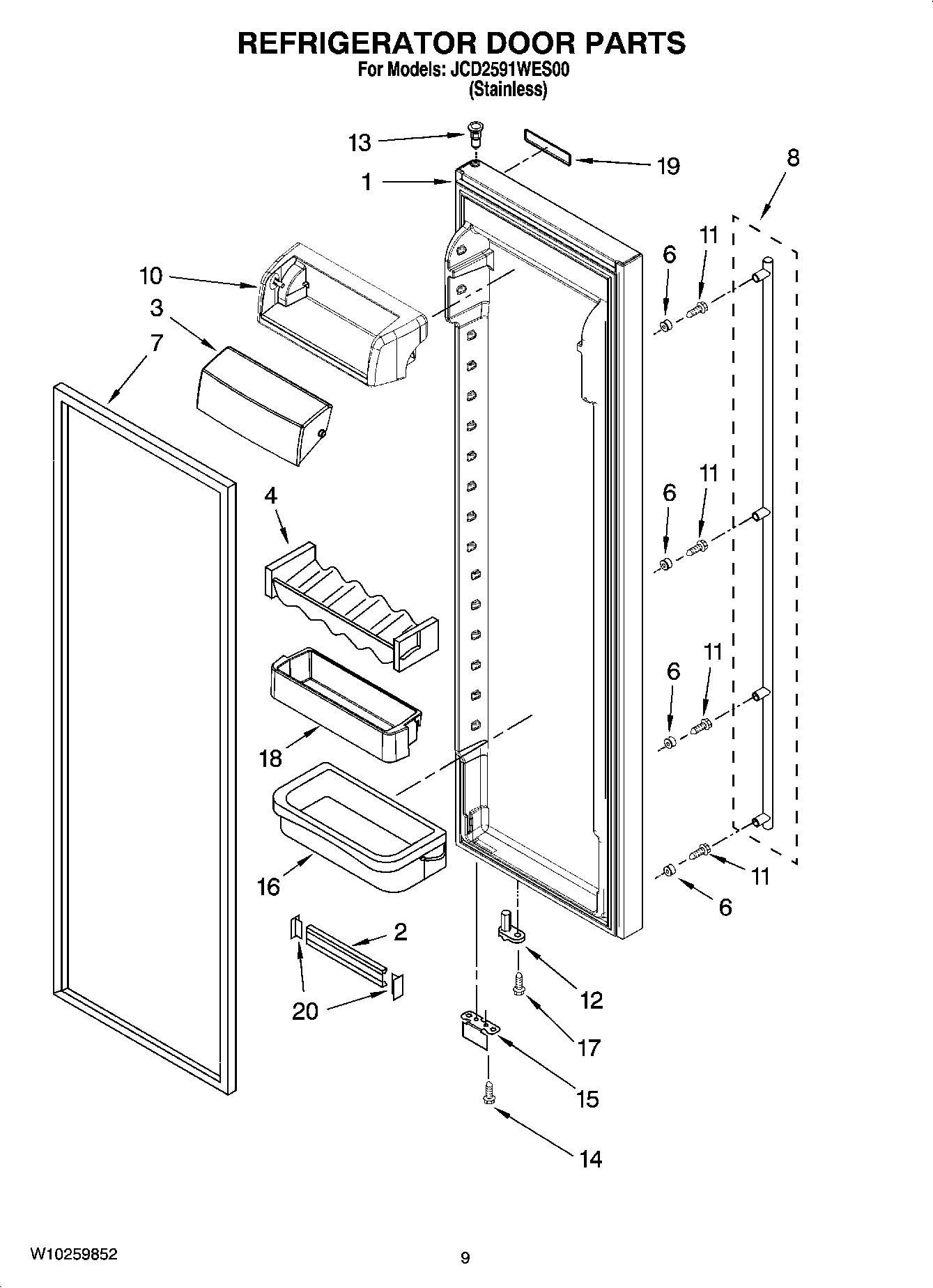

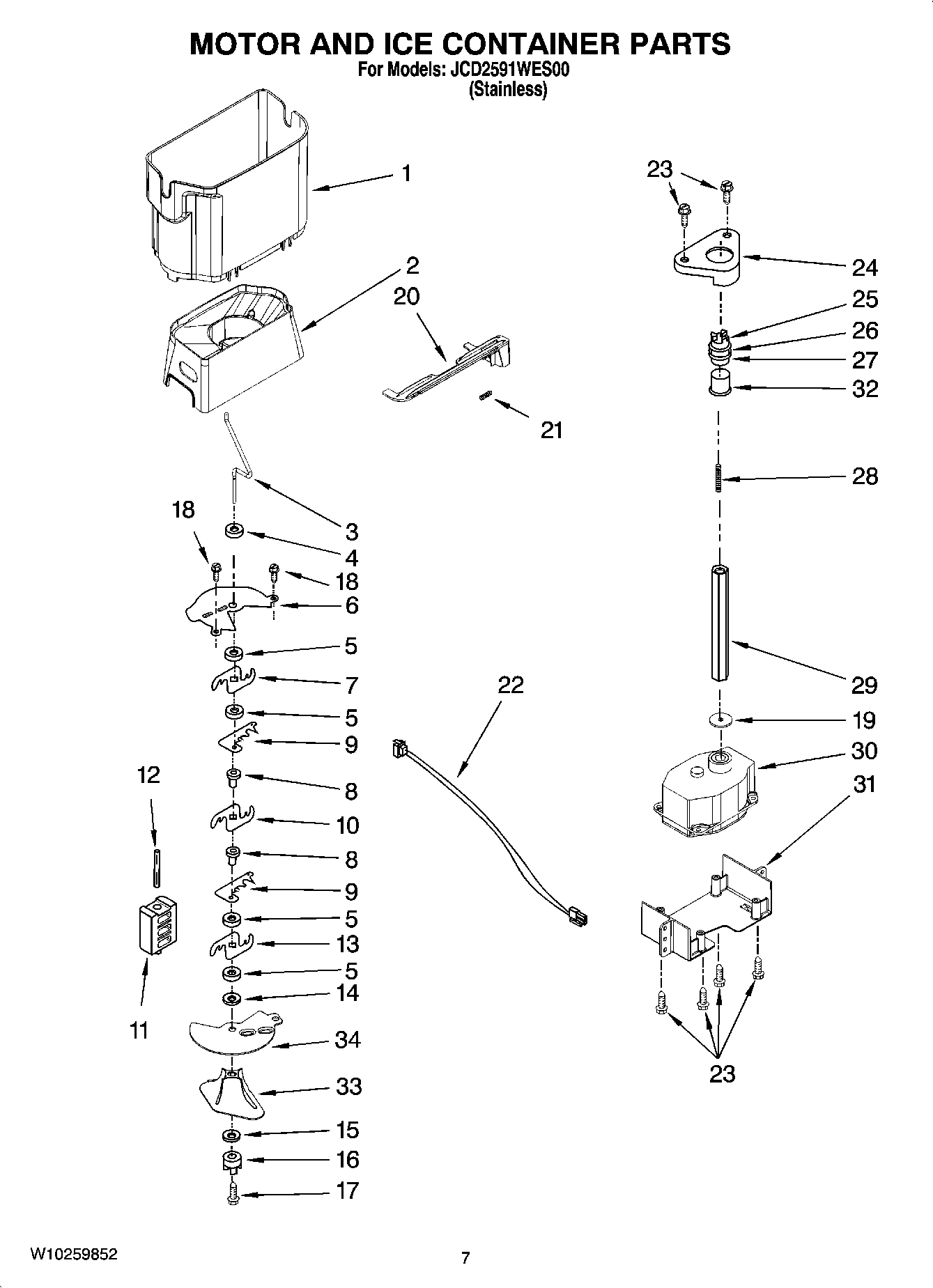

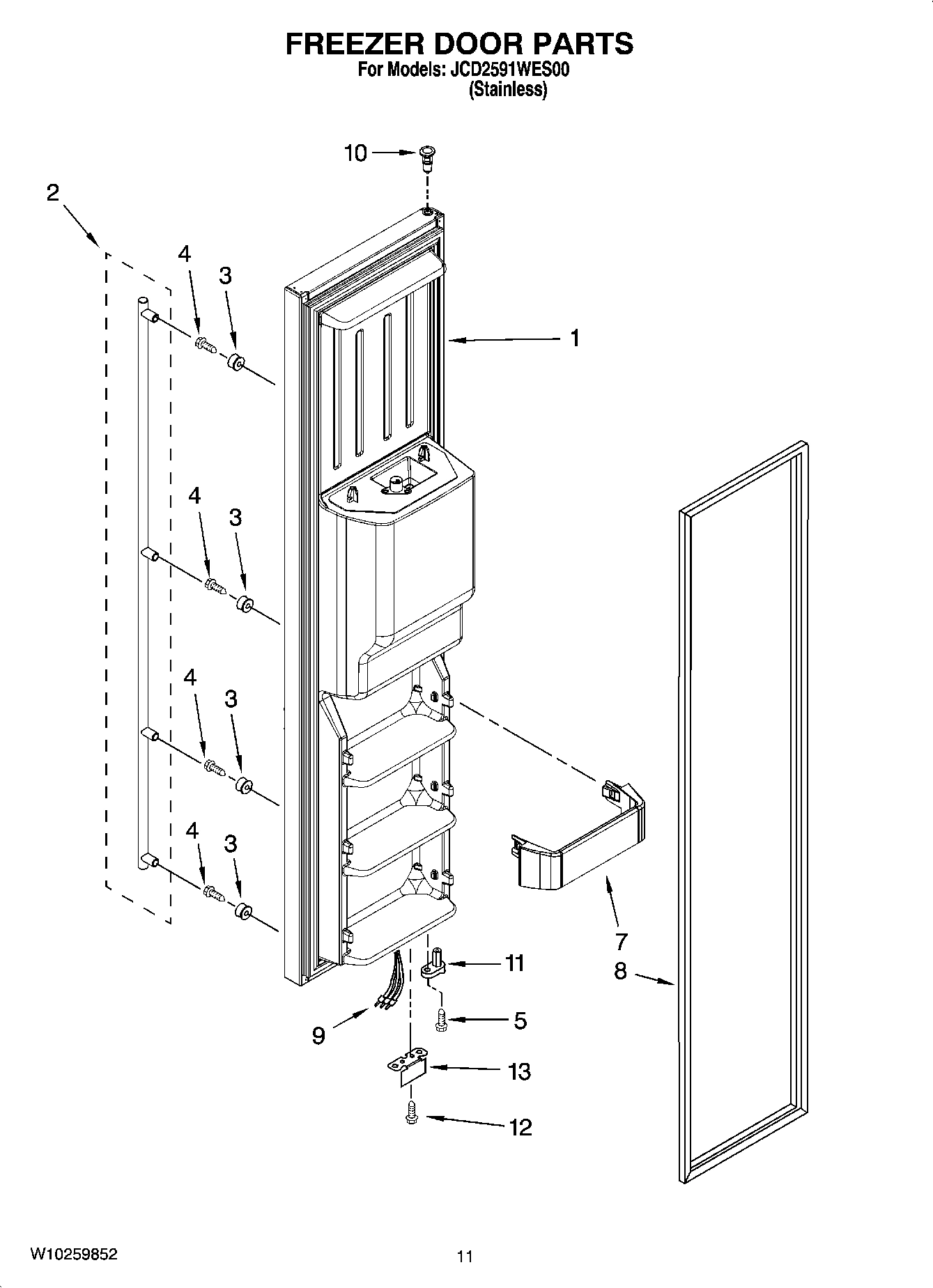

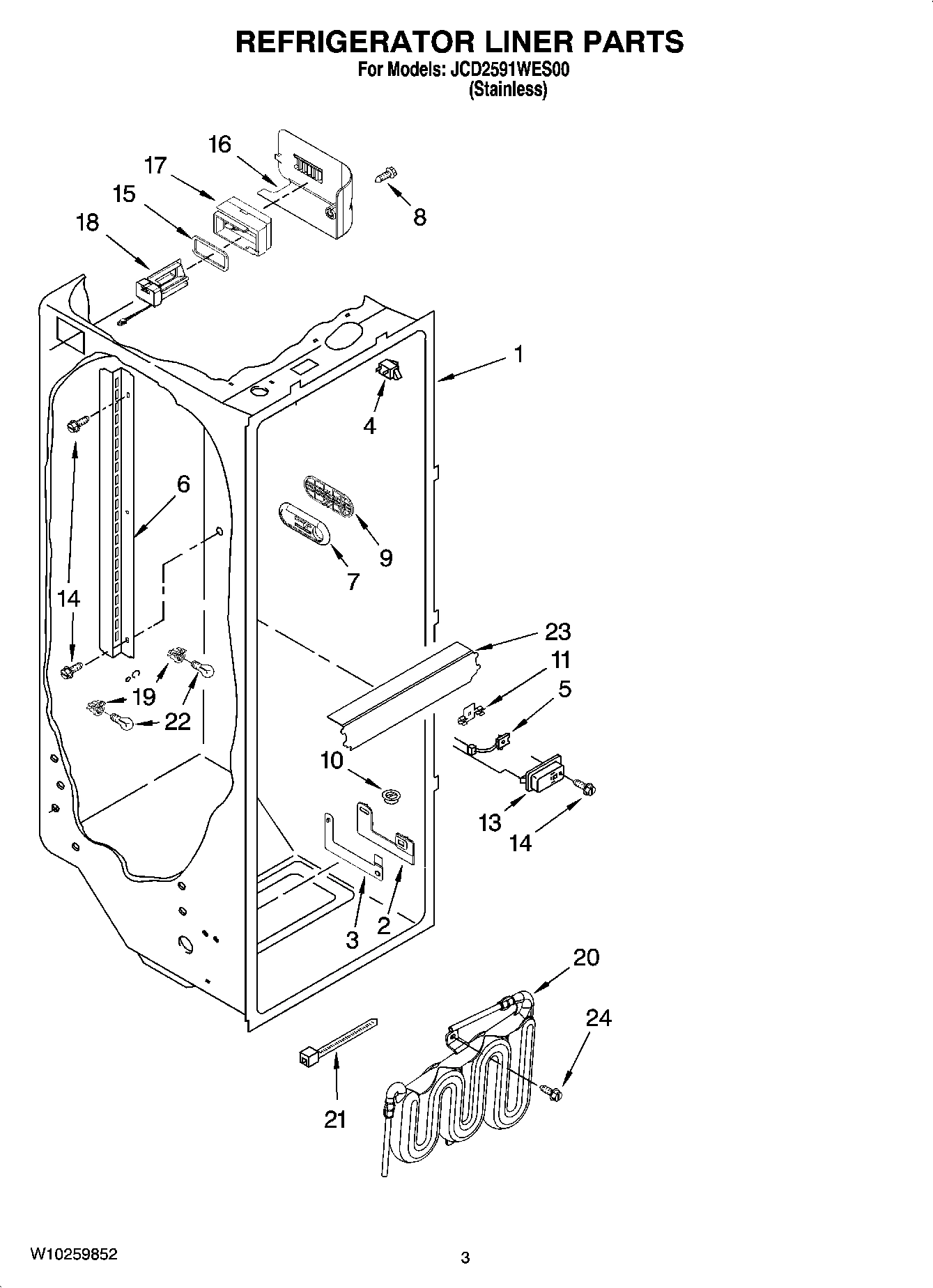

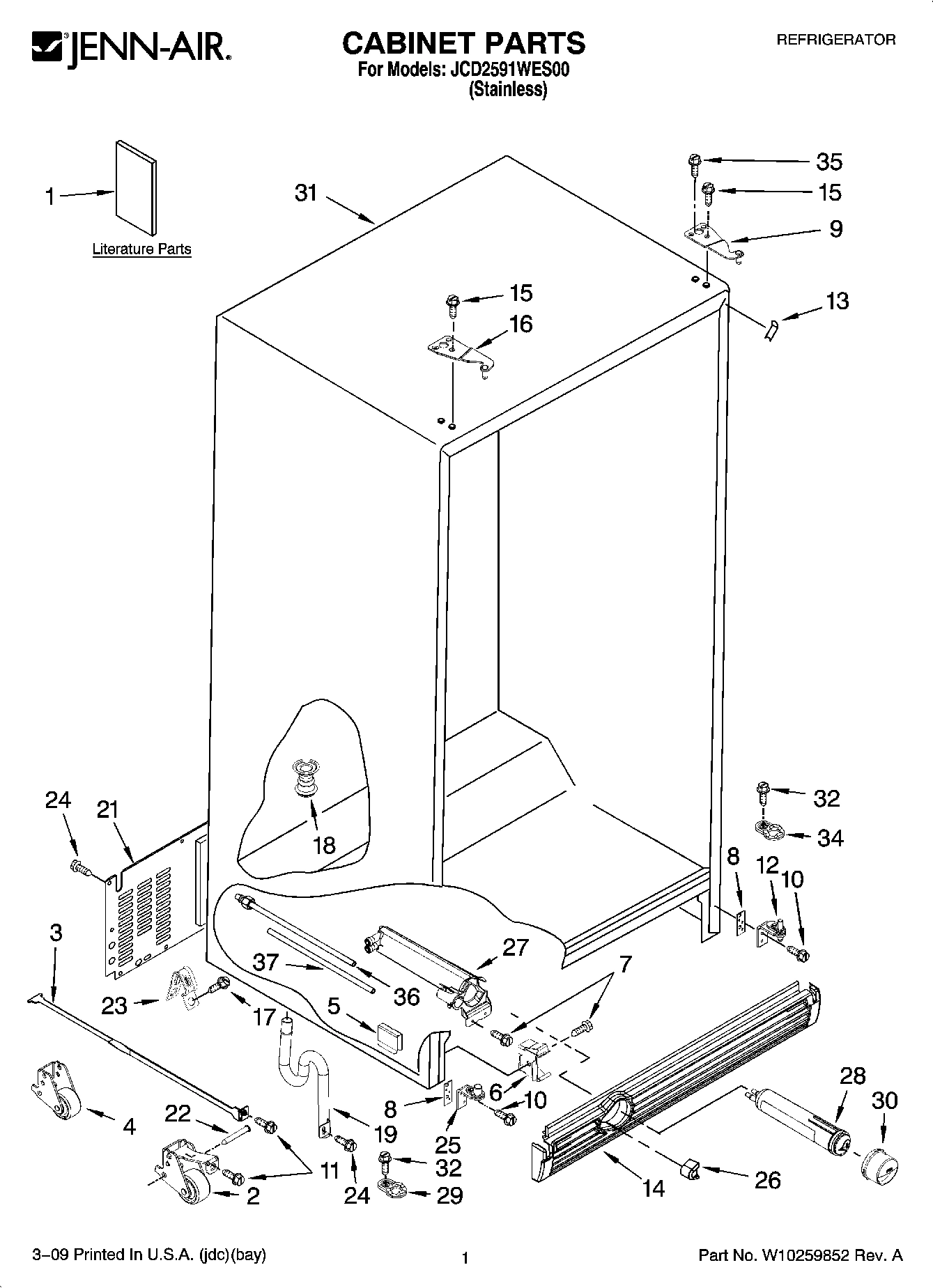

Model Whirlpool JCD2591WES00 REFRIGERATOR – Common Parts &amp; Diagrams

1

WP2182120 Whirlpool Refrigerator Scroll Fan Backorder WPL WP2182120 $38.08

1

Ice Bin WPL W10139482 Contact Us For Availability

1

Freezer Door (Includes 8 And Dispenser Front WPL W10236446 Contact Us For Availability

1

Housing, Dispenser (Not Serviced) WPL ARI3036A70 Contact Us For Availability

2

2223680 Whirlpool Refrigerator Shield Backorder WPL 2223680 $63.51

2

8201663 Whirlpool Refrigerator Primary Fan Bl Backorder WPL 8201663 $57.15

2

WPW10139483 Whirlpool Refrigerator Condenser In Stock WPL WPW10139483 $27.03

2

Fitting, Water Tube WPL 2303216 Contact Us For Availability

2

Handle Assy (Stainless) WPL 12850924 Contact Us For Availability

3

W10852517 Whirlpool Refrigerator Ice Auger Backorder WPL W10852517 $92.29

3

WP2305202 Whirlpool Refrigerator Bracket Backorder WPL WP2305202 $43.87

3

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.79

3

Control Board Asm WPL 2307037 Contact Us For Availability

3

Dairy Door WPL 2255421 Contact Us For Availability

3

Condenser Assembly WPL W10131059 Contact Us For Availability

3

Stud, Handle WPL 12945201 Contact Us For Availability

3

Air Scoop WPL 2223298 Contact Us For Availability

3

Basket, Front WPL 2224053 Contact Us For Availability

4

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $16.36

4

WP2305242 Whirlpool Refrigerator Connector In Stock WPL WP2305242 $35.13

4

Light Lens, Control Box WPL 2223506 Contact Us For Availability

4

Washer WPL 2258220 Contact Us For Availability

4

Air Duct, Upper WPL 2223303 Contact Us For Availability

5

3400524 Whirlpool Refrigerator Screw Backorder WPL 3400524 $8.09

5

W11545866 Whirlpool Refrigerator Clip Backorder WPL W11545866 $4.56

5

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $5.05

5

WP2188820 Whirlpool Refrigerator Thermistor In Stock WPL WP2188820 $19.42

5

WPW10184813 Whirlpool Refrigerator Motor In Stock WPL WPW10184813 $40.72

5

WPW10191429 Whirlpool Refrigerator Socket In Stock WPL WPW10191429 $2.74

5

Air Duct Freezer WPL 2223297 Contact Us For Availability

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.84

6

WP2305258 Whirlpool Dispenser Door Assembly In Stock WPL WP2305258 $7.98

6

WPA3073101 Whirlpool Light Bulb In Stock WPL WPA3073101 $6.50

6

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $20.25

6

Housing, Control Board WPL 2223703 Contact Us For Availability

7

WP2305204 Whirlpool Refrigerator Support In Stock WPL WP2305204 $32.00

7

Glide Assembly, Crisper Pan (Right Side) WPL 2301548 Contact Us For Availability

7

Housing, Door Control WPL 2301234 Contact Us For Availability

7

Shelf Bin (3) WPL 2223559K Contact Us For Availability

7

Fan Motor WPL 2259385 Contact Us For Availability

8

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.85

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $14.17

8

WP4449745 Whirlpool Screw Backorder WPL WP4449745 $2.60

8

Window, Crisper Pan WPL 2301001 Contact Us For Availability

8

SHIM WPL 2223545 Contact Us For Availability

8

Door Gasket, Magnetic (Apollo Grey) WPL 2326340 Contact Us For Availability

9

W10852725 Whirlpool Refrigerator Grommet In Stock WPL W10852725 $3.84

9

WP2304241 Whirlpool Refrigerator Gasket Backorder WPL WP2304241 $30.29

9

Blade, Fixed WPL 2257020 Contact Us For Availability

9

Wire Assy, Door WPL 2310226 Contact Us For Availability

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $35.02

W11669856 Whirlpool Grommet Backorder WPL W11669856 $5.72

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $4.03

Spigot WPL W10187441 Contact Us For Availability

Release Valve WPL 2171846 Contact Us For Availability

Dairy Compartment WPL 2223879 Contact Us For Availability

2317239 Whirlpool Refrigerator Blade Block Backorder WPL 2317239 $4.96

W10160454 Whirlpool Refrigerator Screw Backorder WPL W10160454 $7.79

DOOR CLOSER, (UPPER CAM) WPL 2307050 Contact Us For Availability

Clip, Thermistor WPL 2209204 Contact Us For Availability

Harness, Fan Evaporator (Includes 6) WPL W10129813 Contact Us For Availability

Seperator Assembly WPL 2305456 Contact Us For Availability

2215676 Whirlpool Refrigerator Terminal Cover Backorder WPL 2215676 $33.29

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $31.33

WP2155789 Whirlpool Refrigerator Gasket Backorder WPL WP2155789 $3.84

WP2303843-includeCORE Whirlpool WP2303843 Ref Backorder WPL WP2303843-includeCORE $221.39

WP489483 Whirlpool Screw Backorder WPL WP489483 $4.75

WP627843 Whirlpool Refrigerator Ejector Arm Backorder WPL WP627843 $33.29

Hinge Assembly, Bottom-RC (Includes 34) WPL 2307179 Contact Us For Availability

13

4388500 Whirlpool Refrigerator Gasket Backorder WPL 4388500 $30.91

13

Eyelet, Roller WPL 2174478 Contact Us For Availability

Washer, Plain WPL 489235 Contact Us For Availability

Grille (Midnight Grey) WPL W10194061 Contact Us For Availability

Cover, Evaporator (Includes 9) WPL 2223413 Contact Us For Availability

Lens, Front Cover WPL W10205009 Contact Us For Availability

2306940 Whirlpool Refrigerator Bracket Backorder WPL 2306940 $37.91

4389654 Whirlpool Screw Backorder WPL 4389654 $9.96

WP2198661 Whirlpool Refrigerator Washer Backorder WPL WP2198661 $4.79

WPW10272364 Whirlpool Refrigerator Screw Backorder WPL WPW10272364 $4.73

Gasket, Air Baffle WPL 2304597 Contact Us For Availability

WP2220457 Whirlpool Refrigerator Ice Bin Coup In Stock WPL WP2220457 $11.80

WP2223860 Whirlpool Refrigerator Door Shelf B In Stock WPL WP2223860 $43.61

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.60

UI Board Assy (Includes 18) WPL W10215843 Contact Us For Availability

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.96

W10133606 Whirlpool Refrigerator Pad In Stock WPL W10133606 $186.41

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $2.60

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.84

WP8281164 Whirlpool Refrigerator Screw Backorder WPL WP8281164 $4.73

Air Diffuser Assembly WPL 2224076 Contact Us For Availability

Support, R.S WPL 2223395 Contact Us For Availability

2305219 Whirlpool Refrigerator Cover Backorder WPL 2305219 $33.29

4388358 Whirlpool Refrigerator Support Bracke Backorder WPL 4388358 $13.13

W11566763 Whirlpool Fitting In Stock WPL W11566763 $21.81

WP2220377 Whirlpool Refrigerator Air Baffle In Stock WPL WP2220377 $189.28

WP2224173 Whirlpool Refrigerator Cantilever B Backorder WPL WP2224173 $52.74

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $2.60

Glide Assembly, Basket (2) (Right Side) WPL 2301544 Contact Us For Availability

Glide Assembly, Basket (2) (Left Side) WPL 2301545 Contact Us For Availability

Glide Assembly, Snack Pan (Left Side) WPL 2301551 Contact Us For Availability

WP2187467 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187467 $53.37

WP2305382 Whirlpool Refrigerator Washer Backorder WPL WP2305382 $4.35

Cover, Emitter WPL 2259487 Contact Us For Availability

Tube, Extension WPL 2254566 Contact Us For Availability

Insulation, Sound WPL W10138980 Contact Us For Availability

20

W10222215 Whirlpool Refrigerator Light Indica Backorder WPL W10222215 $63.45

20

Bracket, Ice Maker Mounting WPL 2303583 Contact Us For Availability

WP2198608 Whirlpool Refrigerator Spring In Stock WPL WP2198608 $3.84

Support Assembly (Right Side) WPL 2301569 Contact Us For Availability

Cover, Unit WPL 2223409 Contact Us For Availability

Front Cover, Housing (Not Available, Order 23 WPL 2318912NO Contact Us For Availability

WP2188823 Whirlpool Refrigerator Evaporator In Stock WPL WP2188823 $256.71

WP2198635 Whirlpool Refrigerator Spring Backorder WPL WP2198635 $31.52

Wire Harness, IDI Motor WPL 2187813 Contact Us For Availability

Handle WPL 2203031 Contact Us For Availability

Tray Assy (Nickel Alloy) WPL 2315109NA Contact Us For Availability

WP2198634 Whirlpool Door Pin Backorder WPL WP2198634 $5.64

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $4.73

Light Lens WPL 2223663 Contact Us For Availability

Front Cover Assy (Nickel One) WPL W10205003 Contact Us For Availability

Clamp WPL 2161324 Contact Us For Availability

24

W10178851 Whirlpool Refrigerator Jumper Wire Backorder WPL W10178851 $93.61

24

WP2188874 Whirlpool Refrigerator Condenser Mo In Stock WPL WP2188874 $59.32

24

HOLDER WPL 2212369 Contact Us For Availability

2305447 Whirlpool Refrigerator Clip Backorder WPL 2305447 $8.08

W11223328 Whirlpool Refrigerator Shelf Stud Backorder WPL W11223328 $9.96

WP2220458 Whirlpool Drive Cam In Stock WPL WP2220458 $12.43

Hinge Assembly, Bottom-FC WPL 2307152 Contact Us For Availability

26

2260503MG Whirlpool Refrigerator Button Backorder WPL 2260503MG $12.58

26

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $5.21

27

WP2212370 Whirlpool Washer Backorder WPL WP2212370 $7.73

27

WPW10121140 Whirlpool Refrigerator Housing In Stock WPL WPW10121140 $104.55

27

WPW10185438 Whirlpool Ice Maker Cover Backorder WPL WPW10185438 $48.72

28

W10852956 Whirlpool Refrigerator Spring In Stock WPL W10852956 $8.46

28

WP2196483 Whirlpool Refrigerator Shelf Stud Backorder WPL WP2196483 $4.50

28

Slide, Ice Maker Mounting (Right Side) WPL 2212321 Contact Us For Availability

29

WP2305243 Whirlpool Refrigerator Shaft Backorder WPL WP2305243 $102.08

29

Door Closer, FC WPL 2307051 Contact Us For Availability

29

Screw WPL W10191952 Contact Us For Availability

30

WP2260518MG Whirlpool Water Filter Cap Backorder WPL WP2260518MG $31.45

30

Dispenser, Motor WPL 2252130 Contact Us For Availability

30

Window, Snack Pan WPL 2301006 Contact Us For Availability

31

WP2310122 Whirlpool Refrigerator Wire Harness Backorder WPL WP2310122 $166.07

31

Bracket, Motor WPL 2305208 Contact Us For Availability

32

WP2212365 Whirlpool Refrigerator Sleeve Backorder WPL WP2212365 $10.83

33

Wiper WPL 2317243 Contact Us For Availability

33

Heater, Defrost WPL 2323199 Contact Us For Availability

34

2317250 Whirlpool Refrigerator Divider Backorder WPL 2317250 $11.51

34

WPW10142283 Whirlpool Refrigerator Screw In Stock WPL WPW10142283 $4.73

34

Door Closer, RC WPL 2307049 Contact Us For Availability

35

WP2198633 Whirlpool Refrigerator Flipper In Stock WPL WP2198633 $16.66

36

WPW10154805 Whirlpool Refrigerator Inverter B In Stock WPL WPW10154805 $216.40

36

Cover, Receiver WPL W10173569 Contact Us For Availability

37

2315398 Whirlpool Refrigerator Slide Backorder WPL 2315398 $4.96

39

WP2198643 Whirlpool Refrigerator Lens Backorder WPL WP2198643 $2.60

42

WP2198641 Whirlpool Refrigerator Ice Maker Co In Stock WPL WP2198641 $2.60

44

WP2300868 Whirlpool Refrigerator Fitting In Stock WPL WP2300868 $10.89

100

Ice Container (Complete) WPL W10205005 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $31.41

350930 Whirlpool White Spray Paint In Stock WPL 350930 $22.23

350942 Whirlpool Spray Paint Backorder WPL 350942 $52.25

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $10.93

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $45.60

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $10.93

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $10.93

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $47.98

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.84

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $37.34

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $39.24

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $41.04

W10134625 Whirlpool Refrigerator Touch-Up Pai In Stock WPL W10134625 $10.93

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $45.28

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $66.85

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $25.50

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $29.93

PAINT, TOUCH-UP (1/2oz.) (Graphite) WPL 80051 Contact Us For Availability

Valve, Access (5/8``) WPL 978029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 qt.) (White) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability
