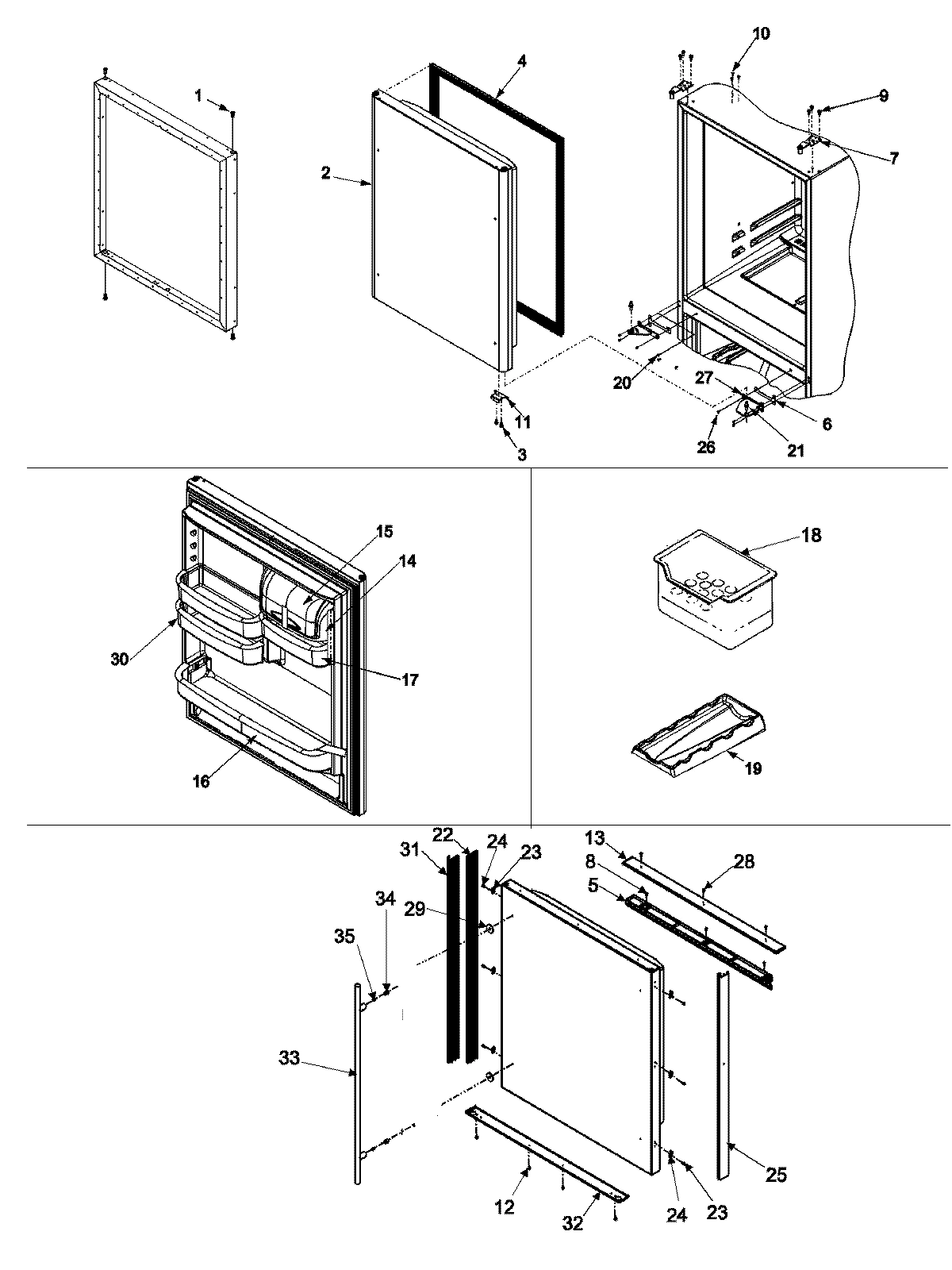

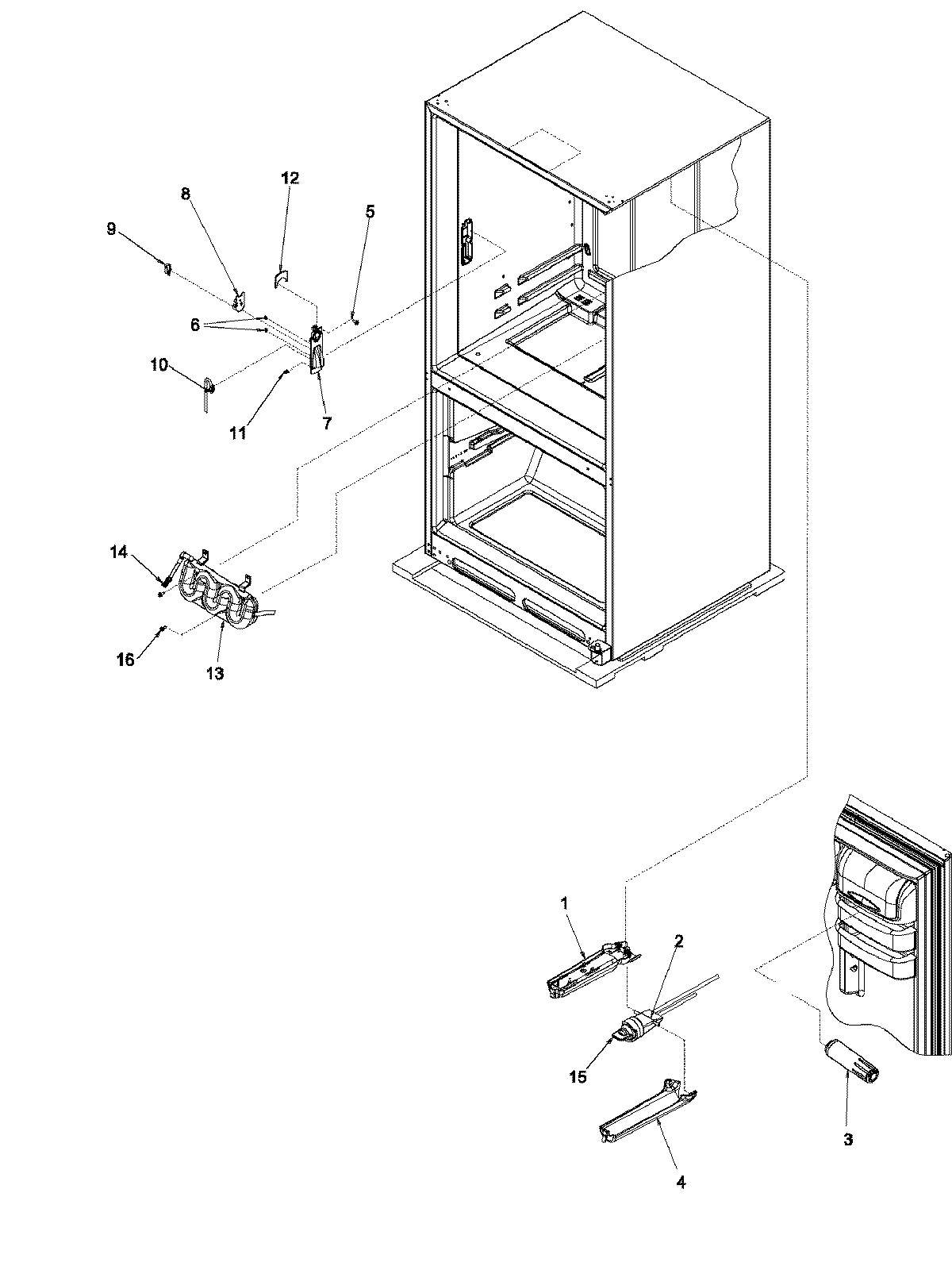

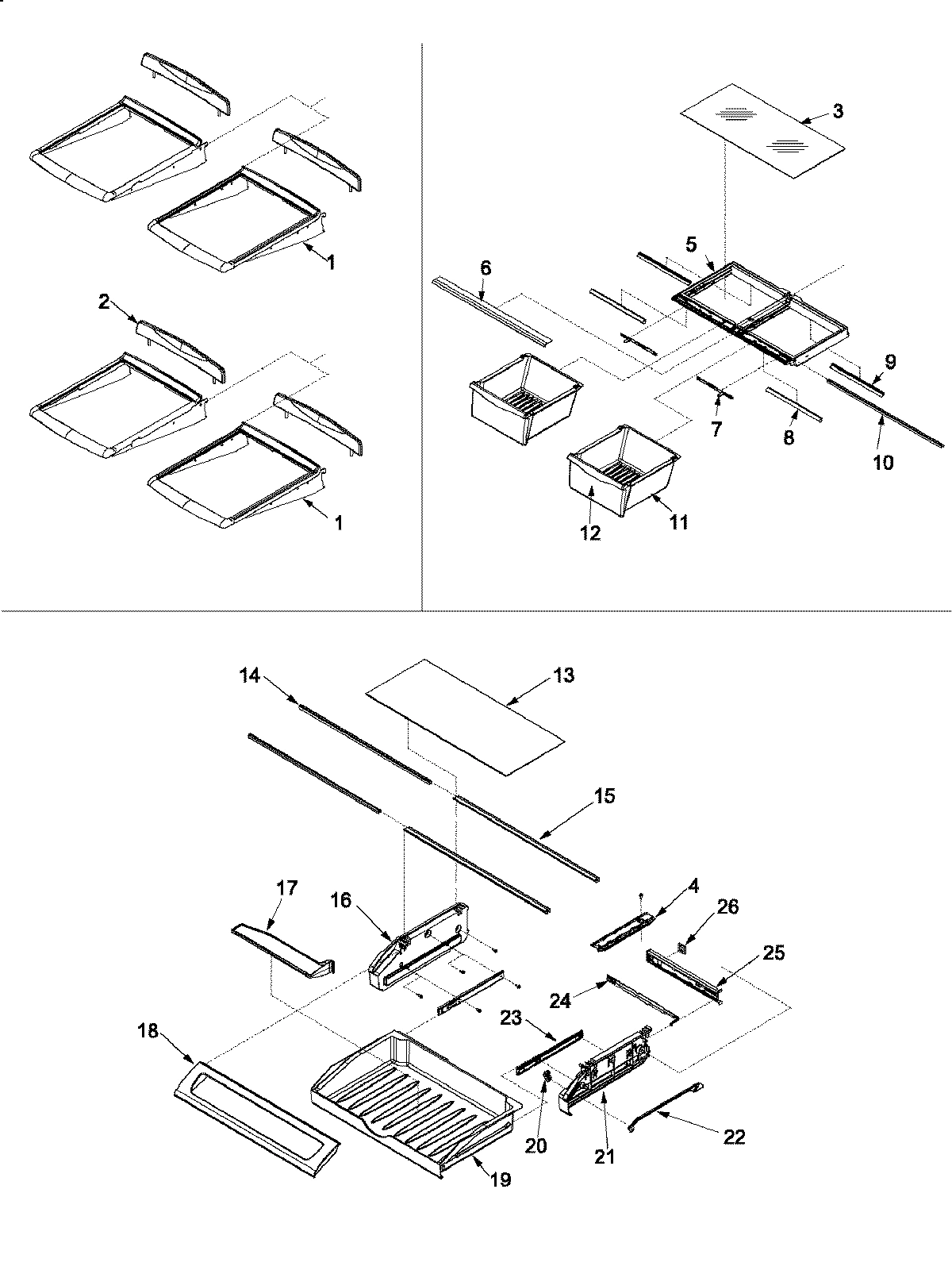

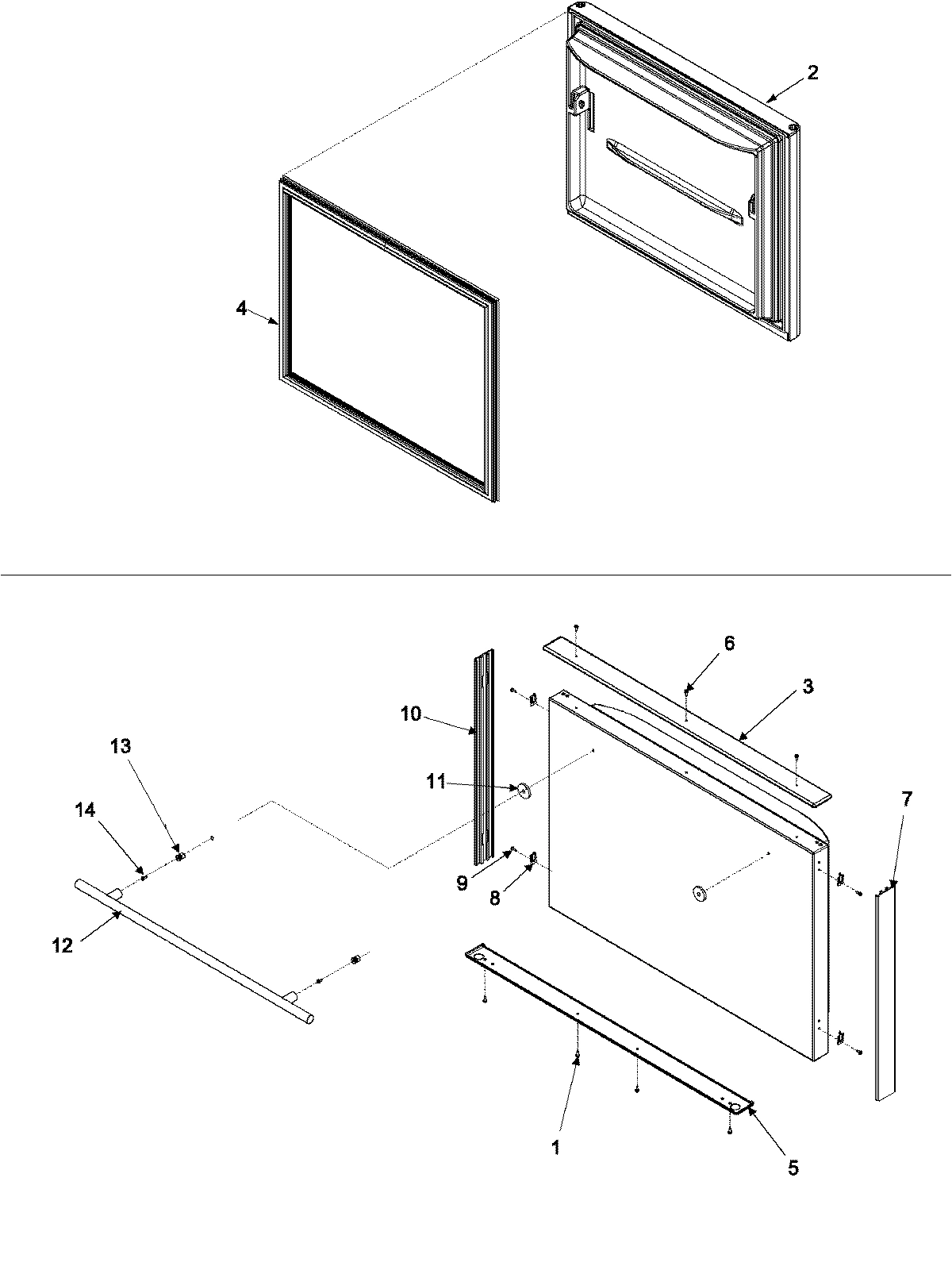

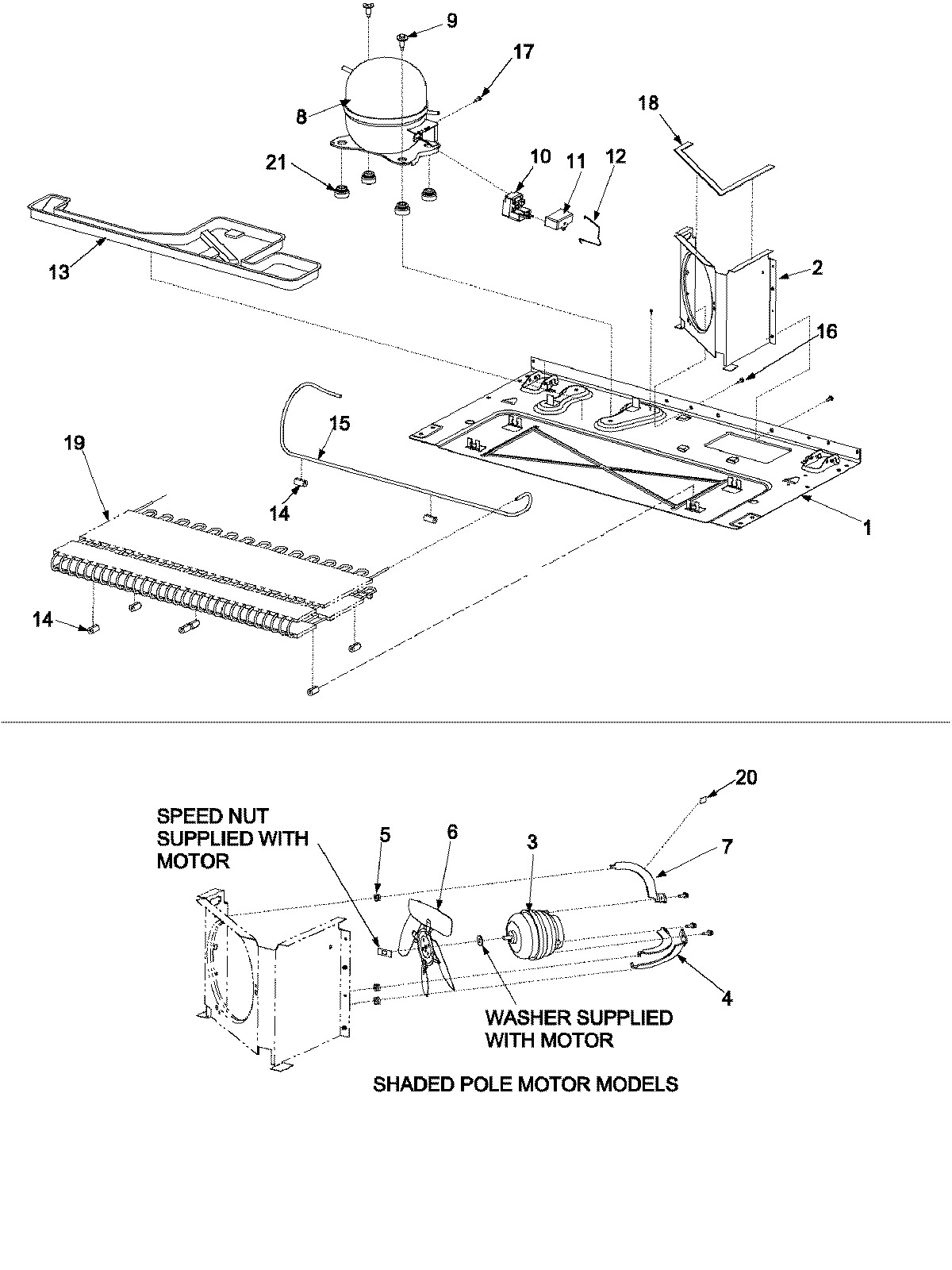

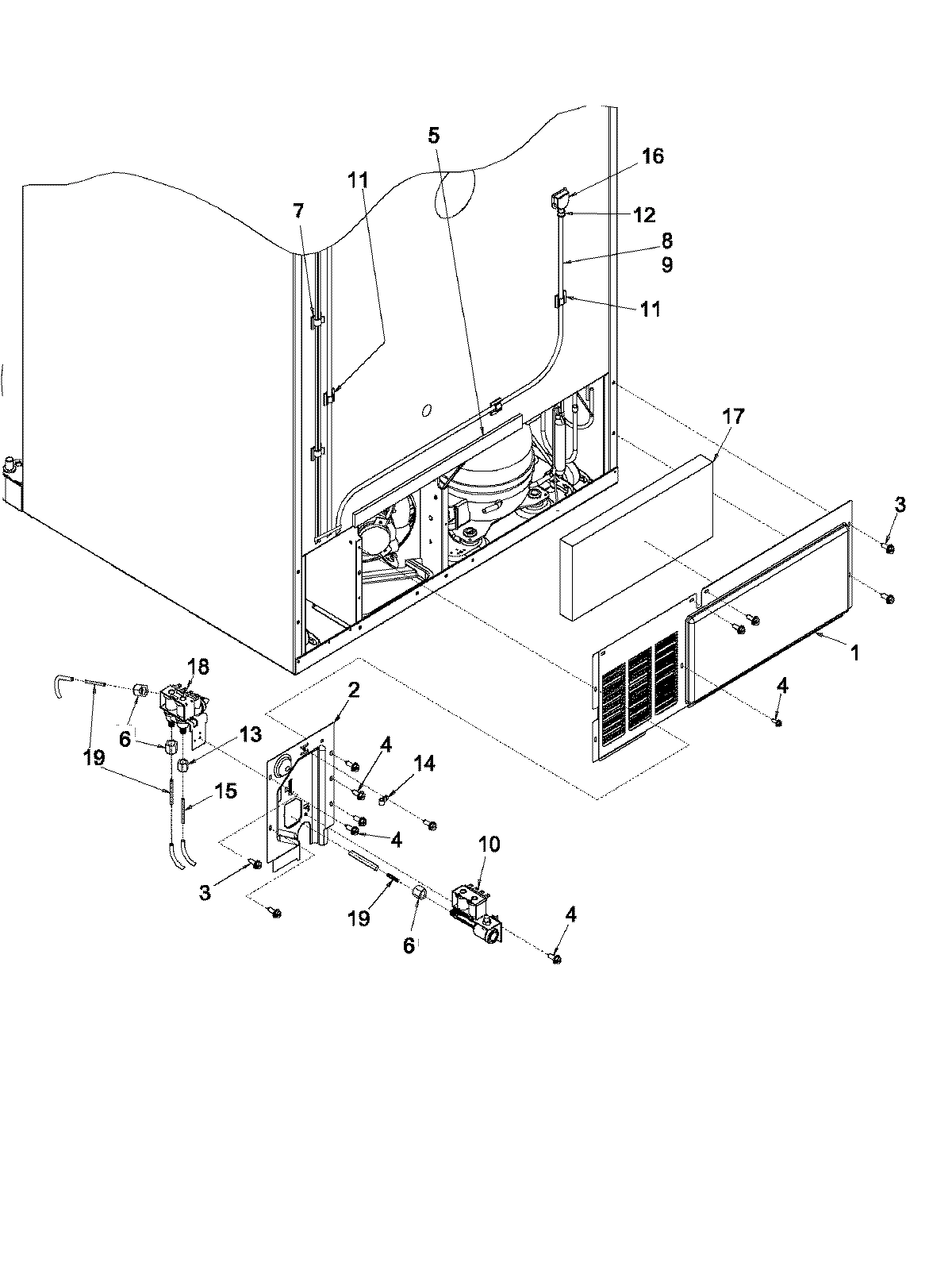

Model Whirlpool JCB2058GEB REFRIGERATOR – Common Parts &amp; Diagrams

1

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $16.36

1

WP67001668 Whirlpool Water Filter Housing In Stock WPL WP67001668 $6.88

1

WPB8381501 Whirlpool Refrigerator Door Gasket In Stock WPL WPB8381501 $3.84

1

WPW10175909 Whirlpool Grille Assembly In Stock WPL WPW10175909 $31.88

1

PAN, BASE WPL 67001512 Contact Us For Availability

1

SHEET, TECH DATA WPL 67003126 Contact Us For Availability

1

SHELF, GLIDE WPL 67003021 Contact Us For Availability

1

BACK, MC WPL 12575102ED Contact Us For Availability

1

BUSHING, DOOR (BLK) WPL 10961002 Contact Us For Availability

2

W11547653 Whirlpool Refrigerator Drip Tray Backorder WPL W11547653 $33.95

2

WPM0500703 Whirlpool Refrigerator O-Ring Seal Backorder WPL WPM0500703 $4.90

2

SHROUD, CONDENSER WPL 12687101 Contact Us For Availability

2

MODULE, LIGHT WPL 67002087 Contact Us For Availability

2

MANUAL, USE & CARE WPL 67003127 Contact Us For Availability

2

EXTENSION, REF SHELF WPL 67003051 Contact Us For Availability

2

HOUSING, WATER FILTER ASSY WPL 67001669 Contact Us For Availability

2

COVER, WATER VALVE WPL 67002514 Contact Us For Availability

2

DOOR ASSY., FRZ. FOAM (BLK) WPL 67002115 Contact Us For Availability

2

DOOR ASSY., REF. FOAM (BLK) WPL 67002116 Contact Us For Availability

3

833697 Whirlpool Condenser Fan Motor In Stock WPL 833697 $41.18

3

W10815413 Whirlpool Refrigerator Funnel Backorder WPL W10815413 $32.00

3

WP67006655 Whirlpool Refrigerator Crisper Gla Backorder WPL WP67006655 $131.17

3

COVER, REF LIGHT WPL 67002301 Contact Us For Availability

3

TAG, ENERGY WPL 67003320 Contact Us For Availability

3

FILTER, WATER (GENERIC) WPL 67002269 Contact Us For Availability

3

CLIP, EVAPORATOR WPL 10623002 Contact Us For Availability

4

681390 Whirlpool Refrigerator Screw Backorder WPL 681390 $9.48

4

W10436252 Whirlpool Door Gasket In Stock WPL W10436252 $141.97

4

W10849442 Whirlpool Refrigerator FIP Gasket Backorder WPL W10849442 $137.58

4

WP12568001 Whirlpool Filter Cover In Stock WPL WP12568001 $40.18

4

WP67001719 Whirlpool Refrigerator Track Backorder WPL WP67001719 $2.60

4

BRACKET, COND MTR WPL 67001311 Contact Us For Availability

4

LOGO, LIGHT MODULE WPL 67003119 Contact Us For Availability

4

MANUAL, SERVICE 2002 BOTT MT WPL 16021484 Contact Us For Availability

4

POP RIVET WPL A4539607 Contact Us For Availability

4

COVER-36`` EVAP WPL 67002491 Contact Us For Availability

5

67003485 Whirlpool Refrigerator Corner Cover Backorder WPL 67003485 $11.17

5

W11159728 Whirlpool Refrigerator Gasket In Stock WPL W11159728 $10.49

5

WP67006185 Whirlpool Refrigerator Crisper Fra Backorder WPL WP67006185 $118.51

5

GROMMET, FAN BRKT WPL 12578701 Contact Us For Availability

5

GASKET, MC BACK WPL B5759649 Contact Us For Availability

5

EXTENSION, REF DR (BLK) WPL 12059103 Contact Us For Availability

6

71003131 Whirlpool Oven Screw Backorder WPL 71003131 $5.04

6

W10819546 Whirlpool Refrigerator Clip Backorder WPL W10819546 $5.30

6

WP12587601 Whirlpool Refrigerator Condenser B Backorder WPL WP12587601 $60.91

6

WPM0274062 Whirlpool Refrigerator Shim Backorder WPL WPM0274062 $13.43

6

KNOB, FRONT DAMPER WPL 67003120 Contact Us For Availability

6

EXTRUSION, CRISPER FRONT WPL 67003078 Contact Us For Availability

6

NUT, SLEEVE WPL M0753002 Contact Us For Availability

6

TUBE, DRAIN WPL 67001066 Contact Us For Availability

6

SCREW, ADJUSTING (ROD) WPL 10093315 Contact Us For Availability

7

12626910ED Whirlpool Refrigerator Door Hinge Backorder WPL 12626910ED $44.99

7

67001067 Whirlpool Refrigerator Drain Tube Cl Backorder WPL 67001067 $4.58

7

WP67005864 Whirlpool Humidity Control In Stock WPL WP67005864 $3.84

7

KNOB, GEAR WPL 67001033 Contact Us For Availability

7

SCREW, TR WPL M0223816 Contact Us For Availability

7

DISPENSER, FACADE WPL 67001670 Contact Us For Availability

7

CLIP, CORD WPL M0104102 Contact Us For Availability

7

ROLLER BRACKET ASSY WPL 67002227 Contact Us For Availability

7

HINGE, TOP (LT-BLK) WPL 67001695 Contact Us For Availability

8

12707303SP Whirlpool Refrigerator Plate Backorder WPL 12707303SP $34.22

8

67006425 Whirlpool Refrigerator Screw In Stock WPL 67006425 $2.60

8

A3076901 Whirlpool Refrigerator Plug Backorder WPL A3076901 $5.74

8

W10160407 Whirlpool Refrigerator Compressor In Stock WPL W10160407 $328.61

8

W10823511 Whirlpool Refrigerator Water Tube In Stock WPL W10823511 $13.87

8

WP489474 Whirlpool Refrigerator Screw Backorder WPL WP489474 $2.85

8

WP67003417 Whirlpool Refrigerator Front Seal Backorder WPL WP67003417 $3.84

8

TENSIONER, BELT WPL 67001034 Contact Us For Availability

9

WP12575501 Whirlpool Refrigerator Micro Switc Backorder WPL WP12575501 $32.15

9

WP489349 Whirlpool Refrigerator Screw In Stock WPL WP489349 $2.60

9

WP67002513 Whirlpool Refrigerator Rear Crispe Backorder WPL WP67002513 $4.29

9

WP67006715 Whirlpool Refrigerator Screw Backorder WPL WP67006715 $3.84

9

WPA3223101 Whirlpool Refrigerator Insert PL Backorder WPL WPA3223101 $3.84

9

SCREW, SHLDR WPL M0221523 Contact Us For Availability

9

SCREW, TF WPL M0260242 Contact Us For Availability

W11677725 Whirlpool Refrigerator Guide Backorder WPL W11677725 $13.26

WP12227304WD Whirlpool Refrigerator Drawer Su Backorder WPL WP12227304WD $49.86

WP12544002 Whirlpool Refrigerator Inlet Valve In Stock WPL WP12544002 $130.13

WP12555902 Whirlpool Refrigerator Overload Backorder WPL WP12555902 $86.72

TRIM, FZ DOOR SIDE (STNLS) WPL 67002995 Contact Us For Availability

HINGE, BOTTOM E-CT (BLK) WPL 67001238 Contact Us For Availability

GROMMET, SCREW WPL M0580205 Contact Us For Availability

PLUG, TOP HINGE BUTTON (BLK) WPL M0310731 Contact Us For Availability

67002816 Whirlpool Refrigerator Waterline Cli Backorder WPL 67002816 $11.42

W11708403 Whirlpool Door Stop Backorder WPL W11708403 $5.26

WP65889-4 Whirlpool Refrigerator Capacitor In Stock WPL WP65889-4 $42.29

WP67002659 Whirlpool Crisper Pan In Stock WPL WP67002659 $78.00

WP98165 Whirlpool Screw In Stock WPL WP98165 $2.60

WPB2150504 Whirlpool Refrigerator Dryer Backorder WPL WPB2150504 $74.65

WPM0104106 Whirlpool Refrigerator Clip Backorder WPL WPM0104106 $2.60

12001919 Whirlpool Refrigerator Evaporator Re Backorder WPL 12001919 $214.88

W11177593 Whirlpool Leveling Feet Backorder WPL W11177593 $7.35

W11519867 Whirlpool Refrigerator Cover In Stock WPL W11519867 $13.03

WP67001036 Whirlpool Refrigerator Defrost Tim In Stock WPL WP67001036 $106.82

WP67001255 Whirlpool Ice Bucket Backorder WPL WP67001255 $94.92

WPM0114003 Whirlpool Microwave Speed Clip Cla Backorder WPL WPM0114003 $4.77

WPW10348409 Whirlpool Screw In Stock WPL WPW10348409 $2.60

STRAP, BALE WPL 12576801 Contact Us For Availability

FRONT, CRISPER PAN WPL 67003122 Contact Us For Availability

HANDLE, FZ DOOR WPL 67003118 Contact Us For Availability

W11361728 Whirlpool Reservoir Assembly In Stock WPL W11361728 $66.63

WP627018 Whirlpool Refrigerator Nut Backorder WPL WP627018 $4.77

WP67002332 Whirlpool Refrigerator Glass Pan Backorder WPL WP67002332 $133.64

PAN, DRAIN WPL 12619101 Contact Us For Availability

SCREW WPL M0216705 Contact Us For Availability

TRIM, DOOR TOP (STNLS) WPL 67002252 Contact Us For Availability

CLIP, TOE GRILLE WPL 12627302 Contact Us For Availability

DAM, LEFT RETURN WPL 67001083 Contact Us For Availability

67001073 Whirlpool Refrigerator Center Ladder Backorder WPL 67001073 $32.55

67005680 Whirlpool Refrigerator Condenser Gro Backorder WPL 67005680 $11.17

8003RP Whirlpool Refrigerator 25' 1/4" Copper In Stock WPL 8003RP $23.96

W10833902 Whirlpool Refrigerator Clamp Backorder WPL W10833902 $4.62

WP12227305WD Whirlpool Drawer Support Backorder WPL WP12227305WD $49.48

WP2300868 Whirlpool Refrigerator Fitting In Stock WPL WP2300868 $10.89

WP67001279 Whirlpool Refrigerator Dairy Tray Backorder WPL WP67001279 $53.90

GEAR, DAMPER WPL 67001037 Contact Us For Availability

DAM, RIGHT RETURN WPL 67001084 Contact Us For Availability

W11812285 Whirlpool Support Backorder WPL W11812285 $22.76

WP67002493 Whirlpool Refrigerator Defrost Hea In Stock WPL WP67002493 $79.39

WP67003637 Whirlpool Dairy Door Backorder WPL WP67003637 $48.32

TUBE, DISCHARGE WPL 67002494 Contact Us For Availability

GASKET, DAMPER WPL 67001038 Contact Us For Availability

PLUG, BYPASS WPL 12664501 Contact Us For Availability

SPRING, ANTI KINK WPL A1055105 Contact Us For Availability

LADDER, L/R SIDE WPL 67002489 Contact Us For Availability

W10709795 Whirlpool Refrigerator Screw Backorder WPL W10709795 $8.11

W11176463 Whirlpool Refrigerator Water Tube In Stock WPL W11176463 $48.36

W11673433 Whirlpool Clip Backorder WPL W11673433 $69.09

WP12656105 Whirlpool Drawer Support In Stock WPL WP12656105 $35.70

COVER, DAMPER WPL 67003121 Contact Us For Availability

RETAINER, REF DR WPL 67003027 Contact Us For Availability

12992301 Whirlpool Refrigerator Screw Backorder WPL 12992301 $14.42

WP67002321 Whirlpool Refrigerator Divider Pan Backorder WPL WP67002321 $18.20

WPW10371195 Whirlpool Refrigerator Cantilever In Stock WPL WPW10371195 $52.82

BELT, DAMPER WPL 67002482 Contact Us For Availability

SHROUD, EVAP FAN WPL 67001086 Contact Us For Availability

12002193 Whirlpool Refrigerator Water Valve K In Stock WPL 12002193 $92.53

W10827015 Whirlpool Refrigerator Pantry Drawe In Stock WPL W10827015 $120.38

WP854334 Whirlpool Air Conditioner Sealing St Backorder WPL WP854334 $5.93

WPW10128551 Whirlpool Evaporator Fan Motor In Stock WPL WPW10128551 $37.53

CONTROL, DAMPER WPL 67001041 Contact Us For Availability

BASKET, UPPER WPL 67003319 Contact Us For Availability

TRAY, EGG WPL 672152 Contact Us For Availability

67001656 Whirlpool Refrigerator Bottle Trivet Backorder WPL 67001656 $35.00

W11490183 Whirlpool Refrigerator Utility Pan Backorder WPL W11490183 $84.17

WP67006131 Whirlpool Refrigerator Condenser Backorder WPL WP67006131 $169.07

INSULATION, DAMPER WPL 67001042 Contact Us For Availability

SPRING, ANTI-KINK WPL A1055104 Contact Us For Availability

END CAP, BASKET(LT) WPL 67002363 Contact Us For Availability

END CAP, BASKET(RT) WPL 67002364 Contact Us For Availability

CLIP, EVAP MOTOR WPL 12217805 Contact Us For Availability

W11498983 Whirlpool Refrigerator Knob Backorder WPL W11498983 $11.57

WP67002780 Whirlpool Refrigerator Grommet Backorder WPL WP67002780 $3.84

WP67006506 Whirlpool Refrigerator Power Cord Backorder WPL WP67006506 $18.24

GASKET, PROTECTIVE WPL 67001096 Contact Us For Availability

BASKET, LOWER FZ WPL 67003124 Contact Us For Availability

12002311 Whirlpool Refrigerator Center Hinge Backorder WPL 12002311 $3.84

WP12656018 Whirlpool Drawer Support In Stock WPL WP12656018 $32.60

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $14.17

WPW10169124 Whirlpool Refrigerator Grommet In Stock WPL WPW10169124 $3.84

COVER, FZ LIGHT WPL 67001285 Contact Us For Availability

SCREW-SM WPL M0238636 Contact Us For Availability

HANDLE, BASKET/SHELF WPL 67003040 Contact Us For Availability

67003794 Whirlpool Refrigerator Temperature C Backorder WPL 67003794 $8.40

W10856123 Whirlpool Refrigerator Gasket Backorder WPL W10856123 $3.84

HARNESS, MC WPL 67002666 Contact Us For Availability

DIVIDER, BASKET (UPPER) WPL 67001723 Contact Us For Availability

TRIM, VERTICAL (LT-STNLS) WPL 67003116 Contact Us For Availability

12456801V Whirlpool Refrigerator Bracket Backorder WPL 12456801V $34.54

WP489399 Whirlpool Refrigerator Screw Backorder WPL WP489399 $2.60

WPW10235370 Whirlpool Refrigerator Glide Backorder WPL WPW10235370 $125.32

PANEL, FZ CONTROL MOUNTING WPL 67001045 Contact Us For Availability

SCREW WPL 67001310 Contact Us For Availability

67002451 Whirlpool Refrigerator Handle Clip A Backorder WPL 67002451 $4.56

M0286708 Whirlpool Refrigerator Holder Nut As Backorder WPL M0286708 $30.91

WP67003000 Whirlpool Refrigerator Control In Stock WPL WP67003000 $92.60

WP67003793 Whirlpool Refrigerator Temperature Backorder WPL WP67003793 $31.16

COVER, LWR HINGE (BLK) WPL 12561901B Contact Us For Availability

12656202 Whirlpool Refrigerator Housing Backorder WPL 12656202 $60.35

WP10450603 Whirlpool Refrigerator Roller In Stock WPL WP10450603 $4.03

KNOB, FZ CONTROL WPL 67001321 Contact Us For Availability

DIVIDER, BASKET (LWR) WPL 67003171 Contact Us For Availability

TRIM,VERTICAL (RT-STNLS)xx WPL 67002201 Contact Us For Availability

67002329 Whirlpool Refrigerator Pantry Gasket Backorder WPL 67002329 $11.17

W11573362 Whirlpool Screw Assembly Backorder WPL W11573362 $9.96

HOUSING, LIGHT WPL 67001035 Contact Us For Availability

SLIDE, DRAWER WPL 67002365 Contact Us For Availability

RIVET WPL M1205302 Contact Us For Availability

12655103ED Whirlpool Door Hinge Backorder WPL 12655103ED $32.07

W11447232 Whirlpool Refrigerator Socket In Stock WPL W11447232 $4.75

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.60

CRISPER ASSY. WPL 67003123 Contact Us For Availability

CLIP, DRIER WPL 10547002 Contact Us For Availability

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $8.55

W11245710 Whirlpool Refrigerator Screw Backorder WPL W11245710 $9.96

ADAPTER, SIDE (LT) WPL 67002625 Contact Us For Availability

ADAPTER, SIDE (RT) WPL 67002626 Contact Us For Availability

29

W11396033 Whirlpool Refrigerator Rocker Switc In Stock WPL W11396033 $16.36

29

SPACER, HANDLE WPL 67003113 Contact Us For Availability

29

HARNESS, EVAP HEATER WPL 67002008 Contact Us For Availability

12001937 Whirlpool Refrigerator 42-Degree Def In Stock WPL 12001937 $58.15

HARNESS, FF MODULE WPL 67002453 Contact Us For Availability

BRACKET, SLIDE (LT) WPL 67002368 Contact Us For Availability

BRACKET, SLIDE (RT) WPL 67002369 Contact Us For Availability

BUCKET, LG REF DR WPL 67003111 Contact Us For Availability

31

WP488234 Whirlpool Air Conditioner Screw Backorder WPL WP488234 $3.21

31

HARNESS, FZ MODULE WPL 67001049 Contact Us For Availability

31

TRIM, VERTICAL (LT-STNLS) WPL 67002435 Contact Us For Availability

32

TRIM, DOOR BOTTOM (STNLS) WPL 67002194 Contact Us For Availability

32

BRACKET, DOOR WPL 67001262 Contact Us For Availability

33

W10332340 Whirlpool Refrigerator Mat Backorder WPL W10332340 $54.61

33

HANDLE, REF DOOR WPL 67003044 Contact Us For Availability

34

MOUNT, HANDLE WPL 67003114 Contact Us For Availability

35

340184 Whirlpool Screw Backorder WPL 340184 $9.96

NI

WIRING INFORMATION WPL 15003053 Contact Us For Availability
