Model GE JBP26BY3 Electric Range – Common Parts & Diagrams

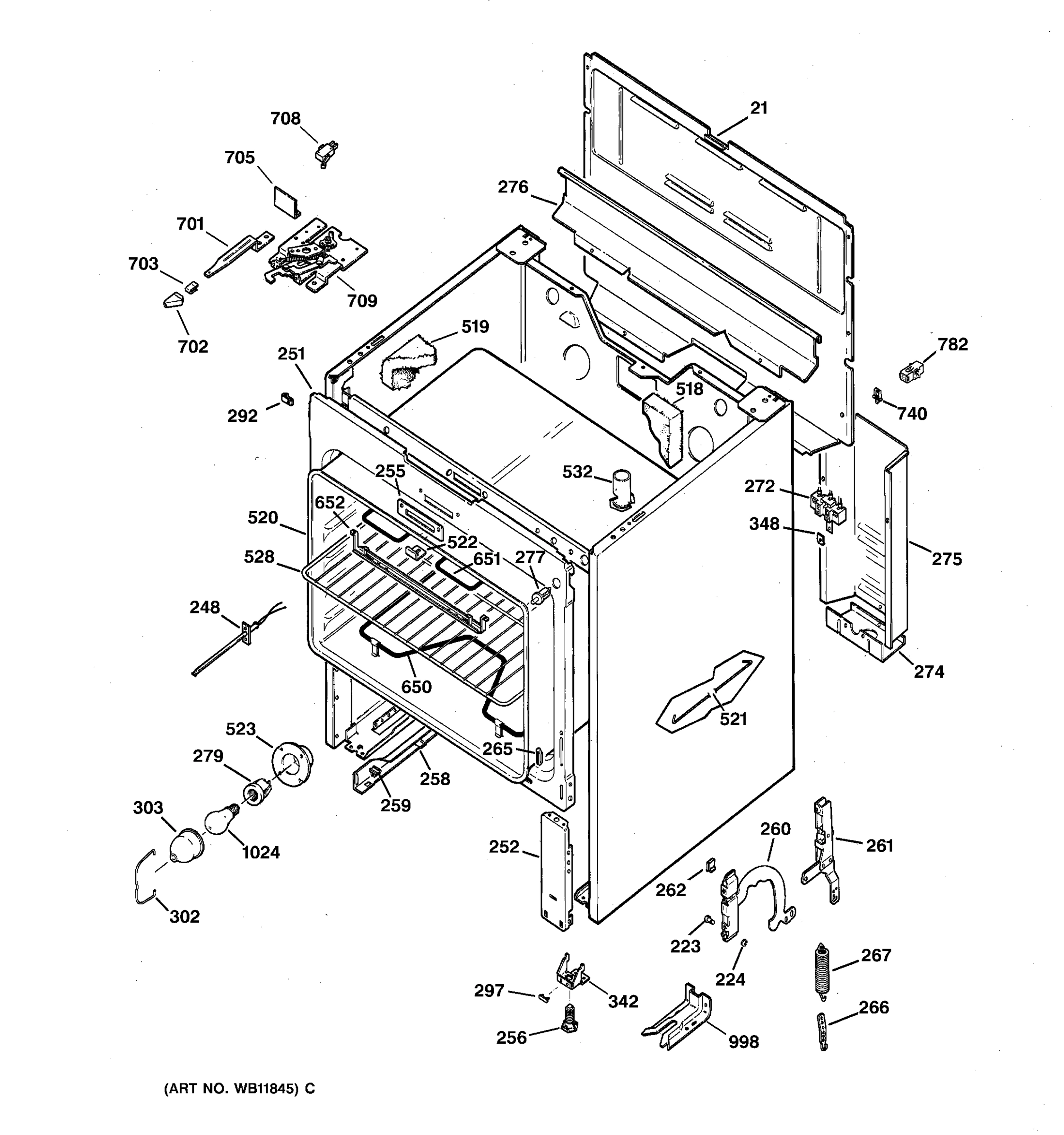

BODY PARTS

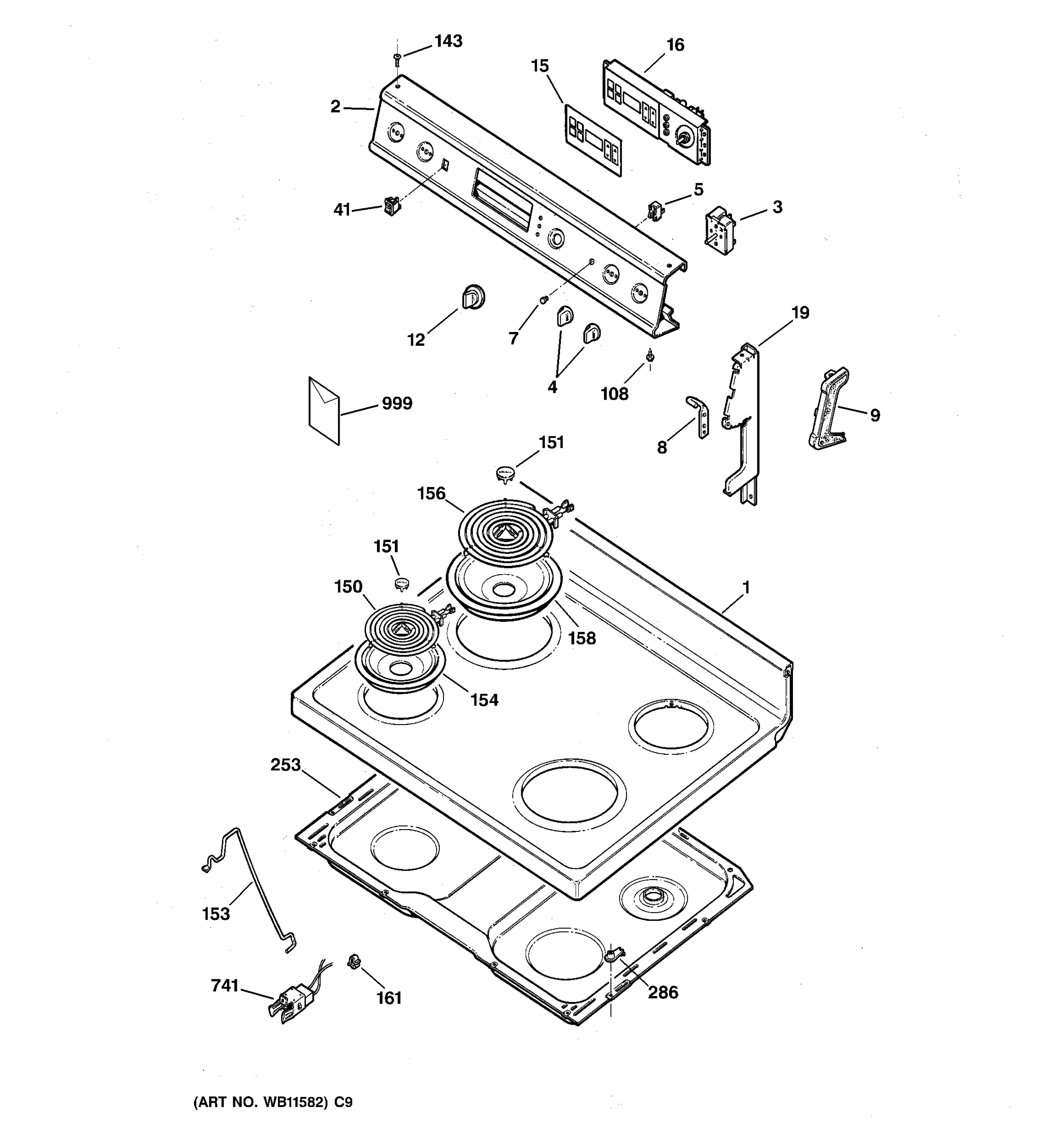

CONTROL PANEL & COOKTOP

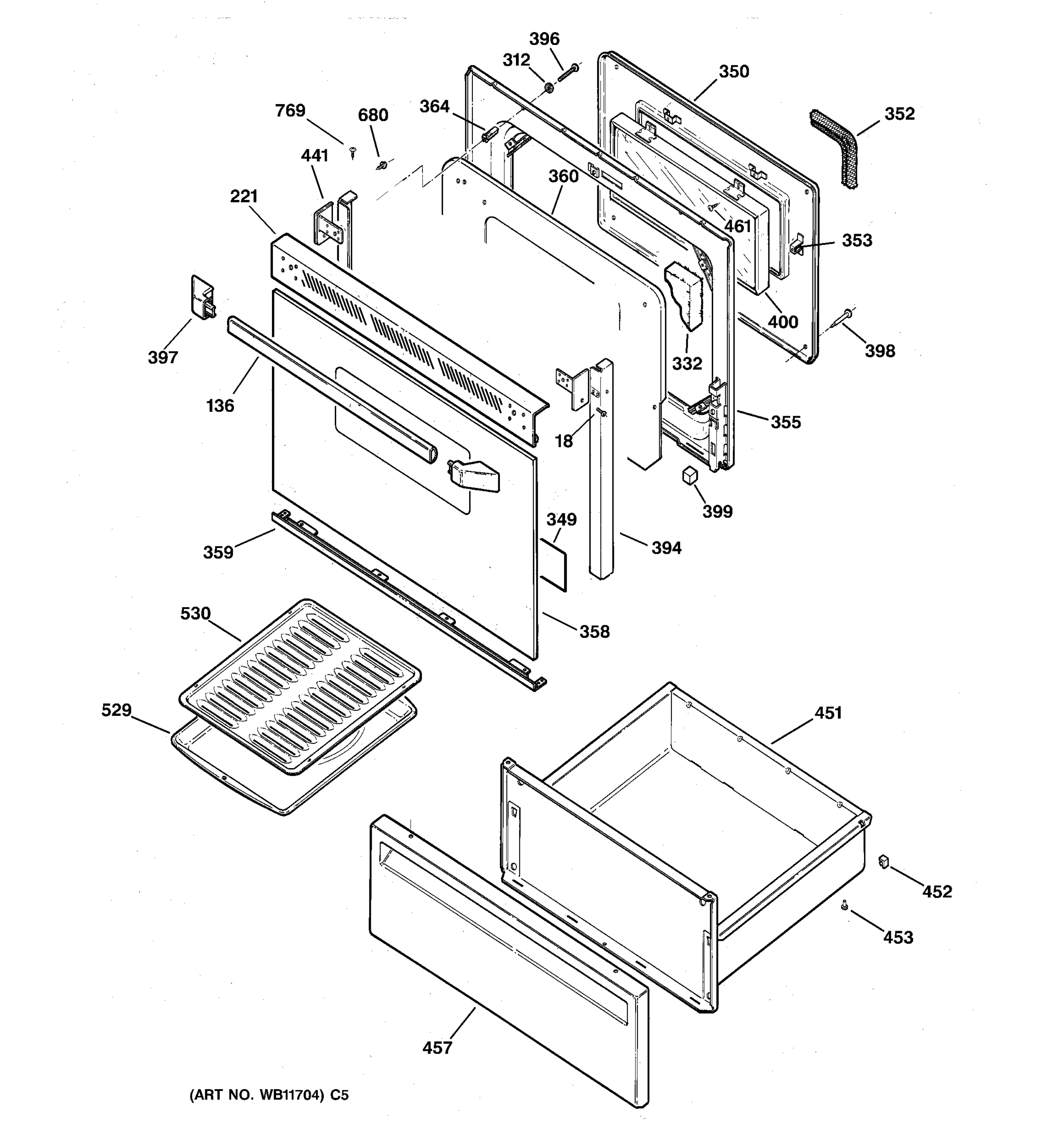

DOOR & DRAWER PARTS
Common parts from model GE JBP26BY3 Electric Range
1
WELD ASM RANGETOP WH GEN WB62X5451 Contact Us For Availability
2
GEN WB36X10036 GEN WB36X10036 Contact Us For Availability
4
GEN WB03X10011 GEN WB03X10011 Contact Us For Availability
5
GEN WB02X7697 GEN WB02X7697 Contact Us For Availability
7
JEWEL GEN WB25X5054 Contact Us For Availability
8
GEN WB02X10485 GEN WB02X10485 Contact Us For Availability
8
GEN WB02X10486 GEN WB02X10486 Contact Us For Availability
9
GEN WB07X7136 GEN WB07X7136 Contact Us For Availability
9
GEN WB07X7137 GEN WB07X7137 Contact Us For Availability
12
GEN WB03X10030 GEN WB03X10030 Contact Us For Availability
15
GEN WB27X10059 GEN WB27X10059 Contact Us For Availability
16
GEN WB02T10008 GEN WB02T10008 Contact Us For Availability
16
GEN WB02X8268 GEN WB02X8268 Contact Us For Availability
16
GEN WB09X5121 GEN WB09X5121 Contact Us For Availability
16
GEN WB27X10129 GEN WB27X10129 Contact Us For Availability
18
GEN WR01X1768 GEN WR01X1768 Contact Us For Availability
19
PLATE END RH WH GEN WB07X7268 Contact Us For Availability
19
PLATE END LH WH GEN WB07X7269 Contact Us For Availability
19
GEN WB07X7270 GEN WB07X7270 Contact Us For Availability
19
GEN WB07X7271 GEN WB07X7271 Contact Us For Availability
41
GEN WB24X5290 GEN WB24X5290 Contact Us For Availability
143
GEN WB01X5860 GEN WB01X5860 Contact Us For Availability
151
GEN WB31X5021 GEN WB31X5021 Contact Us For Availability
153
GEN WB02X8114 GEN WB02X8114 Contact Us For Availability
161
GEN WB02X8115 GEN WB02X8115 Contact Us For Availability
221
GEN WB07X10169 GEN WB07X10169 Contact Us For Availability
253
GEN WB49X5566 GEN WB49X5566 Contact Us For Availability
259
GEN WB02X10562 GEN WB02X10562 Contact Us For Availability
260
GEN WB10X5206 GEN WB10X5206 Contact Us For Availability
286
GEN WB02X8107 GEN WB02X8107 Contact Us For Availability
297
GEN WB02X10522 GEN WB02X10522 Contact Us For Availability
302
GEN WB02X7694 GEN WB02X7694 Contact Us For Availability
332
INSULATION GEN WB02X8109 Contact Us For Availability
342
GEN WB02X10520 GEN WB02X10520 Contact Us For Availability
348
PLATE GROUND GEN WB02X0646 Contact Us For Availability
349
GEN WB49X5562 GEN WB49X5562 Contact Us For Availability
350
GEN WB55X5359 GEN WB55X5359 Contact Us For Availability
355
GEN WB55X5379 GEN WB55X5379 Contact Us For Availability
358
GEN WB36X5691 GEN WB36X5691 Contact Us For Availability
360
GEN WB55X0378 GEN WB55X0378 Contact Us For Availability
364
GEN WB02X8558 GEN WB02X8558 Contact Us For Availability
394
TRIM DOOR LF GEN WB07X7340 Contact Us For Availability
394
TRIM DOOR RT GEN WB07X7341 Contact Us For Availability
396
GEN WB01X5872 GEN WB01X5872 Contact Us For Availability
398
SCR SHOULDER GEN WB01X0600 Contact Us For Availability
399
PAD GEN WB02X3285 Contact Us For Availability
400
GEN WB36X5679 GEN WB36X5679 Contact Us For Availability
400
WINDOW PACK SM GEN WB56K0019 Contact Us For Availability
441
GEN WB07X7289 GEN WB07X7289 Contact Us For Availability
441
GEN WB07X7290 GEN WB07X7290 Contact Us For Availability
451
GEN WB58X5015 GEN WB58X5015 Contact Us For Availability
452
SLIDE TOP GEN WB02X0840 Contact Us For Availability
453
GEN WB02X3394 GEN WB02X3394 Contact Us For Availability
457
GEN WB56X10091 GEN WB56X10091 Contact Us For Availability
457
GEN WB56X10090 GEN WB56X10090 Contact Us For Availability
518
GEN WB02X8412 GEN WB02X8412 Contact Us For Availability
519
GEN WB02X8219 GEN WB02X8219 Contact Us For Availability
520
GEN WB53X5157 GEN WB53X5157 Contact Us For Availability
521
LOCKWASHER GEN WB09X0088 Contact Us For Availability
521
GEN WB09X5118 GEN WB09X5118 Contact Us For Availability
523
GEN WB02X7693 GEN WB02X7693 Contact Us For Availability
532
GEN WB38X5063 GEN WB38X5063 Contact Us For Availability
652
SUPPORT BROIL GEN WB02X1452 Contact Us For Availability
701
GEN WB15X5219 GEN WB15X5219 Contact Us For Availability
702
GEN WB03X5774 GEN WB03X5774 Contact Us For Availability
703
RETAINER KNOB GEN WB02X2030 Contact Us For Availability
705
GEN WB02X8485 GEN WB02X8485 Contact Us For Availability
708
GEN WB24X5326 GEN WB24X5326 Contact Us For Availability
709
GEN WB14X5040 GEN WB14X5040 Contact Us For Availability
740
CLIP WIRE BLACK GEN WB02X7226 Contact Us For Availability
782
GEN WB17X5060 GEN WB17X5060 Contact Us For Availability
782
TERM BLK ASM-1 PIN(1458) GEN WB17X5073 Contact Us For Availability
999
GEN 31-20711 GEN 31-20711 Contact Us For Availability
999
GEN 49-8896 GEN 49-8896 Contact Us For Availability
999
GEN 49-8915 GEN 49-8915 Contact Us For Availability
× ![]()
