Model GE JB755BJ6TS Electric Range – Common Parts & Diagrams

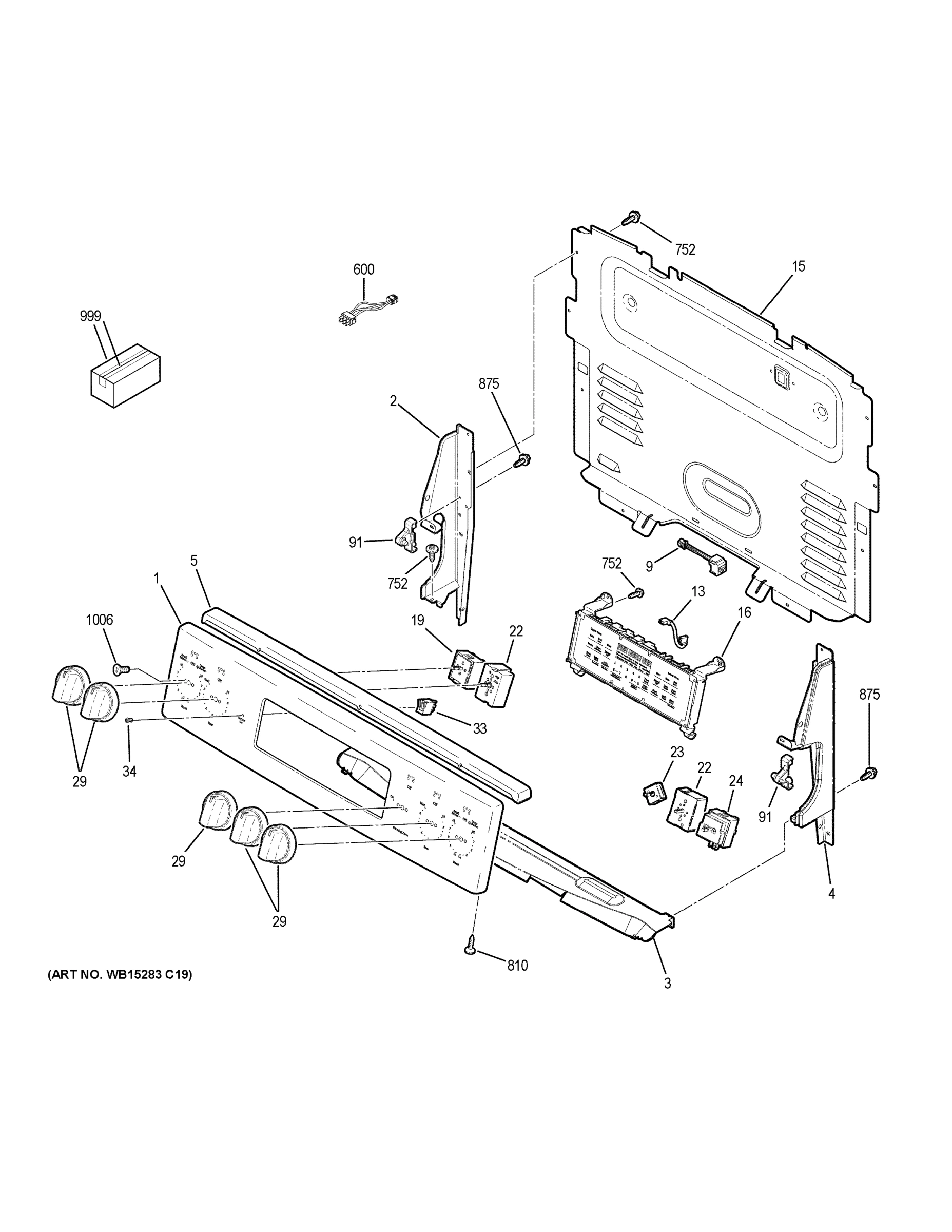

CONTROL PANEL

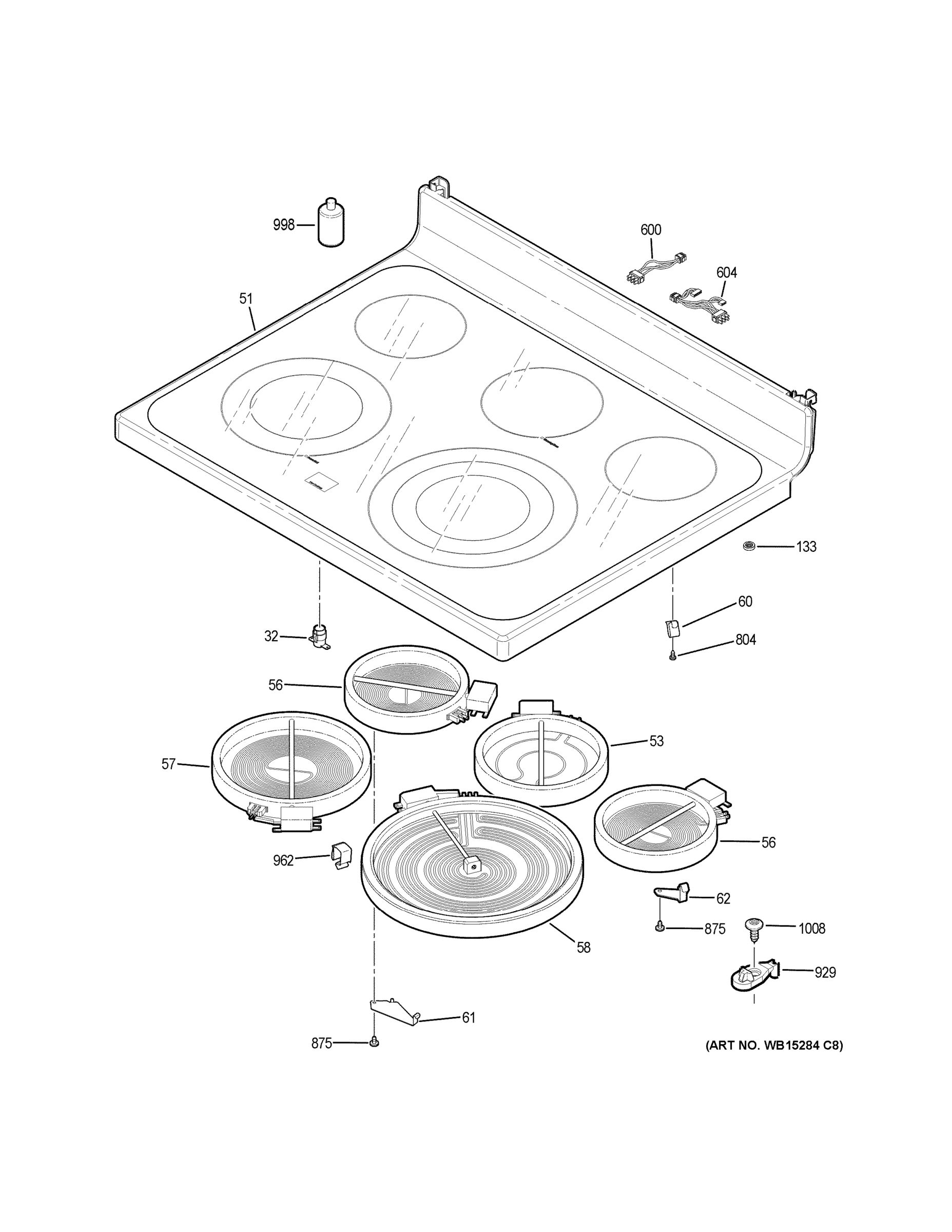

COOKTOP
BODY PARTS
DOOR
DOOR LOCK
CONVECTION FAN
Common parts from model GE JB755BJ6TS Electric Range
2
END PLATE LH DG GEN WB07X29534 Contact Us For Availability
3
BACKGUARD SHIELD HEAT GEN WB34X28565 Contact Us For Availability
4
END PLATE RH DG GEN WB07X29535 Contact Us For Availability
5
TOP TRIM ASM GEN WB07X28582 Contact Us For Availability
13
JUMPER GEN WB18X30704 Contact Us For Availability
15
CONTROL PANEL BACK COVER GEN WB34X29576 Contact Us For Availability
23
SWITCH ROTARY GEN WB24X25302 Contact Us For Availability
24
SWITCH INFINITE CONTROL GEN WB24X25152 Contact Us For Availability
29
KNOB ASM TS GEN WB03X29165 Contact Us For Availability
32
LIGHT INDICATOR GEN WB27T10668 Contact Us For Availability
33
LIGHT INDICATOR PILOT GEN WB25X20005 Contact Us For Availability
34
LENS GEN WB25T10103 Contact Us For Availability
43
HUB BLADE ASM GEN WB02X26501 Contact Us For Availability
51
RANGETOP GLASS ASM (GY) GEN WB62X26710 Contact Us For Availability
53
ELEMENT RADIANT 6 WARMER GEN WB30X20871 Contact Us For Availability
55
BADGE ASM GEN WB02X29637 Contact Us For Availability
56
ELEMENT RADIANT 5.5 IN GEN WB30T10145 Contact Us For Availability
57
ELEMENT RADIANT 9" DUAL GEN WB30X24111 Contact Us For Availability
58
ELEMENT HALIANT 12 TRPL GEN WB30T10126 Contact Us For Availability
61
BRACKET RADIANT ELEMENT GEN WB02X20940 Contact Us For Availability
62
BRACKET RADIANT ELEMENT GEN WB02X20902 Contact Us For Availability
91
PIN RANGETOP HINGE GEN WB10T10116 Contact Us For Availability
101
INSULATION DOOR GEN WB35T10077 Contact Us For Availability
102
INSULATION DOOR GEN WB35T10114 Contact Us For Availability
103
INSULATION DOOR GEN WB35T10255 Contact Us For Availability
111
GASKET OVEN GEN WB04T10086 Contact Us For Availability
112
LINER OVEN DOOR ASM (BK) GEN WB55T10203 Contact Us For Availability
113
RETAINER OVN DR INSLN GEN WB56T10178 Contact Us For Availability
136
HANDLE AND END CAP ASM GEN WB15X29162 Contact Us For Availability
140
FRAME DOOR SIDE (BK) GEN WB56T10287 Contact Us For Availability
150
LATCH ASM GEN WB10X25007 Contact Us For Availability
217
WIRE COVER BACK GEN WB34X29563 Contact Us For Availability
221
SIDE PANEL DG GEN WB63X28679 Contact Us For Availability
229
VENT TUBE INSULATION GEN WB35T10017 Contact Us For Availability
241
RACK OVEN GEN WB48T10083 Contact Us For Availability
242
DRAWER WEDGE GEN WB02X29072 Contact Us For Availability
254
TERMINAL BLOCK ASM GEN WB17T10011 Contact Us For Availability
257
LAMP HALOGEN G9 GEN WB08T10045 Contact Us For Availability
258
LAMP HALOGEN ASM GEN WB25X24909 Contact Us For Availability
259
OV LAMP LENS GEN WB25T10013 Contact Us For Availability
264
TRIM FRT FRM (BK) GEN WB07T10516 Contact Us For Availability
268
BRACKET ANTI-TIP ASM GEN WB02T10578 Contact Us For Availability
269
TERMINAL BLOCK MOUNT GEN WB34X29565 Contact Us For Availability
272
SIDE PANEL SUPPORT GEN WB02T10034 Contact Us For Availability
277
HINGE RECEIVER GEN WB10X29566 Contact Us For Availability
281
HINGE DOOR GEN WB10T10070 Contact Us For Availability
293
DRAWER SUPPORT FRT GEN WB48T10013 Contact Us For Availability
296
LEG LEVELER GEN WB02X10521 Contact Us For Availability
298
CONVECTION ELEMENT GEN WB44X29154 Contact Us For Availability
338
WINDOW PACK ASM GEN WB56X22160 Contact Us For Availability
511
CONVECTION MOTOR GEN WB26X29157 Contact Us For Availability
515
GASKET CONV FAN GEN WB04T10080 Contact Us For Availability
578
CAPACITOR MOTOR GEN WB27T10662 Contact Us For Availability
696
SCR 10-32 TR3 PNT 1.41 S GEN WB01T10137 Contact Us For Availability
871
SCREW 10-32 TR T GEN WB01T10008 Contact Us For Availability
875
SCREW GEN WH2X930 Contact Us For Availability
919
SPACER GEN WB02T10175 Contact Us For Availability
929
MAINTOP STRIKE GEN WB02T10026 Contact Us For Availability
962
CLIP CABLE GEN WB02X25982 Contact Us For Availability
977
NUT HEX GEN WB02T10608 Contact Us For Availability
1002
SCREW 8-18 AB IHW 3/8 S GEN WB01T10017 Contact Us For Availability
1006
SCR 8-32 TT FLP .270 GEN WB01X23501 Contact Us For Availability
× ![]()
