Model GE JB640DF5BB Electric Range – Common Parts & Diagrams

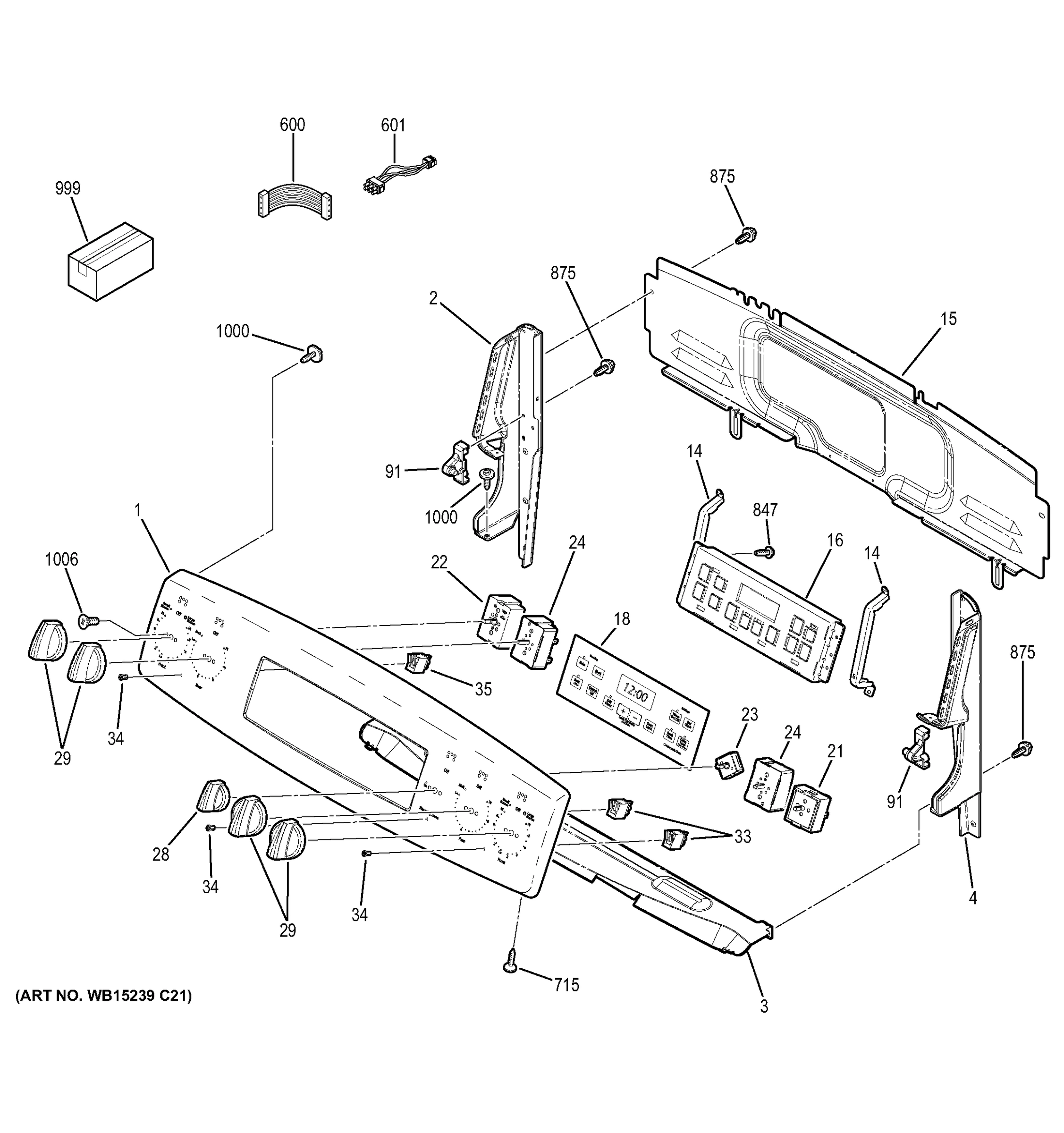

CONTROL PANEL

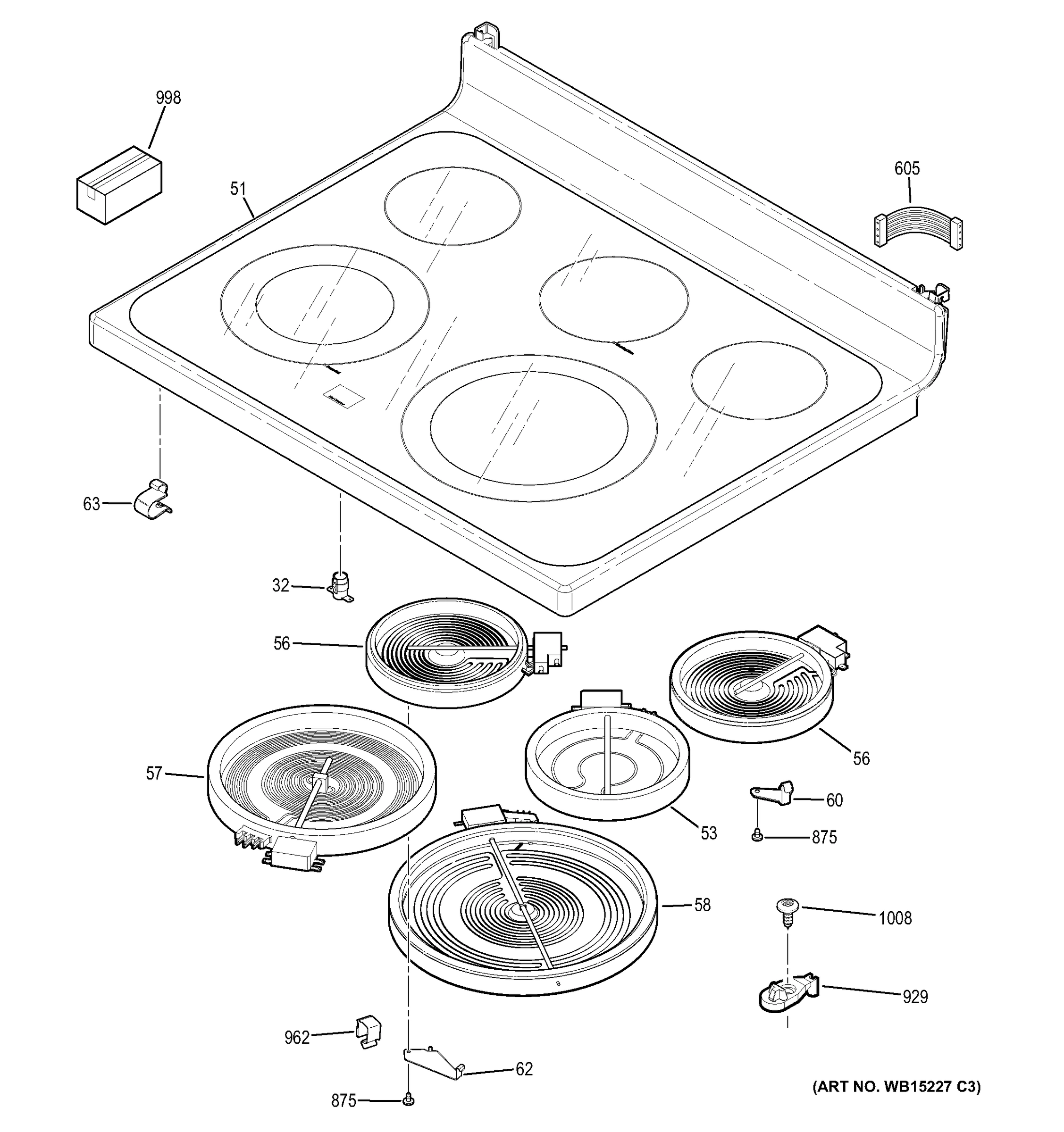

COOKTOP
BODY PARTS
DOOR
DOOR LOCK
Common parts from model GE JB640DF5BB Electric Range
15
COVER CONTROL GEN WB02T10532 Contact Us For Availability
18
FACEPLATE GRAPHICS (BK) GEN WB27T11511 Contact Us For Availability
21
SWITCH INFINITE CONTROL GEN WB24T10153 Contact Us For Availability
22
CONTROL SURF ELEM GEN WB24T10146 Contact Us For Availability
23
SWITCH ROTARY GEN WB24X21736 Contact Us For Availability
24
CONTROL INFINITE SWITCH GEN WB24T10029 Contact Us For Availability
34
LENS GEN WB25X24023 Contact Us For Availability
35
LIGHT INDICATOR PILOT GEN WB25X20005 Contact Us For Availability
51
RANGETOP GLASS ASM (BK) GEN WB62X20929 Contact Us For Availability
53
ELEMENT RADIANT 6 WARMER GEN WB30X20871 Contact Us For Availability
56
ELEMENT RADIANT 5.5 IN GEN WB30T10145 Contact Us For Availability
57
ELEMENT RADIANT 8 IN GEN WB30T10132 Contact Us For Availability
58
ELEMENT RADIANT 9 DUAL GEN WB30T10133 Contact Us For Availability
60
BRACKET RADIANT ELEMENT GEN WB02X20902 Contact Us For Availability
62
BRACKET RADIANT ELEMENT GEN WB02X20940 Contact Us For Availability
91
PIN RANGETOP HINGE GEN WB10T10116 Contact Us For Availability
103
INSULATION DOOR GEN WB35T10255 Contact Us For Availability
112
LINER OVEN DOOR ASM (GY) GEN WB55T10200 Contact Us For Availability
121
GLASS OVN DR OTR (BK) GEN WB56T10353 Contact Us For Availability
132
DOOR PAD GEN WB01T10026 Contact Us For Availability
136
HANDLE (LE-BK) GEN WB15T10213 Contact Us For Availability
140
FRAME DOOR SIDE (BK) GEN WB56T10287 Contact Us For Availability
204
DRAWER BODY ASM MECH GEN WB55T10178 Contact Us For Availability
217
COVER BACK GEN WB34T10128 Contact Us For Availability
231
INSULATION OVN WRPR GEN WB35T10209 Contact Us For Availability
241
RACK OVEN GEN WB48T10063 Contact Us For Availability
242
WEDGE DRAWER GEN WB48T10068 Contact Us For Availability
249
GASKET OVEN LIGHT GEN WB02T10027 Contact Us For Availability
251
UNIT BAKE AS GEN WB44T10011 Contact Us For Availability
253
SENSOR ASM GEN WB21X22134 Contact Us For Availability
256
RECEPTACLE PUSH-IN GEN WB08T10026 Contact Us For Availability
268
BRACKET ANTI-TIP ASM GEN WB02T10578 Contact Us For Availability
272
SIDE PANEL SUPPORT GEN WB02T10034 Contact Us For Availability
293
DRAWER SUPPORT FRT GEN WB48T10013 Contact Us For Availability
296
LEG LEVELER GEN WB02X10521 Contact Us For Availability
338
WINDOW PACK ASM GEN WB56X22160 Contact Us For Availability
601
LEAD WIRE 18 GA Y GEN WB18T10466 Contact Us For Availability
696
SCR 10-16 AB HXW .532 GEN WB01T10103 Contact Us For Availability
715
SCREW GEN WD2X432 Contact Us For Availability
847
SCR 6-20 GXB IHXW 3/8 NI GEN WB02T10324 Contact Us For Availability
919
SPACER GEN WB02T10175 Contact Us For Availability
1002
SCREW 8-18 AB IHW 3/8 S GEN WB01T10017 Contact Us For Availability
1005
SCREW 10-32 TR T GEN WB01T10008 Contact Us For Availability
1006
SCR 8-32 TT FLP .270 GEN WB01X23501 Contact Us For Availability
× ![]()
