Model GE JB255RK3SS Electric Range – Common Parts & Diagrams
CONTROL PANEL & COOKTOP
BODY PARTS

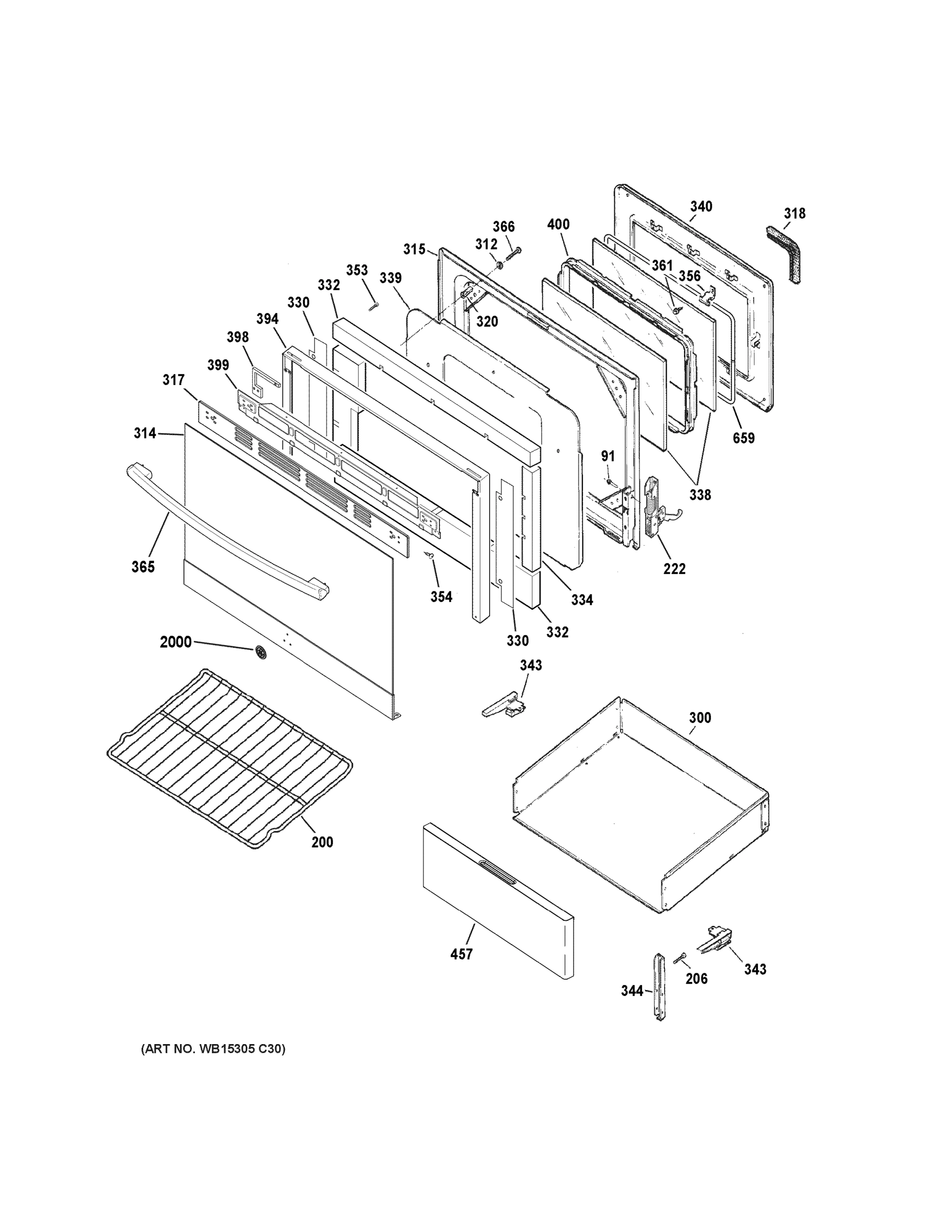

DOOR & DRAWER PARTS
Common parts from model GE JB255RK3SS Electric Range
2
KNOB VALVE GEN WB03X21356 Contact Us For Availability
3
INF SW CONTROL (2500W) GEN WB24T10025 Contact Us For Availability
4
CONTROL INFINITE SWITCH GEN WB24T10029 Contact Us For Availability
5
LAMP PILOT GEN WB25K10002 Contact Us For Availability
90
FRAME FRONT BUMPER GEN WB02X28738 Contact Us For Availability
91
SCREW 10-32 TR T GEN WB01T10008 Contact Us For Availability
100
END SUPPORT RT GEN WB07X20194 Contact Us For Availability
103
BRACKET CONTROL GEN WB02K10150 Contact Us For Availability
104
TRIM CONTROL GEN WB36X24648 Contact Us For Availability
117
PIN LOCATOR REAR GEN WB02K10075 Contact Us For Availability
128
OVERLAY T09 GEN WB07X24620 Contact Us For Availability
150
SURFACE UNIT ASM 6 GEN WB30K10016 Contact Us For Availability
153
ROD SUPPORT GEN WB02K10026 Contact Us For Availability
154
6 INCH BLACK PORCELAIN B GEN WB31T10014 Contact Us For Availability
156
SURFACE UNIT ASM 8 GEN WB30K10018 Contact Us For Availability
158
8 INCH BLACK PORCELAIN B GEN WB31T10015 Contact Us For Availability
200
OVEN RACK GEN WB48X20249 Contact Us For Availability
205
GUARD TERMINAL GEN WB34X21584 Contact Us For Availability
206
SCREW GEN WB01K10091 Contact Us For Availability
209
PANEL SIDE GEN WB56X29124 Contact Us For Availability
222
HINGE DOOR GEN WB10X21982 Contact Us For Availability
230
RECEPTACLE PUSH-IN GEN WB08T10026 Contact Us For Availability
241
BRACKET BASE GEN WB34X29134 Contact Us For Availability
244
LEG LEVELING GEN WB02X29030 Contact Us For Availability
245
LEG LEVELER GEN WB02K10182 Contact Us For Availability
251
TUBE VENT ASM GEN WB38K10016 Contact Us For Availability
252
SENSOR-OVEN GEN WB23X5340 Contact Us For Availability
253
BOX COOKTOP GEN WB64K10009 Contact Us For Availability
255
DRAWER SUPPORT GEN WB02K10158 Contact Us For Availability
278
DIVIDER WIRING GEN WB34X21602 Contact Us For Availability
279
LATCH ASSEMBLY GEN WB02K10144 Contact Us For Availability
291
SUPPORT BROIL GEN WB02K10028 Contact Us For Availability
300
DRAWER BODY GEN WB58K10015 Contact Us For Availability
314
GLASS OVEN DOOR ASM GEN WB56X26696 Contact Us For Availability
315
LINER ASM WELD DOOR GEN WB56X20537 Contact Us For Availability
317
VENT TRIM GEN WB07X26937 Contact Us For Availability
320
SPACER GEN WB02K10156 Contact Us For Availability
338
CRYSTAL WINDOW GEN WB56X23809 Contact Us For Availability
344
BRACKET MOUNTING DRAWER GEN WB02K10398 Contact Us For Availability
365
HANDLE AND END CAP ASM GEN WB15X26624 Contact Us For Availability
394
TRIM DOOR GEN WB07X20354 Contact Us For Availability
400
WINDOW SPACER ASM GEN WB34K10087 Contact Us For Availability
457
PANEL DRAWER GEN WB56X24650 Contact Us For Availability
659
CORD FIBER GLASS GEN WB35X21685 Contact Us For Availability
710
BRACKET ASM ANTI-TIP GEN WB02X27862 Contact Us For Availability
1330
RECEIVER HINGE GEN WB10X20220 Contact Us For Availability
9999
HINGE SERVICE KIT GEN WB49X21392 Contact Us For Availability
× ![]()
