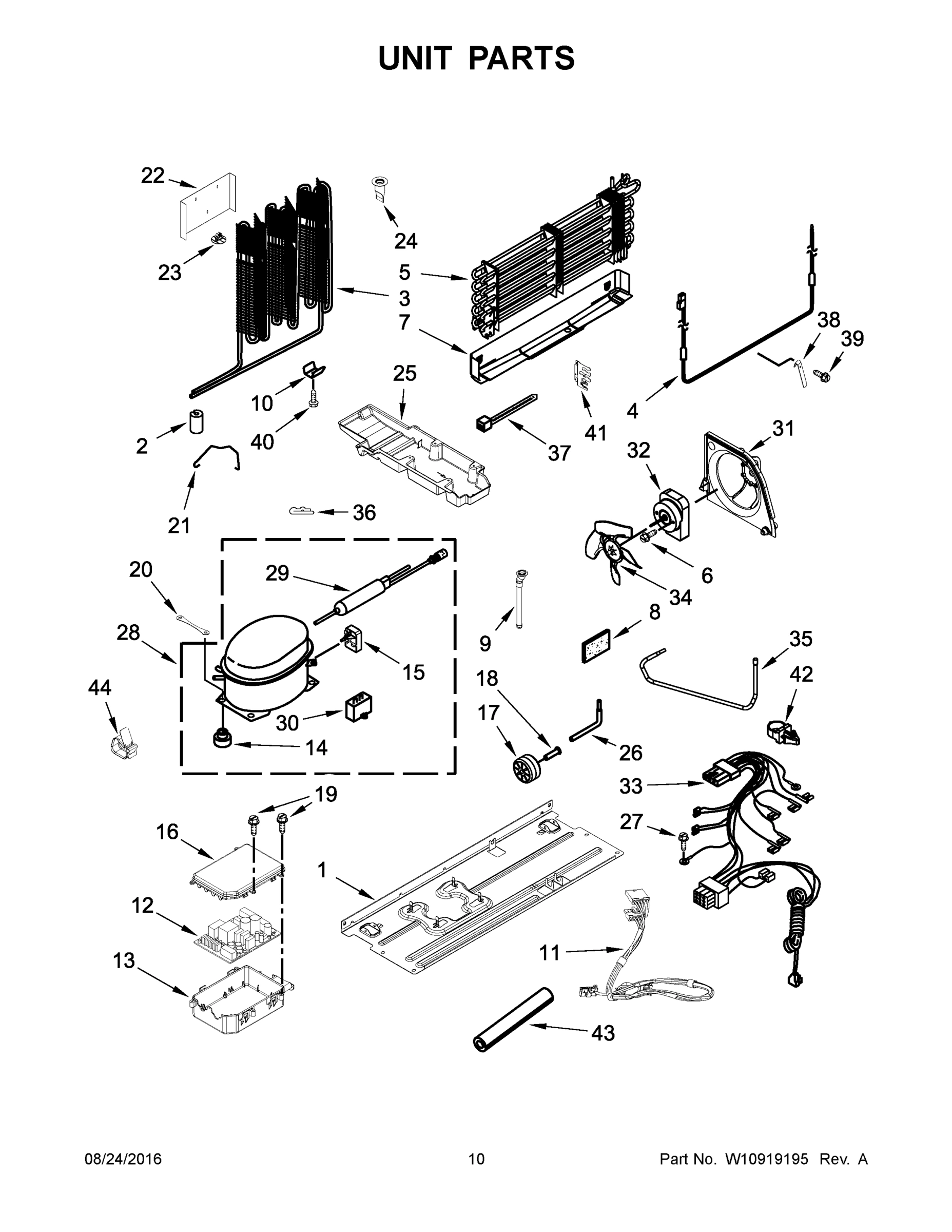

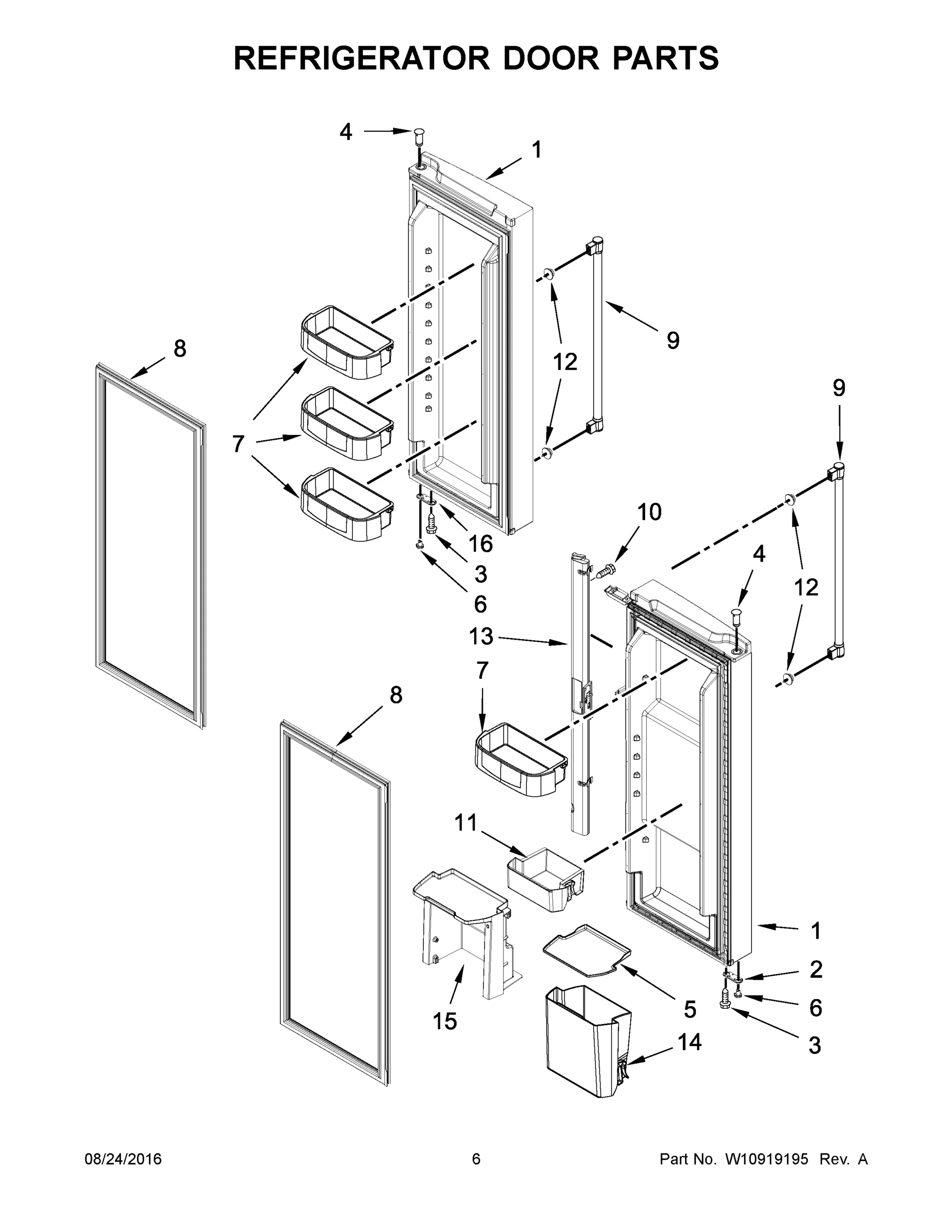

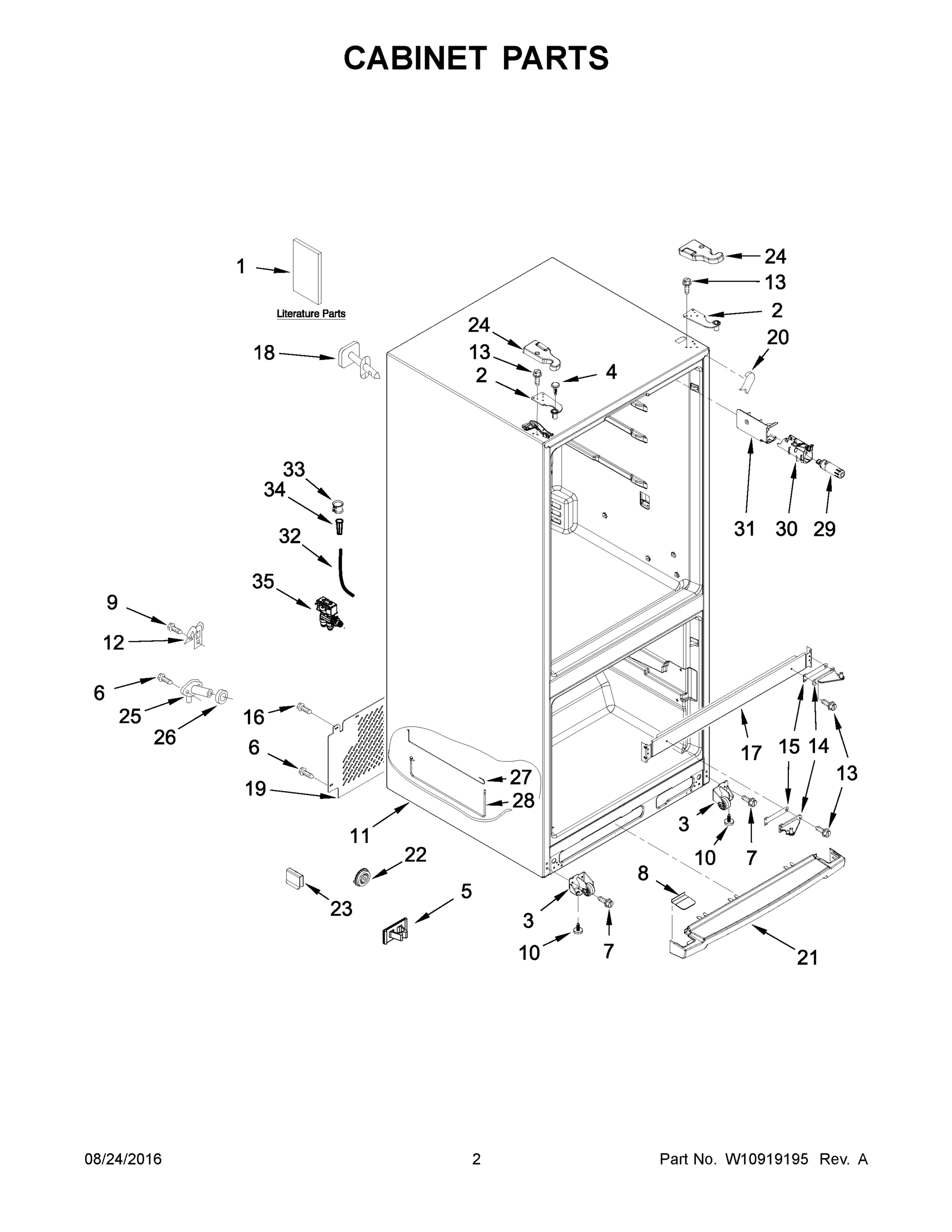

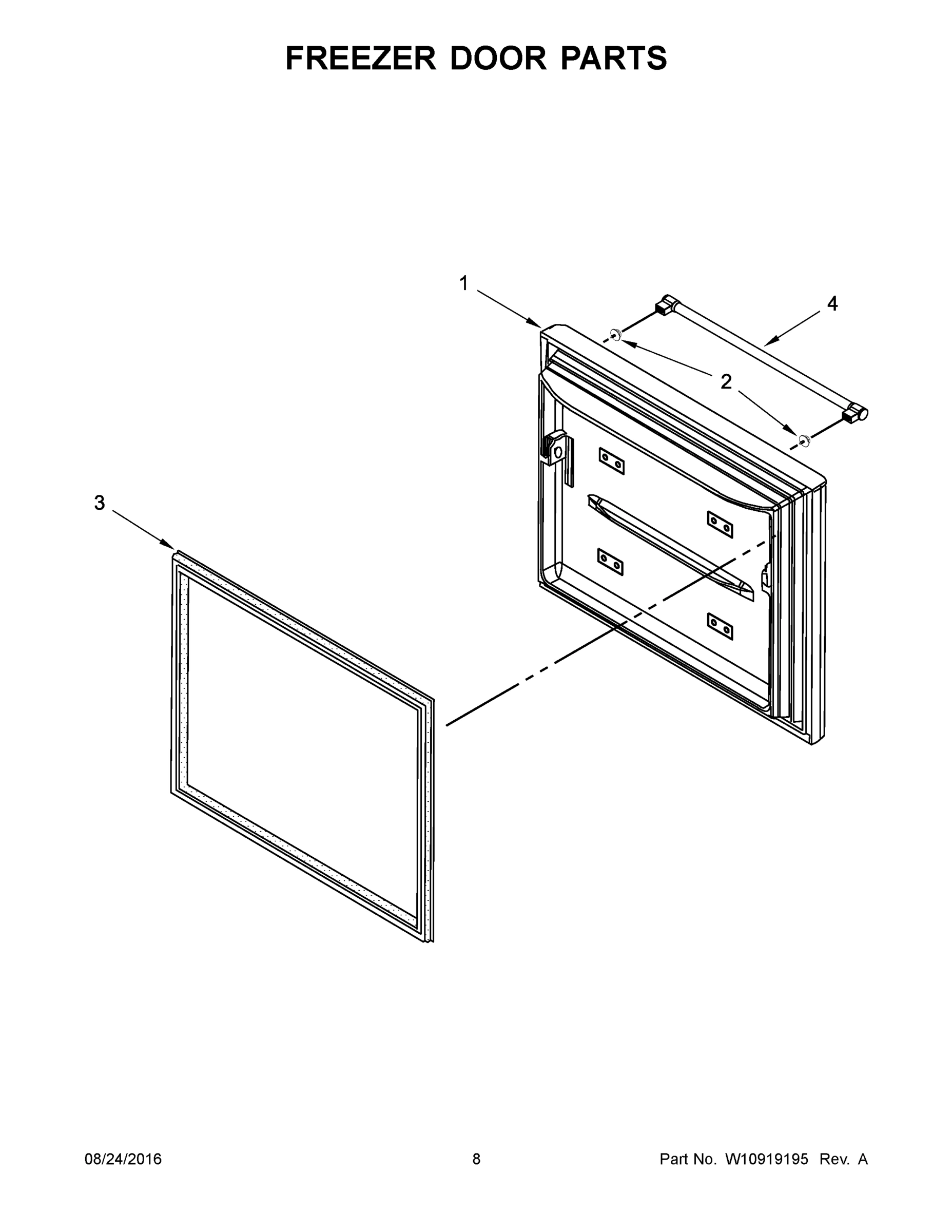

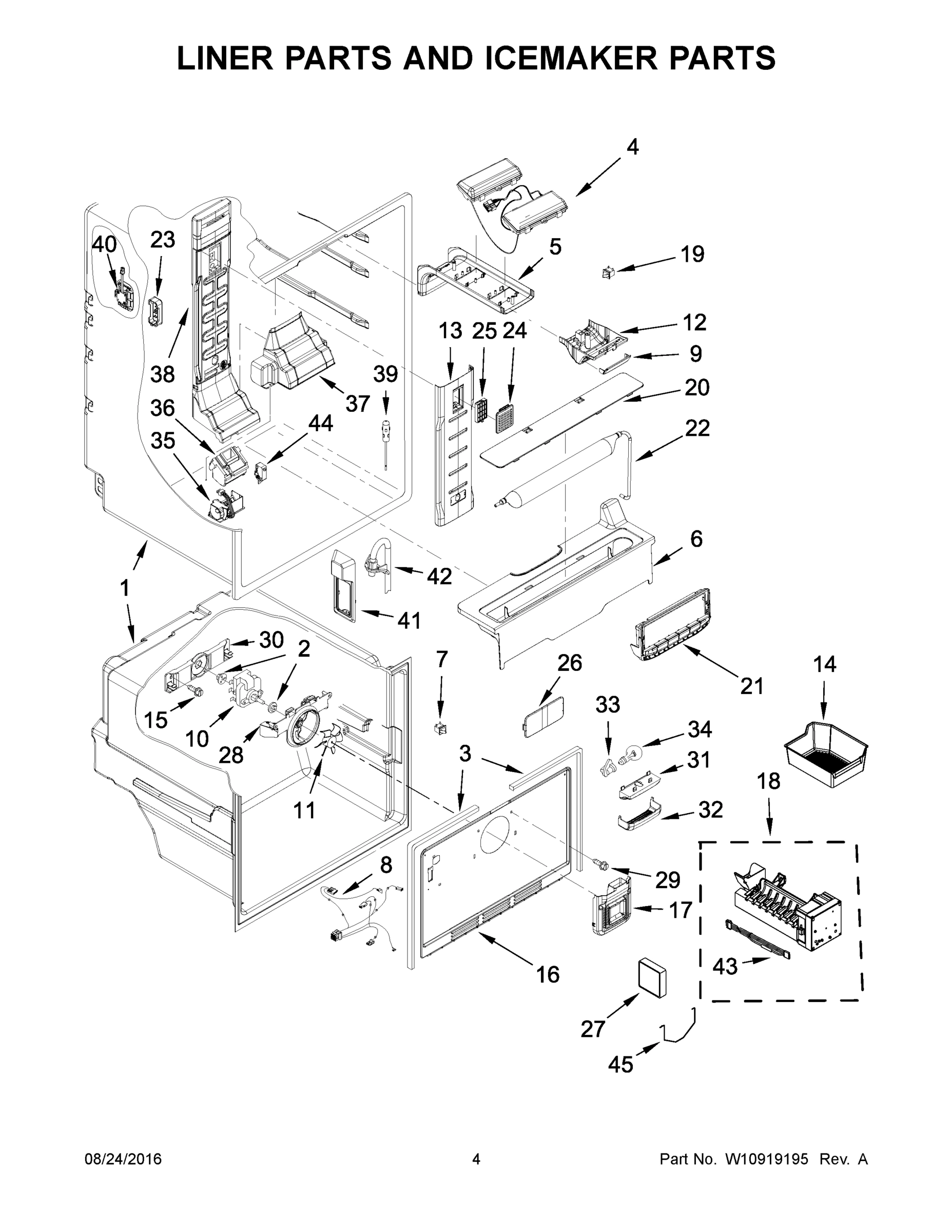

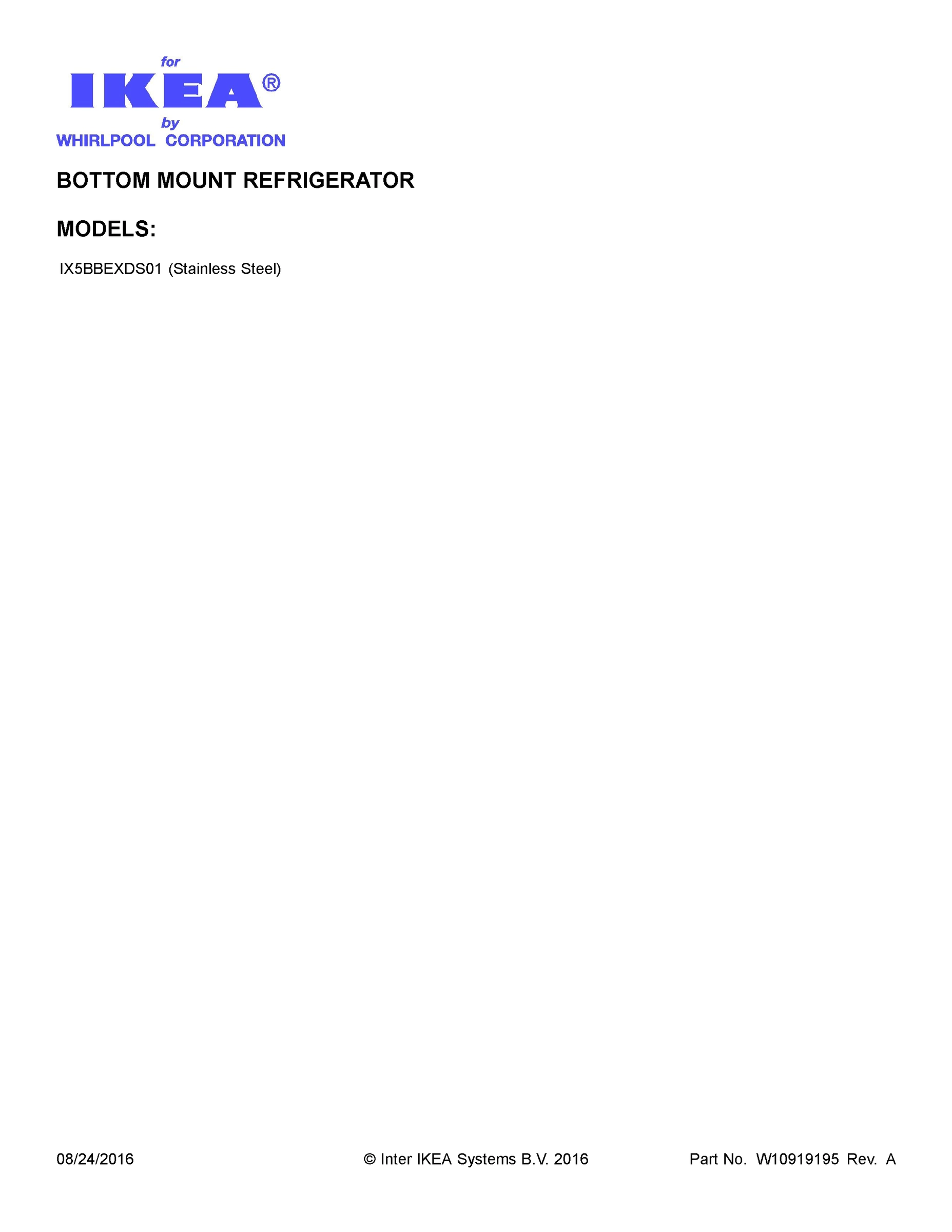

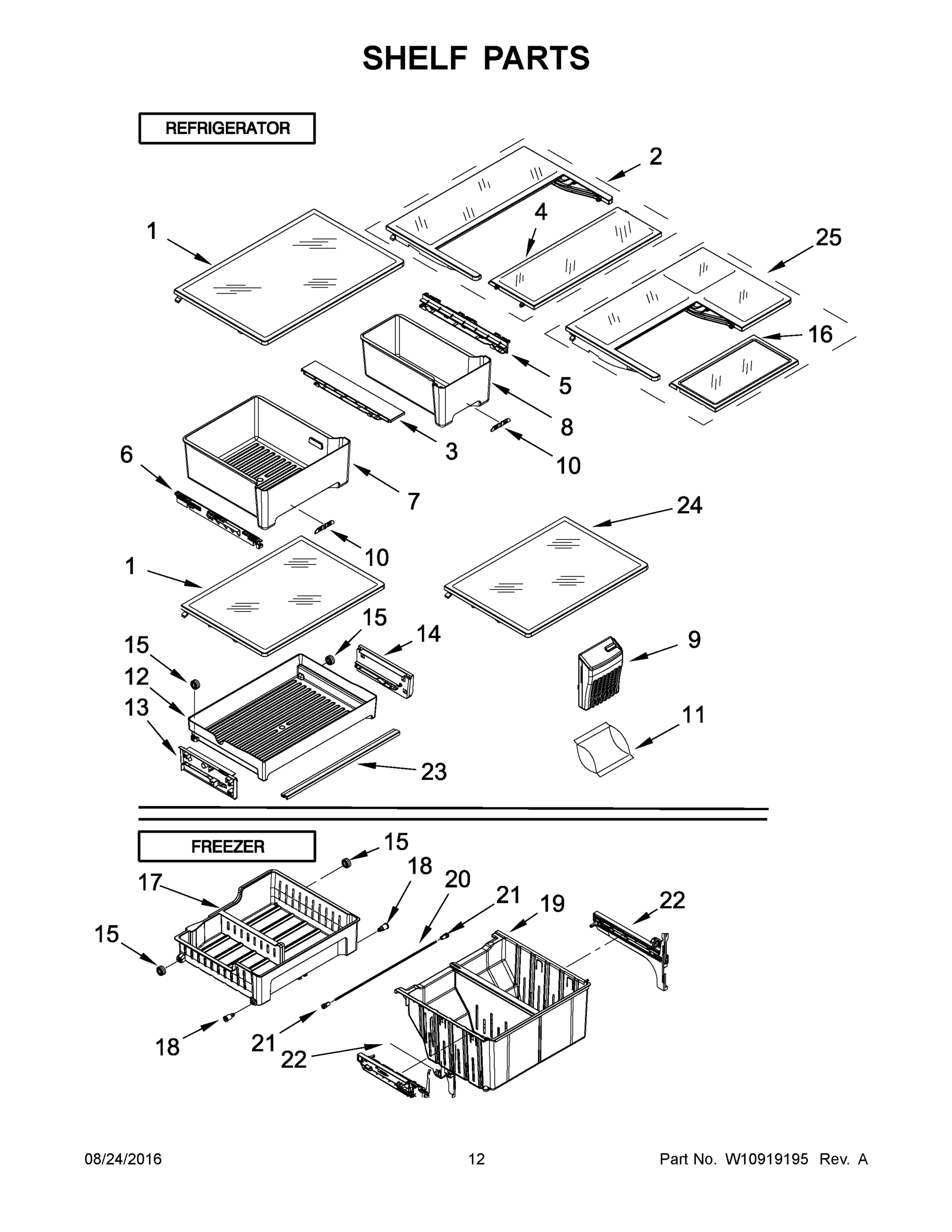

Model Whirlpool IX5BBEXDS01 REFRIGERATOR, BOTTOM MOUNT – Common Parts & Diagrams

1
BASEPLATE
BASEPLATE WPL W10300116 Contact Us For Availability
View on Model
2
HINGE, TOP (LEFT HAND)
HINGE, TOP (LEFT HAND) WPL W10546298 Contact Us For Availability
View on Model
4
ASSEMBLY, HANDLE (STAINLESS)
ASSEMBLY, HANDLE (STAINLESS) WPL W10404311 Contact Us For Availability
View on Model
5
HOUSING, LIGHT
HOUSING, LIGHT WPL W10469878 Contact Us For Availability
View on Model
6
CONTAINER, WATER RESERVOIR
CONTAINER, WATER RESERVOIR WPL W10798439 Contact Us For Availability
View on Model
9
COVER, CONTROL HOUSING
COVER, CONTROL HOUSING WPL W10360550 Contact Us For Availability
View on Model
13
BOX, CONTROL
BOX, CONTROL WPL 2323186 Contact Us For Availability
View on Model
14
HINGE, CENTER (LEFT HAND)
HINGE, CENTER (LEFT HAND) WPL W10770878 Contact Us For Availability
View on Model
16
COVER, EVAPORATOR
COVER, EVAPORATOR WPL W10300900 Contact Us For Availability
View on Model
16
COVER, ELECTRONIC CONTROL
COVER, ELECTRONIC CONTROL WPL W10313215 Contact Us For Availability
View on Model
20
COVER, WATER RESERVOIR
COVER, WATER RESERVOIR WPL W10413160 Contact Us For Availability
View on Model
20
SHAFT, RACK
SHAFT, RACK WPL W10802342 Contact Us For Availability
View on Model
20
STRAP, COMPRESSOR
STRAP, COMPRESSOR WPL W10236396 Contact Us For Availability
View on Model
22
DRUM, TOE GRILLE
DRUM, TOE GRILLE WPL W10331226 Contact Us For Availability
View on Model
22
COVER, CONDENSER BOTTOM
COVER, CONDENSER BOTTOM WPL W10349514 Contact Us For Availability
View on Model
23
CLIP, BOTTOM COVER
CLIP, BOTTOM COVER WPL W10815861 Contact Us For Availability
View on Model
24
COVER, HINGE (LEFT HAND (GREY))
COVER, HINGE (LEFT HAND (GREY)) WPL W10465768 Contact Us For Availability
View on Model
24A
COVER, HINGE (RIGHT HAND (GREY))
COVER, HINGE (RIGHT HAND (GREY)) WPL W10465767 Contact Us For Availability
View on Model
26
CUP, SCREW
CUP, SCREW WPL W10336009 Contact Us For Availability
View on Model
30
BRACKET, EVAPORATOR FAN REAR
BRACKET, EVAPORATOR FAN REAR WPL 2254454 Contact Us For Availability
View on Model
33
WIRE ASSEMBLY, UNIT
WIRE ASSEMBLY, UNIT WPL W10526427 Contact Us For Availability
View on Model
35
TUBE, SUCTION
TUBE, SUCTION WPL W10510988 Contact Us For Availability
View on Model
41
BRACKET, EVAPORATOR
BRACKET, EVAPORATOR WPL W10314197 Contact Us For Availability
View on Model
42
WATERLINE, DISPENSER
WATERLINE, DISPENSER WPL W10463316 Contact Us For Availability
View on Model
43
SLEEVE
SLEEVE WPL 2264838 Contact Us For Availability
View on Model
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE)
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) WPL 350930 Contact Us For Availability
View on Model
NI
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE)
PAINT, TOUCH-UP (1/2OZ. BISCUIT/BISQUE) WPL 4392899 Contact Us For Availability
View on Model
NI
VALVE, ACCESS
VALVE, ACCESS WPL 876764 Contact Us For Availability
View on Model
NI
SEALER, GUM (4 FEET)
SEALER, GUM (4 FEET) WPL 212643 Contact Us For Availability
View on Model
NI
PAINT, PRESSURIZED SPRAY (12 OZ. BISCUIT/BISQ
PAINT, PRESSURIZED SPRAY (12 OZ. BISCUIT/BISQ WPL 4392901 Contact Us For Availability
View on Model
NI
VALVE, ACCESS
VALVE, ACCESS WPL 978026 Contact Us For Availability
View on Model
NI
WHITE PORCELAIN (2 OZ.)
WHITE PORCELAIN (2 OZ.) WPL 511873 Contact Us For Availability
View on Model
NI
VALVE, ACCESS
VALVE, ACCESS WPL 978027 Contact Us For Availability
View on Model
NI
INSULATION (2 PIECES, 3" X 24" X 48")
INSULATION (2 PIECES, 3" X 24" X 48") WPL 876370 Contact Us For Availability
View on Model
NI
VALVE, ACCESS
VALVE, ACCESS WPL 978029 Contact Us For Availability
View on Model
NI
VALVE, ACCESS
VALVE, ACCESS WPL 978030 Contact Us For Availability
View on Model
NI
KIT, FOAM SLAB (30" X 32 1/2" X 1 1/2")
KIT, FOAM SLAB (30" X 32 1/2" X 1 1/2") WPL 876029 Contact Us For Availability
View on Model
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE PRIMER
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE PRIMER WPL 350942 Contact Us For Availability
View on Model
NI
BAG
BAG WPL 606755 Contact Us For Availability
View on Model
NI
TAPE, VINYL (3/4 X 108")
TAPE, VINYL (3/4 X 108") WPL 479502 Contact Us For Availability
View on Model
NI
PAINT, BULK (1 QT. WHITE (UNCUT))
PAINT, BULK (1 QT. WHITE (UNCUT)) WPL 799344 Contact Us For Availability
View on Model
NI
TORX SCREW WRENCH, TORX KEY
TORX SCREW WRENCH, TORX KEY WPL 1117510 Contact Us For Availability
View on Model
