Model GE HG6490 General Electric Model HG6490 – Common Parts & Diagrams
56225 Gas Valve Assembly

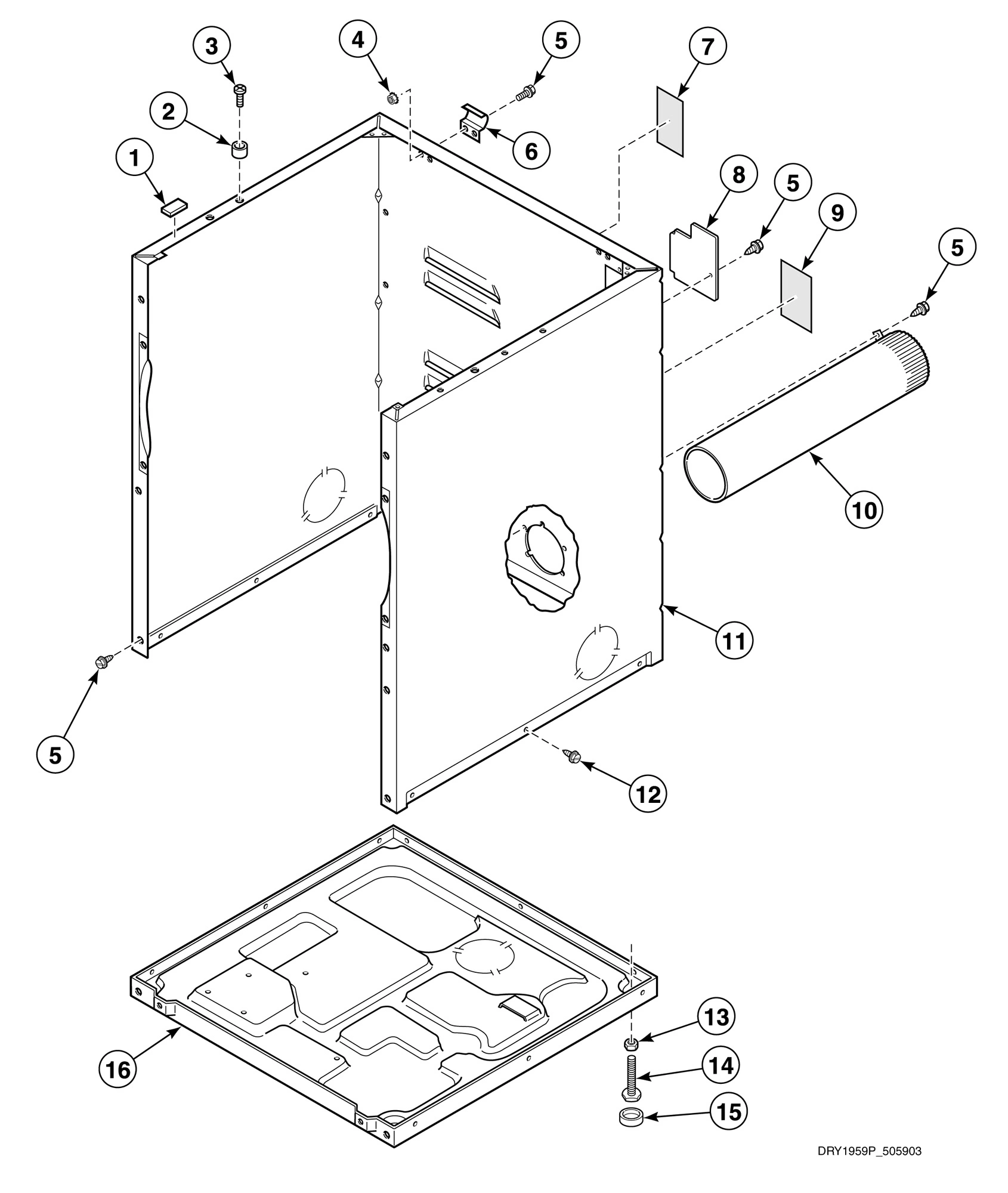

Cabinet, Exhaust Duct and Base

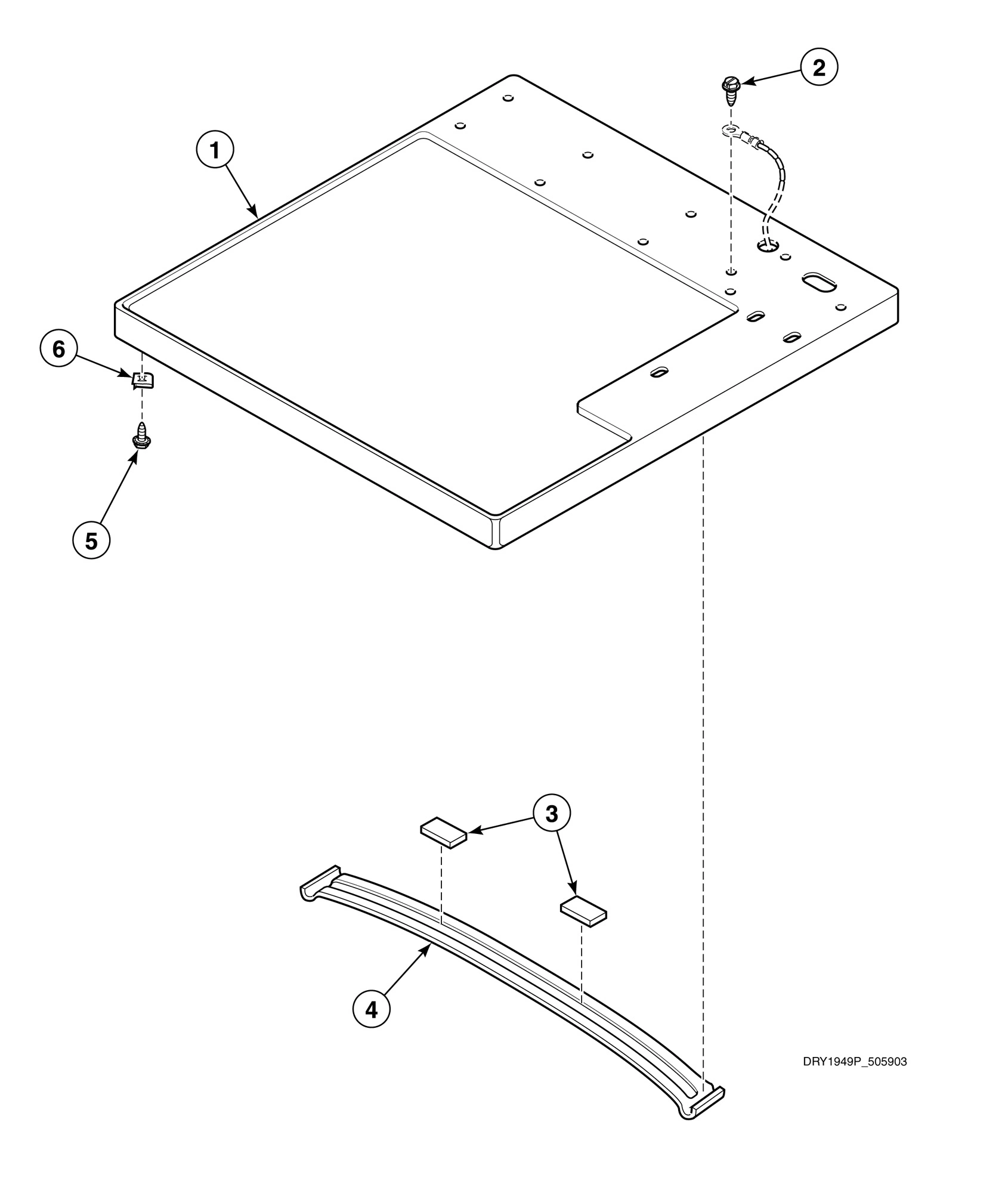

Cabinet Top

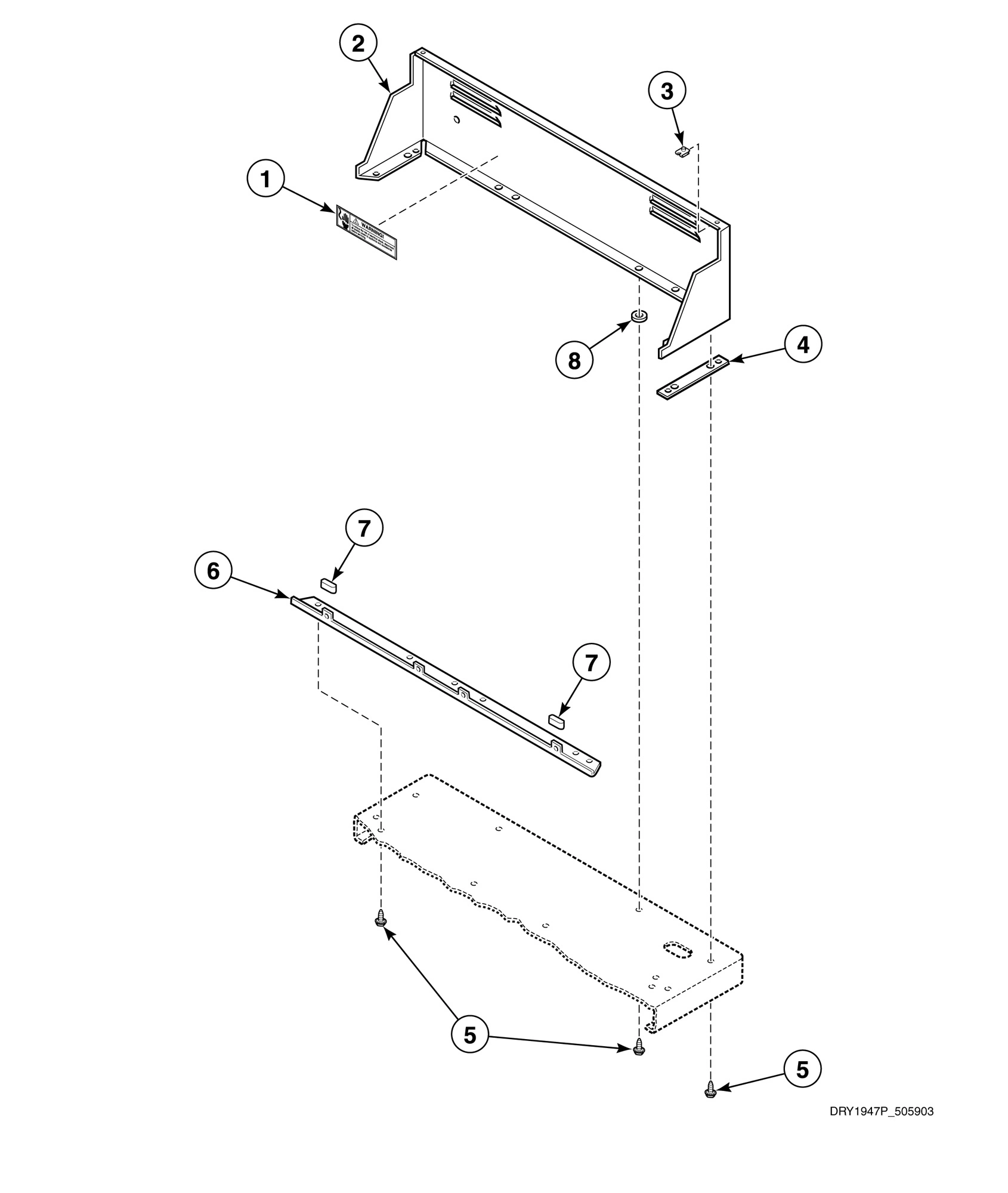

Control Hood
Control Panel and Controls (Drawing 3 of 3)

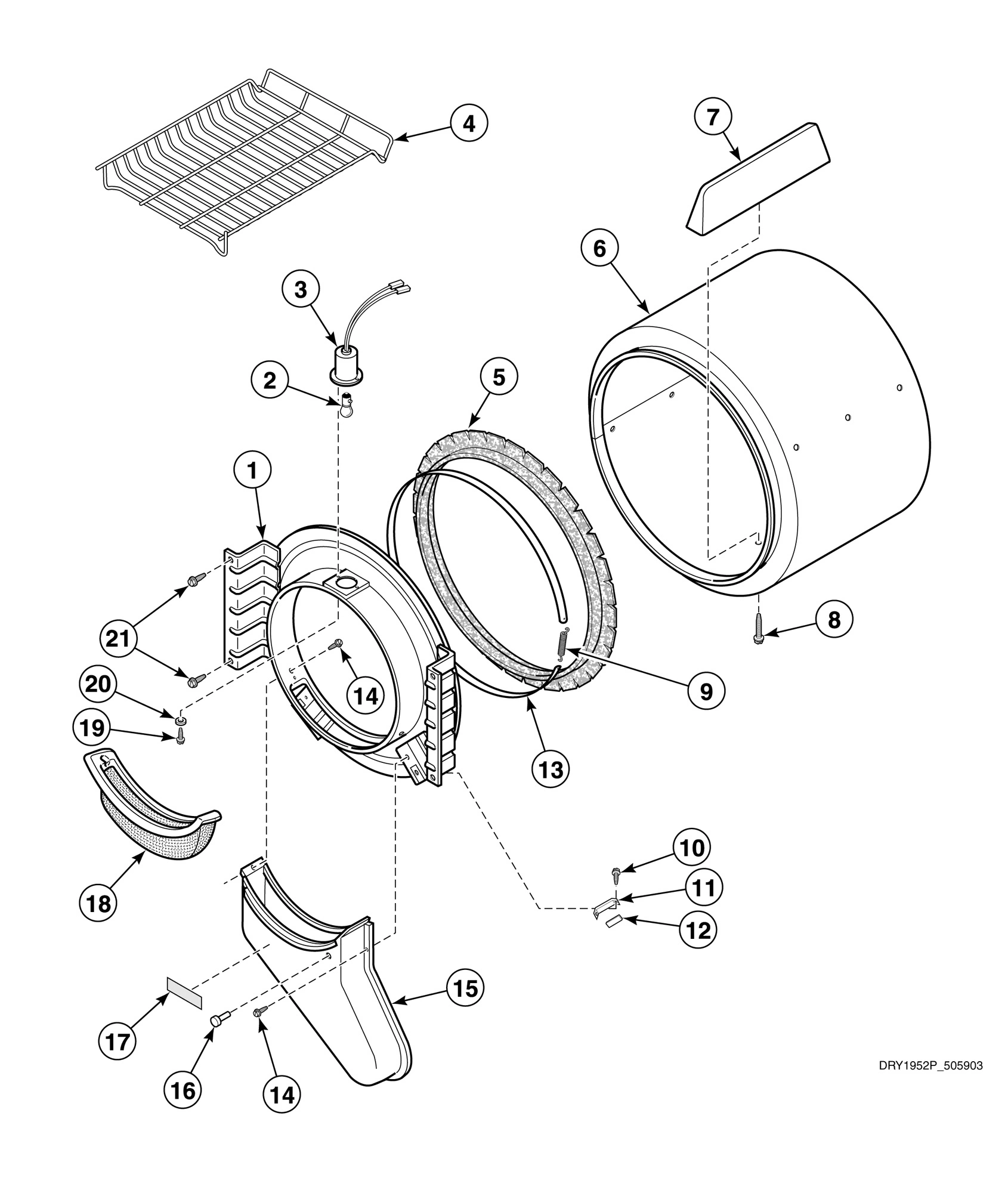

Front Bulkhead, Air Duct, Felt Seal and Cylinder

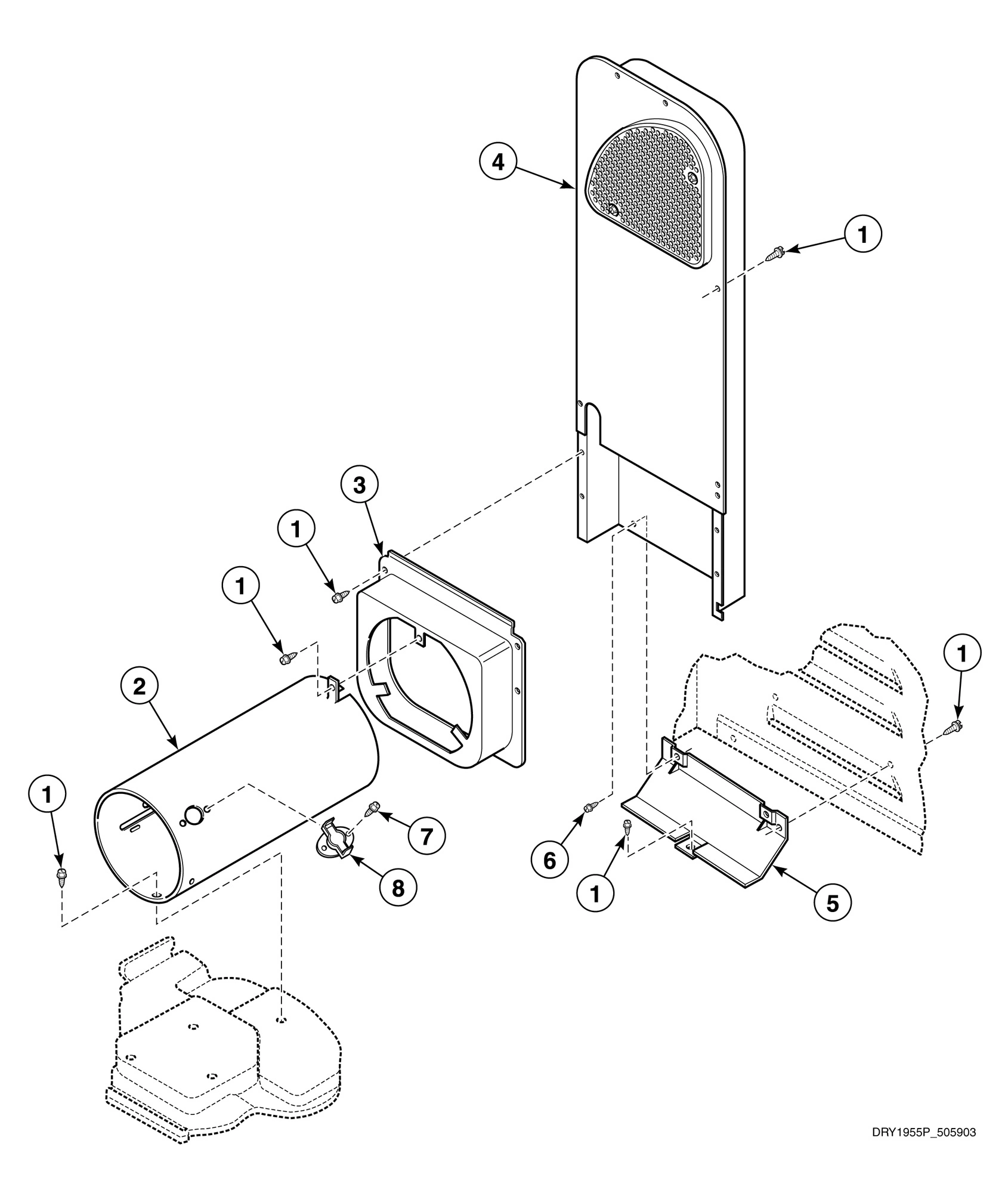

Heater Duct Assembly

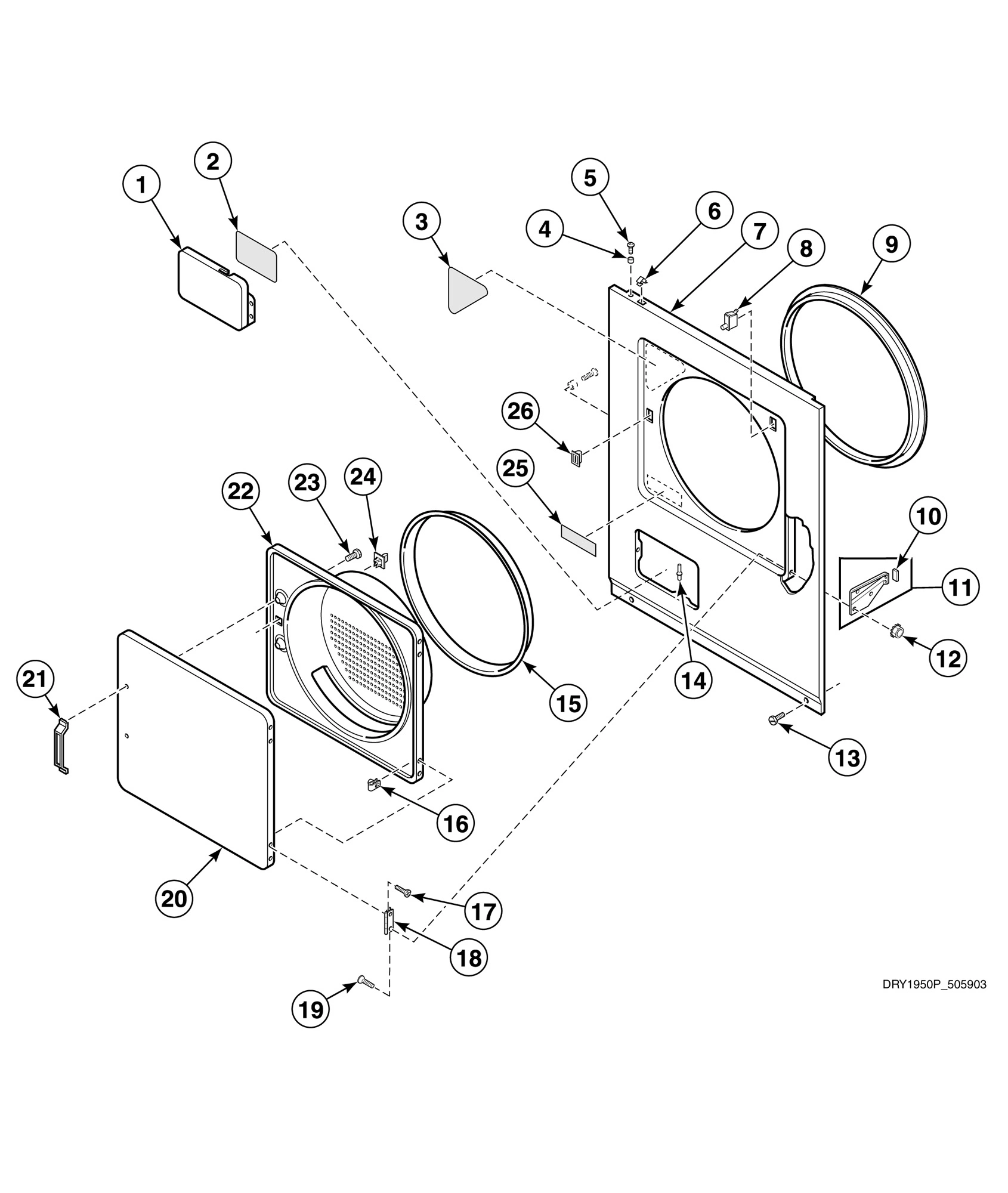

Loading Door, Front Panel and Seals

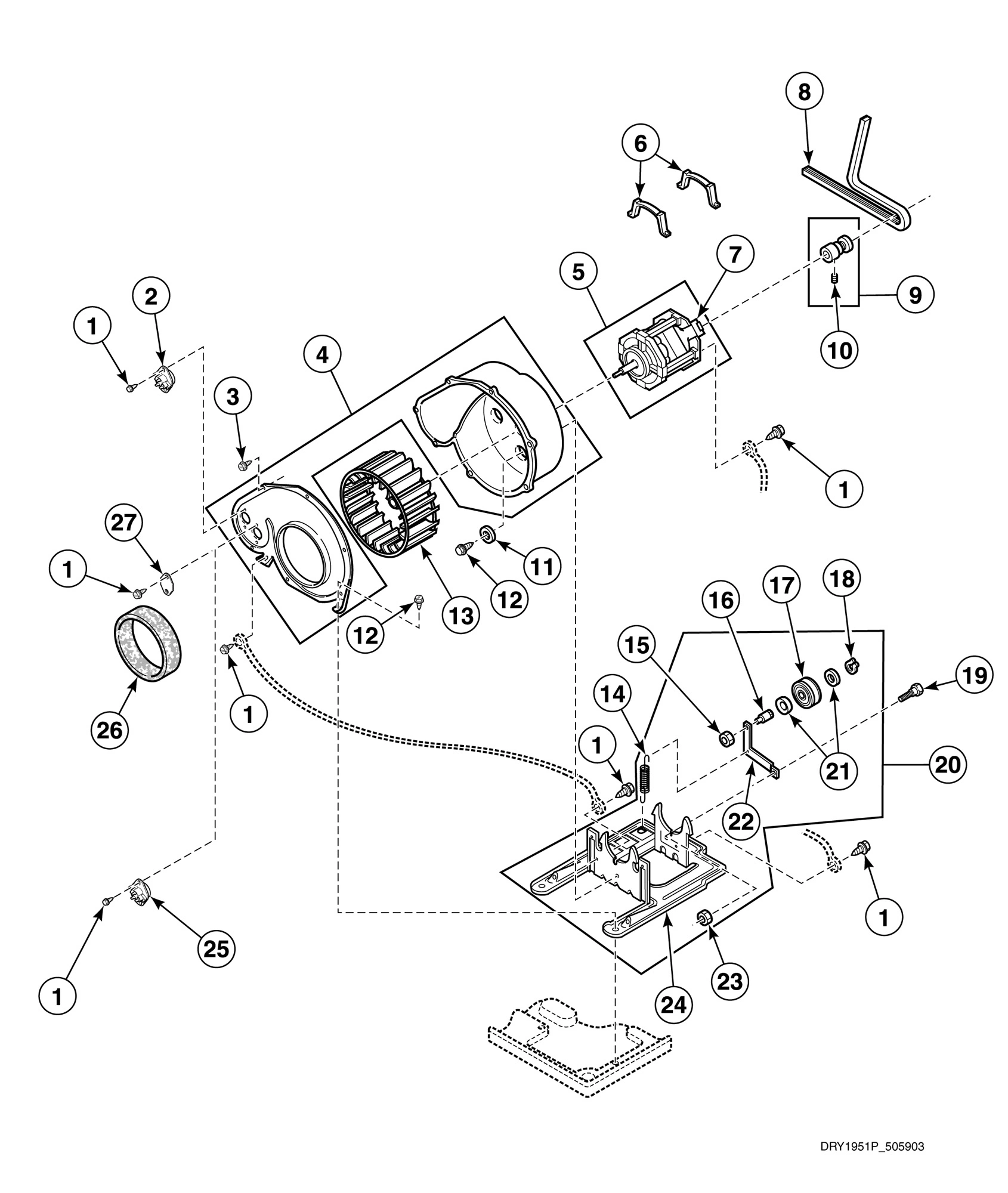

Motor, Exhaust Fan and Belt

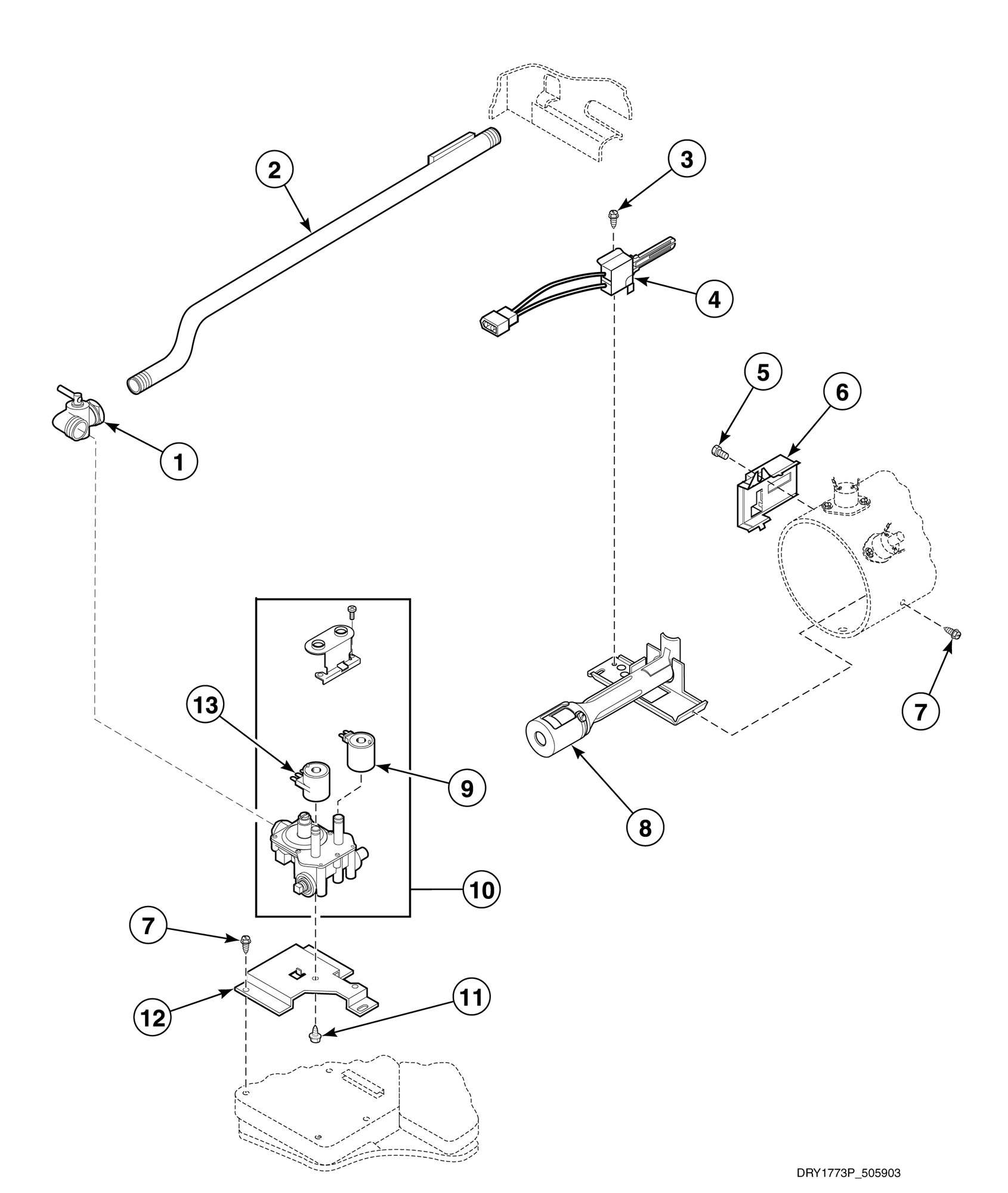

New Style Gas Valve, Igniter and Gas Conversion Kits

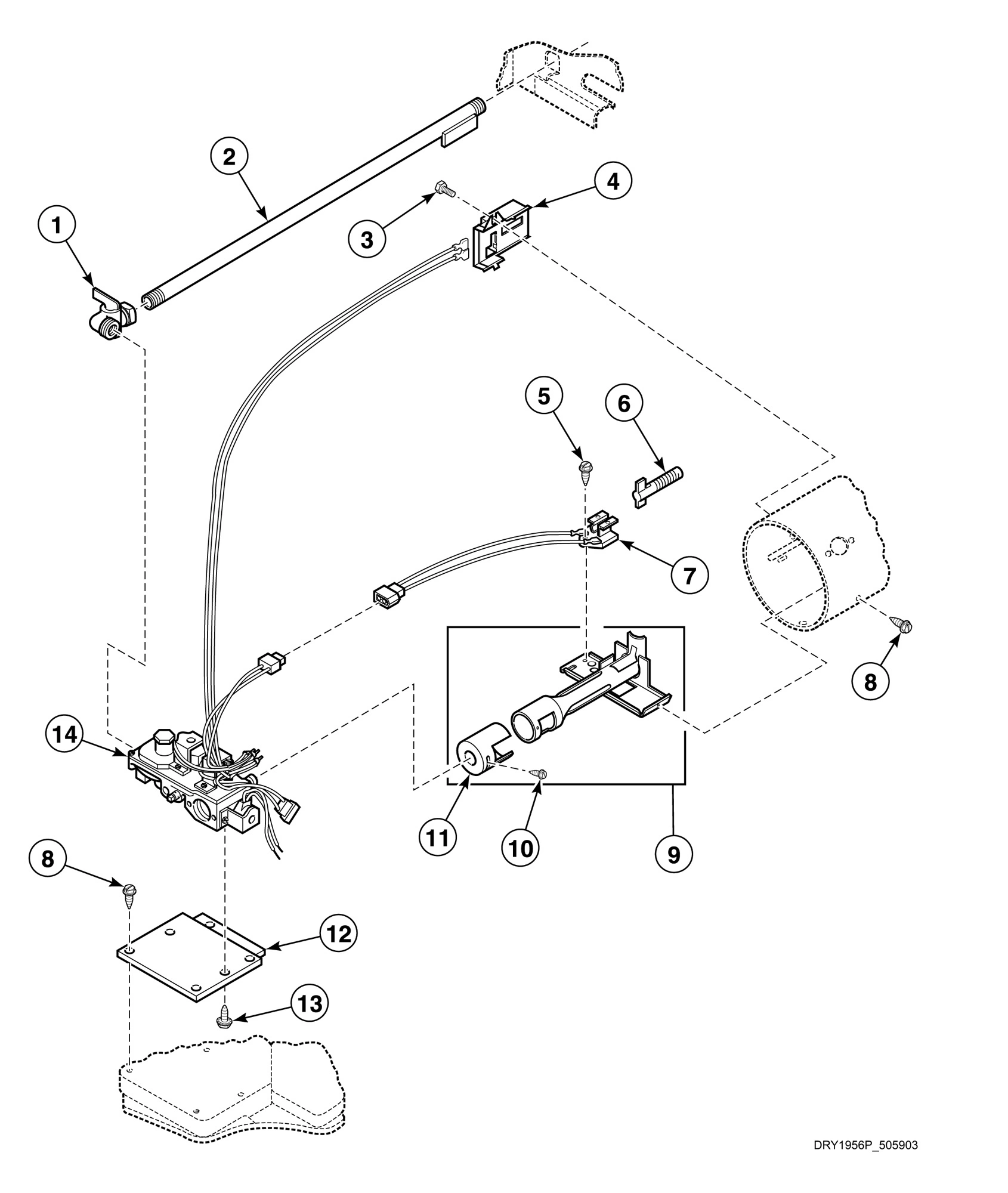

Old Style Gas Valve, Igniter and Gas Conversion Kits

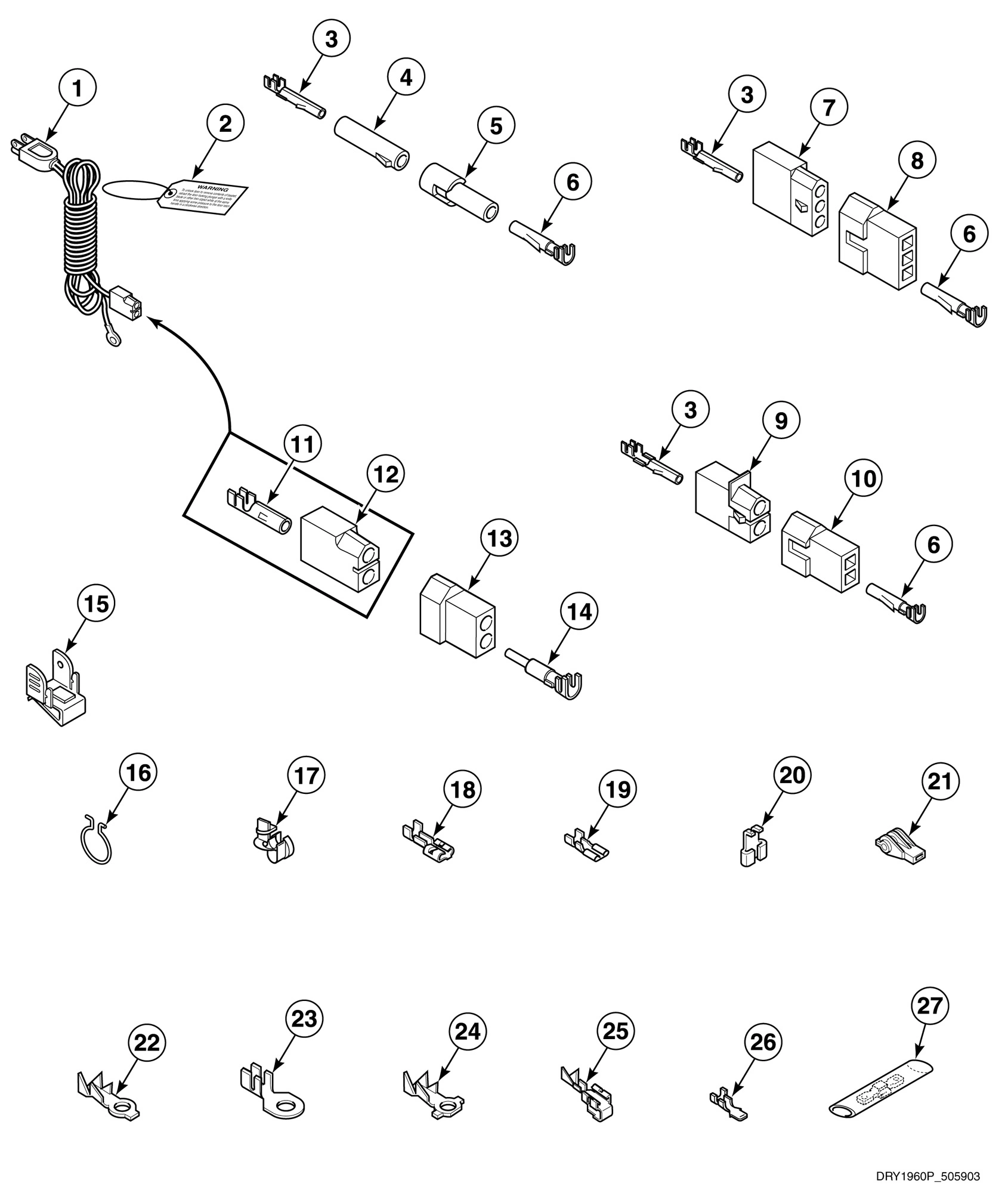

Power Cord and Terminals

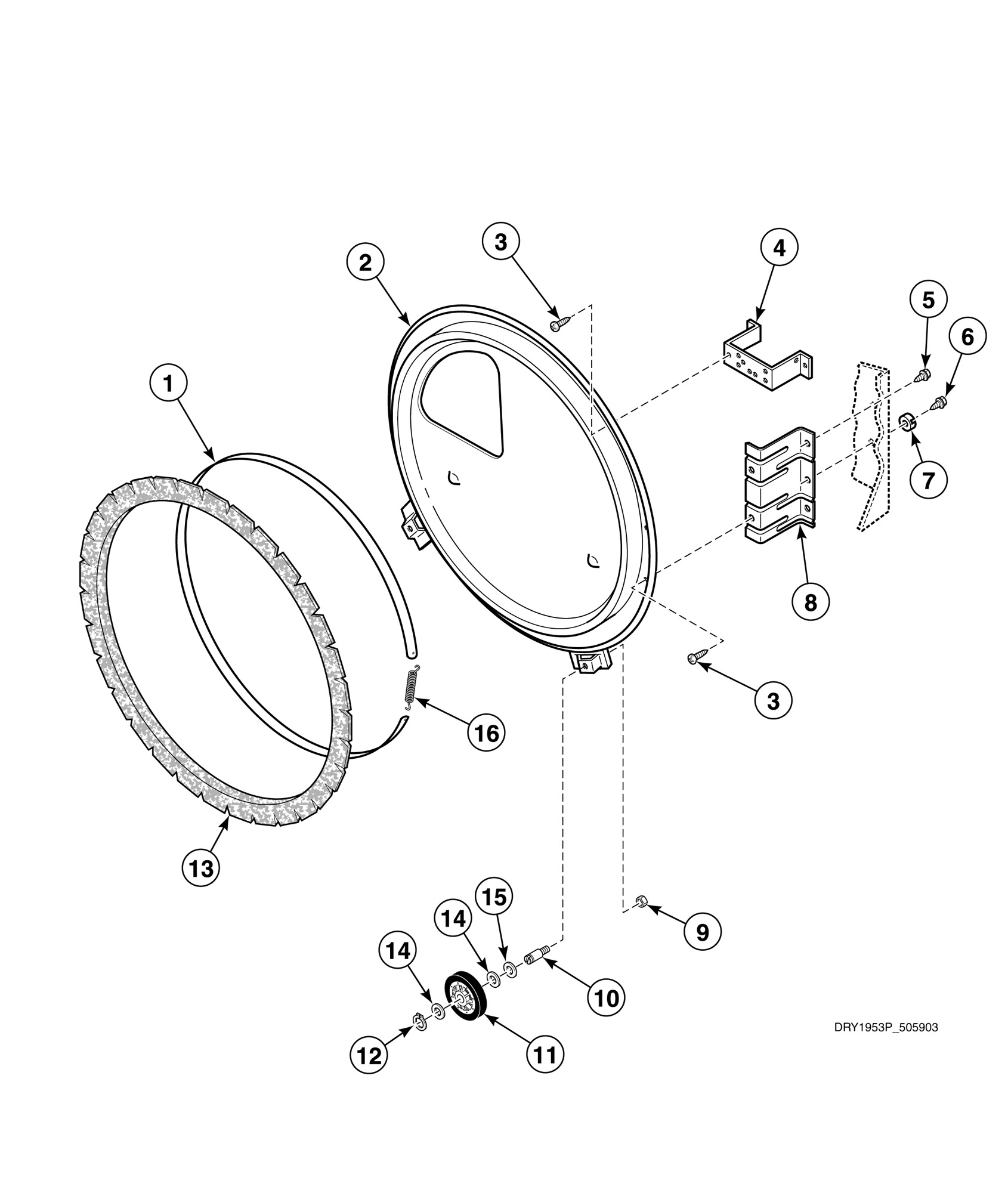

Rear Bulkhead, Felt Seal and Cylinder Roller

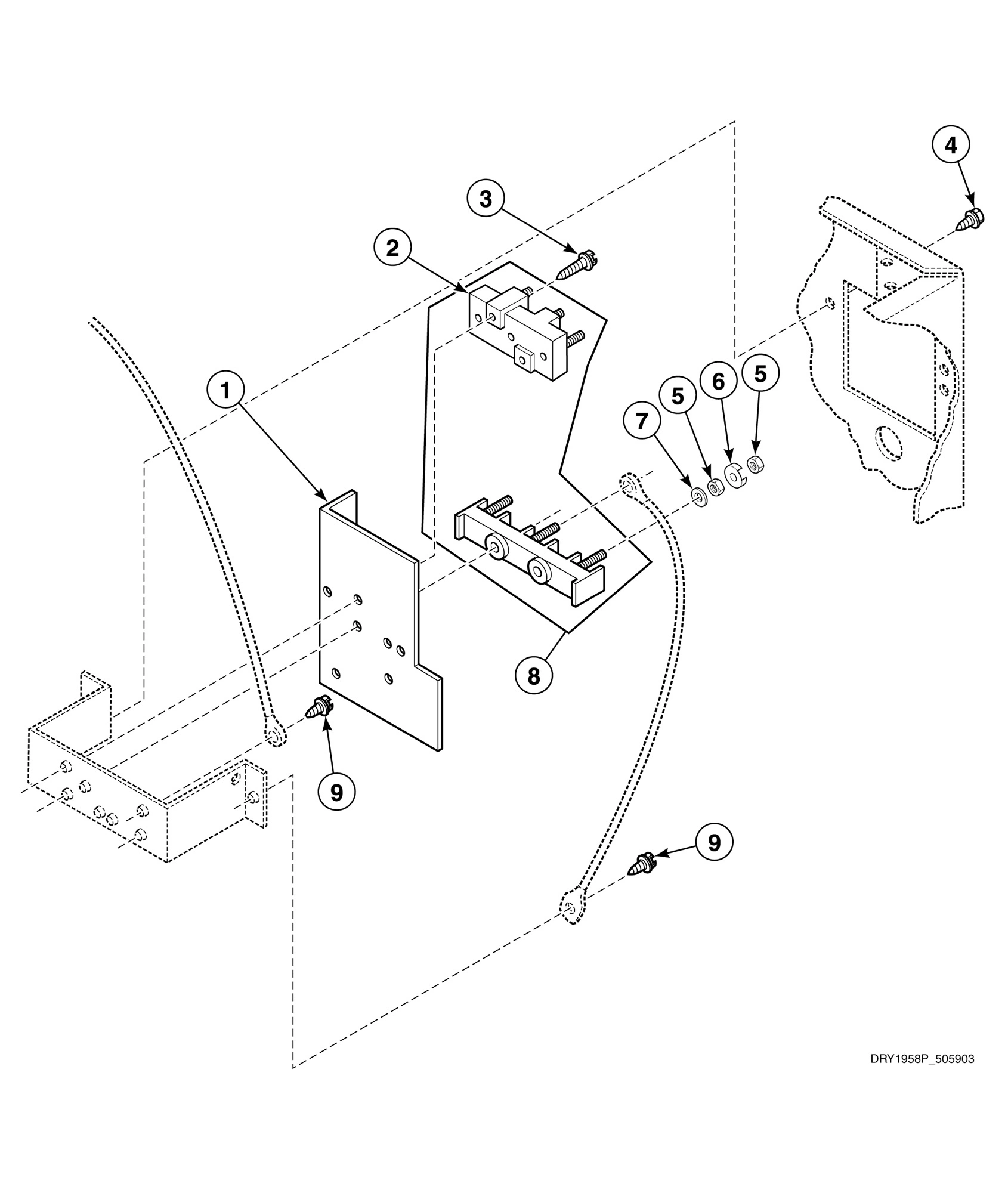

Terminal Block

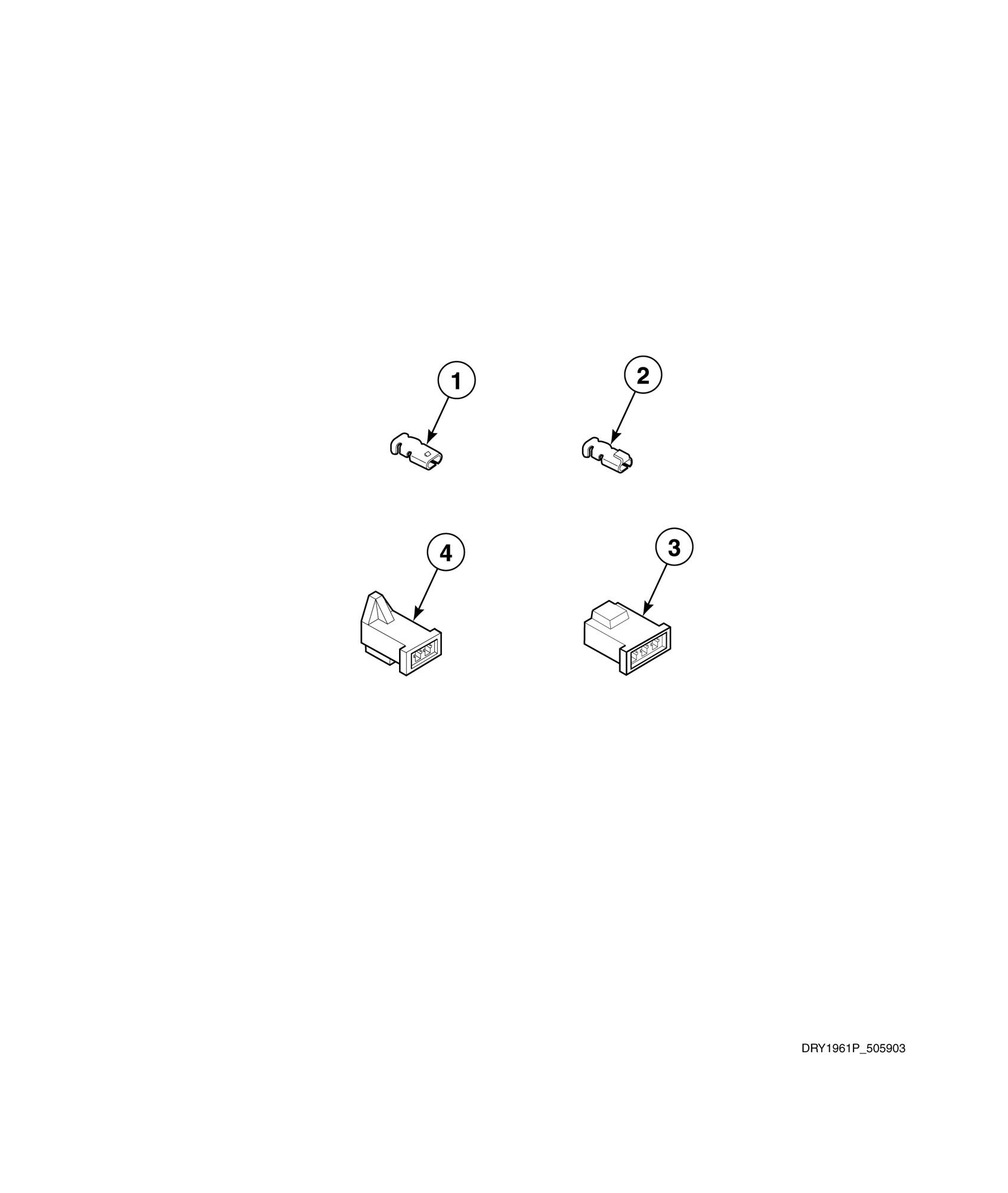

Terminals
Common parts from model GE HG6490 General Electric Model HG6490
1
Booster Coil GEN 56225C Contact Us For Availability
1
Seal Strap GEN 56090P Contact Us For Availability
1
Access Door (Comment: White, models starting GEN 60795W Contact Us For Availability
1
Elbow Shut-Off Valve GEN D510205 Contact Us For Availability
1
Lead-In Cord GEN 56222 Contact Us For Availability
1
Terminal Block Shield GEN 56087 Contact Us For Availability
1
Female Spade Terminal GEN 00189 Contact Us For Availability
2
Holding Coil GEN 56225B Contact Us For Availability
2
Gas Clearance Label GEN D511004 Contact Us For Availability
2
Thermostat GEN 56410 Contact Us For Availability
2
Rear Bulkhead Assembly GEN 61135P Contact Us For Availability
2
Terminal Block GEN 50854 Contact Us For Availability
2
Female Piggyback Terminal GEN 00361 Contact Us For Availability
3
Coil Assembly Kit GEN 56225A Contact Us For Availability
3
Foam Pad (Comment: Use with 56213 Top Brace) GEN 32670 Contact Us For Availability
3
Nut GEN 24522 Contact Us For Availability
3
Nut GEN 24205 Contact Us For Availability
3
Screw GEN 23222 Contact Us For Availability
3
Heat Duct Shroud GEN D510101 Contact Us For Availability
3
Warning/Caution Label GEN D500281 Contact Us For Availability
3
Screw GEN 23962 Contact Us For Availability
3
Female Pin Terminal GEN 00117 Contact Us For Availability
3
Screw GEN Q6535 Contact Us For Availability
3
3 Circuit Connector GEN 58800 Contact Us For Availability
4
Secondary Coil GEN 56225D Contact Us For Availability
4
Panel Locator GEN 56079 Contact Us For Availability
4
Nut GEN 23951 Contact Us For Availability
4
Screw GEN D503661 Contact Us For Availability
4
Washer GEN 91176 Contact Us For Availability
4
Heater Duct and Screw Assembly GEN D510025P Contact Us For Availability
4
Blower Housing and Cover Kit GEN D511969P Contact Us For Availability
4
Sensor GEN D510213 Contact Us For Availability
4
1 Circuit Receptacle GEN 26301 Contact Us For Availability
4
2 Circuit Connector GEN 58799 Contact Us For Availability
5
Screw GEN 39733 Contact Us For Availability
5
Screw GEN 23008 Contact Us For Availability
5
Heat Duct Shield GEN 60952 Contact Us For Availability
5
Motor Kit (Comment: Includes switch) GEN 915P3 Contact Us For Availability
5
Screw (Comment: Models with 9958 suffix) GEN 56693 Contact Us For Availability
5
1 Circuit Plug GEN 26302 Contact Us For Availability
5
Nut GEN Q6163 Contact Us For Availability
6
Nut GEN 36020 Contact Us For Availability
6
Cylinder Assembly (Comment: Includes item 7) GEN 60645P Contact Us For Availability
6
Screw GEN 51780 Contact Us For Availability
6
Speed Clip GEN 28835 Contact Us For Availability
6
Motor Mount Clamp GEN D510180 Contact Us For Availability
6
Igniter GEN 55438P Contact Us For Availability
6
Male Pin Terminal GEN 00116 Contact Us For Availability
6
Washer GEN 51474 Contact Us For Availability
7
Fabric Selector Switch GEN 58813P Contact Us For Availability
7
Cylinder Baffle (Comment: White) GEN 61399 Contact Us For Availability
7
Igniter and Bracket Assembly (Comment: Models GEN D510184P Contact Us For Availability
7
Spring and Connector Assembly (Comment: All o GEN M409136 Contact Us For Availability
7
3 Circuit Receptacle GEN 23039 Contact Us For Availability
7
Washer GEN 56552 Contact Us For Availability
8
Rear Bulkhead Bracket GEN N/A Contact Us For Availability
8
Access Cover Plate GEN 60821 Contact Us For Availability
8
Washer GEN 25820 Contact Us For Availability
8
Thermostat and Plate Kit GEN 489P3 Contact Us For Availability
8
Switch GEN D504570 Contact Us For Availability
8
Cylinder Belt GEN 56095P Contact Us For Availability
8
Plug GEN 23040 Contact Us For Availability
8
Terminal Block Assembly (Comment: Includes it GEN 50854A Contact Us For Availability
9
Screw GEN 52909 Contact Us For Availability
9
Front Panel Seal GEN 61380P Contact Us For Availability
9
Motor Pulley Kit (Comment: Includes item 10) GEN 56062P Contact Us For Availability
9
Nut GEN 56156 Contact Us For Availability
9
Burner Assembly GEN D510149P Contact Us For Availability
9
Secondary Coil GEN 58804B Contact Us For Availability
9
2 Circuit Receptacle GEN 56451 Contact Us For Availability
10
Bumper Pad GEN 56128 Contact Us For Availability
10
Screw GEN D501086 Contact Us For Availability
10
Screw GEN 62541 Contact Us For Availability
10
Shaft GEN 56461P Contact Us For Availability
10
Gas Valve Assembly GEN 58804P Contact Us For Availability
10
2 Circuit Plug GEN 56448 Contact Us For Availability
11
Nut GEN 52947 Contact Us For Availability
11
Cylinder Glide GEN 61448 Contact Us For Availability
11
Washer GEN 20492 Contact Us For Availability
11
Female Pin Terminal GEN 00130 Contact Us For Availability
11
Cylinder Roller Kit GEN 62649P Contact Us For Availability
12
Switch Assembly (Comment: Includes item 11) GEN 55882 Contact Us For Availability
12
Felt Pad GEN 56058 Contact Us For Availability
12
Nut GEN 51236 Contact Us For Availability
12
Retaining Ring GEN 23748 Contact Us For Availability
12
Gas Valve Mounting Bracket GEN D510128 Contact Us For Availability
12
2 Circuit Receptacle GEN 56265 Contact Us For Availability
13
Nut GEN 20274 Contact Us For Availability
13
Screw GEN 25232 Contact Us For Availability
13
Seal Assembly GEN 56088P Contact Us For Availability
13
Blower Fan Assembly GEN D510139P Contact Us For Availability
13
Screw GEN 56124 Contact Us For Availability
13
Booster and Holding Coil GEN 58804A Contact Us For Availability
13
2 Circuit Plug GEN 56266 Contact Us For Availability
14
Screw GEN 52696 Contact Us For Availability
14
Support Barrel (Comment: Models starting Seri GEN 56534 Contact Us For Availability
14
Idler Spring GEN D510185 Contact Us For Availability
14
Washer GEN 52549 Contact Us For Availability
14
Gas Valve Conversion Kit (Comment: N.G. or Mi GEN 596P3 Contact Us For Availability
14
Male Pin Terminal GEN 00127 Contact Us For Availability
15
Rubber Foot GEN 34318 Contact Us For Availability
15
Air Duct Assembly GEN 60786 Contact Us For Availability
15
Door Seal (Comment: White) GEN 61379P Contact Us For Availability
15
Grounding Clip GEN 00161 Contact Us For Availability
15
Washer GEN 23886 Contact Us For Availability
16
Spring GEN 52310 Contact Us For Availability
16
Nut GEN 23407 Contact Us For Availability
16
Wire Clip GEN 51291 Contact Us For Availability
17
Disconnect Power Warning Label GEN D505281 Contact Us For Availability
17
Screw GEN 52864 Contact Us For Availability
17
Idler Wheel and Bearing Assembly GEN D510142P Contact Us For Availability
17
Strain Relief GEN 38384 Contact Us For Availability
18
Lint Filter GEN 61376P Contact Us For Availability
18
Hinge GEN 56045 Contact Us For Availability
18
Female Spade Terminal (Comment: Large spade) GEN 00223 Contact Us For Availability
19
Screw GEN 22649 Contact Us For Availability
19
Female Spade Terminal (Comment: Small spade) GEN 00112 Contact Us For Availability
20
Washer GEN 51345 Contact Us For Availability
20
Motor Mount and Idler Assembly (Comment: Incl GEN D511227 Contact Us For Availability
20
Female Flag Terminal GEN 00120 Contact Us For Availability
21
Door Pull GEN 61925 Contact Us For Availability
21
Insulator GEN 70210 Contact Us For Availability
22
Door Liner GEN 62152P Contact Us For Availability
22
Ring Terminal (Comment: No. 10, Small shank) GEN 00110 Contact Us For Availability
23
Screw GEN D502535 Contact Us For Availability
23
Nut GEN 52566 Contact Us For Availability
23
Ring Terminal (Comment: No. 10, Large shank) GEN 00111 Contact Us For Availability
24
Door Strike GEN D510181 Contact Us For Availability
24
Motor Mount GEN D510060 Contact Us For Availability
24
Ring Terminal (Comment: 1/4 inch ring) GEN 00113 Contact Us For Availability
25
Female Spade Terminal GEN 00114 Contact Us For Availability
26
Door Catch Assembly GEN D510177 Contact Us For Availability
26
Seal GEN 56065 Contact Us For Availability
26
Male Tab Terminal (Comment: 1/4 inch) GEN 00139 Contact Us For Availability
27
NOT ON YOUR MODEL GEN - Contact Us For Availability
27
Connector GEN 21091 Contact Us For Availability
NA
Screw GEN 62588 Contact Us For Availability
NA
L.P. Conversion Kit (Comment: Used to convert GEN 401P3 Contact Us For Availability
NA
N.G. Conversion Kit (Comment: Used to convert GEN 402P3 Contact Us For Availability
NA
L.P. Conversion Kit Assembly (Comment: Used t GEN 56412 Contact Us For Availability
× ![]()
