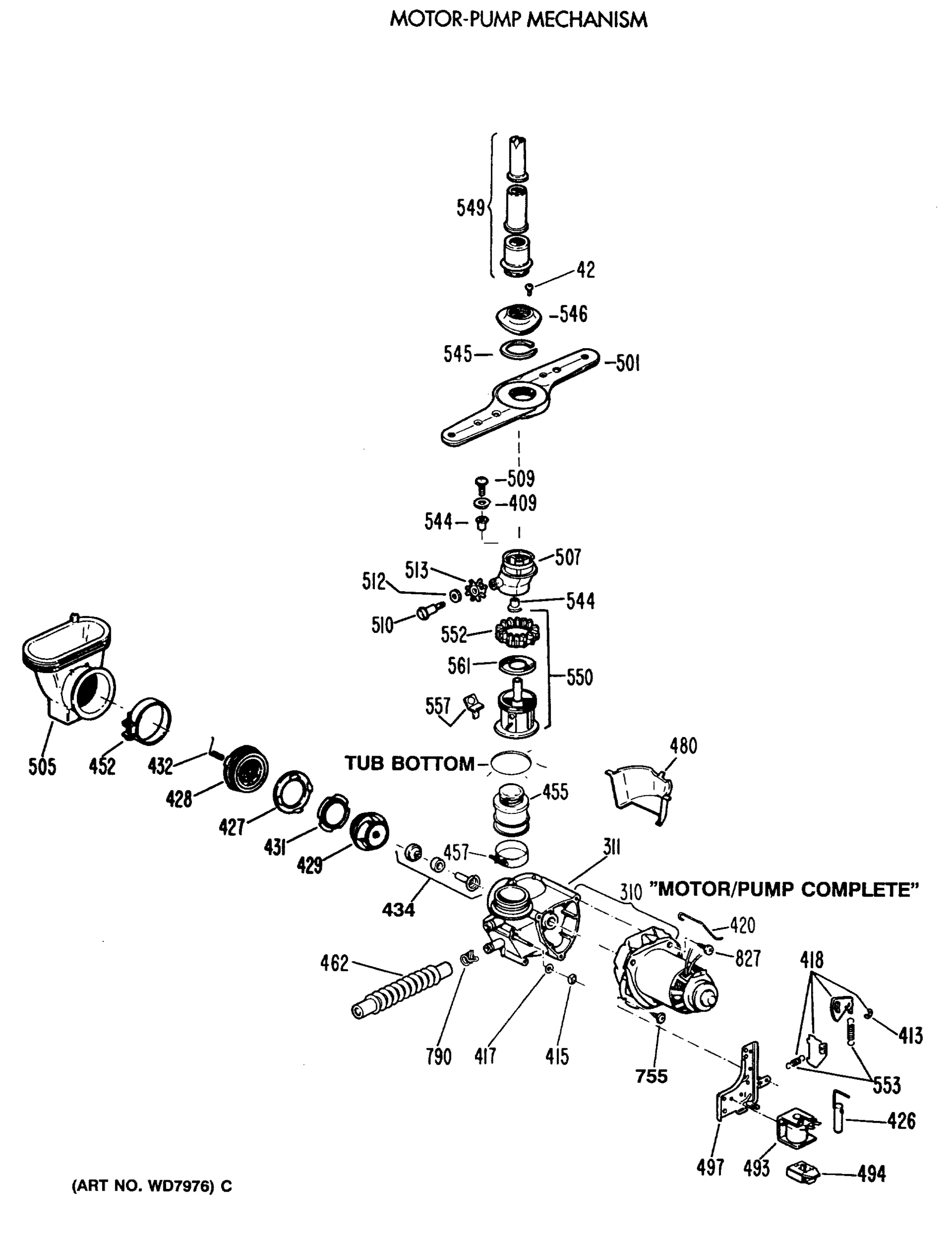

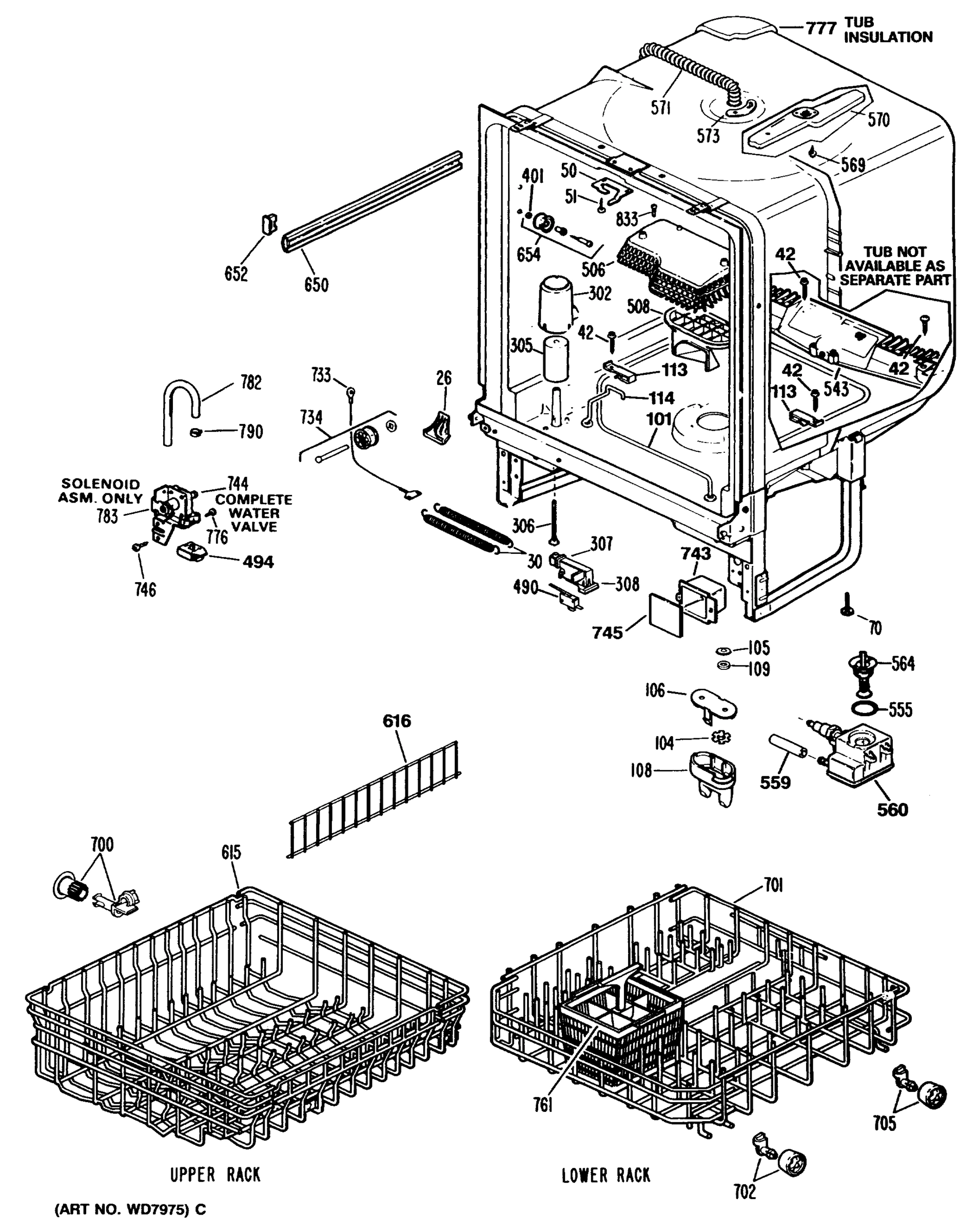

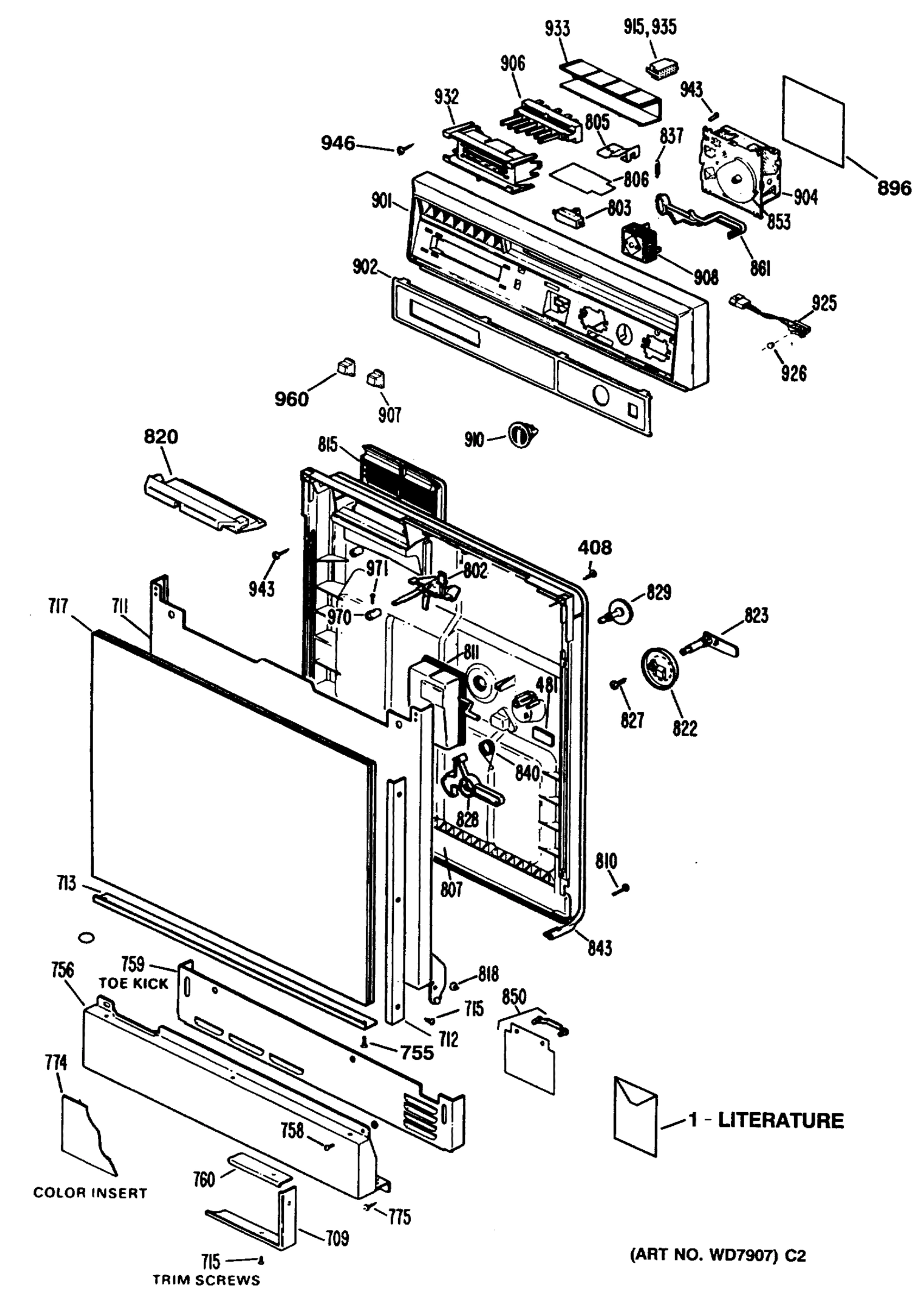

Model HDA430V-64WW – Common Parts & Diagrams

Common parts from model HDA430V-64WW

WD8X227 GE Right Hand Dishwasher Corner Seal

WD8X227 GE Right Hand Dishwasher Corner Seal In Stock GEN WD8X227 $10.03

WD8X228 GE Dishwasher Left Hand Tub Baffle Co

WD8X228 GE Dishwasher Left Hand Tub Baffle Co In Stock GEN WD8X228 $10.03

WD13X67 GE Dishwasher Latch Keeper

WD13X67 GE Dishwasher Latch Keeper Out of Stock GEN WD13X67 $7.50

WD2X320 GE Dishwasher Levelling Leg

WD2X320 GE Dishwasher Levelling Leg In Stock GEN WD2X320 $5.17

WD05X26780 GE Dishwasher Heating Element Asse

WD05X26780 GE Dishwasher Heating Element Asse In Stock GEN WD05X26780 $23.13

WD1X1472 GE Dishwasher Support Heater

WD1X1472 GE Dishwasher Support Heater Out of Stock GEN WD1X1472 $7.08

WD12X445 GE Dishwasher Float Dome

WD12X445 GE Dishwasher Float Dome Out of Stock GEN WD12X445 $11.96

WD12X334 GE Dishwasher Float

WD12X334 GE Dishwasher Float Out of Stock GEN WD12X334 $9.10

WD12X335 GE Dishwasher Float Stem

WD12X335 GE Dishwasher Float Stem Out of Stock GEN WD12X335 $11.79

WD12X10023 GE Dishwasher Bracket

WD12X10023 GE Dishwasher Bracket Out of Stock GEN WD12X10023 $7.21

WD26X10013 GE Dishwasher Motor & Pump Assembl

WD26X10013 GE Dishwasher Motor & Pump Assembl In Stock GEN WD26X10013 $190.23

WD3X767 GE Dishwasher Washer

WD3X767 GE Dishwasher Washer Out of Stock GEN WD3X767 $5.17

WD3X487D GE Dishwasher Retainer Package 12

WD3X487D GE Dishwasher Retainer Package 12 Out of Stock GEN WD3X487D $16.54

WR2X7054 GE Refrigerator Push-on Nut

WR2X7054 GE Refrigerator Push-on Nut In Stock GEN WR2X7054 $5.17

WD8X181 GE Dishwasher Pump Gasket

WD8X181 GE Dishwasher Pump Gasket In Stock GEN WD8X181 $22.09

WD1X1316 GE Dishwasher Armature and Link

WD1X1316 GE Dishwasher Armature and Link In Stock GEN WD1X1316 $22.55

WD1X1392 GE Dishwasher Clamp Sump

WD1X1392 GE Dishwasher Clamp Sump Out of Stock GEN WD1X1392 $5.17

WD1X1376 GE Dishwasher Clamp

WD1X1376 GE Dishwasher Clamp Out of Stock GEN WD1X1376 $14.72

WD24X10014 GE Dishwasher Drain Hose

WD24X10014 GE Dishwasher Drain Hose In Stock GEN WD24X10014 $24.53

WD21X479 GE Dishwasher Switch

WD21X479 GE Dishwasher Switch In Stock GEN WD21X479 $7.63

WD21X802 GE Dishwasher Drain Solenoid

WD21X802 GE Dishwasher Drain Solenoid In Stock GEN WD21X802 $64.12

WD1X1459 GE Dishwasher Housing Insulation

WD1X1459 GE Dishwasher Housing Insulation Out of Stock GEN WD1X1459 $6.73

WD18X213 GE Dishwasher Inlet Sump Housing

WD18X213 GE Dishwasher Inlet Sump Housing In Stock GEN WD18X213 $25.01

WD12X417 GE Dishwasher Cover

WD12X417 GE Dishwasher Cover Out of Stock GEN WD12X417 $19.24

WD12X418 GE Dishwasher Sump Cap

WD12X418 GE Dishwasher Sump Cap Out of Stock GEN WD12X418 $19.31

WD3X721 GE Dishwasher Spring Set

WD3X721 GE Dishwasher Spring Set In Stock GEN WD3X721 $44.72

WD24X10018 GE Piston and Nut Assembly

WD24X10018 GE Piston and Nut Assembly In Stock GEN WD24X10018 $13.98

WD28X10103 GE Spray Arm Assembly

WD28X10103 GE Spray Arm Assembly Out of Stock GEN WD28X10103 $40.29

WD28X31818 GE Dishwasher Rack Service Kit

WD28X31818 GE Dishwasher Rack Service Kit In Stock GEN WD28X31818 $126.82

WD30X98 GE Dishwasher Slide

WD30X98 GE Dishwasher Slide In Stock GEN WD30X98 $48.74

WD12X10304 GE Dishwasher Rack Slide Endcap (W

WD12X10304 GE Dishwasher Rack Slide Endcap (W In Stock GEN WD12X10304 $9.14

WD12X332 GE Dishrack Roller

WD12X332 GE Dishrack Roller Out of Stock GEN WD12X332 $6.70

WD12X10327 GE Dishwasher Rack and Roller Stud

WD12X10327 GE Dishwasher Rack and Roller Stud In Stock GEN WD12X10327 $13.85

WD12X271 GE Dishwasher Roller

WD12X271 GE Dishwasher Roller In Stock GEN WD12X271 $12.67

WD35X21038 GE Upper Rack Wheel Kit

WD35X21038 GE Upper Rack Wheel Kit In Stock GEN WD35X21038 $25.57

WD2X430 GE Dishwasher Screw

WD2X430 GE Dishwasher Screw Out of Stock GEN WD2X430 $5.17

WD7X14 GE Dishwasher Door Cable Assembly

WD7X14 GE Dishwasher Door Cable Assembly In Stock GEN WD7X14 $11.47

WD15X93 GE Dishwasher Water Inlet Fill Valve

WD15X93 GE Dishwasher Water Inlet Fill Valve In Stock GEN WD15X93 $30.16

WZ4X44D GE Screw Package 12

WZ4X44D GE Screw Package 12 Out of Stock GEN WZ4X44D $26.75

WD2X323D GE Dishwasher Screw Package 12

WD2X323D GE Dishwasher Screw Package 12 Out of Stock GEN WD2X323D $21.60

WD28X265 GE Dishwasher Silverware Cutlery Bas

WD28X265 GE Dishwasher Silverware Cutlery Bas In Stock GEN WD28X265 $62.42

WD2X5166 GE Dishwasher Screw

WD2X5166 GE Dishwasher Screw Out of Stock GEN WD2X5166 $5.17

WD18X202 GE Dishwasher Fill Hose

WD18X202 GE Dishwasher Fill Hose Out of Stock GEN WD18X202 $7.75

WH1X2036 GE UNIX Clamp

WH1X2036 GE UNIX Clamp In Stock GEN WH1X2036 $9.94

WD21X10261 GE Dishwasher Interlock Switch

WD21X10261 GE Dishwasher Interlock Switch In Stock GEN WD21X10261 $15.11

WD12X22757 GE Dishwasher Shield Switch

WD12X22757 GE Dishwasher Shield Switch Out of Stock GEN WD12X22757 $5.17

WD2X322 GE Dishwasher Screw 8-18X7/8

WD2X322 GE Dishwasher Screw 8-18X7/8 Out of Stock GEN WD2X322 $5.17

WD35X10346 GE Dishwasher Tank Rinse Aid Kit

WD35X10346 GE Dishwasher Tank Rinse Aid Kit In Stock GEN WD35X10346 $30.30

WD12X10026 GE Dishwasher Vent Assembly

WD12X10026 GE Dishwasher Vent Assembly Out of Stock GEN WD12X10026 $7.63

WD1X1467 GE Dishwasher Vent Pad

WD1X1467 GE Dishwasher Vent Pad Out of Stock GEN WD1X1467 $7.03

WD16X297 GE Dishwasher DET Cup Cover + @16

WD16X297 GE Dishwasher DET Cup Cover + @16 In Stock GEN WD16X297 $5.17

WD16X313 GE Dishwasher Detergent Cup Shaft

WD16X313 GE Dishwasher Detergent Cup Shaft In Stock GEN WD16X313 $15.05

WD16X10011 GE Dishwasher Detergent Cup Dispen

WD16X10011 GE Dishwasher Detergent Cup Dispen In Stock GEN WD16X10011 $11.88

WD12X10284 GE Dishwasher Fill Cap

WD12X10284 GE Dishwasher Fill Cap In Stock GEN WD12X10284 $14.91

WD2X295 GE Refrigerator Screw

WD2X295 GE Refrigerator Screw In Stock GEN WD2X295 $5.17

WD3X764 GE Dishwasher Detergent Door Spring

WD3X764 GE Dishwasher Detergent Door Spring In Stock GEN WD3X764 $25.81

WD8X229 GE Dishwasher Door Seal Gasket

WD8X229 GE Dishwasher Door Seal Gasket In Stock GEN WD8X229 $80.39

WD12X324 GE Dishwasher Lever

WD12X324 GE Dishwasher Lever Out of Stock GEN WD12X324 $11.87

WD31X10141 GE Dishwasher Timer Cover

WD31X10141 GE Dishwasher Timer Cover Out of Stock GEN WD31X10141 $8.41

WZ5X219D GE Screw Package 12

WZ5X219D GE Screw Package 12 Out of Stock GEN WZ5X219D $14.14

WD9X245 GE Dishwasher Latch Knob

WD9X245 GE Dishwasher Latch Knob Out of Stock GEN WD9X245 $18.56
