Model GU3600XTVY3 – Common Parts & Diagrams

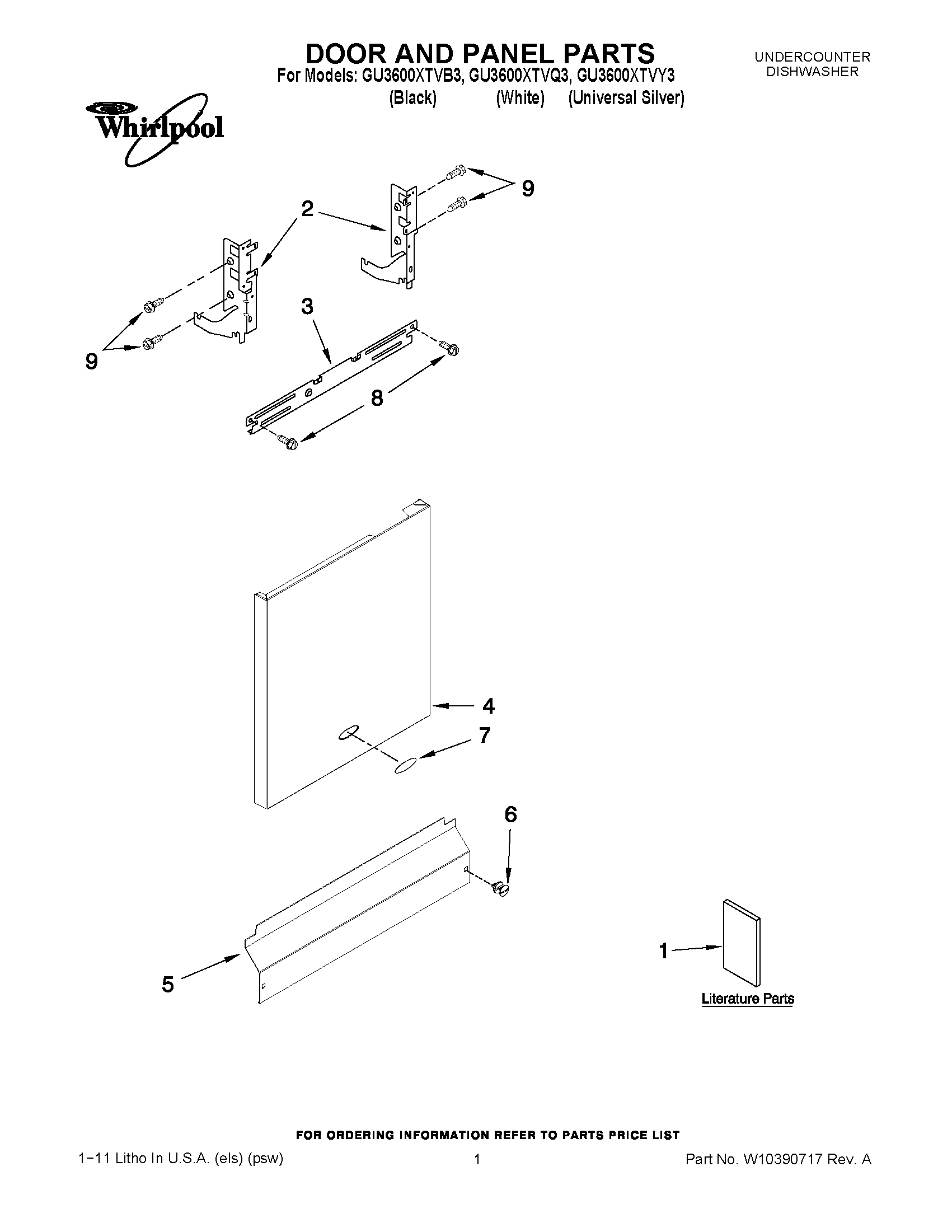

01 - DOOR AND PANEL PARTS

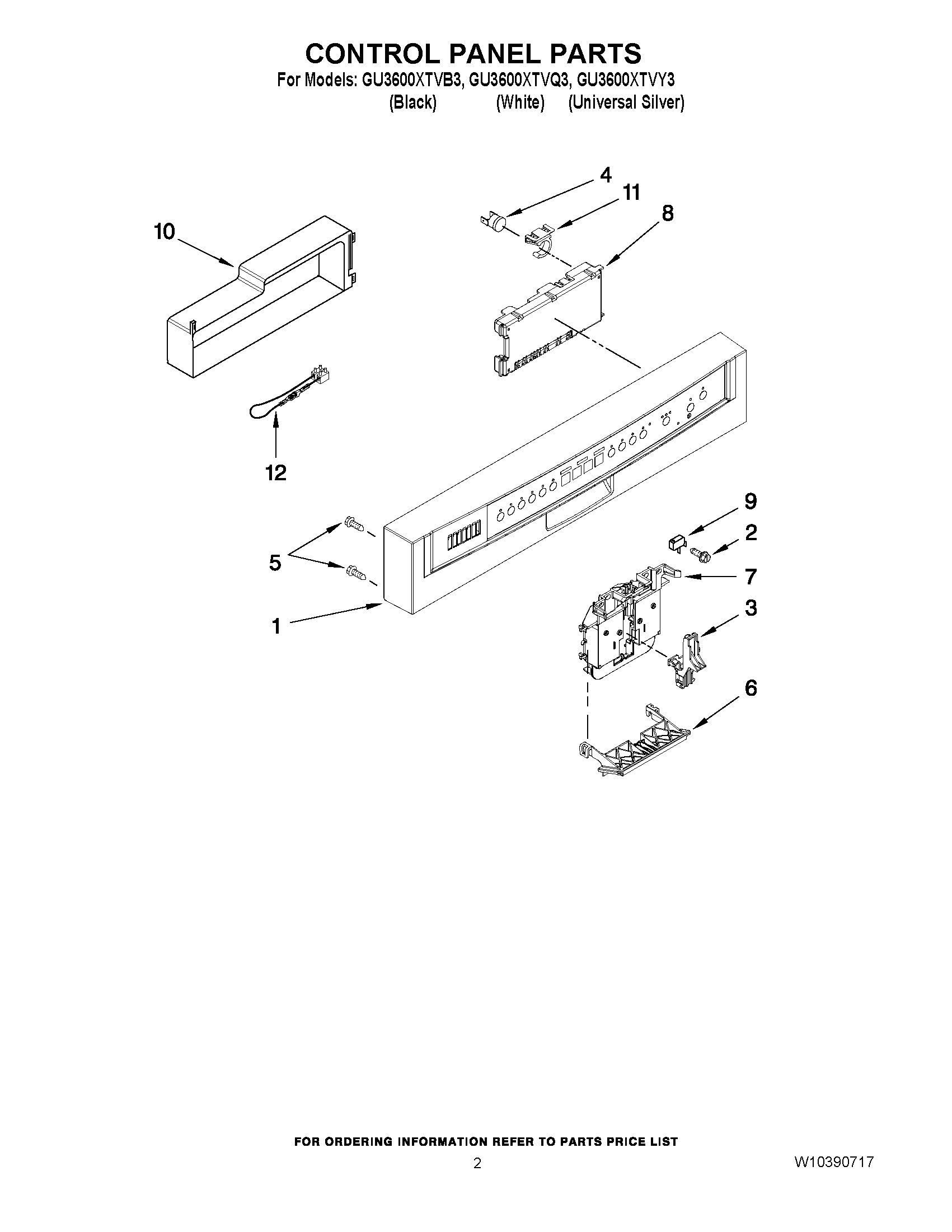

02 - CONTROL PANEL PARTS

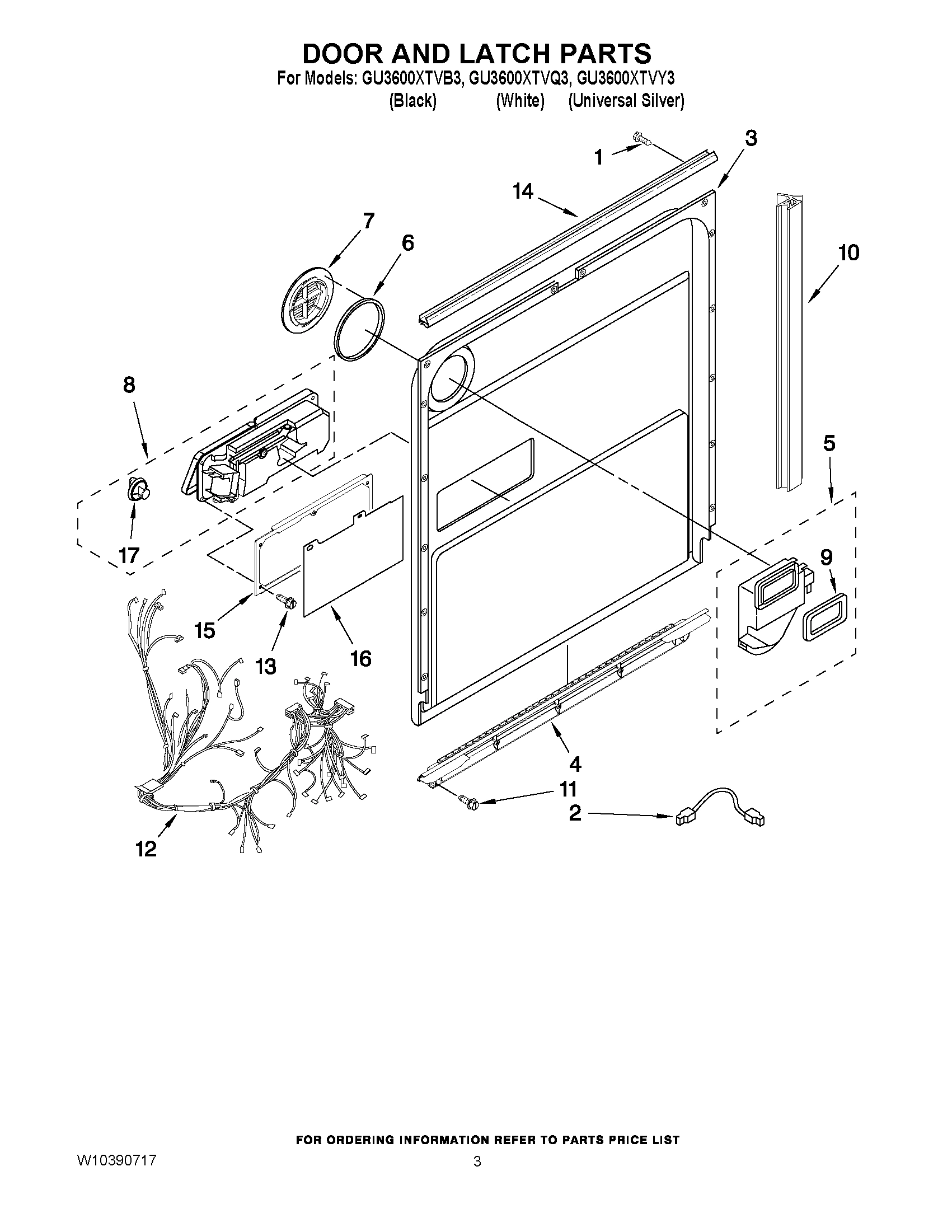

03 - DOOR AND LATCH PARTS

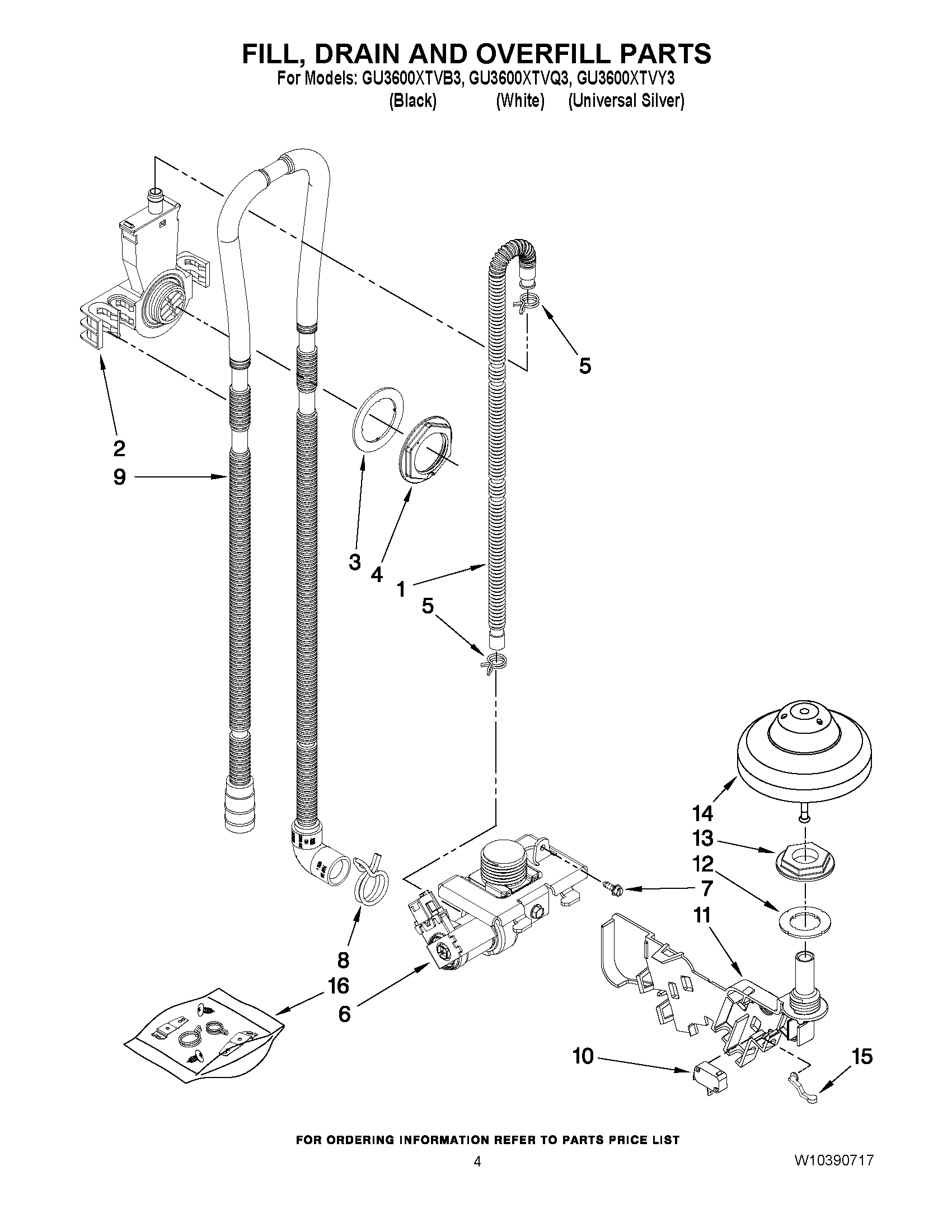

04 - FILL, DRAIN AND OVERFILL PARTS

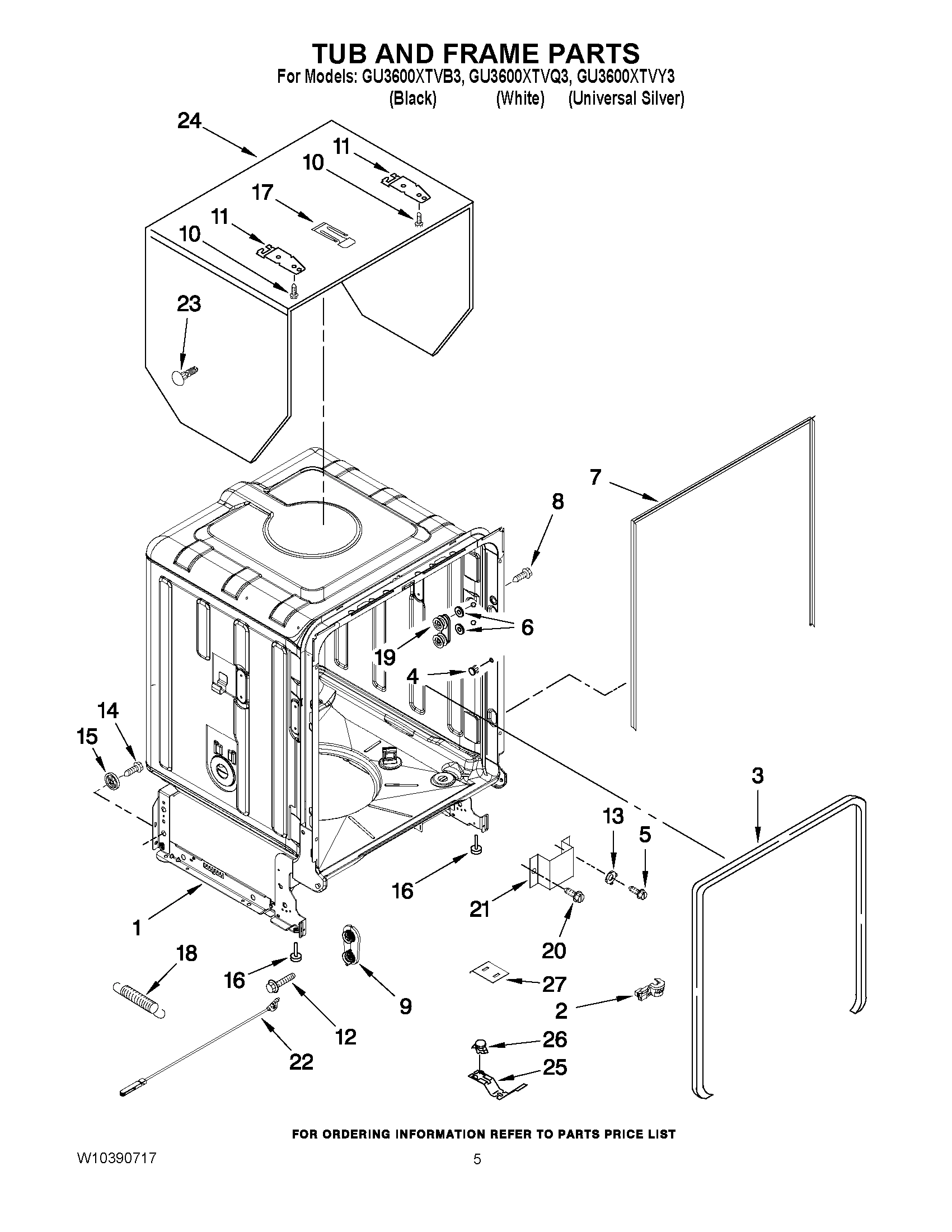

05 - TUB AND FRAME PARTS

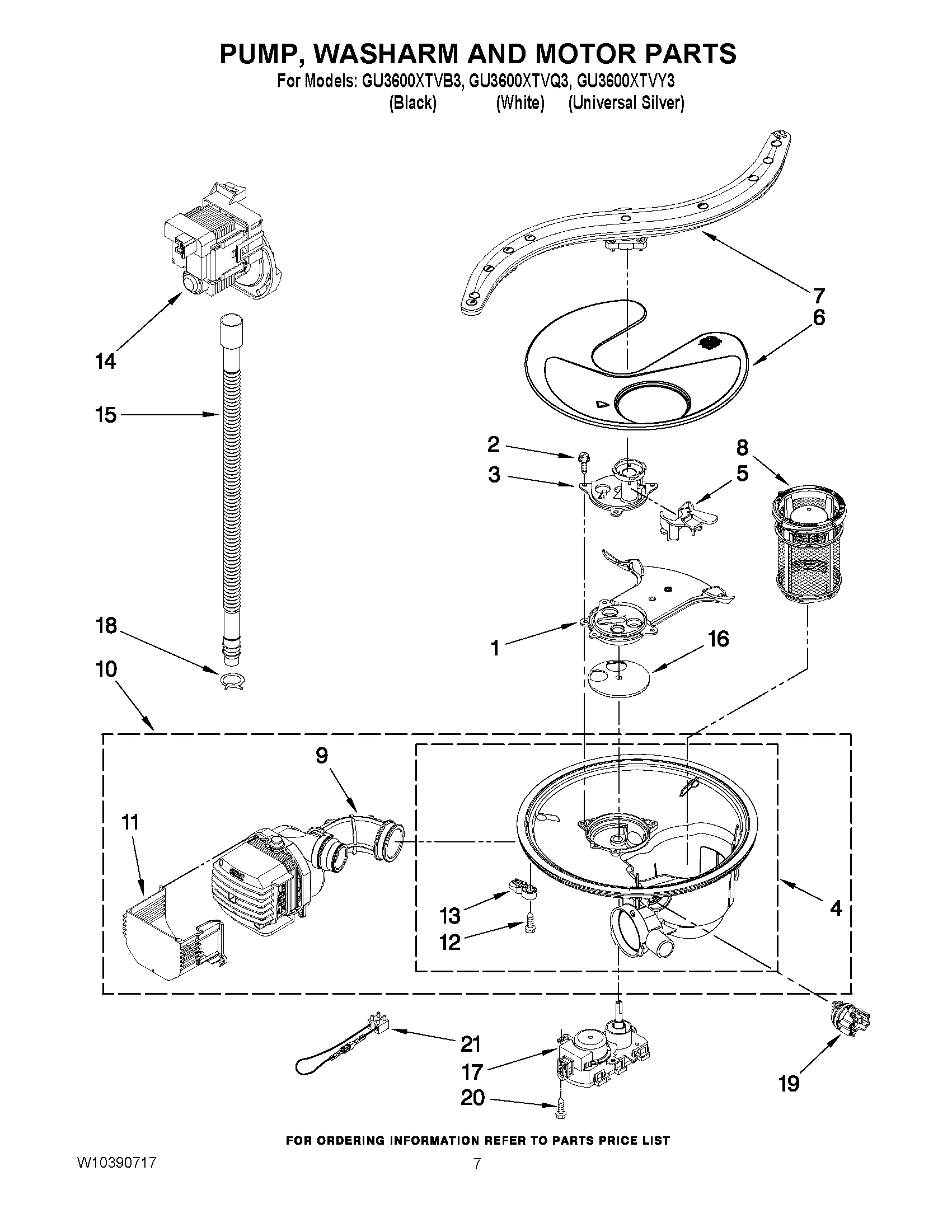

06 - PUMP, WASHARM AND MOTOR PARTS

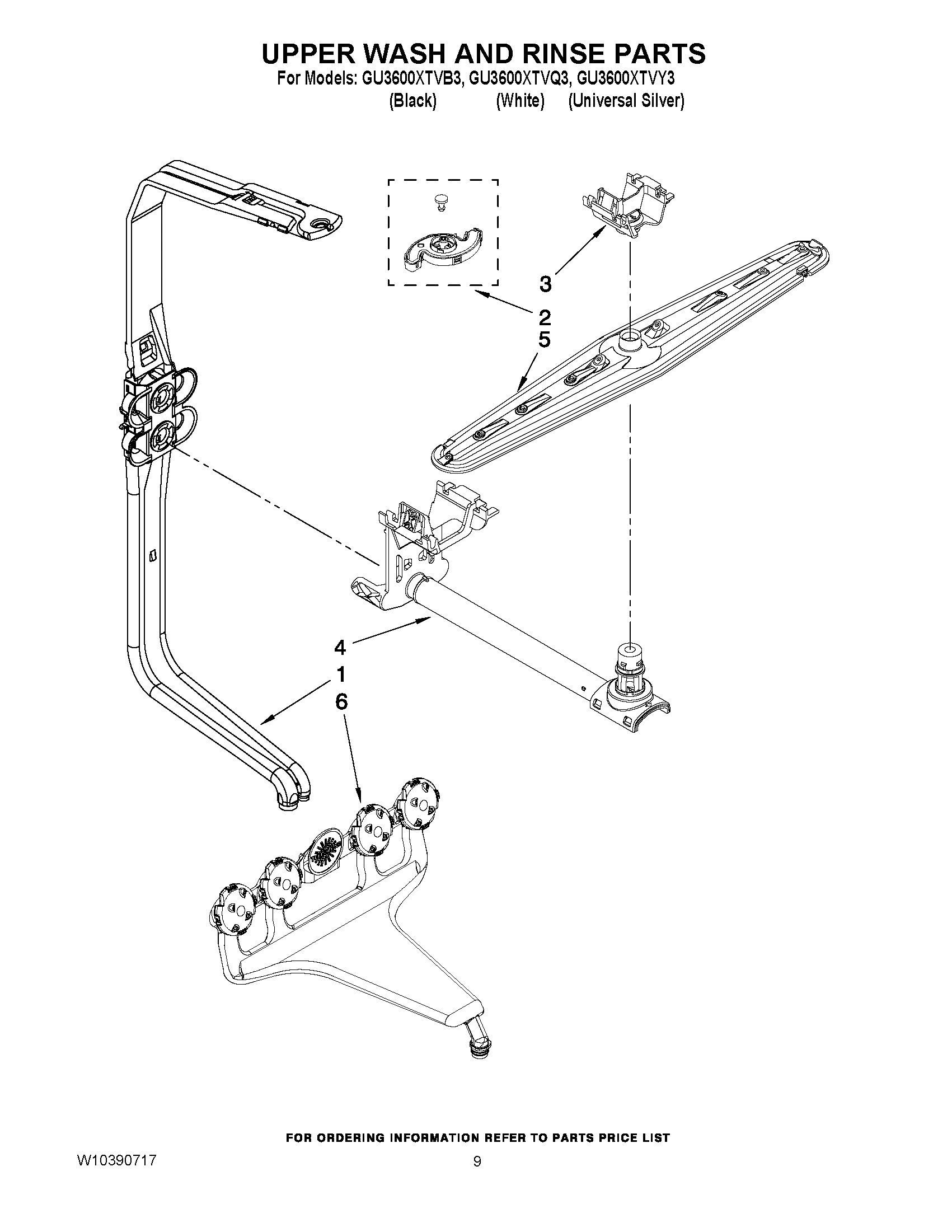

07 - UPPER WASH AND RINSE PARTS

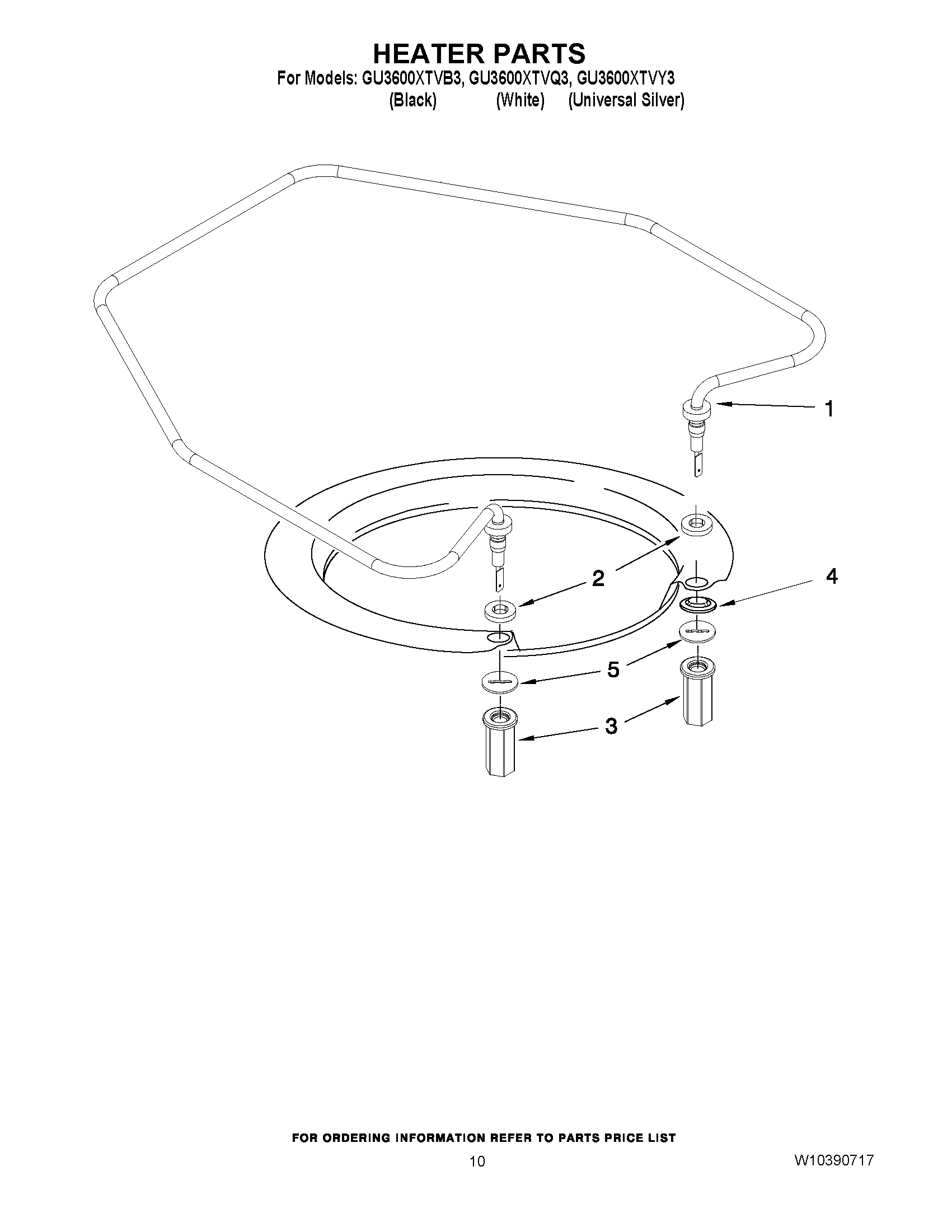

08 - HEATER PARTS
09 - UPPER RACK AND TRACK PARTS
10 - LOWER RACK PARTS
11 - OPTIONAL PARTS (NOT INCLUDED)
