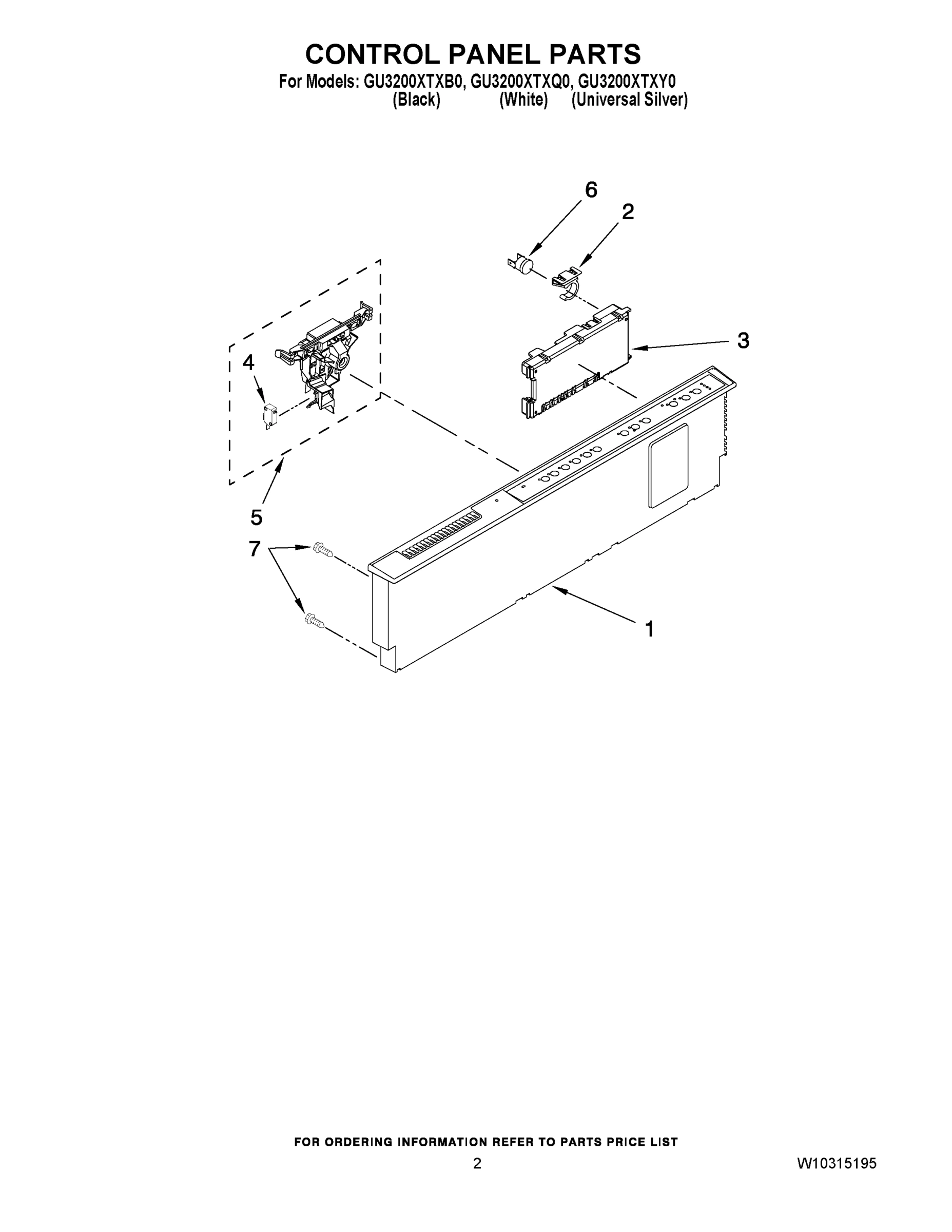

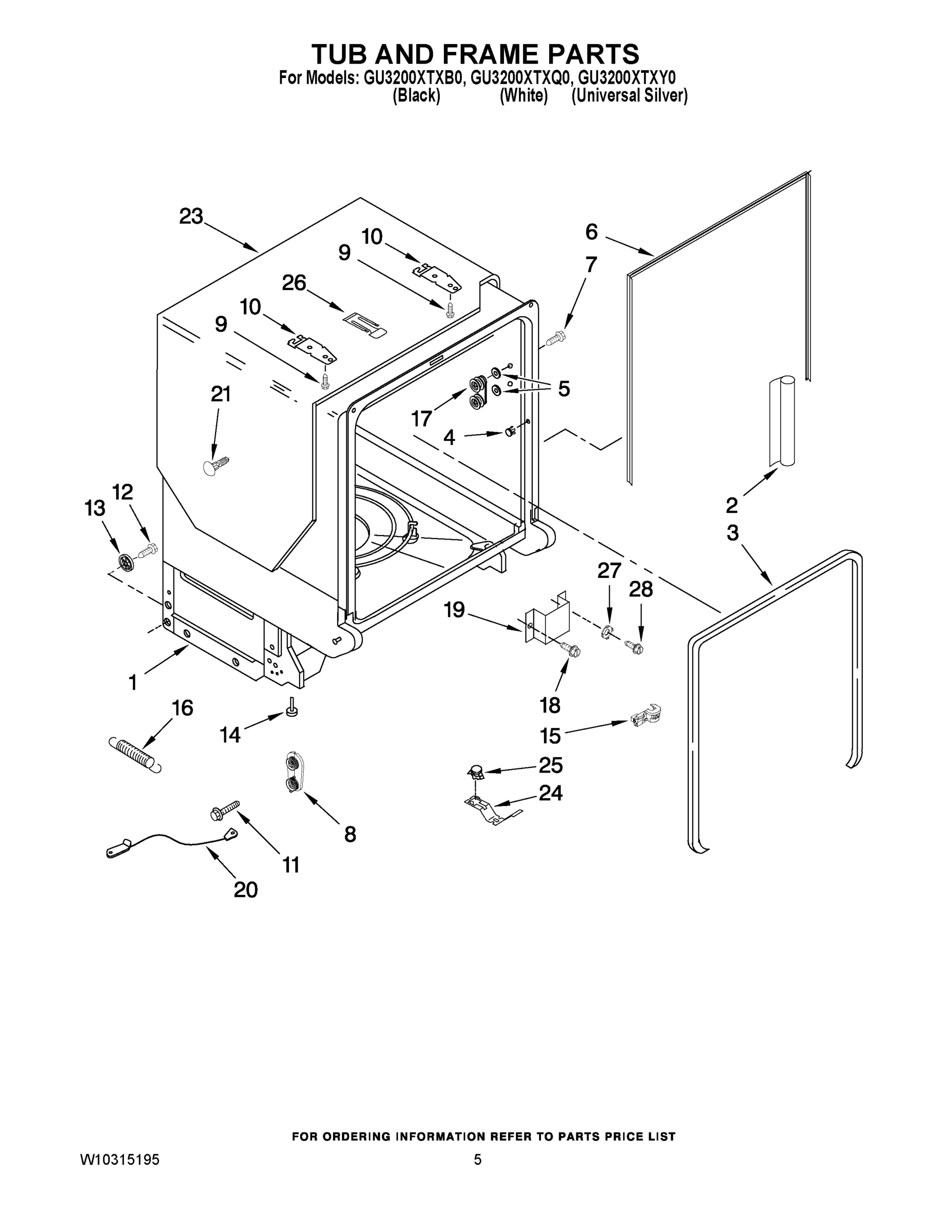

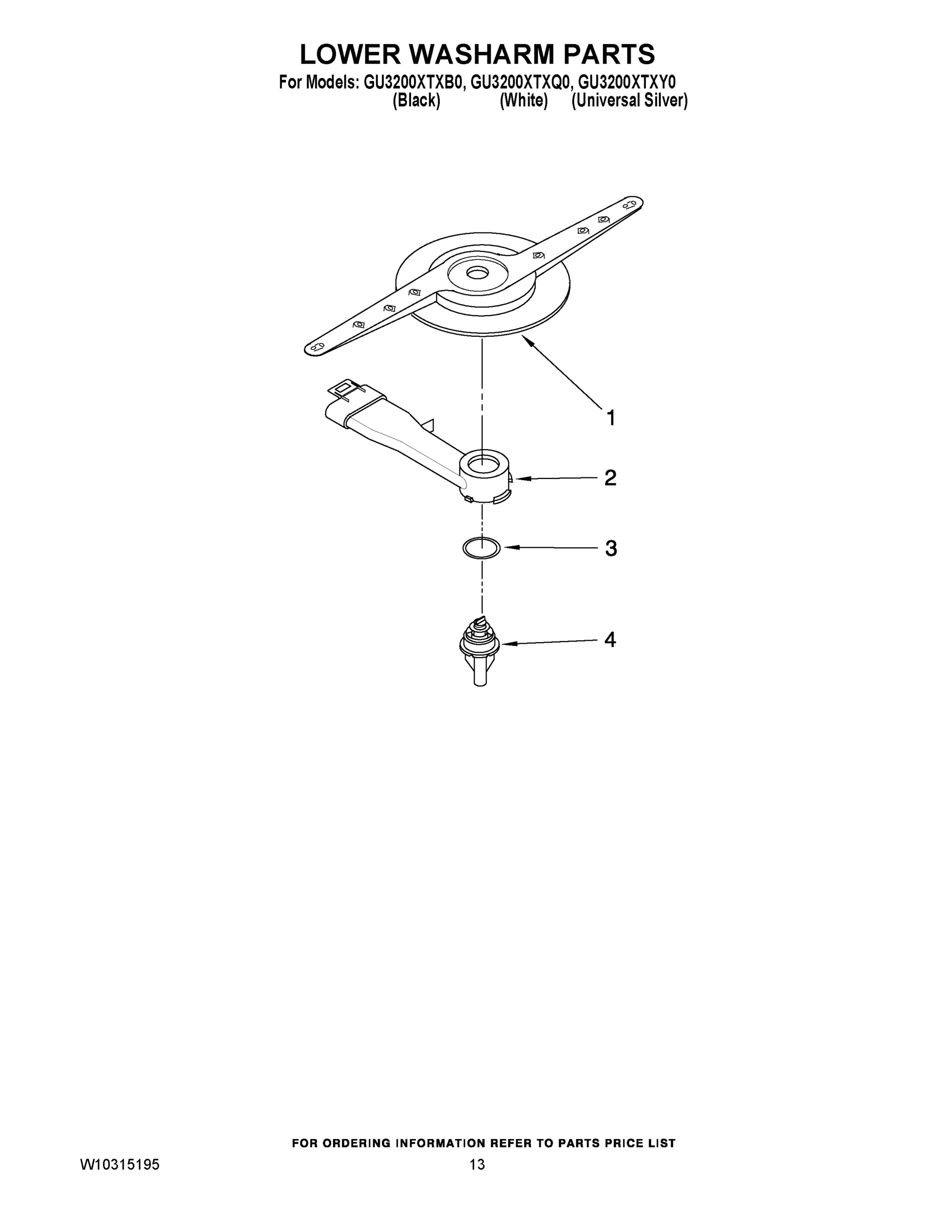

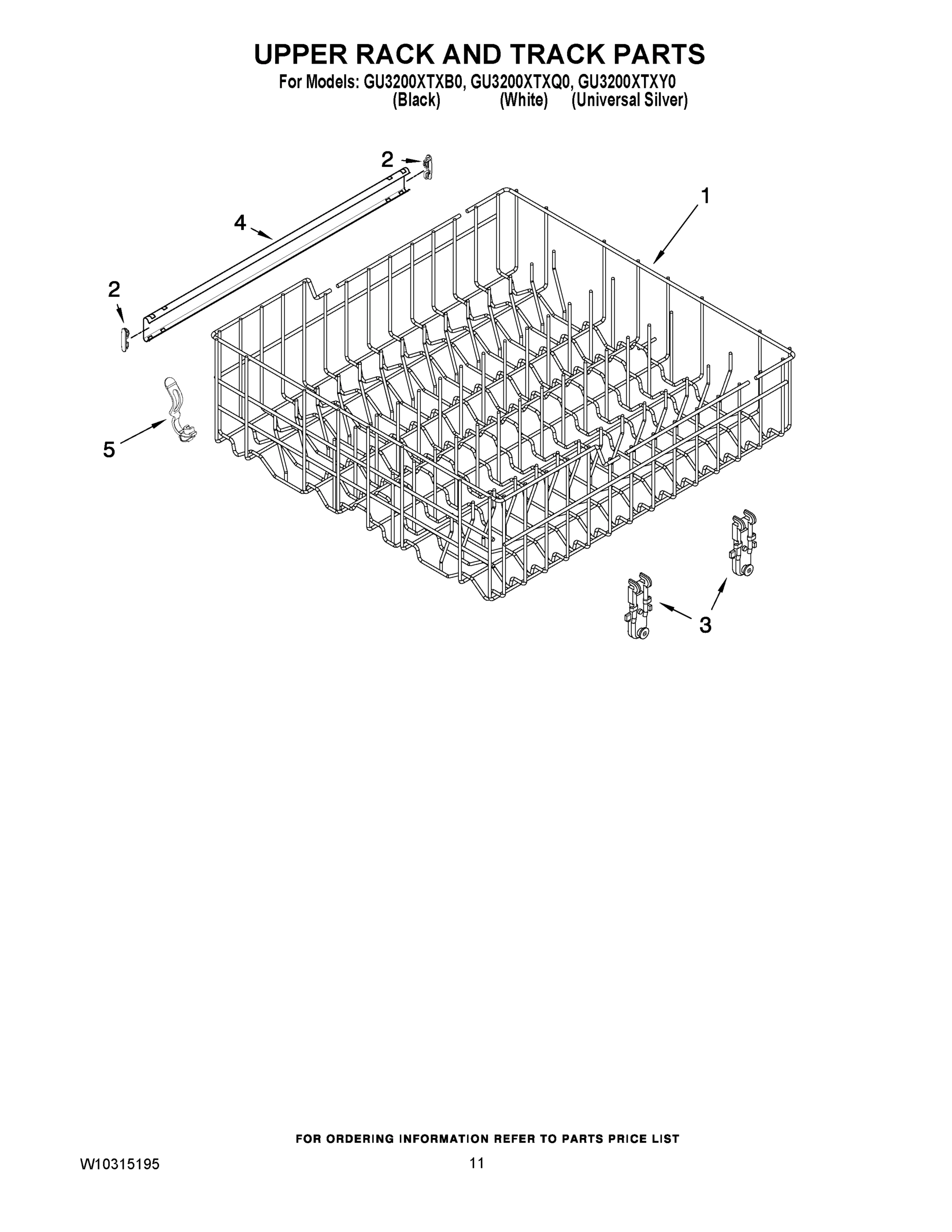

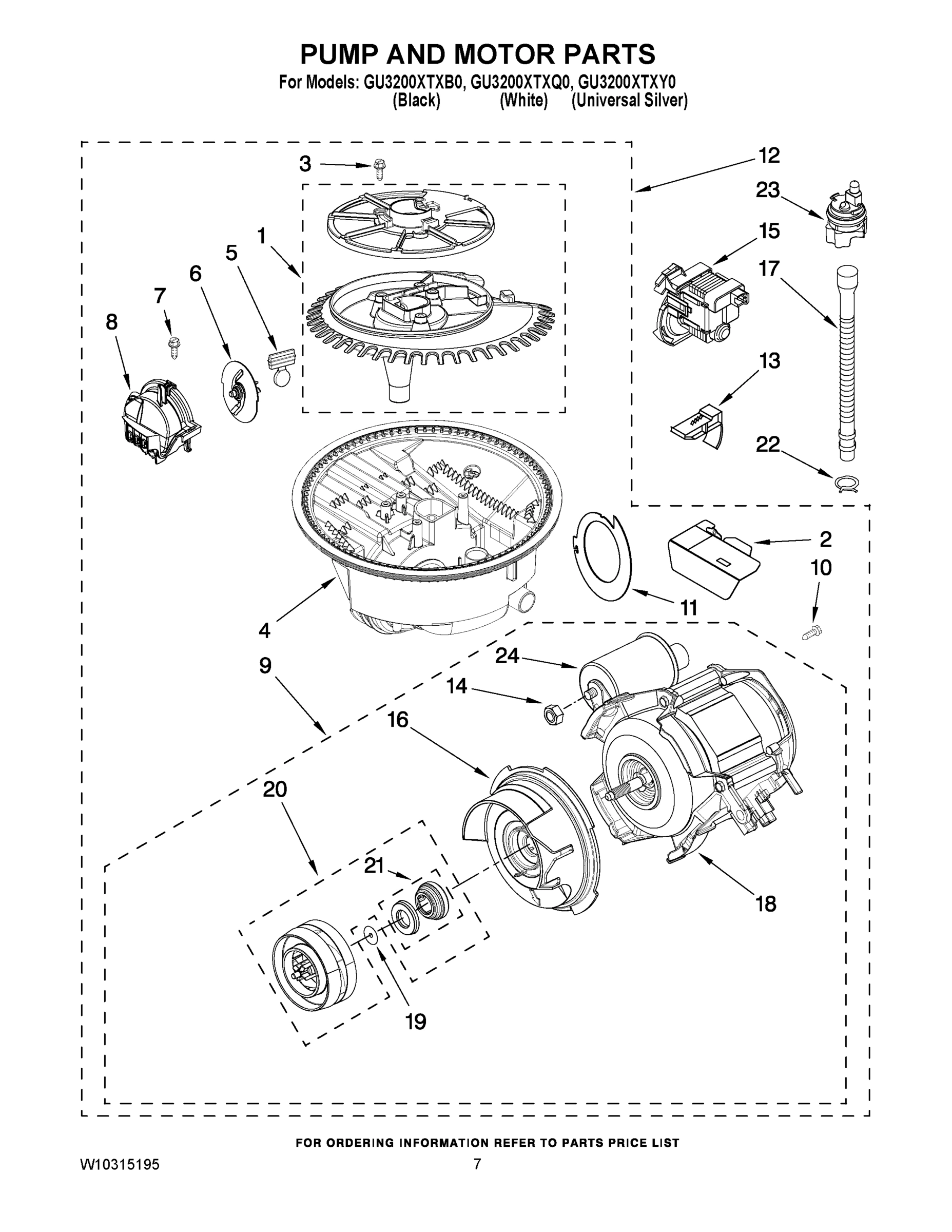

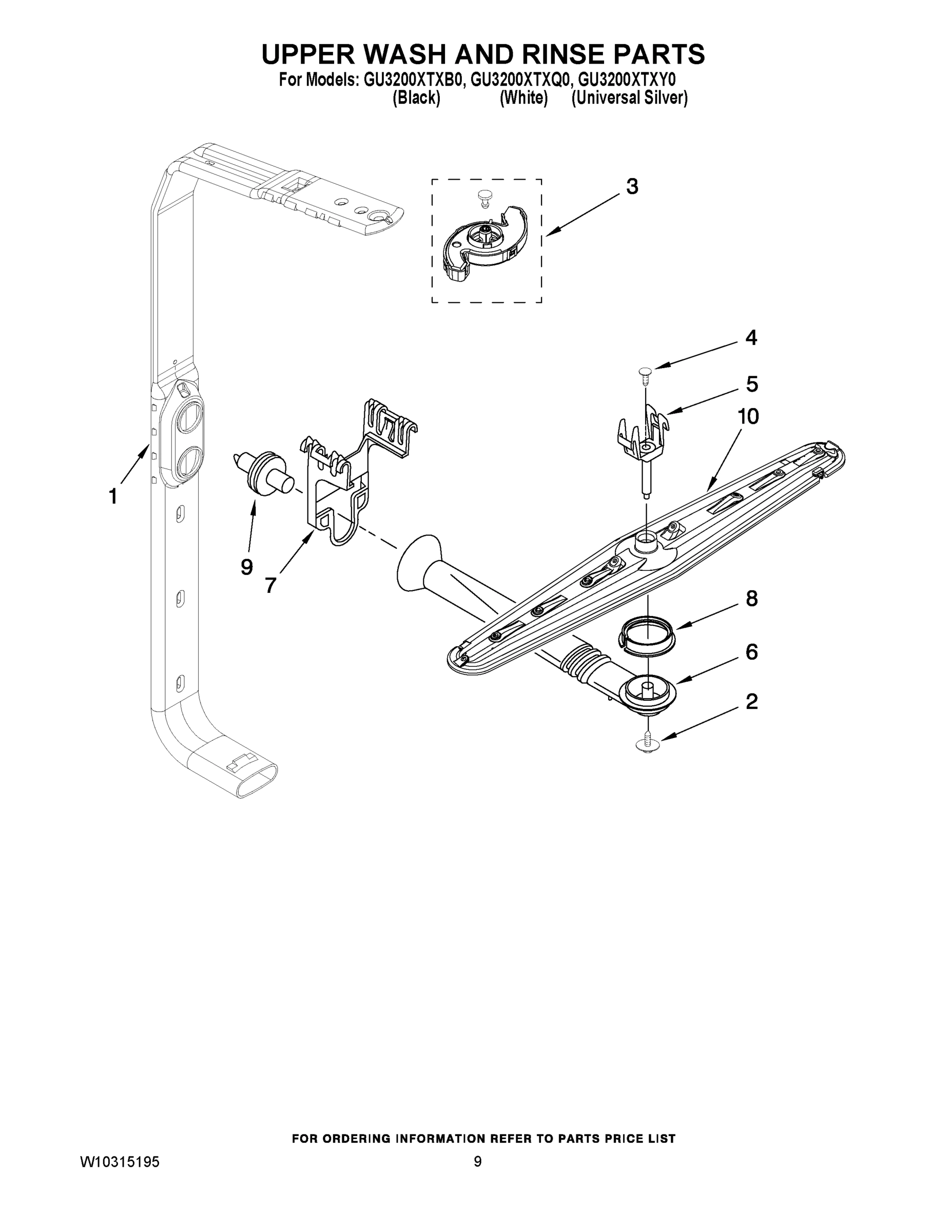

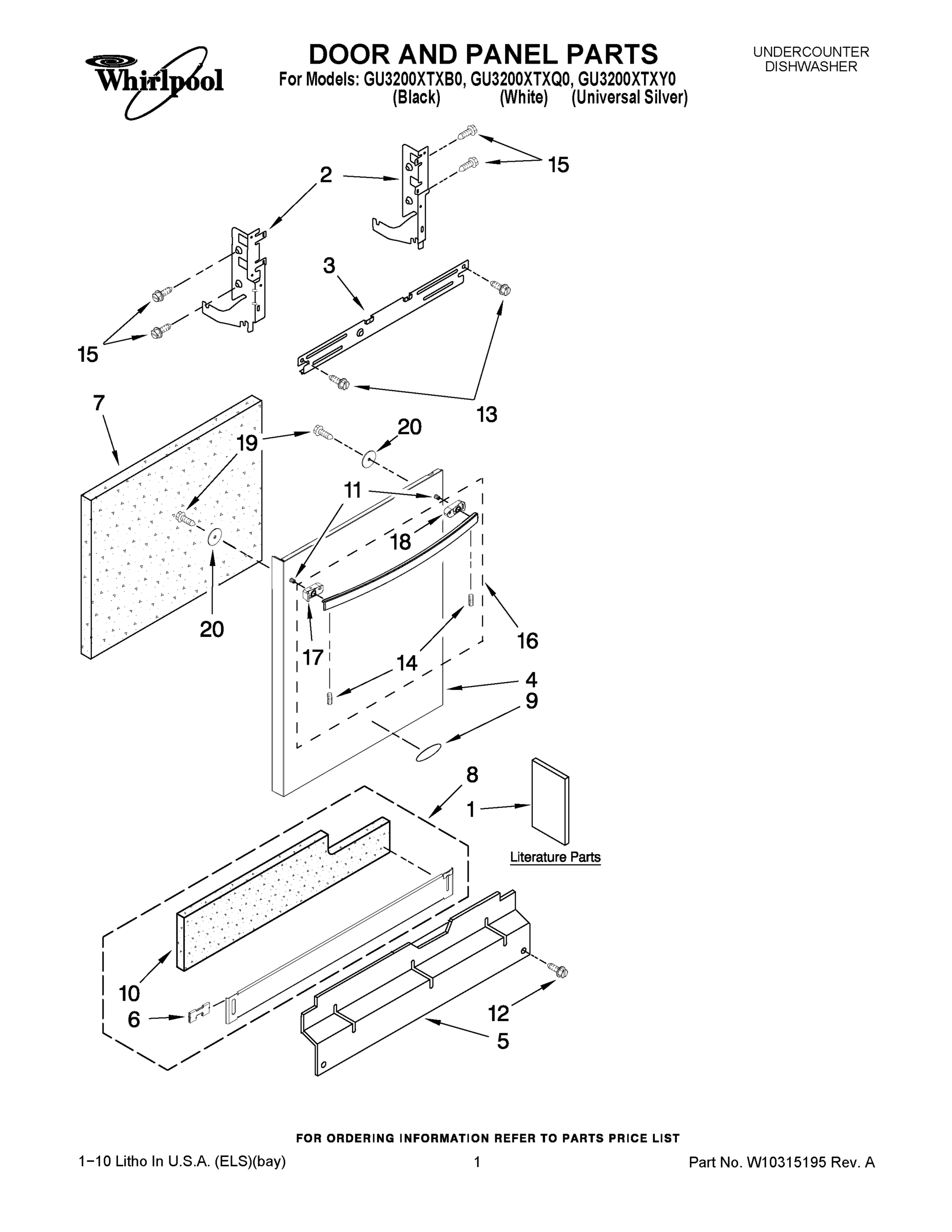

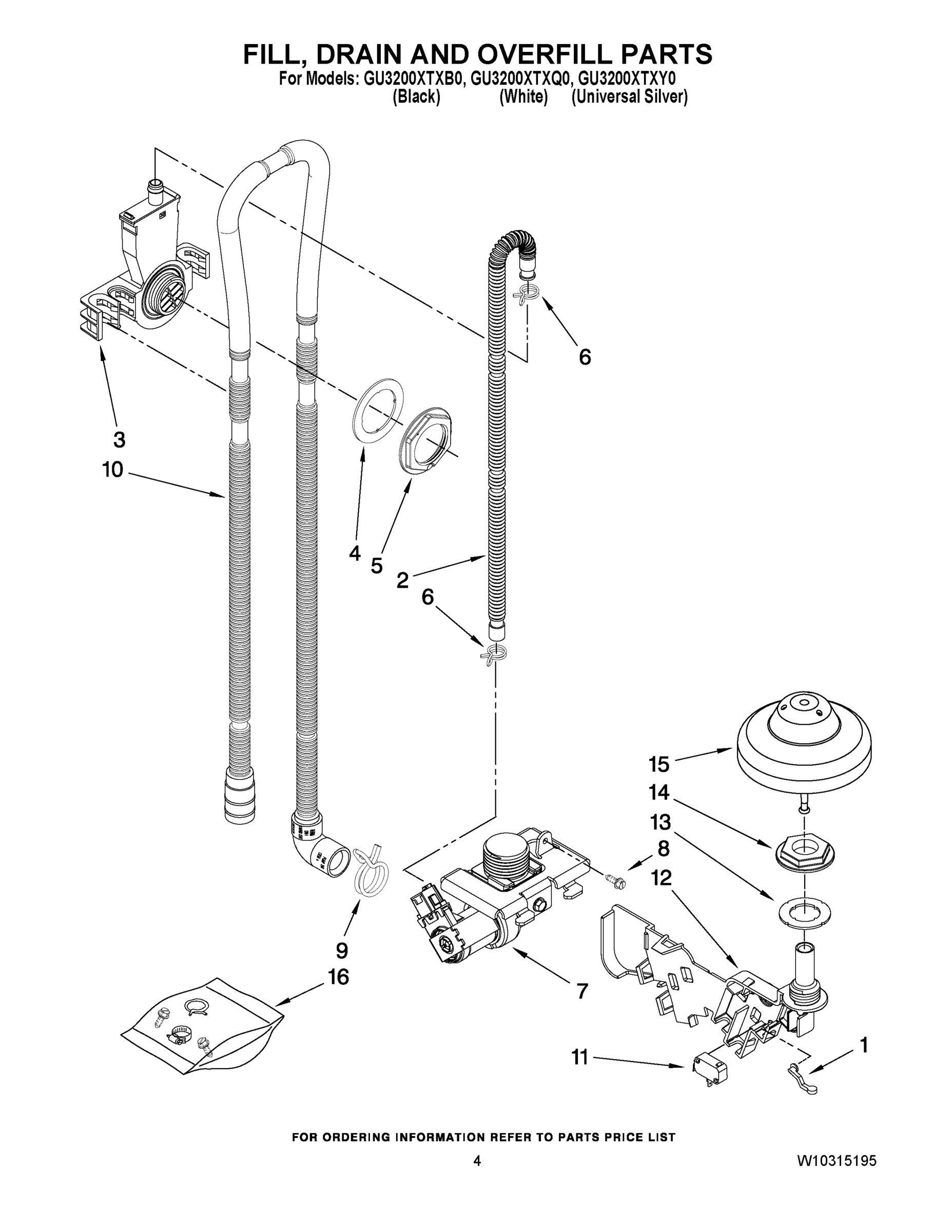

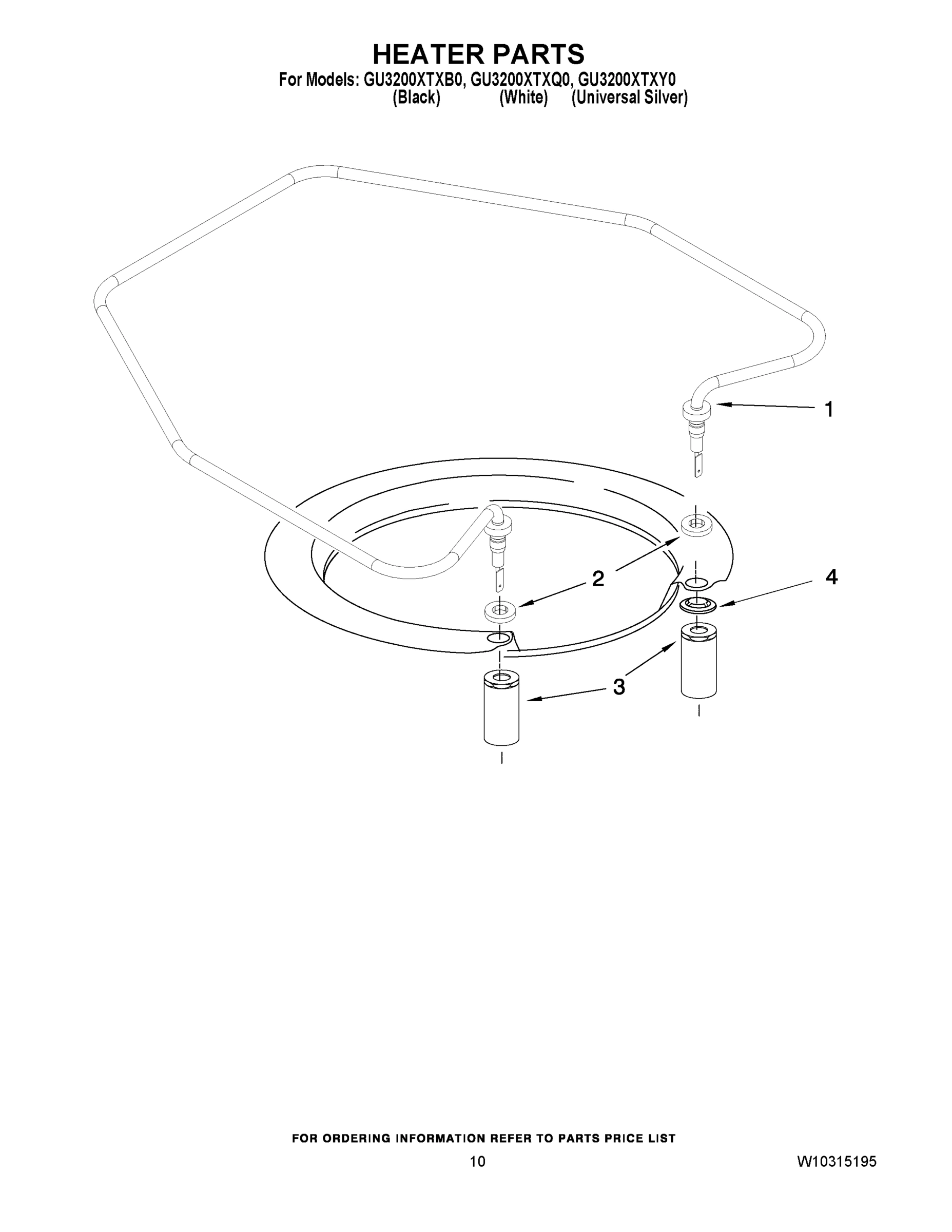

Model Whirlpool GU3200XTXB0 UNDERCOUNTER DISHWASHER – Common Parts &amp; Diagrams

1

WPW10082892 Whirlpool Dishwasher Heater In Stock WPL WPW10082892 $33.95

2

W10878507 Whirlpool Inlet Hose In Stock WPL W10878507 $44.34

2

W11612302 Whirlpool Dishwasher Door Hinge In Stock WPL W11612302 $75.56

2

W11612303 Whirlpool Door Hinge In Stock WPL W11612303 $80.45

2

WP717273 Whirlpool Dishwasher Rubber Washer In Stock WPL WP717273 $2.64

2

WP8268343 Whirlpool Dishwasher Cap Backorder WPL WP8268343 $33.75

2

WP8565925 Whirlpool Slide Rail Stop In Stock WPL WP8565925 $3.55

2

Clip, BI-Metal WPL 8546546 Contact Us For Availability

2

Harness, Vent Motor WPL 8545608 Contact Us For Availability

3

W10888592 Whirlpool Dishwasher Rack Roller In Stock WPL W10888592 $25.96

3

W11196317 Whirlpool Dishwasher Door Gasket In Stock WPL W11196317 $73.13

3

WP8268340 Whirlpool Bearing In Stock WPL WP8268340 $2.64

3

WPW10195536 Whirlpool Water Inlet Valve In Stock WPL WPW10195536 $63.20

3

WPW10477552 Whirlpool Dishwasher Terminal Nut In Stock WPL WPW10477552 $3.70

3

WHEEL & TRANSPORT ASSEMBLY WPL W10261334 Contact Us For Availability

4

W10795980 Whirlpool Cap In Stock WPL W10795980 $5.62

4

WP3385089 Whirlpool Track In Stock WPL WP3385089 $33.27

4

WP3400919 Whirlpool Dishwasher Screw Cover Backorder WPL WP3400919 $4.43

4

WP8268342 Whirlpool Dishwasher Lower Wash Arm In Stock WPL WP8268342 $50.88

4

WP8268937 Whirlpool Dishwasher Air Inlet In Stock WPL WP8268937 $28.09

4

WP8531323 Whirlpool Gasket Seal In Stock WPL WP8531323 $13.05

4

WP8572618 Whirlpool Dishwasher Sump Assembly Backorder WPL WP8572618 $118.74

4

WPW10134019 Whirlpool Dishwasher Switch Backorder WPL WPW10134019 $31.81

4

Speed Nut WPL 3400931 Contact Us For Availability

4

Panel Front (Includes Items 9 & 19) (Stainles WPL W10142938 Contact Us For Availability

5

WP3385159 Whirlpool Dishwasher Mount In Stock WPL WP3385159 $45.43

5

WP8268375 Whirlpool Dishwasher Check Valve In Stock WPL WP8268375 $24.63

5

WP8572611 Whirlpool Air Duct Assembly Backorder WPL WP8572611 $90.84

5

WP9743002 Whirlpool Dishwasher Gasket In Stock WPL WP9743002 $3.95

5

WPW10213825 Whirlpool Dishwasher Tube Nut Backorder WPL WPW10213825 $3.70

6

W10083957V Whirlpool Dishwasher Chopper In Stock WPL W10083957V $20.47

6

WP8269016 Whirlpool Clip Assembly Backorder WPL WP8269016 $4.45

6

WP8269259 Whirlpool Air Vent Gasket In Stock WPL WP8269259 $42.91

6

WP8539124 Whirlpool Dishwasher Retainer Backorder WPL WP8539124 $3.70

7

W10648041 Whirlpool Water Inlet Valve In Stock WPL W10648041 $39.95

7

WP3385160 Whirlpool Dishwasher Holder In Stock WPL WP3385160 $11.91

7

WP8545536 Whirlpool Dishwasher Deflector Backorder WPL WP8545536 $32.39

7

WP9741232 Whirlpool Dishwasher Screw In Stock WPL WP9741232 $2.51

7

WPW10073520 Whirlpool Dishwasher Insulation P Backorder WPL WPW10073520 $30.25

7

Latch Assembly WPL 8539118 Contact Us For Availability

8

W10799406 Whirlpool Dishwasher Toe Panel Backorder WPL W10799406 $61.16

8

W11158804 Whirlpool Silverware Basket In Stock WPL W11158804 $42.62

8

WP8268433 Whirlpool Seal Assembly In Stock WPL WP8268433 $11.73

8

WP8531857 Whirlpool Dishwasher Protector Backorder WPL WP8531857 $63.15

8

WPW10084086 Whirlpool Dishwasher Mount Backorder WPL WPW10084086 $13.34

9

W11631670 Whirlpool Screw In Stock WPL W11631670 $9.59

9

NAMEPLATE WPL W10175320 Contact Us For Availability

9

Door, Silverware Basket WPL 8562060 Contact Us For Availability

3400217 Whirlpool Dishwasher Screw Backorder WPL 3400217 $4.85

WP8269024 Whirlpool Dishwasher Spray Arm Backorder WPL WP8269024 $28.57

WP8269145 Whirlpool Dishwasher Mounting Brack In Stock WPL WP8269145 $5.53

WP8558307 Whirlpool Rinse Aid Dispenser Cap In Stock WPL WP8558307 $13.27

W10084567 Whirlpool Dishwasher Screen Backorder WPL W10084567 $30.25

WP3400074 Whirlpool Dishwasher Screw In Stock WPL WP3400074 $2.51

WP8268909 Whirlpool Dishwasher Switch In Stock WPL WP8268909 $30.27

WP8564951 Whirlpool Dishwasher Stud Backorder WPL WP8564951 $7.12

12

WP302868 Whirlpool Screw In Stock WPL WP302868 $2.51

13

WP8268977 Whirlpool Dishwasher Wheel In Stock WPL WP8268977 $4.72

13

WP8531743 Whirlpool Dishwasher Float Switch B In Stock WPL WP8531743 $30.76

13

WPW10177098 Whirlpool Dishwasher Screw In Stock WPL WPW10177098 $3.62

14

WP8534008 Whirlpool Screw In Stock WPL WP8534008 $2.40

14

WP8535660 Whirlpool Dishwasher Seal Backorder WPL WP8535660 $58.90

14

WP9741998 Whirlpool Dishwasher Nut Backorder WPL WP9741998 $3.70

W11384788 Whirlpool Dishwasher Relief Straine Backorder WPL W11384788 $10.76

WP3400071 Whirlpool Screw In Stock WPL WP3400071 $2.51

WP8268895 Whirlpool Dishwasher Float Assembly In Stock WPL WP8268895 $44.65

WPW10348269 Whirlpool Dishwasher Drain Pump In Stock WPL WPW10348269 $60.46

16

W11622922 Whirlpool Dishwasher Volute In Stock WPL W11622922 $8.20

16

WP8270020 Whirlpool Dishwasher Spring In Stock WPL WP8270020 $12.77

16

Handle (Stainless) WPL W10142998 Contact Us For Availability

8269144A Whirlpool Dishwasher Drain Hose In Stock WPL 8269144A $11.55

WP8270019 Whirlpool Dishwasher Dishrack Wheel In Stock WPL WP8270019 $4.72

Endcap, Left (White) WPL W10131030 Contact Us For Availability

ENDCAP, LEFT (MIDNIGHT GREY) WPL W10164250 Contact Us For Availability

18

W10200940 Whirlpool Dishwasher Pump Motor Backorder WPL W10200940 $178.24

18

WP3400892 Whirlpool Dishwasher Screw Backorder WPL WP3400892 $2.51

18

ENDCAP, RIGHT (MIDNIGHT GREY) WPL W10164249 Contact Us For Availability

19

WP8268991 Whirlpool Dishwasher Cover Assembly Backorder WPL WP8268991 $16.60

19

WP8531018 Whirlpool Dishwasher Washer Backorder WPL WP8531018 $2.51

19

Screw WPL W10123421 Contact Us For Availability

22

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $3.70

23

W11086533 Whirlpool Dishwasher Shield In Stock WPL W11086533 $14.15

24

9742648 Whirlpool Dishwasher Stat Bracket Backorder WPL 9742648 $33.25

25

WP661566 Whirlpool High Limit Thermostat In Stock WPL WP661566 $14.44

27

WP3378128 Whirlpool Dishwasher Washer Backorder WPL WP3378128 $2.51

28

WP3400014 Whirlpool Dishwasher Screw Backorder WPL WP3400014 $2.51

285006 Whirlpool Spray In Stock WPL 285006 $28.82

3385556 Whirlpool Drain Hose In Stock WPL 3385556 $13.65

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

4317824 Whirlpool Dishwasher 5' 3-Wire Power In Stock WPL 4317824 $9.97

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $7.21

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $27.58

4396277 Whirlpool Barrier Assembly Backorder WPL 4396277 $13.73

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

8171477 Whirlpool Dishwasher Mounting Bracket In Stock WPL 8171477 $16.47

8212560 Whirlpool Dishwasher Mounting Bracket In Stock WPL 8212560 $11.09

WP676453 Whirlpool Dishwasher Touch-Up In Stock WPL WP676453 $15.77

WP676455 Whirlpool Dishwasher Touch-Up In Stock WPL WP676455 $15.43

Side Panel Kits (Stainless Steel) WPL 8171659 Contact Us For Availability

Side Panel Kits (White) WPL 8171656 Contact Us For Availability

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Side Panel Kits (Black) WPL 8171657 Contact Us For Availability
