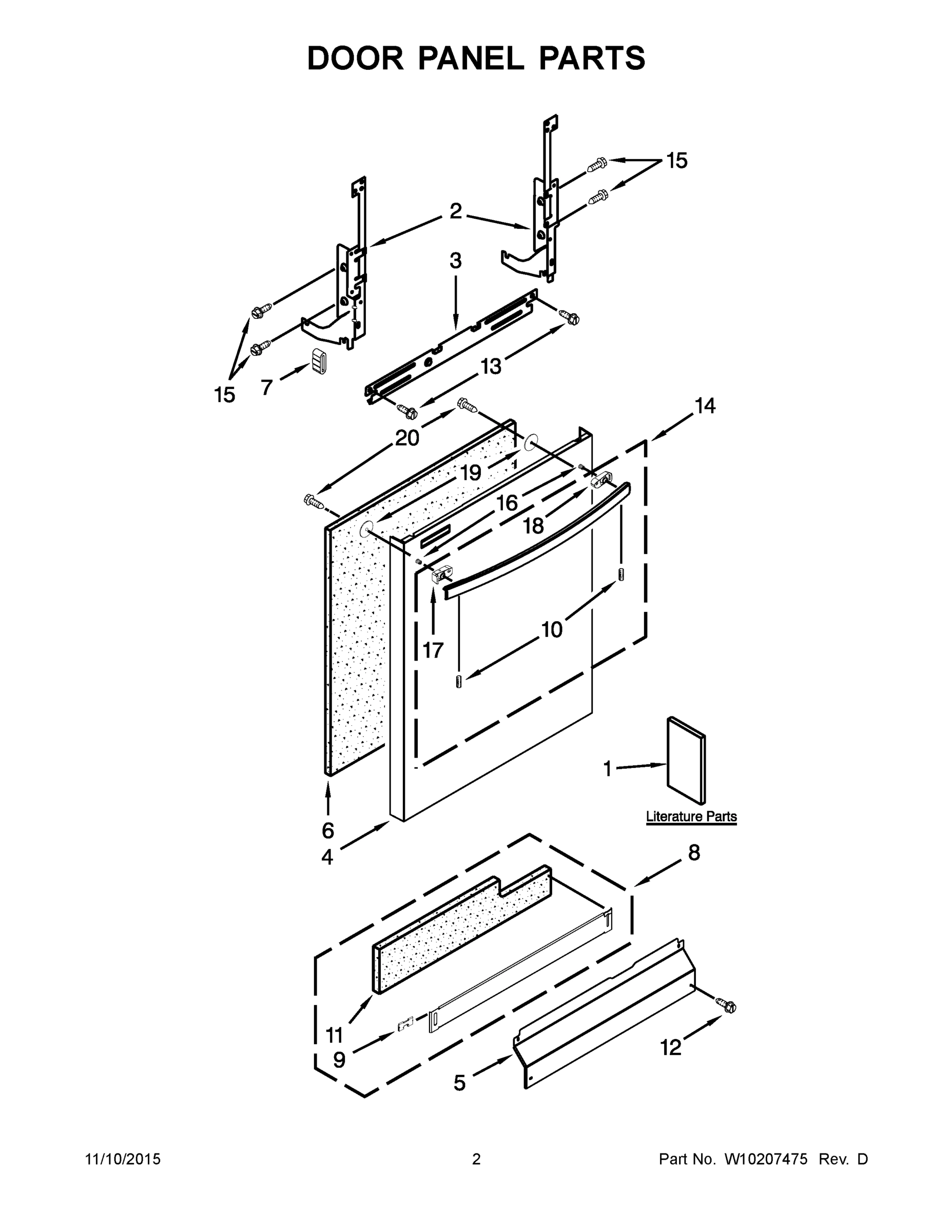

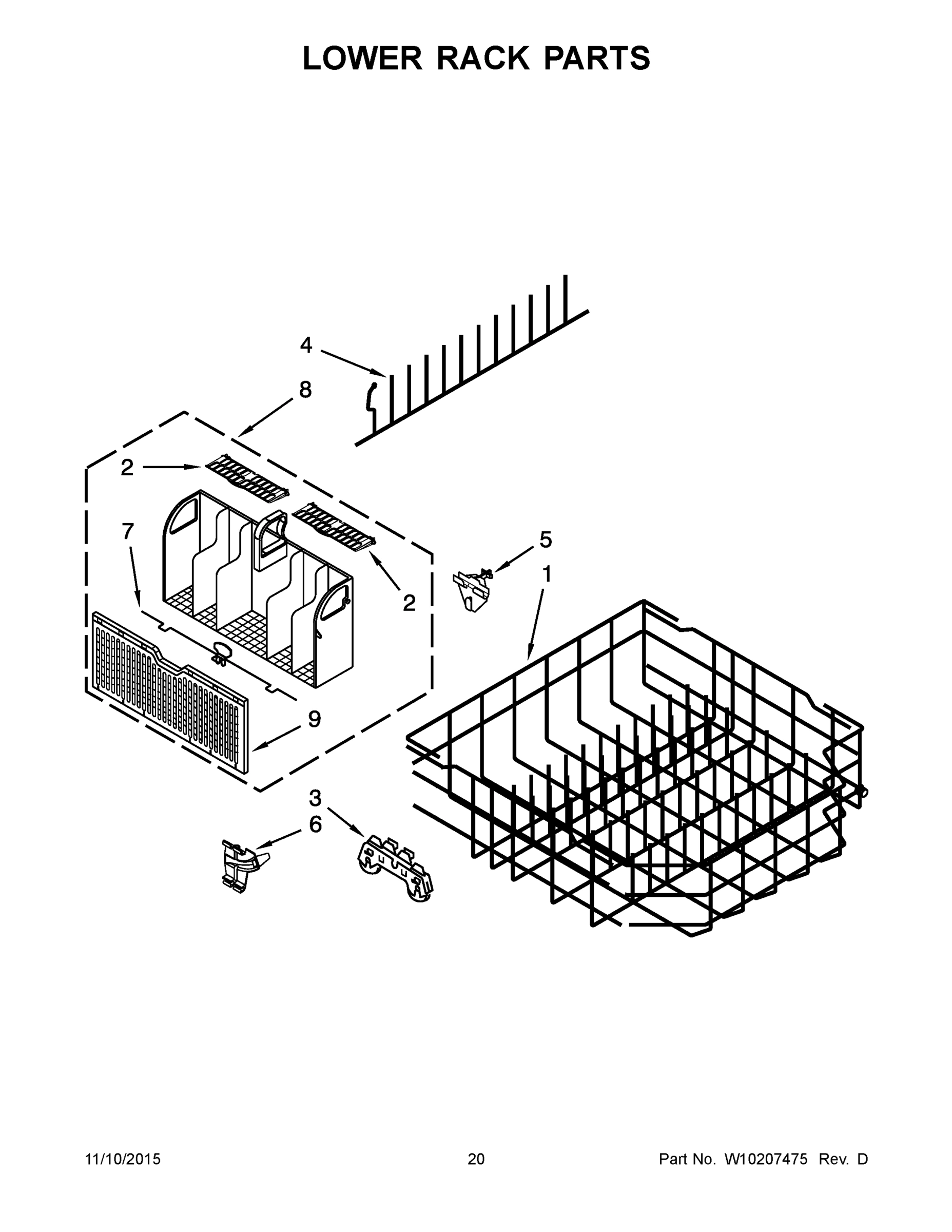

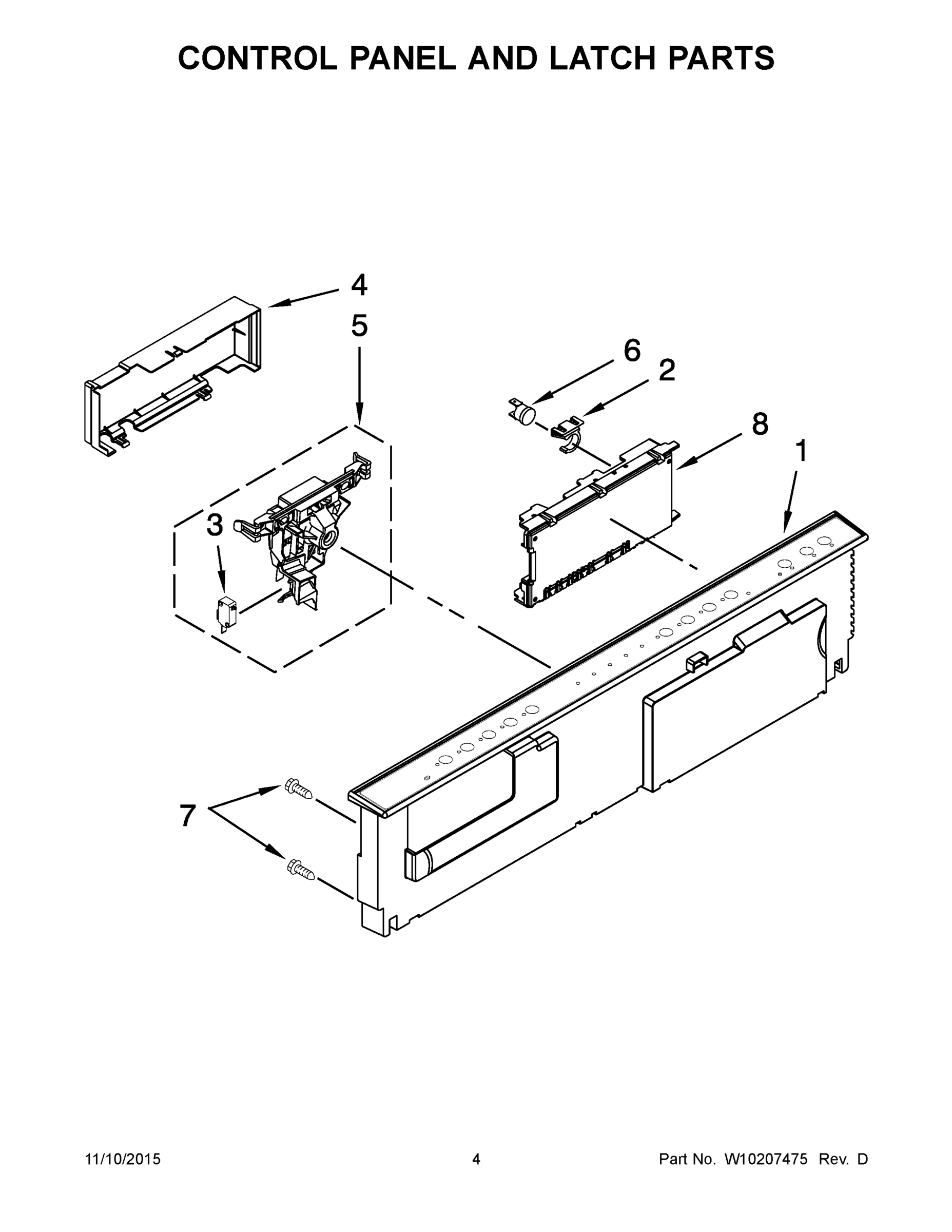

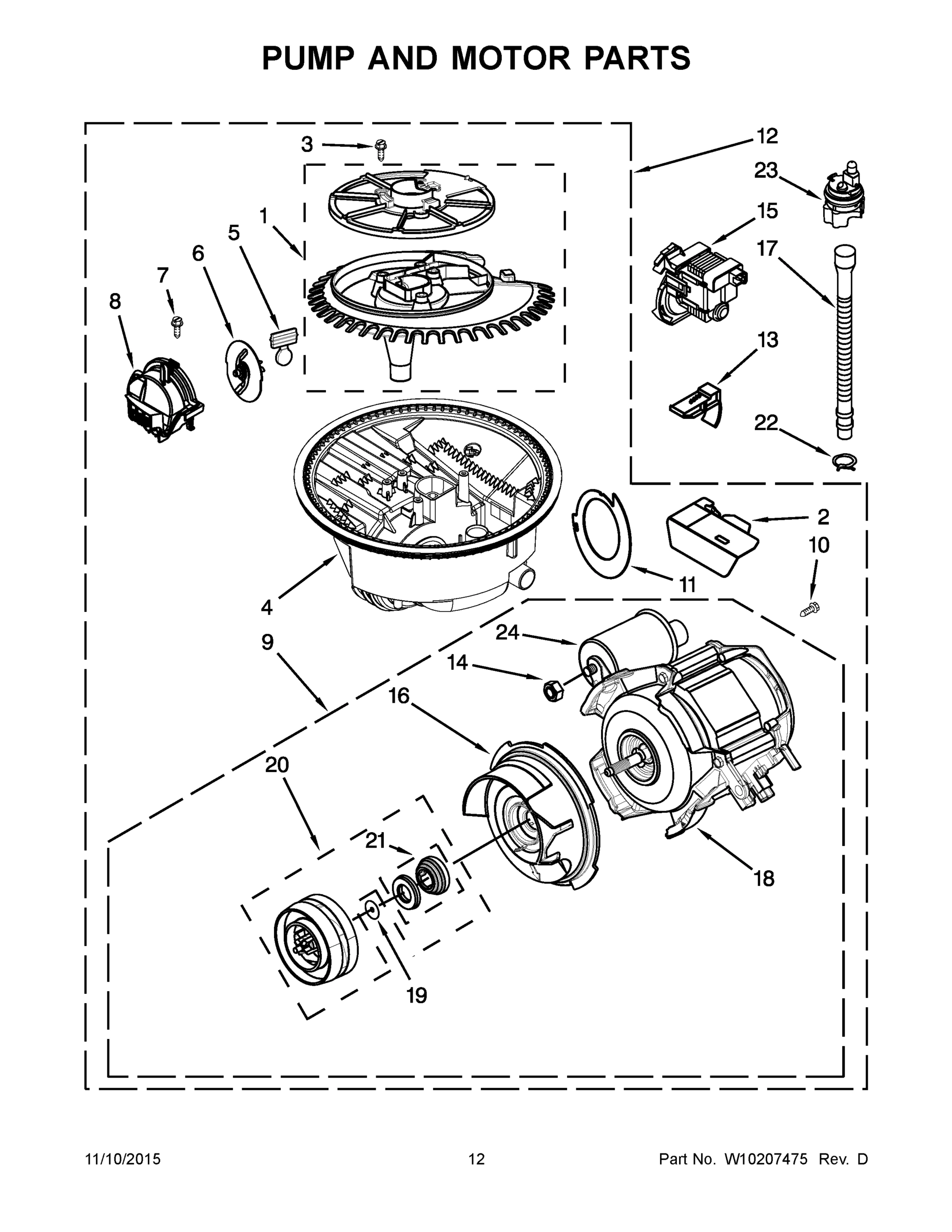

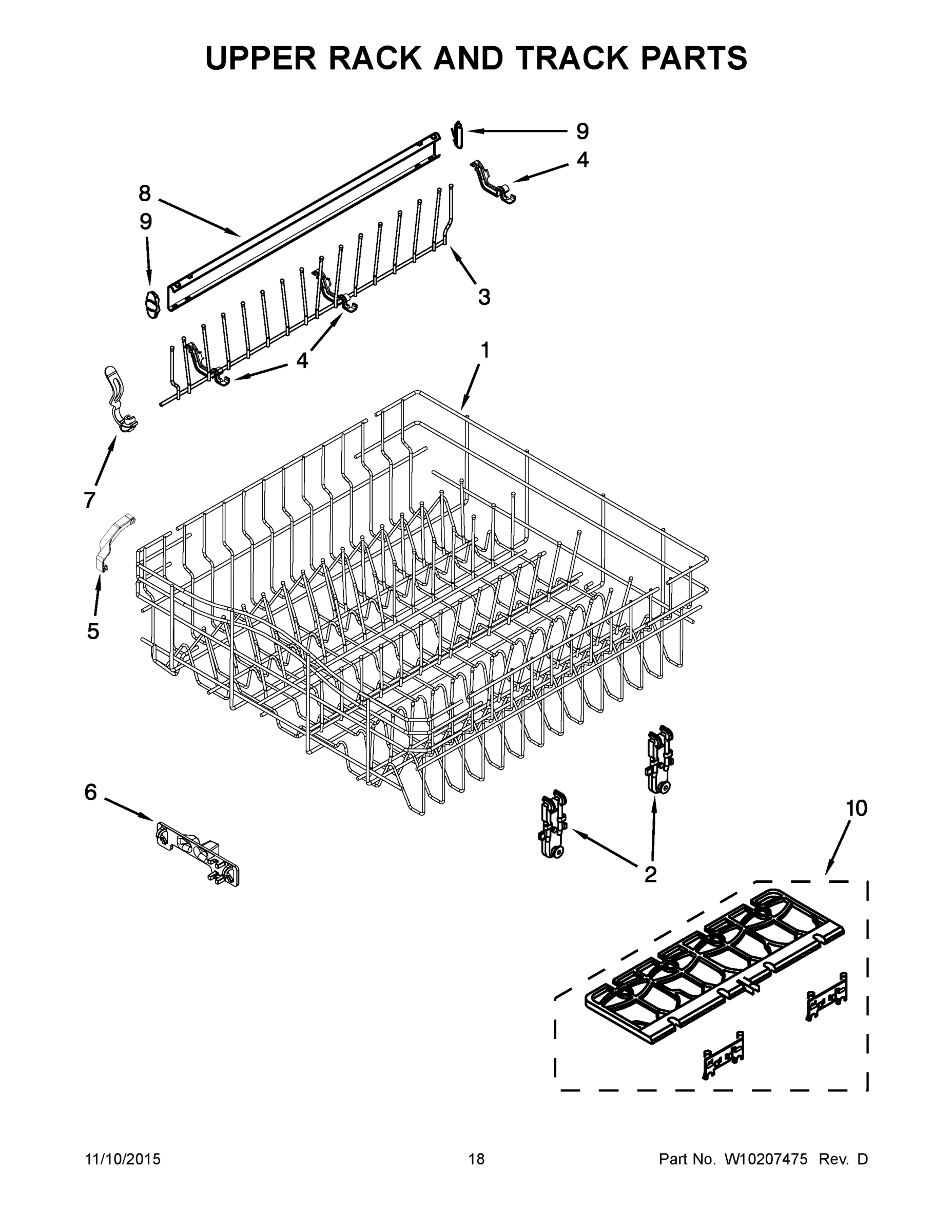

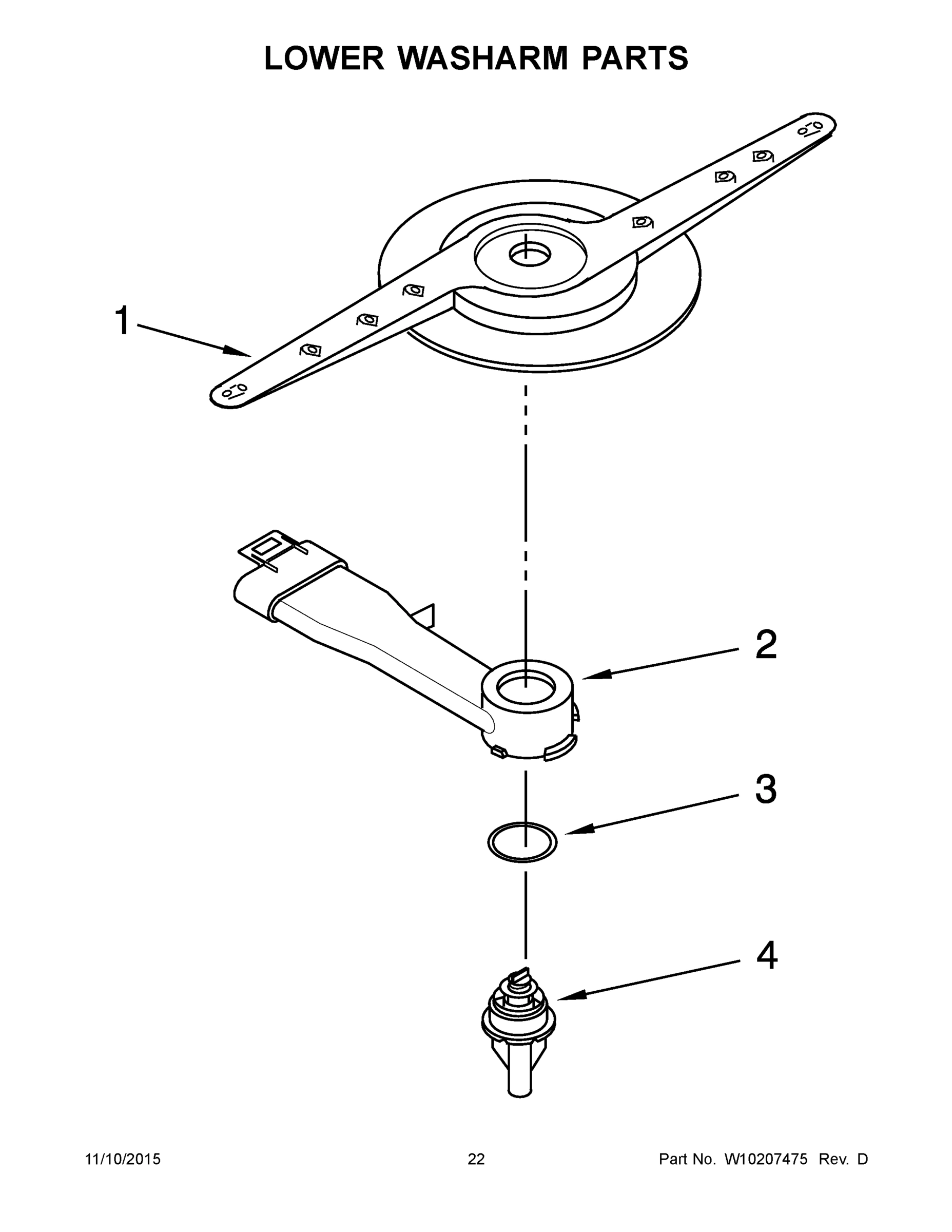

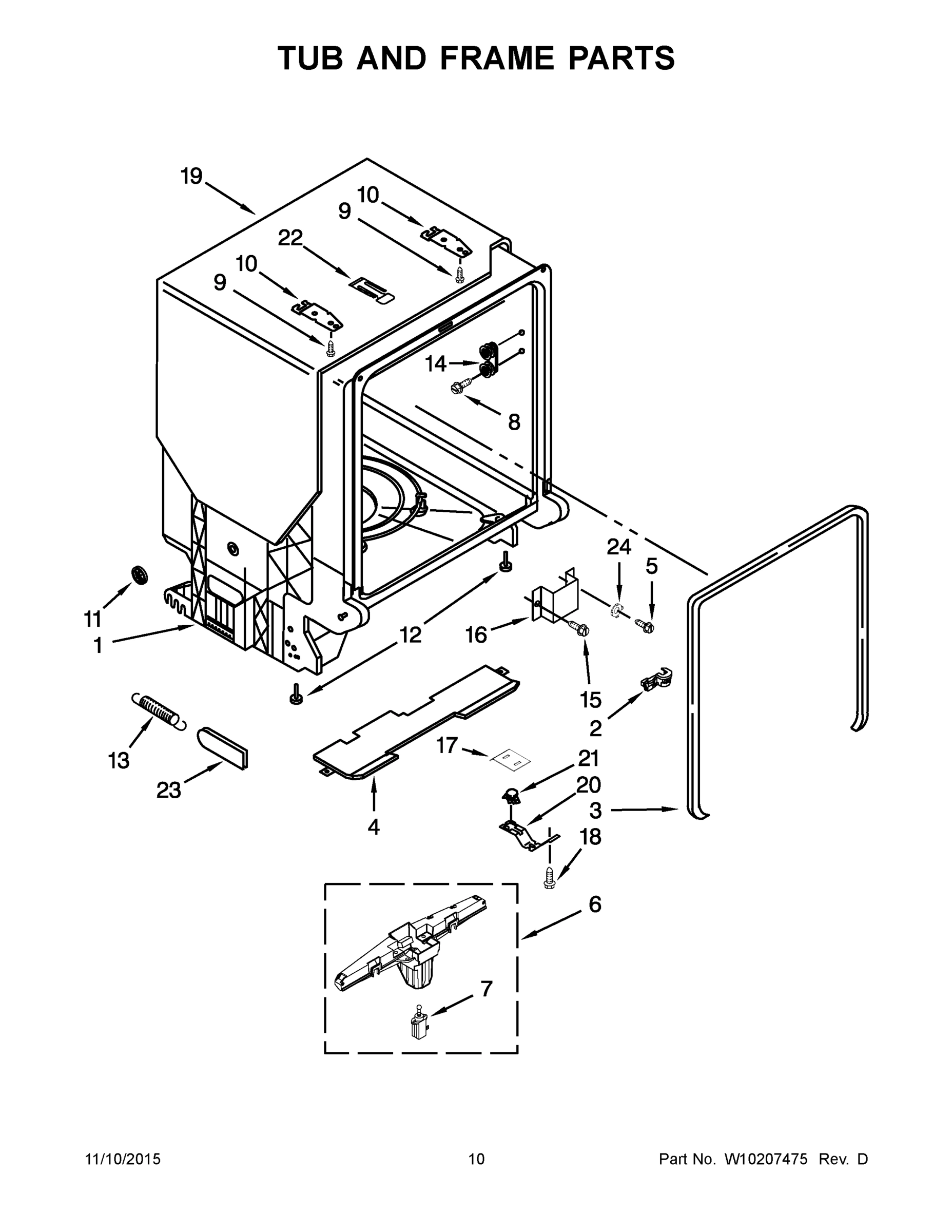

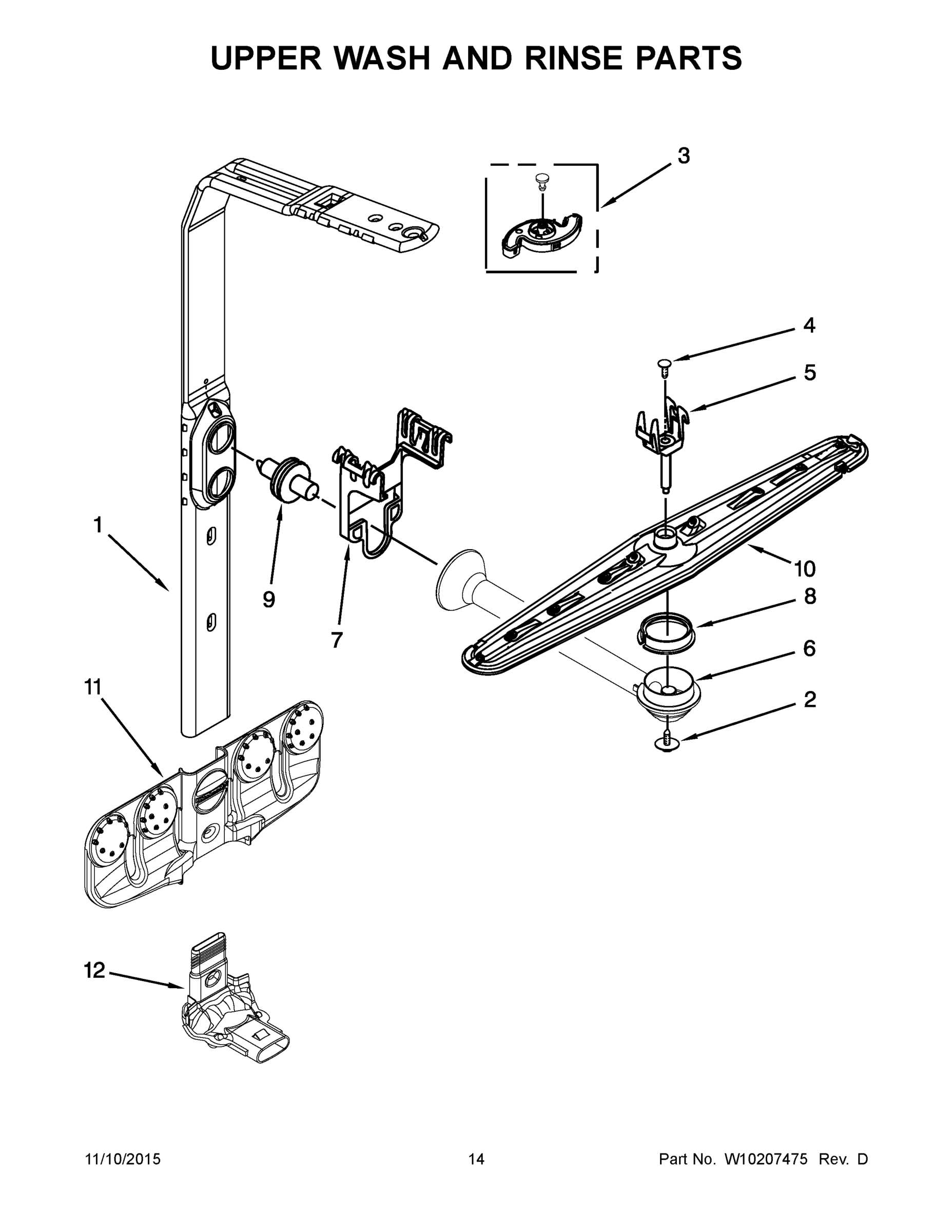

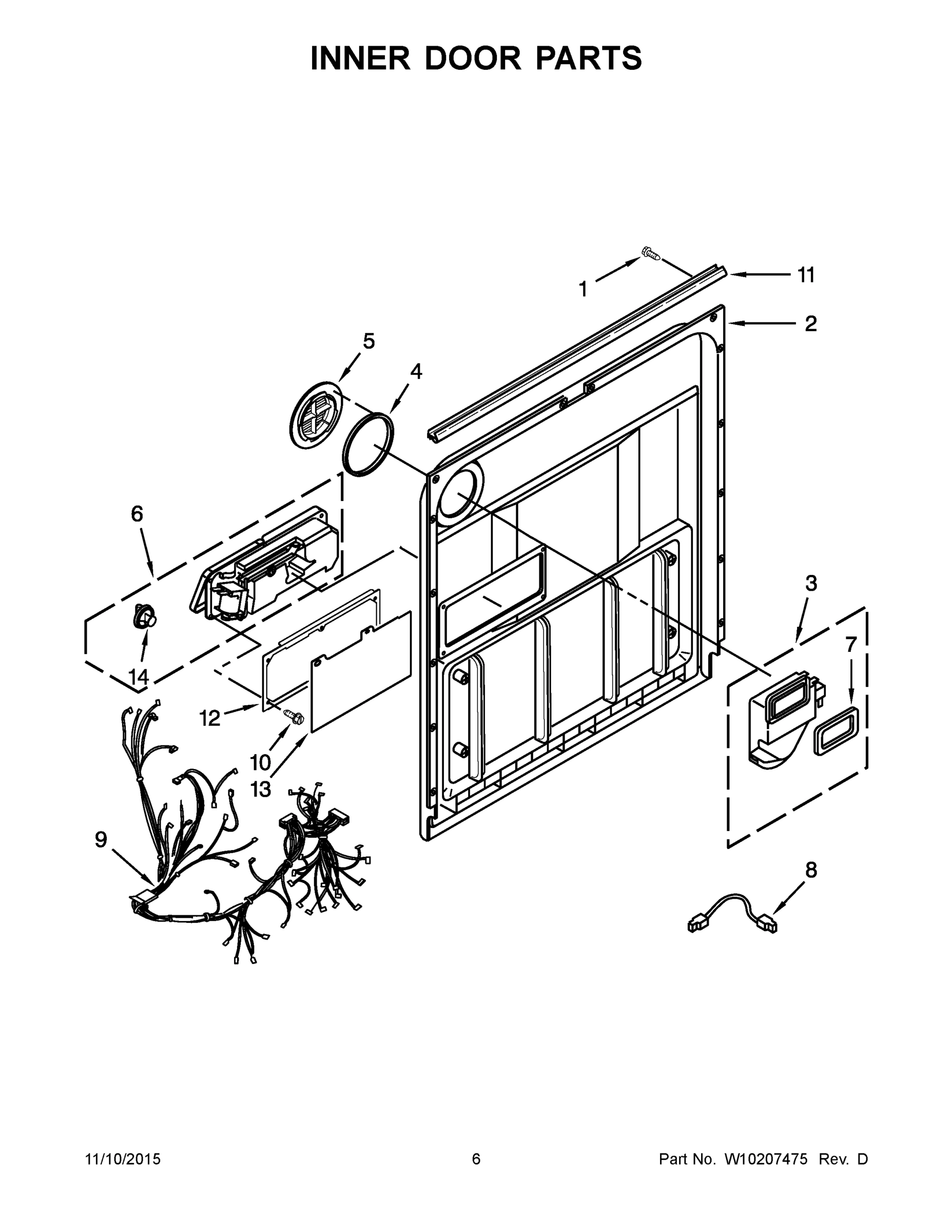

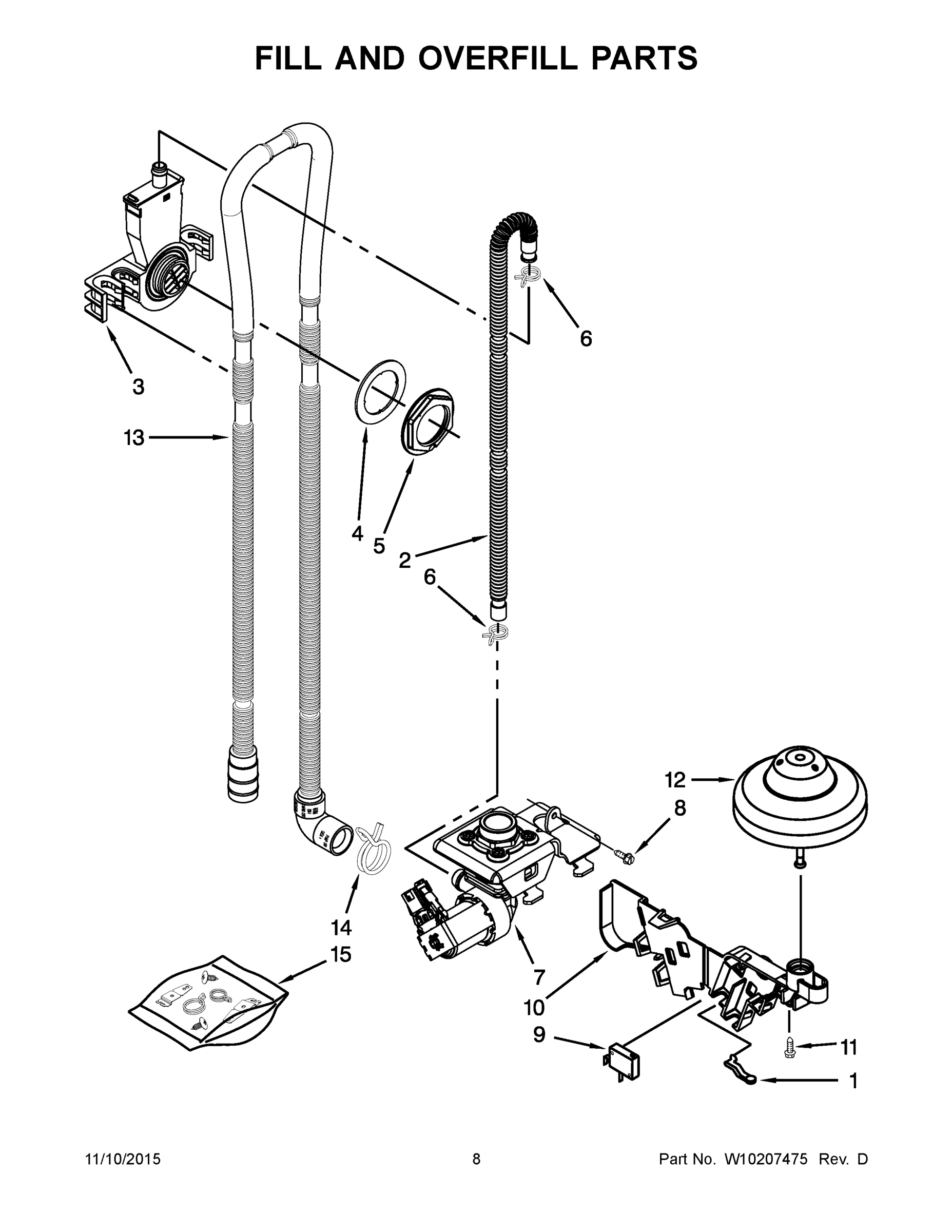

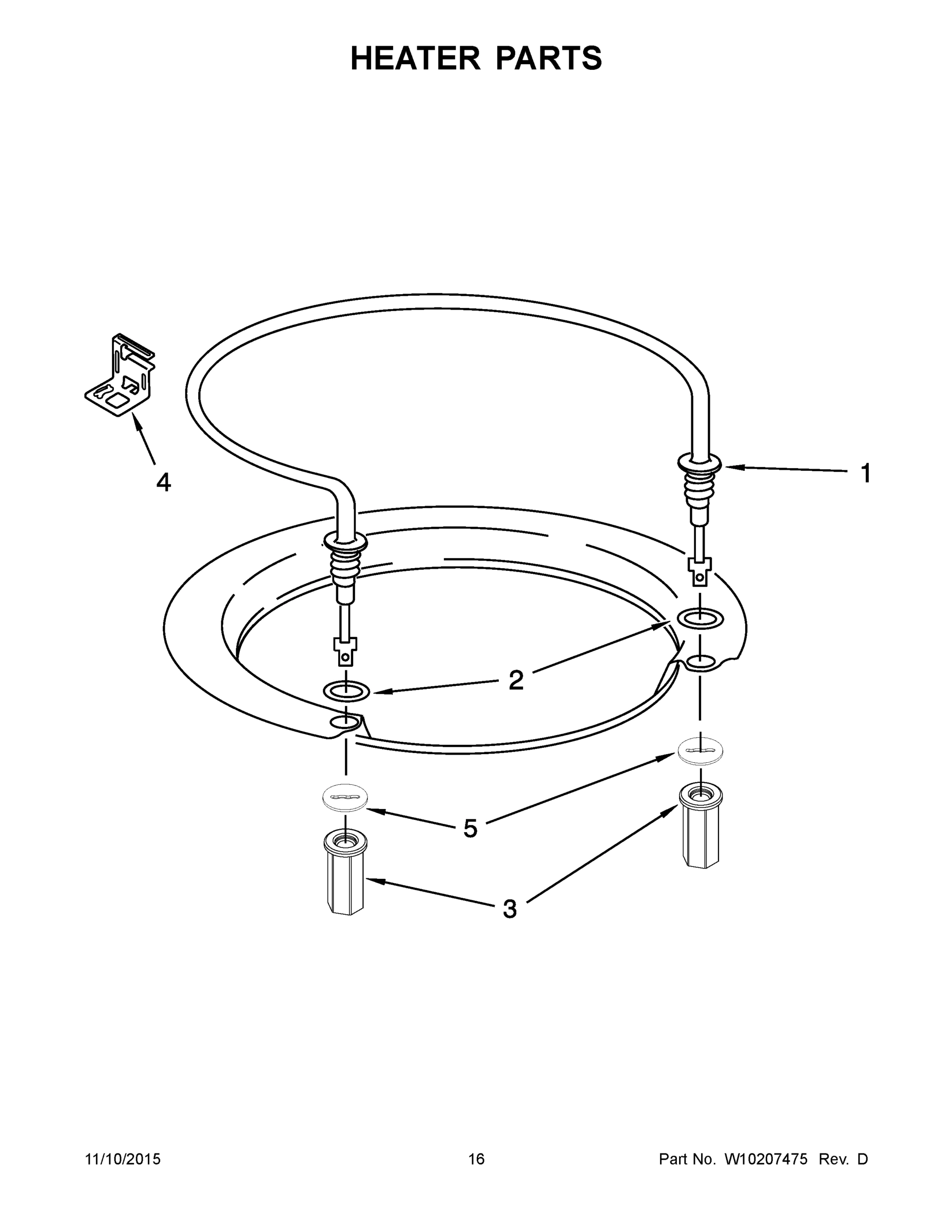

Model Whirlpool GU2475XTVB0 DISHWASHER – Common Parts &amp; Diagrams

1

WPW10077859 Whirlpool Dishwasher Tube In Stock WPL WPW10077859 $64.36

2

W10878507 Whirlpool Inlet Hose In Stock WPL W10878507 $37.28

2

W11157084 Whirlpool Dishwasher Rack Roller In Stock WPL W11157084 $14.59

2

W11384788 Whirlpool Dishwasher Relief Straine Backorder WPL W11384788 $10.76

2

W11613573 Whirlpool Door Hinge In Stock WPL W11613573 $28.35

2

WP717273 Whirlpool Dishwasher Rubber Washer In Stock WPL WP717273 $2.51

2

WP8268343 Whirlpool Dishwasher Cap Backorder WPL WP8268343 $32.13

2

CLIP, BI-METAL WPL 8546546 Contact Us For Availability

2A

W11613572 Whirlpool Dishwasher Door Hinge Backorder WPL W11613572 $28.35

3

WP8268340 Whirlpool Bearing In Stock WPL WP8268340 $2.51

3

WP8268713 Whirlpool Dishwasher Wheel Backorder WPL WP8268713 $29.92

3

WPW10134019 Whirlpool Dishwasher Switch Backorder WPL WPW10134019 $30.29

3

WPW10164259 Whirlpool Dishwasher Vent Assembl Backorder WPL WPW10164259 $77.29

3

WPW10195536 Whirlpool Water Inlet Valve In Stock WPL WPW10195536 $51.46

3

WPW10477552 Whirlpool Dishwasher Terminal Nut In Stock WPL WPW10477552 $3.70

4

W11027055 Whirlpool Dishwasher Heater Support Backorder WPL W11027055 $12.81

4

WP3400920 Whirlpool Screw Cover Backorder WPL WP3400920 $4.43

4

WP8268342 Whirlpool Dishwasher Lower Wash Arm In Stock WPL WP8268342 $31.64

4

WP8269259 Whirlpool Air Vent Gasket In Stock WPL WP8269259 $27.58

4

WP8531323 Whirlpool Gasket Seal In Stock WPL WP8531323 $13.05

4

WP8539190 Whirlpool Tine Pivot In Stock WPL WP8539190 $27.71

4

WP8572618 Whirlpool Dishwasher Sump Assembly Backorder WPL WP8572618 $113.08

4A

PANEL FRONT (INCLUDES ITEM 16) (WHITE) WPL W10133132 Contact Us For Availability

4B

PANEL FRONT (INCLUDES ITEM 16) (STAINLESS) WPL W10133134 Contact Us For Availability

5

W10909064 Whirlpool Dishwasher Black Access P In Stock WPL W10909064 $65.72

5

WP3400014 Whirlpool Dishwasher Screw Backorder WPL WP3400014 $2.51

5

WP8268375 Whirlpool Dishwasher Check Valve In Stock WPL WP8268375 $30.80

5

WPW10267076 Whirlpool Guard Clip In Stock WPL WPW10267076 $11.18

5

WPW10343251 Whirlpool Dishwasher Shield Backorder WPL WPW10343251 $3.81

5

DEFLECTOR, VENT (ALSO ORDER ITEM 4) WPL 8575893 Contact Us For Availability

5A

W10909066 Whirlpool Dishwasher Panel Backorder WPL W10909066 $56.54

6

W10083957V Whirlpool Dishwasher Chopper In Stock WPL W10083957V $20.28

6

WP8539119 Whirlpool Dishwasher Positioner Backorder WPL WP8539119 $34.62

6

WPW10073520 Whirlpool Dishwasher Insulation P Backorder WPL WPW10073520 $28.80

6

WPW10175277 Whirlpool Dishwasher Retainer Backorder WPL WPW10175277 $3.70

6

WPW10323423 Whirlpool Manifold Backorder WPL WPW10323423 $32.56

7

WP8268349 Whirlpool Dishwasher Spray Arm Tube Backorder WPL WP8268349 $5.45

7

WP8268961 Whirlpool Friction Pad In Stock WPL WP8268961 $3.29

7

WP8269258 Whirlpool Dishwasher Gasket Backorder WPL WP8269258 $28.80

7

WP8539113 Whirlpool Dishwasher No Flip Dish R Backorder WPL WP8539113 $4.52

7

WP9741232 Whirlpool Dishwasher Screw In Stock WPL WP9741232 $2.51

7

MOTOR, WAX WPL W10082769 Contact Us For Availability

7

LATCH ASSEMBLY WPL 8539118 Contact Us For Availability

8

W11158804 Whirlpool Silverware Basket In Stock WPL W11158804 $40.59

8

WP3385089 Whirlpool Track In Stock WPL WP3385089 $33.27

8

WP8268433 Whirlpool Seal Assembly In Stock WPL WP8268433 $4.67

8

WP8531857 Whirlpool Dishwasher Protector Backorder WPL WP8531857 $60.15

8

WPW10285179-includeCORE Whirlpool WPW10285179 Backorder WPL WPW10285179-includeCORE $199.81

8

HARNESS, VENT WPL 8545608 Contact Us For Availability

8A

W10799406 Whirlpool Dishwasher Toe Panel Backorder WPL W10799406 $58.25

9

W10165274 Whirlpool Dishwasher Screw Backorder WPL W10165274 $9.59

9

WP8269016 Whirlpool Clip Assembly Backorder WPL WP8269016 $4.45

9

WP8565925 Whirlpool Slide Rail Stop In Stock WPL WP8565925 $3.39

9

WPW10102495 Whirlpool Dishwasher Switch Backorder WPL WPW10102495 $27.82

9

DOOR, SILVERWARE BASKET WPL 8562060 Contact Us For Availability

3400217 Whirlpool Dishwasher Screw Backorder WPL 3400217 $4.85

WP8269145 Whirlpool Dishwasher Mounting Brack In Stock WPL WP8269145 $5.27

WP8561746 Whirlpool Dishwasher Spray Arm Backorder WPL WP8561746 $28.97

WPW10175383 Whirlpool Dishwasher Standpipe Backorder WPL WPW10175383 $28.80

W10084567 Whirlpool Dishwasher Screen Backorder WPL W10084567 $28.80

WP8269296 Whirlpool Dishwasher Seal Backorder WPL WP8269296 $57.96

WP8269831 Whirlpool Dishwasher Wheel Backorder WPL WP8269831 $3.70

MANIFOLD, TURBO ZONE WPL 8575618 Contact Us For Availability

12

WP302868 Whirlpool Screw In Stock WPL WP302868 $2.51

12

WP8268895 Whirlpool Dishwasher Float Assembly In Stock WPL WP8268895 $30.80

12

VALVE ASSEMBLY, MANIFOLD WPL 8575244 Contact Us For Availability

14

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $3.70

14

WP8558307 Whirlpool Rinse Aid Dispenser Cap In Stock WPL WP8558307 $13.27

14

WP8575897 Whirlpool Dishwasher Tub Wheel In Stock WPL WP8575897 $4.56

14B

HANDLE (ULTIMATE SILVER) WPL W10142998 Contact Us For Availability

15

WP3400892 Whirlpool Dishwasher Screw Backorder WPL WP3400892 $2.51

15

WPW10292152 Whirlpool Hardware Kit In Stock WPL WPW10292152 $17.39

15

WPW10348269 Whirlpool Washer Drain Pump In Stock WPL WPW10348269 $42.33

16

W11622922 Whirlpool Dishwasher Volute In Stock WPL W11622922 $8.20

16

WP8268991 Whirlpool Dishwasher Cover Assembly Backorder WPL WP8268991 $15.81

16

WP8564951 Whirlpool Dishwasher Stud Backorder WPL WP8564951 $7.12

17

8269144A Whirlpool Dishwasher Drain Hose In Stock WPL 8269144A $11.00

17A

ENDCAP, LEFT (WHITE) WPL W10131030 Contact Us For Availability

18

W10200940 Whirlpool Dishwasher Pump Motor Backorder WPL W10200940 $178.24

18B

ENDCAP, RIGHT (ULTIMATE SILVER) WPL W10164249 Contact Us For Availability

19

W10877094 Whirlpool Shield In Stock WPL W10877094 $79.73

19

WP8531018 Whirlpool Dishwasher Washer Backorder WPL WP8531018 $2.51

20

WPW10348413 Whirlpool Dishwasher Screw In Stock WPL WPW10348413 $2.91

21

WP661566 Whirlpool High Limit Thermostat In Stock WPL WP661566 $14.44

22

WP8269146 Whirlpool Dishwasher Clamp Backorder WPL WP8269146 $3.70

22

STRIKE, PLATE WPL W10317686 Contact Us For Availability

23

WP8268990 Whirlpool Dishwasher Door Spring Bu In Stock WPL WP8268990 $45.46

24

WP3378128 Whirlpool Dishwasher Washer In Stock WPL WP3378128 $2.51

24

WPW10334457 Whirlpool Dishwasher Capacitor Backorder WPL WPW10334457 $68.89

285006 Whirlpool Spray In Stock WPL 285006 $27.45

3385556 Whirlpool Drain Hose In Stock WPL 3385556 $12.99

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

4317824 Whirlpool Dishwasher 5' 3-Wire Power In Stock WPL 4317824 $9.50

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

4396277 Whirlpool Barrier Assembly Backorder WPL 4396277 $13.73

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

8171477 Whirlpool Dishwasher Mounting Bracket Backorder WPL 8171477 $16.47

8212560 Whirlpool Dishwasher Mounting Bracket In Stock WPL 8212560 $12.99

WP676453 Whirlpool Dishwasher Touch-Up In Stock WPL WP676453 $15.77

WP676455 Whirlpool Dishwasher Touch-Up In Stock WPL WP676455 $15.43

ACCESSORIES, SIDE PANEL KITS (STAINLESS STEEL WPL 8171659 Contact Us For Availability

ACCESSORIES, SIDE PANEL KITS (WHITE) WPL 8171656 Contact Us For Availability

ACCESSORIES, SIDE PANEL KITS (BLACK) WPL 8171657 Contact Us For Availability

WPL W10702081 WPL W10702081 Contact Us For Availability
