Model GU2451XTST2 – Common Parts & Diagrams

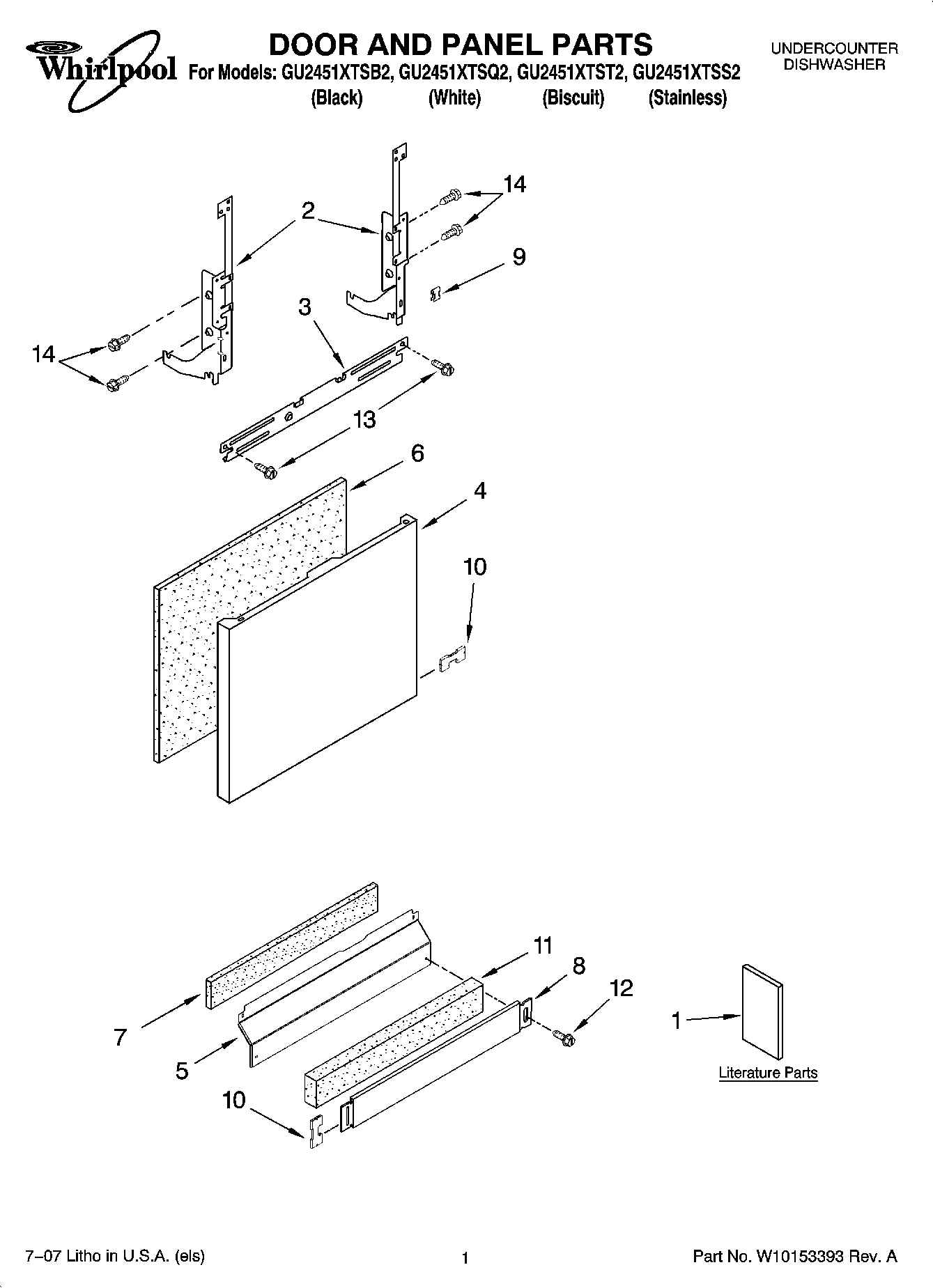

01 - DOOR AND PANEL PARTS

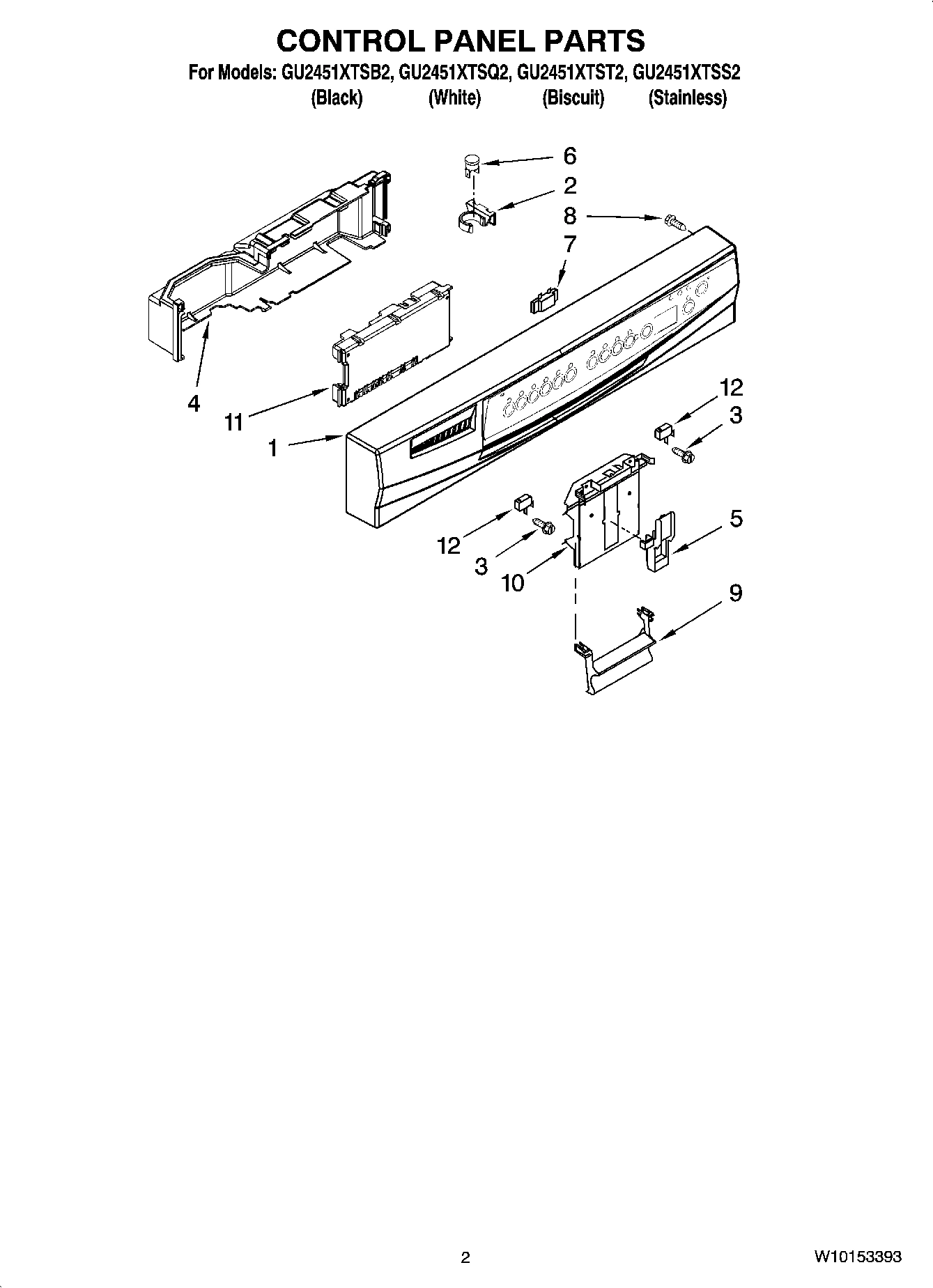

02 - CONTROL PANEL PARTS

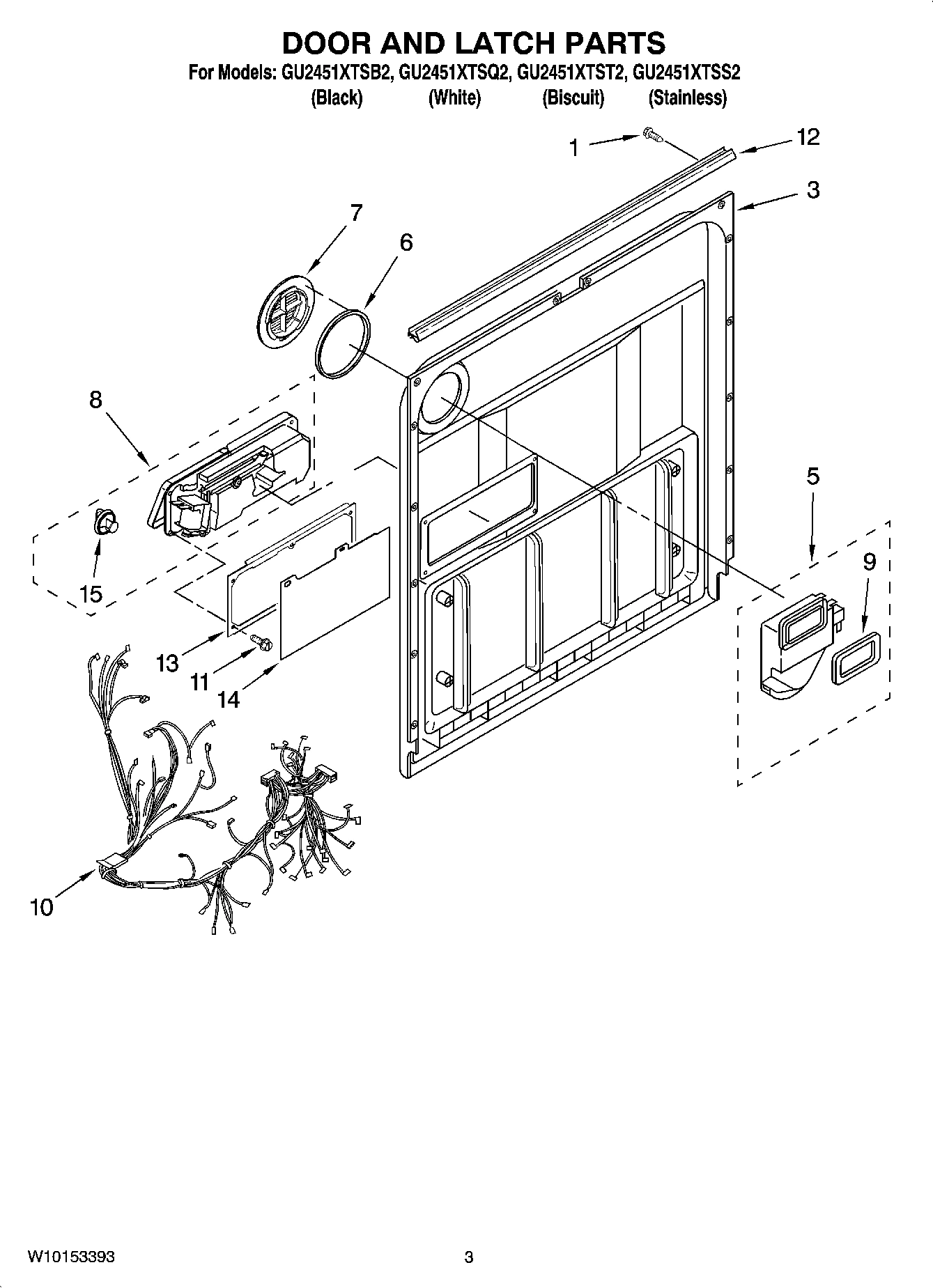

03 - DOOR AND LATCH PARTS

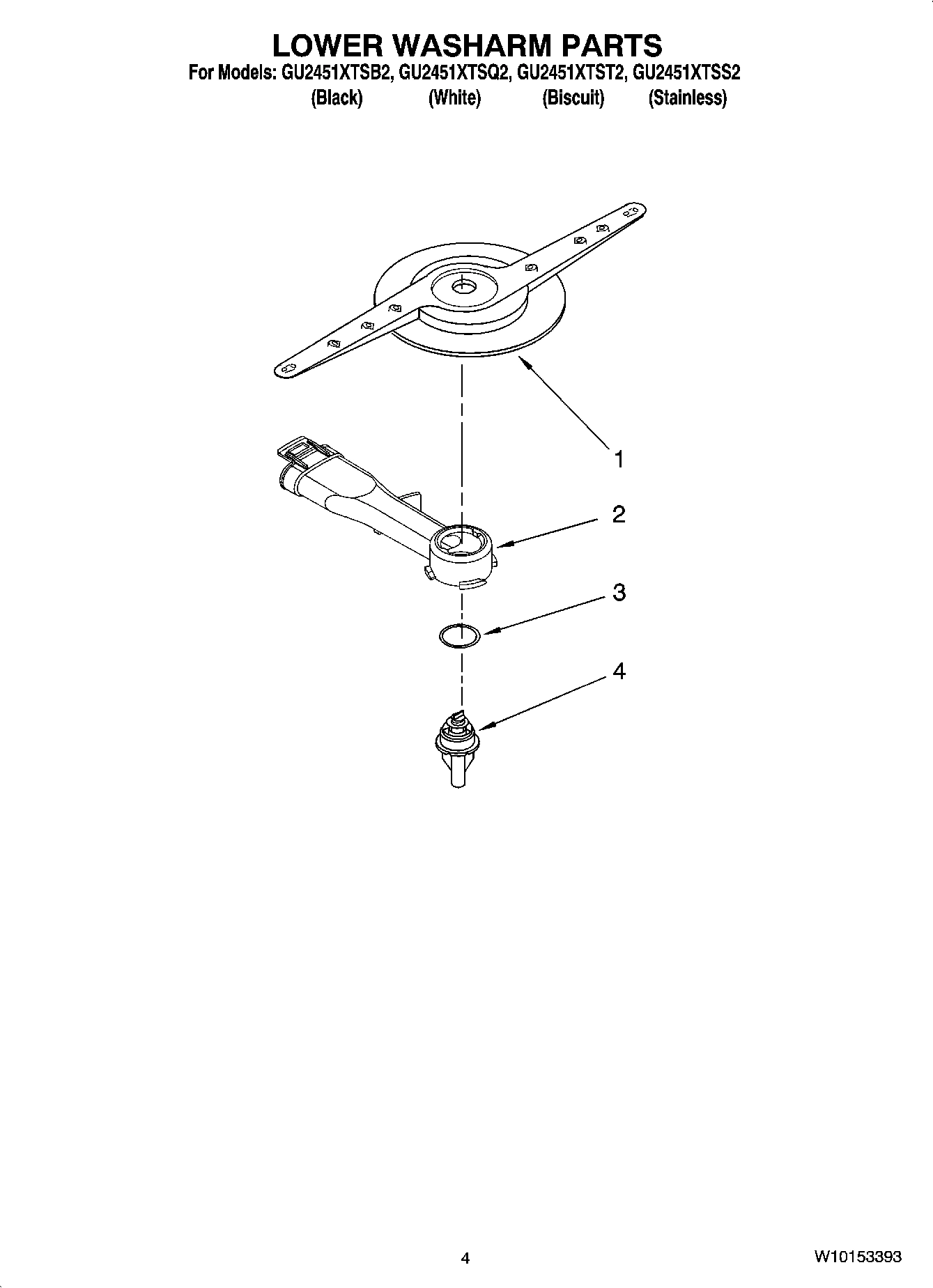

04 - LOWER WASHARM PARTS

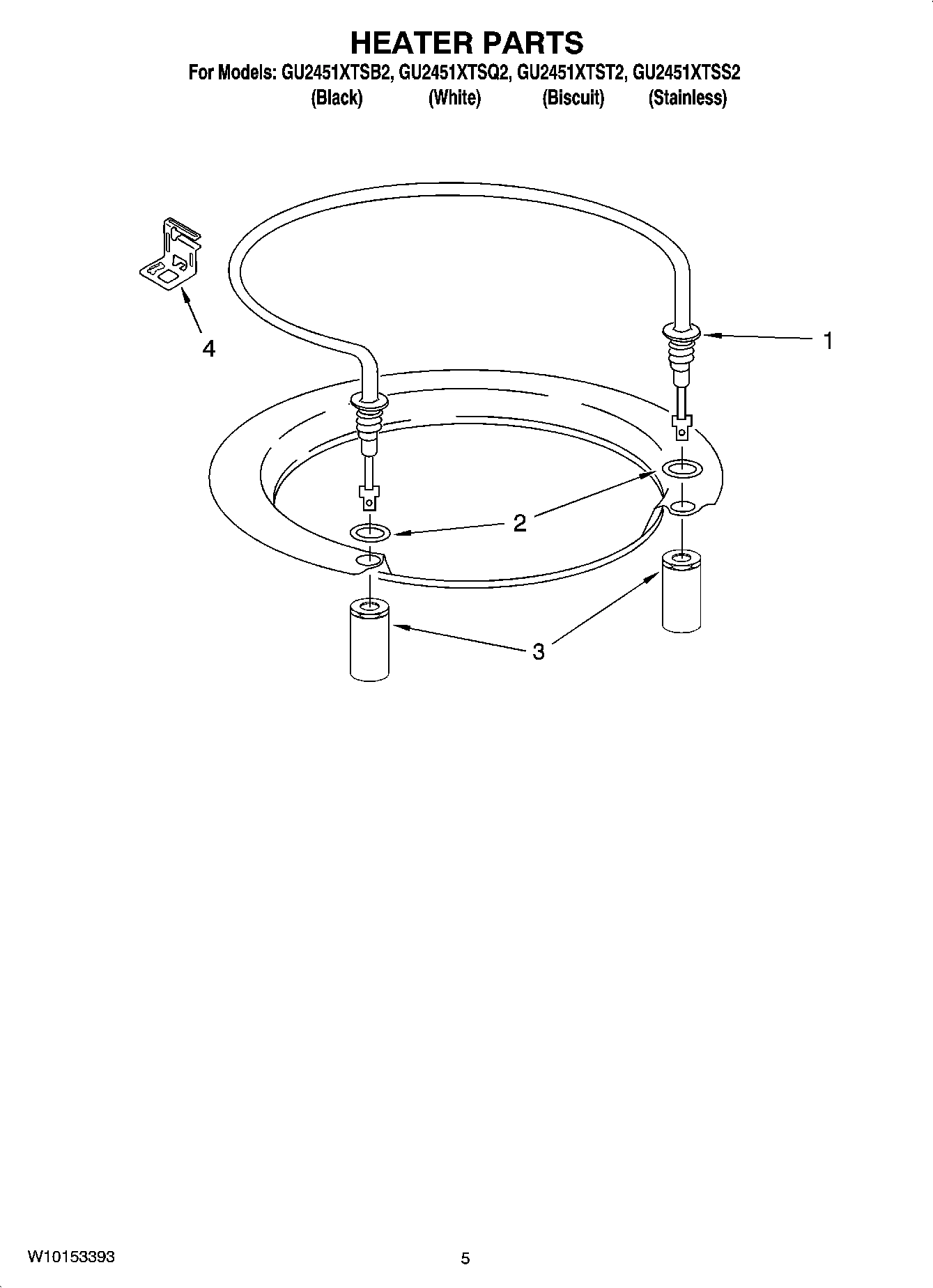

05 - HEATER PARTS

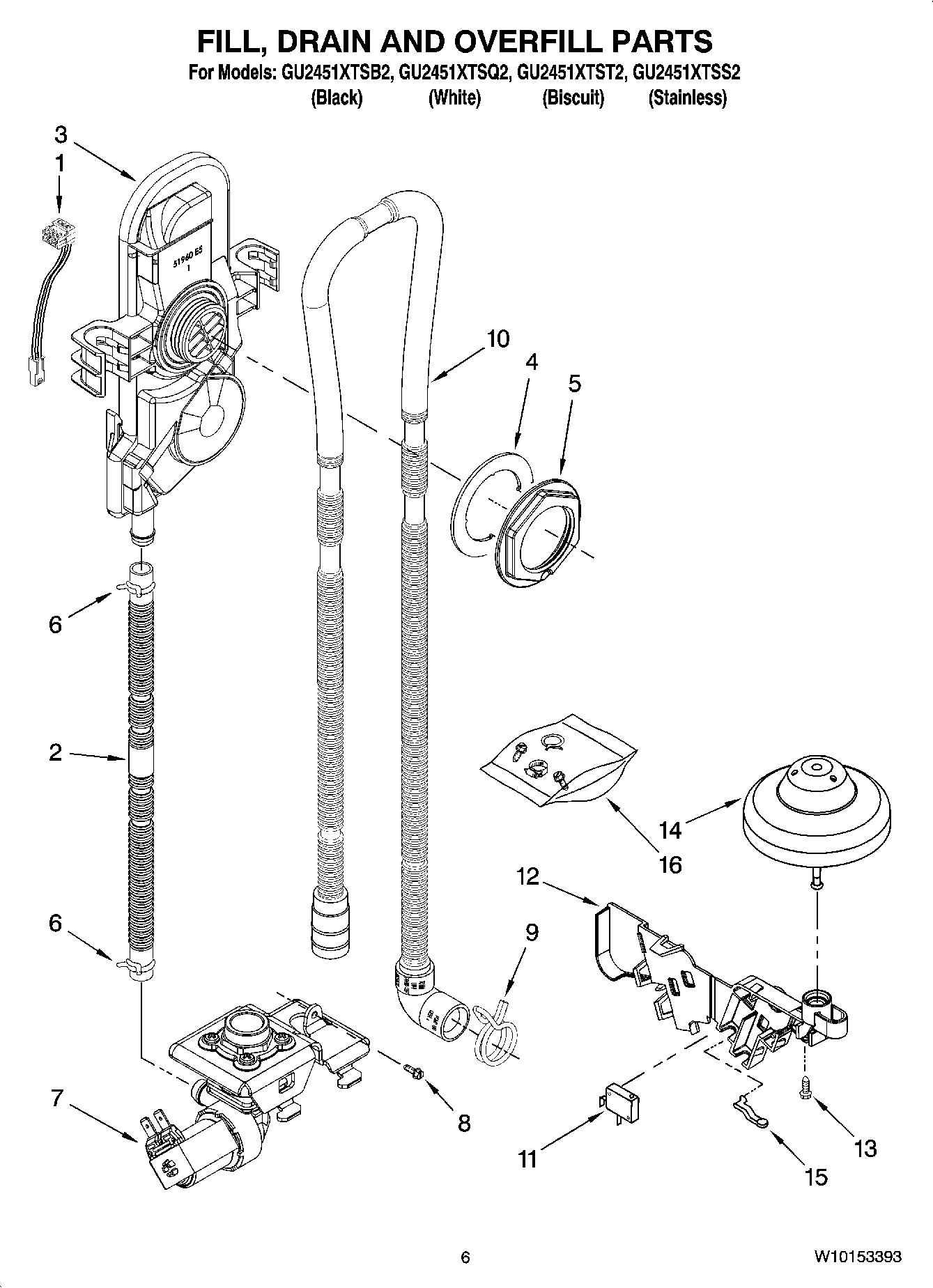

06 - FILL, DRAIN AND OVERFILL PARTS

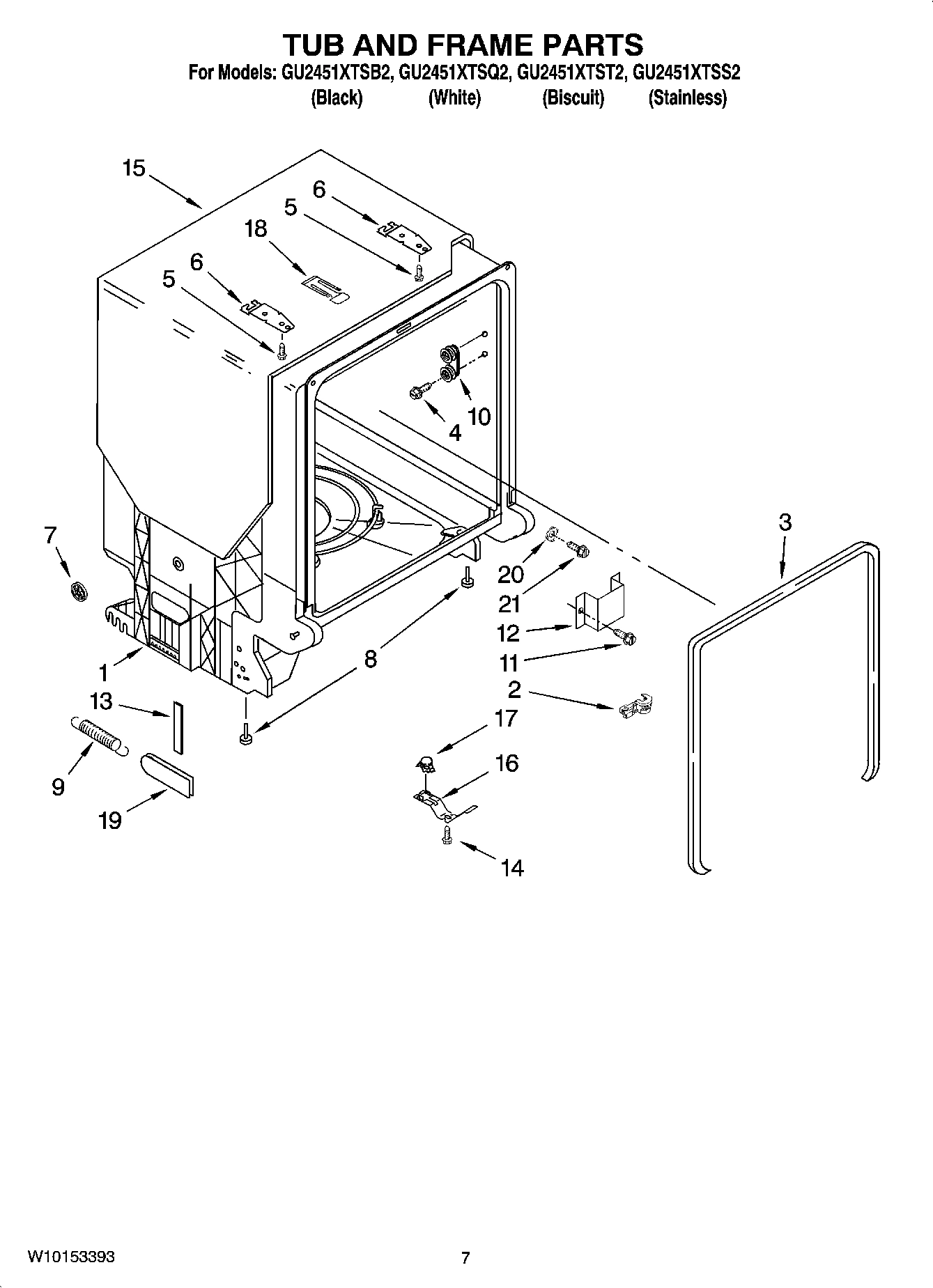

07 - TUB AND FRAME PARTS

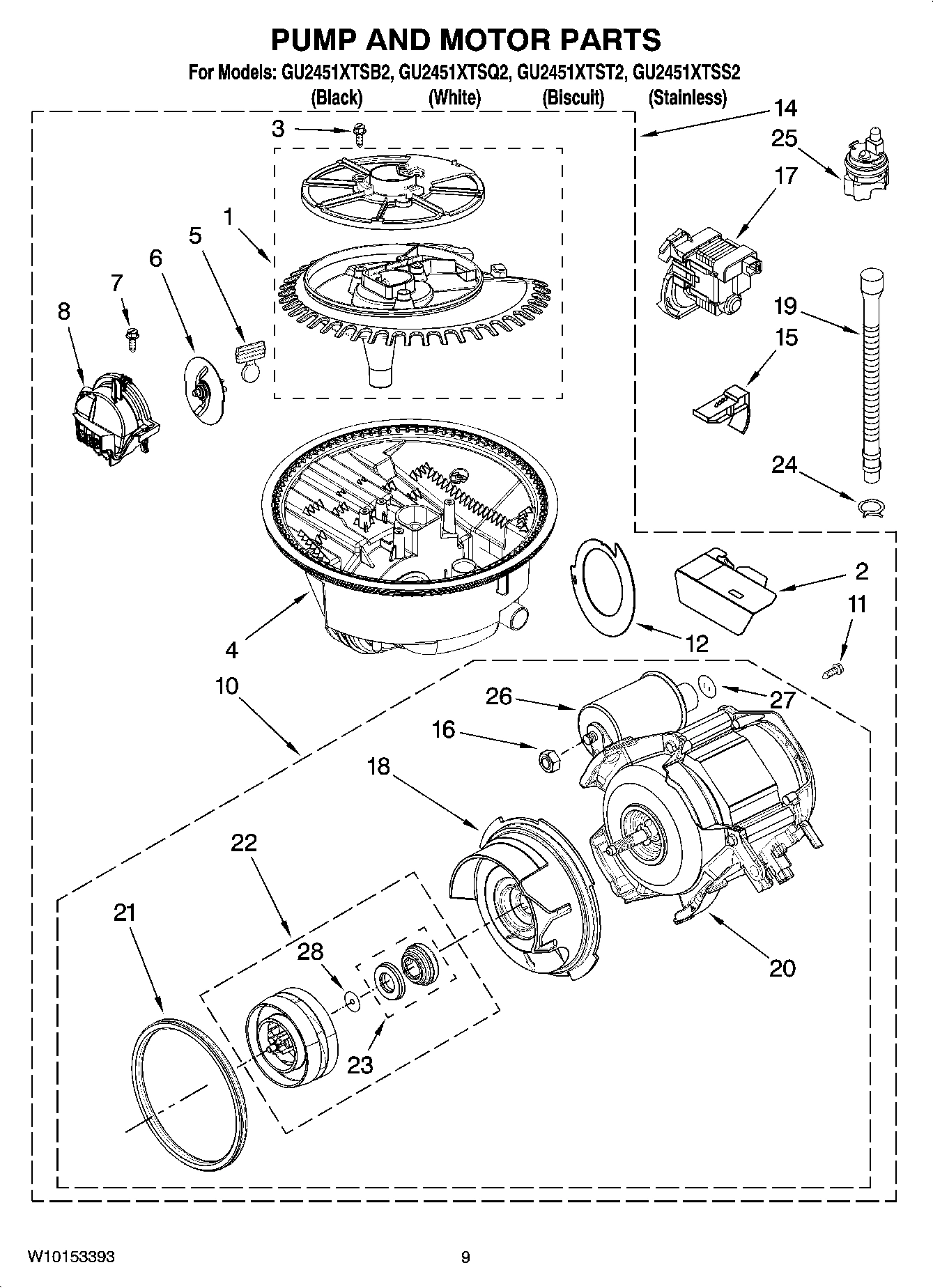

08 - PUMP AND MOTOR PARTS
09 - UPPER RACK AND TRACK PARTS

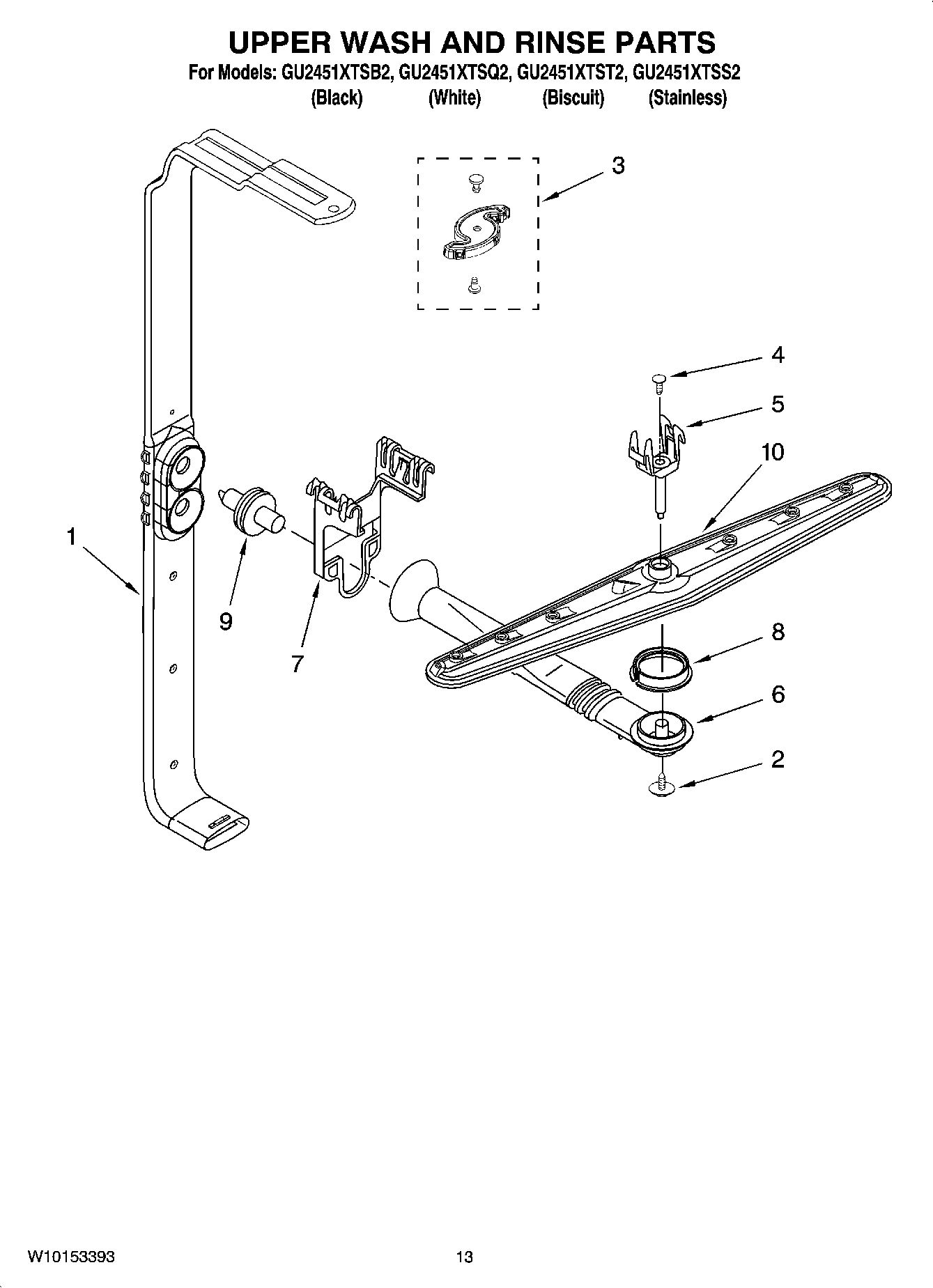

10 - UPPER WASH AND RINSE PARTS
11 - LOWER RACK PARTS, OPTIONAL PARTS (NOT INCLUDED)
