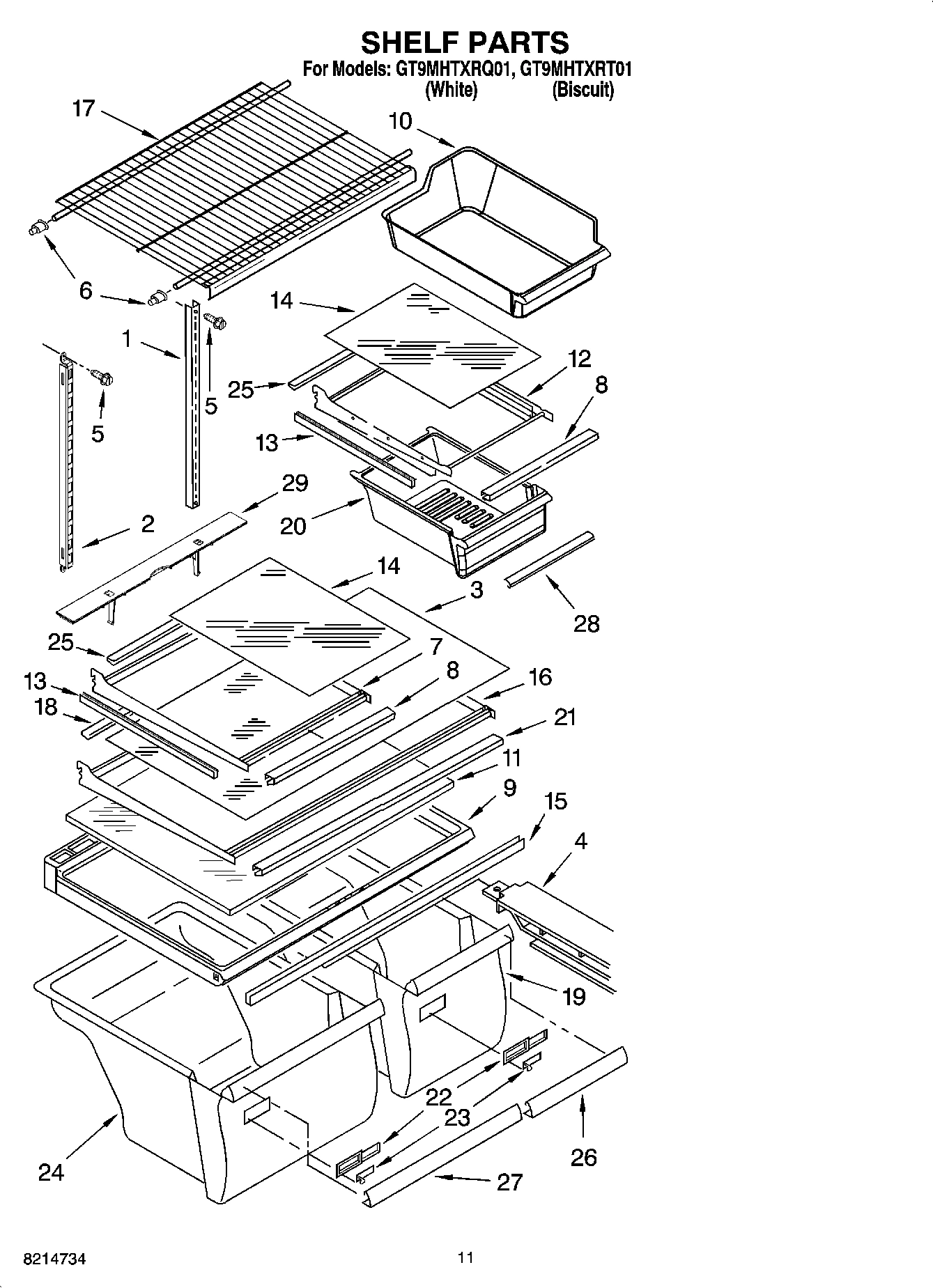

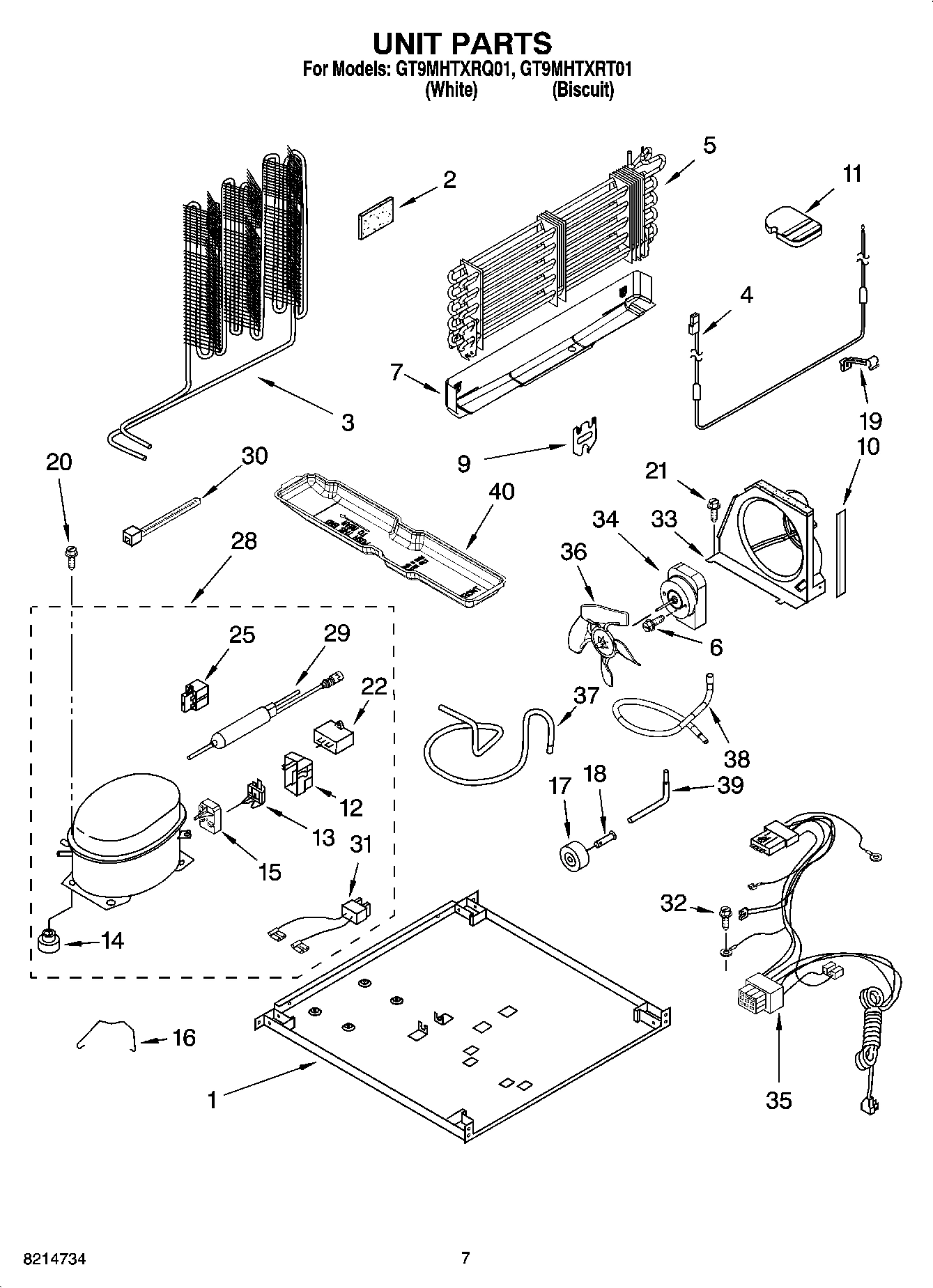

Model Whirlpool GT9MHTXRT01 REFRIGERATOR – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

1

WP2188808 Whirlpool Refrigerator Inlet Valve In Stock WPL WP2188808 $96.47

1

Refrigerator Door (Includes Illus. 4,7,9 & 21 WPL 2183864 Contact Us For Availability

1

Refrigerator Door (Includes Illus. 4,7,9 & 21 WPL 2205286 Contact Us For Availability

1

Customer Quick Tips WPL 2225413 Contact Us For Availability

1

Modular Icemaker Service Sheet WPL 2225623 Contact Us For Availability

1

Instruction Sheet, Water Filter WPL 2302485 Contact Us For Availability

1

Service & Wiring Sheet WPL 2314276 Contact Us For Availability

1

Energy Label WPL 2314404 Contact Us For Availability

1

Use & Care Guide WPL 2314474 Contact Us For Availability

1

DO-IT-YOURSELF MANUAL, REF./ FZR. WPL 677969 Contact Us For Availability

1

Following May Be Purchased DO-IT-YOURSELF REP WPL ARI73205A6 Contact Us For Availability

2

WP2193353W Whirlpool Refrigerator Trim Handle In Stock WPL WP2193353W $3.70

2

WP2261963 Whirlpool Refrigerator Door Hinge In Stock WPL WP2261963 $41.10

2

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

2

Handle, Trim (Biscuit) WPL 2193353T Contact Us For Availability

3

WP2166108 Whirlpool Refrigerator Cabinet Roll In Stock WPL WP2166108 $13.54

3

WP2214960 Whirlpool Refrigerator Condenser Backorder WPL WP2214960 $134.98

3

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

3

Tray, Door WPL 2159302 Contact Us For Availability

4

W10823511 Whirlpool Refrigerator Water Tube In Stock WPL W10823511 $12.61

4

WP2163835 Whirlpool Track Assembly In Stock WPL WP2163835 $11.91

4

WP2315531 Whirlpool Refrigerator Heater In Stock WPL WP2315531 $55.60

4

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

4

WP939101 Whirlpool Refrigerator Plate Backorder WPL WP939101 $3.70

4

Flange, Tube WPL 2210523 Contact Us For Availability

5

WP488366 Whirlpool Refrigerator Clamp Backorder WPL WP488366 $4.81

6

2163762 Whirlpool Refrigerator Cup Assembly Backorder WPL 2163762 $4.32

6

W11594405 Whirlpool Axle In Stock WPL W11594405 $6.90

6

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $8.38

6

WP489357 Whirlpool Recessed Screw In Stock WPL WP489357 $2.51

6

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $2.51

7

WP2186494T Whirlpool Water Filter Cap In Stock WPL WP2186494T $6.15

7

WP2186494W Whirlpool Water Filter Cap Backorder WPL WP2186494W $29.76

7

WPW10190929 Whirlpool Refrigerator Ice Maker Backorder WPL WPW10190929 $137.91

7

(Complete Shelf Not Shown Includes Items 7,8, WPL 2201107K Contact Us For Availability

7

Tap Plate WPL 2183000 Contact Us For Availability

8

WP628356 Whirlpool Refrigerator Fill Cup In Stock WPL WP628356 $15.77

8

WP8281146 Whirlpool Screw In Stock WPL WP8281146 $2.51

8

Trim, Shelf Front WPL 2188684 Contact Us For Availability

9

2159057 Whirlpool Refrigerator Fresh Food Doo In Stock WPL 2159057 $84.60

9

WP2225521 Whirlpool Water Filter Housing In Stock WPL WP2225521 $92.74

9

WP627843 Whirlpool Refrigerator Ejector Arm Backorder WPL WP627843 $28.80

10

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $26.81

10

Rubber Mat (Door Bin) WPL 2300430 Contact Us For Availability

EDR6D1 Whirlpool EveryDrop® Ice and Water Re In Stock WPL EDR6D1 $43.40

WP2163777 Whirlpool Refrigerator Fan Blade In Stock WPL WP2163777 $30.29

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $37.11

Support Block WPL 2201184 Contact Us For Availability

Housing Compartment WPL 2210566 Contact Us For Availability

12

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94

12

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $4.59

13

WP487576 Whirlpool Washer In Stock WPL WP487576 $4.58

13

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $41.93

13

Nameplate WPL 2220214 Contact Us For Availability

14

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

14

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

14

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

15

WP2225929 Whirlpool Refrigerator Start Device Backorder WPL WP2225929 $52.61

15

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

15

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $2.51

16

WP2159312 Whirlpool Refrigerator Door Trim Backorder WPL WP2159312 $41.05

16

WP2254618 Whirlpool Center Door Hinge In Stock WPL WP2254618 $25.07

16

WP627792 Whirlpool Refrigerator Shut Off Arm Backorder WPL WP627792 $35.26

WP2176275 Whirlpool Refrigerator Wire Shelf Backorder WPL WP2176275 $69.61

WP2183854 Whirlpool Refrigerator Shim Backorder WPL WP2183854 $4.54

WP2187464 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187464 $43.83

WP8281206 Whirlpool Refrigerator Screw In Stock WPL WP8281206 $2.51

18

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $12.32

18

Door Bin (3) WPL 2300447 Contact Us For Availability

W10190935 Whirlpool Refrigerator Icemaker Mot In Stock WPL W10190935 $52.25

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $12.68

Clip, Heater WPL 2182338 Contact Us For Availability

Freezer Door (Includes Illus. 7,21 & 22) (Whi WPL 2183860 Contact Us For Availability

Freezer Door (Includes Illus. 7,21 & 22) (Bis WPL 2205130 Contact Us For Availability

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

WP2189000 Whirlpool Refrigerator Handle Plug Backorder WPL WP2189000 $3.70

WP2200936 Whirlpool Refrigerator Handle Plug Backorder WPL WP2200936 $2.51

WP2210509 Whirlpool Refrigerator Tub Valve Backorder WPL WP2210509 $28.80

WP2254473 Whirlpool Refrigerator Door Hinge In Stock WPL WP2254473 $3.70

WP2183003 Whirlpool Thimble In Stock WPL WP2183003 $3.70

WP3400504 Whirlpool Refrigerator Screw Backorder WPL WP3400504 $3.70

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

Cover, Air Diffuser WPL 2176281 Contact Us For Availability

22

2159327 Whirlpool Refrigerator Door Gasket In Stock WPL 2159327 $78.12

22

WP2212446 Whirlpool Refrigerator Control Body In Stock WPL WP2212446 $30.98

22

Fitting, Water Tube (Not Serviced) WPL ARI73206A7 Contact Us For Availability

W11745278 Whirlpool Bracket In Stock WPL W11745278 $5.18

WP2151652 Whirlpool Refrigerator Button Plug Backorder WPL WP2151652 $8.20

WP2176222 Whirlpool Refrigerator Slide In Stock WPL WP2176222 $9.97

WP2254354 Whirlpool Refrigerator Air Tower Backorder WPL WP2254354 $51.48

Hole Plug (6) (Biscuit) WPL 2200924 Contact Us For Availability

24

WP2189452 Whirlpool Refrigerator Diffuser Backorder WPL WP2189452 $42.62

24

WP488921 Whirlpool Refrigerator Screw Backorder WPL WP488921 $2.51

24

Seal, Front (Not Serviced) WPL ARI73207A5 Contact Us For Availability

25

WP2212648 Whirlpool Refrigerator Hinge Sleeve Backorder WPL WP2212648 $3.70

25

WP2212649 Whirlpool Refrigerator Button Plug Backorder WPL WP2212649 $3.70

25

Seal, Rear (Not Serviced) WPL ARI73208A8 Contact Us For Availability

W10283958 Whirlpool Refrigerator Filler Backorder WPL W10283958 $14.60

WPW10283959 Whirlpool Refrigerator Filler In Stock WPL WPW10283959 $3.70

Trim, Crisper Pan WPL 2195340 Contact Us For Availability

Air Separator Assembly WPL 2210390 Contact Us For Availability

Endcap (2) WPL 2177340 Contact Us For Availability

WP2156006 Whirlpool Refrigerator Shelf Trim E In Stock WPL WP2156006 $4.10

WP2195341 Whirlpool Refrigerator Pan Trim Backorder WPL WP2195341 $27.12

Housing Base WPL 2300417 Contact Us For Availability

Grille (Includes Illus. 29) (Biscuit) WPL 2301619T Contact Us For Availability

Grille (Includes Illus. 29) (White) WPL 2301619W Contact Us For Availability

28

WP2218109 Whirlpool Refrigerator Door Compres Backorder WPL WP2218109 $42.64

28

WP489467 Whirlpool Hinge Shim In Stock WPL WP489467 $4.59

4388947 Whirlpool Refrigerator Door Handle Ki Backorder WPL 4388947 $97.92

4388949 Whirlpool Refrigerator Handle Backorder WPL 4388949 $99.97

BRACKET, FAN MOTOR WPL 2254453 Contact Us For Availability

CLIP, GRILLE (2) WPL 2189356 Contact Us For Availability

30

2213364 Whirlpool Refrigerator Cover Backorder WPL 2213364 $9.48

30

WP2213360 Whirlpool Refrigerator Cover Backorder WPL WP2213360 $11.95

30

Trim-Door (2) WPL 2195946 Contact Us For Availability

31

WP2195916K Whirlpool End Cap In Stock WPL WP2195916K $6.75

31

Rail, Center (Not Serviced) WPL ARI73209A8 Contact Us For Availability

32

2254454 Whirlpool Refrigerator Bracket Backorder WPL 2254454 $31.79

32

WPW10421484 Whirlpool Refrigerator Door Trim In Stock WPL WPW10421484 $47.29

32

Cover, Unit WPL 2221775 Contact Us For Availability

33

Wire Assembly Freezer Compt. (Includes Illus. WPL 2310041 Contact Us For Availability

33

Cabinet, (Not A Serviceable Part) WPL ARI73210A6 Contact Us For Availability

34

WP2188874 Whirlpool Refrigerator Condenser Mo In Stock WPL WP2188874 $59.32

34

Knob, Damper WPL 2302536 Contact Us For Availability

35

2187916 Whirlpool Refrigerator Wire Harness Backorder WPL 2187916 $86.77

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

41

Tube, Water WPL 2301621 Contact Us For Availability

45

Electrical Shield, Freezer Light WPL 2193491 Contact Us For Availability

99

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $88.85
