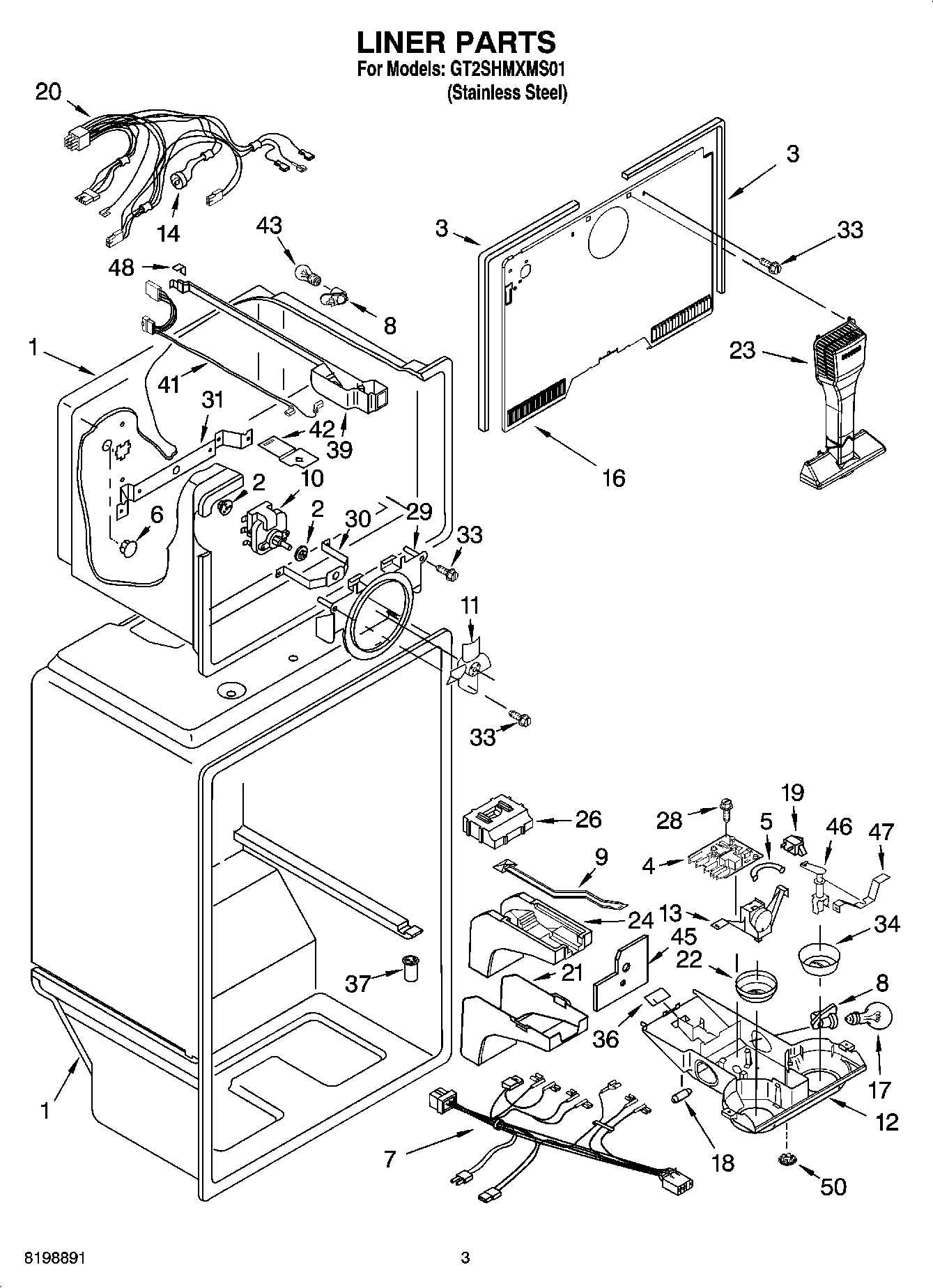

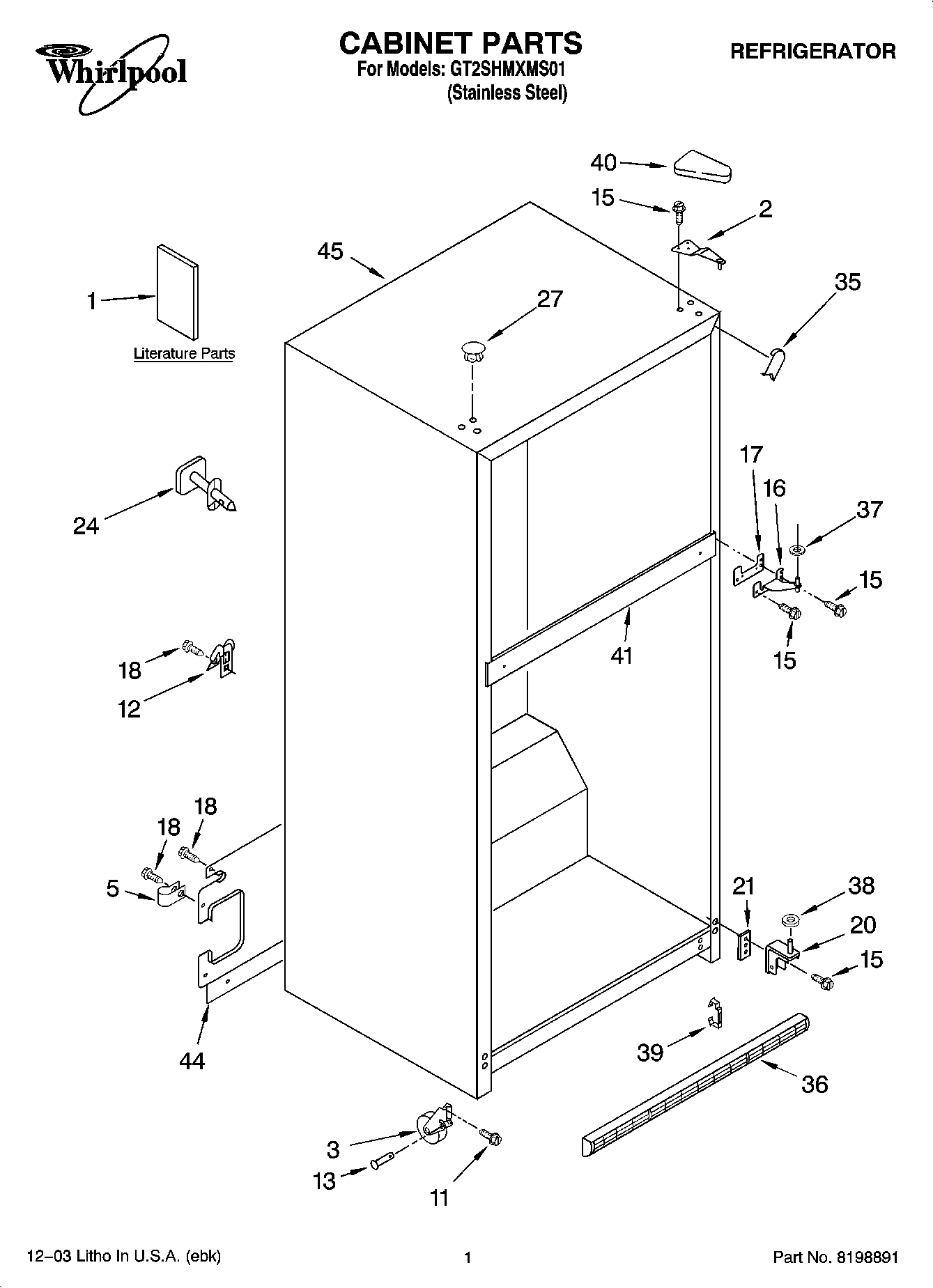

Model Whirlpool GT2SHMXMS01 REFRIGERATOR – Common Parts &amp; Diagrams

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $96.00

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability

KIT, PORCELAIN REPAIR (WHITE) WPL 799832 Contact Us For Availability

KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability

WPL ARI73065A6 WPL ARI73065A6 Contact Us For Availability

WPL ARI73066A5 WPL ARI73066A5 Contact Us For Availability

WPL ARI73067A7 WPL ARI73067A7 Contact Us For Availability

WPL ARI73068A4 WPL ARI73068A4 Contact Us For Availability

1

WP488878 Whirlpool Refrigerator Tube Clamp Backorder WPL WP488878 $4.81

1

Freezer Door (Includes 8& 12) (Stainless Stee WPL 2218678 Contact Us For Availability

2

2210495 Whirlpool Refrigerator Clip Backorder WPL 2210495 $31.90

3

2163762 Whirlpool Refrigerator Cup Assembly Backorder WPL 2163762 $4.32

3

WP2166108 Whirlpool Refrigerator Cabinet Roll In Stock WPL WP2166108 $13.54

3

WP2214960 Whirlpool Refrigerator Condenser Backorder WPL WP2214960 $134.98

3

WP2254360 Whirlpool Refrigerator Gasket In Stock WPL WP2254360 $8.67

3

WP8281146 Whirlpool Screw In Stock WPL WP8281146 $2.51

4

4387491 Whirlpool Refrigerator Insert In Stock WPL 4387491 $3.70

4

W11745278 Whirlpool Bracket In Stock WPL W11745278 $5.18

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

EVAPORATOR ASSY. WPL 2254249 Contact Us For Availability

6

WP488921 Whirlpool Refrigerator Screw Backorder WPL WP488921 $2.51

6

WP489357 Whirlpool Recessed Screw In Stock WPL WP489357 $2.51

6

WP941839 Whirlpool Refrigerator Button Plug In Stock WPL WP941839 $3.70

7

W10823511 Whirlpool Refrigerator Water Tube In Stock WPL W10823511 $12.61

7

WP2212651 Whirlpool Refrigerator Button Plug Backorder WPL WP2212651 $10.27

7

Drain Pan WPL 2254295 Contact Us For Availability

7

Wire Assembly, Control Box WPL 2187352 Contact Us For Availability

8

2177310 Whirlpool Refrigerator Door Gasket In Stock WPL 2177310 $106.14

10

WP2315576 Whirlpool Water Inlet Valve In Stock WPL WP2315576 $42.13

WP2163777 Whirlpool Refrigerator Fan Blade In Stock WPL WP2163777 $30.29

WP2176225 Whirlpool Glass Shelf Backorder WPL WP2176225 $120.79

WP3400504 Whirlpool Refrigerator Screw Backorder WPL WP3400504 $3.70

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $4.59

12

WP2183003 Whirlpool Thimble In Stock WPL WP2183003 $3.70

13

W11594405 Whirlpool Axle In Stock WPL W11594405 $6.90

13

Thermostat Assembly (Includes Items 5, 18, & WPL 2200859 Contact Us For Availability

15

WP2225929 Whirlpool Refrigerator Start Device Backorder WPL WP2225929 $52.61

15

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

17

WP2183854 Whirlpool Refrigerator Shim Backorder WPL WP2183854 $4.54

17

WP8281206 Whirlpool Refrigerator Screw In Stock WPL WP8281206 $2.51

17

Trim, Door Shelf (2) WPL 2195947 Contact Us For Availability

18

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

18

WPW10289690 Whirlpool Ice Maker Cover Backorder WPL WPW10289690 $2.51

18

Nameplate WPL 2220214 Contact Us For Availability

4388950 Whirlpool Refrigerator Handle Backorder WPL 4388950 $126.93

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $12.68

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

Clip, Heater WPL 2182338 Contact Us For Availability

20

WP2189009 Whirlpool Refrigerator Handle Plug Backorder WPL WP2189009 $3.51

20

WPW10190929 Whirlpool Refrigerator Ice Maker Backorder WPL WPW10190929 $137.91

20

Wire Assembly, Freezer Compartment WPL 2187690 Contact Us For Availability

21

Cover, Air Diffuser WPL 2176281 Contact Us For Availability

21

Shim, Bottom Hinge WPL 2172743 Contact Us For Availability

WP2195916K Whirlpool End Cap In Stock WPL WP2195916K $6.75

WP2218109 Whirlpool Refrigerator Door Compres Backorder WPL WP2218109 $42.64

WP628356 Whirlpool Refrigerator Fill Cup In Stock WPL WP628356 $15.77

Support Block WPL 2201185 Contact Us For Availability

23

WP2254354 Whirlpool Refrigerator Air Tower Backorder WPL WP2254354 $51.48

23

WP627843 Whirlpool Refrigerator Ejector Arm Backorder WPL WP627843 $28.80

23

Trim, Door Shelf WPL 2159306 Contact Us For Availability

24

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $26.81

24

WP2189452 Whirlpool Refrigerator Diffuser Backorder WPL WP2189452 $42.62

25

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $37.11

26

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $4.59

26

Air Diffuser, Top WPL 2204690 Contact Us For Availability

27

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $41.93

28

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

30

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $2.51

30

Bracket, Evap. Fan, Front WPL 2214979 Contact Us For Availability

31

WP627792 Whirlpool Refrigerator Shut Off Arm Backorder WPL WP627792 $35.26

32

WP2176222 Whirlpool Refrigerator Slide In Stock WPL WP2176222 $9.97

32

WP2187464 Whirlpool Refrigerator Wire Harness Backorder WPL WP2187464 $43.83

33

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $12.32

35

W10190935 Whirlpool Refrigerator Icemaker Mot In Stock WPL W10190935 $52.25

36

WP2212446 Whirlpool Refrigerator Control Body In Stock WPL WP2212446 $30.98

36

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

36

Plate WPL 2301979 Contact Us For Availability

37

8281197 Whirlpool Refrigerator Screw Backorder WPL 8281197 $5.38

37

WP2210509 Whirlpool Refrigerator Tub Valve Backorder WPL WP2210509 $28.80

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

38

WP487576 Whirlpool Washer In Stock WPL WP487576 $4.58

39

WP2156006 Whirlpool Refrigerator Shelf Trim E In Stock WPL WP2156006 $4.10

39

WP488163 Whirlpool Refrigerator Screw In Stock WPL WP488163 $3.70

39

CLIP, GRILLE WPL 2189356 Contact Us For Availability

40

WP488787 Whirlpool Refrigerator Screw Backorder WPL WP488787 $4.56

41

Grommet WPL 531933 Contact Us For Availability

42

2187382 Whirlpool Refrigerator Wire Harness Backorder WPL 2187382 $110.47

43

W11458267 Whirlpool Refrigerator Fan Blade In Stock WPL W11458267 $7.16

43

WP2195341 Whirlpool Refrigerator Pan Trim Backorder WPL WP2195341 $27.12

46

Tube, Discharge WPL 2205384 Contact Us For Availability

47

Tube, Suction WPL 2225237 Contact Us For Availability

48

2154109 Whirlpool Refrigerator Tube Backorder WPL 2154109 $33.89

8201826 Whirlpool Refrigerator Evaporator Tra In Stock WPL 8201826 $45.05

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

Following Parts Not Illustrated and Optional WPL ARI73063A9 Contact Us For Availability

REFRIGERANT CHARGE 4.0 Ozs. (R134A) WPL ARI73064A3 Contact Us For Availability

100

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $88.85
