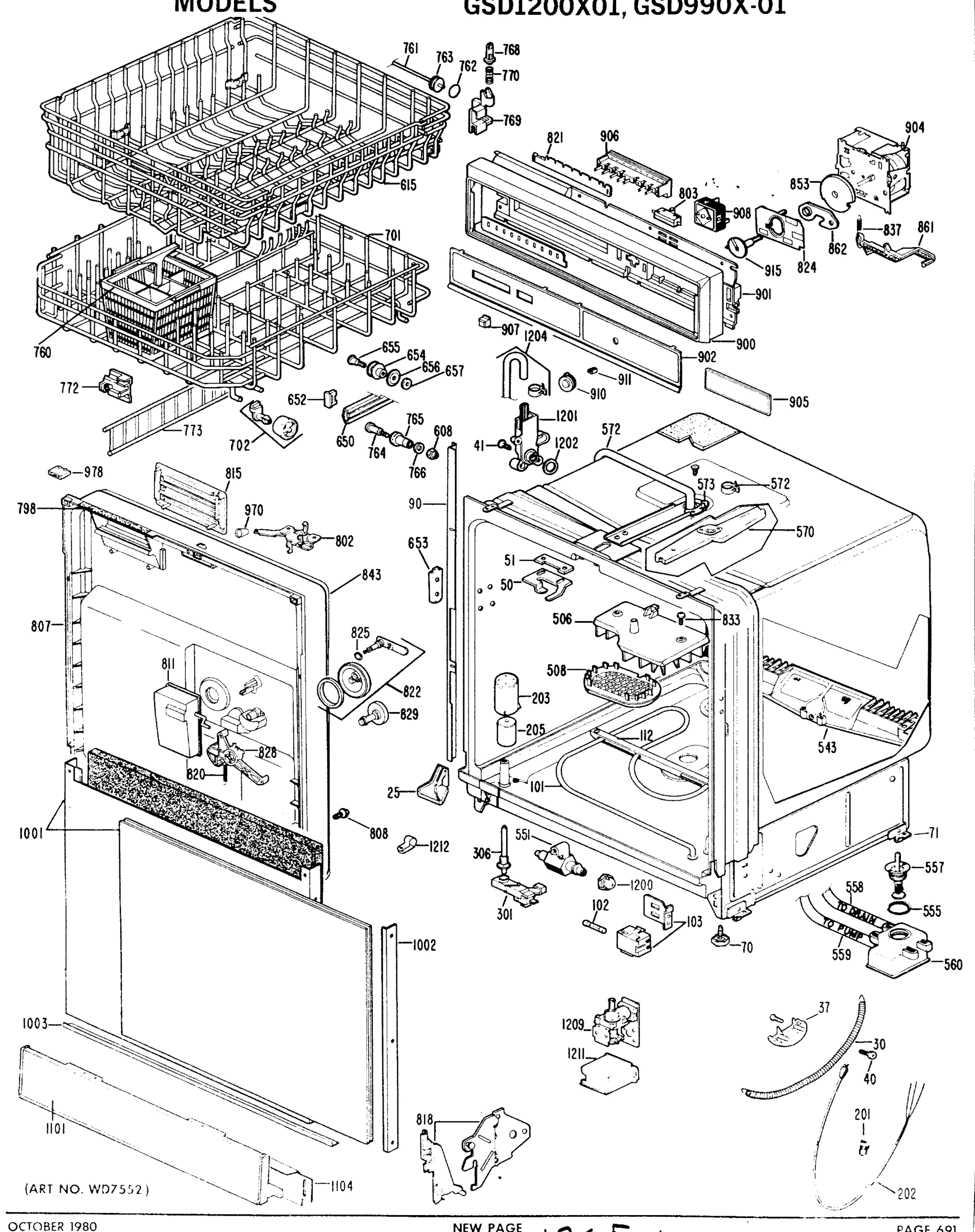

Model GE GSD990X-01 Dishwasher – Common Parts & Diagrams
0

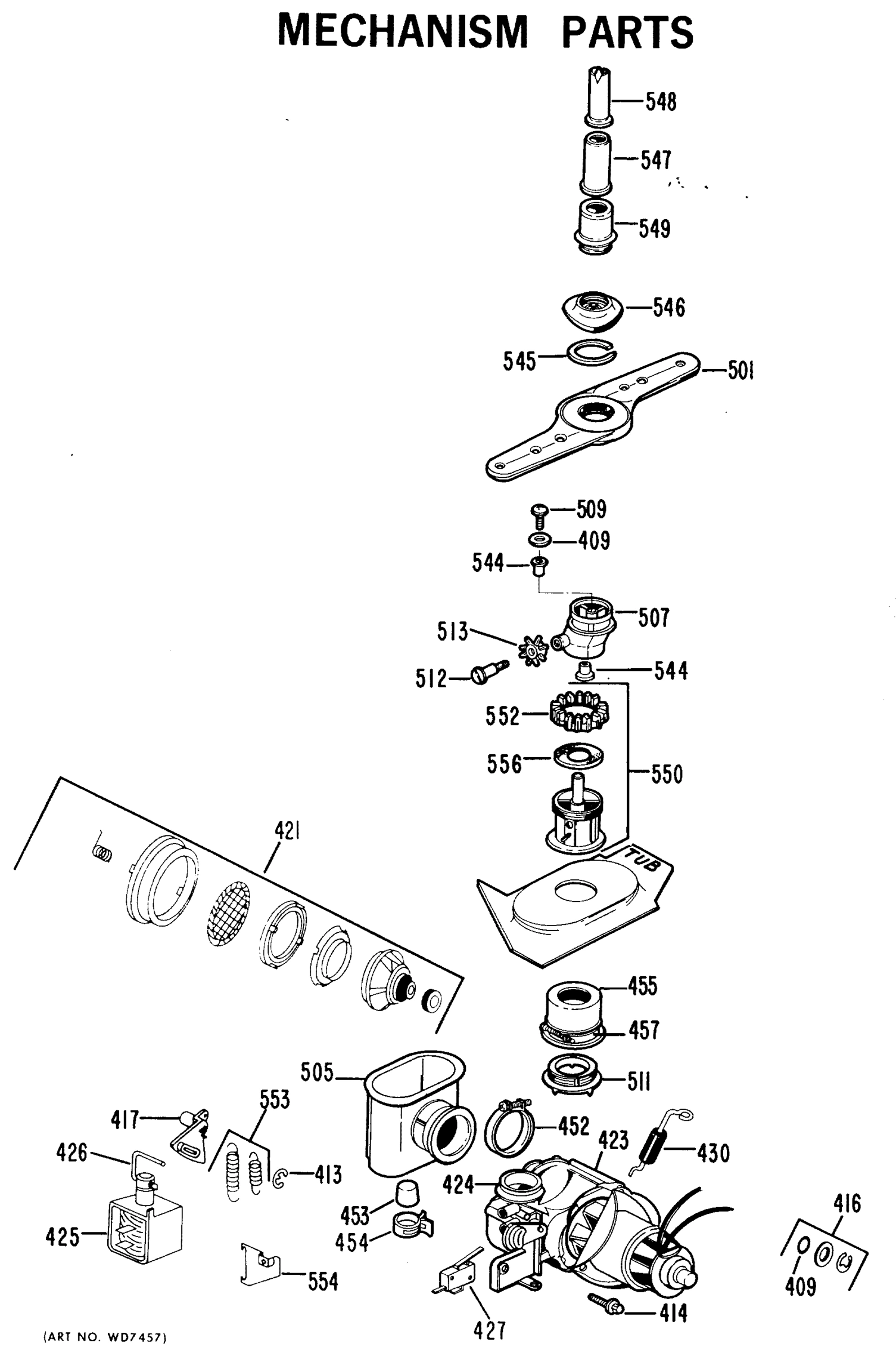

MECHANISM PARTS
Common parts from model GE GSD990X-01 Dishwasher
30
GEN WD01X1286 GEN WD01X1286 Contact Us For Availability
30
SPRING DOOR YELLOW-35 GEN WD01X1287 Contact Us For Availability
37
GEN WD12X0203 GEN WD12X0203 Contact Us For Availability
41
GEN WD02X0316 GEN WD02X0316 Contact Us For Availability
50
GEN WD13X0063 GEN WD13X0063 Contact Us For Availability
51
GEN WD13X0048 GEN WD13X0048 Contact Us For Availability
70
GEN WD02X0280 GEN WD02X0280 Contact Us For Availability
71
GEN WD03X0759 GEN WD03X0759 Contact Us For Availability
71
GEN WD03X0760 GEN WD03X0760 Contact Us For Availability
90
TRIM TUB FLANGE GEN WD34X0446 Contact Us For Availability
101
GEN WD01X1168 GEN WD01X1168 Contact Us For Availability
101
GEN WD01X1289 GEN WD01X1289 Contact Us For Availability
101
GEN WD05X0057 GEN WD05X0057 Contact Us For Availability
102
GEN WD06X0206 GEN WD06X0206 Contact Us For Availability
103
GEN WD06X0204 GEN WD06X0204 Contact Us For Availability
103
GEN WD06X0205 GEN WD06X0205 Contact Us For Availability
112
GEN WD01X1322 GEN WD01X1322 Contact Us For Availability
112
GEN WD03X0475 GEN WD03X0475 Contact Us For Availability
205
GEN WD12X0264 GEN WD12X0264 Contact Us For Availability
306
GEN WD12X0263 GEN WD12X0263 Contact Us For Availability
409
WASHER THRUST GEN WD01X1097 Contact Us For Availability
414
SCR 8-15 X 3/8 DL-A RNDR GEN WD02X5183 Contact Us For Availability
417
GEN WD12X0201 GEN WD12X0201 Contact Us For Availability
421
GEN WD17X0057 GEN WD17X0057 Contact Us For Availability
424
GEN WD19X0049 GEN WD19X0049 Contact Us For Availability
425
GEN WD01X1282 GEN WD01X1282 Contact Us For Availability
430
HANGER MECH GEN WD01X1184 Contact Us For Availability
430
TUBE HANGER GEN WD01X1185 Contact Us For Availability
430
GEN WD02X0282 GEN WD02X0282 Contact Us For Availability
430
SCREW HANGER GEN WD02X0291 Contact Us For Availability
453
PLUG TRAP GEN WD12X0268 Contact Us For Availability
455
GEN WD18X0193 GEN WD18X0193 Contact Us For Availability
506
GEN WD35X0173 GEN WD35X0173 Contact Us For Availability
507
GEAR HUB & PINION ASM GEN WD22X0101 Contact Us For Availability
509
SCREW GEN WD03X0707 Contact Us For Availability
511
GEN WD12X0270 GEN WD12X0270 Contact Us For Availability
512
SCREW SHOULDER GEN WD02X0314 Contact Us For Availability
512
WASHER PINION GEAR GEN WD02X5154 Contact Us For Availability
513
GEAR PINION GEN WD12X0301 Contact Us For Availability
543
FILTER FRAME ASM GEN WD22X0107 Contact Us For Availability
544
BEARING SPRAY ARM GEN WD12X0235 Contact Us For Availability
545
RING SPLIT GEN WD22X0103 Contact Us For Availability
546
ADAPTER POWER TOWER GEN WD22X0102 Contact Us For Availability
547
GEN WD22X0105 GEN WD22X0105 Contact Us For Availability
548
GEN WD00X0026 GEN WD00X0026 Contact Us For Availability
549
GEN WD22X0104 GEN WD22X0104 Contact Us For Availability
550
GEN WD22X0108 GEN WD22X0108 Contact Us For Availability
551
GEN WD12X0299 GEN WD12X0299 Contact Us For Availability
552
NUT GEAR GEN WD12X0300 Contact Us For Availability
554
GEN WD01X1283 GEN WD01X1283 Contact Us For Availability
555
GEN WD08X0219 GEN WD08X0219 Contact Us For Availability
556
GEN WD08X0021 GEN WD08X0021 Contact Us For Availability
558
GEN WD24X0197 GEN WD24X0197 Contact Us For Availability
559
GEN WD24X0198 GEN WD24X0198 Contact Us For Availability
560
GEN WD24X0196 GEN WD24X0196 Contact Us For Availability
570
GEN WD02X5181 GEN WD02X5181 Contact Us For Availability
572
POWER SHOWER HOSE GEN WD18X0194 Contact Us For Availability
573
GEN WD01X1007 GEN WD01X1007 Contact Us For Availability
608
GEN WD01X1292 GEN WD01X1292 Contact Us For Availability
608
GEN WD03X0678 GEN WD03X0678 Contact Us For Availability
609
GEN WD03X0682 GEN WD03X0682 Contact Us For Availability
615
GEN WD28X0231 GEN WD28X0231 Contact Us For Availability
652
GEN WD12X0113 GEN WD12X0113 Contact Us For Availability
653
GEN WD02X0273 GEN WD02X0273 Contact Us For Availability
654
GEN WD12X0273 GEN WD12X0273 Contact Us For Availability
655
GEN WD01X1275 GEN WD01X1275 Contact Us For Availability
656
GEN WD08X0207 GEN WD08X0207 Contact Us For Availability
657
GEN WD01X1276 GEN WD01X1276 Contact Us For Availability
701
GEN WD28X0232 GEN WD28X0232 Contact Us For Availability
761
GEN WD28X0233 GEN WD28X0233 Contact Us For Availability
762
GEN WD12X0279 GEN WD12X0279 Contact Us For Availability
763
GEN WD12X0280 GEN WD12X0280 Contact Us For Availability
764
GEN WD03X0747 GEN WD03X0747 Contact Us For Availability
765
GEN WD12X0281 GEN WD12X0281 Contact Us For Availability
765
GEN WD12X0282 GEN WD12X0282 Contact Us For Availability
766
GEN WD03X0748 GEN WD03X0748 Contact Us For Availability
768
GEN WD12X0314 GEN WD12X0314 Contact Us For Availability
768
GEN WD12X0315 GEN WD12X0315 Contact Us For Availability
769
GEN WD12X0316 GEN WD12X0316 Contact Us For Availability
769
GEN WD12X0317 GEN WD12X0317 Contact Us For Availability
770
GEN WD01X1279 GEN WD01X1279 Contact Us For Availability
772
GEN WD12X0298 GEN WD12X0298 Contact Us For Availability
773
GEN WD28X0234 GEN WD28X0234 Contact Us For Availability
798
GEN WD01X1278 GEN WD01X1278 Contact Us For Availability
802
GEN WD13X0065 GEN WD13X0065 Contact Us For Availability
803
GEN WD06X0207 GEN WD06X0207 Contact Us For Availability
807
GEN WD31X0285 GEN WD31X0285 Contact Us For Availability
815
GEN WD12X0289 GEN WD12X0289 Contact Us For Availability
818
GEN WD12X0231 GEN WD12X0231 Contact Us For Availability
818
GEN WD14X0078 GEN WD14X0078 Contact Us For Availability
818
GEN WD14X0079 GEN WD14X0079 Contact Us For Availability
820
GEN WD03X0746 GEN WD03X0746 Contact Us For Availability
821
GEN WD12X0322 GEN WD12X0322 Contact Us For Availability
822
GEN WD16X0278 GEN WD16X0278 Contact Us For Availability
824
GEN WD12X0294 GEN WD12X0294 Contact Us For Availability
825
GEN WD08X0208 GEN WD08X0208 Contact Us For Availability
828
GEN WD16X0275 GEN WD16X0275 Contact Us For Availability
837
GEN WD03X0749 GEN WD03X0749 Contact Us For Availability
853
GEN WD12X0292 GEN WD12X0292 Contact Us For Availability
853
GEN WD16X0276 GEN WD16X0276 Contact Us For Availability
862
GEN WD12X0295 GEN WD12X0295 Contact Us For Availability
900
GEN WD34X0498 GEN WD34X0498 Contact Us For Availability
901
GEN WD34X0538 GEN WD34X0538 Contact Us For Availability
902
GEN WD34X0496 GEN WD34X0496 Contact Us For Availability
903
GEN WD02X0279 GEN WD02X0279 Contact Us For Availability
904
GEN WD03X0441 GEN WD03X0441 Contact Us For Availability
904
GEN WD21X0469 GEN WD21X0469 Contact Us For Availability
904
GEN WD21X0497 GEN WD21X0497 Contact Us For Availability
906
GEN WD12X0302 GEN WD12X0302 Contact Us For Availability
906
GEN WD21 GEN WD21 Contact Us For Availability
× ![]()
