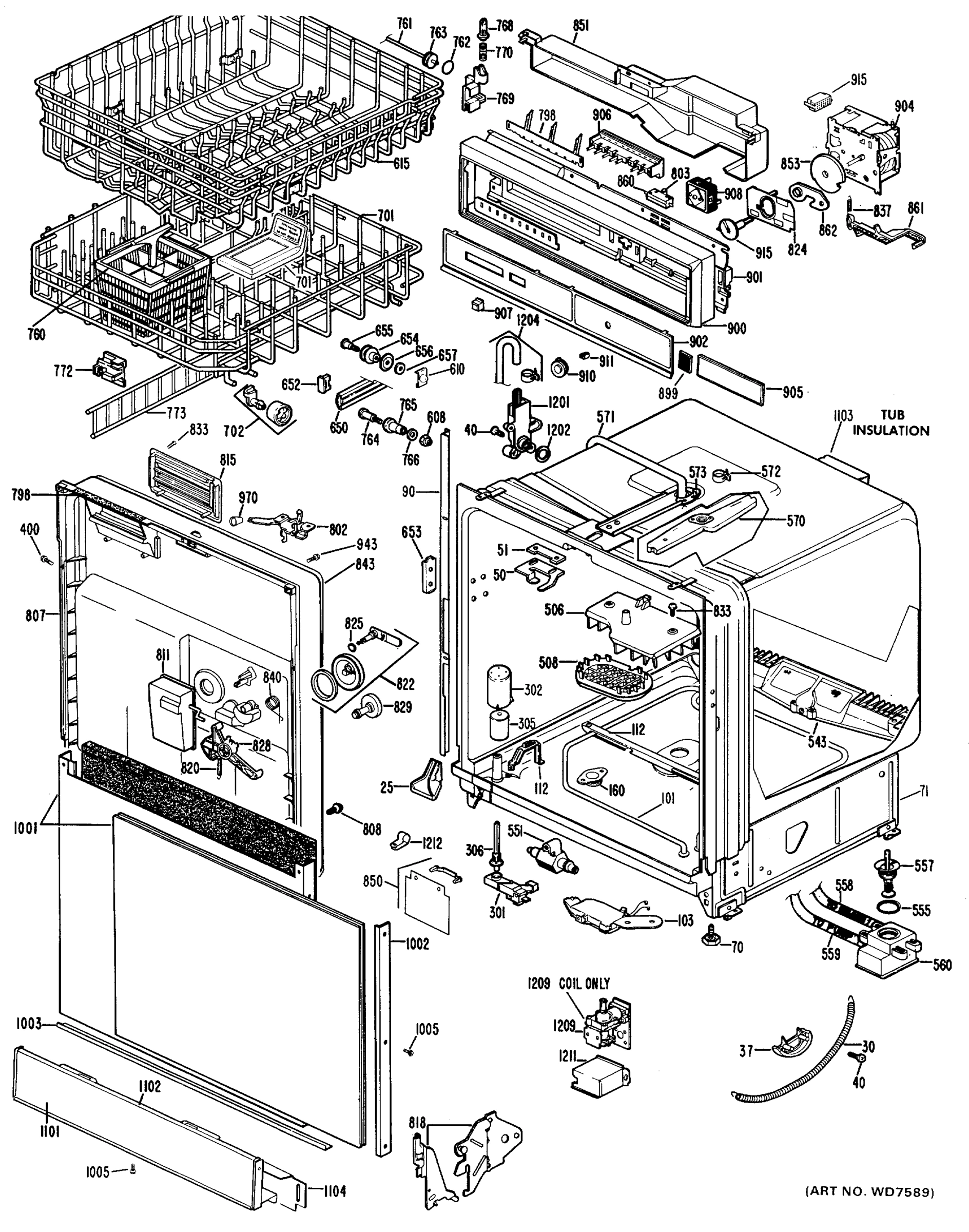

Model GE GSD900T-02 Dishwasher – Common Parts & Diagrams
0

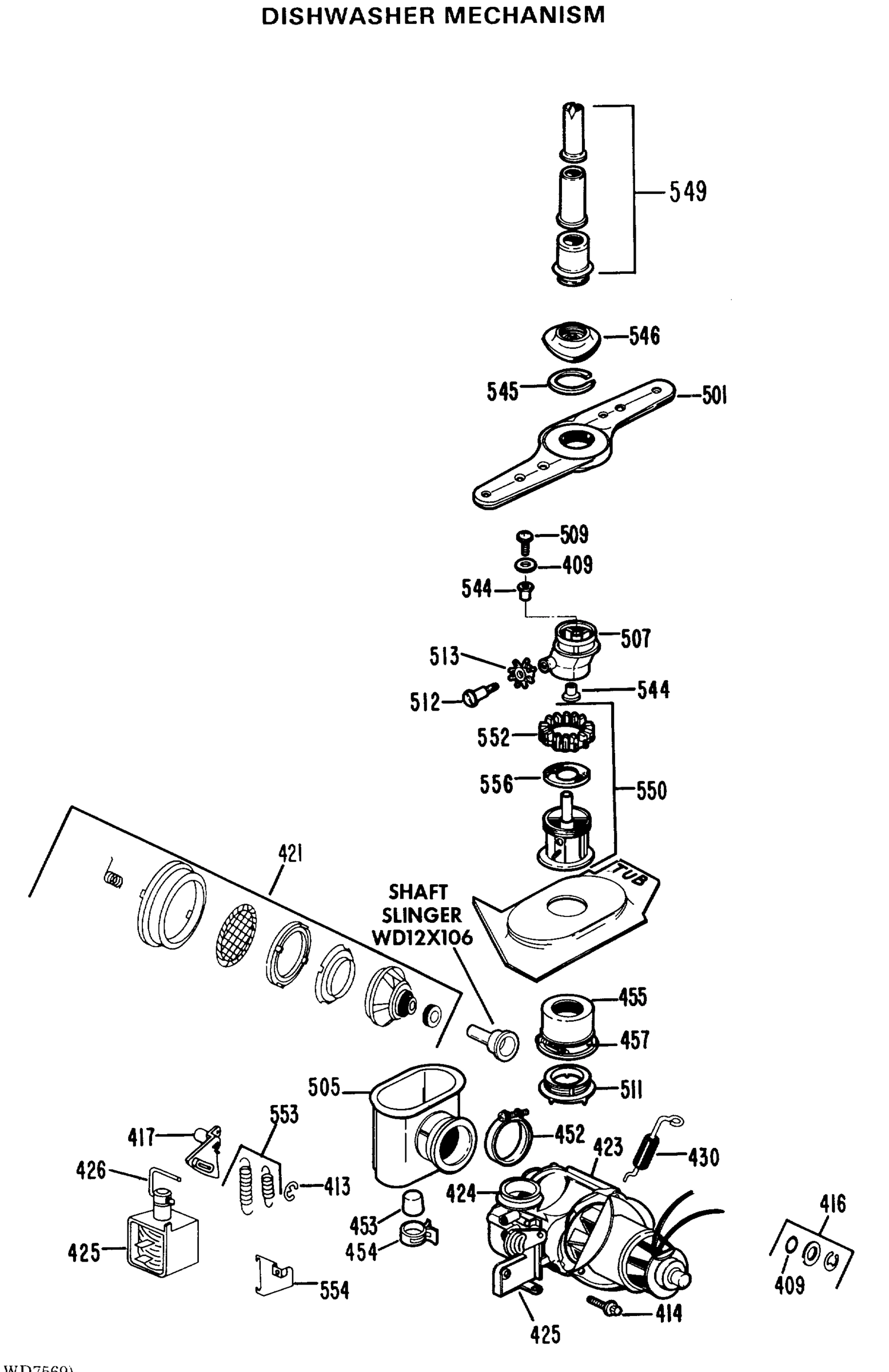

DISHWASHER MECHANISM
Common parts from model GE GSD900T-02 Dishwasher
1
GEN 31-3431 GEN 31-3431 Contact Us For Availability
1
GEN 31-3644 GEN 31-3644 Contact Us For Availability
30
SPRING DOOR YELLOW-35 GEN WD01X1287 Contact Us For Availability
37
GEN WD12X0203 GEN WD12X0203 Contact Us For Availability
41
GEN WD02X0316 GEN WD02X0316 Contact Us For Availability
50
GEN WD13X0063 GEN WD13X0063 Contact Us For Availability
51
GEN WD13X0048 GEN WD13X0048 Contact Us For Availability
70
GEN WD02X0280 GEN WD02X0280 Contact Us For Availability
71
GEN WD03X0759 GEN WD03X0759 Contact Us For Availability
71
GEN WD03X0760 GEN WD03X0760 Contact Us For Availability
101
GEN WD01X1168 GEN WD01X1168 Contact Us For Availability
101
GEN WD01X1289 GEN WD01X1289 Contact Us For Availability
101
GEN WD05X0060 GEN WD05X0060 Contact Us For Availability
101
GEN WD08X0218 GEN WD08X0218 Contact Us For Availability
103
GEN WD21X0522 GEN WD21X0522 Contact Us For Availability
112
GEN WD01X1331 GEN WD01X1331 Contact Us For Availability
112
GEN WD01X1332 GEN WD01X1332 Contact Us For Availability
160
RECEPTACLE THERMOSTAT GEN WD01X1169 Contact Us For Availability
160
GEN WD21X0515 GEN WD21X0515 Contact Us For Availability
409
GEN WD01X1097 GEN WD01X1097 Contact Us For Availability
414
MOTOR-PUMP HGS SCREW GEN WD02X5183 Contact Us For Availability
417
GATE VALVE ARM GEN WD12X0201 Contact Us For Availability
421
IMPELLER & SEAL ASM GEN WD17X0057 Contact Us For Availability
424
GEN WD19X0042 GEN WD19X0042 Contact Us For Availability
425
SOLENOID BRACKET GEN WD01X1282 Contact Us For Availability
430
HANGER MECH GEN WD01X1184 Contact Us For Availability
430
TUBE HANGER GEN WD01X1185 Contact Us For Availability
430
U TYPE FASTENER GEN WD02X0282 Contact Us For Availability
430
SCR 10-16X.480 GEN WD02X0291 Contact Us For Availability
455
GEN WD18X0193 GEN WD18X0193 Contact Us For Availability
506
GEN WD35X0173 GEN WD35X0173 Contact Us For Availability
507
GEAR HUB & PINION ASM GEN WD22X0101 Contact Us For Availability
509
GEN WD03X0707 GEN WD03X0707 Contact Us For Availability
511
SPRAY ARM SUPPORT NUT GEN WD12X0270 Contact Us For Availability
512
SCR 10-16X.50C GEN WD02X0314 Contact Us For Availability
512
WASHER PINION GEAR GEN WD02X5154 Contact Us For Availability
513
GEAR PINION GEN WD12X0301 Contact Us For Availability
543
FILTER FRAME ASM GEN WD22X0107 Contact Us For Availability
544
GEN WD12X0235 GEN WD12X0235 Contact Us For Availability
545
RING SPLIT GEN WD22X0103 Contact Us For Availability
549
GEN WD22X0120 GEN WD22X0120 Contact Us For Availability
550
GEN WD22X0108 GEN WD22X0108 Contact Us For Availability
551
GEN WD12X0299 GEN WD12X0299 Contact Us For Availability
552
GEN WD12X0300 GEN WD12X0300 Contact Us For Availability
554
SPRING PLATE GEN WD01X1283 Contact Us For Availability
555
GEN WD08X0219 GEN WD08X0219 Contact Us For Availability
556
TEFLON SEAL GEN WD08X0210 Contact Us For Availability
558
GEN WD24X0197 GEN WD24X0197 Contact Us For Availability
559
GEN WD24X0198 GEN WD24X0198 Contact Us For Availability
560
GEN WD24X0196 GEN WD24X0196 Contact Us For Availability
570
GEN WD02X5181 GEN WD02X5181 Contact Us For Availability
571
POWER SHOWER HOSE GEN WD18X0194 Contact Us For Availability
573
GEN WD01X1007 GEN WD01X1007 Contact Us For Availability
608
GEN WD03X0678 GEN WD03X0678 Contact Us For Availability
609
GEN WD03X0682 GEN WD03X0682 Contact Us For Availability
652
GEN WD12X0113 GEN WD12X0113 Contact Us For Availability
653
GEN WD02X0273 GEN WD02X0273 Contact Us For Availability
654
GEN WD12X0273 GEN WD12X0273 Contact Us For Availability
655
GEN WD01X1275 GEN WD01X1275 Contact Us For Availability
656
GEN WD08X0207 GEN WD08X0207 Contact Us For Availability
657
GEN WD01X1276 GEN WD01X1276 Contact Us For Availability
701
RACK LOWER ROLLER GEN WD28X0248 Contact Us For Availability
764
GEN WD03X0747 GEN WD03X0747 Contact Us For Availability
765
GEN WD12X0281 GEN WD12X0281 Contact Us For Availability
765
GEN WD12X0282 GEN WD12X0282 Contact Us For Availability
766
GEN WD03X0748 GEN WD03X0748 Contact Us For Availability
802
GEN WD13X0066 GEN WD13X0066 Contact Us For Availability
803
GEN WD06X0207 GEN WD06X0207 Contact Us For Availability
807
GEN WD31X0297 GEN WD31X0297 Contact Us For Availability
808
GEN WZ04X0248 GEN WZ04X0248 Contact Us For Availability
818
GEN WD12X0231 GEN WD12X0231 Contact Us For Availability
822
GEN WD16X0278 GEN WD16X0278 Contact Us For Availability
837
GEN WD03X0749 GEN WD03X0749 Contact Us For Availability
850
GEN WD12X0338 GEN WD12X0338 Contact Us For Availability
851
GEN WD12X0275 GEN WD12X0275 Contact Us For Availability
853
GEN WD16X0293 GEN WD16X0293 Contact Us For Availability
853
GEN WD16X0294 GEN WD16X0294 Contact Us For Availability
900
GEN WD34X0498 GEN WD34X0498 Contact Us For Availability
901
GEN WD34X0538 GEN WD34X0538 Contact Us For Availability
903
GEN WD02X0279 GEN WD02X0279 Contact Us For Availability
904
GEN WD03X0441 GEN WD03X0441 Contact Us For Availability
904
GEN WD21X0523 GEN WD21X0523 Contact Us For Availability
904
GEN WD21X0546 GEN WD21X0546 Contact Us For Availability
906
GEN WD12X0302 GEN WD12X0302 Contact Us For Availability
906
GEN WD21X0526 GEN WD21X0526 Contact Us For Availability
907
GEN WD09X0206 GEN WD09X0206 Contact Us For Availability
908
GEN WD21X0516 GEN WD21X0516 Contact Us For Availability
910
GEN WD09X0190 GEN WD09X0190 Contact Us For Availability
911
GEN WD01X0944 GEN WD01X0944 Contact Us For Availability
915
GEN WD01X1258 GEN WD01X1258 Contact Us For Availability
915
GEN WD01X1262 GEN WD01X1262 Contact Us For Availability
943
GEN WD02X0296 GEN WD02X0296 Contact Us For Availability
970
GEN WD09X5162 GEN WD09X5162 Contact Us For Availability
970
GEN WZ02X0045 GEN WZ02X0045 Contact Us For Availability
1000
GEN WD02X0303 GEN WD02X0303 Contact Us For Availability
1001
GEN WD27X0468 GEN WD27X0468 Contact Us For Availability
1001
GEN WD27X0498 GEN WD27X0498 Contact Us For Availability
1001
GEN WD31X030 GEN WD31X030 Contact Us For Availability
× ![]()
