Model GE GSD400W-07 Dishwasher – Common Parts & Diagrams

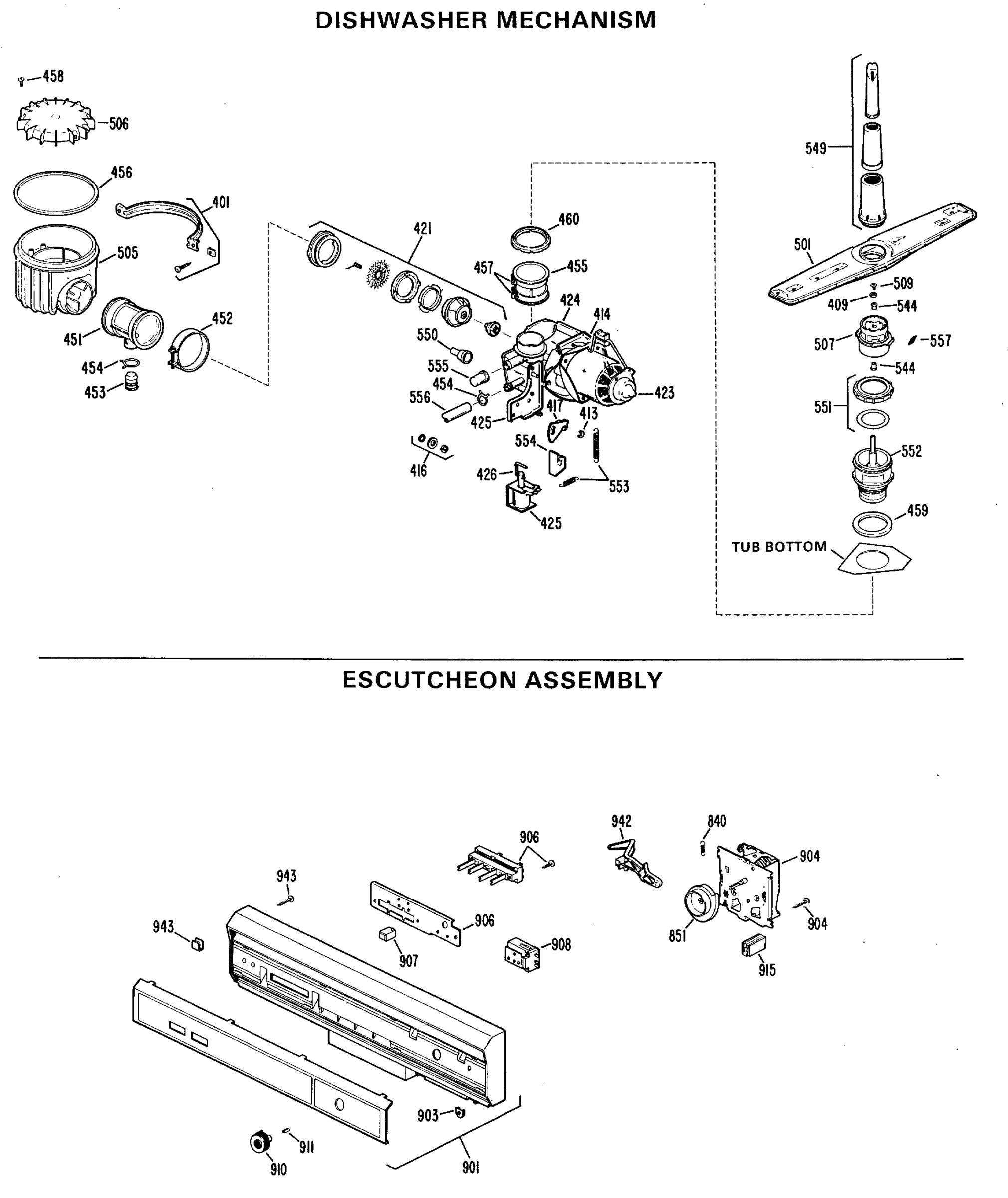

ESCUTHEON ASSEMBLY

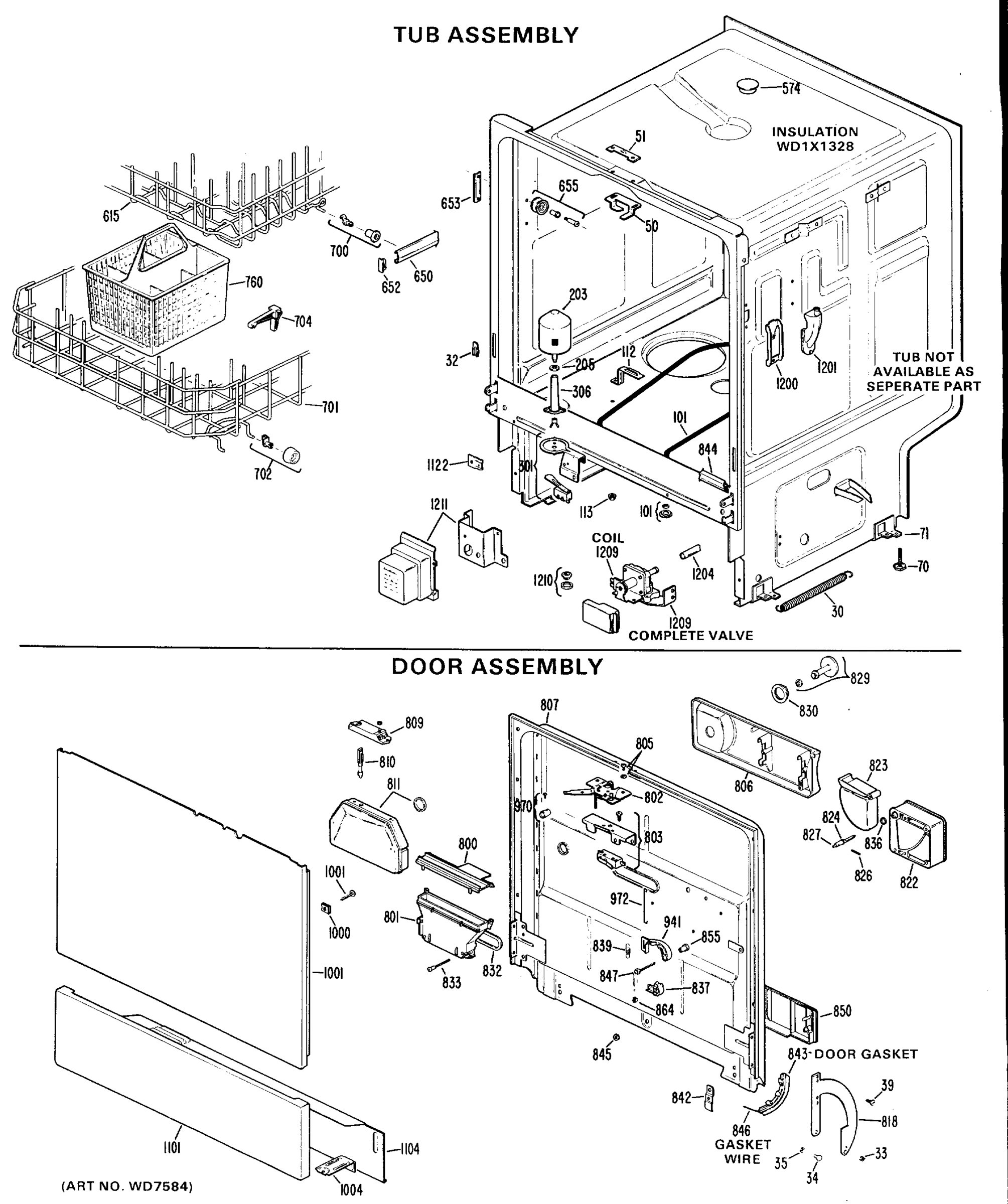

TUB ASSEMBLY
Common parts from model GE GSD400W-07 Dishwasher
30
GEN WD01X0950 GEN WD01X0950 Contact Us For Availability
32
GEN WD01X1144 GEN WD01X1144 Contact Us For Availability
33
GEN WD01X0940 GEN WD01X0940 Contact Us For Availability
34
GEN WD01X0893 GEN WD01X0893 Contact Us For Availability
35
GEN WD12X0192 GEN WD12X0192 Contact Us For Availability
50
GEN WD13X0053 GEN WD13X0053 Contact Us For Availability
51
GEN WD13X0048 GEN WD13X0048 Contact Us For Availability
70
GEN WD01X1130 GEN WD01X1130 Contact Us For Availability
71
GEN WD03X0758 GEN WD03X0758 Contact Us For Availability
101
GEN WD03X0723 GEN WD03X0723 Contact Us For Availability
101
GEN WD03X0724 GEN WD03X0724 Contact Us For Availability
101
GEN WD03X0725 GEN WD03X0725 Contact Us For Availability
101
GEN WD05X0059 GEN WD05X0059 Contact Us For Availability
112
GEN WD03X0762 GEN WD03X0762 Contact Us For Availability
113
GEN WZ07X0031 GEN WZ07X0031 Contact Us For Availability
203
GEN WD12X0178 GEN WD12X0178 Contact Us For Availability
205
GEN WD08X0155 GEN WD08X0155 Contact Us For Availability
306
GEN WD18X0167 GEN WD18X0167 Contact Us For Availability
401
SUMP MOUNTING CLAMP GEN WD01X1326 Contact Us For Availability
409
GEN WD01X1097 GEN WD01X1097 Contact Us For Availability
414
MOTOR-PUMP HGS SCREW GEN WD02X5183 Contact Us For Availability
417
GATE VALVE ARM GEN WD12X0201 Contact Us For Availability
421
IMPELLER & SEAL ASM GEN WD17X0057 Contact Us For Availability
424
GEN WD19X0042 GEN WD19X0042 Contact Us For Availability
425
SOLENOID MOUNTING PLATE GEN WD01X1282 Contact Us For Availability
451
GEN WD18X1080 GEN WD18X1080 Contact Us For Availability
453
TRAP PLUG GEN WD12X0109 Contact Us For Availability
455
SPRAY ARM TUBE GEN WD18X0175 Contact Us For Availability
456
SUMP GASKET GEN WD08X0179 Contact Us For Availability
458
SUMP COVER SCREW GEN WD02X0275 Contact Us For Availability
459
SPRAY BASE GASKET GEN WD08X5093 Contact Us For Availability
460
SPRAY BASE NUT GEN WD03X0627 Contact Us For Availability
501
SPRAY ARM GEN WD22X5056 Contact Us For Availability
505
GEN WD12X0248 GEN WD12X0248 Contact Us For Availability
506
SUMP COVER GEN WD12X0313 Contact Us For Availability
507
HUB & BEARING ASM GEN WD22X0089 Contact Us For Availability
509
GEN WD03X0707 GEN WD03X0707 Contact Us For Availability
544
GEN WD12X0235 GEN WD12X0235 Contact Us For Availability
549
GEN WD22X0120 GEN WD22X0120 Contact Us For Availability
550
SHAFT PROTECTOR GEN WD12X0106 Contact Us For Availability
551
SEAL & NUT KIT GEN WD19X0044 Contact Us For Availability
552
SPRAY ARM SUPPORT GEN WD22X0114 Contact Us For Availability
554
SPRING PLATE GEN WD01X1283 Contact Us For Availability
555
GEN WD01X5405 GEN WD01X5405 Contact Us For Availability
556
DRAIN HOSE GEN WD24X0205 Contact Us For Availability
557
CHECK VALVE GEN WD01X5488 Contact Us For Availability
574
GEN WD01X1245 GEN WD01X1245 Contact Us For Availability
615
GEN WD28X0220 GEN WD28X0220 Contact Us For Availability
650
GEN WD30X0084 GEN WD30X0084 Contact Us For Availability
652
GEN WD12X0113 GEN WD12X0113 Contact Us For Availability
653
GEN WD02X0273 GEN WD02X0273 Contact Us For Availability
655
GEN WD12X0304 GEN WD12X0304 Contact Us For Availability
700
GEN WD12X0118 GEN WD12X0118 Contact Us For Availability
701
GEN WD28X0229 GEN WD28X0229 Contact Us For Availability
702
GEN WD12X0258 GEN WD12X0258 Contact Us For Availability
704
GEN WD28X0239 GEN WD28X0239 Contact Us For Availability
800
GEN WD12X0198 GEN WD12X0198 Contact Us For Availability
801
GEN WD12X0197 GEN WD12X0197 Contact Us For Availability
802
GEN WD13X0062 GEN WD13X0062 Contact Us For Availability
803
GEN WD01X0183 GEN WD01X0183 Contact Us For Availability
803
GEN WD01X1146 GEN WD01X1146 Contact Us For Availability
803
GEN WD01X5468 GEN WD01X5468 Contact Us For Availability
805
GEN WD01X1228 GEN WD01X1228 Contact Us For Availability
805
GEN WZ02X0471 GEN WZ02X0471 Contact Us For Availability
806
GEN WD30X0095 GEN WD30X0095 Contact Us For Availability
807
GEN WD31X0293 GEN WD31X0293 Contact Us For Availability
818
GEN WD14X0062 GEN WD14X0062 Contact Us For Availability
822
GEN WD03X0698 GEN WD03X0698 Contact Us For Availability
823
GEN WD16X0252 GEN WD16X0252 Contact Us For Availability
824
GEN WD08X5101 GEN WD08X5101 Contact Us For Availability
826
GEN WD01X1128 GEN WD01X1128 Contact Us For Availability
827
GEN WD16X0283 GEN WD16X0283 Contact Us For Availability
832
GEN WD08X0180 GEN WD08X0180 Contact Us For Availability
836
GEN WD01X0781 GEN WD01X0781 Contact Us For Availability
837
GEN WD12X0027 GEN WD12X0027 Contact Us For Availability
839
GEN WD02X0266 GEN WD02X0266 Contact Us For Availability
840
DETERGENT SPRING GEN WD12X0200 Contact Us For Availability
842
GEN WD03X0674 GEN WD03X0674 Contact Us For Availability
843
GEN WD08X0221 GEN WD08X0221 Contact Us For Availability
844
GEN WD08X0204 GEN WD08X0204 Contact Us For Availability
845
GEN WD01X0981 GEN WD01X0981 Contact Us For Availability
846
GEN WD01X1312 GEN WD01X1312 Contact Us For Availability
847
GEN WD03X0754 GEN WD03X0754 Contact Us For Availability
850
GEN WD12X0176 GEN WD12X0176 Contact Us For Availability
851
TIMER CAM GEN WD16X0279 Contact Us For Availability
855
GEN WD12X0117 GEN WD12X0117 Contact Us For Availability
864
GEN WD01X1030 GEN WD01X1030 Contact Us For Availability
901
ESCUTCHEON & INSERT ASM GEN WD34X0550 Contact Us For Availability
903
TIMER FASTENER GEN WD02X0279 Contact Us For Availability
903
TIMER MOUNTING SCREW GEN WZ04X0309 Contact Us For Availability
904
MOUNTING SCREW GEN WD03X0441 Contact Us For Availability
904
TIMER CONTROL GEN WD21X0504 Contact Us For Availability
906
GEN WD21X0471 GEN WD21X0471 Contact Us For Availability
907
GEN WD09X0207 GEN WD09X0207 Contact Us For Availability
910
TIMER CONTROL KNOB GEN WD09X0211 Contact Us For Availability
915
TIMER TERMINAL BLOCK GEN WD01X1258 Contact Us For Availability
915
TIMER TERMINALS (DOZ) GEN WD01X1262 Contact Us For Availability
941
GEN WD12X0311 GEN WD12X0311 Contact Us For Availability
942
VENT LEVER GEN WD12X0199 Contact Us For Availability
943
GEN WD02X0424 GEN WD02X0424 Contact Us For Availability
970
GEN WD09X5162 GEN WD09X5162 Contact Us For Availability
970
GEN WZ02X0045 GEN WZ02X0045 Contact Us For Availability
972
GEN WD01X1299 GEN WD01X1299 Contact Us For Availability
1000
GEN WD02X0303 GEN WD02X0303 Contact Us For Availability
1001
GEN WD02X0204 GEN WD02X0204 Contact Us For Availability
1001
GEN WD27X0429 GEN WD27X0429 Contact Us For Availability
1001
GEN WD27X0430 GEN WD27X0430 Contact Us For Availability
1001
GEN WD27X0431 GEN WD27X0431 Contact Us For Availability
1001
GEN WD27X0432 GEN WD27X0432 Contact Us For Availability
1001
GEN WD27X0433 GEN WD27X0433 Contact Us For Availability
1004
GEN WD35X0097 GEN WD35X0097 Contact Us For Availability
1101
GEN WD27X0434 GEN WD27X0434 Contact Us For Availability
1101
GEN WD27X0435 GEN WD27X0435 Contact Us For Availability
1101
GEN WD27X0436 GEN WD27X0436 Contact Us For Availability
1101
GEN WD27X0437 GEN WD27X0437 Contact Us For Availability
1101
GEN WD27X0438 GEN WD27X0438 Contact Us For Availability
1101
GEN WZ05X0222 GEN WZ05X0222 Contact Us For Availability
1104
GEN WD27X0486 GEN WD27X0486 Contact Us For Availability
1122
GEN WD02X0276 GEN WD02X0276 Contact Us For Availability
1200
GEN WD01X1105 GEN WD01X1105 Contact Us For Availability
1201
GEN WD12X0018 GEN WD12X0018 Contact Us For Availability
1204
GEN WD24X0182 GEN WD24X0182 Contact Us For Availability
1210
GEN WD10X0327 GEN WD10X0327 Contact Us For Availability
1211
GEN WD01X1317 GEN WD01X1317 Contact Us For Availability
1211
GEN WD01X1320 GEN WD01X1320 Contact Us For Availability
1211
GEN WZ05X0235 GEN WZ05X0235 Contact Us For Availability
1212
GEN WD01X1102 GEN WD01X1102 Contact Us For Availability
× ![]()
