Model GE GSD1130L03 – Common Parts & Diagrams
0
1
2

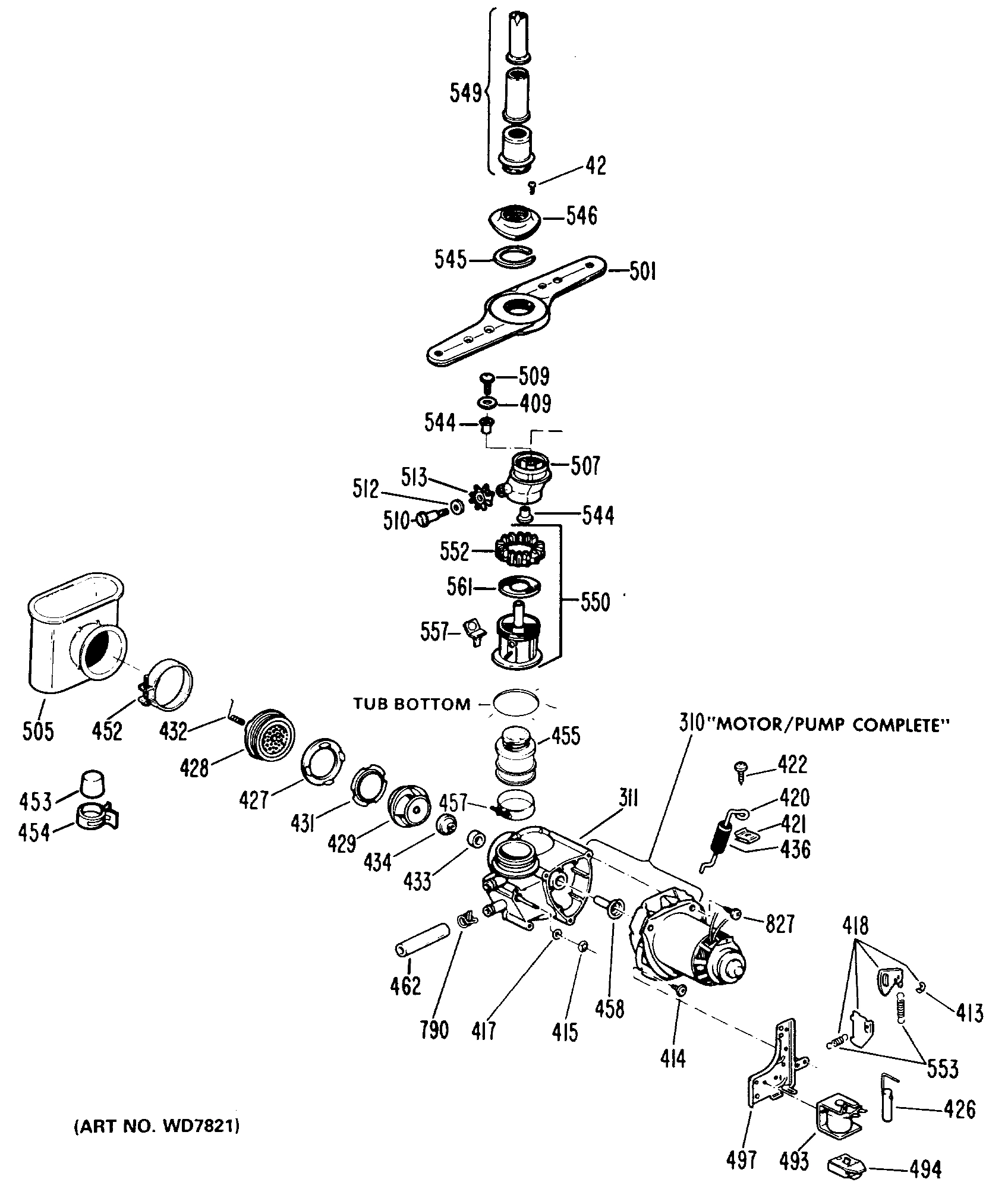

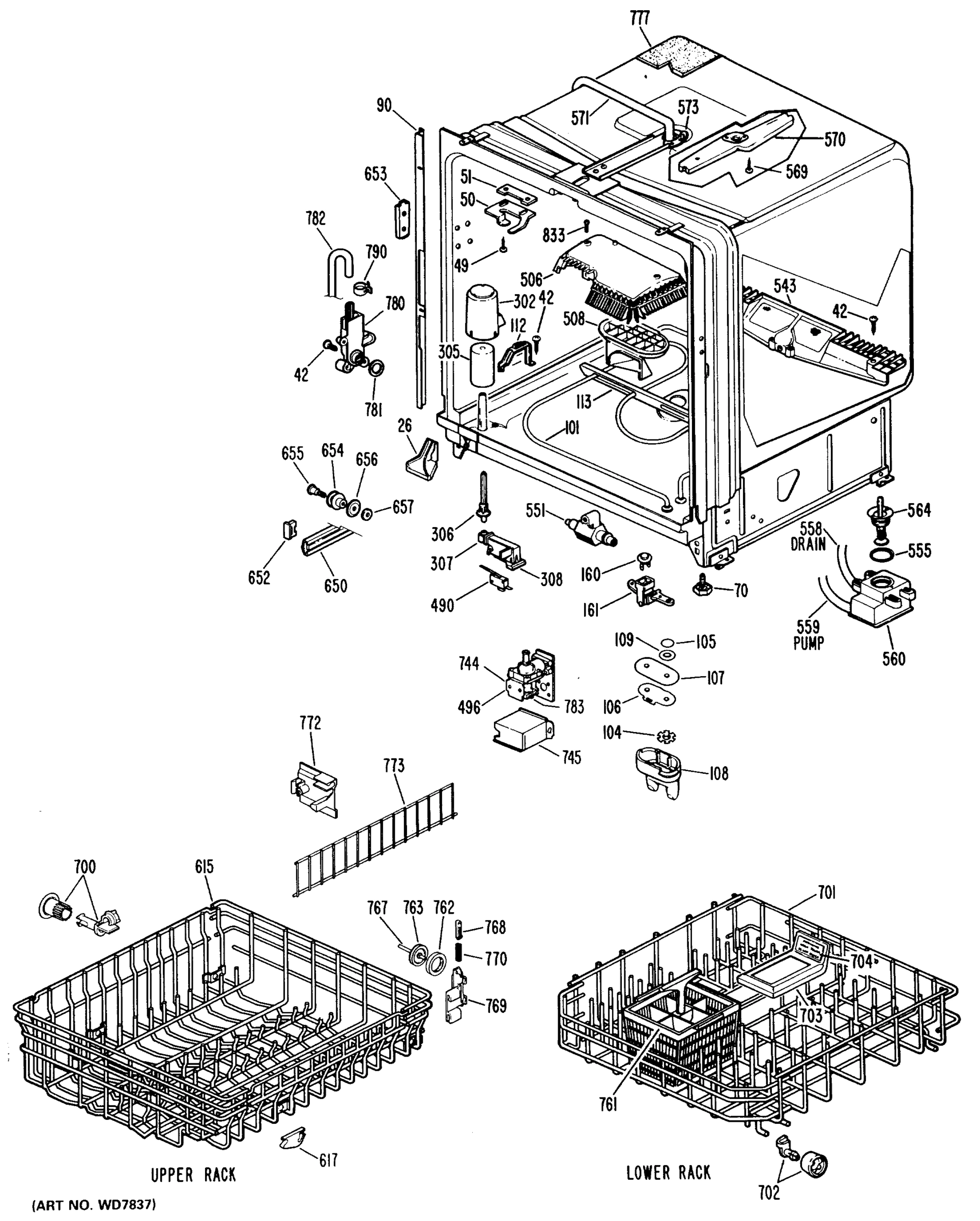

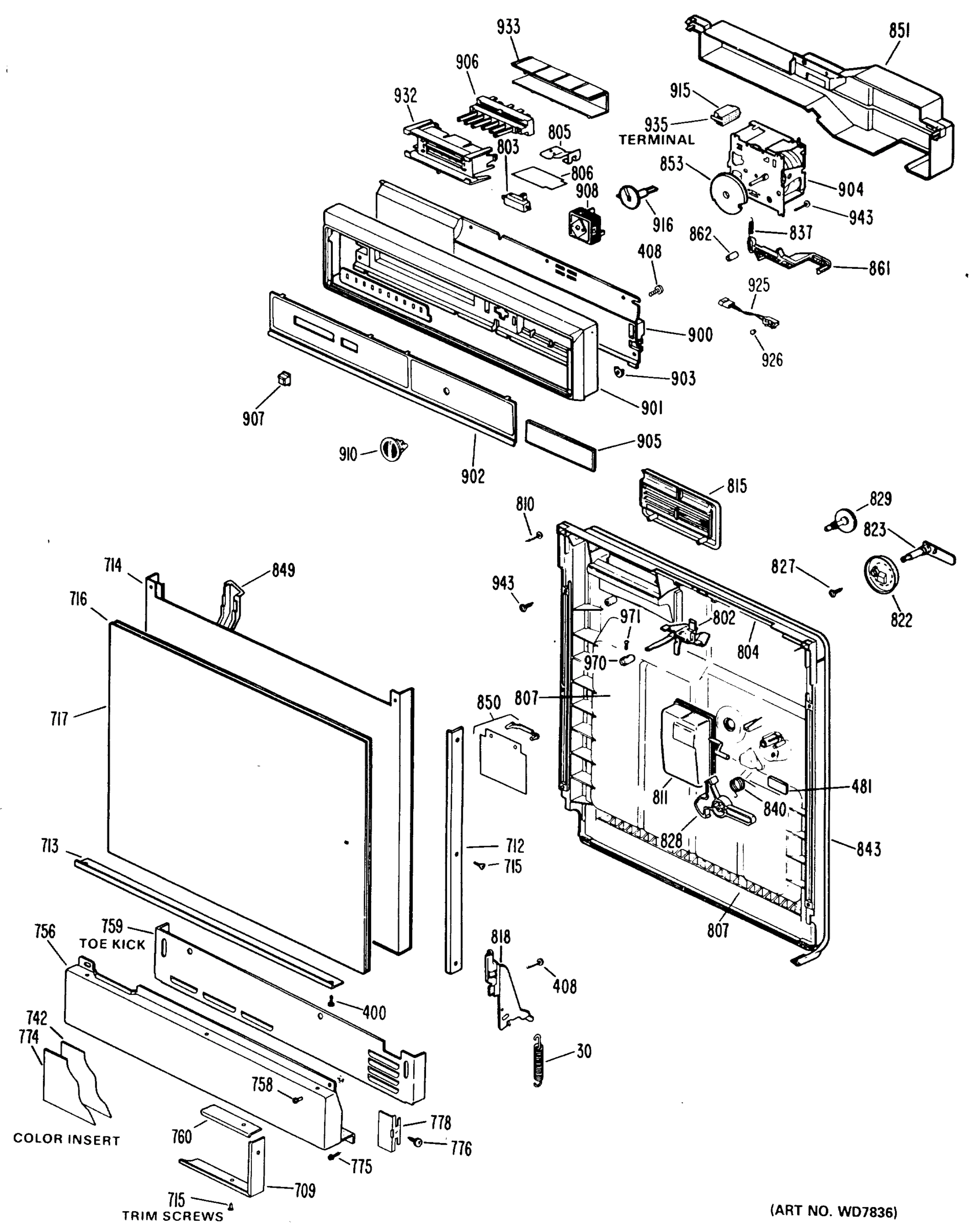

Common parts from model GE GSD1130L03
30
GEN WD01X1411 GEN WD01X1411 Contact Us For Availability
49
GEN WD03X0441 GEN WD03X0441 Contact Us For Availability
50
KEEPER LATCH GEN WD13X0063 Contact Us For Availability
51
GEN WD13X0048 GEN WD13X0048 Contact Us For Availability
70
GEN WD02X0280 GEN WD02X0280 Contact Us For Availability
104
GEN WD01X1289 GEN WD01X1289 Contact Us For Availability
105
GEN WD01X1168 GEN WD01X1168 Contact Us For Availability
106
GEN WD01X1350 GEN WD01X1350 Contact Us For Availability
107
GEN WD01X1351 GEN WD01X1351 Contact Us For Availability
108
GEN WD01X1352 GEN WD01X1352 Contact Us For Availability
109
GEN WD08X0225 GEN WD08X0225 Contact Us For Availability
112
FRONT HEATER SUPPORT GEN WD01X1332 Contact Us For Availability
113
REAR HEATER SUPPORT GEN WD01X1331 Contact Us For Availability
160
GEN WD21X0575 GEN WD21X0575 Contact Us For Availability
161
RECEPTACLE THERMOSTAT GEN WD01X1169 Contact Us For Availability
308
SWITCH BRACKET COVER GEN WD12X0377 Contact Us For Availability
311
GEN WD19X0042 GEN WD19X0042 Contact Us For Availability
408
GEN WD02X0296 GEN WD02X0296 Contact Us For Availability
409
GEN WD01X1097 GEN WD01X1097 Contact Us For Availability
418
GEN WD35X0190 GEN WD35X0190 Contact Us For Availability
420
GEN WD01X1184 GEN WD01X1184 Contact Us For Availability
421
GEN WC01X0177 GEN WC01X0177 Contact Us For Availability
422
GEN WD02X0291 GEN WD02X0291 Contact Us For Availability
427
GEN WD12X0354 GEN WD12X0354 Contact Us For Availability
428
GEN WD12X0378 GEN WD12X0378 Contact Us For Availability
429
GEN WD19X0053 GEN WD19X0053 Contact Us For Availability
431
GEN WD01X1341 GEN WD01X1341 Contact Us For Availability
432
GEN WD01X1339 GEN WD01X1339 Contact Us For Availability
433
GEN WD19X0051 GEN WD19X0051 Contact Us For Availability
434
GEN WD19X0052 GEN WD19X0052 Contact Us For Availability
436
GEN WD01X1185 GEN WD01X1185 Contact Us For Availability
455
CONNECTOR PUMP ASM GEN WD18X0206 Contact Us For Availability
458
GEN WD12X0106 GEN WD12X0106 Contact Us For Availability
481
GEN WD01X1348 GEN WD01X1348 Contact Us For Availability
494
GEN WD12X0350 GEN WD12X0350 Contact Us For Availability
496
GEN WD12X0349 GEN WD12X0349 Contact Us For Availability
497
GEN WD01X1282 GEN WD01X1282 Contact Us For Availability
507
GEN WD22X0101 GEN WD22X0101 Contact Us For Availability
509
GEN WD03X0707 GEN WD03X0707 Contact Us For Availability
510
GEN WD02X0314 GEN WD02X0314 Contact Us For Availability
512
GEN WD02X5154 GEN WD02X5154 Contact Us For Availability
513
GEN WD12X0301 GEN WD12X0301 Contact Us For Availability
543
GEN WD22X0107 GEN WD22X0107 Contact Us For Availability
544
GEN WD12X0235 GEN WD12X0235 Contact Us For Availability
545
GEN WD22X0103 GEN WD22X0103 Contact Us For Availability
546
GEN WD22X0102 GEN WD22X0102 Contact Us For Availability
549
GEN WD22X0120 GEN WD22X0120 Contact Us For Availability
550
GEN WD22X0131 GEN WD22X0131 Contact Us For Availability
551
GEN WD12X0299 GEN WD12X0299 Contact Us For Availability
552
GEN WD12X0300 GEN WD12X0300 Contact Us For Availability
555
COLLECTION CHAMBER GASKT GEN WD08X0219 Contact Us For Availability
557
GEN WD01X5488 GEN WD01X5488 Contact Us For Availability
558
HOSE-CHAMBER TO CK VALVE GEN WD24X0197 Contact Us For Availability
559
GEN WD24X0198 GEN WD24X0198 Contact Us For Availability
560
GEN WD24X0196 GEN WD24X0196 Contact Us For Availability
561
GEN WD08X0226 GEN WD08X0226 Contact Us For Availability
569
GEN WD01X1297 GEN WD01X1297 Contact Us For Availability
571
HOSE POWER SHOWER GEN WD24X0213 Contact Us For Availability
573
GEN WD01X1007 GEN WD01X1007 Contact Us For Availability
615
RACK UPPER TM GEN WD28X0270 Contact Us For Availability
653
GEN WD02X0273 GEN WD02X0273 Contact Us For Availability
654
GEN WD12X0273 GEN WD12X0273 Contact Us For Availability
655
GEN WD01X1275 GEN WD01X1275 Contact Us For Availability
656
GEN WD08X0207 GEN WD08X0207 Contact Us For Availability
657
GEN WD01X1276 GEN WD01X1276 Contact Us For Availability
701
RACK LOWER ASM TM GEN WD28X0266 Contact Us For Availability
709
TRIM SIDE & BOT SERV PNL GEN WD34X0690 Contact Us For Availability
712
TRIM SIDE DOOR GEN WD34X0688 Contact Us For Availability
713
GEN WD34X0689 GEN WD34X0689 Contact Us For Availability
714
GEN WD31X0302 GEN WD31X0302 Contact Us For Availability
715
GEN WD01X1313 GEN WD01X1313 Contact Us For Availability
716
INSULATOR DOOR PNL INSRT GEN WD01X1356 Contact Us For Availability
717
GEN WD27X0497 GEN WD27X0497 Contact Us For Availability
717
INSERT DOOR PANEL BK/HA GEN WD27X0498 Contact Us For Availability
742
INSULATOR SERV PNL INSRT GEN WD01X1393 Contact Us For Availability
745
JUNCTION BOX COVER GEN WD01X0816 Contact Us For Availability
756
GEN WD27X0524 GEN WD27X0524 Contact Us For Availability
760
GEN WD34X0691 GEN WD34X0691 Contact Us For Availability
762
GEN WD12X0312 GEN WD12X0312 Contact Us For Availability
763
GEN WD12X0280 GEN WD12X0280 Contact Us For Availability
767
GEN WD28X0244 GEN WD28X0244 Contact Us For Availability
768
GEN WD12X0283 GEN WD12X0283 Contact Us For Availability
768
GEN WD12X0286 GEN WD12X0286 Contact Us For Availability
769
GEN WD12X0284 GEN WD12X0284 Contact Us For Availability
769
GEN WD12X0285 GEN WD12X0285 Contact Us For Availability
770
GEN WD01X1279 GEN WD01X1279 Contact Us For Availability
772
SUPPORT SHELF TM GEN WD12X0393 Contact Us For Availability
773
SHELF RACK TM GEN WD28X0272 Contact Us For Availability
774
GEN WD27X0520 GEN WD27X0520 Contact Us For Availability
774
INSERT SERV PANEL BK/HA GEN WD27X0521 Contact Us For Availability
775
GEN WZ06X0120 GEN WZ06X0120 Contact Us For Availability
776
GEN WZ05X0222 GEN WZ05X0222 Contact Us For Availability
777
GEN WD01X1328 GEN WD01X1328 Contact Us For Availability
778
GEN WD01X1394 GEN WD01X1394 Contact Us For Availability
780
GEN WD24X0191 GEN WD24X0191 Contact Us For Availability
781
GASKET FILL FUNNEL GEN WD08X0192 Contact Us For Availability
782
GEN WD18X0189 GEN WD18X0189 Contact Us For Availability
802
GEN WD13X0066 GEN WD13X0066 Contact Us For Availability
804
GEN WD01X1340 GEN WD01X1340 Contact Us For Availability
807
GEN WD31X0297 GEN WD31X0297 Contact Us For Availability
818
GEN WD12X0231 GEN WD12X0231 Contact Us For Availability
818
GEN WD14X0078 GEN WD14X0078 Contact Us For Availability
818
GEN WD14X0079 GEN WD14X0079 Contact Us For Availability
827
GEN WD02X0425 GEN WD02X0425 Contact Us For Availability
837
GEN WD03X0749 GEN WD03X0749 Contact Us For Availability
849
HARNESS CONDUIT GEN WD12X0274 Contact Us For Availability
850
GEN WD12X0338 GEN WD12X0338 Contact Us For Availability
851
GEN WD12X0389 GEN WD12X0389 Contact Us For Availability
853
GEN WD16X0309 GEN WD16X0309 Contact Us For Availability
901
GEN WD34X0727 GEN WD34X0727 Contact Us For Availability
902
GEN WD34X0723 GEN WD34X0723 Contact Us For Availability
904
GEN WD21X0605 GEN WD21X0605 Contact Us For Availability
906
GEN WD21X0604 GEN WD21X0604 Contact Us For Availability
907
GEN WD09X0237 GEN WD09X0237 Contact Us For Availability
908
GEN WD21X0516 GEN WD21X0516 Contact Us For Availability
910
GEN WD09X0236 GEN WD09X0236 Contact Us For Availability
915
HOUSING TERMINAL (BLACK) GEN WD01X1258 Contact Us For Availability
925
GEN WD06X0225 GEN WD06X0225 Contact Us For Availability
926
GEN WD01X5475 GEN WD01X5475 Contact Us For Availability
932
RETAINER PB SWITCH GEN WD12X0360 Contact Us For Availability
933
COVER PB SWITCH GEN WD12X0359 Contact Us For Availability
935
TERMINAL GEN WH12X0603 Contact Us For Availability
970
GEN WD09X0235 GEN WD09X0235 Contact Us For Availability
971
GEN WZ02X0045 GEN WZ02X0045 Contact Us For Availability
× ![]()
