Model Whirlpool GLHA7900W1 – Common Parts &amp; Diagrams

xCoffee (Uncut) WPL 261887 Contact Us For Availability

xNew Avocado (Uncut) WPL 261889 Contact Us For Availability

xGolden Harvest (Uncut) WPL 261891 Contact Us For Availability

Almond WPL 978883 Contact Us For Availability

Wire, Splicing 240 Volt WPL 299885 Contact Us For Availability

1

350365 Whirlpool Dryer Washer Water Pump, 2-P In Stock WPL 350365 $79.91

1

90984 Whirlpool Nut Backorder WPL 90984 $9.13

1

Hose, Gooseneck WPL 96865 Contact Us For Availability

2

WP273556 Whirlpool Screw In Stock WPL WP273556 $2.51

2

Cover, Gearcase WPL 367552 Contact Us For Availability

2

Drum, Brake (Upper) WPL 350522 Contact Us For Availability

2

Cover, Gusset (L.R.) WPL 352143 Contact Us For Availability

2

Cover, Gusset (L.R.) WPL 353230 Contact Us For Availability

2

COVER, GUSSET (R.R.) WPL 94114 Contact Us For Availability

3

Connector, Hose WPL 95440 Contact Us For Availability

3

Gasket, Gearcase WPL 95089 Contact Us For Availability

3

Sleeve WPL 96175 Contact Us For Availability

3

Hose, Water Inlet WPL 356349 Contact Us For Availability

3

Lining, Basket Brake (Upper) WPL 354550 Contact Us For Availability

3

Ball, Suspension (6) WPL 91073 Contact Us For Availability

4

Spring, Toggle WPL 96266 Contact Us For Availability

4

Shaft, Agitator WPL 362642 Contact Us For Availability

4

Spring, Basket Drive (Orange) (4) WPL 381046 Contact Us For Availability

4

Rod, Suspension (3) WPL 82584 Contact Us For Availability

5

Hose, Side Check to Drain WPL 96125 Contact Us For Availability

5

Pulley WPL 16113 Contact Us For Availability

5

Screw, 10-24 x 1 WPL 132848 Contact Us For Availability

5

Ring, Retainer WPL 352430 Contact Us For Availability

5

Drum, Brake (Lower) WPL 97664 Contact Us For Availability

5

Baseplate & Centerpost WPL 358949 Contact Us For Availability

6

WP3400516 Whirlpool Screw Backorder WPL WP3400516 $2.51

6

WP356138 Whirlpool Hose Clamp In Stock WPL WP356138 $3.70

6

Lever, Valve WPL 355538 Contact Us For Availability

6

Strap, Ground WPL 22965 Contact Us For Availability

6

Seal, Agitator Shaft WPL 92814 Contact Us For Availability

6

Inlet, Water WPL 366072 Contact Us For Availability

6

Lining, Basket Brake (Lower) WPL 354244 Contact Us For Availability

7

Valve, Side Check WPL 88677 Contact Us For Availability

7

Rod, Connecting WPL 96264 Contact Us For Availability

7

Shield, Agitator Spring WPL 94276 Contact Us For Availability

7

Flapper WPL 355584 Contact Us For Availability

7

Yoke, Brake WPL 92903 Contact Us For Availability

7

Brace, Baseplate WPL 353301 Contact Us For Availability

8

Washer, Rubber WPL 92235 Contact Us For Availability

8

Bearing Block Assembly WPL 87290 Contact Us For Availability

8

Spring, Agitator Shaft WPL 92815 Contact Us For Availability

8

Ring, Snap WPL 16049 Contact Us For Availability

8

Nut, 5/16-24 WPL 96101 Contact Us For Availability

9

Nut, Push-In (2) WPL 358473 Contact Us For Availability

9

Washer, Fiber WPL 92232 Contact Us For Availability

9

Wick, Oil WPL 96265 Contact Us For Availability

9

Wire, Ground WPL 364089 Contact Us For Availability

9

Gear, Agitator Shaft WPL 355469 Contact Us For Availability

9

Ring, Tub WPL 356039 Contact Us For Availability

9

Plate & Lining, Basket Drive WPL 357155 Contact Us For Availability

9

Magnet WPL 365998 Contact Us For Availability

386011 Whirlpool Screw Backorder WPL 386011 $26.43

Nut, Spanner WPL 92229 Contact Us For Availability

Shaft, Agitator WPL 362098 Contact Us For Availability

Seal, Tub Ring WPL 355850 Contact Us For Availability

Lining, Basket Drive (Set of 3) WPL 354243 Contact Us For Availability

Screw, Taper End WPL 16135 Contact Us For Availability

285205 Whirlpool Bearing Backorder WPL 285205 $3.70

WP616099 Whirlpool Clamp Backorder WPL WP616099 $3.24

Screw, Pump To Gearcase WPL 355612 Contact Us For Availability

Basket WPL 358404 Contact Us For Availability

Eyelet (3) WPL 98281 Contact Us For Availability

Guide, Cam Bar WPL 95462 Contact Us For Availability

285452A Whirlpool Hose Seal and Screen In Stock WPL 285452A $2.51

WPW10083200 Whirlpool Wire Ring In Stock WPL WPW10083200 $4.96

Block, Drive WPL 96384 Contact Us For Availability

Hose WPL 355152 Contact Us For Availability

Cam, Bar Spin WPL 354838 Contact Us For Availability

W10814296 Whirlpool Washer Center Post Seal G In Stock WPL W10814296 $2.58

WP89503 Whirlpool Washer Fill Hose In Stock WPL WP89503 $3.62

WP91770 Whirlpool Hinge Backorder WPL WP91770 $8.80

WP95405 Whirlpool Belt In Stock WPL WP95405 $9.26

Clamp, Hose (Alternate) WPL 272857 Contact Us For Availability

Clamp, Hose (Alternate) WPL 353096 Contact Us For Availability

Gear, Sector WPL 75073 Contact Us For Availability

Washer, Thrust (2) WPL 353320 Contact Us For Availability

WP16123 Whirlpool Washer In Stock WPL WP16123 $2.51

Hose, Pump To Filter WPL 356167 Contact Us For Availability

Ring, Retainer WPL 52083 Contact Us For Availability

Tub WPL 360784 Contact Us For Availability

Pulley, Basket Drive WPL 364032 Contact Us For Availability

Screw, 1/4-28 x 1/2 WPL 98001 Contact Us For Availability

WP285655 Whirlpool Hose Clamp In Stock WPL WP285655 $3.70

WP3351614 Whirlpool Screw Backorder WPL WP3351614 $2.51

Spring, Brake WPL 94726 Contact Us For Availability

Pin, Dowel WPL 5018 Contact Us For Availability

Screw, Tub WPL 356973 Contact Us For Availability

Bearing, Drive Pulley WPL 16033 Contact Us For Availability

WP16272 Whirlpool Hose Coupling Backorder WPL WP16272 $2.51

WP21365 Whirlpool Washer Backorder WPL WP21365 $4.72

WP91939 Whirlpool Shaft Seal In Stock WPL WP91939 $3.70

Panel, Rear WPL 85279 Contact Us For Availability

Bolt, 5/16-24 x 3/4 (4) WPL 356599 Contact Us For Availability

Cam, Agitator & Pump WPL 18642 Contact Us For Availability

Hose, Side Check To Filter WPL 355151 Contact Us For Availability

Bearing, Gear Fork WPL 96853 Contact Us For Availability

Drive Tube & Bearing, Basket WPL 357965 Contact Us For Availability

Plunger WPL 84866 Contact Us For Availability

WP21097 Whirlpool Pad In Stock WPL WP21097 $3.70

WP356427 Whirlpool Shaft Seal In Stock WPL WP356427 $3.70

Support, Brake Shoe Yoke WPL 356445 Contact Us For Availability

Rivet WPL 354959 Contact Us For Availability

WP21258 Whirlpool Washer Lid Hinge Bearing In Stock WPL WP21258 $3.70

Spring, Gear Fork Shaft WPL 16015 Contact Us For Availability

Set Screw, 5/16-18X 13/16 WPL 356057 Contact Us For Availability

Spring, Brake Yoke WPL 17261 Contact Us For Availability

Plate, Gusset (2) WPL 356459 Contact Us For Availability

Fork, Agitator Gear WPL 80398 Contact Us For Availability

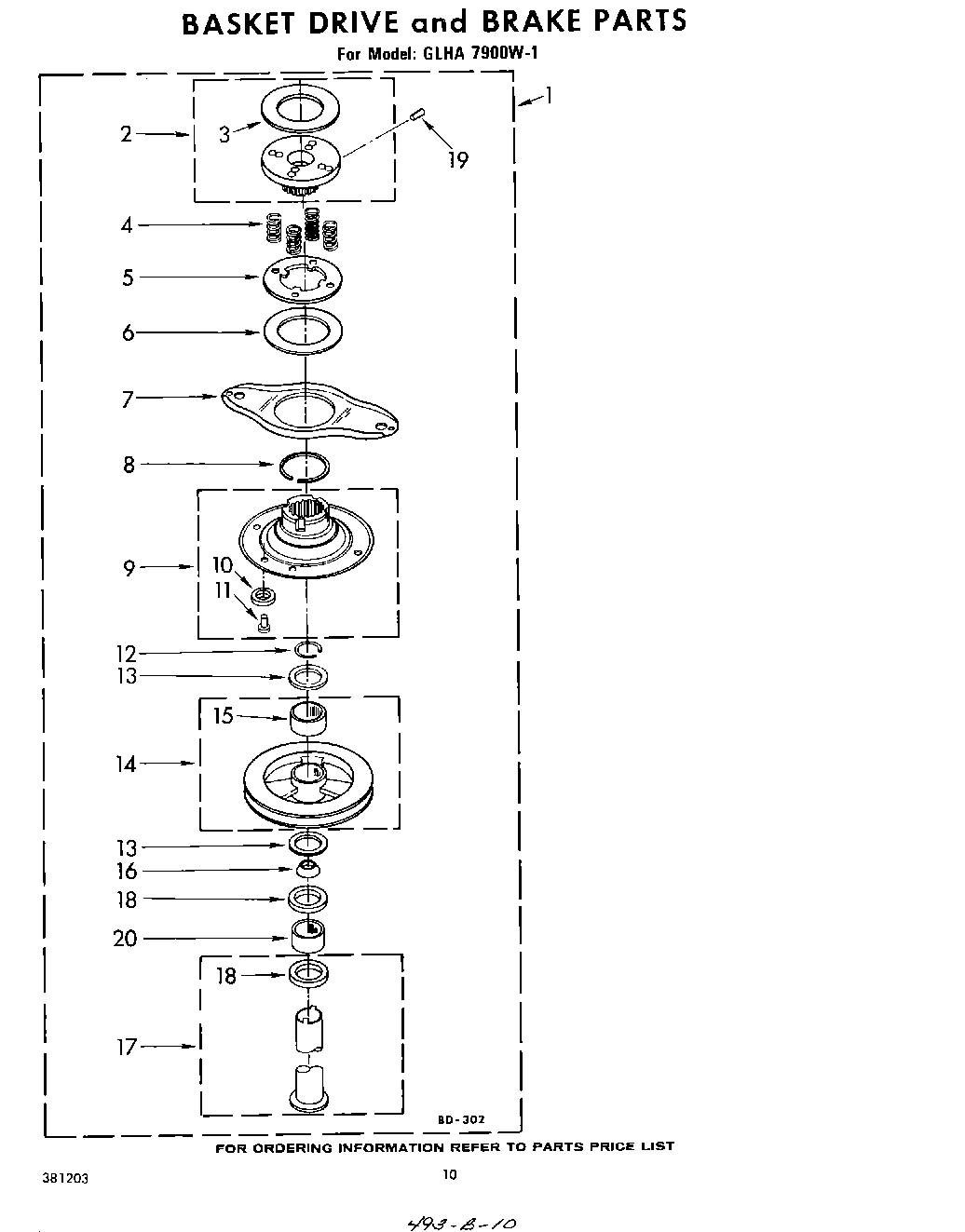

Basket Drive & Brake (Refer To Page 9 For Fur WPL 358364 Contact Us For Availability

Spacer, Agitator Shaft WPL 356937 Contact Us For Availability

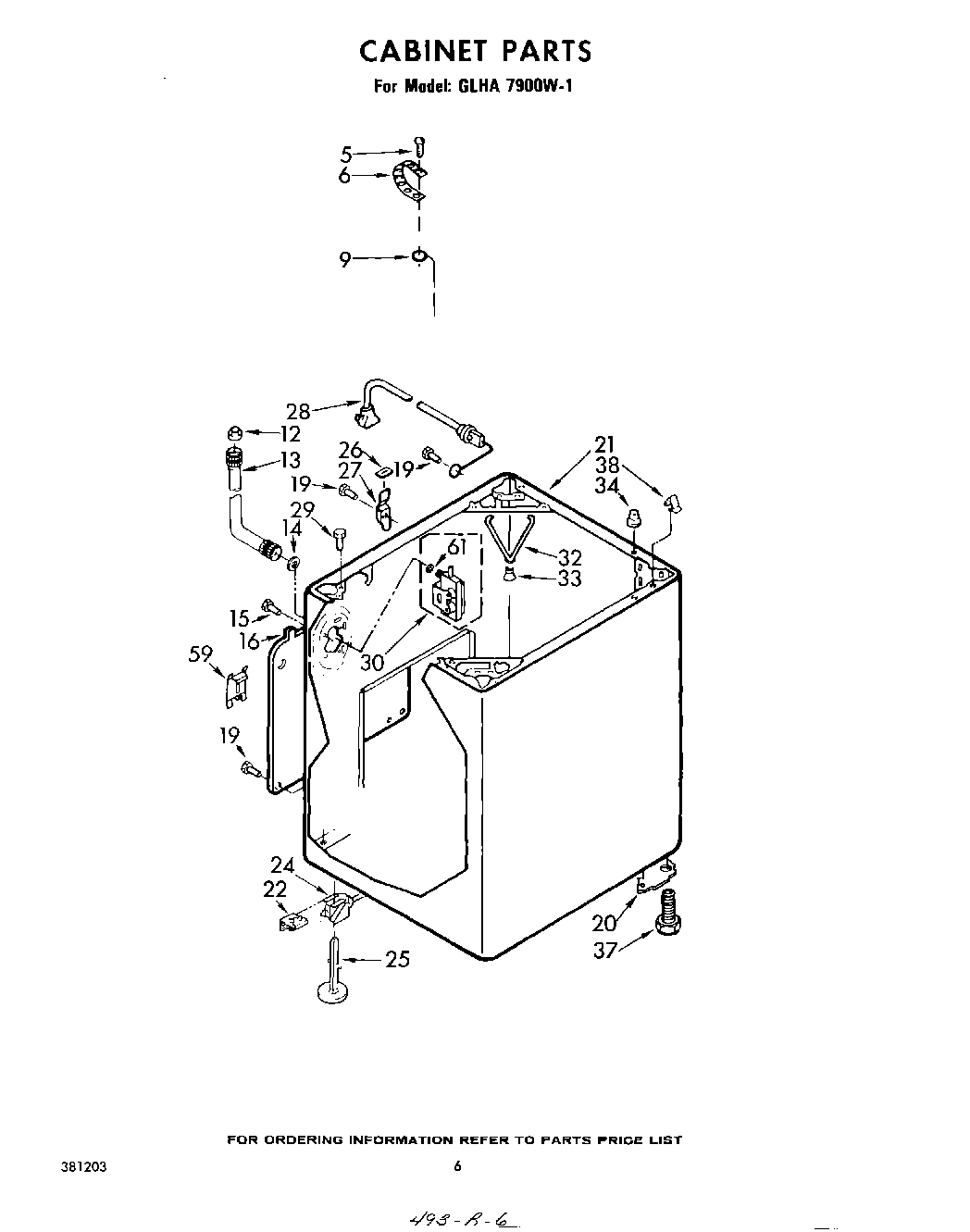

Cabinet (White) WPL 379101 Contact Us For Availability

Cabinet (Almond) WPL 379102 Contact Us For Availability

Cabinet (Coffee) WPL 379103 Contact Us For Availability

Cabinet (New Avocado) WPL 379104 Contact Us For Availability

Cabinet (Golden Harvest) WPL 379105 Contact Us For Availability

Support, Spin Tube WPL 358586 Contact Us For Availability

22

WP120393 Whirlpool Washer Assembly Backorder WPL WP120393 $2.38

22

WP359364 Whirlpool Clip In Stock WPL WP359364 $3.70

23

Pin, Roll WPL 90532 Contact Us For Availability

23

Rod, Connecting WPL 76577 Contact Us For Availability

23

Cap, Agitator WPL 358431 Contact Us For Availability

24

Link, Leveling WPL 359059 Contact Us For Availability

24

Roller, Basket Clutch Shaft WPL 92119 Contact Us For Availability

24

Ring, Retaining WPL 95082 Contact Us For Availability

WP358594 Whirlpool Leveling Feet In Stock WPL WP358594 $7.27

Washer, Retainer WPL 95083 Contact Us For Availability

Agitator Assembly WPL 363633 Contact Us For Availability

Shaft, Basket Clutch WPL 359460 Contact Us For Availability

18849 Whirlpool Pad Backorder WPL 18849 $9.13

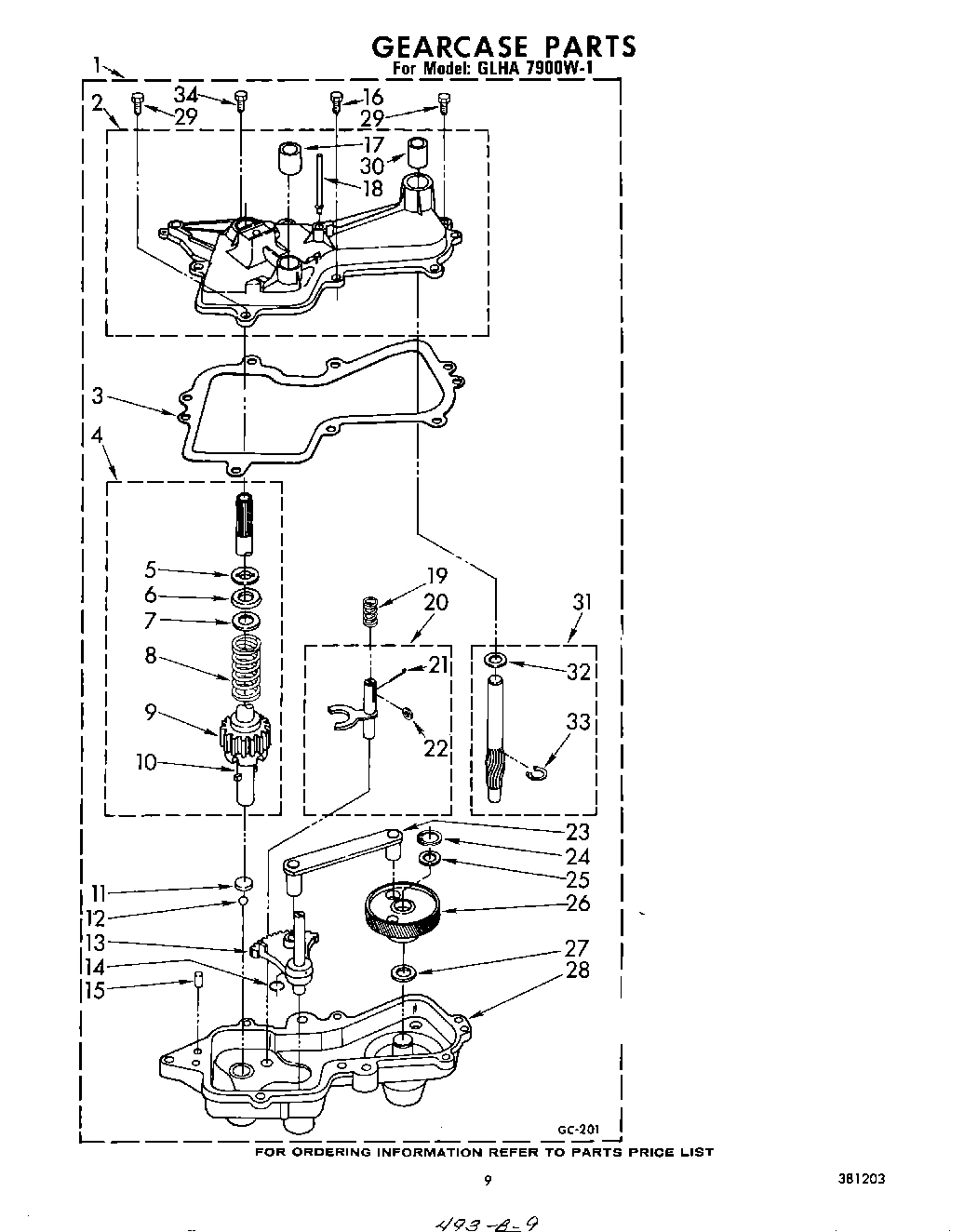

Gearcase (Refer To Page 8 For Further Breakdo WPL 362901 Contact Us For Availability

Gear, Main Drive WPL 353397 Contact Us For Availability

Stud, Agitator Shaft WPL 358440 Contact Us For Availability

WP21366 Whirlpool Spanner Nut In Stock WPL WP21366 $3.70

Hinge, R.H. WPL 18775 Contact Us For Availability

Hinge, L.H. WPL 92657 Contact Us For Availability

Washer, Thrust WPL 363362 Contact Us For Availability

Pad, Gusset Cover (4) WPL 352434 Contact Us For Availability

WP8577376 Whirlpool Seal In Stock WPL WP8577376 $3.70

Seal WPL 351830 Contact Us For Availability

Cord, Power WPL 92667 Contact Us For Availability

Gearcase WPL 362906 Contact Us For Availability

Bolt, 5/16-24 x 1-1/8 (2) WPL 356512 Contact Us For Availability

Air Dome Assembly WPL 360804 Contact Us For Availability

Bolt, 5/16 x 5/8 (2) WPL 126211 Contact Us For Availability

Bolt, 5/16 x 1 (3) WPL 126358 Contact Us For Availability

Bolt, Snubber (1) WPL 353770 Contact Us For Availability

WP353244 Whirlpool Hose In Stock WPL WP353244 $30.63

Valve, Mixing (Alternate) WPL 358277 Contact Us For Availability

Valve, Mixing (Alternate) (Serviced Only as C WPL 358971 Contact Us For Availability

Bearing, Drive Pinion WPL 354513 Contact Us For Availability

Bolt, 5/16-24 WPL 98048 Contact Us For Availability

31

Pinion, Drive WPL 84467 Contact Us For Availability

31

Gasket, Tub (7) WPL 17235 Contact Us For Availability

32

WP8546455 Whirlpool Bearing In Stock WPL WP8546455 $9.46

32

Spring, Snubber WPL 357977 Contact Us For Availability

32

Washer, Drive Pinion WPL 16024 Contact Us For Availability

W11095997 Whirlpool Seal In Stock WPL W11095997 $10.76

Snubber WPL 358336 Contact Us For Availability

Cap, Terminal WPL 96895 Contact Us For Availability

Ring, Retainer WPL 90094 Contact Us For Availability

16515 Whirlpool Clip Backorder WPL 16515 $11.62

350572 Whirlpool Oil Transmission 15 Oz In Stock WPL 350572 $31.00

Plug, Terminal WPL 96894 Contact Us For Availability

Hose, Tub Outlet WPL 93553 Contact Us For Availability

Locator, Top WPL 98669 Contact Us For Availability

Screw, 5/16-24 x 1-3/4 (1) WPL 355613 Contact Us For Availability

35

Clamp, Hose WPL 9421321 Contact Us For Availability

35

Clip, Tub Ring (3) WPL 356701 Contact Us For Availability

35

Retainer, Brake Yoke WPL 356444 Contact Us For Availability

36

Clip, Tub Ring (1) WPL 356700 Contact Us For Availability

36

Ball WPL 358585 Contact Us For Availability

37

WP367594 Whirlpool Leveling Feet In Stock WPL WP367594 $10.89

37

Setscrew, 5/16-18 x 1/2 WPL 355345 Contact Us For Availability

WP18776 Whirlpool Lock In Stock WPL WP18776 $4.78

Hose, Pump To Manifold WPL 92231 Contact Us For Availability

Hose, Dispenser WPL 352818 Contact Us For Availability

Pulley, Main Drive WPL 360840 Contact Us For Availability

39

WP358160 Whirlpool Nut Backorder WPL WP358160 $2.51

39

Manifold & Filter Assembly WPL 363358 Contact Us For Availability

40

WP596669 Whirlpool Hose Clamp In Stock WPL WP596669 $2.51

40

Timer Assembly, 50 Hz. WPL 380278 Contact Us For Availability

40

Bracket, Motor Mounting WPL 85286 Contact Us For Availability

41

Motor Timer (50 Hz.) WPL 362682 Contact Us For Availability

41

Nut (4) WPL 98023 Contact Us For Availability

42

Grommet, Motor Bracket (4) WPL 19138 Contact Us For Availability

43

Knob Assembly, Water WPL 690300 Contact Us For Availability

43

Pulley, Motor (50 Hz.) WPL 93219 Contact Us For Availability

44

Plate, Snubber WPL 355852 Contact Us For Availability

44

Shield, Motor (Upper) WPL 356217 Contact Us For Availability

WP356418 Whirlpool Screw Backorder WPL WP356418 $2.51

Harness, Cabinet WPL 358125 Contact Us For Availability

Guide, Laundry WPL 358770 Contact Us For Availability

Harness, Console WPL 359370 Contact Us For Availability

Bag, Miscellaneous Parts WPL 375962 Contact Us For Availability

Instructions, Installation WPL 378942 Contact Us For Availability

Instructions, Operating WPL 380473 Contact Us For Availability

List, Repair Parts WPL 381203 Contact Us For Availability

Dispenser, Rinse WPL 88932 Contact Us For Availability

Washer, Motor Mounting WPL 92217 Contact Us For Availability

46

Motor, 50/60 Hz. (General Electric) (Start Sw WPL 82053 Contact Us For Availability

47

W10876590 Whirlpool Connector Backorder WPL W10876590 $4.94

48

WPL 352090 WPL 352090 Contact Us For Availability

49

WP3390631 Whirlpool Screw Backorder WPL WP3390631 $2.51

49

WPL 352088 WPL 352088 Contact Us For Availability

50

Bearing, WPL 354195 Contact Us For Availability

51

WPL 98537 WPL 98537 Contact Us For Availability

52

WPL 93549 WPL 93549 Contact Us For Availability

53

WPL 95721 WPL 95721 Contact Us For Availability

54

WPL 380116 WPL 380116 Contact Us For Availability

55

WPL 357395 WPL 357395 Contact Us For Availability

57

WPL 359254 WPL 359254 Contact Us For Availability

58

WPL 359206 WPL 359206 Contact Us For Availability

58

WPL 351499 WPL 351499 Contact Us For Availability

58

WPL 351500 WPL 351500 Contact Us For Availability

59

Plug, Cabinet WPL 354179 Contact Us For Availability

59

WPL 16062 WPL 16062 Contact Us For Availability

60

WPL 90877 WPL 90877 Contact Us For Availability

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350938 Whirlpool Spray Gun In Stock WPL 350938 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72109 Whirlpool Dacor Avocado Touch-Up Paint Backorder WPL 72109 $10.07

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

WP96160 Whirlpool Washer Inlet Valve Screen In Stock WPL WP96160 $4.76

WPL 690297 WPL 690297 Contact Us For Availability

Coffee WPL 261886 Contact Us For Availability

New Avocado WPL 261888 Contact Us For Availability

Golden Harvest WPL 261890 Contact Us For Availability

Leveler (Thinner) WPL 350941 Contact Us For Availability

Paint, Touch-Up 1/2 Oz. (Coffee) WPL 72108 Contact Us For Availability

Thinner (1 Gal.) WPL 799351 Contact Us For Availability

62

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $3.70

67

WPL 98084 WPL 98084 Contact Us For Availability

72

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

75

WPL 94612 WPL 94612 Contact Us For Availability

76

WPL 94611 WPL 94611 Contact Us For Availability

77

WPL 352821 WPL 352821 Contact Us For Availability

78

WP596797 Whirlpool Terminal Backorder WPL WP596797 $2.51

79

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.51

80

WPL 352827 WPL 352827 Contact Us For Availability

81

WPL 357535 WPL 357535 Contact Us For Availability

82

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

83

8528351 Whirlpool Clip Backorder WPL 8528351 $26.21

85

WP359231 Whirlpool Shield In Stock WPL WP359231 $3.70

86

WPL 354975 WPL 354975 Contact Us For Availability

88

WPL 370959 WPL 370959 Contact Us For Availability

89

W10820036 Whirlpool Door Switch Kit In Stock WPL W10820036 $9.94

94

WPL 357633 WPL 357633 Contact Us For Availability

95

WPL 354764 WPL 354764 Contact Us For Availability

96

W10113937 Whirlpool Clamp Backorder WPL W10113937 $4.78

97

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

98

WPL 357645 WPL 357645 Contact Us For Availability

99

WP90016 Whirlpool Clip Backorder WPL WP90016 $4.78
