Model Whirlpool GLHA7900W0 – Common Parts & Diagrams

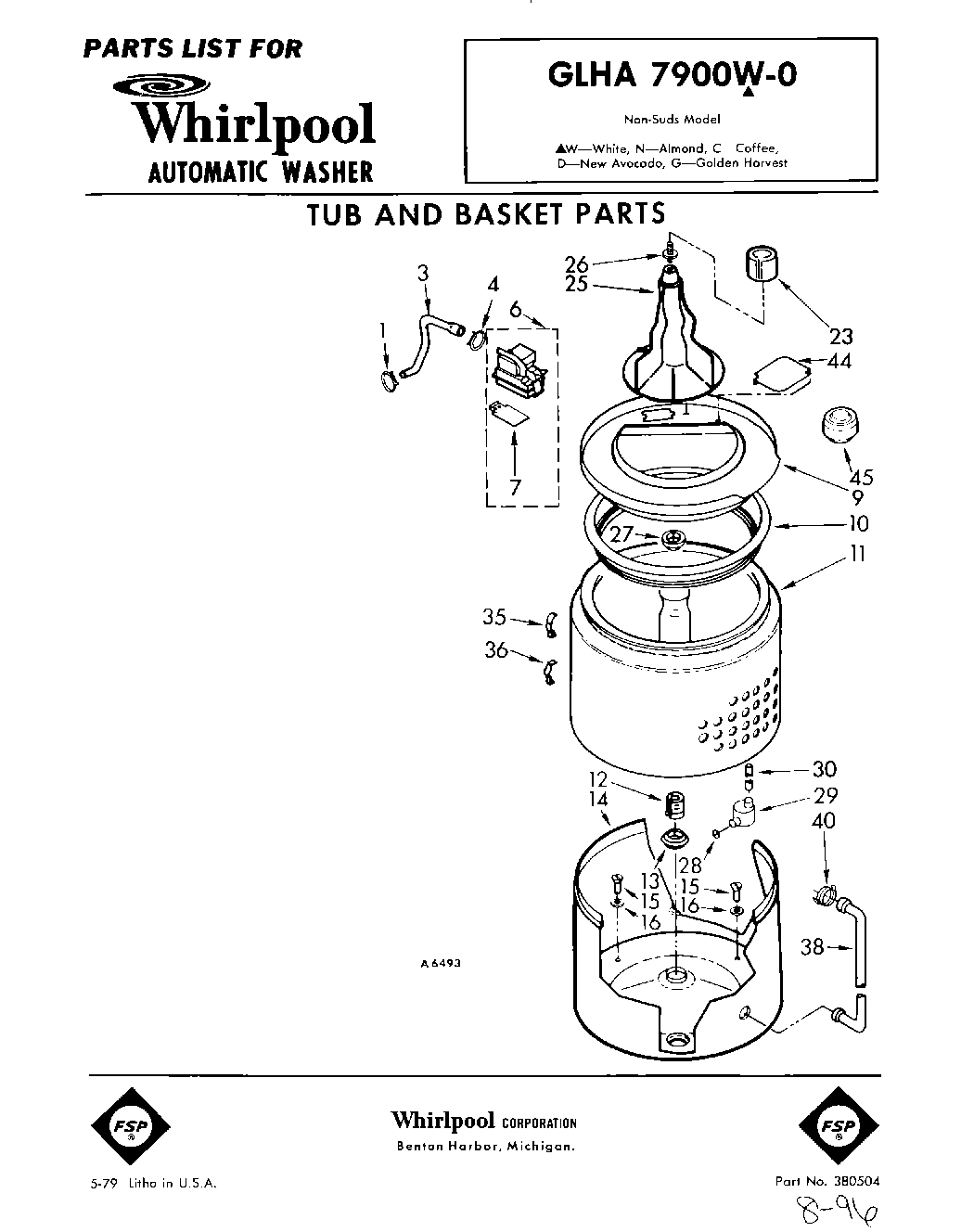

01 - TUB AND BASKET, LITERATURE

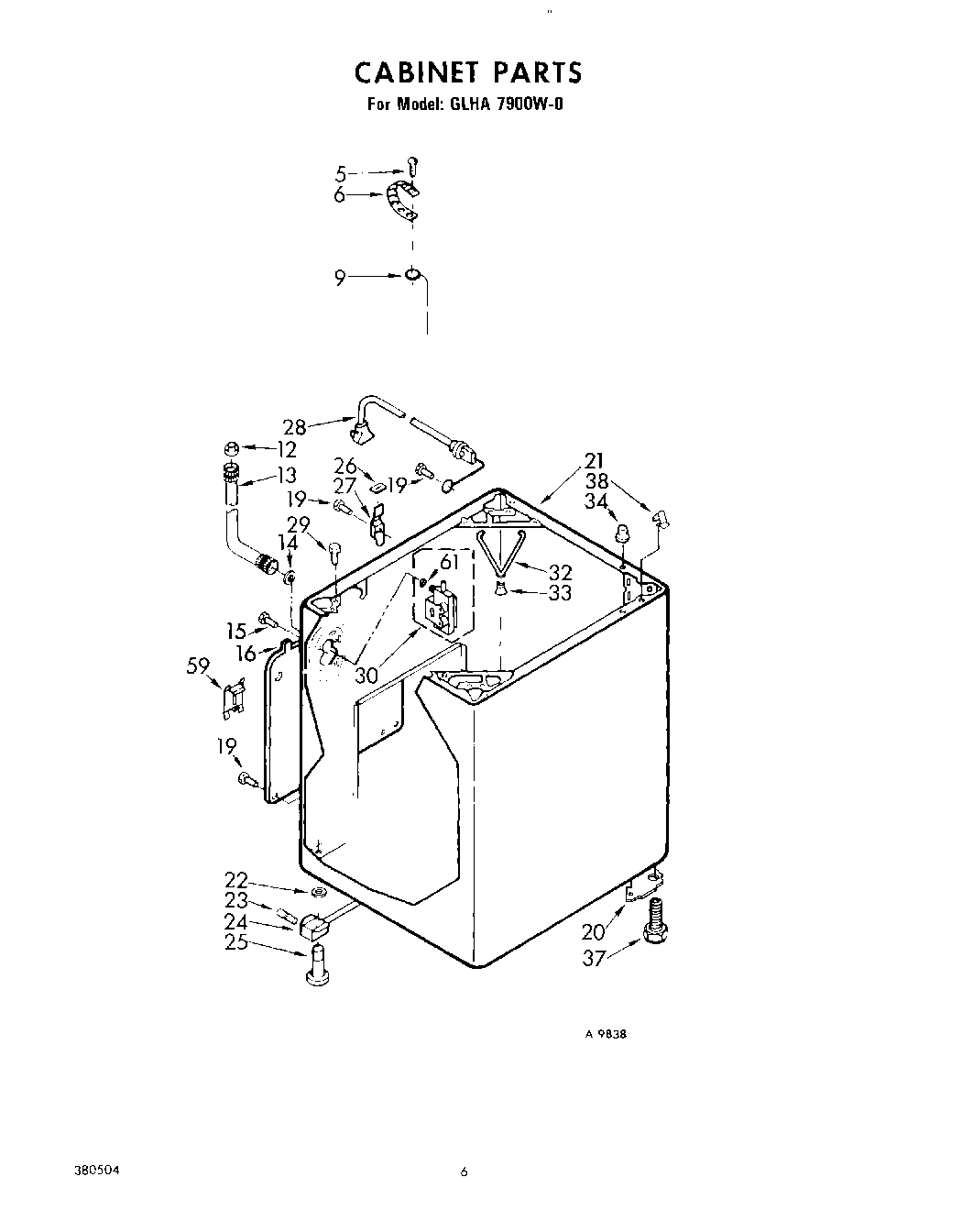

04 - CABINET, OPTIONAL
05 - WATER SYSTEM
02 - DRIVE
03 - TOP AND CONSOLE
Common parts from model Whirlpool GLHA7900W0
1
Hose, Gooseneck WPL 96865 Contact Us For Availability
1
Bolt, 5/16 x 5/8 (2) WPL 126211 Contact Us For Availability
1
Bolt, 5/16 x 1 (3) WPL 126358 Contact Us For Availability
1
Bolt, Snubber (1) WPL 353770 Contact Us For Availability
1
Panel, Rear Console WPL 358434 Contact Us For Availability
2
Cover, Suspension Rod (L.R.) WPL 352143 Contact Us For Availability
2
Cover, Suspension Rod (L.F.) WPL 353230 Contact Us For Availability
2
Cover, Suspension Rod (R.R.) WPL 94114 Contact Us For Availability
2
Screw, 13-16 x 5/8 WPL 355326 Contact Us For Availability
3
Connector, Hose WPL 95440 Contact Us For Availability
3
Pad, Gusset Cover WPL 352434 Contact Us For Availability
3
Screw WPL 358225 Contact Us For Availability
4
Ball, Suspension (6) WPL 91073 Contact Us For Availability
4
Cap, End (L.H.) (White) WPL 375305 Contact Us For Availability
4
Cap , End (R.H.) (White) WPL 375309 Contact Us For Availability
4
Cap, End (L.H.) (Almond) WPL 375313 Contact Us For Availability
4
Cap, End (L.H.) (Coffee) WPL 375314 Contact Us For Availability
4
Cap , End (R.H.) (Almond) WPL 375315 Contact Us For Availability
4
Cap, End (R.H.) (Coffee) WPL 375316 Contact Us For Availability
4
Cap, End (L.H.) (New Avocado) WPL 375317 Contact Us For Availability
4
Cap, End (L.H.) (Golden Harvest) WPL 375318 Contact Us For Availability
4
Cap, End (R.H.) (New Avocado) WPL 377282 Contact Us For Availability
4
Cap , End (R.H.) (Golden Harvest) WPL 377283 Contact Us For Availability
5
Hose, Side Check to Drain WPL 96125 Contact Us For Availability
5
Rod, Suspension (3) WPL 82584 Contact Us For Availability
6
Bolt, 5/16-24 WPL 98048 Contact Us For Availability
6
Screw and Washer WPL 359243 Contact Us For Availability
7
Valve, Side Check WPL 88677 Contact Us For Availability
7
Handle, Lid (White) WPL 379884 Contact Us For Availability
7
Handle, Lid (Almond) WPL 379885 Contact Us For Availability
7
Handle, Lid (Coffee) WPL 379886 Contact Us For Availability
7
Handle, Lid (New Avocado) WPL 379887 Contact Us For Availability
7
Handle, Lid (Golden Harvest) WPL 379888 Contact Us For Availability
8
Washer, Rubber WPL 92235 Contact Us For Availability
9
Nut, Push-In (2) WPL 358473 Contact Us For Availability
9
Washer, Fiber WPL 92232 Contact Us For Availability
9
Brace, Baseplate WPL 353301 Contact Us For Availability
10
Nut, Spanner WPL 92229 Contact Us For Availability
10
Stop, Push-In Top (2) WPL 358472 Contact Us For Availability
11
Bearing, Lower WPL 354195 Contact Us For Availability
12
Block, Drive WPL 96384 Contact Us For Availability
12
Hose WPL 355152 Contact Us For Availability
13
Clamp, Hose (Alternate) WPL 272857 Contact Us For Availability
13
Clamp, Hose (Alternate) WPL 353096 Contact Us For Availability
13
Spacer WPL 92429 Contact Us For Availability
14
Hose, Pump To Filter WPL 356167 Contact Us For Availability
14
Gearcase Assembly (Refer To SF-342) WPL 358365 Contact Us For Availability
15
Bumper (2) WPL 91605 Contact Us For Availability
16
Panel, Rear WPL 85279 Contact Us For Availability
16
Brace, Motor WPL 351499 Contact Us For Availability
16
Brace, Manifold WPL 351500 Contact Us For Availability
16
Spring, Hinge (L.H.) WPL 92398 Contact Us For Availability
17
Hose, Side Check To Filter WPL 355151 Contact Us For Availability
17
Nut, 5/16-24 WPL 96101 Contact Us For Availability
17
Hinge, L.H. WPL 91099 Contact Us For Availability
18
Screw, 3/8-24 x 2 WPL 90877 Contact Us For Availability
19
Baseplate Assembly WPL 358949 Contact Us For Availability
20
Plate, Gusset (2) WPL 356459 Contact Us For Availability
21
Cabinet (White) WPL 368761 Contact Us For Availability
21
Cabinet (Almond) WPL 374418 Contact Us For Availability
21
Cabinet (Coffee) WPL 374419 Contact Us For Availability
21
Cabinet (New Avocado) WPL 374420 Contact Us For Availability
21
Cabinet (Golden Harvest) WPL 374421 Contact Us For Availability
21
Lid (White) WPL 379984 Contact Us For Availability
21
Lid (Almond) WPL 379985 Contact Us For Availability
21
Lid (Coffee) WPL 379986 Contact Us For Availability
21
Lid (New Avocado) WPL 379987 Contact Us For Availability
21
Lid (Golden Harvest) WPL 379988 Contact Us For Availability
22
Washer, Friction WPL 98411 Contact Us For Availability
22
Bracket, Adjusting WPL 85286 Contact Us For Availability
22
Top (White) WPL 380283 Contact Us For Availability
22
Top (Almond) WPL 380284 Contact Us For Availability
22
Top (Coffee) WPL 380285 Contact Us For Availability
22
Top (New Avocado) WPL 380286 Contact Us For Availability
22
Top (Golden Harvest) WPL 380287 Contact Us For Availability
24
Link, Leveling WPL 75587 Contact Us For Availability
24
Nut, 10-23 WPL 98023 Contact Us For Availability
24
Washer (Used To Mount Conversion Kit) WPL 92217 Contact Us For Availability
25
Foot, Rear (2) WPL 95879 Contact Us For Availability
26
Grommet (4) WPL 19138 Contact Us For Availability
27
Hinge, R.H. WPL 18775 Contact Us For Availability
27
Hinge, L.H. WPL 92657 Contact Us For Availability
27
Shield, Motor (Upper) WPL 356217 Contact Us For Availability
28
Seal WPL 351830 Contact Us For Availability
28
Cord, Power WPL 92667 Contact Us For Availability
28
Motor, 50/60 Hz. (General Electric) (Start Sw WPL 82053 Contact Us For Availability
29
Shield, Bottom Motor WPL 356214 Contact Us For Availability
29
Switch, Water Level WPL 364907 Contact Us For Availability
30
Valve, Mixing (Alternate) WPL 358277 Contact Us For Availability
30
Valve, Mixing (Alternate) (Serviced Only as C WPL 358971 Contact Us For Availability
30
Bolt, 3/8-16 x 3/4 WPL 98537 Contact Us For Availability
31
Bracket, Pivoting WPL 93549 Contact Us For Availability
31
Switch, Water Temperature WPL 358934 Contact Us For Availability
31
Switch, Water Temperature (Alternate) WPL 358935 Contact Us For Availability
32
Spring, Snubber WPL 357977 Contact Us For Availability
32
Nut, 3/8-16 WPL 95721 Contact Us For Availability
32
Bracket, Control WPL 358467 Contact Us For Availability
33
Snubber WPL 358336 Contact Us For Availability
33
Setscrew, 5/16-18 x 1/2 WPL 355345 Contact Us For Availability
33
Cap, Terminal WPL 96895 Contact Us For Availability
34
Locator, Top WPL 98669 Contact Us For Availability
34
Hose, Tub Outlet WPL 93553 Contact Us For Availability
34
Pulley, 50 Hz. WPL 93219 Contact Us For Availability
34
Plug, Terminal WPL 96894 Contact Us For Availability
35
Clamp, Hose WPL 942132 Contact Us For Availability
36
Boot, Retainer WPL 302143 Contact Us For Availability
38
Hose, Pump To Manifold WPL 92231 Contact Us For Availability
39
Manifold & Filter Assembly WPL 363358 Contact Us For Availability
40
Timer Assembly, 50 Hz. WPL 380278 Contact Us For Availability
41
Motor Timer (50 Hz.) WPL 362682 Contact Us For Availability
43
Knob Assembly WPL 690300 Contact Us For Availability
47
Pulley, Pump WPL 16113 Contact Us For Availability
48
Screw, 5/16-18 x 1-3/8 WPL 355612 Contact Us For Availability
48
WPL 352090 WPL 352090 Contact Us For Availability
49
WPL 352088 WPL 352088 Contact Us For Availability
54
WPL 380116 WPL 380116 Contact Us For Availability
57
WPL 359254 WPL 359254 Contact Us For Availability
58
WPL 359206 WPL 359206 Contact Us For Availability
59
Plug, Cabinet WPL 354179 Contact Us For Availability
61
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
61
Coffee WPL 261886 Contact Us For Availability
61
Coffee (Uncut) WPL 261887 Contact Us For Availability
61
New Avocado WPL 261888 Contact Us For Availability
61
New Avocado (Uncut) WPL 261889 Contact Us For Availability
61
Golden Harvest WPL 261890 Contact Us For Availability
61
xGolden Harvest (Uncut) WPL 261891 Contact Us For Availability
61
Leveler (Thinner) WPL 350941 Contact Us For Availability
61
Paint, Touch-Up 1/2 Oz. (Coffee) WPL 72108 Contact Us For Availability
61
Thinner (1 Gal.) WPL 799351 Contact Us For Availability
61
Almond ( WPL 978883 Contact Us For Availability
61
WPL 690297 WPL 690297 Contact Us For Availability
67
WPL 98084 WPL 98084 Contact Us For Availability
75
WPL 94612 WPL 94612 Contact Us For Availability
76
WPL 94611 WPL 94611 Contact Us For Availability
77
WPL 352821 WPL 352821 Contact Us For Availability
80
WPL 352827 WPL 352827 Contact Us For Availability
81
WPL 357535 WPL 357535 Contact Us For Availability
86
WPL 354975 WPL 354975 Contact Us For Availability
88
WPL 370959 WPL 370959 Contact Us For Availability
94
WPL 357633 WPL 357633 Contact Us For Availability
95
WPL 354764 WPL 354764 Contact Us For Availability
98
WPL 357645 WPL 357645 Contact Us For Availability
× ![]()
