Model Whirlpool GL5030VL1 GAS DRYER – Common Parts & Diagrams

PAINT, BULK (1 QT.) (WHITE (UNCUT))
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
View on Model
7

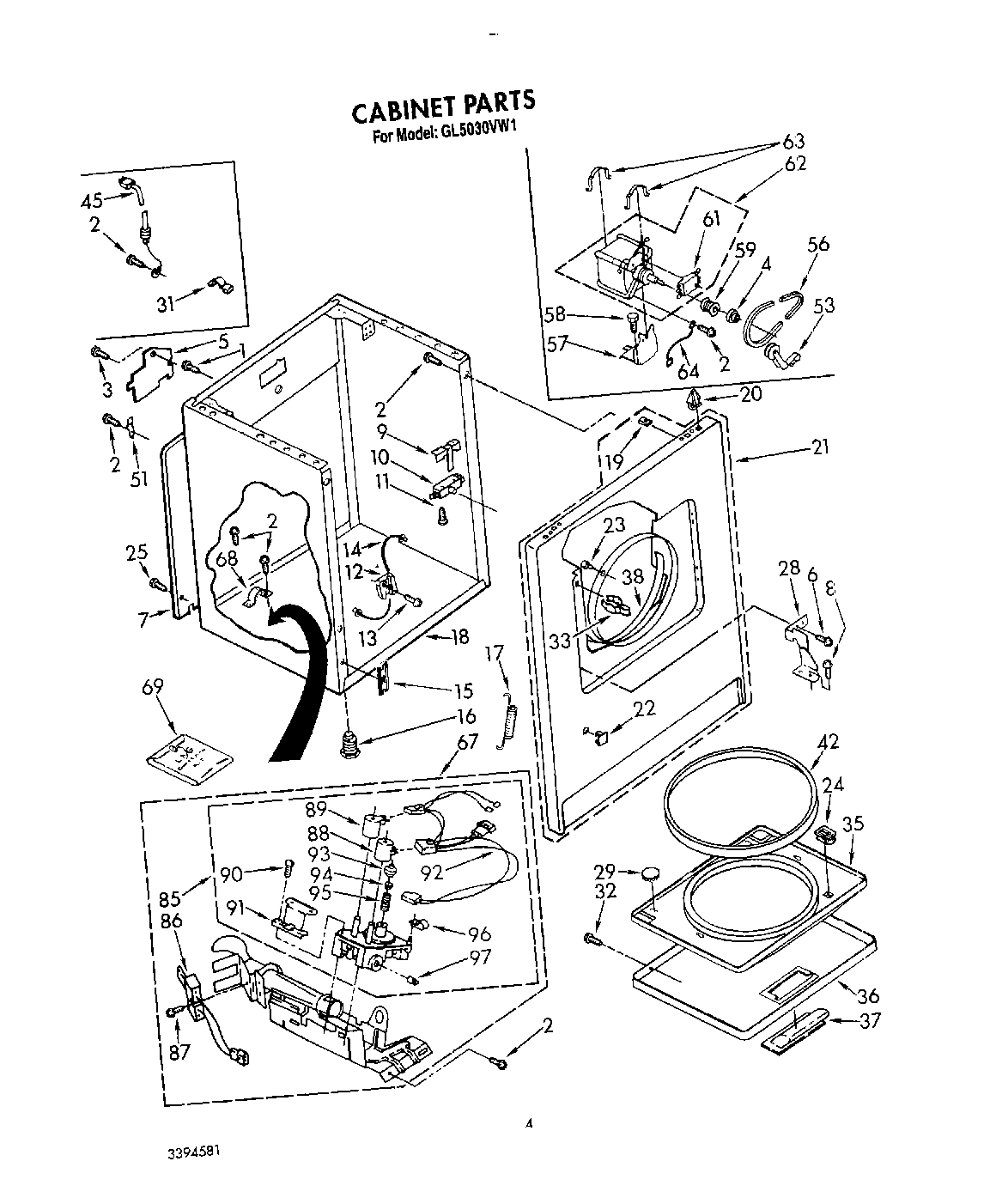

Panel, Rear
Panel, Rear WPL 347736 Contact Us For Availability
View on Model
8
Nut, Push-In (2)
Nut, Push-In (2) WPL 358473 Contact Us For Availability
View on Model
11
Housing, Blower
Housing, Blower WPL 695081 Contact Us For Availability
View on Model
12
GUIDE
GUIDE WPL 337182 Contact Us For Availability
View on Model
12
Guide, Cable (R.H.)
Guide, Cable (R.H.) WPL 337183 Contact Us For Availability
View on Model
14
Cable, Door (2)
Cable, Door (2) WPL 230131 Contact Us For Availability
View on Model
15
(Alt.)
(Alt.) WPL 341196 Contact Us For Availability
View on Model
15
(Alt.)
(Alt.) WPL 338471 Contact Us For Availability
View on Model
15
Thermostat, 205 F (96 C)
Thermostat, 205 F (96 C) WPL 660036 Contact Us For Availability
View on Model
16
Support, Heater Box (2)
Support, Heater Box (2) WPL 337445 Contact Us For Availability
View on Model
18
Cabinet (White)
Cabinet (White) WPL 3394109 Contact Us For Availability
View on Model
18
Cabinet (Almond)
Cabinet (Almond) WPL 3394110 Contact Us For Availability
View on Model
21
Upper Front Panel (White)
Upper Front Panel (White) WPL 3394890 Contact Us For Availability
View on Model
21
Upper Front Panel (Almond)
Upper Front Panel (Almond) WPL 3394891 Contact Us For Availability
View on Model
22
Plug, Front Panel (White)
Plug, Front Panel (White) WPL 3394975 Contact Us For Availability
View on Model
22
Plug, Front Panel (Almond)
Plug, Front Panel (Almond) WPL 3394976 Contact Us For Availability
View on Model
24
Nut, Compression
Nut, Compression WPL 233076 Contact Us For Availability
View on Model
26
Seal, Blower Shaft
Seal, Blower Shaft WPL 3392123 Contact Us For Availability
View on Model
28
Hinge, Door (R.H.)
Hinge, Door (R.H.) WPL 238456 Contact Us For Availability
View on Model
35
Door, Rear
Door, Rear WPL 695953 Contact Us For Availability
View on Model
36
Door, Front (White)
Door, Front (White) WPL 348737 Contact Us For Availability
View on Model
36
Door, Front (Almond)
Door, Front (Almond) WPL 689485 Contact Us For Availability
View on Model
37
Handle, Door (Almond)
Handle, Door (Almond) WPL 690271 Contact Us For Availability
View on Model
48

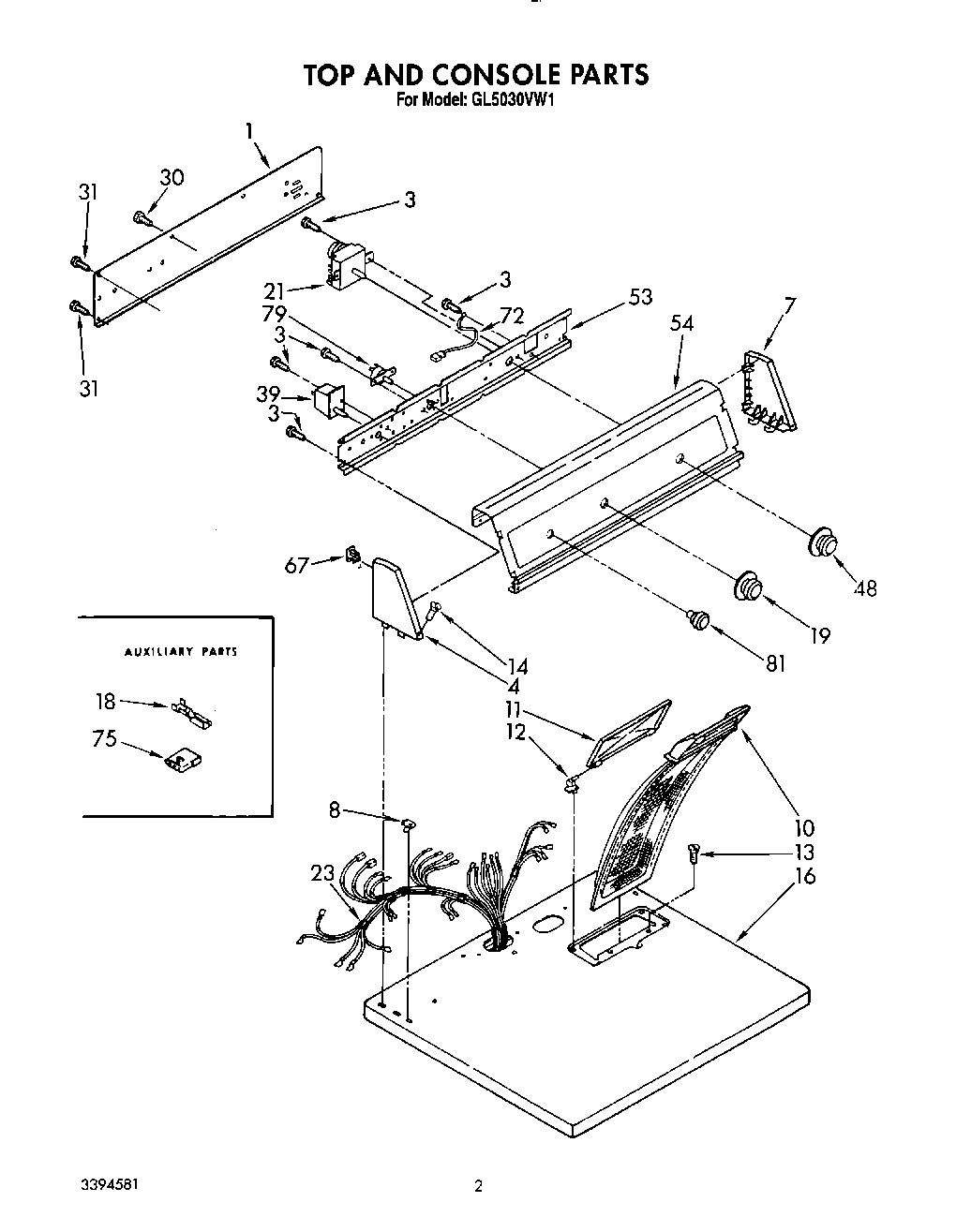

Timer Knob Assembly
Timer Knob Assembly WPL 3391823 Contact Us For Availability
View on Model
48

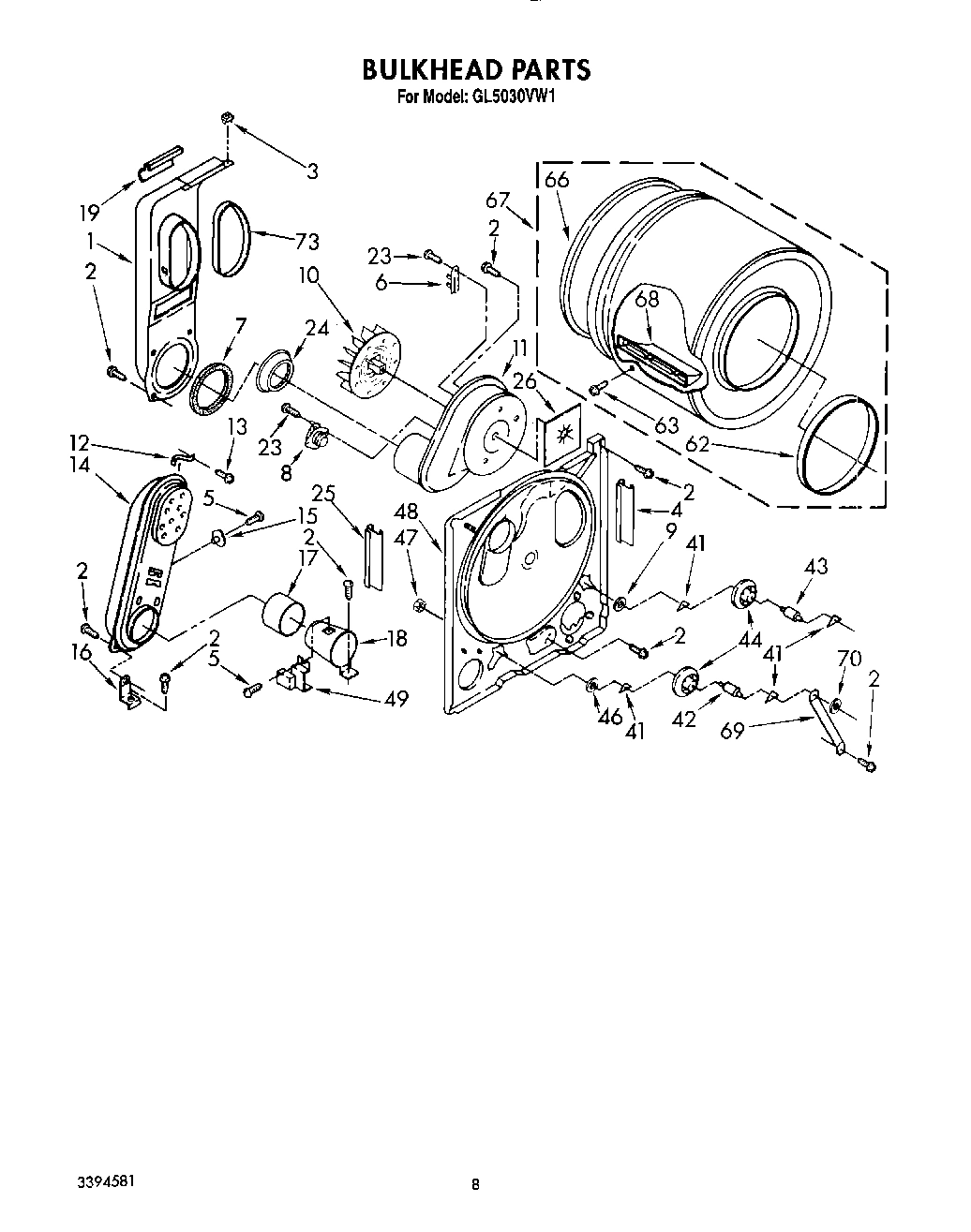

Bulkhead
Bulkhead WPL 685775 Contact Us For Availability
View on Model
53
Bracket, Control
Bracket, Control WPL 3396009 Contact Us For Availability
View on Model
54
Panel, Control
Panel, Control WPL 3391777 Contact Us For Availability
View on Model
63
Screw, 11-16 x 7/8
Screw, 11-16 x 7/8 WPL 690372 Contact Us For Availability
View on Model
64
Wire, Ground (Motor)
Wire, Ground (Motor) WPL 690236 Contact Us For Availability
View on Model
67
Clip, Push-On (4)
Clip, Push-On (4) WPL 689559 Contact Us For Availability
View on Model
67

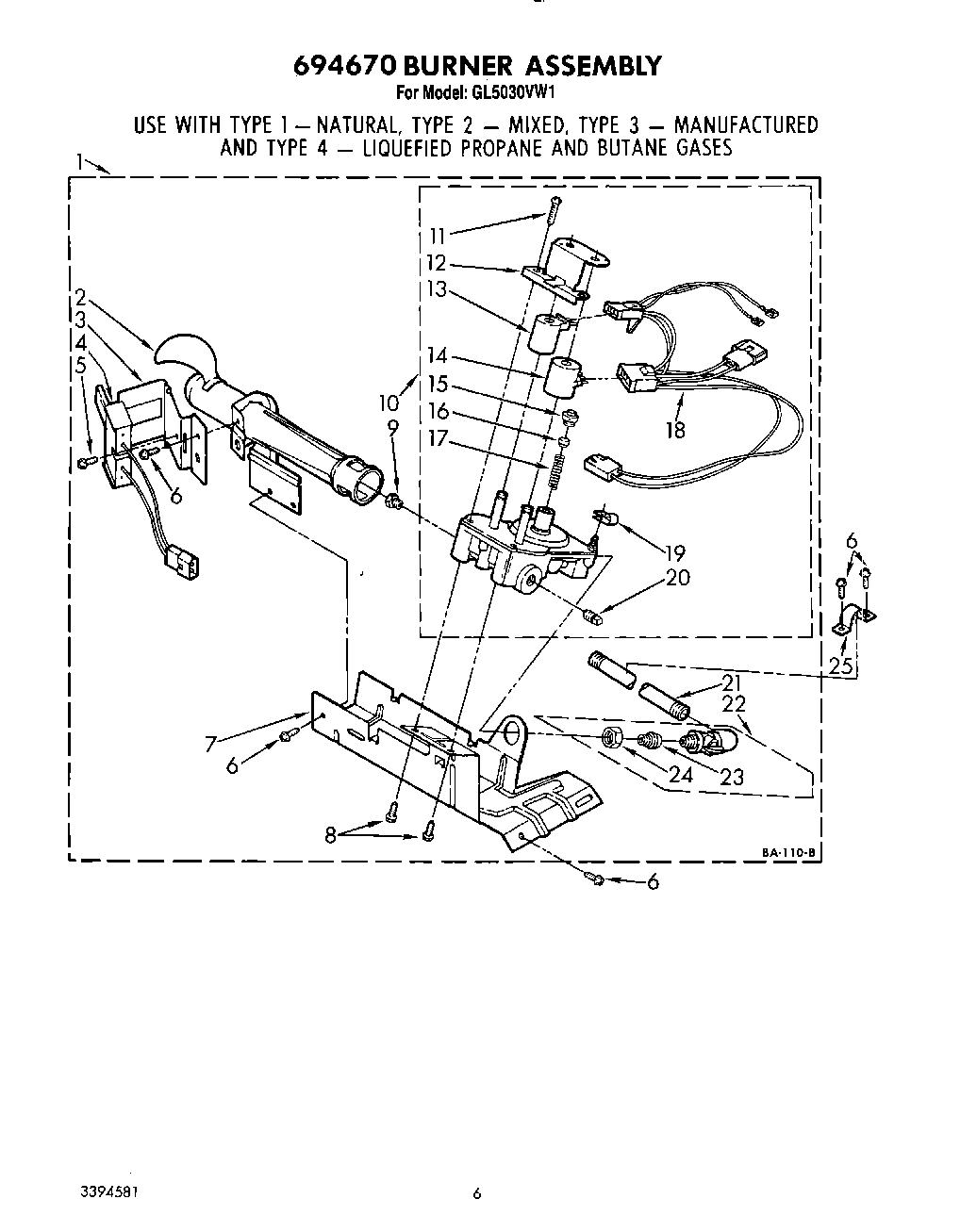

Burner Assembly 60 Hz. (Alternate) (Refer To
Burner Assembly 60 Hz. (Alternate) (Refer To WPL 694670 Contact Us For Availability
View on Model
69
Kit, Conversion (Type 1 To
Kit, Conversion (Type 1 To WPL 279243 Contact Us For Availability
View on Model
69
Bracket, Support
Bracket, Support WPL 348945 Contact Us For Availability
View on Model
72
Wire, Ground
Wire, Ground WPL 690853 Contact Us For Availability
View on Model
75
Receptacle, Latching (3-Way) (Uses Terminal 9
Receptacle, Latching (3-Way) (Uses Terminal 9 WPL 691707 Contact Us For Availability
View on Model
79
Switch, Temperature
Switch, Temperature WPL 694720 Contact Us For Availability
View on Model
81
Knob, Push-To-Start
Knob, Push-To-Start WPL 3391829 Contact Us For Availability
View on Model
96
WPL 694510
WPL 694510 WPL 694510 Contact Us For Availability
View on Model
