Model Whirlpool GI7FVCXXY01 REFRIGERATOR – Common Parts &amp; Diagrams

1

W10161596 Whirlpool Refrigerator Ice Mold Backorder WPL W10161596 $93.38

1

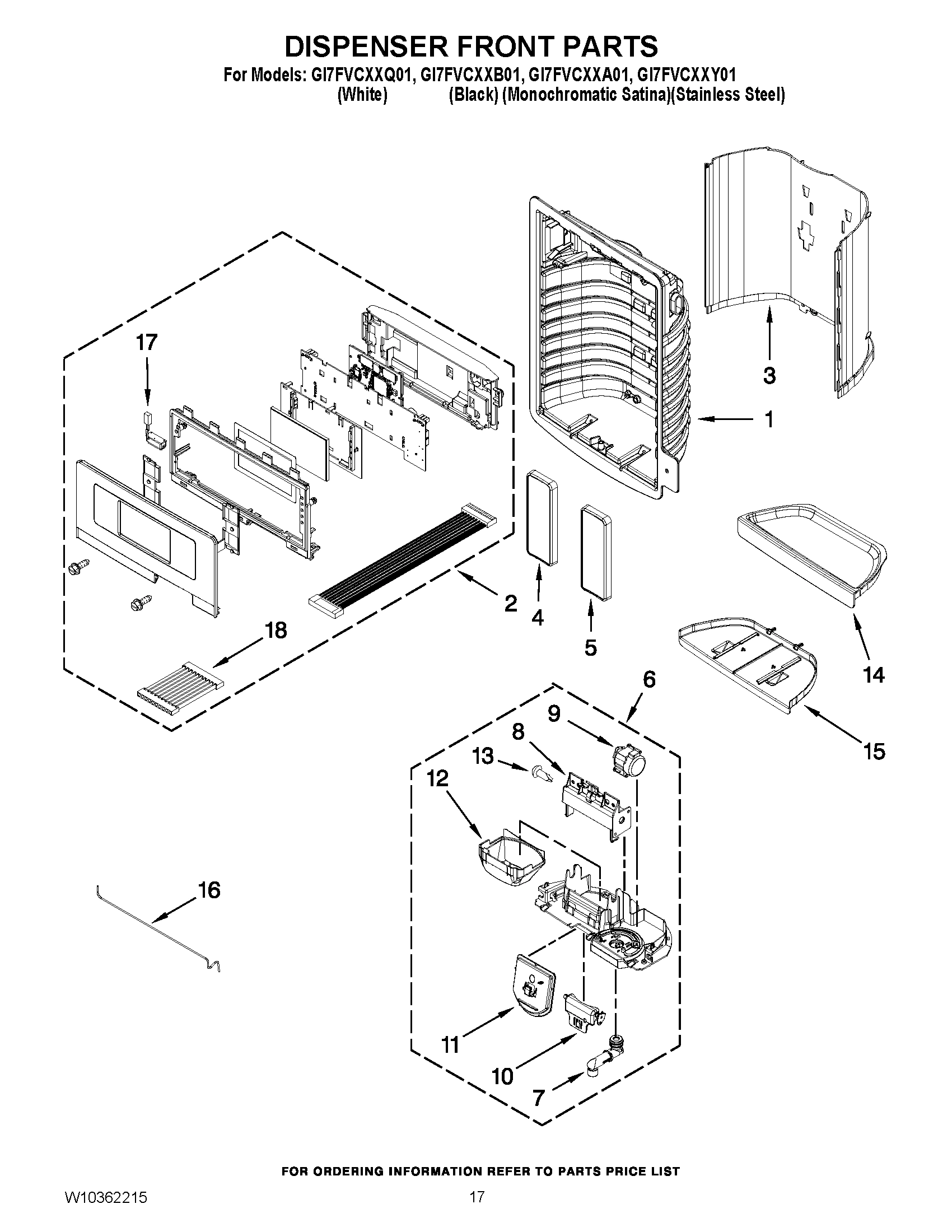

HOUSING, DISPENSER (NOT SERVICED) WPL NP Contact Us For Availability

1

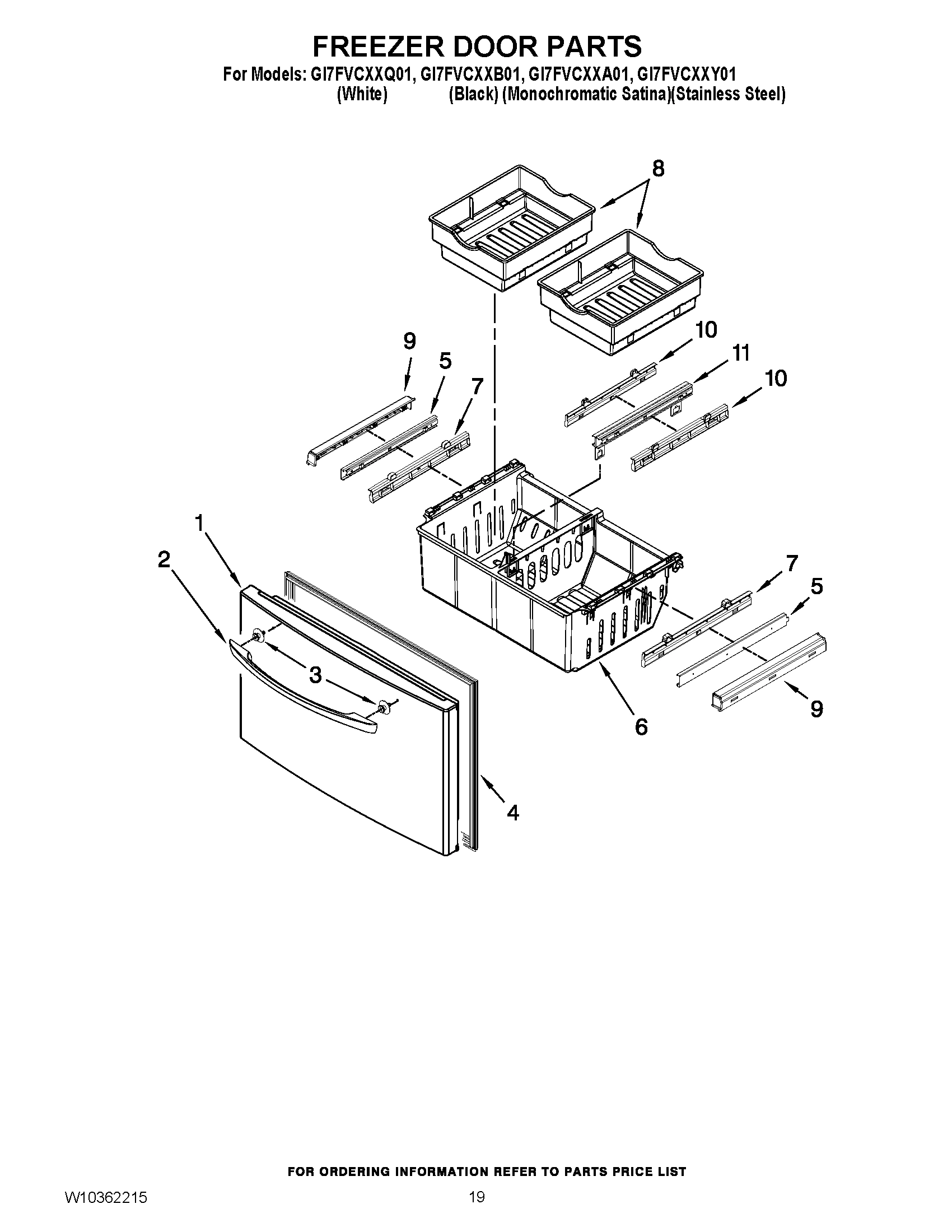

FREEZER DOOR (WHITE) WPL 12977823W Contact Us For Availability

1

FREEZER DOOR (SATINA) WPL 12977825L Contact Us For Availability

1

FREEZER DOOR (BLACK) WPL 12977835B Contact Us For Availability

1

FREEZER DOOR (STAINLESS) WPL 12977847S Contact Us For Availability

2

WP12825803 Whirlpool Refrigerator Fan Blade In Stock WPL WP12825803 $37.20

2

WPW10223023K Whirlpool Refrigerator Handle Backorder WPL WPW10223023K $107.03

2

WPW10226427 Whirlpool Refrigerator Electronic In Stock WPL WPW10226427 $226.83

2

UI ASSEMBLY (STAINLESS) WPL W10291950 Contact Us For Availability

2

UI ASSEMBLY (WHITE) WPL W10291948 Contact Us For Availability

2

UI ASSEMBLY (BLACK) WPL W10291949 Contact Us For Availability

2

BRACKET, WATER SYSTEM WPL W10214813 Contact Us For Availability

2

HANDLE, DOOR (WHITE) WPL W10223022 Contact Us For Availability

2

HANDLE, DOOR (STAINLESS) WPL W10223025 Contact Us For Availability

2

UI ASSEMBLY (SATINA) WPL W10291951 Contact Us For Availability

3

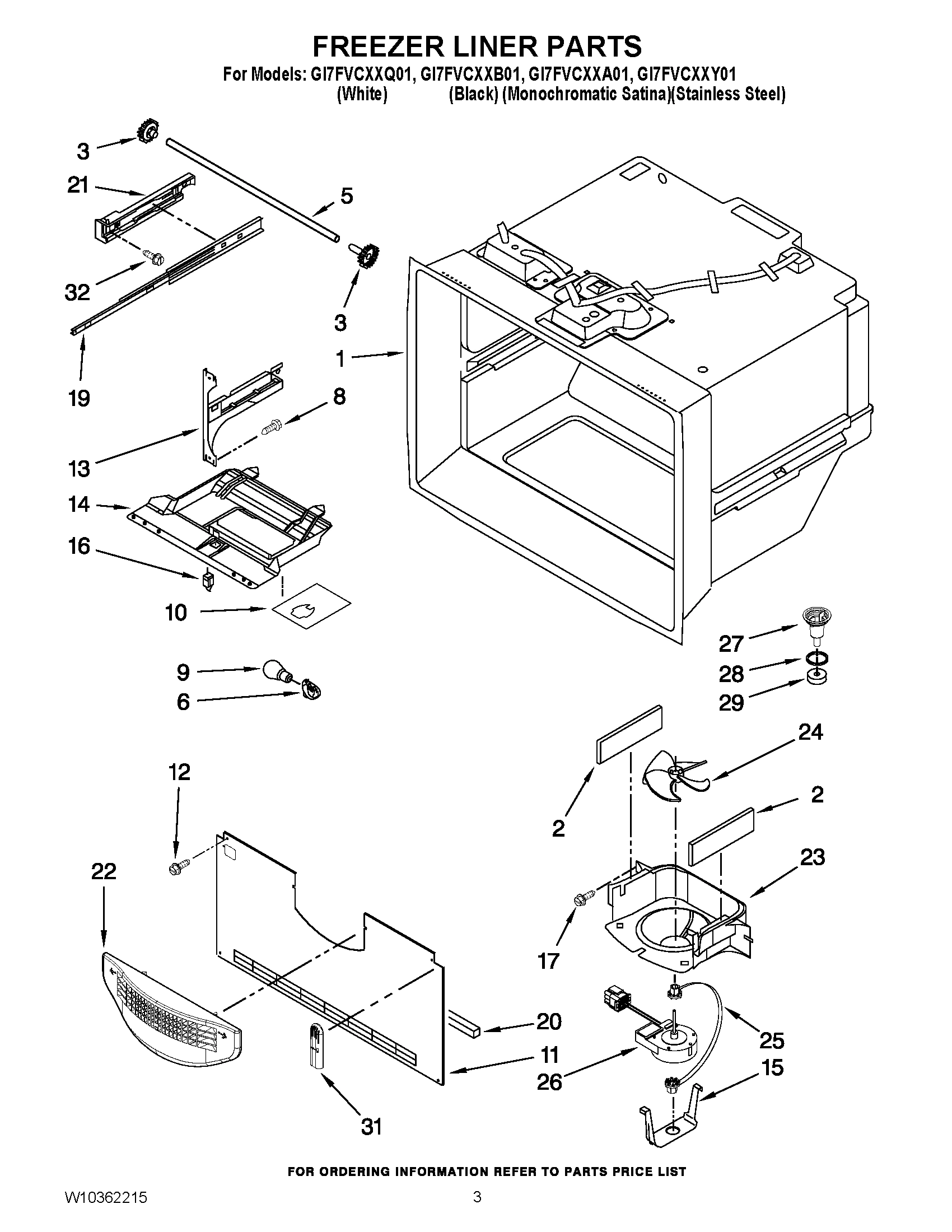

12002497 Whirlpool Refrigerator Drawer Gear K In Stock WPL 12002497 $8.86

3

W10305890 Whirlpool Refrigerator Shield Backorder WPL W10305890 $63.98

3

W11045975 Whirlpool Refrigerator Shield Backorder WPL W11045975 $27.41

3

W11045976 Whirlpool Refrigerator Shield Backorder WPL W11045976 $29.52

3

FALSE WALL, DISPENSER (SATINA) WPL W10268793 Contact Us For Availability

4

B5759655 Whirlpool Refrigerator Gasket In Stock WPL B5759655 $7.69

4

W10368728 Whirlpool Refrigerator Pad Backorder WPL W10368728 $47.16

4

WPW10216070 Whirlpool Refrigerator Reservoir Backorder WPL WPW10216070 $177.51

4

WPW10436253 Whirlpool Refrigerator Black Free In Stock WPL WPW10436253 $144.09

4

WPW10443321 Whirlpool Door Gasket In Stock WPL WPW10443321 $126.50

4

WPW10714545 Whirlpool Refrigerator Freezer Do In Stock WPL WPW10714545 $101.59

4

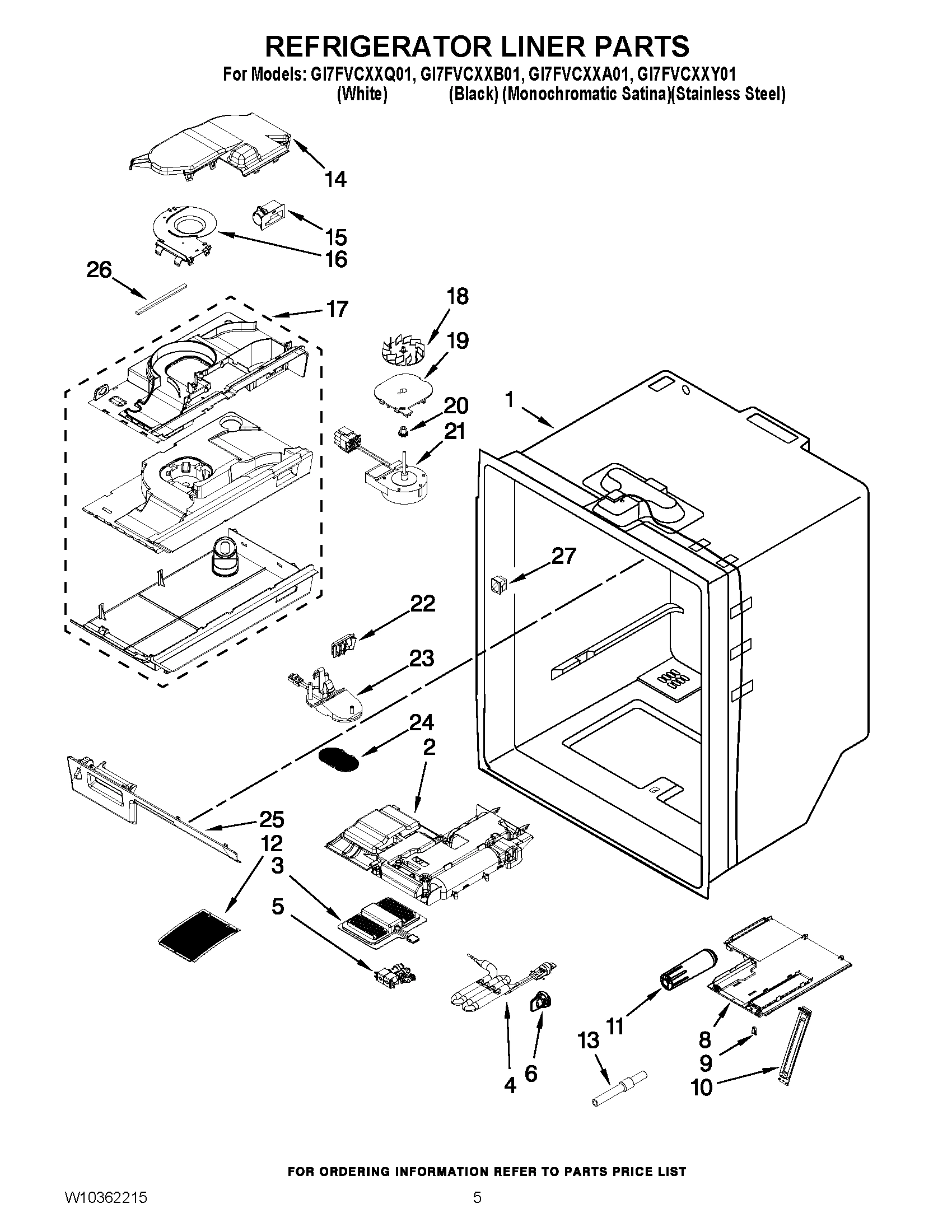

FRAME, CRISPER CENTER WPL W10331184 Contact Us For Availability

4

Washer, Auger WPL 2258220 Contact Us For Availability

5

W10368729 Whirlpool Refrigerator Pad Backorder WPL W10368729 $124.53

5

W11028221 Whirlpool Refrigerator Shaft In Stock WPL W11028221 $11.31

5

WP12956105 Whirlpool Refrigerator Valve In Stock WPL WP12956105 $87.50

5

WPW10235367 Whirlpool Refrigerator Glide Backorder WPL WPW10235367 $131.97

5

WPW10267646 Whirlpool Refrigerator Electronic Backorder WPL WPW10267646 $211.99

5

WPW10368730 Whirlpool Refrigerator Pad In Stock WPL WPW10368730 $120.79

5

PAD, WATER (WHITE) WPL W10307621 Contact Us For Availability

5

BUCKET, DOOR GALLON (LH) (INCLUDES No.4) WPL W10243070 Contact Us For Availability

6

12722815B Whirlpool Refrigerator Mullion Rail Backorder WPL 12722815B $123.96

6

W10242974 Whirlpool Refrigerator 25" Tube Backorder WPL W10242974 $30.25

6

W11395888 Whirlpool Refrigerator Bypass Filte In Stock WPL W11395888 $25.53

6

WP12722815AP Whirlpool Refrigerator Mullion R In Stock WPL WP12722815AP $136.29

6

WP67006366 Whirlpool Refrigerator Lower Bin Backorder WPL WP67006366 $127.22

6

COVER, CRUSHER WPL W10178232 Contact Us For Availability

6

SEPARATOR ASSEMBLY (WHITE) WPL W10180830 Contact Us For Availability

6

SEPARATOR ASSEMBLY (SATINA) WPL W10215984 Contact Us For Availability

6

SEPARATOR ASSEMBLY (BLACK) WPL W10215987 Contact Us For Availability

6

SEPARATOR ASSEMBLY (STAINLESS) WPL W10307070 Contact Us For Availability

7

W10166742 Whirlpool Refrigerator Bracket Backorder WPL W10166742 $32.39

7

W10278733 Whirlpool Refrigerator Blade Backorder WPL W10278733 $31.82

7

W11227371 Whirlpool Refrigerator Spigot Backorder WPL W11227371 $49.67

8

W10174827 Whirlpool Refrigerator Bracket Backorder WPL W10174827 $27.27

8

WP12924903 Whirlpool Refrigerator Freezer Bin Backorder WPL WP12924903 $71.39

8

WPW10141622 Whirlpool Leveler In Stock WPL WPW10141622 $3.88

8

COVER, WATER SYSTEM WPL W10215169 Contact Us For Availability

9

W10001240 Whirlpool Refrigerator Screw Backorder WPL W10001240 $5.65

9

W10826788 Whirlpool Refrigerator Retainer Backorder WPL W10826788 $33.53

9

W10829281 Whirlpool Refrigerator Screw In Stock WPL W10829281 $5.01

9

W11351146 Whirlpool Refrigerator Handle Backorder WPL W11351146 $105.70

9

WP2223877 Whirlpool Door Hook In Stock WPL WP2223877 $49.89

9

WP67006368 Whirlpool Refrigerator Retainer Backorder WPL WP67006368 $138.96

9

WPW10205979 Whirlpool Refrigerator Ice Door M In Stock WPL WPW10205979 $42.36

9

Blade, Fixed WPL 2257020 Contact Us For Availability

12925404SP Whirlpool Refrigerator Bracket Backorder WPL 12925404SP $21.67

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $31.82

W11469652 Whirlpool Refrigerator Shield Backorder WPL W11469652 $10.76

W11592374 Whirlpool Refrigerator Top Door Hin In Stock WPL W11592374 $10.07

WP12729123 Whirlpool Refrigerator Heater In Stock WPL WP12729123 $79.44

WPW10346124 Whirlpool Refrigerator Support In Stock WPL WPW10346124 $15.94

DOOR, FILTER ACCESS WPL W10213297 Contact Us For Availability

12968202W Whirlpool Refrigerator Door Stop Backorder WPL 12968202W $29.10

EDR4RXD1 Whirlpool EveryDrop® Refrigerator W In Stock WPL EDR4RXD1 $55.44

W10308421 Whirlpool Refrigerator Evaporator C Backorder WPL W10308421 $108.00

W10346235 Whirlpool Refrigerator Chute Door Backorder WPL W10346235 $62.97

WPW10235357 Whirlpool Refrigerator Glide Asse Backorder WPL WPW10235357 $144.39

W10884855 Whirlpool Refrigerator Switch Backorder WPL W10884855 $37.35

WPW10435760 Whirlpool Refrigerator Ice Guide In Stock WPL WPW10435760 $8.45

Nameplate WPL 2220214 Contact Us For Availability

LENS, REFRIGERATOR LED WPL W10312047 Contact Us For Availability

COVER, RIGHT HINGE (APOLLO GREY) WPL W10272998 Contact Us For Availability

W10278731 Whirlpool Refrigerator Blade Backorder WPL W10278731 $31.81

WP12992902 Whirlpool Refrigerator Screw Backorder WPL WP12992902 $4.58

WP4449745 Whirlpool Screw Backorder WPL WP4449745 $2.51

DUCT, IMPINGER TOP WPL W10194598 Contact Us For Availability

WATERLINE, VALVE TO HINGE WPL W10226186 Contact Us For Availability

W11045970 Whirlpool Refrigerator Drip Tray Backorder WPL W11045970 $36.40

W11045971 Whirlpool Refrigerator Drip Tray Backorder WPL W11045971 $36.40

W11434460 Whirlpool Refrigerator Housing Backorder WPL W11434460 $12.39

WP12028505AP Whirlpool Closing Cam In Stock WPL WP12028505AP $29.12

WP12204826 Whirlpool Glass Crisper Cover Backorder WPL WP12204826 $127.96

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

WPW10305897 Whirlpool Refrigerator Drip Tray Backorder WPL WPW10305897 $43.10

HARNESS, ICEMAKER WPL W10292582 Contact Us For Availability

DUCT, SCROLL INLET WPL W10194596 Contact Us For Availability

TRAY, DISPENSER (SATINA) WPL W10267866 Contact Us For Availability

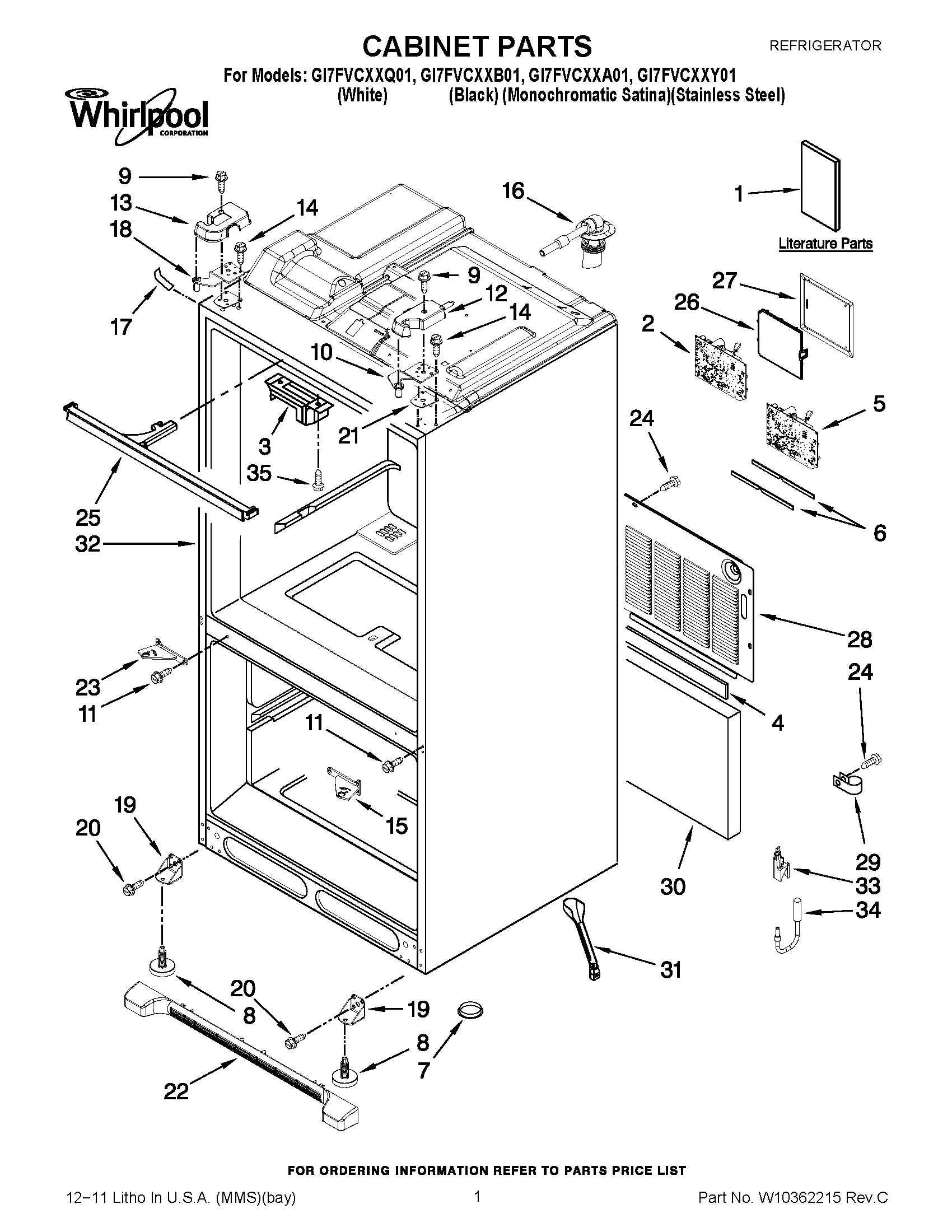

13000002WD Whirlpool Refrigerator Door Hinge Backorder WPL 13000002WD $55.95

W10267860 Whirlpool Refrigerator Drip Tray Backorder WPL W10267860 $37.04

W10267861 Whirlpool Refrigerator Drip Tray Backorder WPL W10267861 $37.09

W10918168 Whirlpool Refrigerator Door Hinge Backorder WPL W10918168 $28.99

WP2198661 Whirlpool Refrigerator Washer Backorder WPL WP2198661 $4.61

WPW10247377 Whirlpool Refrigerator Control Backorder WPL WPW10247377 $177.47

WPW10267863 Whirlpool Refrigerator Drip Tray Backorder WPL WPW10267863 $36.47

FRAME, CRISPER WPL W10331183 Contact Us For Availability

WP2220457 Whirlpool Refrigerator Ice Bin Coup In Stock WPL WP2220457 $11.36

FILL TUBE, ICEMAKER WPL W10213219 Contact Us For Availability

TUBE, WATER (DISPENSER) WPL W10314372 Contact Us For Availability

PLATE, SCROLL INLET WPL W10194595 Contact Us For Availability

12587703W Whirlpool Refrigerator Cover Backorder WPL 12587703W $10.76

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

W11290115 Whirlpool Refrigerator Light In Stock WPL W11290115 $46.48

WP12587703AP Whirlpool Refrigerator Filler Backorder WPL WP12587703AP $3.70

WP8281164 Whirlpool Refrigerator Screw In Stock WPL WP8281164 $4.56

18

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

18

WPW10123444K Whirlpool Refrigerator Wheel Backorder WPL WPW10123444K $31.92

18

HARNESS, JUMPER WPL W10193350 Contact Us For Availability

W11658402 Whirlpool Drawer Slide Rail In Stock WPL W11658402 $74.88

WP12227305WD Whirlpool Drawer Support Backorder WPL WP12227305WD $44.96

WPW10270395 Whirlpool Refrigerator Valve In Stock WPL WPW10270395 $191.51

Grommet, Drive Shaft WPL 2323357 Contact Us For Availability

BRACKET, MOTOR WPL W10194600 Contact Us For Availability

20

W11159728 Whirlpool Refrigerator Gasket In Stock WPL W11159728 $10.10

20

W11547653 Whirlpool Refrigerator Drip Tray Backorder WPL W11547653 $30.85

20

WP67002780 Whirlpool Refrigerator Grommet Backorder WPL WP67002780 $3.70

12999501 Whirlpool Refrigerator Hinge Shim Backorder WPL 12999501 $35.59

12999502 Whirlpool Refrigerator Hinge Shim Backorder WPL 12999502 $36.00

WPW10284682 Whirlpool Refrigerator Bracket In Stock WPL WPW10284682 $50.23

WPW10284683 Whirlpool Refrigerator Bracket Backorder WPL WPW10284683 $76.56

WPW10305123 Whirlpool Refrigerator Electronic Backorder WPL WPW10305123 $91.26

MOTOR, EVAP ECM (BLOWER) WPL W10281584 Contact Us For Availability

22

W11536253 Whirlpool Refrigerator Evaporator Backorder WPL W11536253 $105.14

22

GRILLE, REF AIR WPL W10216534 Contact Us For Availability

22

LENS, ICE BIN LED WPL W10225288 Contact Us For Availability

W10679370 Whirlpool Refrigerator Module Backorder WPL W10679370 $53.91

W10917988 Whirlpool Refrigerator Door Hinge Backorder WPL W10917988 $37.30

W10918113 Whirlpool Refrigerator Door Hinge Backorder WPL W10918113 $41.43

W10918164 Whirlpool Refrigerator Door Hinge Backorder WPL W10918164 $49.19

BOARD, RECEIVER WPL W10273549 Contact Us For Availability

24

W10237349 Whirlpool Refrigerator Light Lens Backorder WPL W10237349 $33.54

24

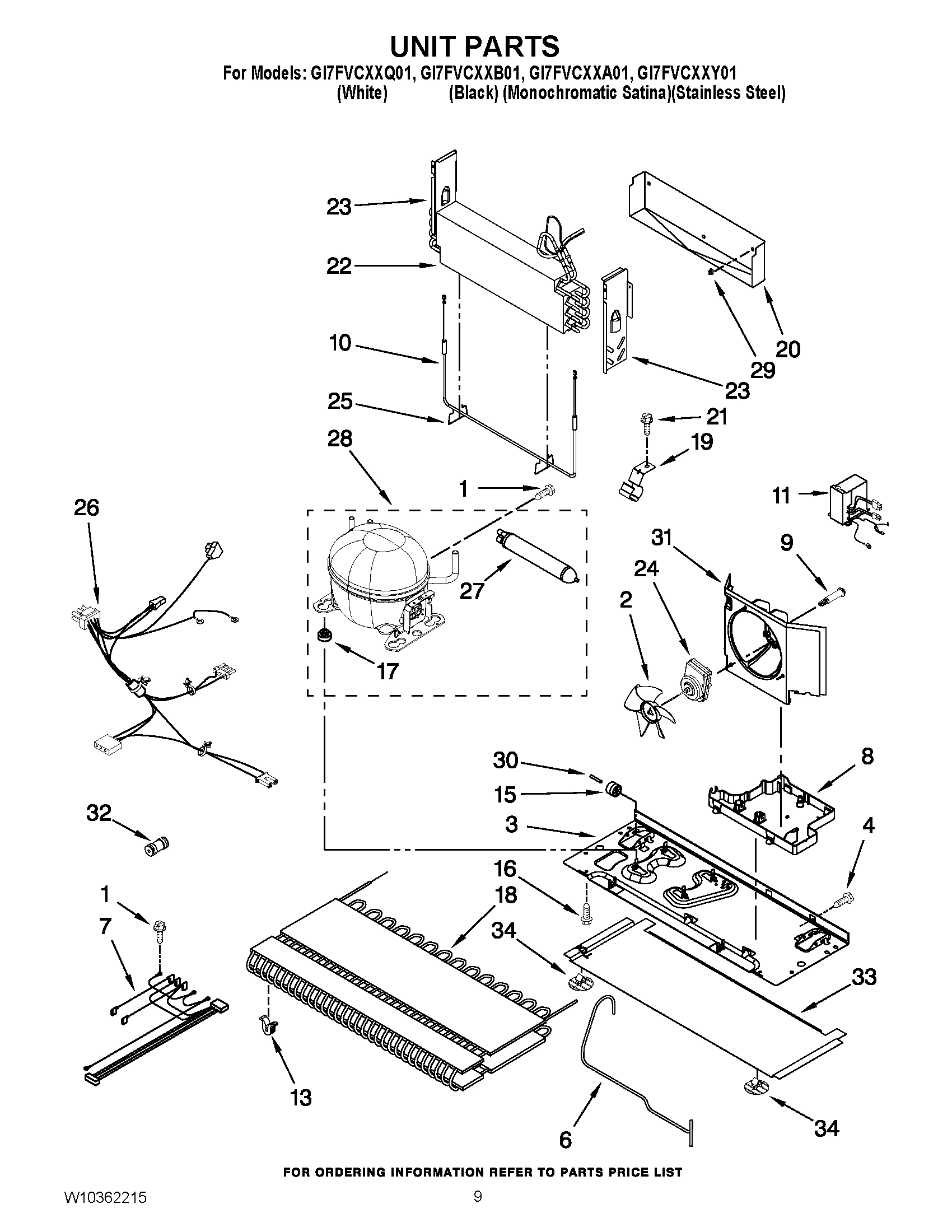

W11613295 Whirlpool Condenser Motor In Stock WPL W11613295 $50.00

24

WP2220458 Whirlpool Drive Cam In Stock WPL WP2220458 $11.97

W11400994 Whirlpool Refrigerator Screw Backorder WPL W11400994 $9.13

W11673433 Whirlpool Clip Backorder WPL W11673433 $62.75

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $5.01

FASCIA ASSEMBLY (INCLUDES DOOR, SWITCH, & SPR WPL W10323795 Contact Us For Availability

W10271463 Whirlpool Refrigerator Wire Harness Backorder WPL W10271463 $160.18

W11334745 Whirlpool Refrigerator Evaporator F In Stock WPL W11334745 $77.32

WP2212370 Whirlpool Washer Backorder WPL WP2212370 $7.45

GASKET, ICEBOX (SHORT) WPL W10323021 Contact Us For Availability

12961602 Whirlpool Refrigerator Wire Cover Backorder WPL 12961602 $41.10

W10852956 Whirlpool Refrigerator Spring In Stock WPL W10852956 $8.14

W11396033 Whirlpool Refrigerator Rocker Switc In Stock WPL W11396033 $14.86

WPW10143759 Whirlpool Dryer Filter In Stock WPL WPW10143759 $14.68

28

WPW10270394 Whirlpool Refrigerator Back Cover Backorder WPL WPW10270394 $81.61

28

SHAFT, MOTOR WPL W10258592 Contact Us For Availability

29

WP2323603 Whirlpool Refrigerator Motor In Stock WPL WP2323603 $123.75

29

SEAL, ICE DOOR WPL W10247763 Contact Us For Availability

30

GASKET, ICE CHUTE WPL W10247668 Contact Us For Availability

30

INSULATION, SOUND WPL 12820505 Contact Us For Availability

31

W11556315 Whirlpool Shroud In Stock WPL W11556315 $29.19

31

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $4.56

32

WPW10334458 Whirlpool Refrigerator Connector Backorder WPL WPW10334458 $8.62

32

CLIP, SHAFT WPL W10218551 Contact Us For Availability

33

COVE WPL W10236761 Contact Us For Availability

34

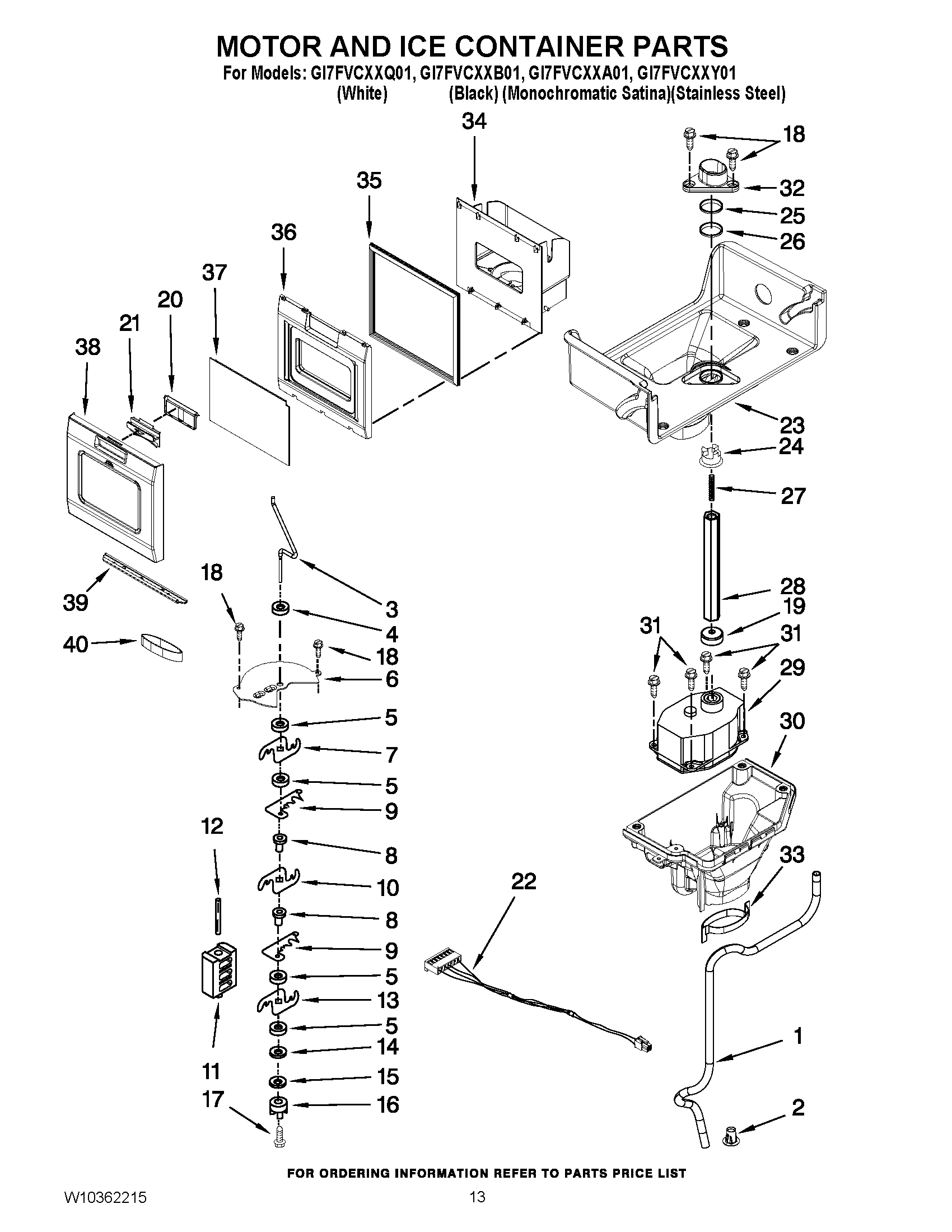

CONTAINER, ICE WPL W10267558 Contact Us For Availability

35

W10854958 Whirlpool Refrigerator Screw Backorder WPL W10854958 $2.71

35

GASKET, ICE CONTAINER WPL W10178224 Contact Us For Availability

40

GASKET, CHUTE WPL W10166865 Contact Us For Availability

100

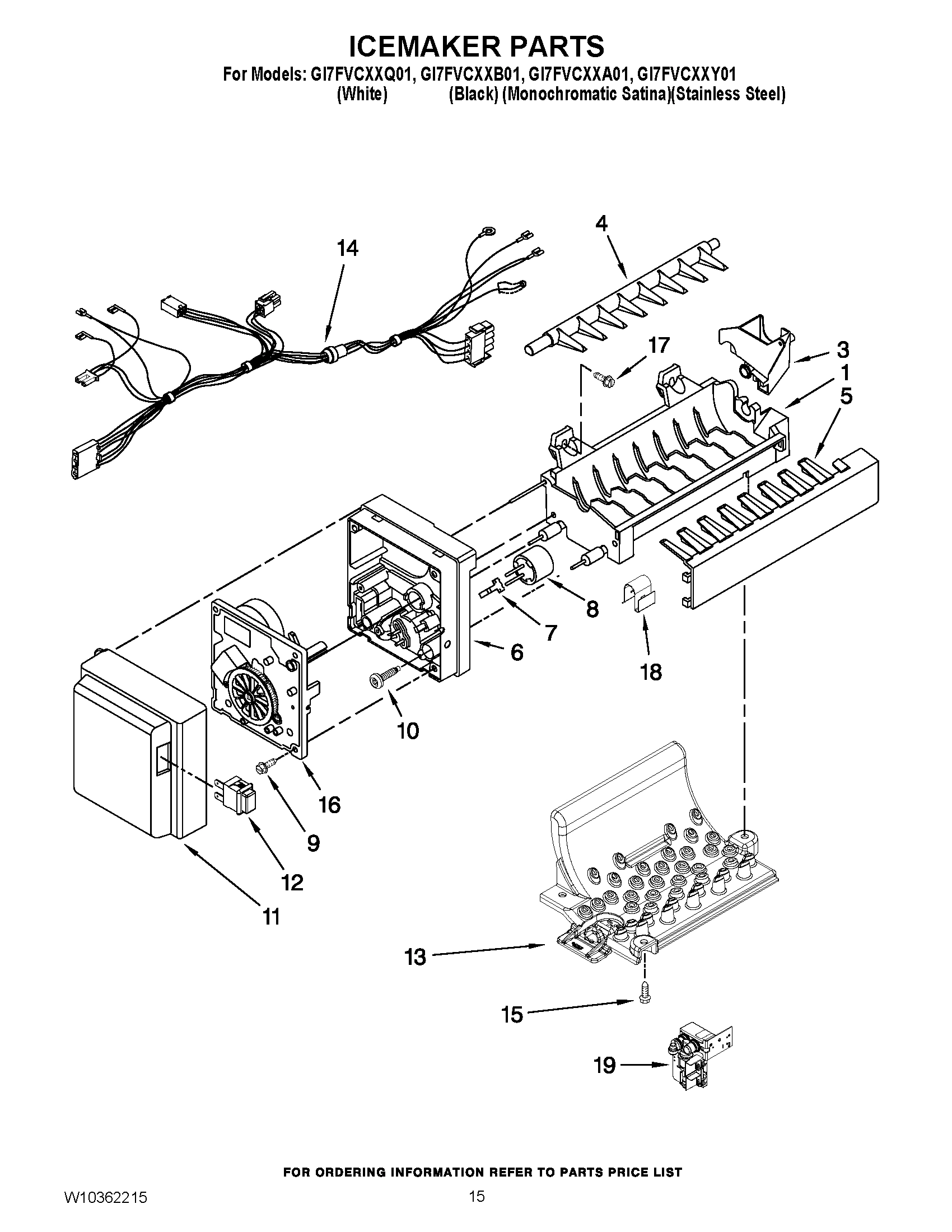

WPW10122559 Whirlpool Refrigerator Icemaker In Stock WPL WPW10122559 $136.16

100

ICEBOX ASSEMBLY, COMPLETE WPL W10293764 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $28.53

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $27.52

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876370 Whirlpool Refrigerator Insulation Backorder WPL 876370 $100.80

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $33.93

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.17

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $27.19

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

HARNESS, RC LIGHTS (INCLUDES THERMISTOR) WPL W10292583 Contact Us For Availability

Cleaner, Stnls Steel Magic WPL 20000008 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability
