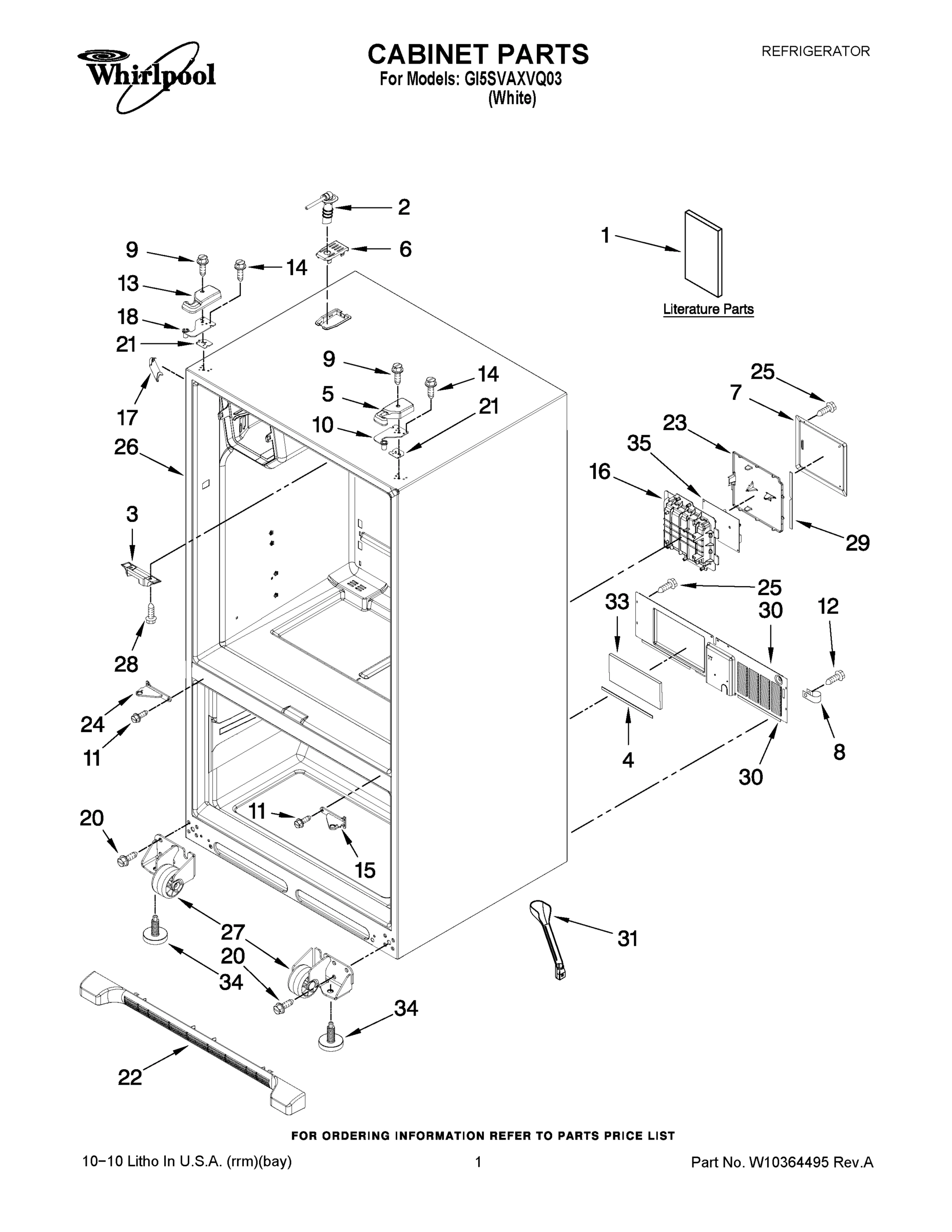

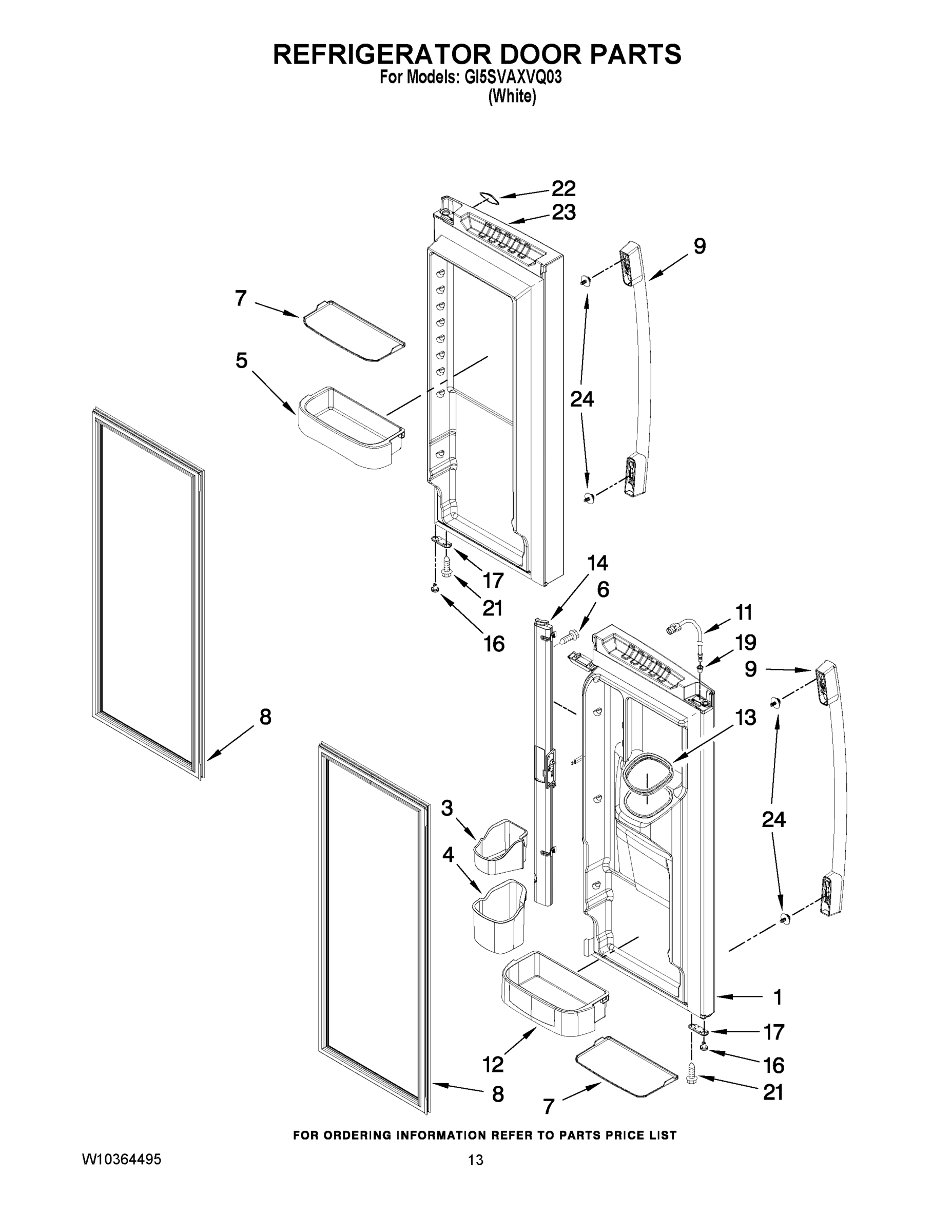

Model Whirlpool GI5SVAXVQ03 REFRIGERATOR – Common Parts &amp; Diagrams

1

WP12883508SP Whirlpool Refrigerator Glass She Backorder WPL WP12883508SP $146.53

1

WPW10300025 Whirlpool Refrigerator Ice Mold Backorder WPL WPW10300025 $90.86

1

ICE BIN ASSEMBLY (INCLUDES AUGER) WPL W10324091 Contact Us For Availability

1

LINER (NOT A SEVICEABLE PART) WPL NP Contact Us For Availability

2

W10121282 Whirlpool Refrigerator Insert Backorder WPL W10121282 $10.16

2

W10882877 Whirlpool Refrigerator White Dispen Backorder WPL W10882877 $245.29

2

WP12825803 Whirlpool Refrigerator Fan Blade In Stock WPL WP12825803 $35.43

2

WPW10175514 Whirlpool Refrigerator Shut-Off A Backorder WPL WPW10175514 $42.71

3

12002497 Whirlpool Refrigerator Drawer Gear K In Stock WPL 12002497 $8.86

3

W10121281 Whirlpool Refrigerator Shroud Backorder WPL W10121281 $26.21

3

W10327050 Whirlpool Refrigerator Cup Fill Backorder WPL W10327050 $33.65

4

12921801 Whirlpool Refrigerator Light Cover Backorder WPL 12921801 $10.76

4

B5759655 Whirlpool Refrigerator Gasket In Stock WPL B5759655 $7.69

4

W10318914 Whirlpool Refrigerator Ejector Arm Backorder WPL W10318914 $13.89

4

WPW10162697 Whirlpool Refrigerator Motor Backorder WPL WPW10162697 $113.74

4

WPW10194031 Whirlpool Refrigerator Glide In Stock WPL WPW10194031 $41.08

4

Basket, Lower WPL W10150039 Contact Us For Availability

4

Sump, Dispenser (White) WPL W10141657 Contact Us For Availability

5

W10146439 Whirlpool Refrigerator Divider Backorder WPL W10146439 $15.90

5

W11028221 Whirlpool Refrigerator Shaft In Stock WPL W11028221 $11.31

5

WP13005704W Whirlpool Refrigerator Chute Backorder WPL WP13005704W $118.67

5

WPW10122563 Whirlpool Refrigerator Stripper A Backorder WPL WPW10122563 $32.68

5

WPW10194032 Whirlpool Refrigerator Glide Backorder WPL WPW10194032 $41.28

6

12981401W Whirlpool Refrigerator Cover Filter Backorder WPL 12981401W $7.78

6

W11447232 Whirlpool Refrigerator Socket In Stock WPL W11447232 $4.58

6

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $37.11

6

WPW10233569 Whirlpool Refrigerator Tube Backorder WPL WPW10233569 $43.19

7

12961602 Whirlpool Refrigerator Wire Cover Backorder WPL 12961602 $39.14

7

W10847995 Whirlpool Divider Assembly Backorder WPL W10847995 $28.80

7

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $4.59

7

Grommet, Fan Motor WPL W10151687 Contact Us For Availability

8

628532 Whirlpool Refrigerator Thermostat Backorder WPL 628532 $40.53

8

Facade, Dispenser (White) WPL W10141655 Contact Us For Availability

9

W10001240 Whirlpool Refrigerator Screw Backorder WPL W10001240 $5.65

9

W10829281 Whirlpool Refrigerator Screw Backorder WPL W10829281 $5.01

9

W11679940 Whirlpool Refrigerator Light Bulb A In Stock WPL W11679940 $2.75

9

WPW10280608 Whirlpool Refrigerator Bracket Backorder WPL WPW10280608 $35.12

9

WPW10280613 Whirlpool Refrigerator Bracket Backorder WPL WPW10280613 $35.12

W11469652 Whirlpool Refrigerator Shield Backorder WPL W11469652 $10.76

W11592374 Whirlpool Refrigerator Top Door Hin Backorder WPL W11592374 $10.07

WP12729123 Whirlpool Refrigerator Heater In Stock WPL WP12729123 $75.66

WPW10121440 Whirlpool Refrigerator Extension Backorder WPL WPW10121440 $28.80

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

W10275942 Whirlpool Refrigerator Water Tube Backorder WPL W10275942 $43.13

W10308421 Whirlpool Refrigerator Evaporator C Backorder WPL W10308421 $102.86

W11402525 Whirlpool Glass Shelf Backorder WPL W11402525 $118.14

W11661170 Whirlpool Clip Backorder WPL W11661170 $4.39

WPW10127427 Whirlpool Refrigerator Control In Stock WPL WPW10127427 $65.37

Yoke/Pad Assembly (White) WPL W10146247 Contact Us For Availability

67006425 Whirlpool Refrigerator Screw In Stock WPL 67006425 $2.51

WPW10121444 Whirlpool Refrigerator Front Cove Backorder WPL WPW10121444 $28.80

WPW10194431 Whirlpool Start Device In Stock WPL WPW10194431 $58.28

WPW10197428 Whirlpool Start Device In Stock WPL WPW10197428 $40.46

WPW10289489 Whirlpool Door Shelf Bin In Stock WPL WPW10289489 $46.50

W11676504 Whirlpool Insert Assembly Backorder WPL W11676504 $12.77

WP2313326 Whirlpool Refrigerator Switch Backorder WPL WP2313326 $7.94

WPW10330991 Whirlpool Refrigerator Bracket In Stock WPL WPW10330991 $42.00

WPW10330993 Whirlpool Refrigerator Bracket Backorder WPL WPW10330993 $56.13

14

W11434460 Whirlpool Refrigerator Housing Backorder WPL W11434460 $12.39

14

WPW10312691 Whirlpool Refrigerator Air Baffle In Stock WPL WPW10312691 $116.63

15

13000002WD Whirlpool Refrigerator Door Hinge Backorder WPL 13000002WD $53.88

15

W10884713 Whirlpool Refrigerator Wire Harness In Stock WPL W10884713 $70.43

15

W11712696 Whirlpool Clip Backorder WPL W11712696 $6.62

16

W11445850 Whirlpool Door Switch In Stock WPL W11445850 $18.70

16

WP12204826 Whirlpool Glass Crisper Cover Backorder WPL WP12204826 $121.88

12587703W Whirlpool Refrigerator Cover Backorder WPL 12587703W $10.76

12968202W Whirlpool Refrigerator Door Stop Backorder WPL 12968202W $27.71

8201515 Whirlpool Refrigerator Motor and Gear In Stock WPL 8201515 $67.68

W10273464 Whirlpool Refrigerator Ladder Backorder WPL W10273464 $11.03

WP98165 Whirlpool Screw Backorder WPL WP98165 $2.51

18

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

18

W11592375 Whirlpool Door Hinge Backorder WPL W11592375 $10.07

12996601 Whirlpool Refrigerator Bushing Clip Backorder WPL 12996601 $6.92

W10709795 Whirlpool Refrigerator Screw Backorder WPL W10709795 $7.81

W11395888 Whirlpool Refrigerator Bypass Filte In Stock WPL W11395888 $24.32

W11658402 Whirlpool Drawer Slide Rail In Stock WPL W11658402 $74.88

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

W11451451 Whirlpool Refrigerator Gasket Backorder WPL W11451451 $4.85

W11547653 Whirlpool Refrigerator Drip Tray Backorder WPL W11547653 $29.39

WPW10121434 Whirlpool Refrigerator Insert Backorder WPL WPW10121434 $9.86

WPW10312696 Whirlpool Water Inlet Valve In Stock WPL WPW10312696 $113.26

12999501 Whirlpool Refrigerator Hinge Shim In Stock WPL 12999501 $33.89

12999502 Whirlpool Refrigerator Hinge Shim Backorder WPL 12999502 $34.28

WPW10284682 Whirlpool Refrigerator Bracket Backorder WPL WPW10284682 $47.84

WPW10284683 Whirlpool Refrigerator Bracket In Stock WPL WPW10284683 $72.92

WPW10309869 Whirlpool Refrigerator Cover Backorder WPL WPW10309869 $39.13

Slide, Humidity Control WPL W10141530 Contact Us For Availability

22

W11176847 Whirlpool Refrigerator Grille Backorder WPL W11176847 $42.99

22

W11536253 Whirlpool Refrigerator Evaporator Backorder WPL W11536253 $105.14

22

Nameplate WPL 2220214 Contact Us For Availability

23

W11700329 Whirlpool Evaporator Shroud Backorder WPL W11700329 $19.27

23

WP13062602 Whirlpool Refrigerator Support Backorder WPL WP13062602 $28.80

W10918113 Whirlpool Refrigerator Door Hinge Backorder WPL W10918113 $39.45

W11613295 Whirlpool Condenser Motor In Stock WPL W11613295 $50.00

WP12992902 Whirlpool Refrigerator Screw Backorder WPL WP12992902 $4.58

WP67006337 Whirlpool Refrigerator Fan Blade In Stock WPL WP67006337 $47.51

Knob, Humidity Control WPL 2223309 Contact Us For Availability

W10118193 Whirlpool Refrigerator Cover Backorder WPL W10118193 $28.80

W11673433 Whirlpool Clip Backorder WPL W11673433 $59.77

W11676465 Whirlpool Grommet Backorder WPL W11676465 $5.38

W11686675 Whirlpool Screw Backorder WPL W11686675 $8.11

26

W10850438 Whirlpool Refrigerator Evaporator M Backorder WPL W10850438 $160.43

27

W10815413 Whirlpool Refrigerator Funnel Backorder WPL W10815413 $27.69

27

WPW10143759 Whirlpool Dryer Filter In Stock WPL WPW10143759 $13.98

28

W10854958 Whirlpool Refrigerator Screw Backorder WPL W10854958 $2.71

28

WPM0500703 Whirlpool Refrigerator O-Ring Seal Backorder WPL WPM0500703 $4.72

29

WPB8381501 Whirlpool Refrigerator Door Gasket In Stock WPL WPB8381501 $3.70

30

WPW10270394 Whirlpool Refrigerator Back Cover Backorder WPL WPW10270394 $77.72

31

W11556315 Whirlpool Shroud Backorder WPL W11556315 $27.80

31

WP67003924 Whirlpool Refrigerator Cover Backorder WPL WP67003924 $3.70

32

WP489474 Whirlpool Refrigerator Screw Backorder WPL WP489474 $2.75

33

Fiber, Acoustic WPL 12820505 Contact Us For Availability

34

W10852725 Whirlpool Refrigerator Grommet In Stock WPL W10852725 $3.70

34

WPW10141622 Whirlpool Leveler In Stock WPL WPW10141622 $3.70

35

WPW10312695-includeCORE Whirlpool WPW10312695 Backorder WPL WPW10312695-includeCORE $197.16

35

WPW10334458 Whirlpool Refrigerator Connector Backorder WPL WPW10334458 $8.62

100

WPW10300024 Whirlpool Ice Maker In Stock WPL WPW10300024 $122.14

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

W11033771 Whirlpool Refrigerator Coupling Backorder WPL W11033771 $13.21

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability
