Model Whirlpool GHW9250MT1 AUTOMATIC WASHER – Common Parts & Diagrams
03 - CONTROL PANEL PARTS
05 - TUB AND BASKET PARTS

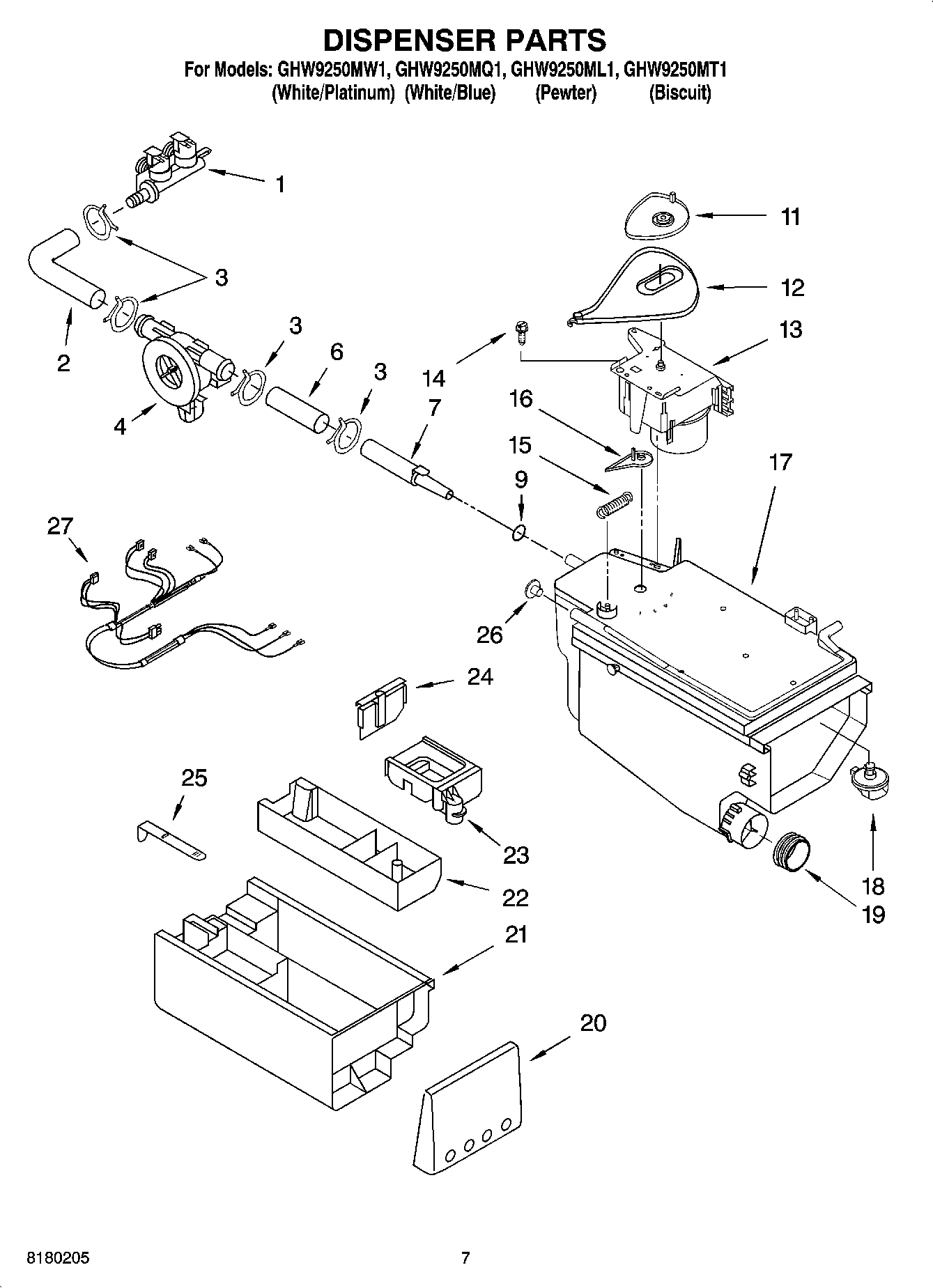

04 - DISPENSER PARTS

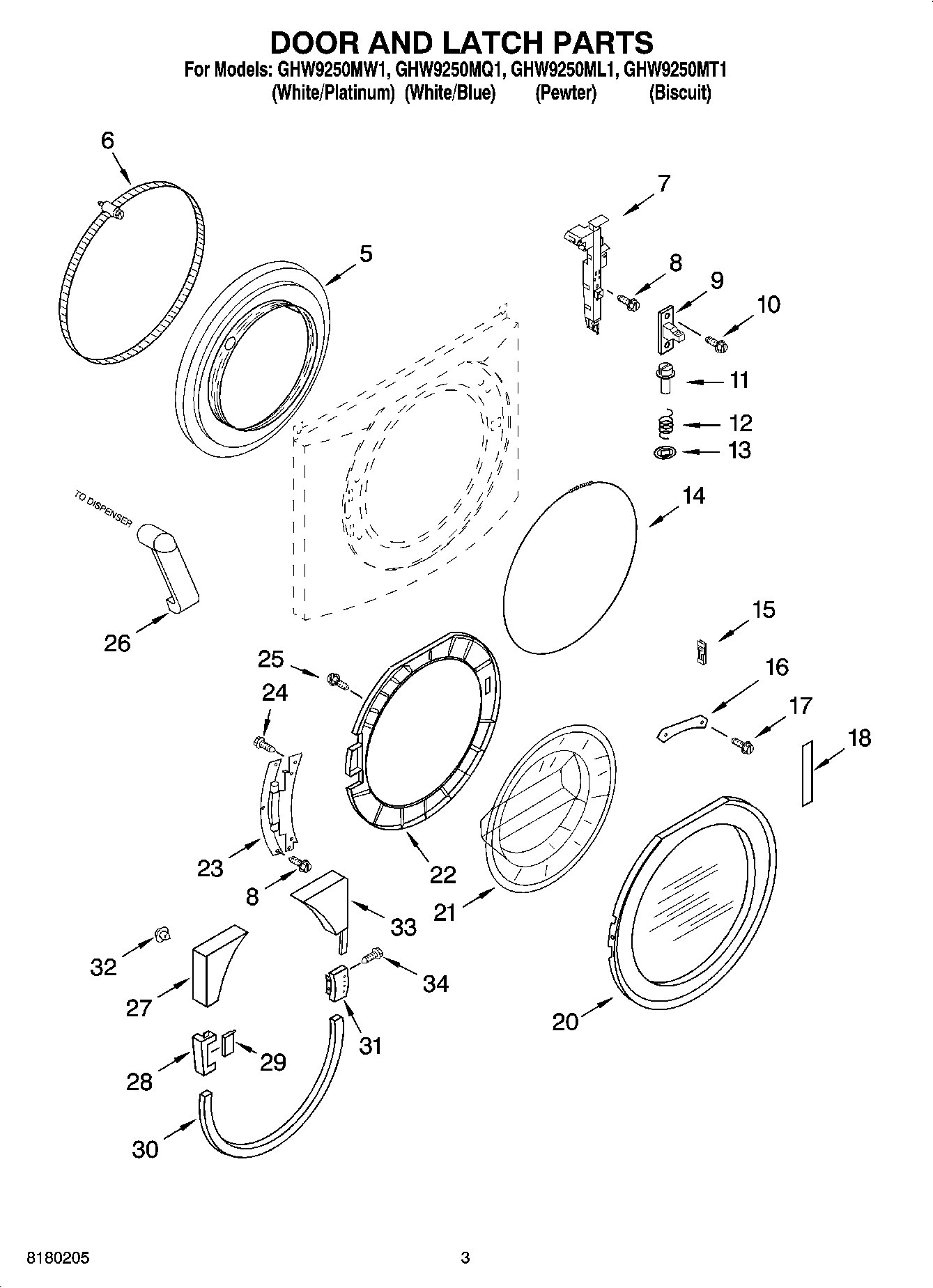

02 - DOOR AND LATCH PARTS

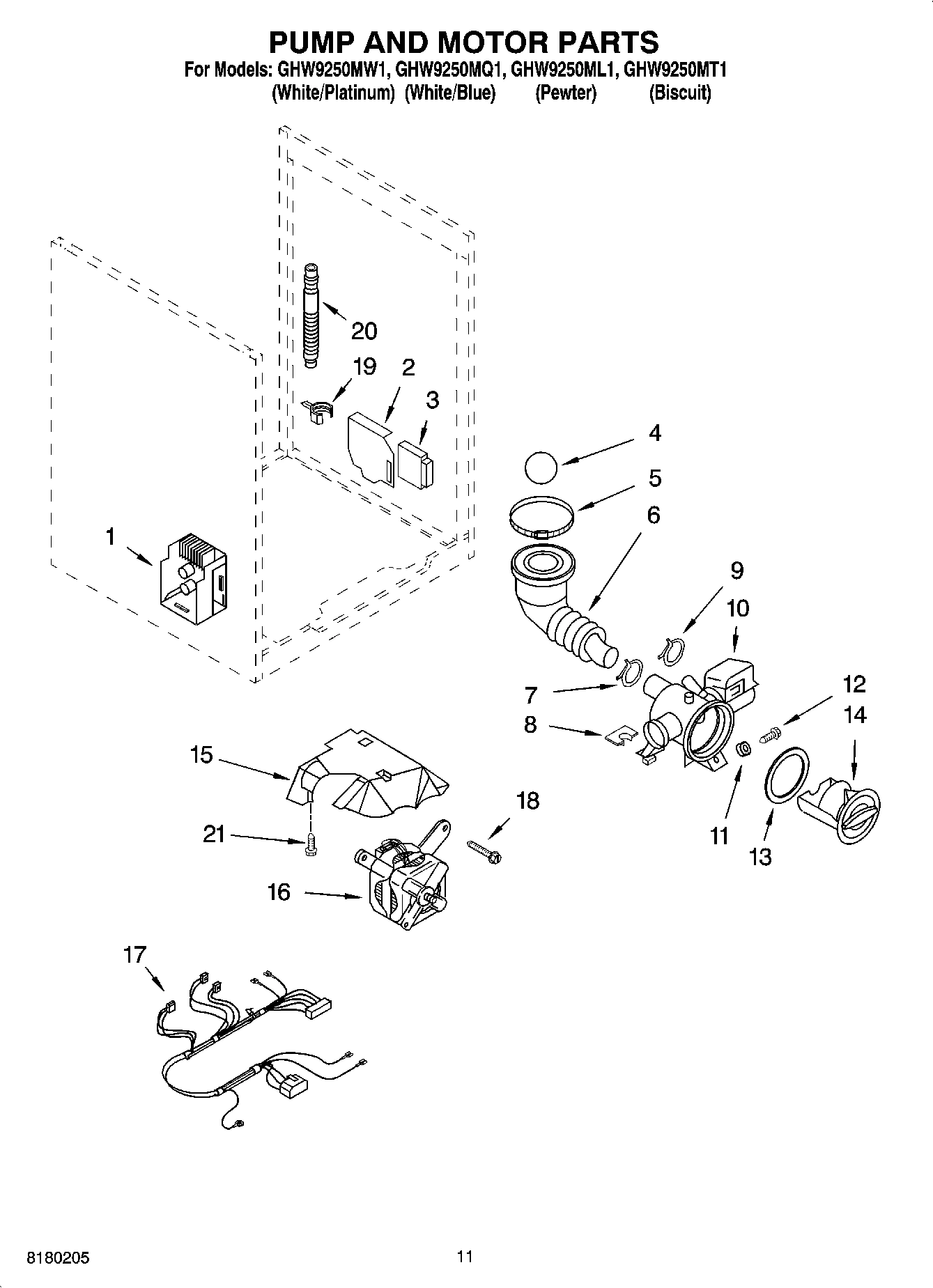

06 - PUMP AND MOTOR PARTS OPTIONAL PARTS (NOT INCLUDED)

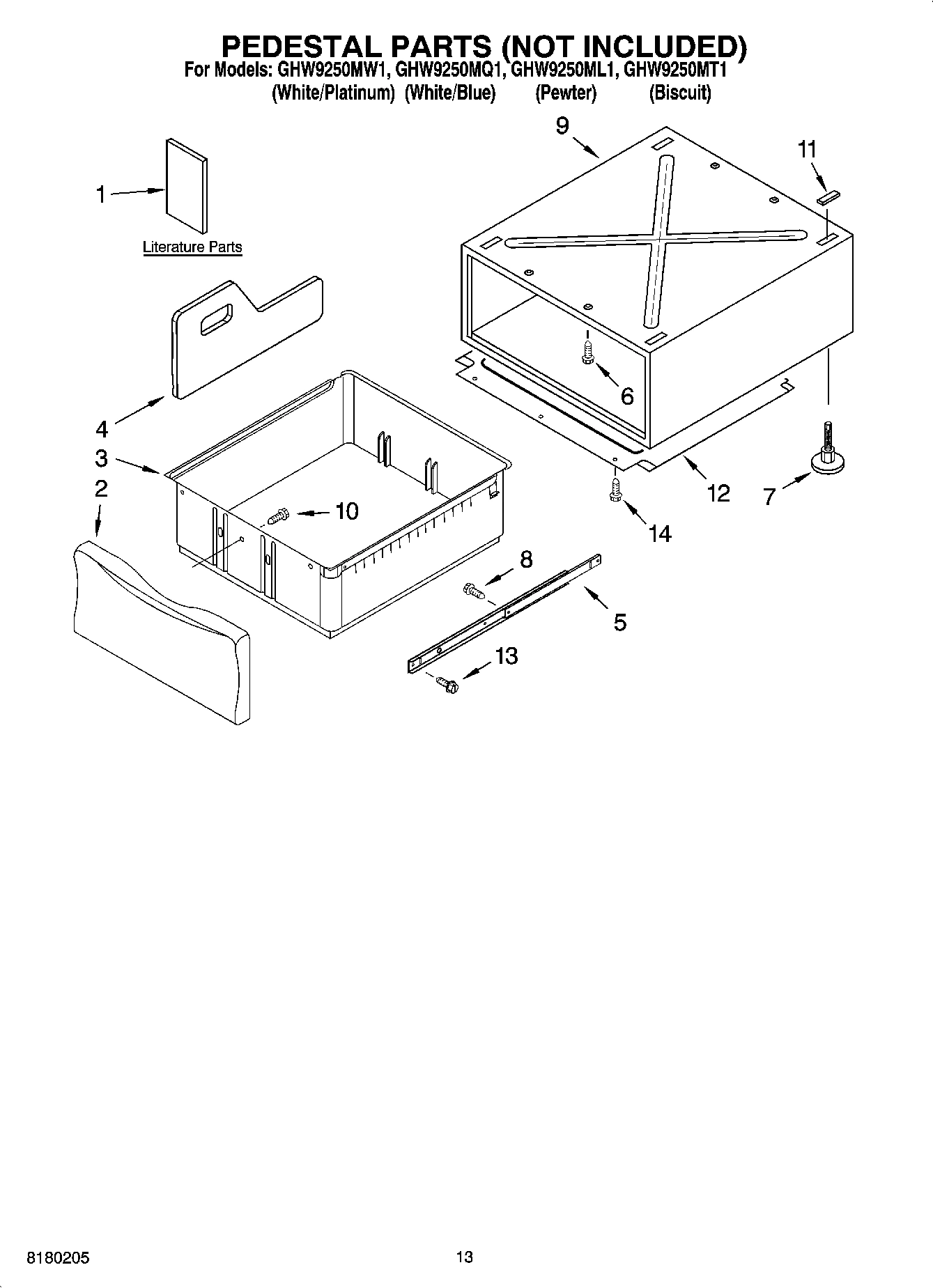

07 - PEDESTAL PARTS (NOT INCLUDED)

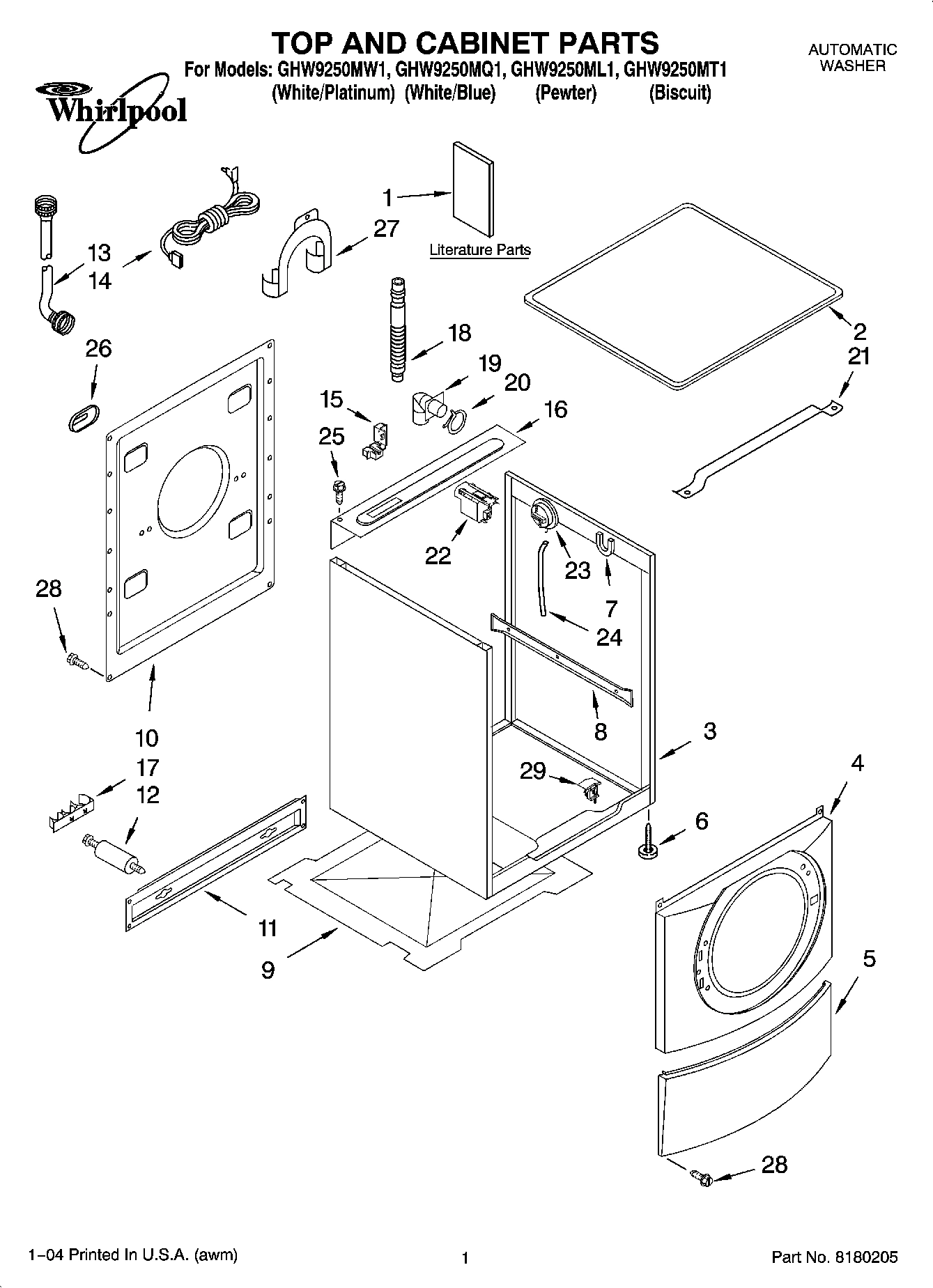

01 - TOP AND CABINET PARTS
Common parts from model Whirlpool GHW9250MT1 AUTOMATIC WASHER
PED2700A WPL ARI65529A9 Contact Us For Availability
1
Literature Parts (Installation Instructions) WPL LIT8537141 Contact Us For Availability
1
Literature Parts (Parts List) WPL LIT8537342 Contact Us For Availability
1
Literature Parts (Tech Sheet) WPL LIT8181790 Contact Us For Availability
1
Literature Parts (Use & Care Guide) WPL LIT8182192 Contact Us For Availability
1
Literature Parts (DVD-Instruction) WPL LIT8182193 Contact Us For Availability
1
Literature Parts (Energy Guide) WPL LIT8182194 Contact Us For Availability
1
Literature Parts (Dispenser Guide) WPL LIT8182195 Contact Us For Availability
1
Literature Parts (Quick Start Guide) WPL LIT8182196 Contact Us For Availability
2
Top (White) WPL 8181641 Contact Us For Availability
2
User Interface WPL 8182056 Contact Us For Availability
2
Bracket, Relay WPL 8181698 Contact Us For Availability
2
Drawer Front Assembly (White) WPL 8537870 Contact Us For Availability
2
Drawer Front Assembly (Biscuit) WPL 8537871 Contact Us For Availability
2
Drawer Front Assembly (Graphite) WPL 8537872 Contact Us For Availability
2
Drawer Front Assembly (Pewter) WPL 8537908 Contact Us For Availability
2
Drawer Front Assembly (Meteorite) WPL 8537931 Contact Us For Availability
2
For LAB2700PMT WPL 8537934 Contact Us For Availability
2
For LAB2700PMT WPL 8537935 Contact Us For Availability
2
LAB2700ML WPL ARI65530A8 Contact Us For Availability
2
LAB2700ML WPL ARI65531A6 Contact Us For Availability
2
Top (Biscuit) WPL 8181830 Contact Us For Availability
2
Top (Pewter) WPL 8182061 Contact Us For Availability
3
Button, Power WPL 8181860 Contact Us For Availability
3
RELAY WPL 8181697 Contact Us For Availability
3
Cabinet (White) WPL 8181630 Contact Us For Availability
3
Cabinet (Biscuit) WPL 8181805 Contact Us For Availability
3
Cabinet (Pewter) WPL 8182063 Contact Us For Availability
4
Grid, Ventilation WPL 8181745 Contact Us For Availability
4
Panel, Front (White) WPL 8181838 Contact Us For Availability
4
Panel, Front (Biscuit) WPL 8182059 Contact Us For Availability
4
Panel, Front (Pewter) WPL 8182060 Contact Us For Availability
5
Pipe, Ventilation WPL 8181744 Contact Us For Availability
5
Button Set, Soil Level (Platinum) WPL 8181863 Contact Us For Availability
5
Button Set, Soil Level (Pewter) WPL 8182052 Contact Us For Availability
5
Button Set, Soil Level (Biscuit) WPL 8182053 Contact Us For Availability
5
Toe Panel (White) WPL 8181643 Contact Us For Availability
5
Toe Panel (Biscuit) WPL 8181809 Contact Us For Availability
5
Toe Panel (Pewter) WPL 8182062 Contact Us For Availability
6
Foot, Leveling WPL 8181636 Contact Us For Availability
6
Button, Pause/Cancel WPL 8181862 Contact Us For Availability
6
Hose, Flowmeter WPL 8181708 Contact Us For Availability
7
Nozzle, Inlet WPL 8181713 Contact Us For Availability
8
Damper, Rubber (Rear) WPL 8181786 Contact Us For Availability
8
Brace, Side Panel WPL 8181634 Contact Us For Availability
9
Counterweight, Rear WPL 8181644 Contact Us For Availability
9
Cabinet (Not Serviced) WPL ARI65532A2 Contact Us For Availability
9
Pan, Bottom WPL 8181635 Contact Us For Availability
10
Gasket, Tub WPL 8181673 Contact Us For Availability
10
Screw WPL 8181758 Contact Us For Availability
10
Panel, Rear WPL 8182118 Contact Us For Availability
11
Cam, Actuator WPL 8181726 Contact Us For Availability
11
Pad (4) WPL 8537863 Contact Us For Availability
11
Pin, Safety WPL 8181652 Contact Us For Availability
11
Damper, Rubber (Front) WPL 8181787 Contact Us For Availability
12
Lever, Water Distribution WPL 8181725 Contact Us For Availability
12
SPRING WPL 8181653 Contact Us For Availability
12
Screw WPL 8181780 Contact Us For Availability
12
Pan, Bottom WPL 8537853 Contact Us For Availability
13
Seal, Filter Cap WPL 8181736 Contact Us For Availability
13
WASHER WPL 8181654 Contact Us For Availability
14
Airtrap WPL 8181731 Contact Us For Availability
14
Cap, Filter WPL 8181735 Contact Us For Availability
15
Spring, Lever WPL 8181727 Contact Us For Availability
15
Clamp, Support WPL 8181659 Contact Us For Availability
15
Cover, Motor WPL 8181766 Contact Us For Availability
16
Connection, Lever WPL 8181724 Contact Us For Availability
16
Clamp, Glass WPL 8181650 Contact Us For Availability
16
Motor WPL 8181682 Contact Us For Availability
16
Brace, Rear WPL 8182116 Contact Us For Availability
17
SCREW WPL 8181785 Contact Us For Availability
17
Dispenser WPL 8182122 Contact Us For Availability
17
Harness, Motor WPL 8181782 Contact Us For Availability
17
Clamp, Tube Transportation WPL 8181749 Contact Us For Availability
18
Foam, Door Handle WPL 8181845 Contact Us For Availability
18
Bolt, Motor WPL 8181761 Contact Us For Availability
19
Connector, Drain Hose WPL 8181738 Contact Us For Availability
20
Handle, Drawer (Platinum) WPL 8181854 Contact Us For Availability
20
Handle, Drawer (Blue) WPL 8181880 Contact Us For Availability
20
Handle, Drawer (Pewter) WPL 8182070 Contact Us For Availability
20
Handle, Drawer (Biscuit) WPL 8182071 Contact Us For Availability
20
Door Frame Asm (Blue) WPL 8182043 Contact Us For Availability
20
Door Frame Asm (Platinum) WPL 8182044 Contact Us For Availability
20
Door Frame Asm (Pewter) WPL 8182086 Contact Us For Availability
20
Door Frame Asm (Biscuit) WPL 8182087 Contact Us For Availability
21
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
21
Glass, Door WPL 8181655 Contact Us For Availability
21
PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability
21
PAINT, PRESSURIZED SPRAY (12 oz.) (Pewter) WPL 4396175 Contact Us For Availability
21
Screw WPL 8181757 Contact Us For Availability
21
ACCESSORY PARTS WPL ARI65528A4 Contact Us For Availability
21
Brace, Top WPL 8181632 Contact Us For Availability
22
Container, Detergent WPL 8181722 Contact Us For Availability
22
Door, Back Support (For Pewter Models) WPL 8181658 Contact Us For Availability
22
Door, Back Support (For White & Biscuit Model WPL 8181849 Contact Us For Availability
23
Hinge, Door WPL 8181843 Contact Us For Availability
23
Knob, Control (Biscuit) WPL 8182049 Contact Us For Availability
23
Siphon, Bleach/Softener WPL 8181729 Contact Us For Availability
24
Separator WPL 8181730 Contact Us For Availability
25
Screw WPL 8181691 Contact Us For Availability
26
CAP WPL 8182123 Contact Us For Availability
27
Harness, Wiring (Inlet Valve) WPL 8181781 Contact Us For Availability
27
Trim, Upper Left (Platinum) WPL 8181842 Contact Us For Availability
27
Trim, Upper Left (Blue) WPL 8181875 Contact Us For Availability
27
Trim, Upper Left (Pewter) WPL 8182078 Contact Us For Availability
27
Trim, Upper Left (Biscuit) WPL 8182079 Contact Us For Availability
28
Cover, Hinge (Outer) (Platinum) WPL 8181841 Contact Us For Availability
28
Cover, Hinge (Outer) (Blue) WPL 8181874 Contact Us For Availability
28
Cover, Hinge (Outer) (Pewter) WPL 8182082 Contact Us For Availability
28
Cover, Hinge (Outer) (Biscuit) WPL 8182083 Contact Us For Availability
29
Cover, Hinge (Inner) (Platinum) WPL 8181844 Contact Us For Availability
29
Cover, Hinge (Inner) (Blue) WPL 8181876 Contact Us For Availability
29
Cover, Hinge (Inner) (Pewter) WPL 8182074 Contact Us For Availability
29
Cover, Hinge (Inner) (Biscuit) WPL 8182075 Contact Us For Availability
29
Harness Channel WPL 8182109 Contact Us For Availability
29
FOLLOWING PARTS NOT ILLUSTRATED WPL ARI65526A6 Contact Us For Availability
30
Trim, Lower (Platinum) WPL 8181840 Contact Us For Availability
30
Trim, Lower (Blue) WPL 8181873 Contact Us For Availability
30
Trim, Lower (Pewter) WPL 8182072 Contact Us For Availability
30
Trim, Lower (Biscuit) WPL 8182073 Contact Us For Availability
31
Handle, Door (Blue) WPL 8181877 Contact Us For Availability
31
Handle, Door (Biscuit) WPL 8182081 Contact Us For Availability
32
Clip, Trim WPL 8181929 Contact Us For Availability
33
Trim, Upper Right (Platinum) WPL 8181839 Contact Us For Availability
33
Trim, Upper Right (Blue) WPL 8181872 Contact Us For Availability
33
Trim, Upper Right (Pewter) WPL 8182076 Contact Us For Availability
33
Trim, Upper WPL 8182077 Contact Us For Availability
× ![]()
