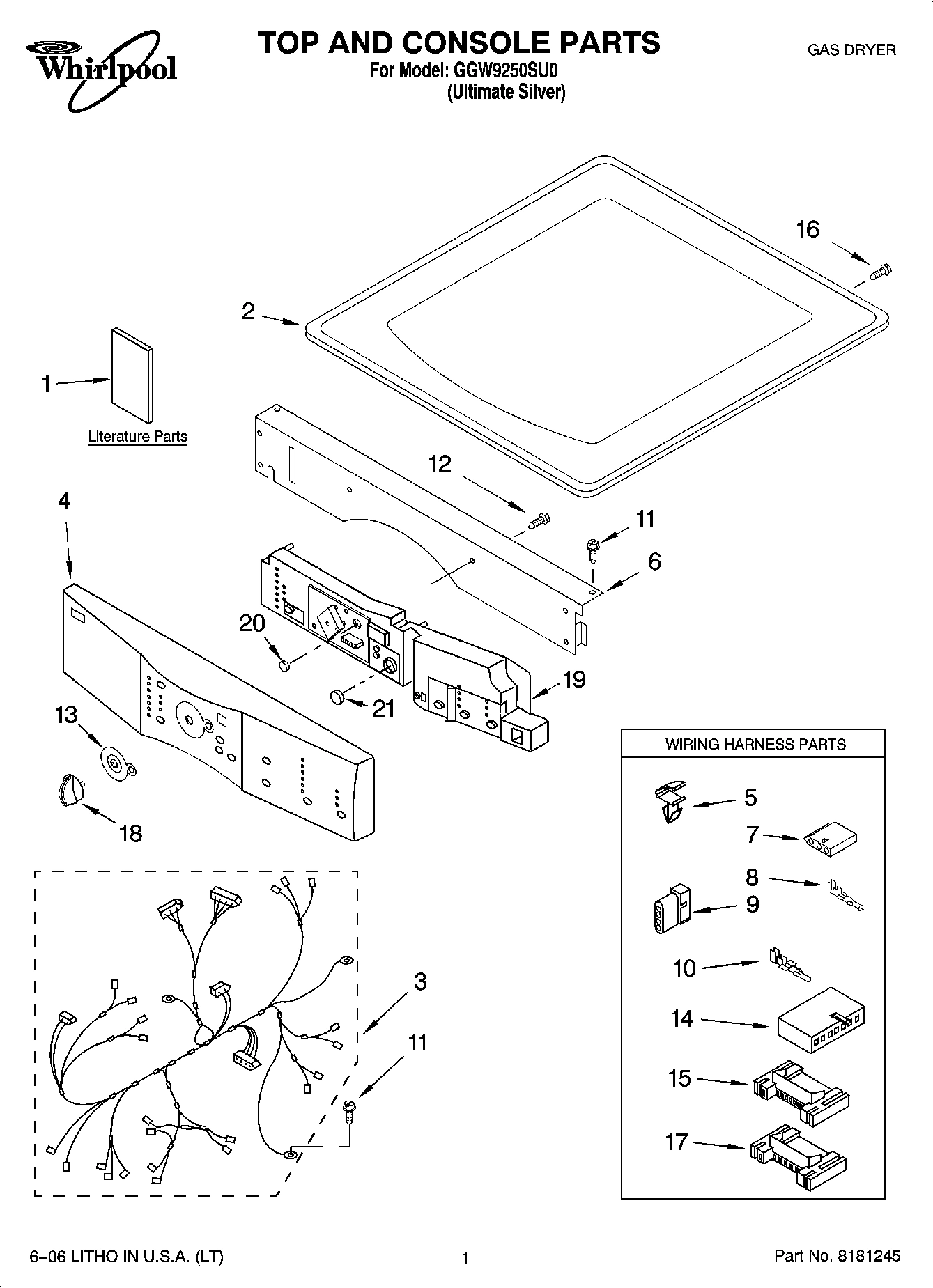

Model Whirlpool GGW9250SU0 GAS DRYER – Common Parts &amp; Diagrams

350938 Whirlpool Spray Gun In Stock WPL 350938 $32.57

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

8530072 Whirlpool Door Kit In Stock WPL 8530072 $15.23

8541503 Whirlpool Stacking Kit In Stock WPL 8541503 $25.02

WP4396174 Whirlpool Touch-Up Paint Backorder WPL WP4396174 $10.30

WPL 8530070 WPL 8530070 Contact Us For Availability

WPL 8530071 WPL 8530071 Contact Us For Availability

WPL 8212605 WPL 8212605 Contact Us For Availability

1

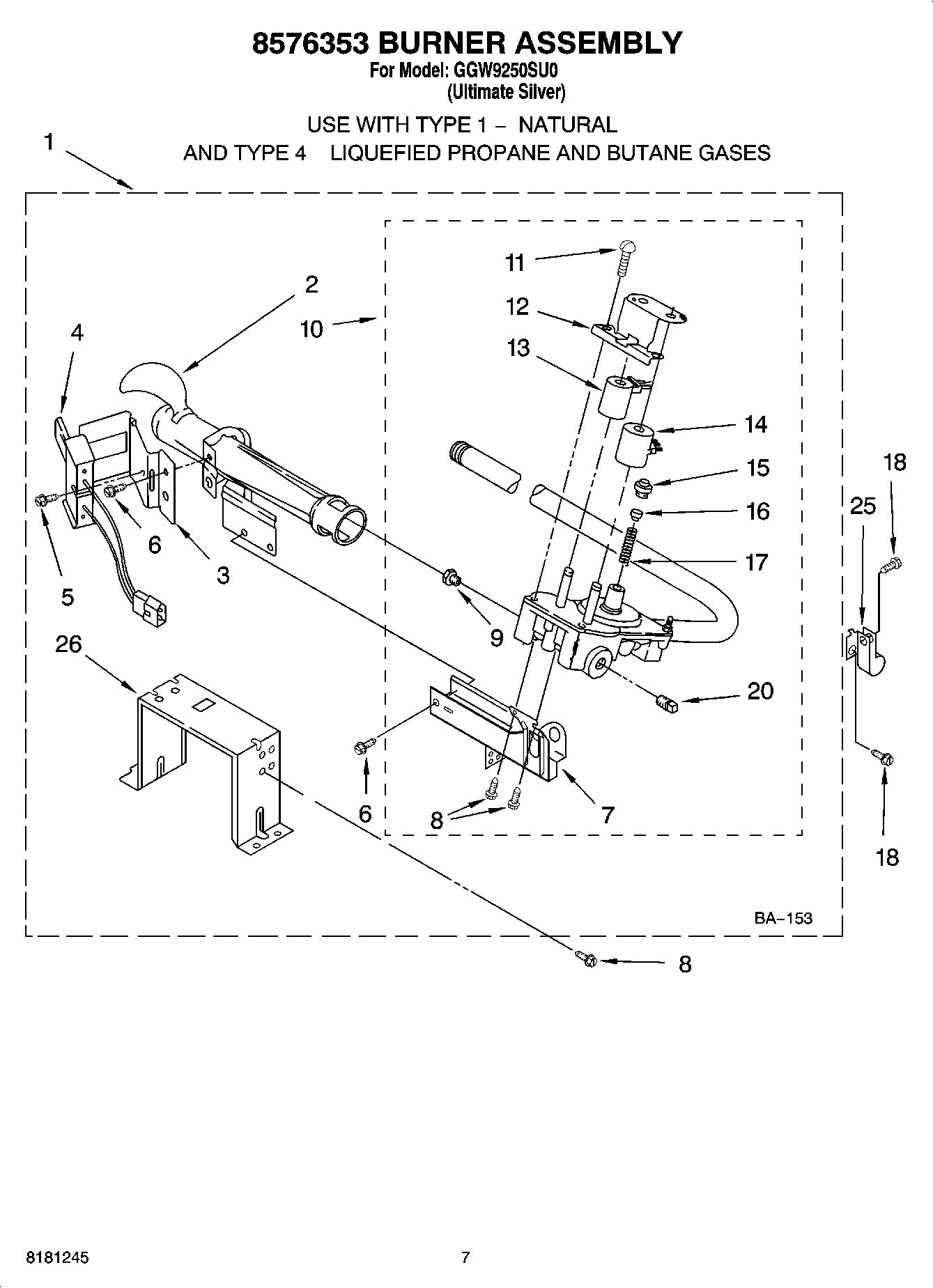

280119 Whirlpool Gas Burner In Stock WPL 280119 $214.30

1

Guide, Quick Start WPL 8563723 Contact Us For Availability

1

Tech Sheet WPL W10049480 Contact Us For Availability

1

Use & Care Guide WPL W10049550 Contact Us For Availability

2

WP693140 Whirlpool Burner Backorder WPL WP693140 $68.85

2

WP8066208 Whirlpool Clip Backorder WPL WP8066208 $3.70

2

Top (Silver) WPL 8579115 Contact Us For Availability

3

WP694298 Whirlpool Bracket Backorder WPL WP694298 $9.46

3

Harness, Main WPL 8299950 Contact Us For Availability

4

279311 Whirlpool Dryer Flat Igniter Assembly In Stock WPL 279311 $15.72

4

WP3406653 Whirlpool Wire Harness In Stock WPL WP3406653 $56.58

4

Screw, 8-18 x 5/8 WPL 9742177 Contact Us For Availability

4

Panel, Console (Silver) WPL 8579111 Contact Us For Availability

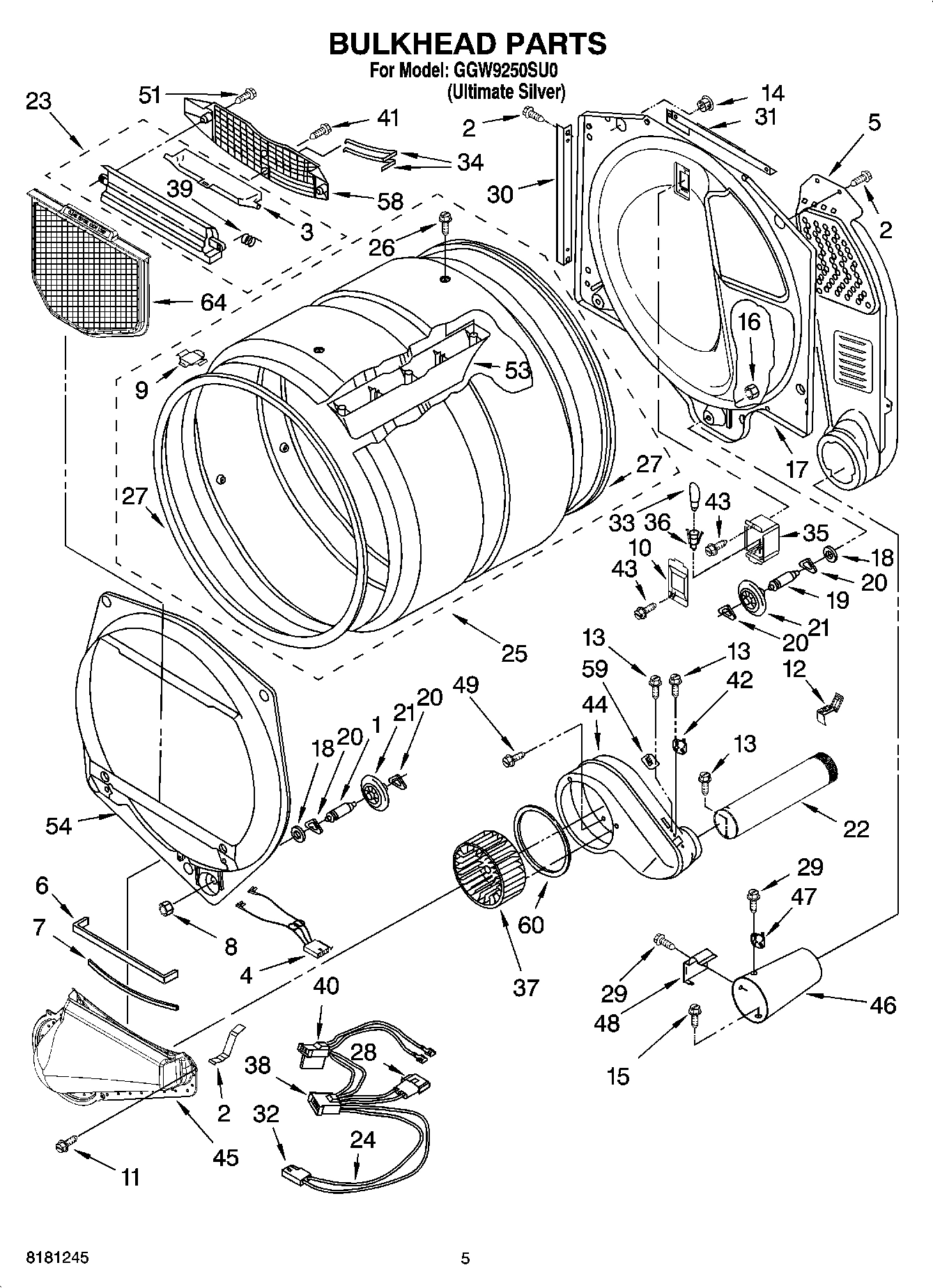

5

W11168650 Whirlpool Air Duct Backorder WPL W11168650 $58.41

5

WP3394427 Whirlpool Clip In Stock WPL WP3394427 $3.70

5

WPW10366705 Whirlpool Screw In Stock WPL WPW10366705 $2.51

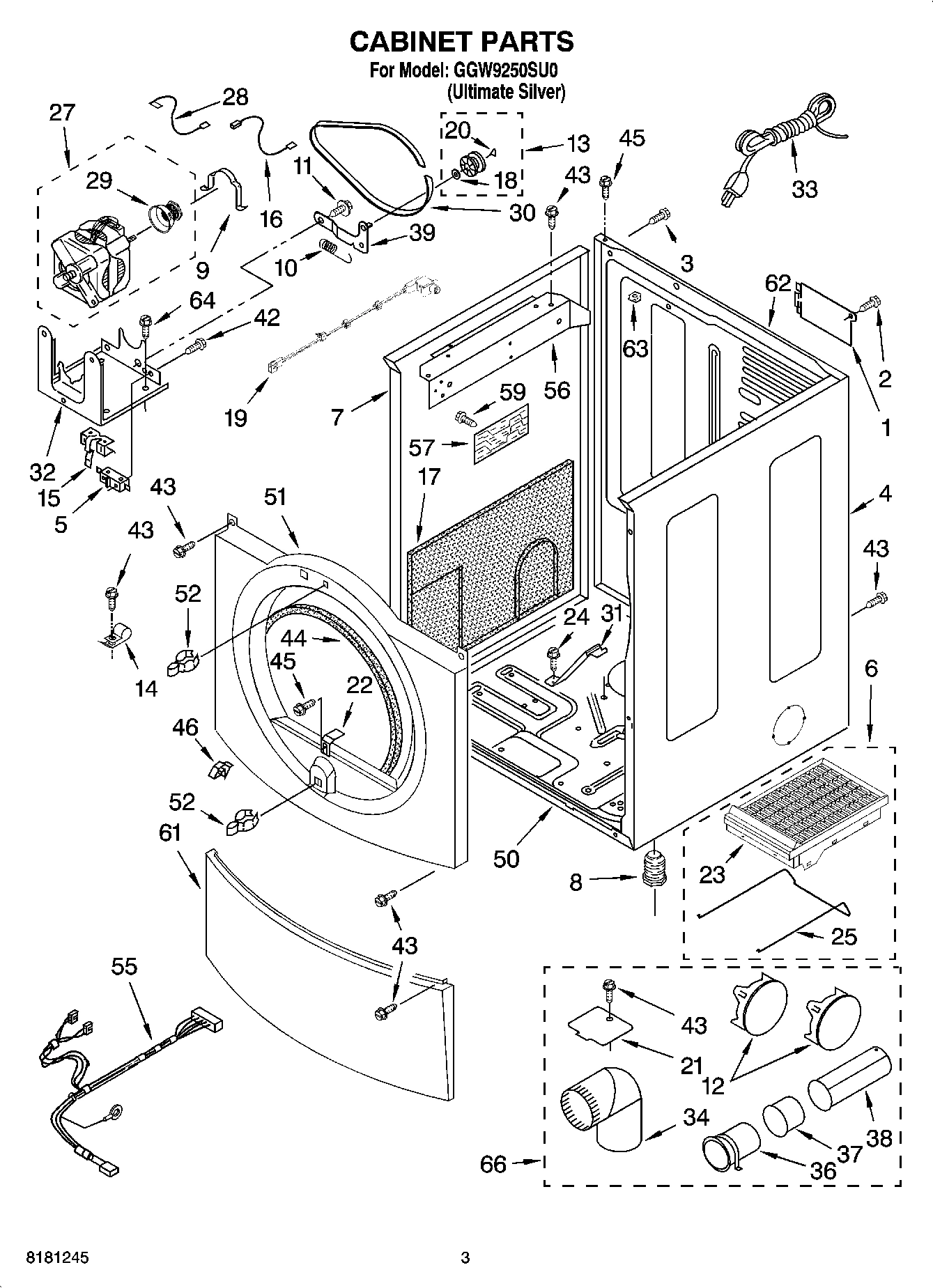

6

8212450A Whirlpool Dryer Rack Assembly Backorder WPL 8212450A $53.07

6

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

6

WP697813 Whirlpool Seal In Stock WPL WP697813 $3.70

6

Bracket, Console WPL 8519271 Contact Us For Availability

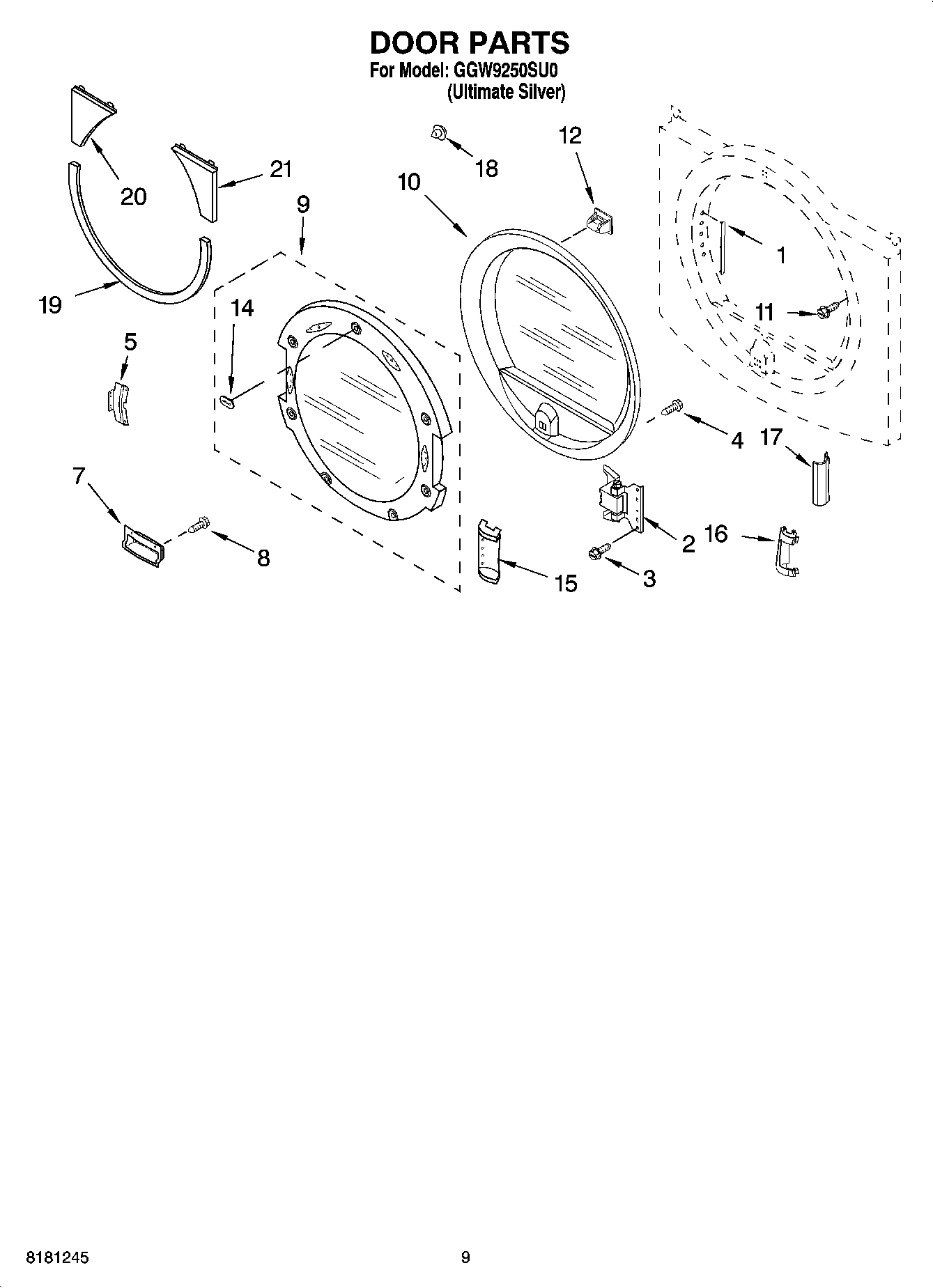

7

Handle, Door Assembly (LH) Handle, Door Assem WPL 8580142 Contact Us For Availability

7

Panel, Side (L.H.) (Silver) WPL 8579080 Contact Us For Availability

7

Base, Burner WPL 3389871 Contact Us For Availability

8

49621 Whirlpool Leveling Feet In Stock WPL 49621 $2.29

8

WP693995 Whirlpool Screw In Stock WPL WP693995 $1.92

8

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.51

9

3936144 Whirlpool Connector Backorder WPL 3936144 $10.76

9

8066086 Whirlpool Plug Backorder WPL 8066086 $4.76

9

WP15418 Whirlpool Gas Orifice In Stock WPL WP15418 $12.08

9

WP229742 Whirlpool Gas Orifice Backorder WPL WP229742 $12.08

9

WP660658 Whirlpool Clamp In Stock WPL WP660658 $3.70

9

ORIFICE, BURNER (TYPE 4) (BUTANE) WPL 15422 Contact Us For Availability

10

279923 Whirlpool Gas Valve In Stock WPL 279923 $150.52

10

WP596797 Whirlpool Terminal Backorder WPL WP596797 $2.51

10

WPW10446781 Whirlpool Spring In Stock WPL WPW10446781 $7.74

11

694421 Whirlpool Screw Assembly Backorder WPL 694421 $7.58

11

WP3389420 Whirlpool Screw In Stock WPL WP3389420 $2.51

11

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $2.51

694538 Whirlpool Bracket Backorder WPL 694538 $40.00

WP3389441 Whirlpool Door Catch In Stock WPL WP3389441 $3.70

WP488787 Whirlpool Refrigerator Screw Backorder WPL WP488787 $4.56

WPW10404617 Whirlpool Plug Assembly Backorder WPL WPW10404617 $37.46

13

279640 Whirlpool Dryer Idler Pulley Kit In Stock WPL 279640 $10.79

13

Bezel, Cycle WPL 8519406 Contact Us For Availability

14

279834 Whirlpool Dryer Gas Valve Solenoid Coi In Stock WPL 279834 $12.01

14

3936150 Whirlpool Connector Backorder WPL 3936150 $28.80

14

3978776 Whirlpool Bracket Backorder WPL 3978776 $28.80

3395683 Whirlpool Connector Backorder WPL 3395683 $32.06

WP694424 Whirlpool Limiter In Stock WPL WP694424 $12.57

WP8066120 Whirlpool Lever Assembly Backorder WPL WP8066120 $11.73

Filler Handle (LH) Filler Handle (RH) (Silver WPL 8579119 Contact Us For Availability

16

WP694423 Whirlpool Regulator Backorder WPL WP694423 $3.70

16

Wire, Belt Switch WPL 3394081 Contact Us For Availability

16

Screw, 8-18 x 1/2 WPL 8281225 Contact Us For Availability

2203186 Whirlpool Connector Backorder WPL 2203186 $7.61

W11299301 Whirlpool Bulkhead Assembly Backorder WPL W11299301 $93.12

WP694422 Whirlpool Spring Backorder WPL WP694422 $9.42

Sound Panel WPL 8564132 Contact Us For Availability

18

WPW10121334 Whirlpool Washer In Stock WPL WPW10121334 $2.51

18

Knob, Assembly (Silver) WPL 8183004 Contact Us For Availability

19

Assembly, Door Switch WPL 8574875 Contact Us For Availability

19

User Interface (Silver) WPL 8559431 Contact Us For Availability

20

W10295523 Whirlpool Plug Backorder WPL W10295523 $10.76

20

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $4.52

20

Button, Start WPL 8561811 Contact Us For Availability

21

WPW10354249 Whirlpool Cover In Stock WPL WPW10354249 $3.70

21

Button, Pause/Cancel WPL 8561812 Contact Us For Availability

22

Ramp, Door WPL 8529053 Contact Us For Availability

25

3387561 Whirlpool Clamp Backorder WPL 3387561 $10.25

25

Support, Dry Rack WPL 8521961 Contact Us For Availability

26

W11581317 Whirlpool LP Gas Connector In Stock WPL W11581317 $42.09

26

Bracket, Support WPL 3389889 Contact Us For Availability

26

Following Parts Not Illustrated WPL ARI148785A Contact Us For Availability

27

279787 Whirlpool Dryer Drive Motor In Stock WPL 279787 $109.35

28

3398948 Whirlpool Wire Backorder WPL 3398948 $38.06

28

353424 Whirlpool Connector Backorder WPL 353424 $10.76

29

W10837625 Whirlpool Dryer Motor Pulley In Stock WPL W10837625 $45.53

30

661570V Whirlpool Dryer Drum Belt In Stock WPL 661570V $10.71

31

W10181903 Whirlpool Bracket Backorder WPL W10181903 $9.83

32

WP3387118 Whirlpool Base Assembly Backorder WPL WP3387118 $44.84

33

W11628810 Whirlpool Power Cord Backorder WPL W11628810 $36.97

34

WP3387223 Whirlpool Electrode Assembly In Stock WPL WP3387223 $3.39

34

WPW10416072 Whirlpool Elbow Backorder WPL WPW10416072 $11.44

35

3977373 Whirlpool Bracket Backorder WPL 3977373 $66.93

36

WP8563747 Whirlpool Exhaust Pipe Backorder WPL WP8563747 $29.43

37

WP697772 Whirlpool Dryer Blower Wheel In Stock WPL WP697772 $29.83

37

WPW10331278 Whirlpool Exhaust Pipe Backorder WPL WPW10331278 $28.80

38

WP8563749 Whirlpool Exhaust Pipe Backorder WPL WP8563749 $30.96

39

W10837240 Whirlpool Dryer Idler Pulley In Stock WPL W10837240 $10.83

39

WP3394986 Whirlpool Spring Backorder WPL WP3394986 $29.06

42

WP8577274 Whirlpool Dryer Thermistor In Stock WPL WP8577274 $17.55

42

WP98129 Whirlpool Screw Backorder WPL WP98129 $2.51

44

WP3387242 Whirlpool Seal In Stock WPL WP3387242 $9.17

45

WP308685 Whirlpool Microwave Screw In Stock WPL WP308685 $2.51

46

W11295573 Whirlpool Clip Backorder WPL W11295573 $10.76

47

WP8573028 Whirlpool Thermostat Assembly In Stock WPL WP8573028 $34.18

48

WP338906 Whirlpool Dryer Gas Sensor In Stock WPL WP338906 $17.97

49

WP489463 Whirlpool Refrigerator Screw In Stock WPL WP489463 $2.51

50

Base, Cabinet WPL 8519207 Contact Us For Availability

51

WP3387230 Whirlpool Screw In Stock WPL WP3387230 $2.51

51

Front Panel (Includes Illus. 44) (Silver) WPL 8579967 Contact Us For Availability

52

279570 Whirlpool Dryer Door Latch Kit In Stock WPL 279570 $1.66

55

Harness, Digital Interface WPL 8299929 Contact Us For Availability

56

Bracket, Control WPL 8519273 Contact Us For Availability

57

Control Board WPL 8546219 Contact Us For Availability

58

W11086603 Whirlpool Dryer Link Screen Air Gri In Stock WPL W11086603 $13.56

59

3400826 Whirlpool Screw Backorder WPL 3400826 $5.38

59

WP3392519 Whirlpool Dryer Thermal Fuse In Stock WPL WP3392519 $7.30

60

WP697770 Whirlpool Blower Cover Plate Seal In Stock WPL WP697770 $3.70

61

Toe, Panel (Silver) WPL 8579114 Contact Us For Availability

62

Panel, Rear WPL 8519219 Contact Us For Availability

63

WP692400 Whirlpool Nut In Stock WPL WP692400 $3.70

64

WPL ARI148784A WPL ARI148784A Contact Us For Availability

66

W10470674 Whirlpool Dryer Side Vent Exhaust K In Stock WPL W10470674 $53.07
