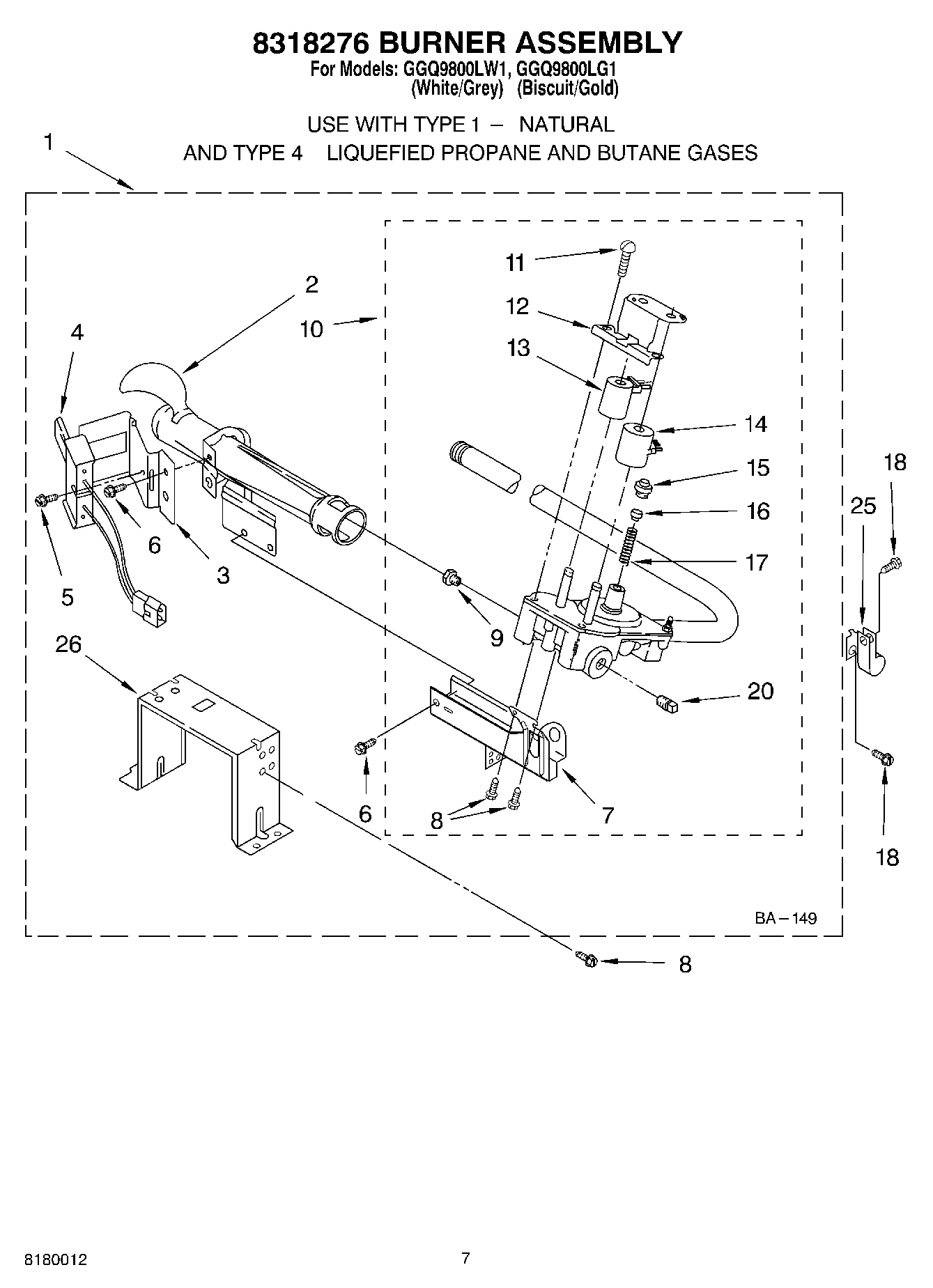

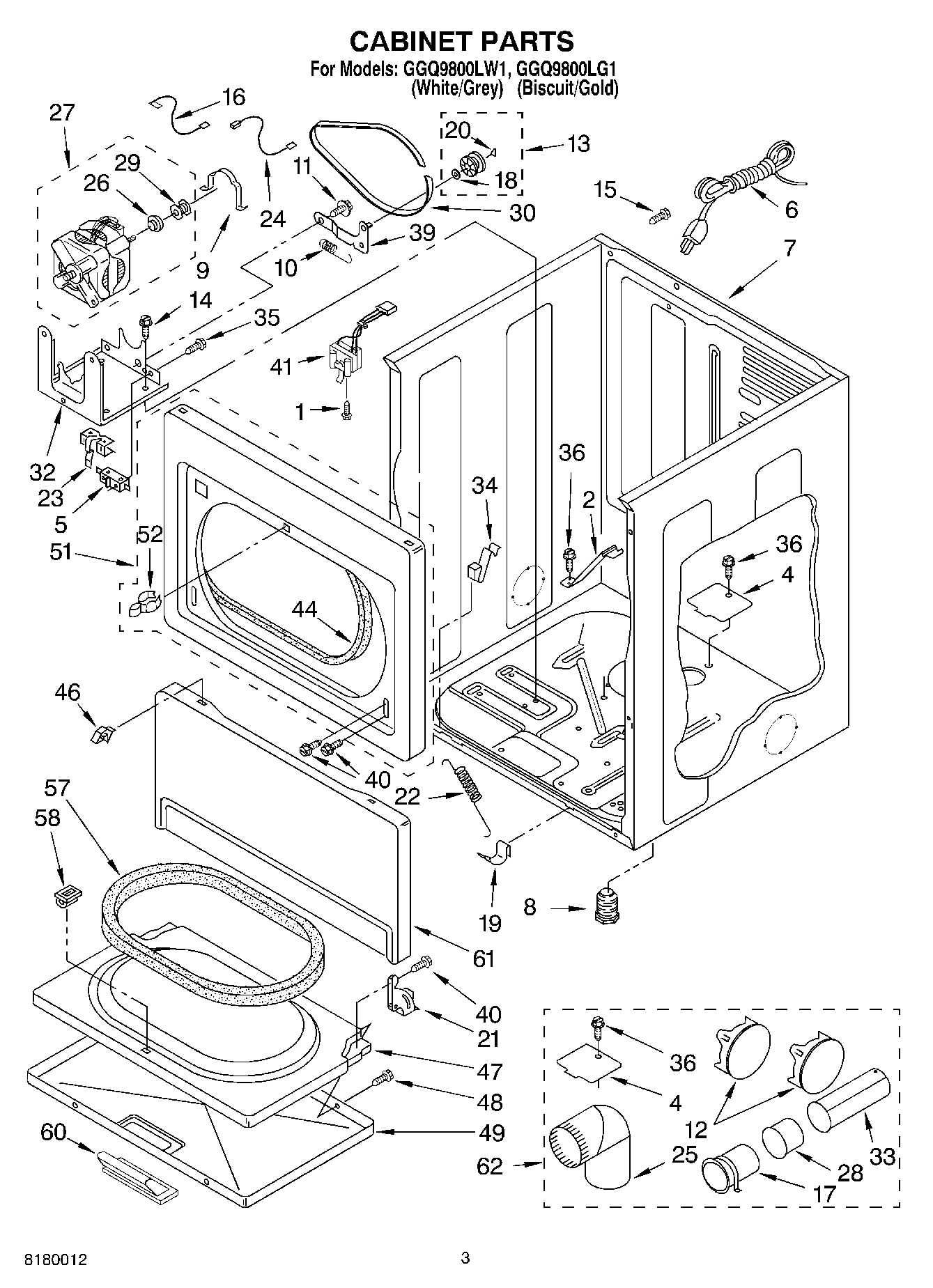

Model Whirlpool GGQ9800LG1 27``GAS DRYER – Common Parts &amp; Diagrams

2

WP488729 Whirlpool Refrigerator Door Screw In Stock WPL WP488729 $3.46

3

WP3406725 Whirlpool Timer In Stock WPL WP3406725 $162.87

4

3400859 Whirlpool Screw Backorder WPL 3400859 $9.13

4

WP3394986 Whirlpool Spring Backorder WPL WP3394986 $30.51

5

W11168650 Whirlpool Air Duct Backorder WPL W11168650 $58.41

5

WP3398094 Whirlpool Push To Start Switch In Stock WPL WP3398094 $45.66

6

3391885 Whirlpool Connector Backorder WPL 3391885 $30.25

6

WP697813 Whirlpool Seal In Stock WPL WP697813 $4.70

7

3395683 Whirlpool Connector Backorder WPL 3395683 $33.67

8

49621 Whirlpool Leveling Feet In Stock WPL 49621 $3.22

8

WP3359452 Whirlpool Nut In Stock WPL WP3359452 $1.93

9

8066086 Whirlpool Plug Backorder WPL 8066086 $4.76

9

WP229742 Whirlpool Gas Orifice Backorder WPL WP229742 $12.08

9

WP234826 Whirlpool Gas Orifice In Stock WPL WP234826 $12.90

9

WP234868 Whirlpool Gas Orifice Backorder WPL WP234868 $12.08

9

WP660658 Whirlpool Clamp In Stock WPL WP660658 $3.18

10

WP8318281 Whirlpool Gas Valve Backorder WPL WP8318281 $199.07

10

WPW10139210 Whirlpool Screw In Stock WPL WPW10139210 $3.33

11

W11700522 Whirlpool Socket Backorder WPL W11700522 $29.48

11

WP3389420 Whirlpool Screw In Stock WPL WP3389420 $3.33

12

WP388326 Whirlpool Screw Backorder WPL WP388326 $2.51

13

W11106324 Whirlpool Switch Backorder WPL W11106324 $87.82

13

Ground-Sensor WPL 3392258 Contact Us For Availability

14

W11222846 Whirlpool Door Backorder WPL W11222846 $78.01

15

279936 Whirlpool Exhaust Pipe Backorder WPL 279936 $49.63

15

WP694424 Whirlpool Limiter In Stock WPL WP694424 $13.40

15

WP8538957 Whirlpool Knob In Stock WPL WP8538957 $34.55

3398948 Whirlpool Wire Backorder WPL 3398948 $39.97

WP694423 Whirlpool Regulator Backorder WPL WP694423 $3.70

Connector, Timer WPL 3397269 Contact Us For Availability

Nut, 3/8-16 (L.H.) WPL 3387709 Contact Us For Availability

17

W11299301 Whirlpool Bulkhead Assembly Backorder WPL W11299301 $97.78

17

WP694422 Whirlpool Spring Backorder WPL WP694422 $9.42

18

W11236646 Whirlpool Washer Assembly In Stock WPL W11236646 $10.89

18

WPW10121334 Whirlpool Washer In Stock WPL WPW10121334 $3.33

19

WP297092 Whirlpool Clip In Stock WPL WP297092 $4.52

19

WPW10359272 Whirlpool Dryer Drum Support Roll In Stock WPL WPW10359272 $44.50

20

WPW10512946 Whirlpool Dryer Tri-Ring Drum Rol In Stock WPL WPW10512946 $5.34

21

WP3387559 Whirlpool Door Hinge In Stock WPL WP3387559 $52.65

21

WP3387560 Whirlpool Door Hinge In Stock WPL WP3387560 $60.90

21

WPW10314173 Whirlpool Dryer Drum Support Whee In Stock WPL WPW10314173 $14.74

22

WP3387565 Whirlpool Door Spring In Stock WPL WP3387565 $13.56

23

W11129408 Whirlpool Out Housing In Stock WPL W11129408 $41.99

23

WP357213 Whirlpool Hinge Stopper Backorder WPL WP357213 $3.70

23

WP8066120 Whirlpool Lever Assembly Backorder WPL WP8066120 $11.73

24

Wire, Belt Switch WPL 3394081 Contact Us For Availability

25

3387561 Whirlpool Clamp Backorder WPL 3387561 $10.25

25

3405152 Whirlpool Switch Assembly Backorder WPL 3405152 $45.40

25

W10545923 Whirlpool Drum Assembly Backorder WPL W10545923 $230.05

WP3393657 Whirlpool Belt Retainer Backorder WPL WP3393657 $54.24

WPW10109200 Whirlpool Screw In Stock WPL WPW10109200 $3.33

Cap, End (L.H.) (White) WPL 8271365 Contact Us For Availability

Cap, End (L.H.) (BIscuit) WPL 8271368 Contact Us For Availability

27

280114 Whirlpool Dryer Drum Seal In Stock WPL 280114 $26.24

27

3936144 Whirlpool Connector Backorder WPL 3936144 $10.76

28

WP3403498 Whirlpool Connector Backorder WPL WP3403498 $3.70

29

W10837625 Whirlpool Dryer Motor Pulley In Stock WPL W10837625 $8.24

29

WPW10476828-includeCORE Whirlpool WPW10476828 Backorder WPL WPW10476828-includeCORE $181.30

30

WP694419 Whirlpool Buzzer Adjuster Backorder WPL WP694419 $51.99

31

Panel, Control (Includes Illus. 39) (Grey) WPL 8532641 Contact Us For Availability

31

Panel, Control (Includes Illus. 39) (Gold) WPL 8532642 Contact Us For Availability

32

3405154 Whirlpool Primary Switch Backorder WPL 3405154 $52.58

32

WP3387118 Whirlpool Base Assembly Backorder WPL WP3387118 $47.09

33

WPL 8538959 WPL 8538959 Contact Us For Availability

33

WPL 8538960 WPL 8538960 Contact Us For Availability

34

WP3387223 Whirlpool Electrode Assembly In Stock WPL WP3387223 $4.21

34

WPL 697779 WPL 697779 Contact Us For Availability

35

W11226088 Whirlpool Lens Assembly In Stock WPL W11226088 $12.68

36

W10819767 Whirlpool Cover Backorder WPL W10819767 $43.08

36

WP22002263 Whirlpool Dryer 10W Light Bulb In Stock WPL WP22002263 $8.66

36

WP693995 Whirlpool Screw In Stock WPL WP693995 $1.92

37

3401144 Whirlpool Connector Backorder WPL 3401144 $7.89

37

WP697772 Whirlpool Dryer Blower Wheel In Stock WPL WP697772 $32.15

38

3977373 Whirlpool Bracket Backorder WPL 3977373 $70.28

38

WP90767 Whirlpool Screw In Stock WPL WP90767 $3.08

39

WPL 3955776 WPL 3955776 Contact Us For Availability

40

WPL 3347243 WPL 3347243 Contact Us For Availability

41

WP3394427 Whirlpool Clip In Stock WPL WP3394427 $3.70

41

WP3406107 Whirlpool Dryer Door Switch In Stock WPL WP3406107 $24.66

42

WP8318268 Whirlpool Thermostat In Stock WPL WP8318268 $58.71

42

WP8536939 Whirlpool Spring Clip In Stock WPL WP8536939 $4.97

43

W11050897 Whirlpool Dryer High Limit Thermost In Stock WPL W11050897 $7.10

44

W10888146 Whirlpool Housing In Stock WPL W10888146 $36.71

44

WP3387242 Whirlpool Seal In Stock WPL WP3387242 $9.99

44

WP94614 Whirlpool Terminal Backorder WPL WP94614 $2.51

45

WP688805 Whirlpool Spring Clip In Stock WPL WP688805 $4.70

45

Lint Duct Assembly WPL 8530036 Contact Us For Availability

46

WP3388229 Whirlpool Dryer Spring Clip In Stock WPL WP3388229 $4.70

46

WP8066047 Whirlpool Funnel Backorder WPL WP8066047 $55.02

48

WP338906 Whirlpool Dryer Gas Sensor In Stock WPL WP338906 $31.76

51

WP3387230 Whirlpool Screw In Stock WPL WP3387230 $3.46

52

279780 Whirlpool Plate Cover Backorder WPL 279780 $32.63

53

Baffle, Drum WPL 697693 Contact Us For Availability

54

WP697557 Whirlpool Bulkhead Assembly Backorder WPL WP697557 $89.94

58

W11086603 Whirlpool Dryer Link Screen Air Gri In Stock WPL W11086603 $15.06

59

WP3392519 Whirlpool Dryer Thermal Fuse In Stock WPL WP3392519 $8.49

60

WP697770 Whirlpool Blower Cover Plate Seal In Stock WPL WP697770 $4.70

62

WP8566209 Whirlpool Seal Backorder WPL WP8566209 $30.25

64

W10120998 Whirlpool Dryer Lint Screen Filter In Stock WPL W10120998 $23.21

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.94

350938 Whirlpool Spray Gun Backorder WPL 350938 $32.57

4392067 Whirlpool Dryer Repair Kit In Stock WPL 4392067 $33.72

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $8.03

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $28.40

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.25

8212450A Whirlpool Dryer Rack Assembly Backorder WPL 8212450A $55.11

W11224254 Whirlpool Test Kit In Stock WPL W11224254 $5.58

WPL 799344 WPL 799344 Contact Us For Availability

KIT, HOLD DOWN (GAS DRYER MOBILE HOME INSTALL WPL 346764 Contact Us For Availability

PAINT, BUL WPL 4392900 Contact Us For Availability

WPL ARI148695A WPL ARI148695A Contact Us For Availability
