Model Whirlpool GGQ8811LL0 GAS DRYER – Common Parts & Diagrams

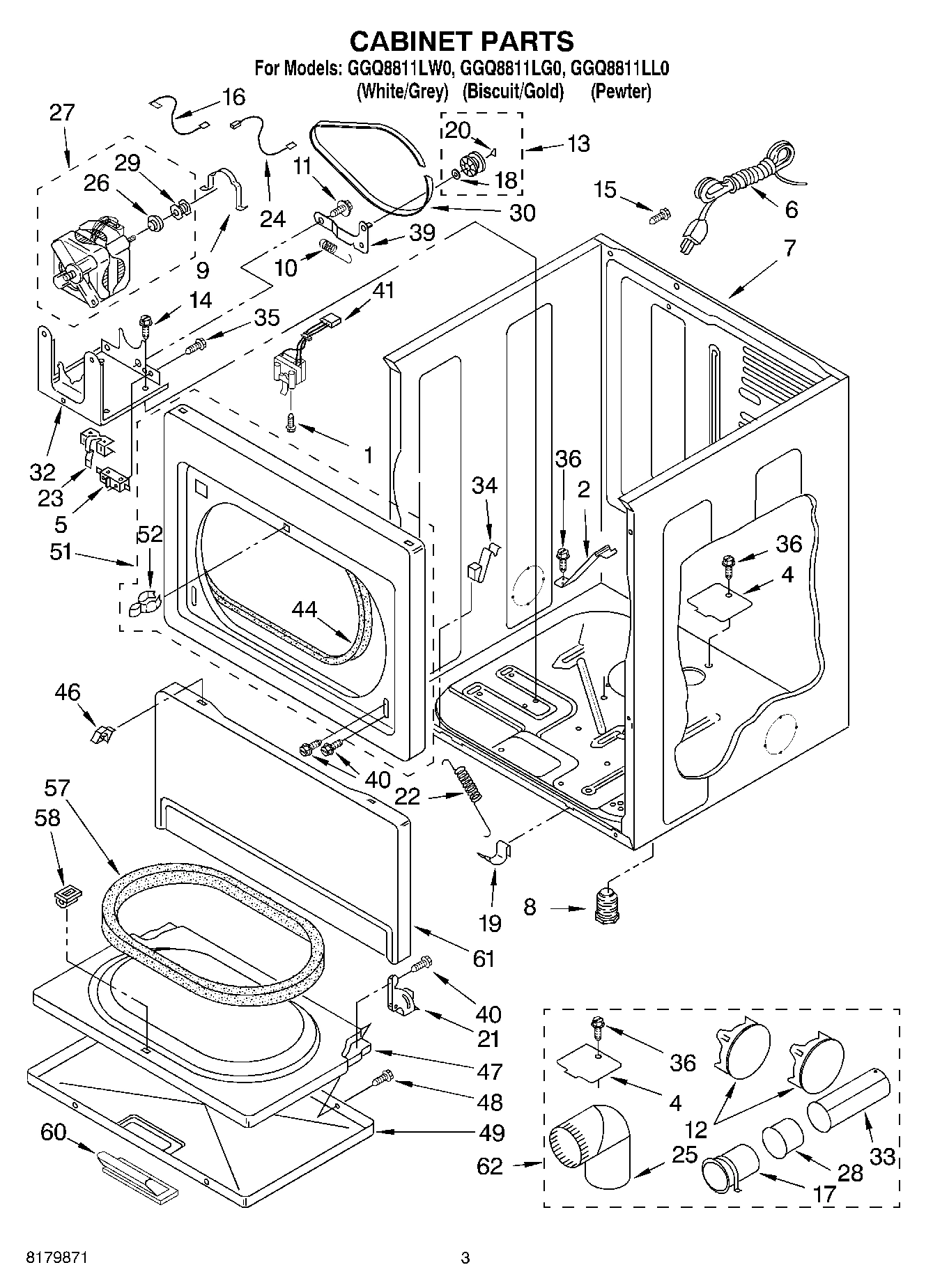

02 - CABINET

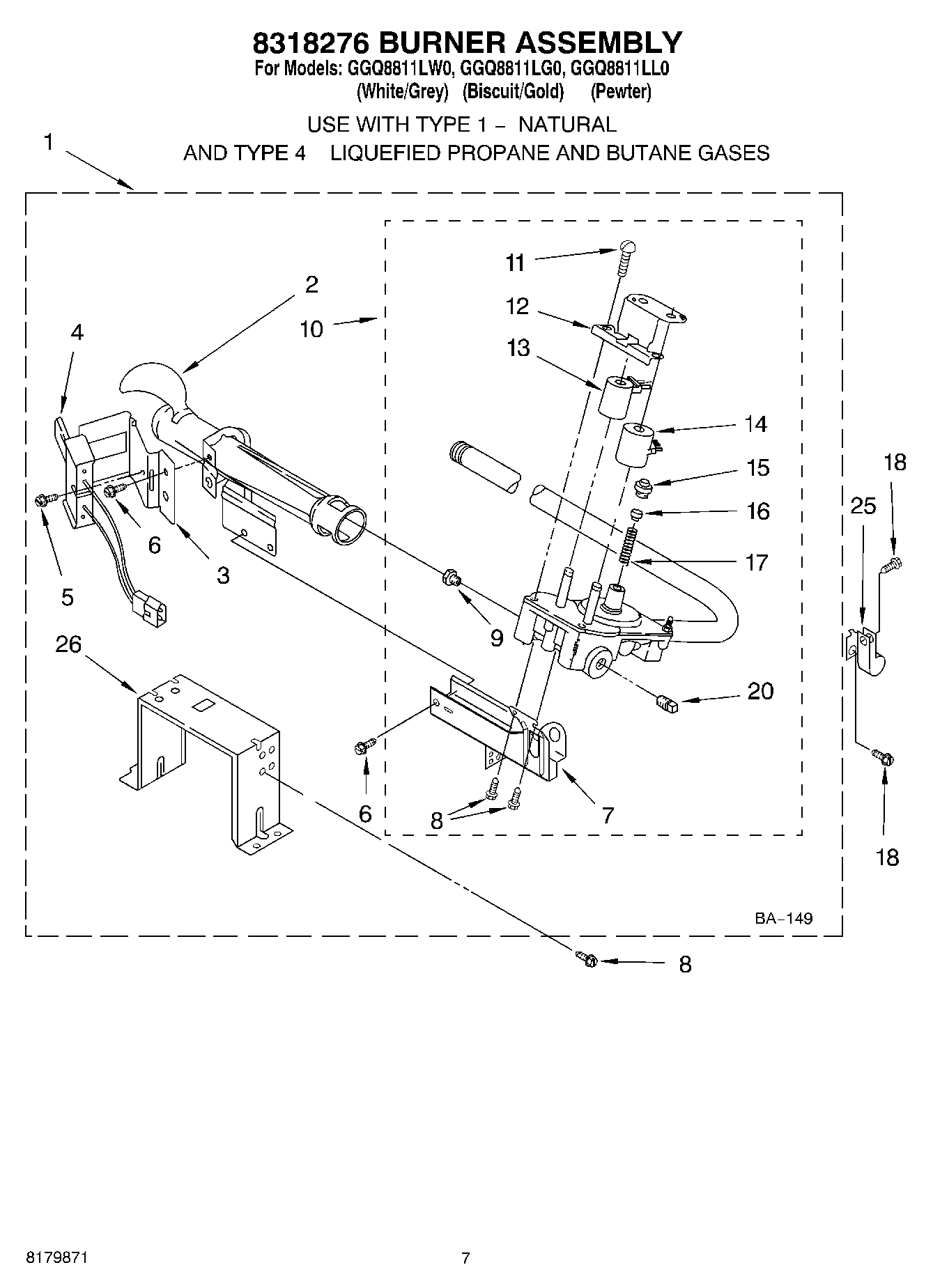

04 - 8318276 BURNER
01 - TOP AND CONSOLE, LITERATURE
03 - BULKHEAD
Common parts from model Whirlpool GGQ8811LL0 GAS DRYER
WPL LIT677818 WPL LIT677818 Contact Us For Availability
1
Literature Parts (Label, Wiring Diagram) WPL LIT8299800 Contact Us For Availability
1
Literature Parts (Guide, Use & Care) WPL LIT8535837 Contact Us For Availability
1
Literature Parts (Instructions, Installation) WPL LIT8535841 Contact Us For Availability
6
Connector, Edge WPL 3391885 Contact Us For Availability
7
Connector (Motor) WPL 3395683 Contact Us For Availability
8
Cap, End (R.H.) (Grey) WPL 3956023 Contact Us For Availability
8
Cap, End (R.H.) (White) WPL 8271359 Contact Us For Availability
8
Cap, End (R.H.) (Biscuit) WPL 8271362 Contact Us For Availability
9
DRUM HOLE PLUG WPL 8066086 Contact Us For Availability
9
Bracket, Control WPL 8271316 Contact Us For Availability
12
Bracket, Coil WPL 694538 Contact Us For Availability
15
Knob, Control (3) ((For GGQ8811LG0)) WPL 8316545 Contact Us For Availability
16
Wire, Jumper (Broken Belt Switch) WPL 3398948 Contact Us For Availability
16
Connector, Timer WPL 3397269 Contact Us For Availability
16
Nut, 3/8-16 (L.H.) WPL 3387709 Contact Us For Availability
17
Receptacle, 2 Way WPL 717252 Contact Us For Availability
19
Harness, Wiring WPL 8529979 Contact Us For Availability
20
Timer Knob Assembly ((For GGQ8811LG0)) WPL 8316549 Contact Us For Availability
22
Wire, Ground (Sensor) WPL 3392258 Contact Us For Availability
24
Wire, Belt Switch WPL 3394081 Contact Us For Availability
24
Top (White) WPL 8535848 Contact Us For Availability
24
Top (Biscuit) WPL 8535849 Contact Us For Availability
24
Top (Grey) WPL 8535850 Contact Us For Availability
25
Switch, End Of Cycle WPL 3405152 Contact Us For Availability
25
CLAMP, PIPE WPL 3387561 Contact Us For Availability
26
Bracket, Support WPL 3389889 Contact Us For Availability
26
Cap, End (L.H.) (Grey) WPL 3956024 Contact Us For Availability
26
Cap, End (L.H.) (White) WPL 8271365 Contact Us For Availability
26
Cap, End (L.H.) (BIscuit) WPL 8271368 Contact Us For Availability
27
Connector WPL 3936144 Contact Us For Availability
31
Panel, Control (Includes Illus. 43) (Grey) WPL 8532625 Contact Us For Availability
31
Panel, Control (Includes Illus. 43) (Gold) WPL 8532626 Contact Us For Availability
32
Sw WPL 3405154 Contact Us For Availability
33
WPL 8316541 WPL 8316541 Contact Us For Availability
33
WPL 8316546 WPL 8316546 Contact Us For Availability
34
WPL 697779 WPL 697779 Contact Us For Availability
37
WPL 3401144 WPL 3401144 Contact Us For Availability
40
WPL 3347243 WPL 3347243 Contact Us For Availability
43
WPL 3955776 WPL 3955776 Contact Us For Availability
45
Lint Duct Assembly WPL 8530036 Contact Us For Availability
53
Baffle, Drum WPL 697693 Contact Us For Availability
62
WPL 4392067 WPL 4392067 Contact Us For Availability
62
WPL 72017 WPL 72017 Contact Us For Availability
62
WPL 350930 WPL 350930 Contact Us For Availability
62
WPL 4392899 WPL 4392899 Contact Us For Availability
62
WPL 4392901 WPL 4392901 Contact Us For Availability
62
WPL 350938 WPL 350938 Contact Us For Availability
62
WPL 799344 WPL 799344 Contact Us For Availability
× ![]()
