Model GE GFE28HSKESS – Common Parts & Diagrams
OPTIONAL ACCESSORIES

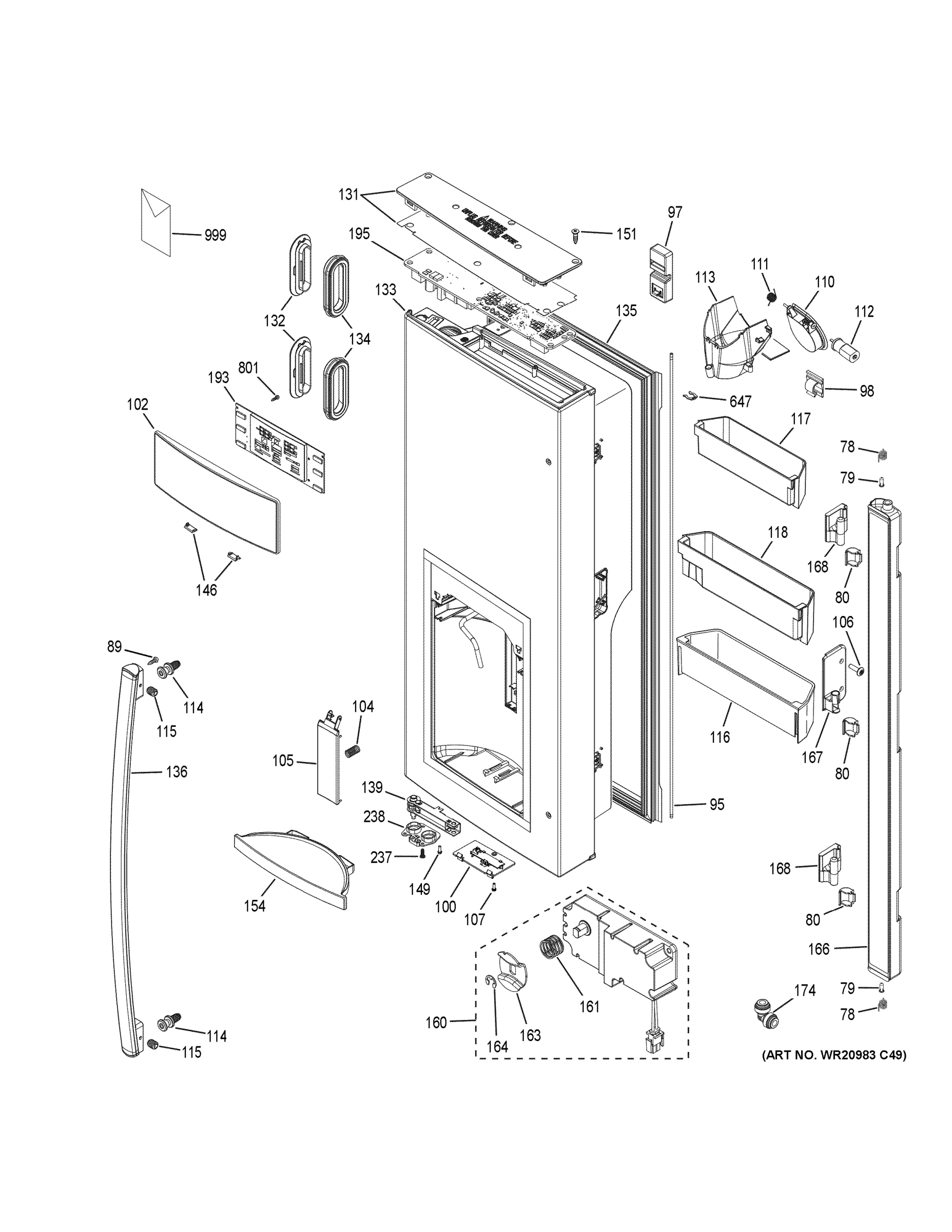

DISPENSER DOOR
FREEZER DOOR
FRESH FOOD DOOR - RH
FREEZER SECTION
FREEZER SHELVES
ICE MAKER & DISPENSER
FRESH FOOD SECTION
FRESH FOOD SHELVES
CASE PARTS
MACHINE COMPARTMENT
Common parts from model GE GFE28HSKESS
78
SPRING HINGE MULLION GEN WR01X11052 Contact Us For Availability
79
SLEEVE SPRING MULLION GEN WR01X11053 Contact Us For Availability
80
HINGE CAP GEN WR02X13739 Contact Us For Availability
89
SCR 10-32 B RNS .353 S GEN WR01X11044 Contact Us For Availability
100
COVER LED FZ ASM GEN WR55X23636 Contact Us For Availability
102
CAP TOUCH STD STAINLESS GEN WR17X26326 Contact Us For Availability
104
SPRING GEN WR01X11027 Contact Us For Availability
105
COVER PADDLE ASM SS GEN WR17X13060 Contact Us For Availability
106
SCR 8-18 FLP 1/2 S GEN WR01X11054 Contact Us For Availability
111
SPRING DUCT DOOR GEN WR01X11017 Contact Us For Availability
112
MOTOR DUCT DOOR GEN WR60X10344 Contact Us For Availability
114
FASTENER DOOR HANDLE GEN WR01X11007 Contact Us For Availability
115
SET SCREW GEN WR01X11014 Contact Us For Availability
116
BIN DOOR ICE BTM GEN WR71X24976 Contact Us For Availability
117
BIN ICE DOOR TOP LH GEN WR71X11045 Contact Us For Availability
118
BIN ICE DOOR MID LH GEN WR71X11046 Contact Us For Availability
121
LATCH ICEBOX DOOR GEN WR11X10031 Contact Us For Availability
124
COVER LATCH GEN WR02X23032 Contact Us For Availability
127
REFER WATER FILTER (RFID GEN RPWFE Contact Us For Availability
129
BRKT FILTER MANIFOLD GEN WR17X13069 Contact Us For Availability
131
PCB COVER ASM DGY GEN WR17X13205 Contact Us For Availability
132
COLLAR PORT GEN WR14X25124 Contact Us For Availability
134
PORT GASKET GEN WR14X10364 Contact Us For Availability
136
ARC HANDLE ASM FF GEN WR12X23647 Contact Us For Availability
139
CLOSURE DOOR ASM LH GEN WR11X23034 Contact Us For Availability
146
SHIELD LED LIGHT GEN WR02X13655 Contact Us For Availability
148
HINGE TOP DOOR ICEBOX GEN WR13X10972 Contact Us For Availability
161
SPRING CLUTCH AM GEN WR02X13645 Contact Us For Availability
163
CLUTCH COUPLING AM GEN WR02X13647 Contact Us For Availability
164
E CLIP GEN WR02X13648 Contact Us For Availability
166
MULLION ARTICULATING ASM GEN WR17X13240 Contact Us For Availability
168
HINGE MULLION GEN WR13X10985 Contact Us For Availability
173
COUPLER STRAIGHT 1/4 GEN WR02X13738 Contact Us For Availability
174
CONNECTOR 90 DEG 5/16 GEN WR02X13737 Contact Us For Availability
237
SCR 10-24 AB RNT 20 5/8 GEN WR01X11032 Contact Us For Availability
238
STOP DOOR RH/LH ASM GEN WR02X13634 Contact Us For Availability
239
BADGE GE ASM GEN WR04X10181 Contact Us For Availability
243
BIN GAL RH FF ASM GEN WR71X11052 Contact Us For Availability
244
CLOSURE DOOR ASM RH GEN WR11X23035 Contact Us For Availability
247
BIN COND RH FF ASM GEN WR71X11050 Contact Us For Availability
313
ARC HANDLE ASM FZ GEN WR12X23646 Contact Us For Availability
315
CAM VERT ADJUSTMENT GEN WR02X13627 Contact Us For Availability
316
SCR 1/4-20 GX TRT 7/8 S GEN WR01X11010 Contact Us For Availability
317
SCR 1/4-20 HXW 7/8 S GEN WR01X11049 Contact Us For Availability
318
BRACKET DOOR FZ RH GEN WR02X25185 Contact Us For Availability
327
SCR1/4-20 HXW 3/4S GEN WR01X11011 Contact Us For Availability
411
FZ FAN AND FELT ASM GEN WR60X10352 Contact Us For Availability
425
CLIP EVAP THERMISTOR GEN WR02X10879 Contact Us For Availability
429
HEATER CONDUCTION FZ GEN WR51X10134 Contact Us For Availability
430
TUBE FZ REPAIR ASM GEN WR84X10113 Contact Us For Availability
431
BLOCK EVAP SEAL GEN WR02X13725 Contact Us For Availability
450
TUBE FZ IM FILL HTR ASM GEN WR02X20621 Contact Us For Availability
459
THERMOSTAT DEFROST FZ GEN WR50X10108 Contact Us For Availability
460
HEATER HARNESS FZ W/TCO GEN WR23X10745 Contact Us For Availability
461
HEATER DEF ASM FZ GEN WR51X10131 Contact Us For Availability
473
TROUGH DRAIN FZ GEN WR17X13080 Contact Us For Availability
500
BASKET BOTTOM ASM GEN WR21X10249 Contact Us For Availability
501
GEAR LWR DRW RH GEN WR02X13629 Contact Us For Availability
502
GEAR LWR DRW LH GEN WR02X13630 Contact Us For Availability
503
CONNNECTOR GEAR PINION GEN WR02X13631 Contact Us For Availability
504
CROSSBAR PINION GEN WR02X13670 Contact Us For Availability
505
PIN CROSS BAR GEN WR01X11023 Contact Us For Availability
507
SCREW SET DOOR FZ GEN WR01X11036 Contact Us For Availability
518
SLIDE BRACKET ASM RH GEN WR17X13144 Contact Us For Availability
519
SLIDE BRACKET ASM LH GEN WR17X13145 Contact Us For Availability
520
GLIDE SUPPORT LH & RH GEN WR72X27635 Contact Us For Availability
527
SLIDE LOWER FZ RH GEN WR72X10427 Contact Us For Availability
528
SLIDE LOWER FZ LH GEN WR72X10428 Contact Us For Availability
556
HOLDER SLIDE FZ RH GEN WR72X20645 Contact Us For Availability
557
HOLDER SLIDE FZ LH GEN WR72X20644 Contact Us For Availability
578
SCR 8-18 AB HXW 9/16 S GEN WR01X11012 Contact Us For Availability
580
SCR 10-18 FLT20 3/4 S GEN WR01X11013 Contact Us For Availability
581
STRIKER LIGHT SWITCH GEN WR02X13632 Contact Us For Availability
619
ARM FEELER IM GEN WR29X10110 Contact Us For Availability
621
HOLDER ELEMENT GEN WR02X10518 Contact Us For Availability
636
HOLDER ELEMENT ASM GEN WR02X13678 Contact Us For Availability
640
COILED COLD WATER TANK GEN WR17X27627 Contact Us For Availability
642
VALVE DUAL WATER GEN WR57X10098 Contact Us For Availability
647
QUICK CLIP CONNECTOR 1/4 GEN WR01X11041 Contact Us For Availability
648
QUICK CLIP CONN 5/16 GEN WR01X11040 Contact Us For Availability
670
ICE BUCKET & CRUSHER GEN WR30X10174 Contact Us For Availability
695
HOUSING TRAY VALVE TANK GEN WR13X25912 Contact Us For Availability
704
SCR 8-18 HI/LO HWX 3/4 GEN WR01X11061 Contact Us For Availability
705
GASKET FF FAN FRONT GEN WR02X13731 Contact Us For Availability
709
REFRIGERATOR FRESH FOOD FAN BOOT GEN WR24X27948 Contact Us For Availability
712
FAN DC FF EVAP GEN WR60X26866 Contact Us For Availability
720
DUCT TOWER ASM FF GEN WR17X22149 Contact Us For Availability
721
DIVERTER & BADGE ASM GEN WR17X13243 Contact Us For Availability
737
GROMMET COMPRESSOR GEN WR02X13719 Contact Us For Availability
739
HEATER CONDUCTION FF GEN WR51X10133 Contact Us For Availability
757
HEATER HARNESS FF GEN WR23X23626 Contact Us For Availability
761
HEATER DEF ASM FF GEN WR51X10132 Contact Us For Availability
799
EVAP COVER ASM FF GEN WR17X27084 Contact Us For Availability
802
OVERLAY MEAT PAN ASM GEN WR04X23038 Contact Us For Availability
803
PAN VEG LH ASM GEN WR32X10895 Contact Us For Availability
804
CAP CASE CORNER ASM DGY GEN WR02X13759 Contact Us For Availability
806
PCB BOARD DELI W/ OVRLY GEN WR17X23042 Contact Us For Availability
808
SCREW LEVELING ASM GEN WR01X11046 Contact Us For Availability
809
PAN VEG RH ASM GEN WR32X10894 Contact Us For Availability
811
SUPPORT SIDE RH GEN WR72X10432 Contact Us For Availability
813
SUPPORT SIDE LH GEN WR72X10434 Contact Us For Availability
814
DIFFUSER MEAT PAN GEN WR32X23048 Contact Us For Availability
815
PAN MEAT ASM GEN WR32X10868 Contact Us For Availability
818
DIVIDER MEAT PAN GEN WR17X13074 Contact Us For Availability
831
TRACK SIDE FF GEN WR72X21071 Contact Us For Availability
832
TRACK CENTER FF GEN WR72X10429 Contact Us For Availability
834
SHELF ASM TUCKAWAY GEN WR32X23648 Contact Us For Availability
835
SPACER TRACK GEN WR02X13679 Contact Us For Availability
886
ROLLER ASM GEN WR02X13658 Contact Us For Availability
887
GUIDE ROLLER VEG PAN GEN WR72X10431 Contact Us For Availability
888
DAMPER VEG PAN GEN WR17X24925 Contact Us For Availability
890
VEG TOP FRAME ASM GEN WR32X10864 Contact Us For Availability
897
GLASS VEG PAN GEN WR32X10865 Contact Us For Availability
899
BAR REINFORCEMENT GEN WR02X21803 Contact Us For Availability
900
VALVE DOUBLE IM ASM GEN WR57X27527 Contact Us For Availability
902
HINGE TOP PIN ASM RH GEN WR13X25910 Contact Us For Availability
903
COVER MAINBOARD GEN WR02X25126 Contact Us For Availability
904
HINGE TOP PIN ASM LH GEN WR13X25911 Contact Us For Availability
912
WHEEL GEN WR02X13685 Contact Us For Availability
913
AXLE WHEEL GEN WR01X11008 Contact Us For Availability
919
TUBE SUCTION JUMPER GEN WR87X23634 Contact Us For Availability
921
FRONT/REAR WHEEL & AXLE GEN WR49X10268 Contact Us For Availability
922
SCR 8-32 HXW 3/4 S GEN WR01X26257 Contact Us For Availability
926
GRILLE THERMISTOR GEN WR02X13729 Contact Us For Availability
927
SHUNT SENSOR GEN WR01X11066 Contact Us For Availability
928
FAN GASKET ASM GEN WR60X23363 Contact Us For Availability
930
CONDENSER ASM FORMED GEN WR84X10115 Contact Us For Availability
932
HINGE CENTER ASM RH GEN WR13X10976 Contact Us For Availability
934
HINGE CENTER ASM LH GEN WR13X10982 Contact Us For Availability
938
HINGE ENDCAP ASM DGY GEN WR17X20164 Contact Us For Availability
942
VALVE BODY ASM GEN WR86X10094 Contact Us For Availability
952
COVER LED ASM, FF GEN WR55X11132 Contact Us For Availability
958
MASTIC SOUND DEADENING GEN WR02X13724 Contact Us For Availability
959
FILTER MANIFOLD GEN WR02X13684 Contact Us For Availability
960
HARNESS POWER CORD GEN WR23X24389 Contact Us For Availability
963
COVER FILTER RFID GEN WR02X23748 Contact Us For Availability
964
COVER WATER FILTER ASM GEN WR02X26526 Contact Us For Availability
965
GASKET DUCT FAN IM GEN WR14X10384 Contact Us For Availability
970
HARNESS DOOR CASE GEN WR23X10777 Contact Us For Availability
991
BRACKET CONDENSER GEN WR02X13622 Contact Us For Availability
994
CHECK VALVE GEN WR01X11006 Contact Us For Availability
1003
SCR 8-18 TPT 1/4 GEN WR01X10618 Contact Us For Availability
2001

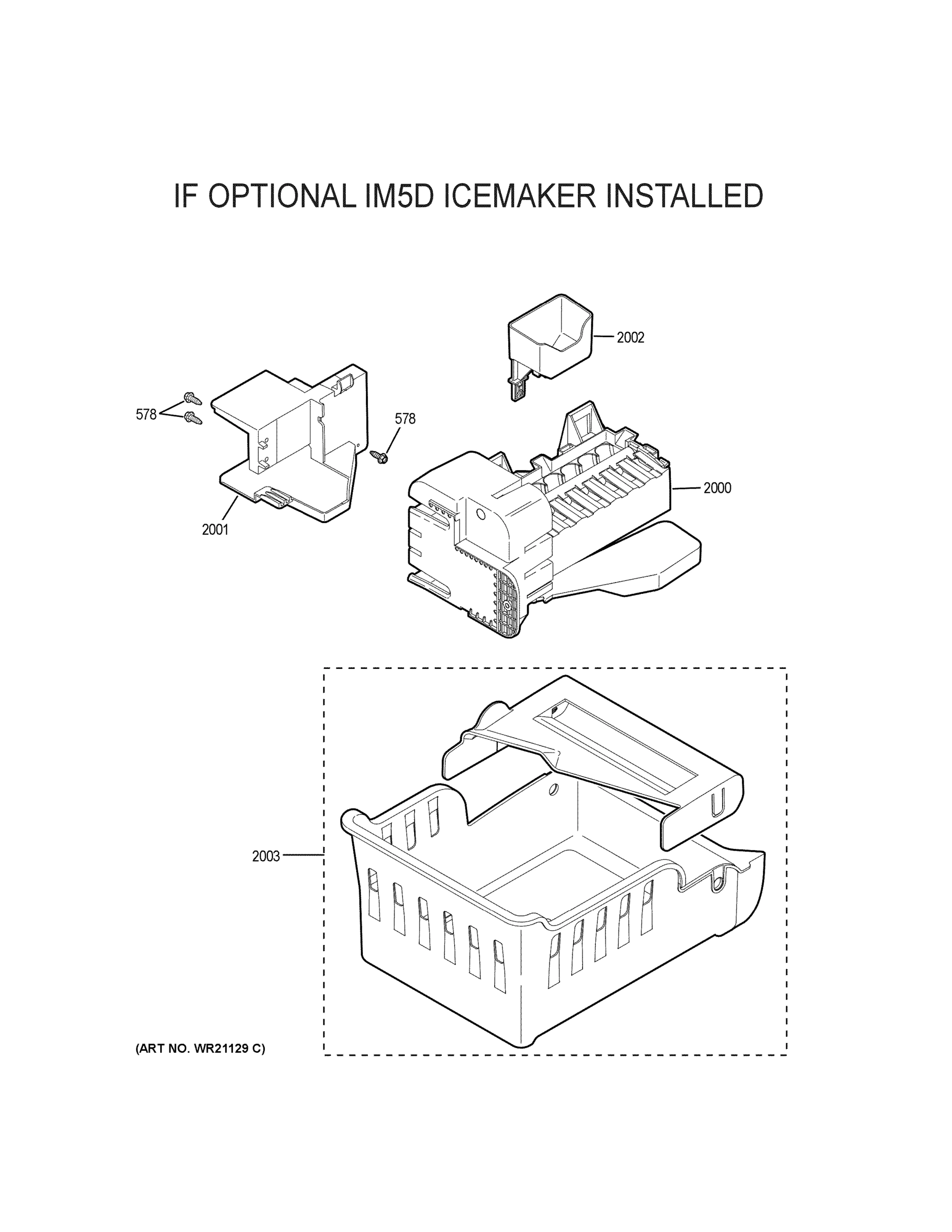

HOUSING WIRE IM FZ GEN WR17X23054 Contact Us For Availability
2002
CUP FILL FZ IM GEN WR30X25485 Contact Us For Availability
2003
BUCKET ICE ASM GEN WR30X23076 Contact Us For Availability
× ![]()
