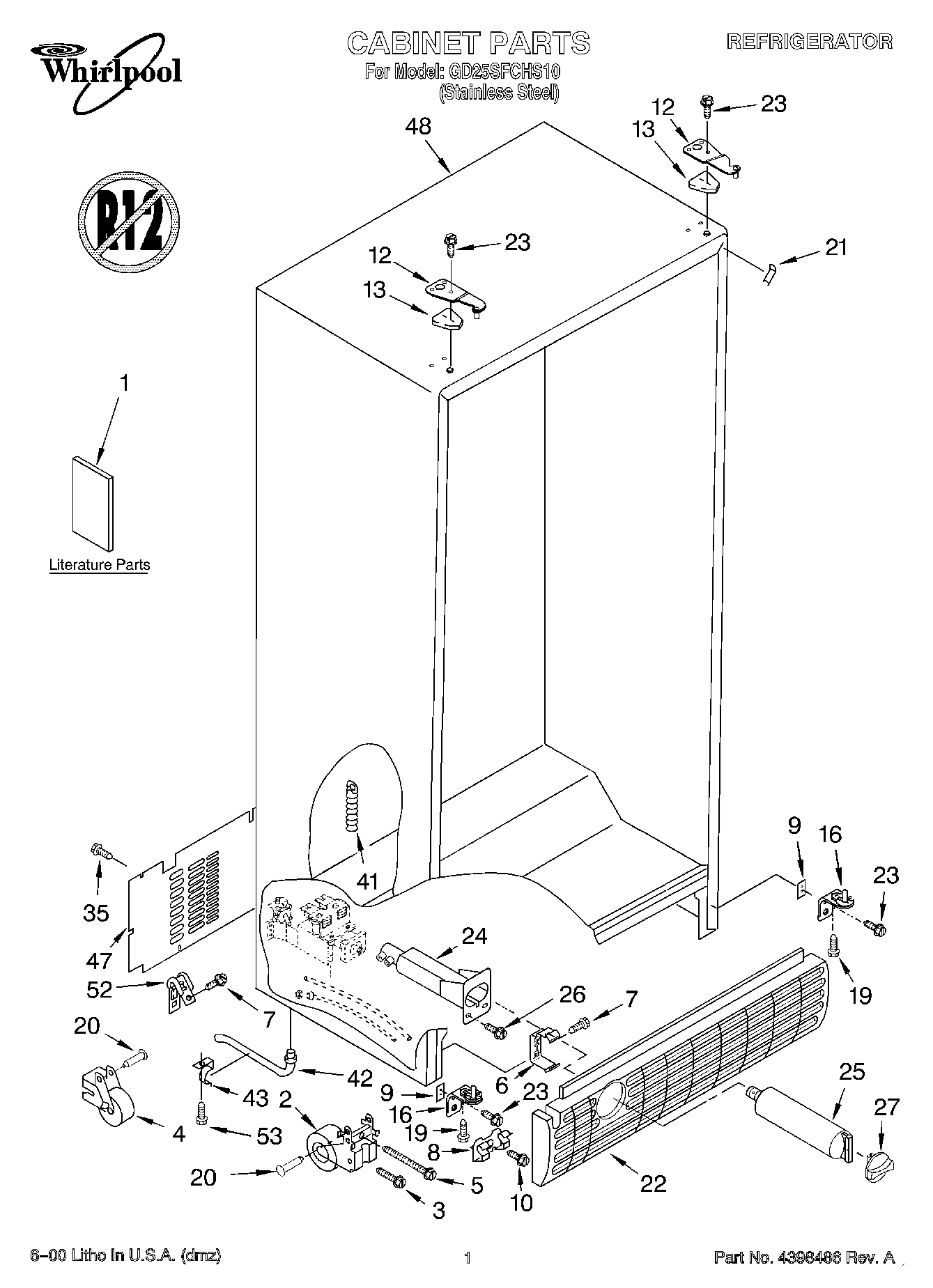

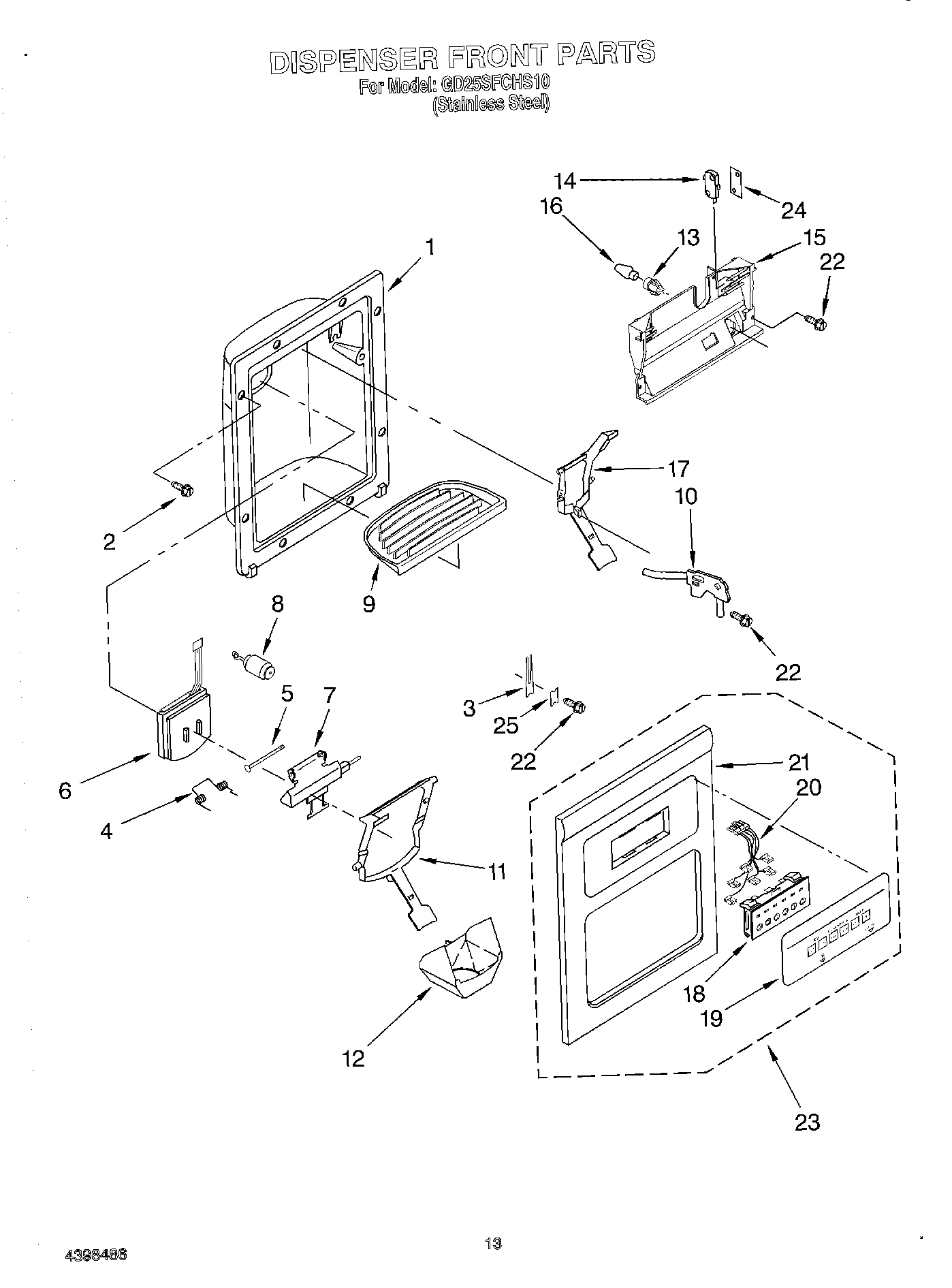

Model Whirlpool GD25SFCHS10 SIDE BY SIDE REFRIGERATOR – Common Parts &amp; Diagrams

1

WP486692 Whirlpool Refrigerator Nut Backorder WPL WP486692 $3.70

1

Liner (Not A Serviceable Part) WPL ARI62004A2 Contact Us For Availability

1

Bracket, Motor WPL 2199843 Contact Us For Availability

1

Liner (Not A Serviceable Part) WPL ARI62003A2 Contact Us For Availability

1

Overlay WPL 2203081 Contact Us For Availability

2

WP2155590 Whirlpool Refrigerator Retainer Backorder WPL WP2155590 $2.51

2

WP2188242 Whirlpool Refrigerator Motor In Stock WPL WP2188242 $153.53

2

Blade, Fan WPL 2190685 Contact Us For Availability

2

Retainer, Circuit Board WPL 2208141 Contact Us For Availability

3

WP2152713 Whirlpool Refrigerator Solenoid In Stock WPL WP2152713 $95.64

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

3

Circuit Board, Interface WPL 2203080 Contact Us For Availability

3

Door, Ice Compartment WPL 2199860 Contact Us For Availability

3

Condenser Assembly WPL 2208155B Contact Us For Availability

4

W10850503 Whirlpool Refrigerator Guide Backorder WPL W10850503 $4.63

4

Grommet WPL 2172803 Contact Us For Availability

4

Control Box WPL 2199717 Contact Us For Availability

5

2171846 Whirlpool Refrigerator Release Valve Backorder WPL 2171846 $10.76

5

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $108.46

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $7.69

5

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

5

Clip, Wire WPL 2155658 Contact Us For Availability

5

Light Lens WPL 2203108 Contact Us For Availability

6

2215823 Whirlpool Refrigerator Clip Backorder WPL 2215823 $4.61

6

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $10.25

6

WP8281196 Whirlpool Screw In Stock WPL WP8281196 $3.70

7

4388405 Whirlpool Refrigerator Shelf Stud In Stock WPL 4388405 $4.36

7

W11456069 Whirlpool Refrigerator Clamp In Stock WPL W11456069 $10.76

7

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $3.70

7

Wiring Assembly, Ice Dispenser WPL 2199846 Contact Us For Availability

8

W11751592 Whirlpool Sleeve In Stock WPL W11751592 $12.17

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

8

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $2.51

8

Door Gasket, Magnetic (Service) (Black) WPL 2209515 Contact Us For Availability

8

Door Gasket, Magnetic (Service) (Black) WPL 2209514 Contact Us For Availability

9

WP2158826 Whirlpool Refrigerator Dampener Backorder WPL WP2158826 $0.90

9

WP2186649B Whirlpool Refrigerator Handle Backorder WPL WP2186649B $79.24

9

WPW10169511 Whirlpool Refrigerator Coupling In Stock WPL WPW10169511 $9.70

9

Trim, Basket WPL 2199864 Contact Us For Availability

9

Ladder, Shelf WPL 2181796 Contact Us For Availability

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

WP3400012 Whirlpool Refrigerator Screw Backorder WPL WP3400012 $2.51

Basket (2) WPL 2199863 Contact Us For Availability

Screw Grommet WPL 509812 Contact Us For Availability

2182146 Whirlpool Refrigerator Duct Backorder WPL 2182146 $32.79

W11693756 Whirlpool Screw Assembly Backorder WPL W11693756 $8.11

WP2179343 Whirlpool Refrigerator Control Body In Stock WPL WP2179343 $13.98

WP2195327 Whirlpool Refrigerator Clip Backorder WPL WP2195327 $3.70

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $4.59

Basket, Shallow WPL 2199892 Contact Us For Availability

WP2162358 Whirlpool Refrigerator Terminal Cov Backorder WPL WP2162358 $30.03

WP2179342 Whirlpool Refrigerator Slide Backorder WPL WP2179342 $10.08

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $6.95

Roller WPL 2188212 Contact Us For Availability

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $31.40

W11239930 Whirlpool Refrigerator Overload Rel Backorder WPL W11239930 $59.01

WP61006295 Whirlpool Refrigerator Overload Backorder WPL WP61006295 $52.26

Tube, Water Inlet WPL 2203024 Contact Us For Availability

Thermistor WPL 2203172 Contact Us For Availability

2313230 Whirlpool Tube Backorder WPL 2313230 $92.13

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $8.38

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $3.39

WP488878 Whirlpool Refrigerator Tube Clamp Backorder WPL WP488878 $4.81

Wiring Cover WPL 2203111 Contact Us For Availability

Ice Container WPL 2199895 Contact Us For Availability

15

W10749708 Whirlpool Refrigerator Coupling Backorder WPL W10749708 $13.85

15

W10920279 Whirlpool Refrigerator Start Relay In Stock WPL W10920279 $40.48

15

WP2156006 Whirlpool Refrigerator Shelf Trim E In Stock WPL WP2156006 $4.10

16

Backorder WPL 2179404 $8.47

16

Hinge & Cam Assy. WPL 2208137 Contact Us For Availability

16

Extension, Air Baffle WPL 2203020 Contact Us For Availability

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $30.80

WP4387764 Whirlpool Run Capacitor Backorder WPL WP4387764 $81.03

Slide, Basket (Left Side (2)) WPL 2208197 Contact Us For Availability

Slide, Basket (Right Side (2)) WPL 2208198 Contact Us For Availability

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

WP2180236 Whirlpool Refrigerator Switch Backorder WPL WP2180236 $113.83

Clip, Compressor Mounting (4) WPL 2163787 Contact Us For Availability

4396822 Whirlpool Refrigerator Light Bulb In Stock WPL 4396822 $5.98

W11457217 Whirlpool Refrigerator Rocker Switc In Stock WPL W11457217 $14.15

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

WP2179234 Whirlpool Refrigerator Pan Trim Backorder WPL WP2179234 $27.12

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

Trim, Door Shelf WPL 2203087 Contact Us For Availability

Block, Evaporator WPL 2208183 Contact Us For Availability

W10278731 Whirlpool Refrigerator Blade Backorder WPL W10278731 $30.29

WP2196483 Whirlpool Refrigerator Shelf Stud Backorder WPL WP2196483 $4.34

Housing, Control Board WPL 2199929 Contact Us For Availability

Control Box Harness WPL 2199761 Contact Us For Availability

21

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $30.30

21

W11223328 Whirlpool Refrigerator Shelf Stud Backorder WPL W11223328 $9.59

W10278733 Whirlpool Refrigerator Blade Backorder WPL W10278733 $30.30

WP2188823 Whirlpool Refrigerator Evaporator In Stock WPL WP2188823 $192.85

WP628356 Whirlpool Refrigerator Fill Cup In Stock WPL WP628356 $15.77

Grille (Black) WPL 2199904B Contact Us For Availability

Stop, Roller WPL 1113169 Contact Us For Availability

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

Clamp WPL 2161324 Contact Us For Availability

Shelf, Top Compartment WPL 2203022 Contact Us For Availability

833697 Whirlpool Condenser Fan Motor In Stock WPL 833697 $41.18

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $26.81

WP2199840 Whirlpool Refrigerator Housing In Stock WPL WP2199840 $108.46

Spacer, Switch (2) WPL 625834 Contact Us For Availability

Handle, Beverage WPL 2203031 Contact Us For Availability

Light Lens WPL 2199965 Contact Us For Availability

Blade, Fixed (2) WPL 1119009 Contact Us For Availability

Air Diffuser Assembly WPL 2203078 Contact Us For Availability

25

2157405 Whirlpool Refrigerator Blade Block Backorder WPL 2157405 $10.76

25

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

25

WPW10614158 Whirlpool Refrigerator Evaporator In Stock WPL WPW10614158 $53.89

26

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $27.12

26

Eyelet, Roller WPL 2174478 Contact Us For Availability

26

Tube, Heat Loop WPL 2199806 Contact Us For Availability

27

W10843121 Whirlpool Refrigerator Tube In Stock WPL W10843121 $23.50

27

WP2186494B Whirlpool Refrigerator Filter Cap In Stock WPL WP2186494B $25.25

27

Conveyor WPL 2160602 Contact Us For Availability

2006518 Whirlpool Refrigerator Track Backorder WPL 2006518 $10.38

4388736 Whirlpool Refrigerator Ice Dispenser In Stock WPL 4388736 $30.73

876765 Whirlpool Primary Mounting Kit Refrige In Stock WPL 876765 $24.72

W10309995 Whirlpool Refrigerator Compressor In Stock WPL W10309995 $372.63

Slide, Container (Right Side) WPL 2002720 Contact Us For Availability

29

WP2203075 Whirlpool Refrigerator Spacer Backorder WPL WP2203075 $6.59

29

WP3400912 Whirlpool Refrigerator Washer Backorder WPL WP3400912 $2.51

29

WPW10272364 Whirlpool Refrigerator Screw In Stock WPL WPW10272364 $4.56

30

W10852691 Whirlpool Refrigerator Baffle Backorder WPL W10852691 $13.16

30

WP3400806 Whirlpool Screw In Stock WPL WP3400806 $2.51

30

Unit Mounting Plate WPL 2199740 Contact Us For Availability

WP1119018 Whirlpool Refrigerator Bearing Backorder WPL WP1119018 $3.70

WP2256126 Whirlpool Refrigerator Reservoir In Stock WPL WP2256126 $77.94

Shelf WPL 2199861 Contact Us For Availability

Unit, Harness WPL 2188366 Contact Us For Availability

32

W10142289 Whirlpool Air Conditioner Screw Backorder WPL W10142289 $5.16

32

Control Arm WPL 2002728 Contact Us For Availability

32

Fan, Motor Bracket WPL 2208157 Contact Us For Availability

1119020 Whirlpool Refrigerator Spring Backorder WPL 1119020 $6.09

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.56

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $12.32

WP2323198 Whirlpool Refrigerator Heater In Stock WPL WP2323198 $30.17

34

1119021 Whirlpool Refrigerator Clip Backorder WPL 1119021 $4.63

34

Light Lens WPL 2203266 Contact Us For Availability

34

Clip WPL 2161330 Contact Us For Availability

35

WP488787 Whirlpool Refrigerator Screw Backorder WPL WP488787 $4.56

35

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

35

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $19.51

36

Circuit Board, Dual Temp. WPL 2203076 Contact Us For Availability

37

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

37

WPW10185018 Whirlpool Refrigerator Housing Backorder WPL WPW10185018 $52.10

37

Washer WPL 680975 Contact Us For Availability

38

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

38

WP1119017 Whirlpool Refrigerator Deflector Backorder WPL WP1119017 $3.70

39

489234 Whirlpool Refrigerator Washer Backorder WPL 489234 $9.59

39

WP2163786 Whirlpool Refrigerator Grommet Backorder WPL WP2163786 $3.70

40

WP489236 Whirlpool Refrigerator Ring Backorder WPL WP489236 $5.09

40

Screw WPL 3400513 Contact Us For Availability

41

WP2216112 Whirlpool Damper Control Assembly In Stock WPL WP2216112 $139.57

42

8201802 Whirlpool Refrigerator Start Device Backorder WPL 8201802 $46.81

43

WP489491 Whirlpool Refrigerator Screw In Stock WPL WP489491 $2.51

44

Front Cover, Ice Container WPL 2199913 Contact Us For Availability

45

Screw WPL 3400514 Contact Us For Availability

46

WP2171706 Whirlpool Refrigerator Light Lens Backorder WPL WP2171706 $30.21

46

Insulation, Mounting Plate WPL 2203199 Contact Us For Availability

47

Side Support WPL 2203160 Contact Us For Availability

52

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

54

Wire Connector WPL 227991 Contact Us For Availability

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP4318044 Whirlpool Refrigerator Connector Backorder WPL WP4318044 $5.34

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4317943 Whirlpool Refrigerator Ice Maker Asse In Stock WPL 4317943 $88.85

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability

WPL 799340 WPL 799340 Contact Us For Availability

WPL 799833 WPL 799833 Contact Us For Availability
