Model Whirlpool GD22DQXFN00 SIDE BY SIDE REFRIGERATOR – Common Parts & Diagrams
11 - ICEMAKER

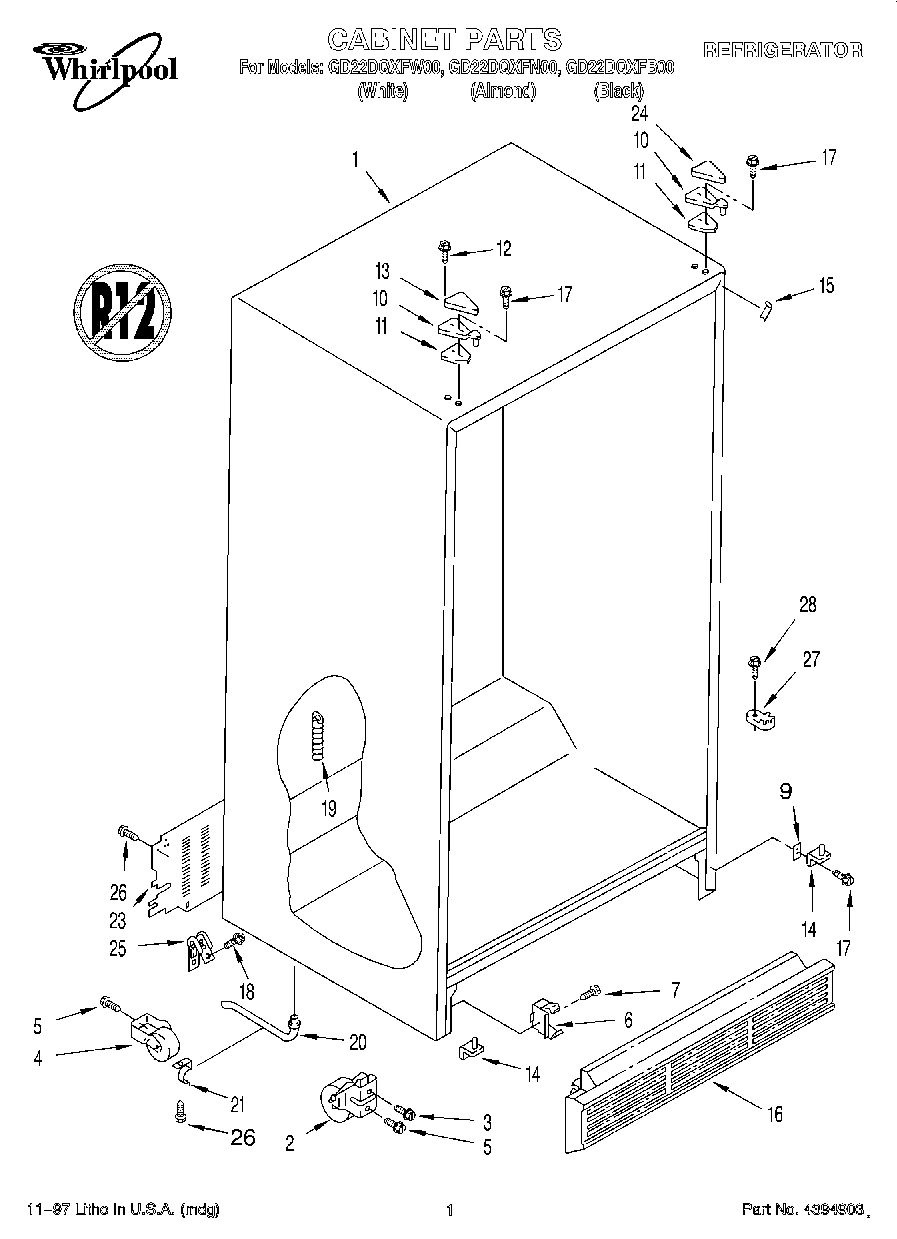

01 - CABINET

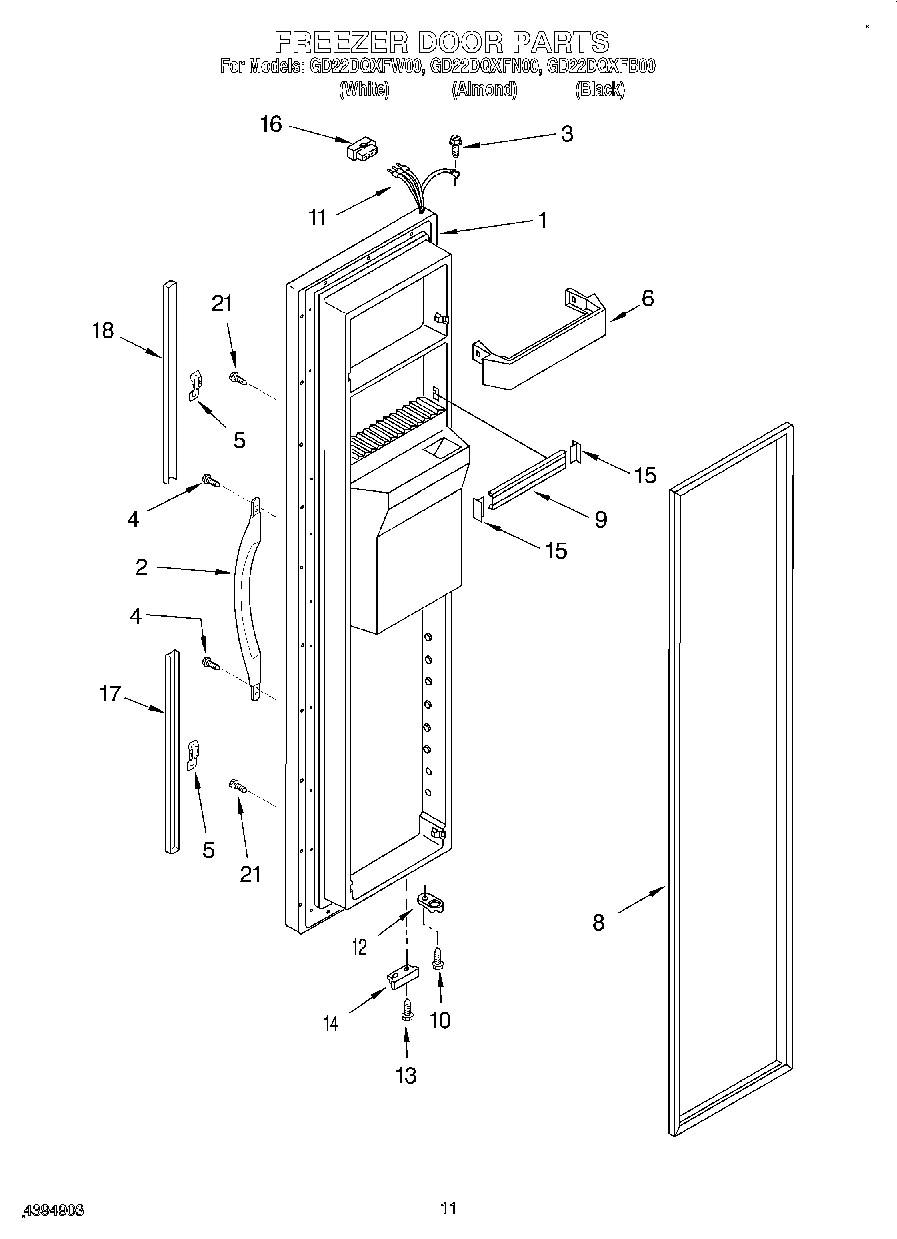

08 - FREEZER DOOR

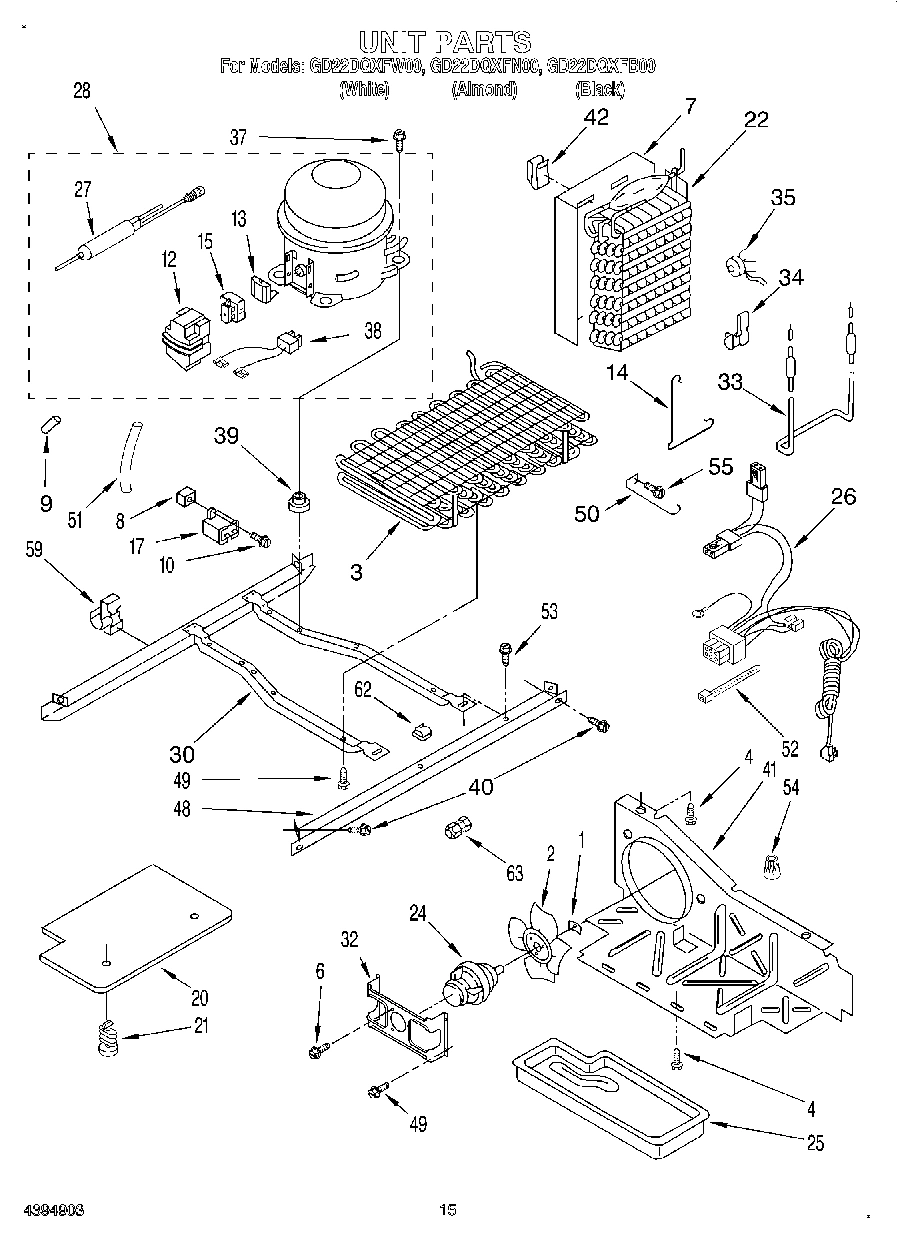

10 - UNIT

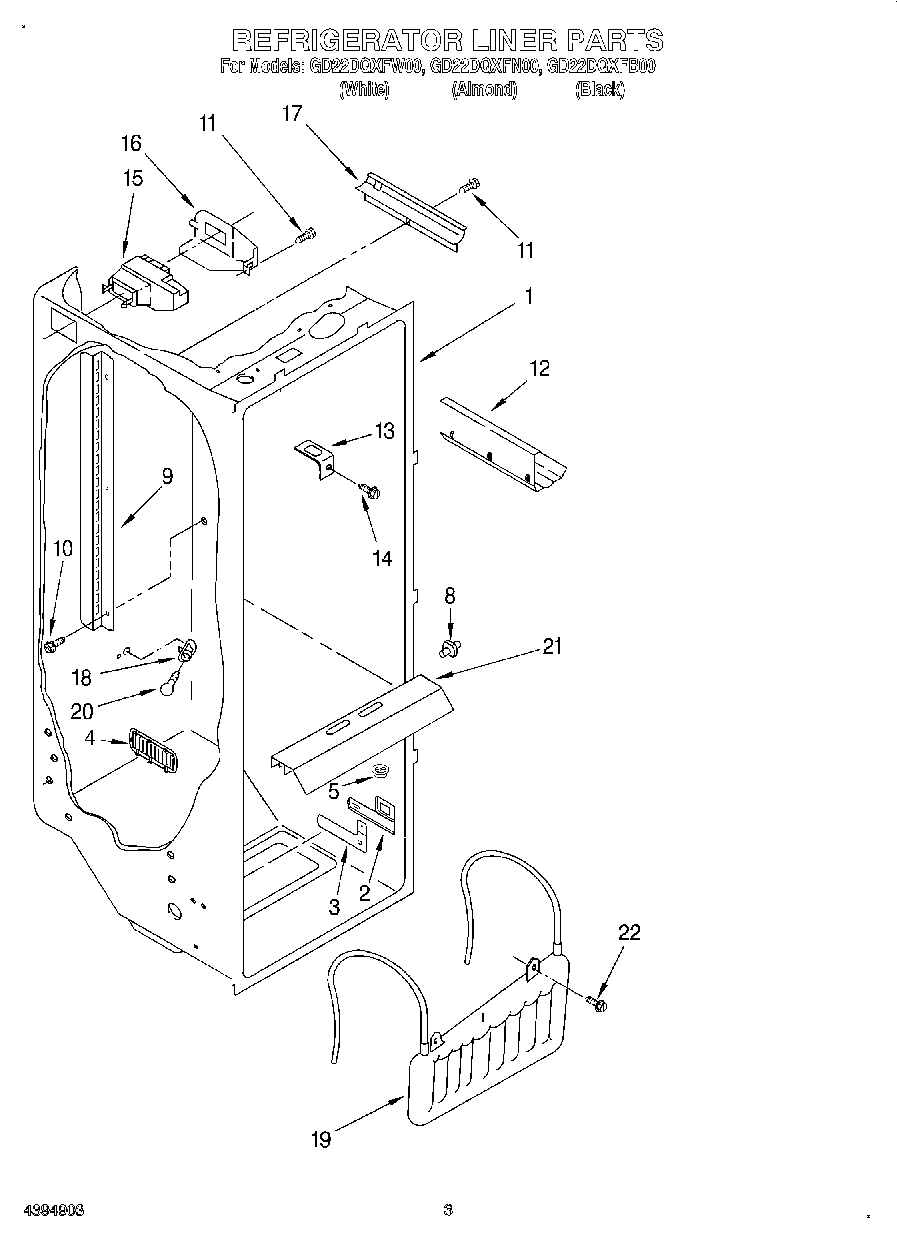

02 - REFRIGERATOR LINER

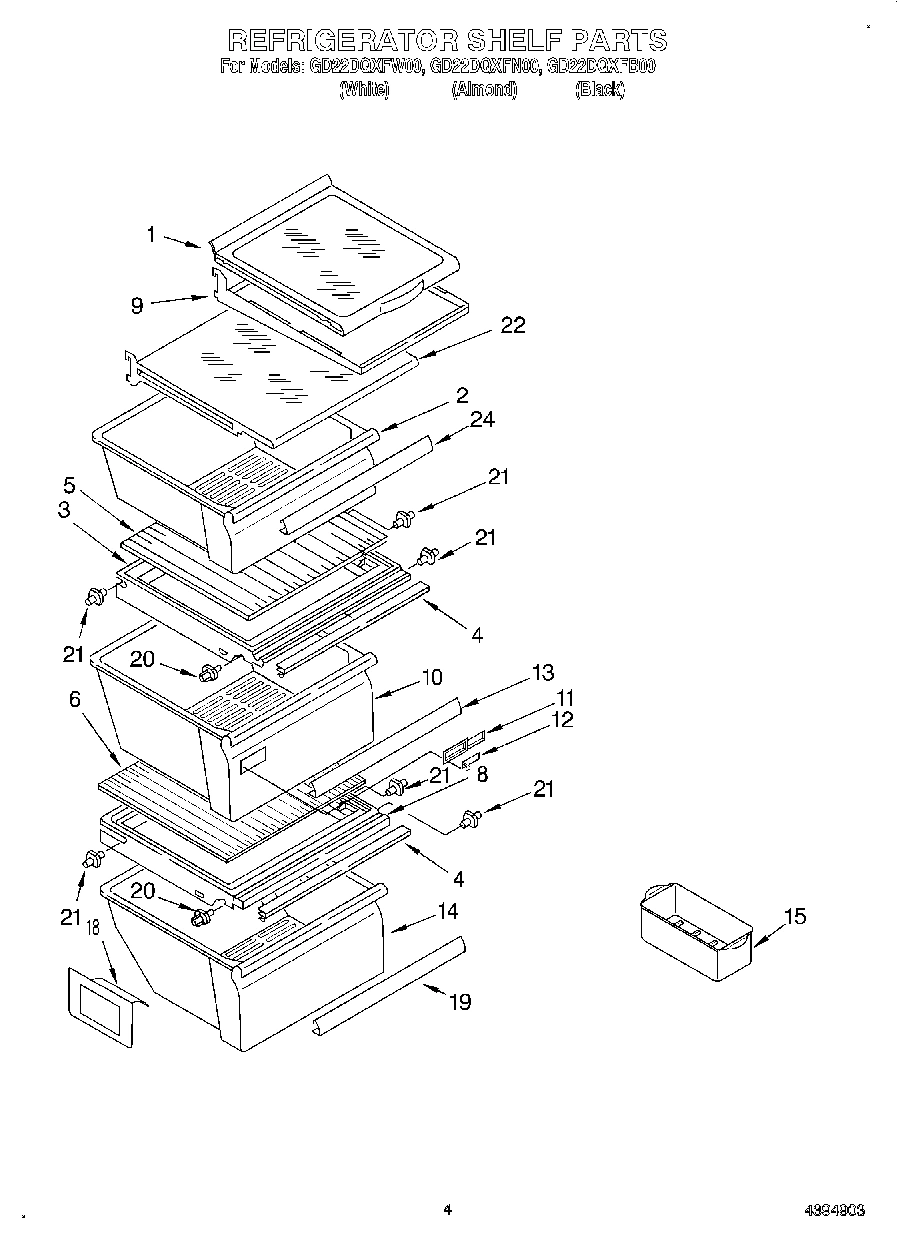

03 - REFRIGERATOR SHELF

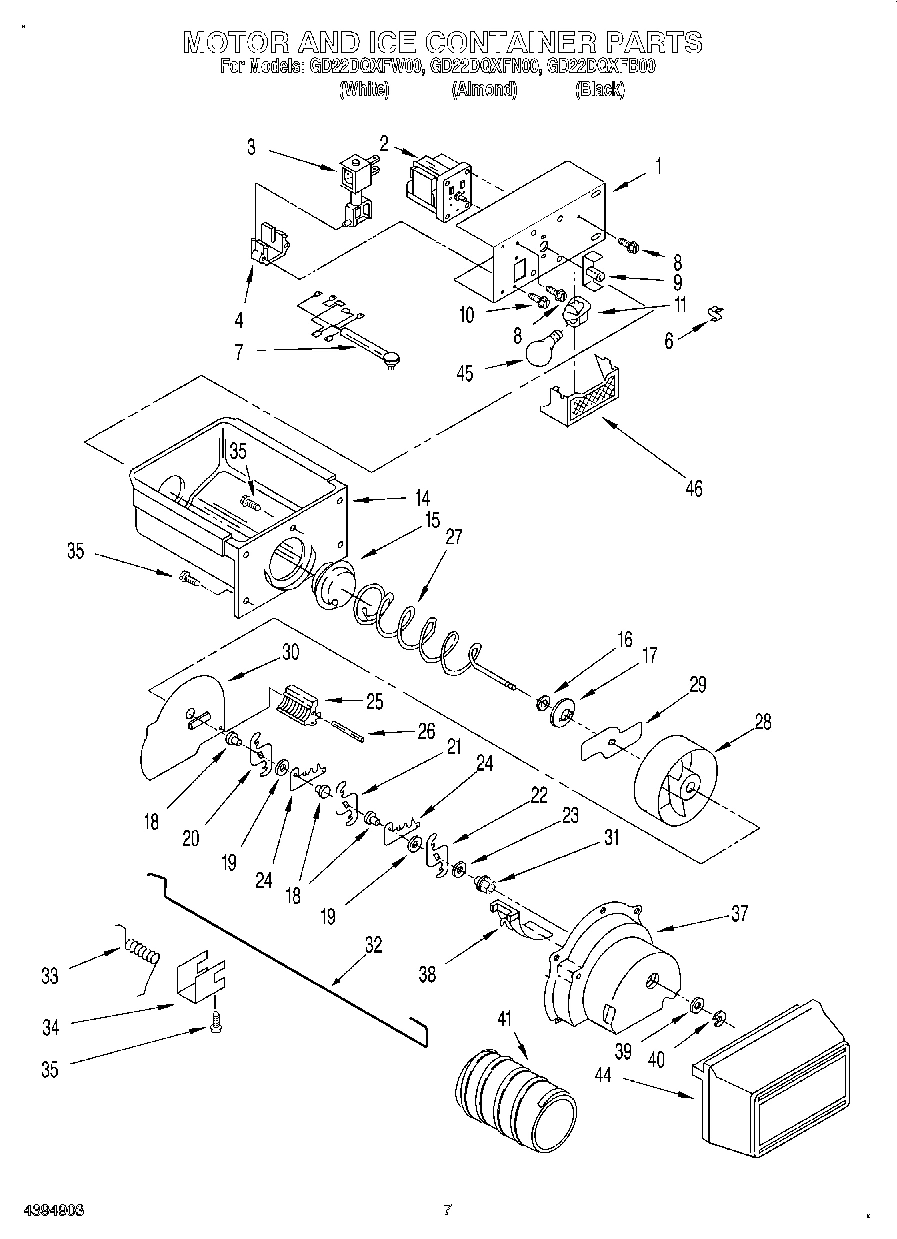

06 - MOTOR AND ICE CONTAINER

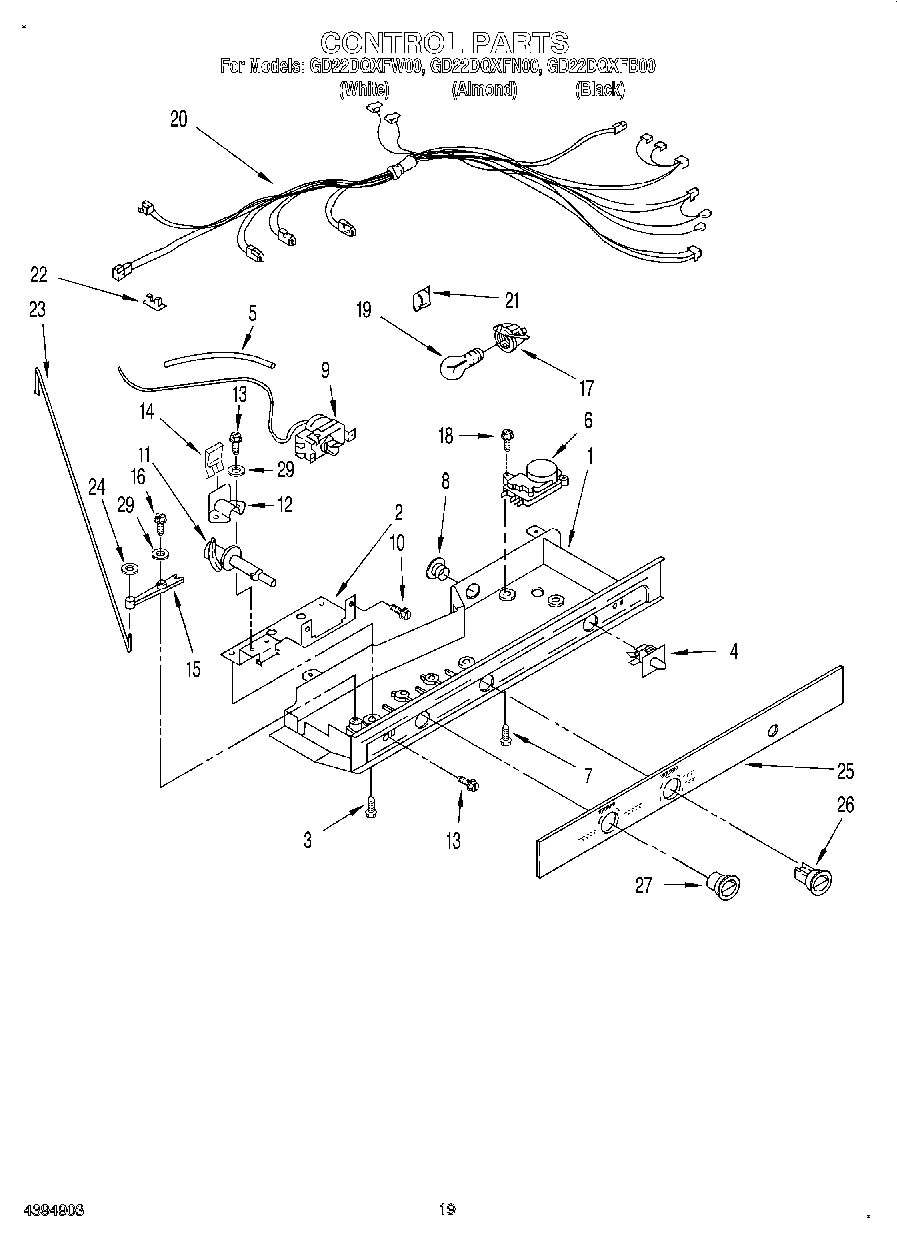

12 - CONTROL
04 - FREEZER LINER
05 - AIR FLOW

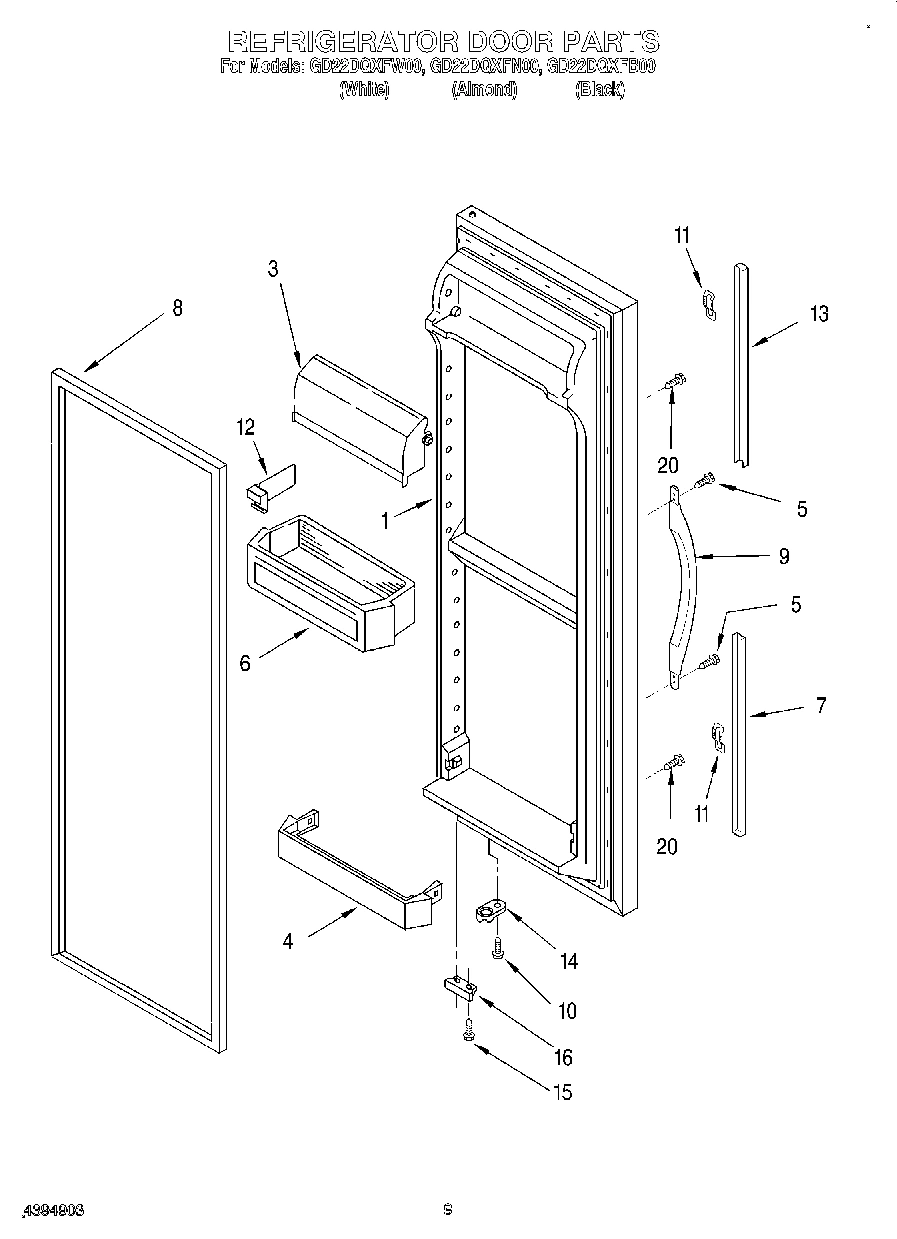

07 - REFRIGERATOR DOOR

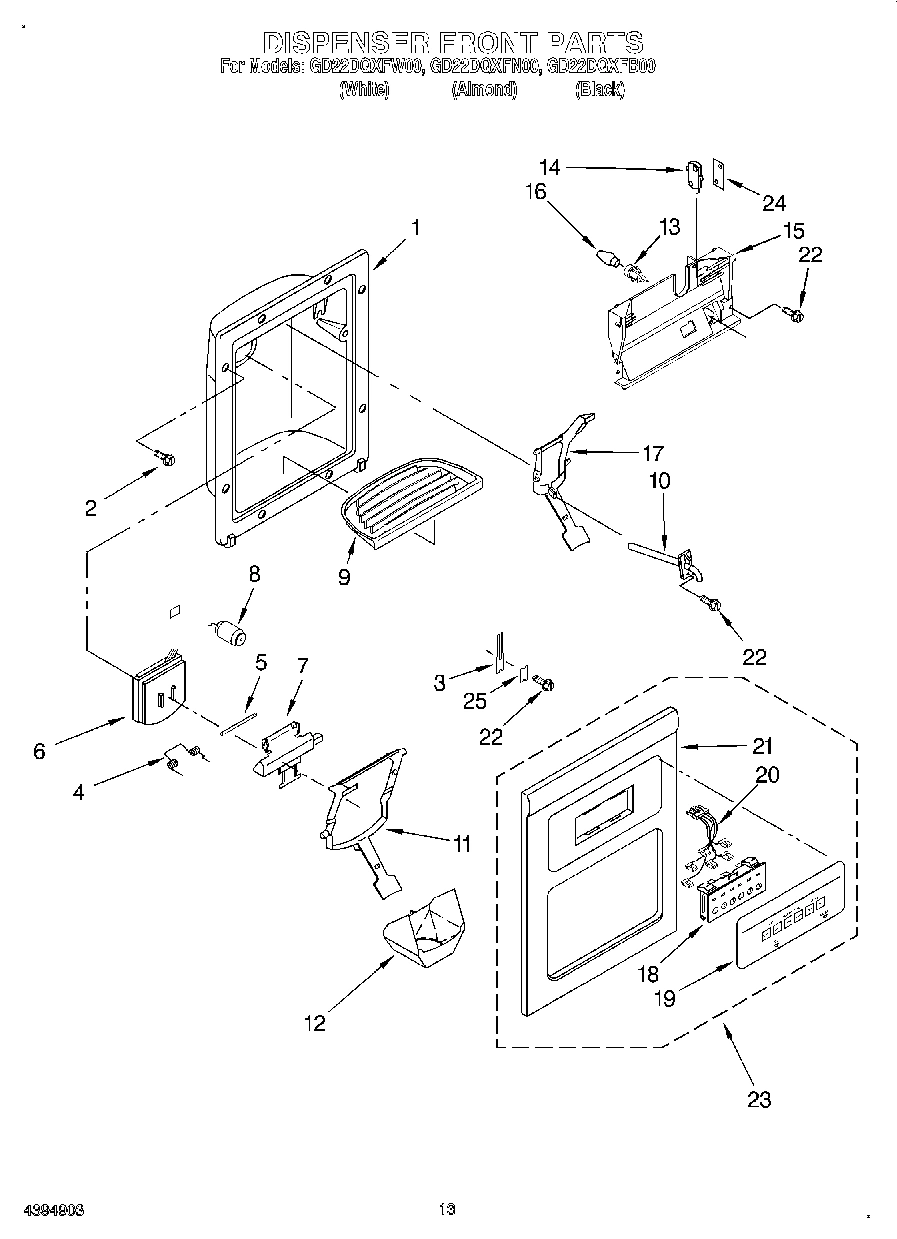

09 - DISPENSER FRONT
Common parts from model Whirlpool GD22DQXFN00 SIDE BY SIDE REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
WPL LIT2186434 WPL LIT2186434 Contact Us For Availability
WPL LIT2194921 WPL LIT2194921 Contact Us For Availability
WPL LIT2198384 WPL LIT2198384 Contact Us For Availability
WPL LIT628370 WPL LIT628370 Contact Us For Availability
1
Control Box WPL 2169147 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI61726A1 Contact Us For Availability
1
Refrigerator Door (Includes Item No.8) (Black WPL 2194275B Contact Us For Availability
1
Refrigerator Door (Includes Item No.8) (Almon WPL 2194275N Contact Us For Availability
1
Refrigerator Door (Includes Item No.8) (White WPL 2194275W Contact Us For Availability
1
Housing, Dispenser (Not a Serviceable Part) WPL ARI61727A2 Contact Us For Availability
2
Fan, Blade WPL 1108179 Contact Us For Availability
2
Mounting Bracket WPL 1110629 Contact Us For Availability
2
Slide, Ice Door WPL 1115380 Contact Us For Availability
3
Screw (2) WPL 489397 Contact Us For Availability
3
Air Scoop WPL 2161231 Contact Us For Availability
6
Timer, Defrost (10 Hour) WPL 2176648 Contact Us For Availability
6
Diffuser, Air Duct WPL 2149544 Contact Us For Availability
6
Door, Ice WPL 2180205 Contact Us For Availability
7
Extension, Bottom (Almond) WPL 2194970N Contact Us For Availability
7
Extension, Bottom (White) WPL 2194970W Contact Us For Availability
7
Door Mechanism Assembly WPL 2180208 Contact Us For Availability
8
Delay Mechanism WPL 2180223 Contact Us For Availability
9
Grille, Overflow (White) WPL 2180241 Contact Us For Availability
9
Handle, Center (Almond) WPL 2193345N Contact Us For Availability
9
Handle, Center (White) WPL 2193345W Contact Us For Availability
9
Grille, Overflow (Almond) WPL 2180242 Contact Us For Availability
9
Grille, Overflow (Black) WPL 2180243 Contact Us For Availability
10
Basket, Tall WPL 2181761 Contact Us For Availability
11
Basket, Slope WPL 2181762 Contact Us For Availability
11
Lever, Ice Dispenser (White) WPL 2180256 Contact Us For Availability
11
Lever, Ice Dispenser (Almond) WPL 2180257 Contact Us For Availability
11
Lever, Ice Dispenser (Black) WPL 2180258 Contact Us For Availability
12
Harness, Fan Evaporator, And Heater, Bi-Metal WPL 2161478 Contact Us For Availability
12
Divider, Bin WPL 2195496 Contact Us For Availability
13
Grommet (4) WPL 2176134 Contact Us For Availability
13
Extension, Top (Almond) WPL 2194972N Contact Us For Availability
13
Extension, Top (White) WPL 2194972W Contact Us For Availability
14
Clip, Defrost Heater WPL 2161324 Contact Us For Availability
14
Cover, Wiring WPL 2155572 Contact Us For Availability
15
Pivot Arm WPL 1110559 Contact Us For Availability
16
Grille (Black) WPL 2155476 Contact Us For Availability
16
Bracket, Door Stop (Chrome) WPL 2195950 Contact Us For Availability
16
Bracket, Door Stop (Black) WPL 2195952 Contact Us For Availability
17
Shelf Track (Left Side (2)) WPL 2181759 Contact Us For Availability
17
Shelf Track (Right Side (2)) WPL 2181760 Contact Us For Availability
17
Lever, Water Dispenser (Almond) WPL 2180266 Contact Us For Availability
19
Plaque, Front Cover (White) WPL 2180237 Contact Us For Availability
19
Plaque, Front Cover (Almond) WPL 2180238 Contact Us For Availability
19
Plaque, Front Cover (Black) WPL 2180239 Contact Us For Availability
20
Unit Cover, Bottom WPL 2182057 Contact Us For Availability
20
Control Box Harness WPL 2198306 Contact Us For Availability
20
Stud WPL 946355 Contact Us For Availability
21
Light Lens WPL 2174436 Contact Us For Availability
21
Stud, R.S. Front WPL 946356 Contact Us For Availability
21
Front Cover, Housing (Not Available, Order No WPL ARI61728A7 Contact Us For Availability
22
CLIP, WIRING WPL 1115375 Contact Us For Availability
22
Stud, L.S. Rear WPL 1106982 Contact Us For Availability
23
Connecting Rod WPL 1123960 Contact Us For Availability
23
Front Cover Assembly (Includes Items 18, 19, WPL 2180230 Contact Us For Availability
23
Front Cover Assembly (Includes Items 18, 19, WPL 2180231 Contact Us For Availability
23
Front Cover Assembly (Includes Items 18, 19, WPL 2180232 Contact Us For Availability
24
Spacer, Switch (2) WPL 625834 Contact Us For Availability
24
Hinge Cover (Black) WPL 2155938 Contact Us For Availability
24
Fastener, Push-On WPL 489285 Contact Us For Availability
25
Escutcheon, Control Box WPL 2194977 Contact Us For Availability
27
Knob, Air Control WPL 2197871 Contact Us For Availability
29
WPL 876029 WPL 876029 Contact Us For Availability
29
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
29
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
29
Enamel, Black (1 Qt. Uncut) WPL 799340 Contact Us For Availability
29
KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability
29
WPL 978883 WPL 978883 Contact Us For Availability
44
Front Cover, Ice Container WPL 2171709 Contact Us For Availability
63
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
× ![]()
