Model GE GCWP1805D1CC – Common Parts & Diagrams

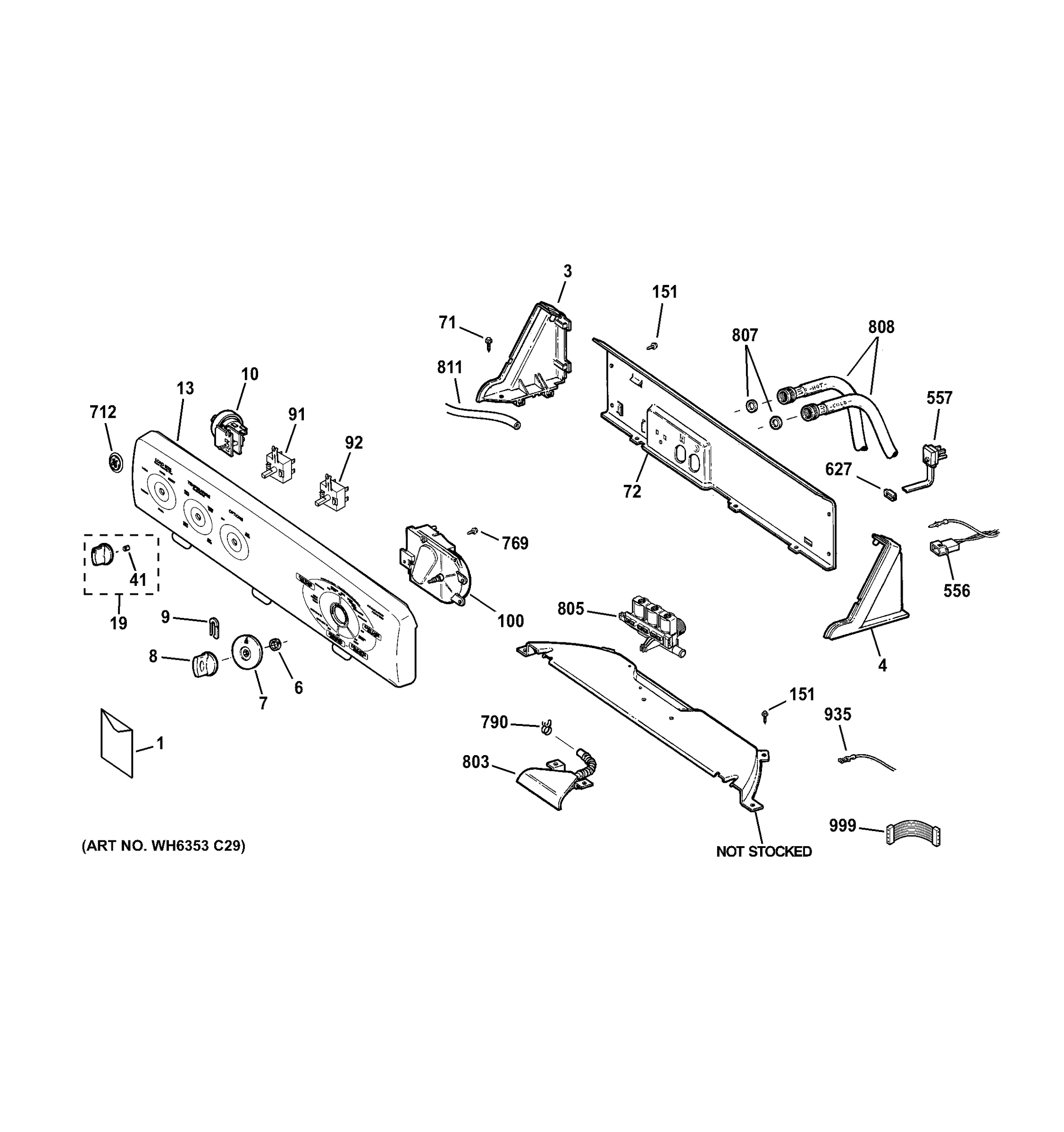

CONTROLS & BACKSPLASH

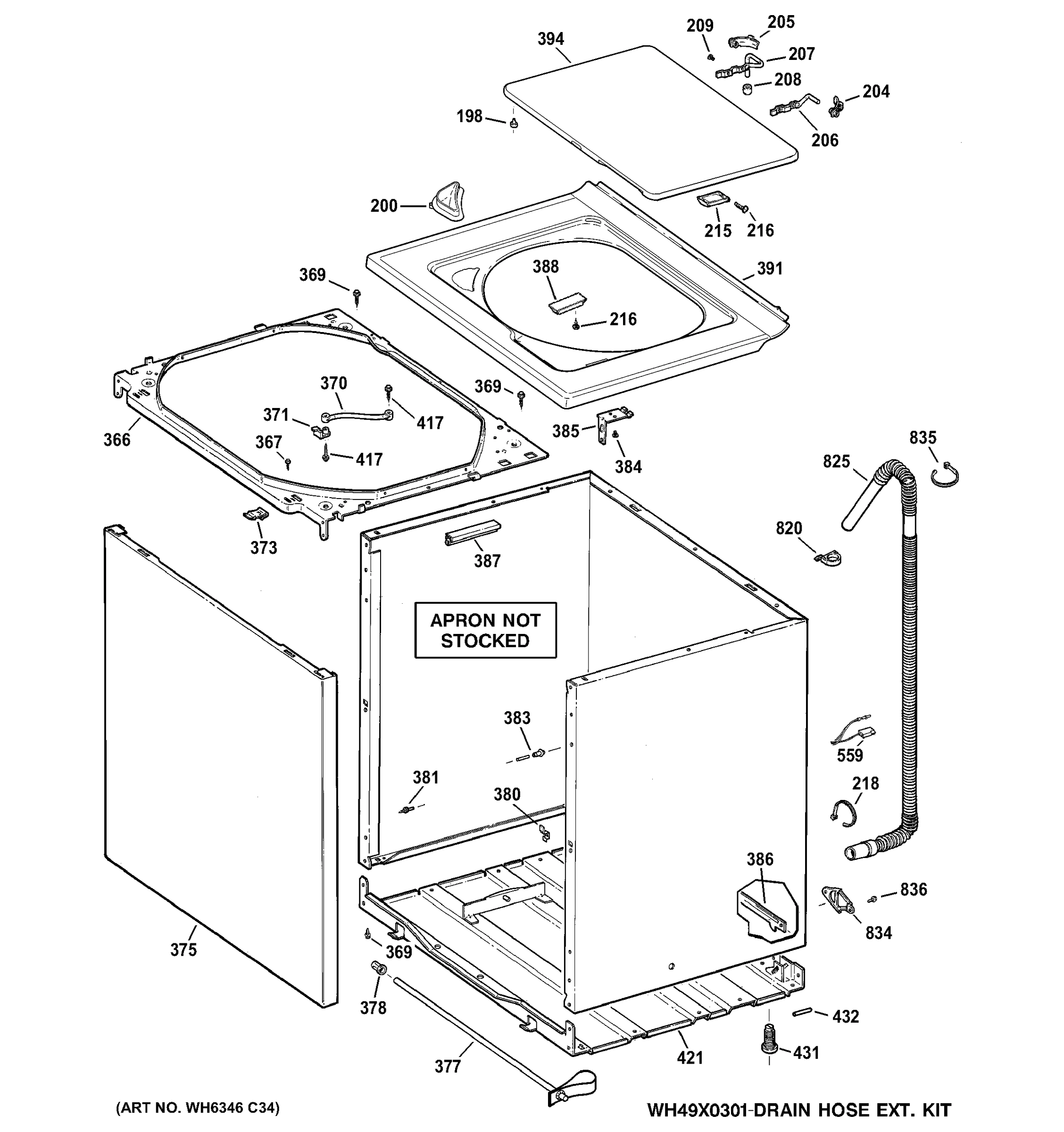

CABINET, COVER & FRONT PANEL
TUB, BASKET & AGITATOR
SUSPENSION, PUMP & DRIVE COMPONENTS
Common parts from model GE GCWP1805D1CC
10
PRESSURE SWITCH GEN WH12X10301 Contact Us For Availability
13
BACKSPLASH ASM GEN WH42X10902 Contact Us For Availability
41
CLIP KNOB GEN WH01X10106 Contact Us For Availability
72
BACK PANEL GEN WH46X10146 Contact Us For Availability
92
FABRIC SOFTENER SWITCH GEN WH12X10477 Contact Us For Availability
200
FUNNEL BLEACH GEN WH01X10057 Contact Us For Availability
204
BUSHING HINGE GEN WH01X10138 Contact Us For Availability
293
CLAMP HOSE GEN WH01X10134 Contact Us For Availability
305
HOSE DRAIN ASM GEN WH41X10285 Contact Us For Availability
316
BASKET HUB & RING XL GEN WH45X10120 Contact Us For Availability
327
BALANCE RING ASM GEN WH45X10116 Contact Us For Availability
332
SCR 8-16 B FLP .625 ZN GEN WH02X10217 Contact Us For Availability
375
PANEL & BRACE ASM BQ GEN WH46X10111 Contact Us For Availability
403
LEG AND PLATFORM ASM GEN WH17X10025 Contact Us For Availability
413
HEX NUT OVERMOLD ASM GEN WH02X10233 Contact Us For Availability
421
BASE ASM GEN WH46X10145 Contact Us For Availability
557
CORD POWER ASM GEN WH19X10068 Contact Us For Availability
627
SELF LOCKING STRAIN RELF GEN WH12X10208 Contact Us For Availability
630
MOTOR AND INVERTER ASM GEN WH20X10092 Contact Us For Availability
678
COUNTERWEIGHT GEN WH01X10643 Contact Us For Availability
679
BRACKET COUNTER WEIGHT GEN WH49X20708 Contact Us For Availability
680
WASHER BOLT COMBO GEN WH02X22434 Contact Us For Availability
712
BADGE GEN WH01X10648 Contact Us For Availability
× ![]()
