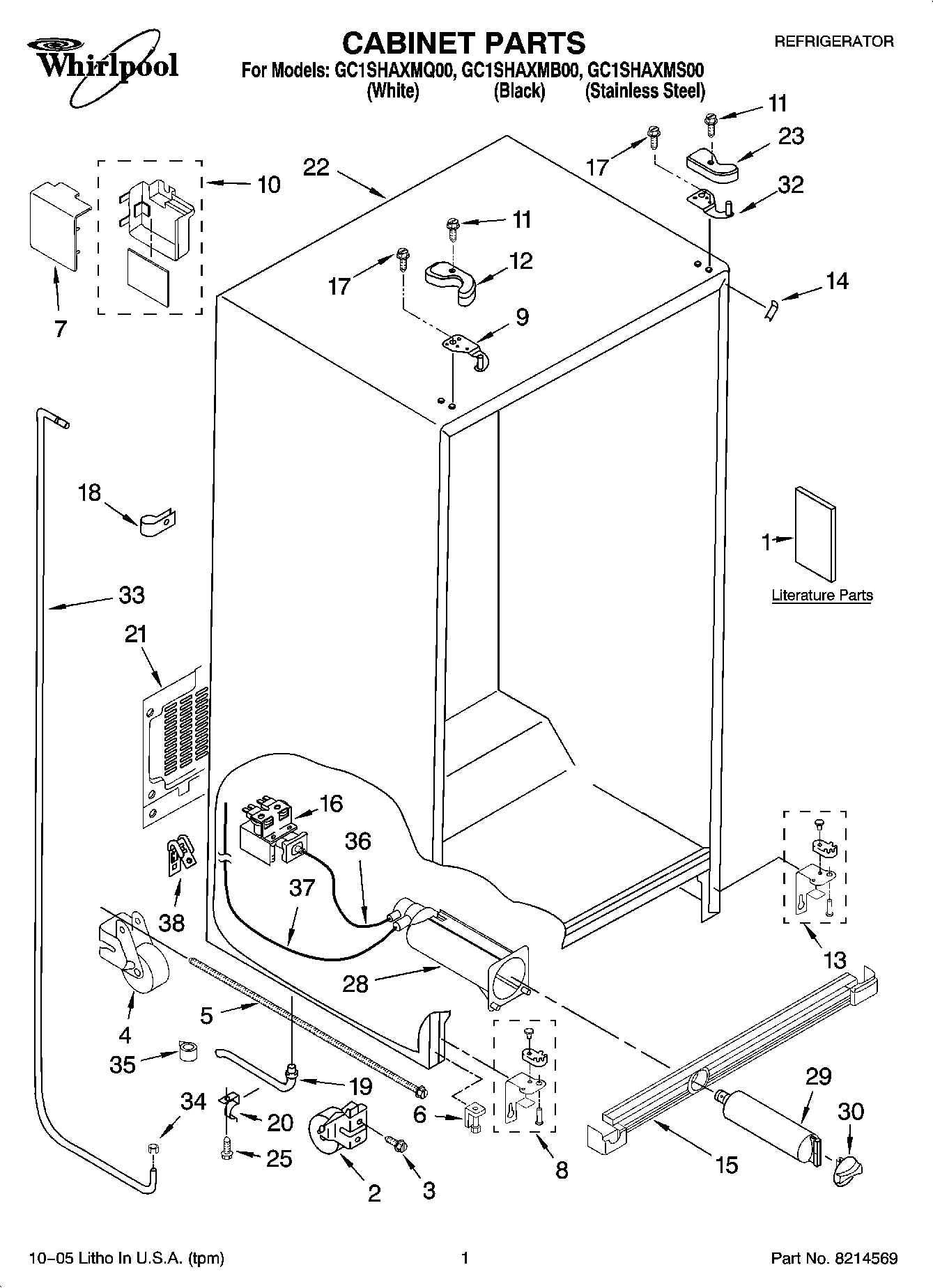

Model Whirlpool GC1SHAXMS00 REFRIGERATOR – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4392899 Whirlpool Biscuit Touch-Up Paint In Stock WPL 4392899 $6.86

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

8171357 Whirlpool Spray Nozzle Backorder WPL 8171357 $30.47

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

Brush Touch-up Kit (Graphite) WPL 80051 Contact Us For Availability

WPL 876029 WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

1

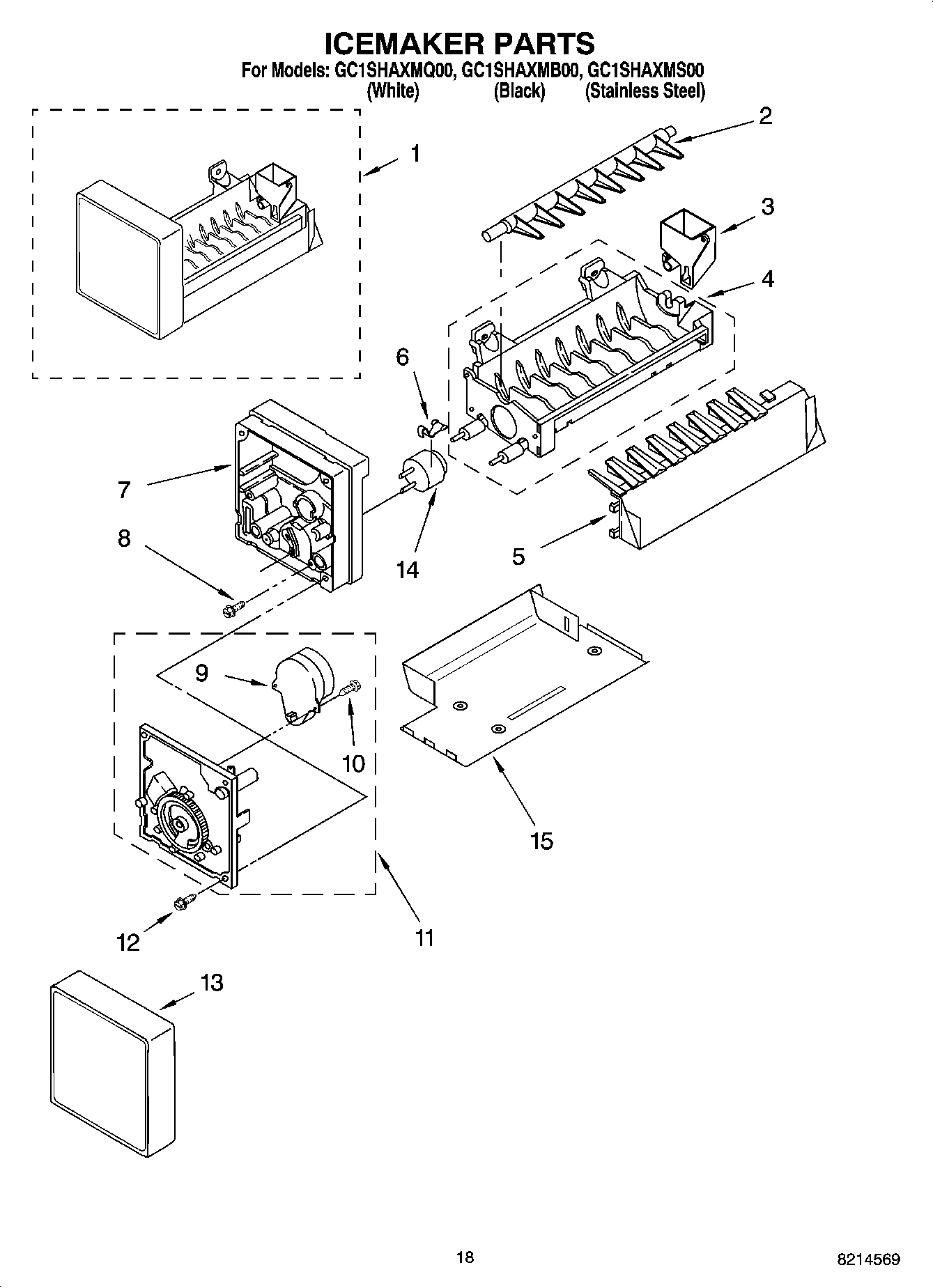

2198597 Whirlpool Refrigerator Ice Maker In Stock WPL 2198597 $88.79

1

Ice Bin WPL 2198646 Contact Us For Availability

1

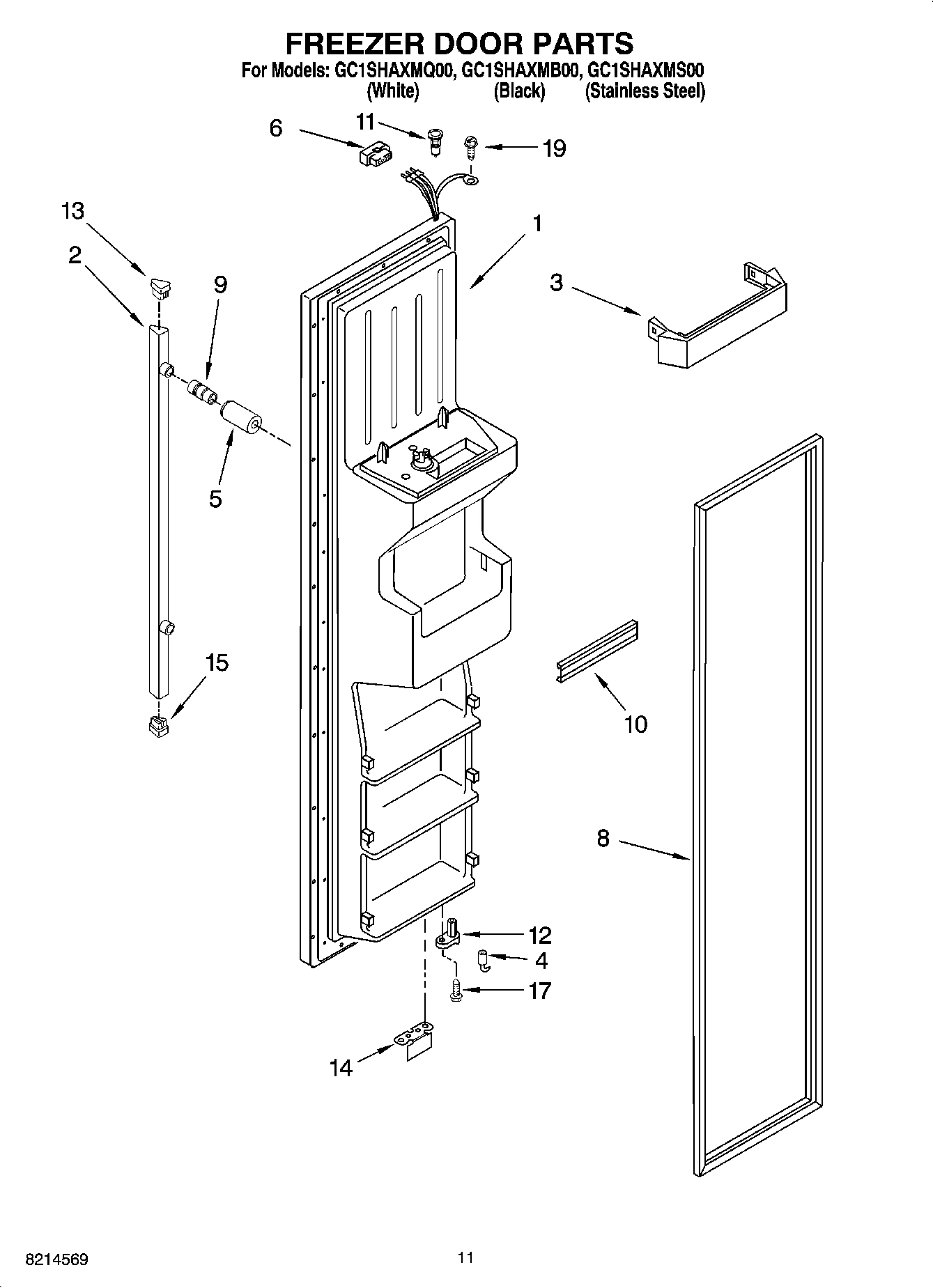

Freezer Door (Includes 6,8 Note: Doesn`t incl WPL 8206718 Contact Us For Availability

1

Freezer Door (Includes 6,8 Note: Doesn`t incl WPL 8206732 Contact Us For Availability

1

Freezer Door (Includes 6,8 Note: Doesn`t incl WPL 8206753 Contact Us For Availability

1

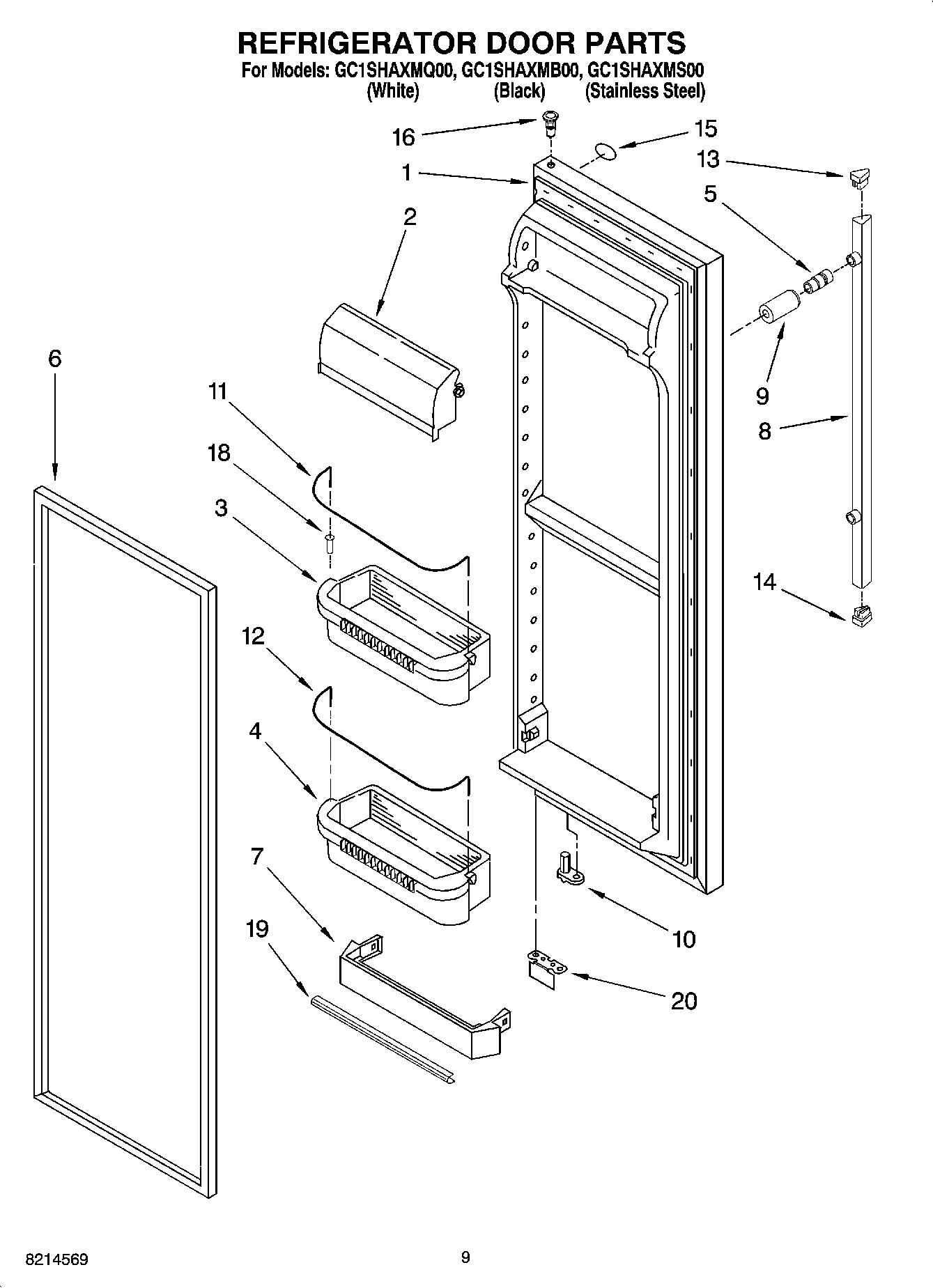

Refrigerator Door (Includes Item 6) (Black) WPL 8206685 Contact Us For Availability

1

Refrigerator Door (Includes Item 6) (Stainles WPL 8206731 Contact Us For Availability

1

Refrigerator Door (Includes Item 6) (White) WPL 8206770 Contact Us For Availability

1

Literature Energy Guide (Owners Manual) WPL 2315058 Contact Us For Availability

1

Energy Guide (English) WPL 8206801 Contact Us For Availability

1

Energy Guide (Spanish) WPL 8206802 Contact Us For Availability

1

Energy Guide (Service & Wiring Sheet) WPL 8206803 Contact Us For Availability

1

Energy Guide (Modular Icemaker Service Sheet) WPL 8206804 Contact Us For Availability

1

Shelf Assembly Glass Sliding WPL 8206798 Contact Us For Availability

1

Housing, Dispenser (Not Serviced) WPL ARI59275A1 Contact Us For Availability

2

WP2155590 Whirlpool Refrigerator Retainer Backorder WPL WP2155590 $2.51

2

WP627843 Whirlpool Refrigerator Ejector Arm Backorder WPL WP627843 $28.80

2

Fan Motor Assembly (Includes Wiring Harness 2 WPL 8206673 Contact Us For Availability

2

Compartment Door WPL 8206700 Contact Us For Availability

2

Front Roller (2) WPL 2203007 Contact Us For Availability

2

Pan, Meat (Center) WPL 8206788 Contact Us For Availability

2

Cover, Switch WPL 8206778 Contact Us For Availability

3

2182757 Whirlpool Refrigerator Slide Backorder WPL 2182757 $31.55

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

3

WP2198574 Whirlpool Refrigerator Ice Auger In Stock WPL WP2198574 $75.59

3

WP628356 Whirlpool Refrigerator Fill Cup In Stock WPL WP628356 $15.77

3

Shelf Bin WPL 8206721 Contact Us For Availability

3

Shelf Bin (Upper) WPL 8206794 Contact Us For Availability

3

SCREW WPL 8206676 Contact Us For Availability

3

Cover, Center Pan WPL 8206791 Contact Us For Availability

4

W10136387A Whirlpool Refrigerator Egg Contain In Stock WPL W10136387A $5.98

4

WP4373559 Whirlpool Fitting In Stock WPL WP4373559 $23.79

4

WPW10224328 Whirlpool Refrigerator Spring Backorder WPL WPW10224328 $30.85

4

Blade, Stirring WPL 2198603 Contact Us For Availability

4

Shelf Bin (Lower) WPL 8206743 Contact Us For Availability

4

Roller (Rear) (2) WPL 2203008 Contact Us For Availability

5

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $7.69

5

Support, Inner Handle WPL 8206715 Contact Us For Availability

5

BOLT WPL 8206675 Contact Us For Availability

6

Cover WPL 2255460 Contact Us For Availability

6

Door Gasket, Magnetic (White) WPL 8206709 Contact Us For Availability

6

Connector Kit WPL 8206724 Contact Us For Availability

6

Door Gasket, Magnetic (Black) WPL 8206712 Contact Us For Availability

6

Holder, Adjustment WPL 8206684 Contact Us For Availability

6

TRIM WPL 8206799 Contact Us For Availability

6

Door, Ice WPL 8206771 Contact Us For Availability

7

W10278733 Whirlpool Refrigerator Blade Backorder WPL W10278733 $30.30

7

Shelf Bin WPL 8206701 Contact Us For Availability

7

Cover, Control Box WPL 8206805 Contact Us For Availability

7

Glass, Crisper Cover WPL 8206797 Contact Us For Availability

7

Door Mechanism Assembly WPL 4388659 Contact Us For Availability

8

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

8

Hinge, Bottom FC WPL 8206683 Contact Us For Availability

8

Handle (White) WPL 8206710 Contact Us For Availability

8

Handle (Black) WPL 8206711 Contact Us For Availability

8

Door Gasket, Magnetic (White) WPL 8206719 Contact Us For Availability

8

Door Gasket, Magnetic (Black) WPL 8206720 Contact Us For Availability

8

Cover, Meat Pan WPL 8206790 Contact Us For Availability

8

Mechanism Delay WPL 2205686 Contact Us For Availability

9

Thermistor Kit WPL 8206667 Contact Us For Availability

9

Blade, Fixed WPL 2198601 Contact Us For Availability

9

Support, Handle (White) WPL 8206713 Contact Us For Availability

9

Support, Handle (Black) WPL 8206714 Contact Us For Availability

9

Hinge Top (FC) WPL 8206678 Contact Us For Availability

9

Grille, Overflow (White) WPL 8206772 Contact Us For Availability

9

Grille, Overflow (Black) WPL 8206773 Contact Us For Availability

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $30.30

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $3.39

WPW10307490 Whirlpool Door Trim Assembly In Stock WPL WPW10307490 $8.60

P.C. Board, Main Control WPL 8206668 Contact Us For Availability

Crisper Pan WPL 8206787 Contact Us For Availability

Water Fitting Assembly (Includes Water Tube) WPL 8206774 Contact Us For Availability

WP2179343 Whirlpool Refrigerator Control Body In Stock WPL WP2179343 $13.98

WP8281227 Whirlpool Screw Backorder WPL WP8281227 $4.58

Block, Blade WPL 2198602 Contact Us For Availability

Thimble-Top WPL 8206723 Contact Us For Availability

Retainer, Bottle WPL 8206704 Contact Us For Availability

Lever, Ice Dispenser (Black) WPL 2195089B Contact Us For Availability

Lever, Ice Dispenser (White) WPL 2195089W Contact Us For Availability

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $27.12

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $6.95

WP2216112 Whirlpool Damper Control Assembly In Stock WPL WP2216112 $139.57

Retainer, Bottle (Lower) WPL 8206705 Contact Us For Availability

Hinge Cover (FC) (White) WPL 8206681 Contact Us For Availability

Hinge Cover (FC) (Black) WPL 8206784 Contact Us For Availability

Slide, Humidity Control WPL 8206795 Contact Us For Availability

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $31.40

W10278731 Whirlpool Refrigerator Blade Backorder WPL W10278731 $30.29

WP2187145 Whirlpool Refrigerator Overload Backorder WPL WP2187145 $52.08

Plug, Handle (Top) WPL 8206716 Contact Us For Availability

Hinge, Bottom RC WPL 8206682 Contact Us For Availability

Trim, Handle WPL 8206793 Contact Us For Availability

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $8.38

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $41.93

Stud, Shelf WPL 2196207 Contact Us For Availability

Plug, Handle (Bottom) WPL 8206717 Contact Us For Availability

Filler, Wrapper (White) WPL 8206677 Contact Us For Availability

Filler, Wrapper (Black) WPL 8206783 Contact Us For Availability

Meat Pan (Botttom) WPL 8206786 Contact Us For Availability

WP2198661 Whirlpool Refrigerator Washer Backorder WPL WP2198661 $4.61

WP2212322 Whirlpool Refrigerator Bracket In Stock WPL WP2212322 $35.67

WP2213265 Whirlpool Refrigerator Nameplate Backorder WPL WP2213265 $37.83

Grille (White) WPL 8206692 Contact Us For Availability

Grille (Black) WPL 8206782 Contact Us For Availability

Bracket, Control WPL 8206779 Contact Us For Availability

WP22002263 Whirlpool Dryer 10W Light Bulb In Stock WPL WP22002263 $7.83

WP2220457 Whirlpool Refrigerator Ice Bin Coup In Stock WPL WP2220457 $10.82

Thimble-Top WPL 8206693 Contact Us For Availability

Valve, Water WPL 2199838 Contact Us For Availability

WP3400906 Whirlpool Refrigerator Screw Backorder WPL WP3400906 $2.51

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

WP8281164 Whirlpool Refrigerator Screw In Stock WPL WP8281164 $4.56

WPW10152858 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152858 $34.73

W11233072 Whirlpool Screw In Stock WPL W11233072 $9.59

WP3400065 Whirlpool Refrigerator Screw Backorder WPL WP3400065 $2.51

BUSHING WPL 8206707 Contact Us For Availability

Clamp, Tube WPL 8206810 Contact Us For Availability

DEFLECTOR WPL 8206789 Contact Us For Availability

SWITCH WPL 8206777 Contact Us For Availability

WP2315403 Whirlpool Refrigerator Bin Button In Stock WPL WP2315403 $12.96

WP3196175 Whirlpool Screw In Stock WPL WP3196175 $2.51

Trim WPL 8206708 Contact Us For Availability

Extension Tube WPL 2199954 Contact Us For Availability

Trim, Handle WPL 8206792 Contact Us For Availability

Overlay, Front Cover (Not Available, Order 23 WPL ARI59276A1 Contact Us For Availability

WP1108439 Whirlpool Refrigerator Clip Backorder WPL WP1108439 $4.63

Latch, Bin WPL 2256015 Contact Us For Availability

Bracket, Door Stop (Chrome) WPL 8206722 Contact Us For Availability

Bracket, Door Stop (Black) WPL 8206748 Contact Us For Availability

Wire Assembly WPL 8206776 Contact Us For Availability

21

WP2198608 Whirlpool Refrigerator Spring In Stock WPL WP2198608 $3.70

21

Cover, Unit WPL 8206674 Contact Us For Availability

21

Front Cover, Housing (Not Available Order 23 WPL ARI59277A4 Contact Us For Availability

2198671 Whirlpool Refrigerator Screw Backorder WPL 2198671 $4.58

4388358 Whirlpool Refrigerator Support Bracke Backorder WPL 4388358 $12.65

WP2196483 Whirlpool Refrigerator Shelf Stud Backorder WPL WP2196483 $4.34

Cabinet (Not A Serviceable Part) WPL ARI59272A8 Contact Us For Availability

WP8281163 Whirlpool Refrigerator Screw Backorder WPL WP8281163 $4.56

Clip WPL 2161324 Contact Us For Availability

Hinge Cover (RC) (White) WPL 8206680 Contact Us For Availability

Hinge Cover (RC) (Black) WPL 8206785 Contact Us For Availability

Front Cover Assembly (Includes User Control B WPL 8206669 Contact Us For Availability

Front Cover Assembly (Includes User Control B WPL 8206775 Contact Us For Availability

24

W11223328 Whirlpool Refrigerator Shelf Stud Backorder WPL W11223328 $9.59

24

Holder WPL 2212369 Contact Us For Availability

24

GASKET WPL 8206781 Contact Us For Availability

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

WP2220458 Whirlpool Drive Cam In Stock WPL WP2220458 $11.97

WP4387911 Whirlpool Refrigerator Switch In Stock WPL WP4387911 $13.43

Screw WPL 3400514 Contact Us For Availability

26

WP2198628 Whirlpool Door Seal In Stock WPL WP2198628 $5.01

26

Cover, Crisper Pan WPL 8206796 Contact Us For Availability

27

WP2212370 Whirlpool Washer Backorder WPL WP2212370 $7.45

28

WP2199840 Whirlpool Refrigerator Housing In Stock WPL WP2199840 $108.46

29

EDR5RXD1 Whirlpool Refrigerator Ice and Water In Stock WPL EDR5RXD1 $52.08

29

W10852956 Whirlpool Refrigerator Spring In Stock WPL W10852956 $8.14

30

WP2186494B Whirlpool Refrigerator Filter Cap In Stock WPL WP2186494B $25.25

30

WP2186494W Whirlpool Water Filter Cap Backorder WPL WP2186494W $29.76

30

WP2188917 Whirlpool Drive Shaft In Stock WPL WP2188917 $53.75

31

Bracket, Motor WPL 2198655 Contact Us For Availability

32

WP2252129 Whirlpool Refrigerator Motor Backorder WPL WP2252129 $151.07

32

Hinge Top, (RC) WPL 8206679 Contact Us For Availability

33

Cover WPL 2198626 Contact Us For Availability

33

Hose, Water WPL 8206807 Contact Us For Availability

34

WP627018 Whirlpool Refrigerator Nut In Stock WPL WP627018 $4.59

34

Screw WPL 8281162 Contact Us For Availability

35

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

35

Bi-Metal, Defrost WPL 8206671 Contact Us For Availability

35

VALVE WPL 8206808 Contact Us For Availability

36

W11496481 Whirlpool Refrigerator Water Tube In Stock WPL W11496481 $12.61

36

WP2212365 Whirlpool Refrigerator Sleeve Backorder WPL WP2212365 $10.43

37

Ice-Container Crusher Assembly WPL 2221566 Contact Us For Availability

37

Tube, Filter Outlet WPL 2214613 Contact Us For Availability

38

CLAMP WPL 8206809 Contact Us For Availability

42

WP2198641 Whirlpool Refrigerator Ice Maker Co In Stock WPL WP2198641 $2.51

51

W11751592 Whirlpool Sleeve In Stock WPL W11751592 $12.17

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
