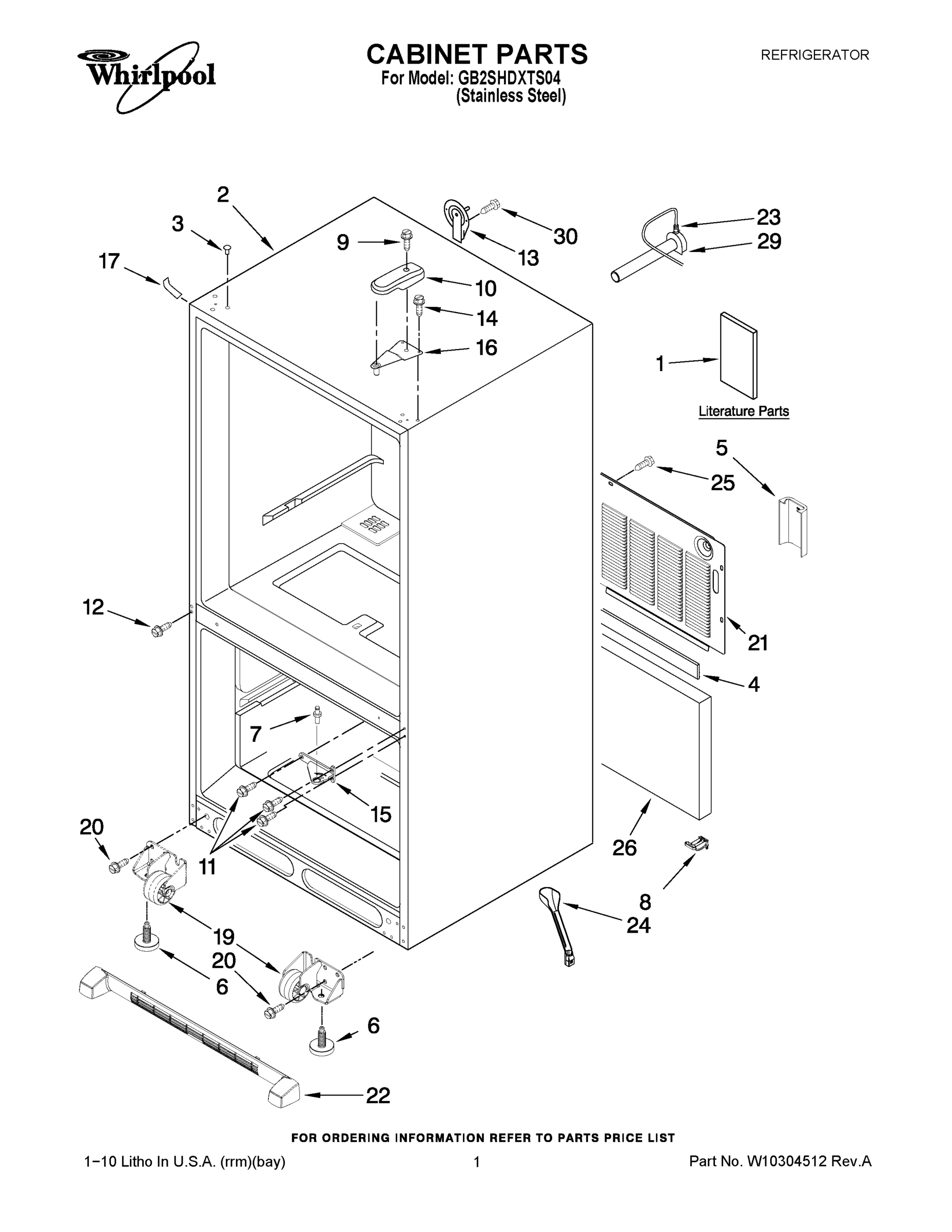

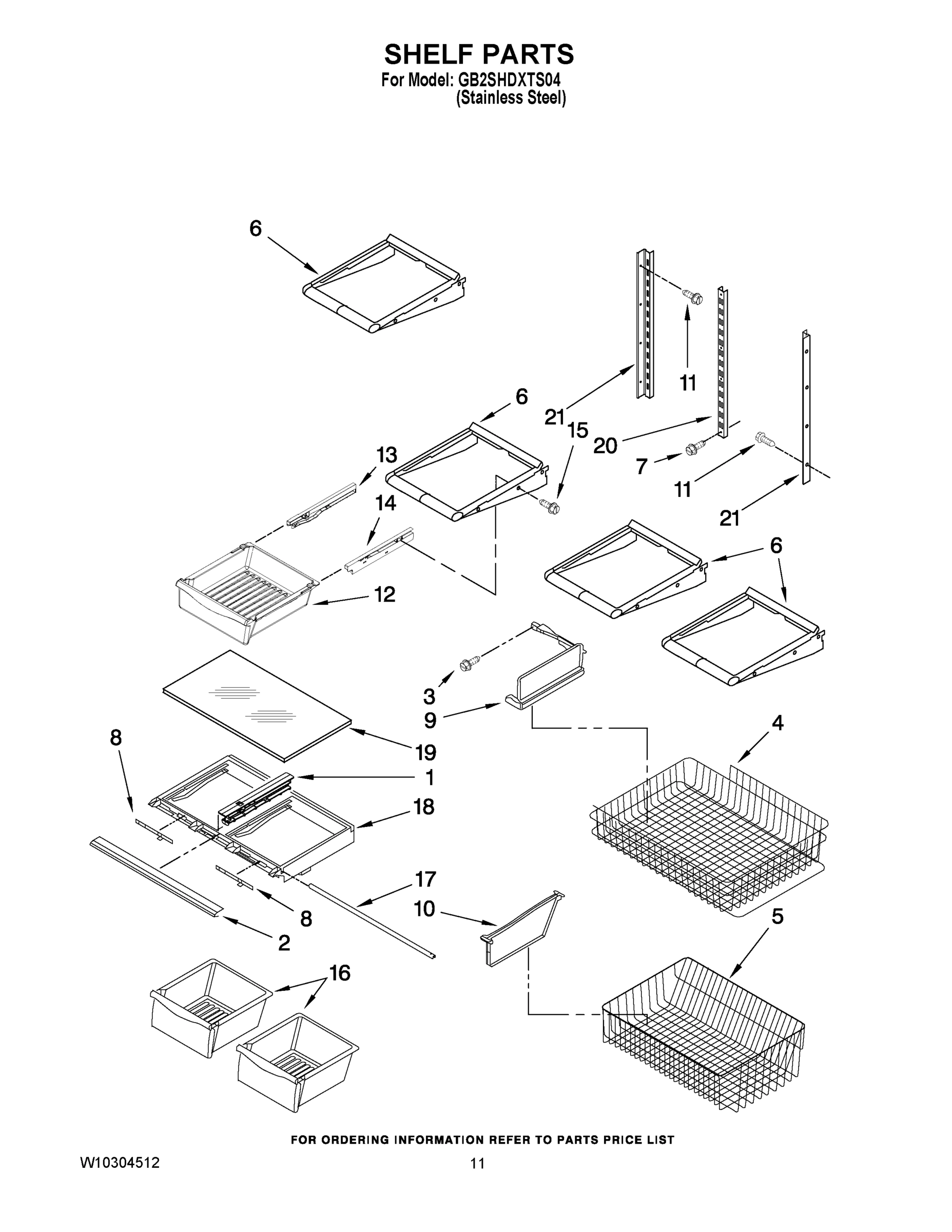

Model Whirlpool GB2SHDXTS04 REFRIGERATOR – Common Parts &amp; Diagrams

1

WP2256087 Whirlpool Refrigerator Bracket Backorder WPL WP2256087 $28.80

1

LINER (NOT A SERVICEABLE PART) WPL NP Contact Us For Availability

2

W11120581 Whirlpool Refrigerator Water Tube Backorder WPL W11120581 $43.54

2

W11451451 Whirlpool Refrigerator Gasket Backorder WPL W11451451 $4.85

2

WP12825803 Whirlpool Refrigerator Fan Blade In Stock WPL WP12825803 $35.43

2

WPW10231482 Whirlpool Refrigerator Shelf Trim Backorder WPL WPW10231482 $40.83

2

BRACKET, CONTROL AND LIGHTS WPL 12806301 Contact Us For Availability

3

12002497 Whirlpool Refrigerator Drawer Gear K In Stock WPL 12002497 $8.86

3

Clamp WPL 10526702 Contact Us For Availability

3

OVERLAY WPL 12816518N Contact Us For Availability

4

B5759655 Whirlpool Refrigerator Gasket In Stock WPL B5759655 $7.69

4

WP681249 Whirlpool Screw Assembly In Stock WPL WP681249 $2.51

4

WPW10464769 Whirlpool Refrigerator Housing Backorder WPL WPW10464769 $37.00

4

SCREW, HANDLE (BLACK) WPL W10290759 Contact Us For Availability

5

W10208592 Whirlpool Refrigerator Valve Cover Backorder WPL W10208592 $31.93

5

W11715937 Whirlpool Shaft Backorder WPL W11715937 $37.90

5

WP2315576 Whirlpool Water Inlet Valve In Stock WPL WP2315576 $42.13

5

WPW10503278 Whirlpool Refrigerator Electronic In Stock WPL WPW10503278 $118.83

6

W11285509 Whirlpool Refrigerator Shut-Off Arm Backorder WPL W11285509 $50.05

6

W11384469 Whirlpool Door Switch In Stock WPL W11384469 $12.68

6

W11402523 Whirlpool Refrigerator Glass Shelf Backorder WPL W11402523 $118.14

6

WPW10141622 Whirlpool Leveler In Stock WPL WPW10141622 $3.70

7

W11284721 Whirlpool Refrigerator Cover Backorder WPL W11284721 $36.31

7

W11448709 Whirlpool Refrigerator Bracket Backorder WPL W11448709 $11.69

7

WP67006642 Whirlpool Refrigerator Pin Backorder WPL WP67006642 $3.70

7

WPW10289690 Whirlpool Ice Maker Cover In Stock WPL WPW10289690 $2.51

8

12806601 Whirlpool Refrigerator Light Housing Backorder WPL 12806601 $43.32

8

WP98165 Whirlpool Screw In Stock WPL WP98165 $2.51

8

WPA3223101 Whirlpool Refrigerator Insert PL Backorder WPL WPA3223101 $3.70

9

W10829281 Whirlpool Refrigerator Screw In Stock WPL W10829281 $5.01

9

W11679940 Whirlpool Refrigerator Light Bulb A In Stock WPL W11679940 $2.75

9

WPW10190929 Whirlpool Refrigerator Ice Maker Backorder WPL WPW10190929 $137.91

W10122561 Whirlpool Refrigerator Cup Fill In Stock WPL W10122561 $10.21

W11447232 Whirlpool Refrigerator Socket In Stock WPL W11447232 $4.58

W11469652 Whirlpool Refrigerator Shield Backorder WPL W11469652 $10.76

WP12729128 Whirlpool Defrost Heater In Stock WPL WP12729128 $66.88

67003900 Whirlpool Refrigerator Insert Damper In Stock WPL 67003900 $3.70

W10308415 Whirlpool Refrigerator Evaporator C Backorder WPL W10308415 $105.96

W11661170 Whirlpool Clip Backorder WPL W11661170 $4.39

WP627843 Whirlpool Refrigerator Ejector Arm Backorder WPL WP627843 $28.80

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $26.81

WP400021-1 Whirlpool Screw In Stock WPL WP400021-1 $4.56

WP489349 Whirlpool Refrigerator Screw In Stock WPL WP489349 $2.51

Nameplate WPL 2220214 Contact Us For Availability

12726003 Whirlpool Refrigerator Water Cover Backorder WPL 12726003 $7.16

WP12806701 Whirlpool Refrigerator Box Cover Backorder WPL WP12806701 $37.84

WP2195914 Whirlpool Refrigerator Ice Maker Ho Backorder WPL WP2195914 $37.11

WPW10330991 Whirlpool Refrigerator Bracket In Stock WPL WPW10330991 $42.00

WPW10330993 Whirlpool Refrigerator Bracket In Stock WPL WPW10330993 $56.13

Retainer, Ref Door WPL 12690502 Contact Us For Availability

14

Backorder WPL W11750607 $18.30

14

WP2315522 Whirlpool Refrigerator Clip Backorder WPL WP2315522 $4.59

14

WPW10277025 Whirlpool Refrigerator Housing Backorder WPL WPW10277025 $52.87

WP12607104ED Whirlpool Refrigerator Door Hing Backorder WPL WP12607104ED $47.49

WP627985 Whirlpool Icemaker Cycling Thermosta In Stock WPL WP627985 $41.93

WPW10196393 Whirlpool Control Damper In Stock WPL WPW10196393 $74.68

CLIP, EVAP. MOTOR WPL 13058002 Contact Us For Availability

16

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

16

W11396033 Whirlpool Refrigerator Rocker Switc In Stock WPL W11396033 $14.15

17

M0310343 Whirlpool Button Plug Backorder WPL M0310343 $4.72

17

WP12227303WD Whirlpool Refrigerator Crisper B Backorder WPL WP12227303WD $42.33

17

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

18

WPD7813010 Whirlpool Refrigerator Wire Harnes In Stock WPL WPD7813010 $23.36

18

WPW10280608 Whirlpool Refrigerator Bracket Backorder WPL WPW10280608 $35.12

18

WPW10280613 Whirlpool Refrigerator Bracket Backorder WPL WPW10280613 $35.12

19

W11658402 Whirlpool Drawer Slide Rail In Stock WPL W11658402 $74.88

19

WPM0114003 Whirlpool Microwave Speed Clip Cla Backorder WPL WPM0114003 $4.59

20

8201515 Whirlpool Refrigerator Motor and Gear In Stock WPL 8201515 $67.68

20

W10273463 Whirlpool Refrigerator Ladder Backorder WPL W10273463 $10.83

20

W10856123 Whirlpool Refrigerator Gasket Backorder WPL W10856123 $3.70

21

W10251969 Whirlpool Refrigerator Ladder Backorder WPL W10251969 $11.51

21

WPW10284681 Whirlpool Refrigerator Bracket Backorder WPL WPW10284681 $117.53

21

ADAPTER, SLIDE (LEFT) WPL W10261199 Contact Us For Availability

22

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

22

WPW10175909 Whirlpool Grille Assembly In Stock WPL WPW10175909 $28.97

W11176463 Whirlpool Refrigerator Water Tube In Stock WPL W11176463 $41.85

WPW10167023 Whirlpool Refrigerator Shroud Backorder WPL WPW10167023 $34.13

Dam (Left Side) WPL 12225602 Contact Us For Availability

Dam (Right Side) WPL 12225702 Contact Us For Availability

24

12918001 Whirlpool Refrigerator Funnel Backorder WPL 12918001 $7.69

24

W11613295 Whirlpool Condenser Motor In Stock WPL W11613295 $50.00

24

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

25

W10121318 Whirlpool Refrigerator Grommet Backorder WPL W10121318 $27.29

25

W11673433 Whirlpool Clip Backorder WPL W11673433 $59.77

25

WP67001255 Whirlpool Ice Bucket Backorder WPL WP67001255 $82.10

26

WPW10128551 Whirlpool Evaporator Fan Motor In Stock WPL WPW10128551 $43.65

26

WPW10234024 Whirlpool Refrigerator Wire Harne Backorder WPL WPW10234024 $167.82

26

Fiber, Acoustic WPL 12820505 Contact Us For Availability

27

W10815413 Whirlpool Refrigerator Funnel Backorder WPL W10815413 $27.69

27

WPW10143759 Whirlpool Dryer Filter In Stock WPL WPW10143759 $13.98

28

WPM0500703 Whirlpool Refrigerator O-Ring Seal Backorder WPL WPM0500703 $4.72

28

COMPRESSOR KIT (CONTAINS ITEMS 12, 17, 27, & WPL W10130129 Contact Us For Availability

29

WPB8381501 Whirlpool Refrigerator Door Gasket In Stock WPL WPB8381501 $3.70

29

WPW10662129 Whirlpool Refrigerator Run Capaci In Stock WPL WPW10662129 $28.24

30

67006434 Whirlpool Axle Pin Backorder WPL 67006434 $3.70

31

W11556315 Whirlpool Shroud Backorder WPL W11556315 $27.80

31

WP67003924 Whirlpool Refrigerator Cover Backorder WPL WP67003924 $3.70

32

WP489474 Whirlpool Refrigerator Screw Backorder WPL WP489474 $2.75

34

10547003 Whirlpool Refrigerator Dryer Clip Backorder WPL 10547003 $4.59

34

W10157765 Whirlpool Refrigerator Deflector In Stock WPL W10157765 $28.80

35

WP67005149 Whirlpool Roller In Stock WPL WP67005149 $10.76

36

CLIP, EVAP (2) WPL 10623002 Contact Us For Availability

37

WPW10137529 Whirlpool Refrigerator Grommet Backorder WPL WPW10137529 $3.70

100

D7824706Q Whirlpool Refrigerator Ice Maker As In Stock WPL D7824706Q $68.02

212643 Whirlpool Refrigerator Permagum Sealer In Stock WPL 212643 $27.18

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

4392901 Whirlpool Biscuit Spray Paint In Stock WPL 4392901 $26.26

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.20

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $6.86

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

W11619328 Whirlpool Wire Harness In Stock WPL W11619328 $46.83

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
