Model Electrolux FSC23R5DSBC REFRIGERATOR – Common Parts & Diagrams

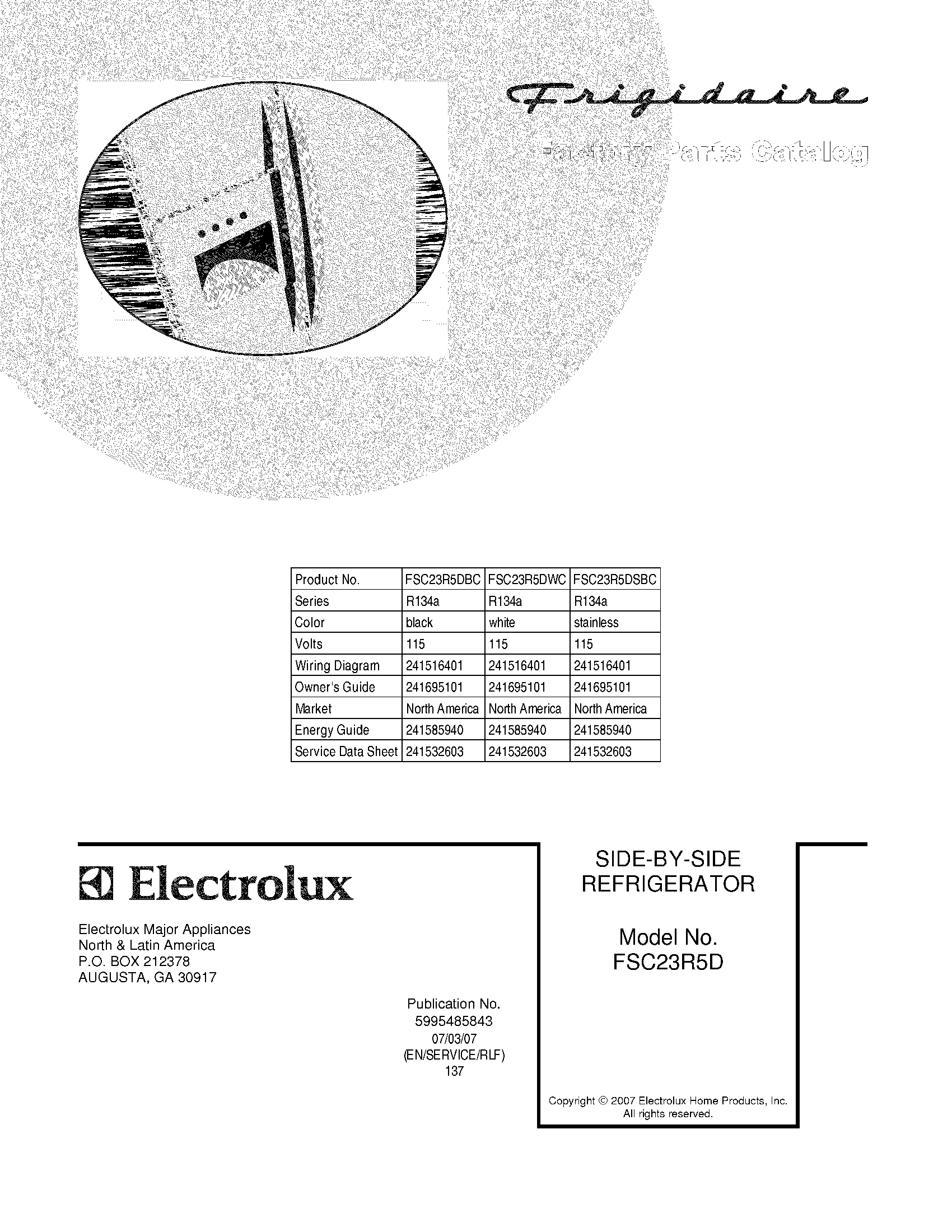

01 - COVER

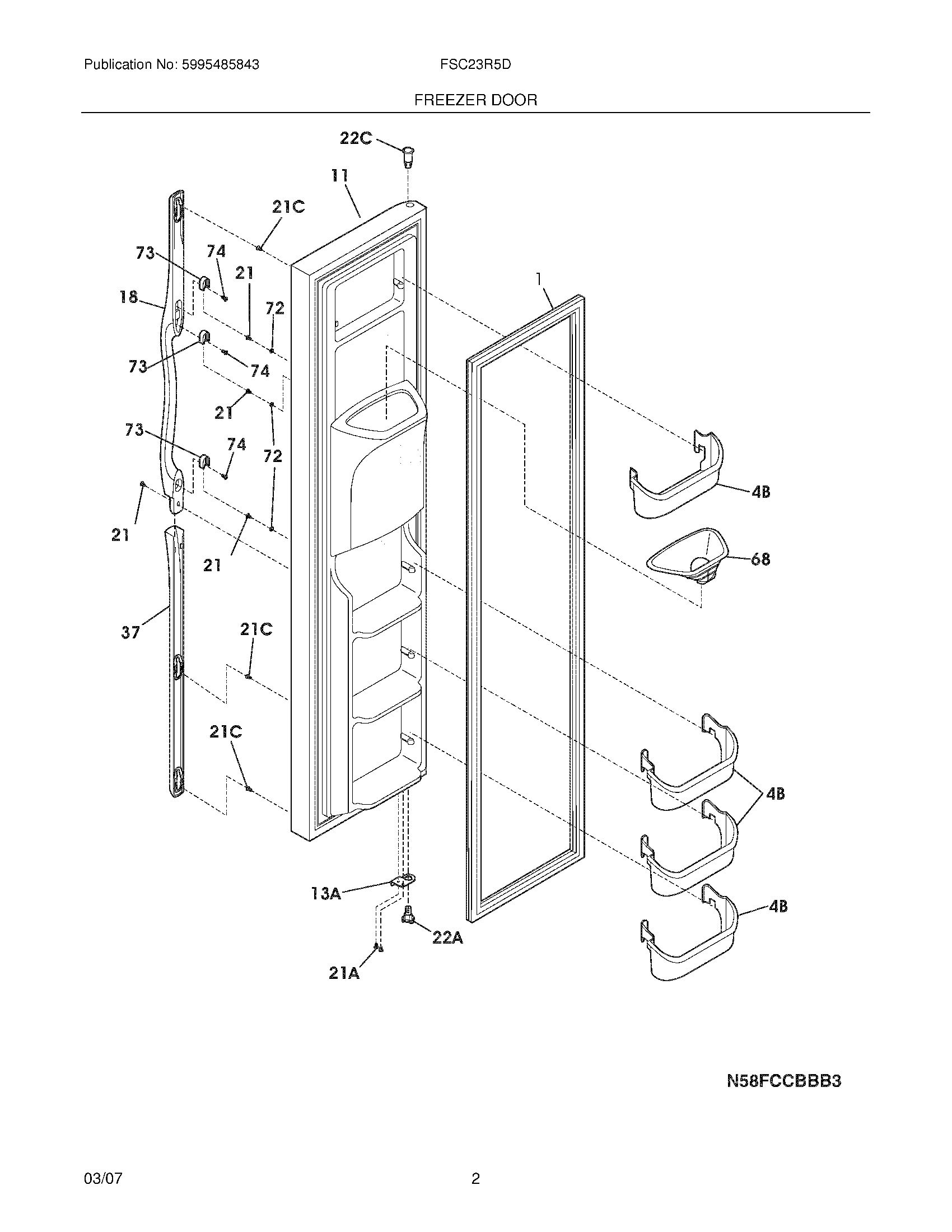

03 - FREEZER DOOR

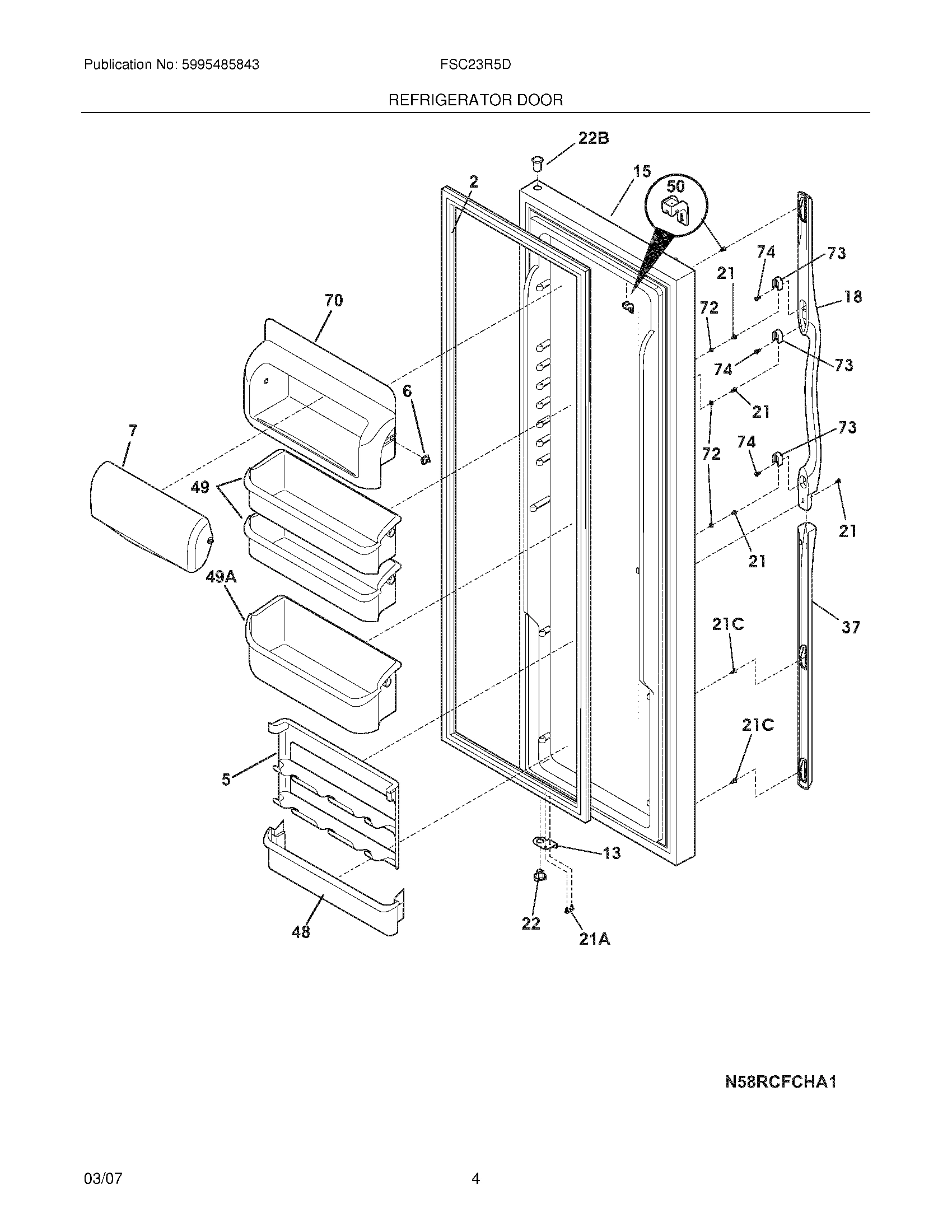

05 - REFRIGERATOR DOOR

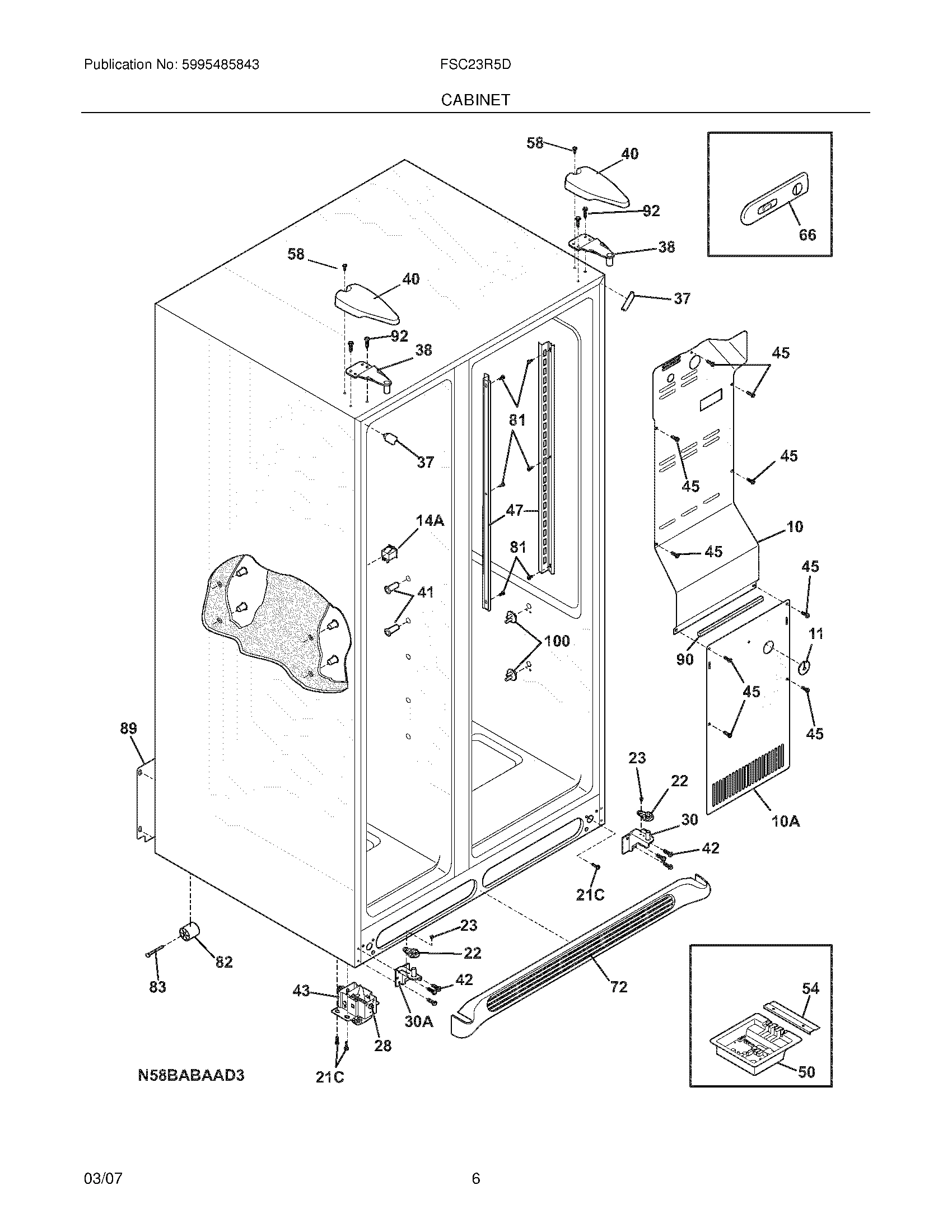

07 - CABINET

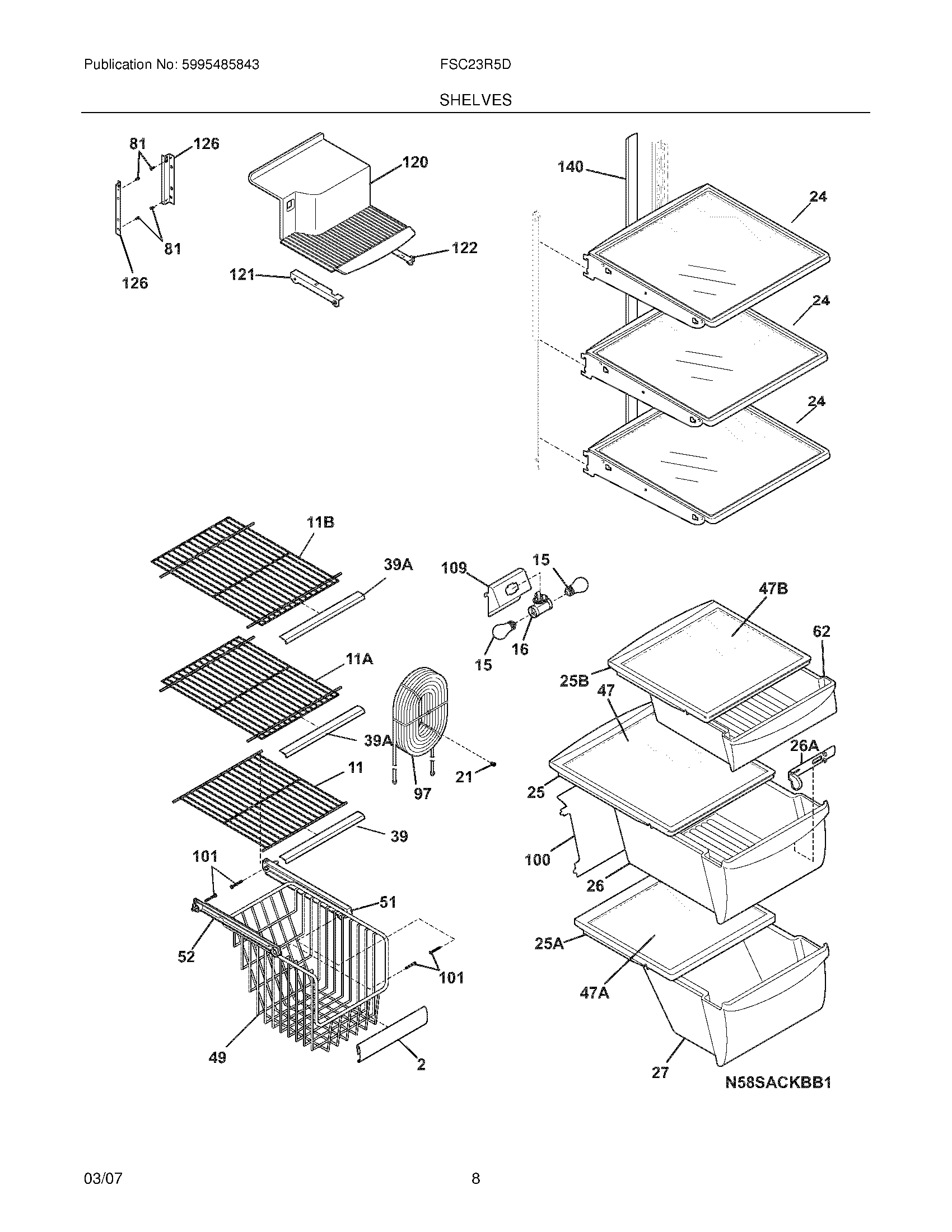

09 - SHELVES

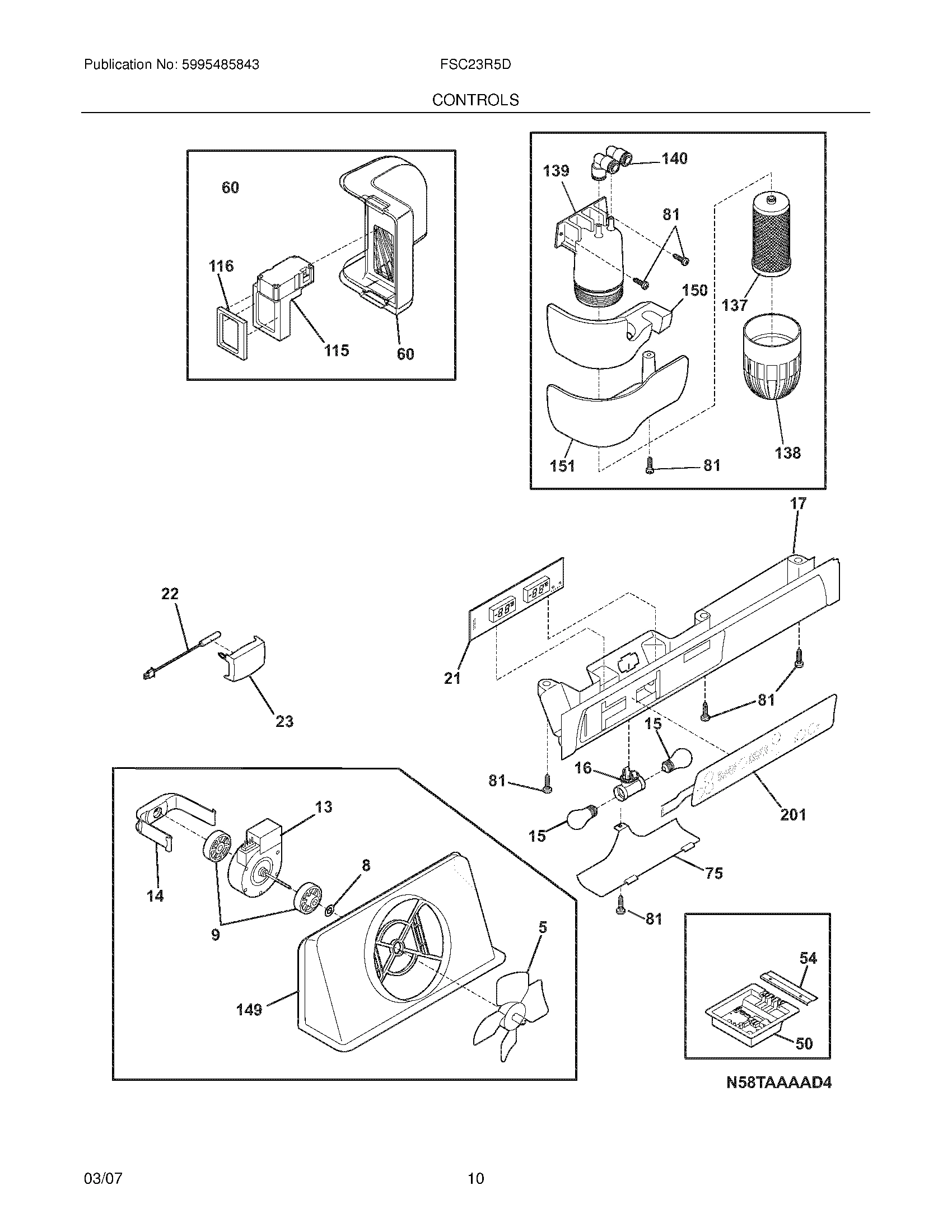

11 - CONTROLS

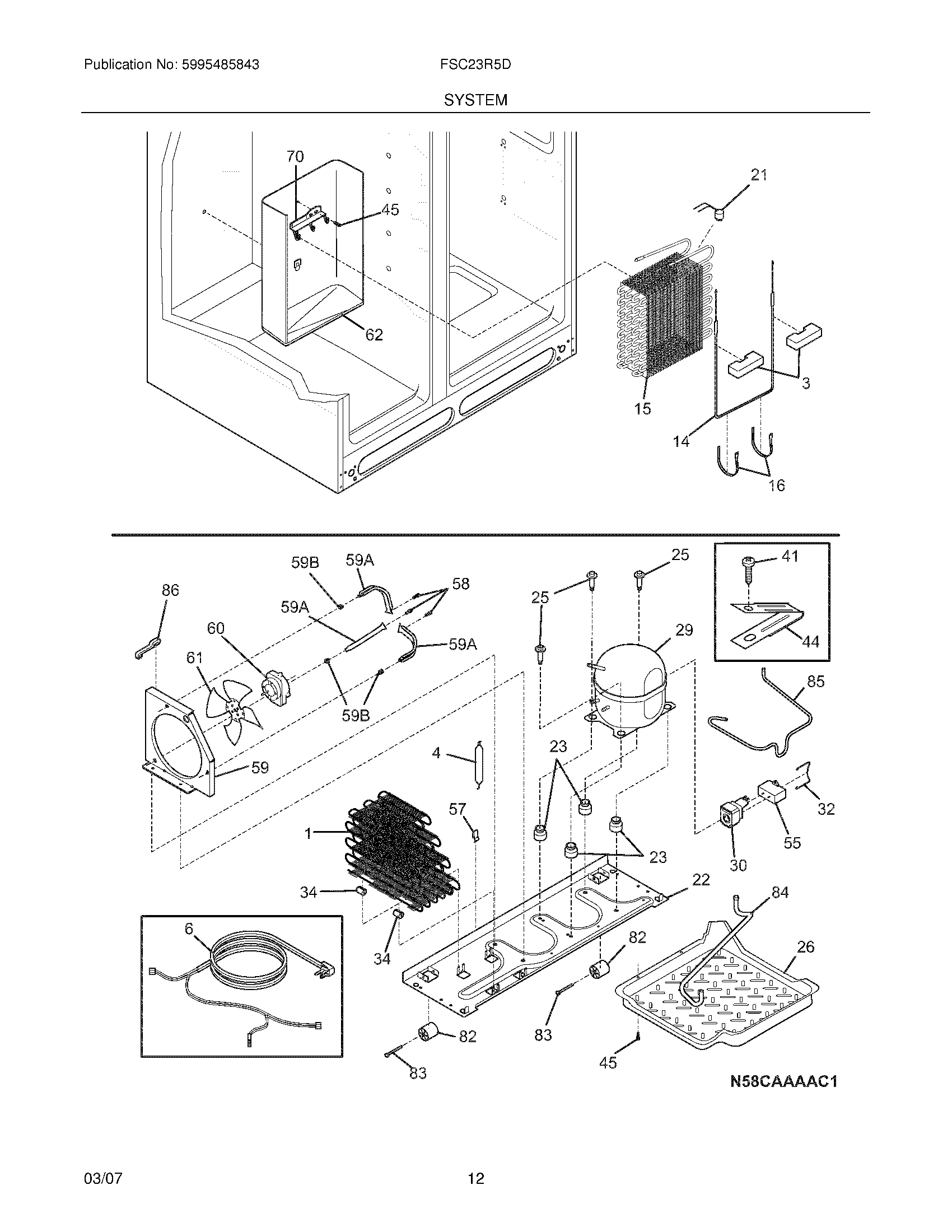

13 - SYSTEM

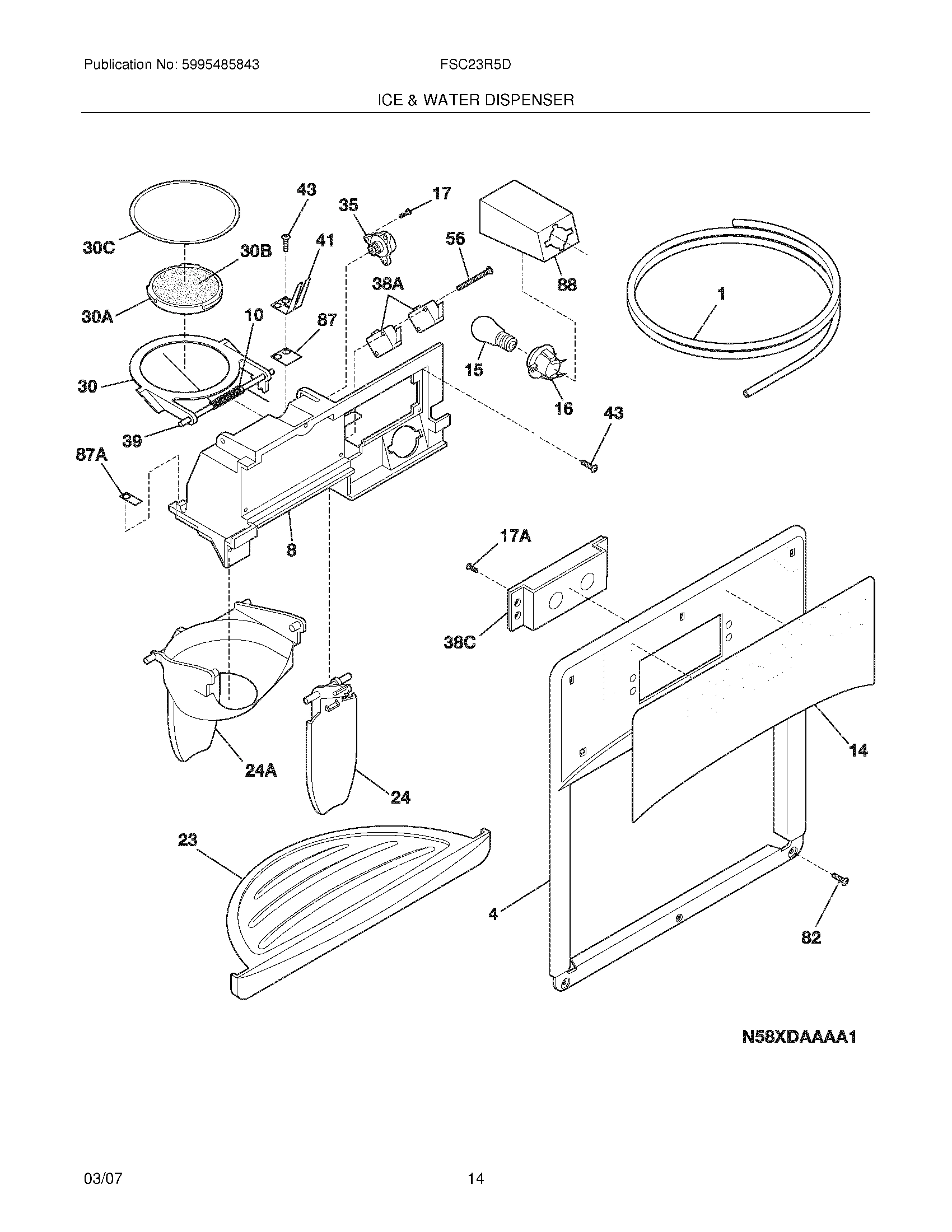

15 - ICE & WATER DISPENSER

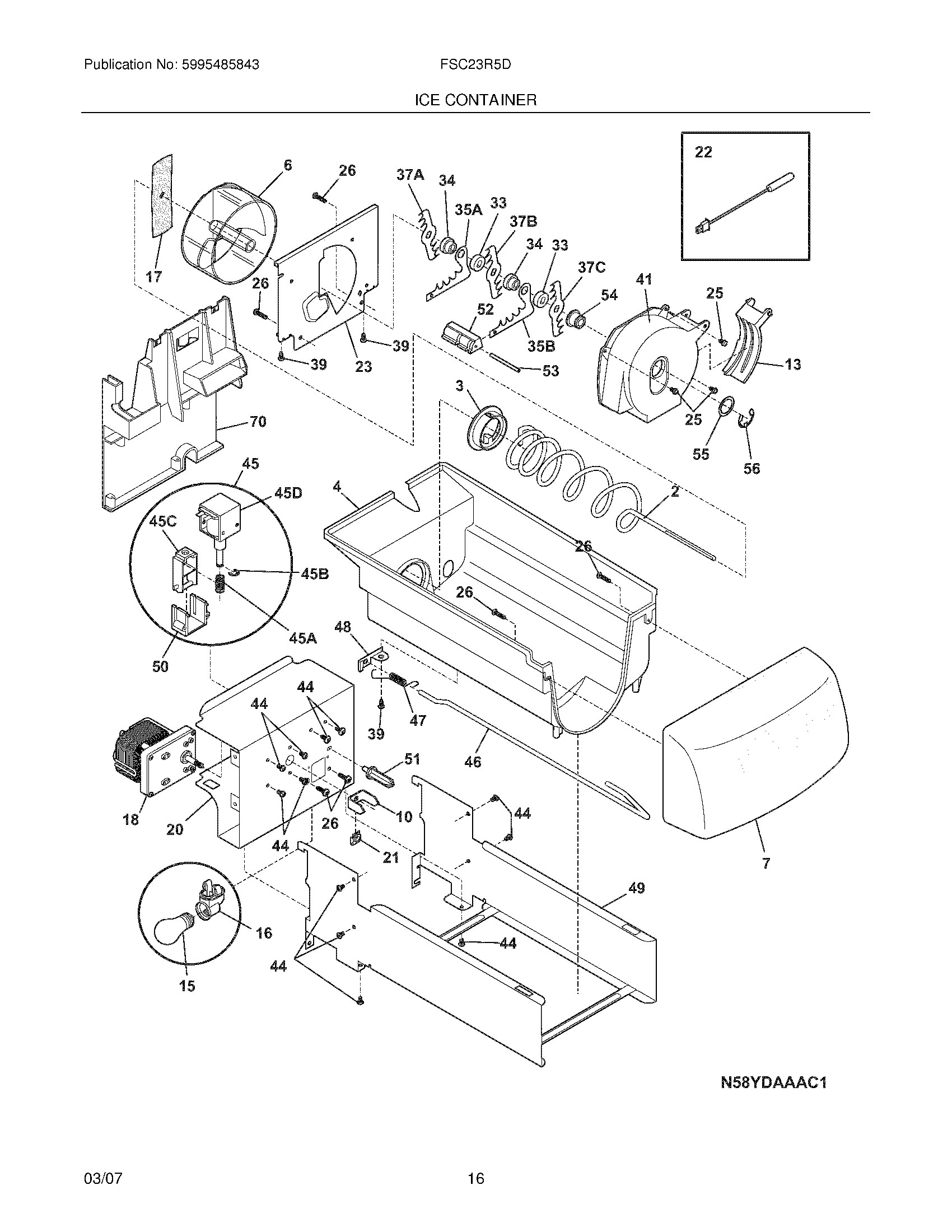

17 - ICE CONTAINER

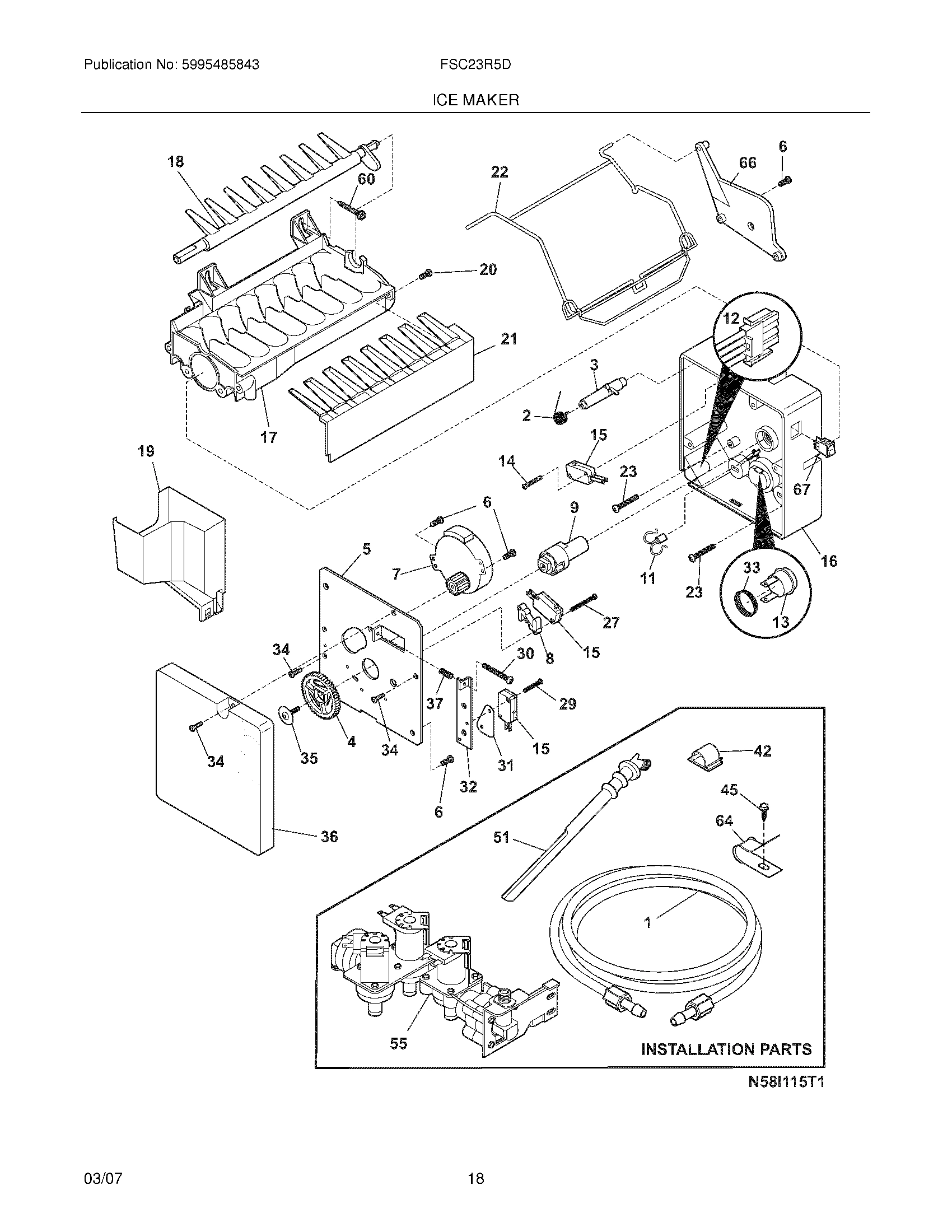

19 - ICE MAKER
20 - WIRING SCHEMATIC

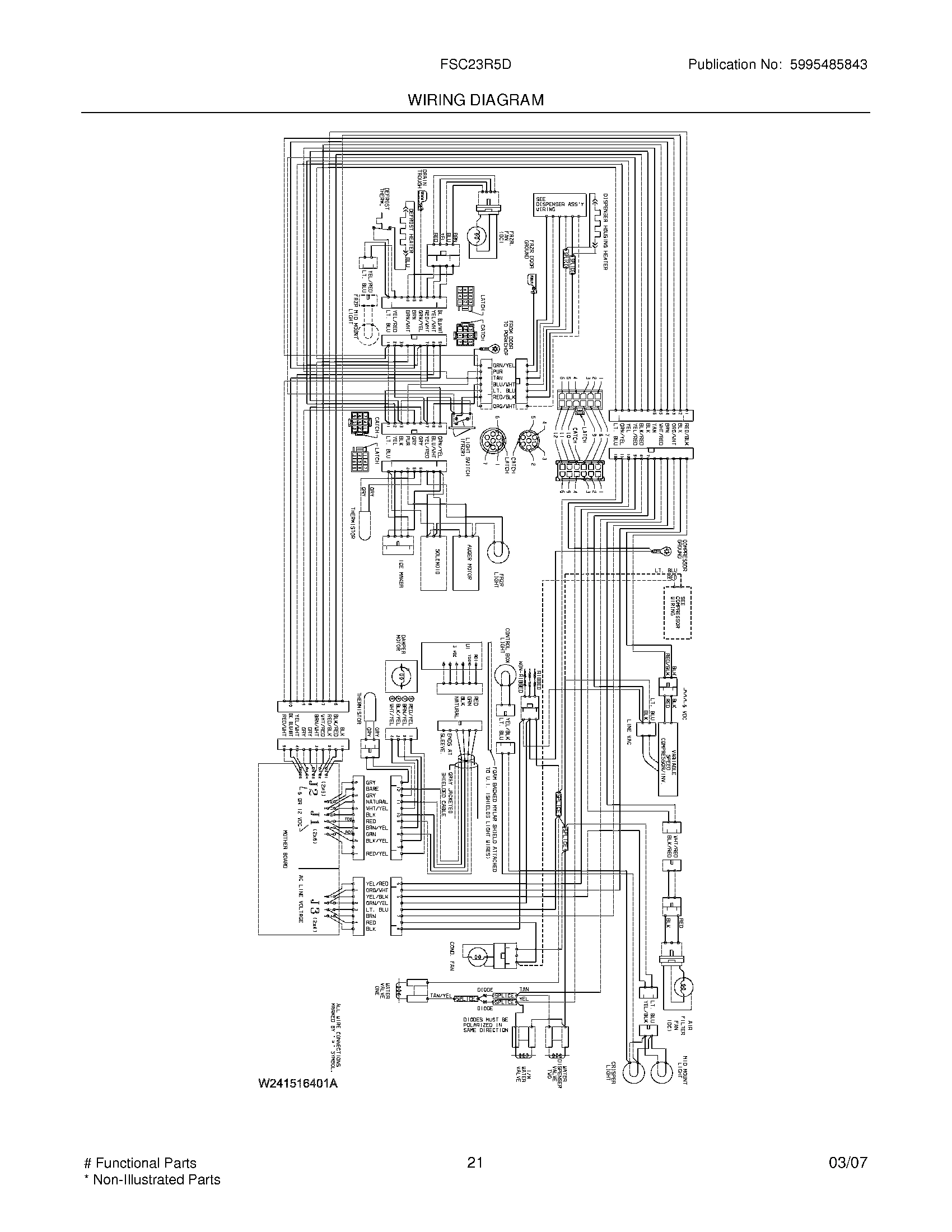

21 - WIRING DIAGRAM
Common parts from model Electrolux FSC23R5DSBC REFRIGERATOR
1
WCI 218976409 WCI 218976409 Contact Us For Availability
1
WCI 241510204 WCI 241510204 Contact Us For Availability
2
WCI 241510203 WCI 241510203 Contact Us For Availability
2
WCI 241684701 WCI 241684701 Contact Us For Availability
2
WCI 5304436616 WCI 5304436616 Contact Us For Availability
3
WCI 241685201 WCI 241685201 Contact Us For Availability
3
WCI 5304436610 WCI 5304436610 Contact Us For Availability
4
WCI 241679003 WCI 241679003 Contact Us For Availability
4B
WCI 241511601 WCI 241511601 Contact Us For Availability
5
Fan Blade,red ,evaporator fan WCI 5308000010 Contact Us For Availability
5
WCI 241516101 WCI 241516101 Contact Us For Availability
6
WCI 241685101 WCI 241685101 Contact Us For Availability
6
WCI 241515901 WCI 241515901 Contact Us For Availability
7
WCI 241515301 WCI 241515301 Contact Us For Availability
8
WCI 241680507 WCI 241680507 Contact Us For Availability
8
WCI 215474201 WCI 215474201 Contact Us For Availability
9
WCI 241518301 WCI 241518301 Contact Us For Availability
10
WCI 241688901 WCI 241688901 Contact Us For Availability
11
PLUG-HOLE, FACTORY TEST WCI 5303208309 Contact Us For Availability
11
WCI 241657605 WCI 241657605 Contact Us For Availability
11A
WCI 241657505 WCI 241657505 Contact Us For Availability
11B
WCI 241657506 WCI 241657506 Contact Us For Availability
12
WCI 5304436614 WCI 5304436614 Contact Us For Availability
13
WCI 240581905 WCI 240581905 Contact Us For Availability
13A
WCI 240581906 WCI 240581906 Contact Us For Availability
15
WCI 5303918284 WCI 5303918284 Contact Us For Availability
16
WCI 241559801 WCI 241559801 Contact Us For Availability
16
STRAP-EVAP/HEATER,ALUMINUM ,(2) WCI 5308000110 Contact Us For Availability
16
Socket-light WCI 241622802 Contact Us For Availability
16
WCI 240548901 WCI 240548901 Contact Us For Availability
17
WCI 241679801 WCI 241679801 Contact Us For Availability
19
WCI 5304436606 WCI 5304436606 Contact Us For Availability
20
WCI 241675502 WCI 241675502 Contact Us For Availability
21
WCI 5303918214 WCI 5303918214 Contact Us For Availability
21
WCI 218781101 WCI 218781101 Contact Us For Availability
21A
WCI 240598402 WCI 240598402 Contact Us For Availability
21C
WCI 240521304 WCI 240521304 Contact Us For Availability
22
WCI 240328203 WCI 240328203 Contact Us For Availability
22C
WCI 240328404 WCI 240328404 Contact Us For Availability
23
WCI 241649003 WCI 241649003 Contact Us For Availability
23
WCI 218513300 WCI 218513300 Contact Us For Availability
23
WCI 241684001 WCI 241684001 Contact Us For Availability
23
WCI 241512901 WCI 241512901 Contact Us For Availability
23
WCI 240402702 WCI 240402702 Contact Us For Availability
24
WCI 241682003 WCI 241682003 Contact Us For Availability
24A
WCI 241681903 WCI 241681903 Contact Us For Availability
25
WCI 240599301 WCI 240599301 Contact Us For Availability
25
WCI 240491503 WCI 240491503 Contact Us For Availability
26A
WCI 240362201 WCI 240362201 Contact Us For Availability
30
WCI 241688401 WCI 241688401 Contact Us For Availability
30A
WCI 241688501 WCI 241688501 Contact Us For Availability
30B
WCI 241688601 WCI 241688601 Contact Us For Availability
30C
WCI 241688701 WCI 241688701 Contact Us For Availability
34
WCI 240405201 WCI 240405201 Contact Us For Availability
35
WCI 241689301 WCI 241689301 Contact Us For Availability
38
WCI 240327207 WCI 240327207 Contact Us For Availability
38A
WCI 241679201 WCI 241679201 Contact Us For Availability
39
WCI 241688801 WCI 241688801 Contact Us For Availability
39
WCI 240430709 WCI 240430709 Contact Us For Availability
40
WCI 240327007 WCI 240327007 Contact Us For Availability
41
WCI 241550801 WCI 241550801 Contact Us For Availability
41
WCI 241689001 WCI 241689001 Contact Us For Availability
41
WCI 240555002 WCI 240555002 Contact Us For Availability
42
Screw-hinge mtg,hex head ,1/4-20 x 5/8 WCI 240578902 Contact Us For Availability
44
WCI 218359202 WCI 218359202 Contact Us For Availability
45
WCI 5304455650 WCI 5304455650 Contact Us For Availability
45B
WCI 241676001 WCI 241676001 Contact Us For Availability
45C
WCI 241676101 WCI 241676101 Contact Us For Availability
46
WCI 241684402 WCI 241684402 Contact Us For Availability
47
WCI 241731801 WCI 241731801 Contact Us For Availability
47
WCI 241513001 WCI 241513001 Contact Us For Availability
47A
WCI 240350603 WCI 240350603 Contact Us For Availability
48
WCI 241511706 WCI 241511706 Contact Us For Availability
48
WCI 241684602 WCI 241684602 Contact Us For Availability
49
WCI 241505306 WCI 241505306 Contact Us For Availability
49
WCI 241676501 WCI 241676501 Contact Us For Availability
49
WCI 241515001 WCI 241515001 Contact Us For Availability
49A
WCI 241505506 WCI 241505506 Contact Us For Availability
50
WCI 241511101 WCI 241511101 Contact Us For Availability
50
WCI 241675601 WCI 241675601 Contact Us For Availability
50
WCI 241508401 WCI 241508401 Contact Us For Availability
51
WCI 241514501 WCI 241514501 Contact Us For Availability
51
WCI 241676301 WCI 241676301 Contact Us For Availability
52
WCI 241684901 WCI 241684901 Contact Us For Availability
52
WCI 241514601 WCI 241514601 Contact Us For Availability
53
WCI 241690402 WCI 241690402 Contact Us For Availability
54
WCI 241685001 WCI 241685001 Contact Us For Availability
54
WCI 241532401 WCI 241532401 Contact Us For Availability
55
WCI 241690306 WCI 241690306 Contact Us For Availability
56
WCI 241690201 WCI 241690201 Contact Us For Availability
56
WCI 241689201 WCI 241689201 Contact Us For Availability
60
WCI 218362501 WCI 218362501 Contact Us For Availability
60
WCI 241510301 WCI 241510301 Contact Us For Availability
68
WCI 241525101 WCI 241525101 Contact Us For Availability
70
WCI 241515801 WCI 241515801 Contact Us For Availability
70
WCI 241504601 WCI 241504601 Contact Us For Availability
73
WCI 218396700 WCI 218396700 Contact Us For Availability
74
WCI 215503204 WCI 215503204 Contact Us For Availability
81
WCI 241500303 WCI 241500303 Contact Us For Availability
82
WCI 5304418225 WCI 5304418225 Contact Us For Availability
83
WCI 5304455655 WCI 5304455655 Contact Us For Availability
86
WCI 240409302 WCI 240409302 Contact Us For Availability
87
WCI 241688302 WCI 241688302 Contact Us For Availability
87A
WCI 241688301 WCI 241688301 Contact Us For Availability
88
WCI 241686101 WCI 241686101 Contact Us For Availability
92
WCI 241710601 WCI 241710601 Contact Us For Availability
101
WCI 218493101 WCI 218493101 Contact Us For Availability
116
WCI 241518601 WCI 241518601 Contact Us For Availability
120
WCI 241691701 WCI 241691701 Contact Us For Availability
121
WCI 241504701 WCI 241504701 Contact Us For Availability
122
WCI 241504702 WCI 241504702 Contact Us For Availability
126
WCI 241674401 WCI 241674401 Contact Us For Availability
126
WCI 241674402 WCI 241674402 Contact Us For Availability
137
WCI 218710300 WCI 218710300 Contact Us For Availability
138
WCI 218904301 WCI 218904301 Contact Us For Availability
138
WCI 240434401 WCI 240434401 Contact Us For Availability
139
WCI 240434301 WCI 240434301 Contact Us For Availability
140
WCI 240545201 WCI 240545201 Contact Us For Availability
150
WCI 240394102 WCI 240394102 Contact Us For Availability
151
WCI 240376002 WCI 240376002 Contact Us For Availability
201
WCI 240598701 WCI 240598701 Contact Us For Availability
NI
WCI 5303918222 WCI 5303918222 Contact Us For Availability
NI
WCI 5303918327 WCI 5303918327 Contact Us For Availability
NI
WCI 5303321321 WCI 5303321321 Contact Us For Availability
NI
Tube,water inlet ,valve to IM WCI 218976901 Contact Us For Availability
NI
WCI 218252201 WCI 218252201 Contact Us For Availability
NI
WCI 5303918256 WCI 5303918256 Contact Us For Availability
NI
WCI 240346701 WCI 240346701 Contact Us For Availability
NI
WCI 240362101 WCI 240362101 Contact Us For Availability
NI
WCI 241550701 WCI 241550701 Contact Us For Availability
NI
WCI 240349801 WCI 240349801 Contact Us For Availability
NI
WCI 240561701 WCI 240561701 Contact Us For Availability
NI
WCI 241519902 WCI 241519902 Contact Us For Availability
NI
WCI 241522901 WCI 241522901 Contact Us For Availability
NI
WCI 218976904 WCI 218976904 Contact Us For Availability
NI
WCI 241583301 WCI 241583301 Contact Us For Availability
NI
WCI 240359403 WCI 240359403 Contact Us For Availability
NI
WCI 240542901 WCI 240542901 Contact Us For Availability
NI
Adapter,water line ,w/fittings WCI 218888001 Contact Us For Availability
NI
WCI 241519401 WCI 241519401 Contact Us For Availability
NI
WCI 240363602 WCI 240363602 Contact Us For Availability
NI
Harness-wiring,control box WCI 241510802 Contact Us For Availability
NI
WCI 218515403 WCI 218515403 Contact Us For Availability
NI
WCI 218976917 WCI 218976917 Contact Us For Availability
× ![]()
