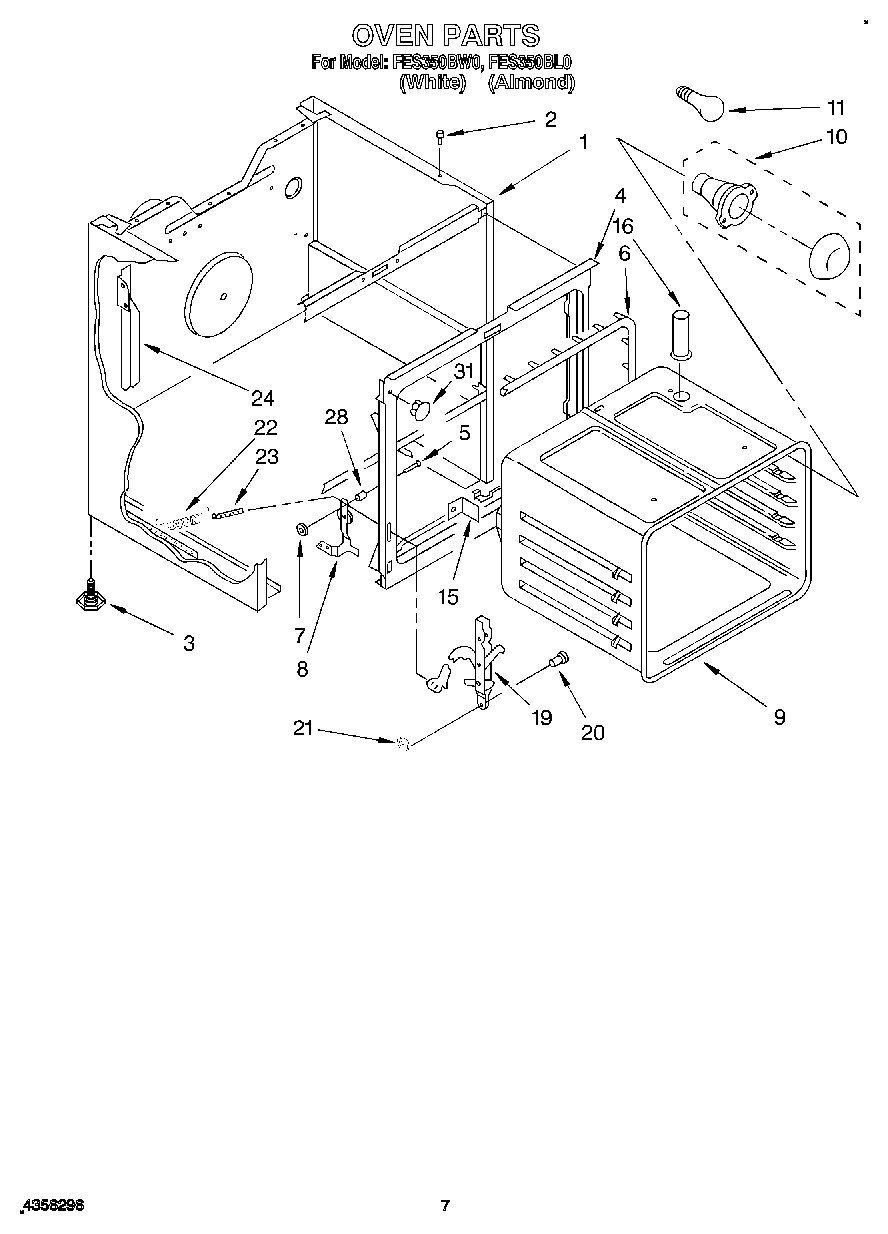

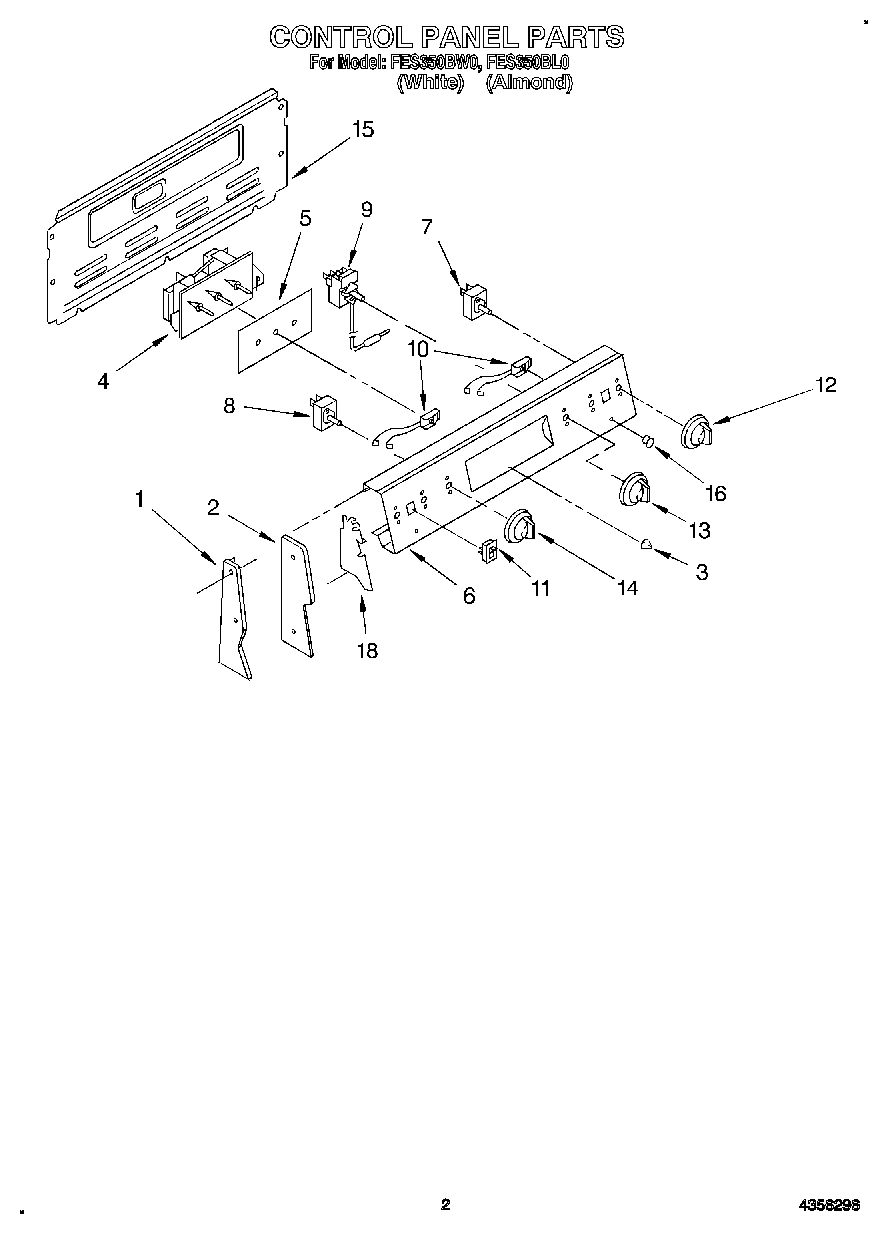

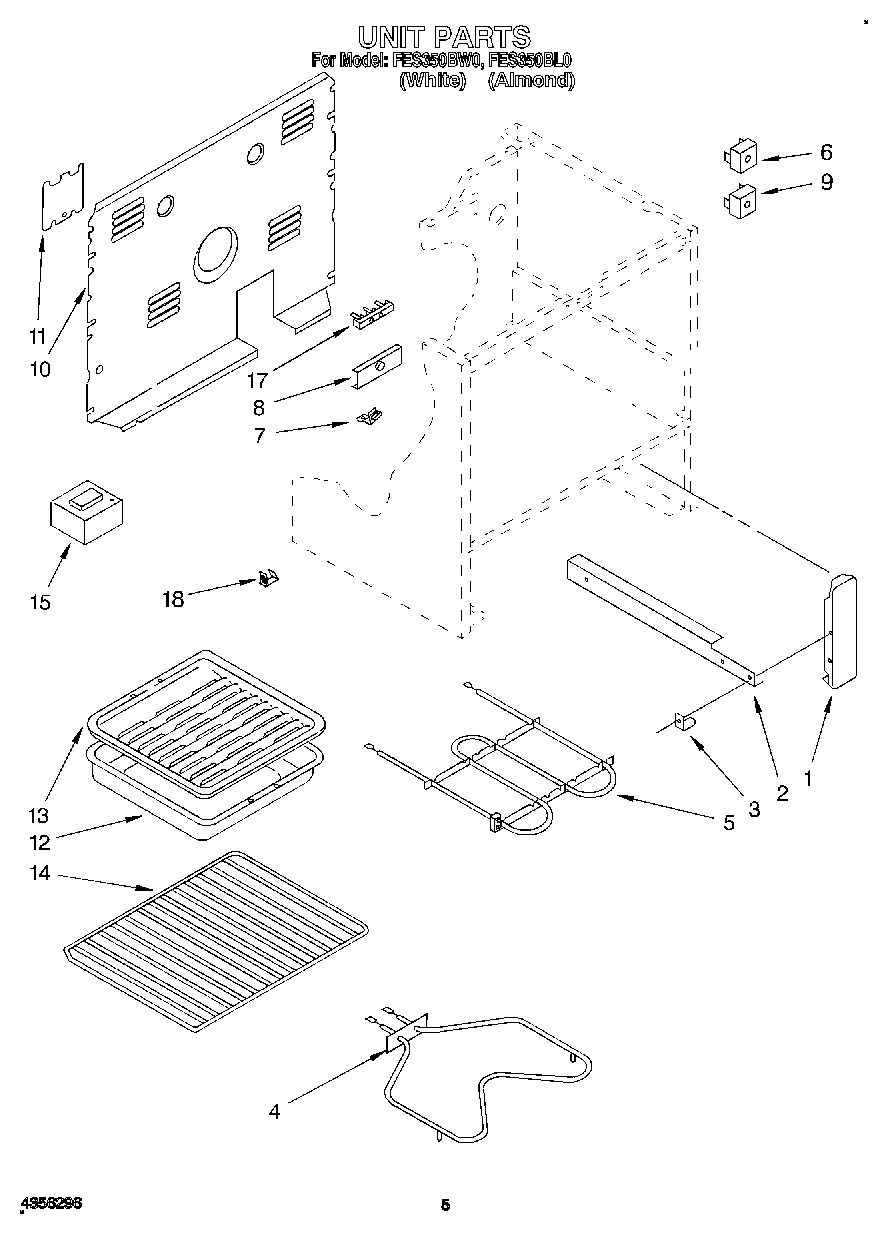

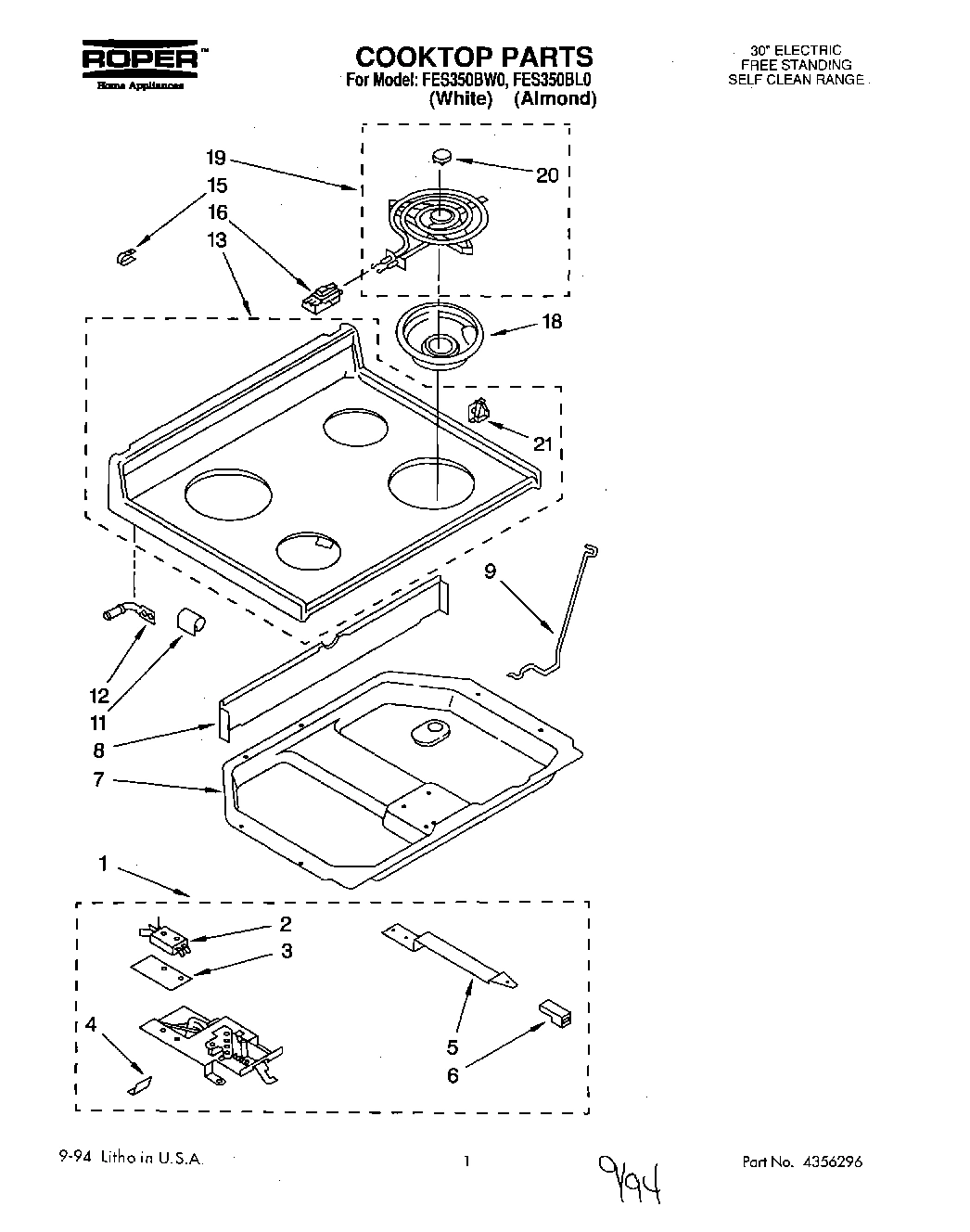

Model Whirlpool FES350BW0 ELECTRIC RANGE – Common Parts &amp; Diagrams

285006 Whirlpool Spray In Stock WPL 285006 $27.45

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

350956 Whirlpool Spray Assembly In Stock WPL 350956 $19.22

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72109 Whirlpool Dacor Avocado Touch-Up Paint Backorder WPL 72109 $10.07

72110 Whirlpool Dryer Touch-Up Paint, Golden In Stock WPL 72110 $10.07

72113 Whirlpool Touch-Up Paint Backorder WPL 72113 $10.07

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

8212471 Whirlpool Oven Paint In Stock WPL 8212471 $35.69

WP72107 Whirlpool Touchup In Stock WPL WP72107 $5.80

Leveler (Thinner) (2oz.) WPL 206925 Contact Us For Availability

Wire (14 Ga. 150 c Black) WPL 242820 Contact Us For Availability

Wire (14 Ga. 150 c Blue) WPL 242821 Contact Us For Availability

Wire (14 Ga. 150 c Brown) WPL 242822 Contact Us For Availability

Wire (14 Ga. 150 c Green) WPL 242823 Contact Us For Availability

Wire (14 Ga. 150 c Orange) WPL 242824 Contact Us For Availability

Wire (14 Ga. 150 c Red) WPL 242825 Contact Us For Availability

Wire, White 14 Ga. 150~c WPL 242826 Contact Us For Availability

Wire (14 Ga. 150 c Yellow) WPL 242827 Contact Us For Availability

Wire (12 Ga. 150 c Black) WPL 242828 Contact Us For Availability

Wire, Red 12 Ga. 150~c WPL 242829 Contact Us For Availability

Wire (14 Ga. 200 c Brown) WPL 242830 Contact Us For Availability

Wire, WPL 242832 Contact Us For Availability

WPL 261582 WPL 261582 Contact Us For Availability

WPL 261886 WPL 261886 Contact Us For Availability

WPL 261888 WPL 261888 Contact Us For Availability

WPL 261890 WPL 261890 Contact Us For Availability

WPL 261891 WPL 261891 Contact Us For Availability

WPL 285365 WPL 285365 Contact Us For Availability

WPL 285366 WPL 285366 Contact Us For Availability

WPL 285367 WPL 285367 Contact Us For Availability

WPL 285368 WPL 285368 Contact Us For Availability

WPL 310433 WPL 310433 Contact Us For Availability

WPL 72108 WPL 72108 Contact Us For Availability

WPL 72112 WPL 72112 Contact Us For Availability

WPL 799832 WPL 799832 Contact Us For Availability

WPL 978883 WPL 978883 Contact Us For Availability

WPL LIT3150400 WPL LIT3150400 Contact Us For Availability

WPL LIT3183707 WPL LIT3183707 Contact Us For Availability

WPL LIT3187321 WPL LIT3187321 Contact Us For Availability

WPL LIT3187693 WPL LIT3187693 Contact Us For Availability

1

Latch & Switch Assembly WPL 3183959 Contact Us For Availability

1

Bracket, Mounting (2) WPL 307981 Contact Us For Availability

1

Main Chassis (White) WPL 330086 Contact Us For Availability

1

Main Chassis (Almond) WPL 330090 Contact Us For Availability

1

End Trim (Screw, 8 x 5/8 (2)) WPL 3169366 Contact Us For Availability

1

End Trim (Right) WPL 3187671 Contact Us For Availability

1

End Trim (Left) WPL 3187672 Contact Us For Availability

2

238614 Whirlpool Bumper Hinge Backorder WPL 238614 $68.16

2

Seal, Pyro WPL 3148183 Contact Us For Availability

2

Safety Switch WPL 308185 Contact Us For Availability

2

Screw (2) WPL 98106 Contact Us For Availability

2

Rail, Slide (R.H.) WPL 3149255 Contact Us For Availability

2

Rail, Slide (L.H. (Includes Illus. 3)) WPL 3149256 Contact Us For Availability

2

Screw, 8BT x 1/4 (4) WPL 254225 Contact Us For Availability

2

End Cap R.H. WPL 3150441 Contact Us For Availability

2

End Cap L.H. WPL 3150442 Contact Us For Availability

3

WP3169181 Whirlpool Knob In Stock WPL WP3169181 $9.28

3

WP3169203 Whirlpool Door Glass Backorder WPL WP3169203 $58.10

3

WPW10058460 Whirlpool Appliance Levelling Leg In Stock WPL WPW10058460 $3.70

3

Insulator, Switch WPL 309245 Contact Us For Availability

3

Glide, Front (2) WPL 3149257 Contact Us For Availability

4

WP308180 Whirlpool Range Bake Element 2600W 2 In Stock WPL WP308180 $24.28

4

Screw, 6 x 3/8B (2) WPL 309258 Contact Us For Availability

4

Shield, Latch Terminal WPL 313035 Contact Us For Availability

4

Screw (Sides) WPL 311056 Contact Us For Availability

4

Frame Front WPL 3176718 Contact Us For Availability

4

Timer - Auto WPL 661458 Contact Us For Availability

5

WP660579 Whirlpool Range Wall Oven Broil Elem In Stock WPL WP660579 $63.02

5

Screw, 10-24 x 1/2 (2) WPL 308422 Contact Us For Availability

5

Handle, Latch WPL 3169081 Contact Us For Availability

5

Screw, 10-32 x 7/16 (2) WPL 3150532 Contact Us For Availability

5

Pin, Hinge WPL 307985 Contact Us For Availability

5

Glass, Timer WPL 313513 Contact Us For Availability

6

330031 Whirlpool Range Surface Element Recept In Stock WPL 330031 $5.40

6

WP112432 Whirlpool Nut Assembly Backorder WPL WP112432 $2.51

6

WP486579 Whirlpool Air Conditioner Screw Backorder WPL WP486579 $3.11

6

Knob, Latch WPL 3148684 Contact Us For Availability

6

Switch, Percentage WPL 314209 Contact Us For Availability

6

Seal, Door WPL 3169251 Contact Us For Availability

6

Panel, Control WPL 3187659 Contact Us For Availability

7

WP3149400 Whirlpool Oven Infinite Switch In Stock WPL WP3149400 $30.33

7

WP3149404 Whirlpool Oven Surface Element Swit In Stock WPL WP3149404 $28.08

7

WP3390631 Whirlpool Screw Backorder WPL WP3390631 $2.51

7

Box, Burner WPL 3169186 Contact Us For Availability

7

Ground Strap WPL 308498 Contact Us For Availability

7

Clip WPL 313660 Contact Us For Availability

7

Pushnut WPL 308306 Contact Us For Availability

7

Switch, Infinite (Screw, (8) 8-32 x 1/4) WPL 308119 Contact Us For Availability

8

Shield, Wiring WPL 307973 Contact Us For Availability

8

Bracket, Service WPL 3150190 Contact Us For Availability

8

Hinge, R.H. WPL 3176710 Contact Us For Availability

8

Hinge, L.H. WPL 3176711 Contact Us For Availability

8

Switch, Selector WPL 3148419 Contact Us For Availability

9

WP313808 Whirlpool Screw In Stock WPL WP313808 $2.51

9

Rod, Cooktop WPL 3148659 Contact Us For Availability

9

Screw, No.6 WPL 314215 Contact Us For Availability

9

Switch, Percentage WPL 314210 Contact Us For Availability

9

Screw (3) WPL 3150537 Contact Us For Availability

9

Oven (30`` Pyro) WPL 3176611 Contact Us For Availability

9

Thermostat, Oven WPL 3185625 Contact Us For Availability

W11594027 Whirlpool Range Oven Light Socket In Stock WPL W11594027 $36.62

Light, Indicator (250V) WPL 314031 Contact Us For Availability

Cover, Rear WPL 3148975 Contact Us For Availability

Light, Indicator (125V) (Includes No.16) WPL 3150662 Contact Us For Availability

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.56

WP4314961 Whirlpool Lite Switch Backorder WPL WP4314961 $30.38

Bracket (2) WPL 307965 Contact Us For Availability

Cover, Service WPL 307972 Contact Us For Availability

12

WP3149983 Whirlpool Knob Backorder WPL WP3149983 $12.19

12

Pin, Cooktop (2) WPL 307966 Contact Us For Availability

4396923 Whirlpool Broil Pan Set Gray Porcelai In Stock WPL 4396923 $18.48

Cooktop (White) WPL 3170981 Contact Us For Availability

Cooktop (Almond) WPL 3170982 Contact Us For Availability

Knob, Thermostat WPL 3149988 Contact Us For Availability

14

Knob, Selector WPL 3149986 Contact Us For Availability

14

Rack, Offset WPL 308172 Contact Us For Availability

14

Rack, Oven (2) WPL 308173 Contact Us For Availability

340184 Whirlpool Screw Backorder WPL 340184 $9.59

WP308605 Whirlpool Refrigerator Clamp Backorder WPL WP308605 $4.81

WP681414 Whirlpool Screw In Stock WPL WP681414 $2.51

Clip, Mtg (2) WPL 3148282 Contact Us For Availability

Block, Balance WPL 3169279 Contact Us For Availability

Bracket, Oven (Mounting) WPL 311220 Contact Us For Availability

Rear Cover Control Panel WPL 3187332 Contact Us For Availability

9755804 Whirlpool Oven Vent Tube Backorder WPL 9755804 $48.15

WP4332752 Whirlpool Clip Backorder WPL WP4332752 $3.70

Screw, 10A x 1/2 (2) WPL 307748 Contact Us For Availability

Lens, Amber (2) WPL 313101 Contact Us For Availability

17

WP8203546 Whirlpool Terminal Block In Stock WPL WP8203546 $10.45

17

Screw, (2) 10 x 1 WPL 98884 Contact Us For Availability

8273888A Whirlpool Range Oven Anchor Anti-Tip In Stock WPL 8273888A $11.14

98005642 Whirlpool Clip Backorder WPL 98005642 $28.80

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

WPW10290350 Whirlpool Stove Drip Bowl In Stock WPL WPW10290350 $4.59

WPW10290353 Whirlpool Drip Bowl 6" ClimaTek In Stock WPL WPW10290353 $3.71

Insulation, Wrapper WPL 3169093 Contact Us For Availability

Insulation, Oven BAck WPL 3169094 Contact Us For Availability

Shield, R or L WPL 313608 Contact Us For Availability

19

WP660532 Whirlpool Oven Surface Element In Stock WPL WP660532 $12.14

19

WP660533 Whirlpool Oven 8" Surface Element In Stock WPL WP660533 $15.88

19

Channel, Arm (2) WPL 3176709 Contact Us For Availability

20

WP307986 Whirlpool Hinge Pin Backorder WPL WP307986 $5.23

20

Medallion (4) WPL 309195 Contact Us For Availability

814103 Whirlpool Clip In Stock WPL 814103 $3.95

WP487887 Whirlpool Refrigerator Screw Backorder WPL WP487887 $3.70

Screw WPL 3185059 Contact Us For Availability

Nut (4) WPL 814102 Contact Us For Availability

Ring, Retainer (2) WPL 307594 Contact Us For Availability

22

WP308126 Whirlpool Door Spring In Stock WPL WP308126 $12.59

22

Handle, Drawer WPL 3150615 Contact Us For Availability

23

WP308125 Whirlpool Microwave Range/Cooktop An Backorder WPL WP308125 $5.29

24

Support, L.H. Channel WPL 313196 Contact Us For Availability

24

Support, R.H. Channel WPL 313197 Contact Us For Availability

28

Snubber, Door (2) WPL 309111 Contact Us For Availability

28

Anchor (4) WPL 3148605 Contact Us For Availability

31

Button, Plug WPL 308535 Contact Us For Availability
