Model Whirlpool ET21NKXGN01 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams
01 - CABINET
03 - LINER

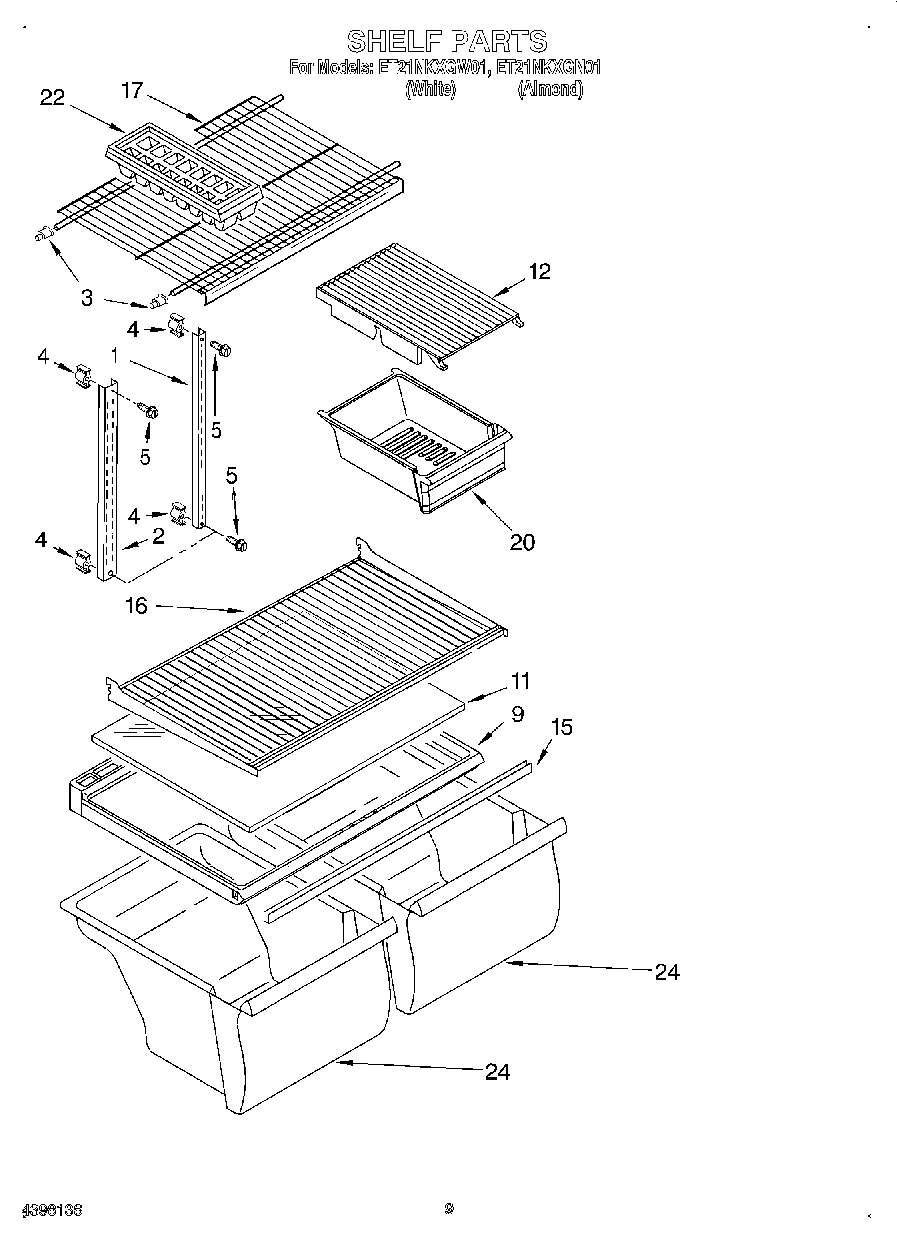

05 - SHELF, LIT/OPTIONAL

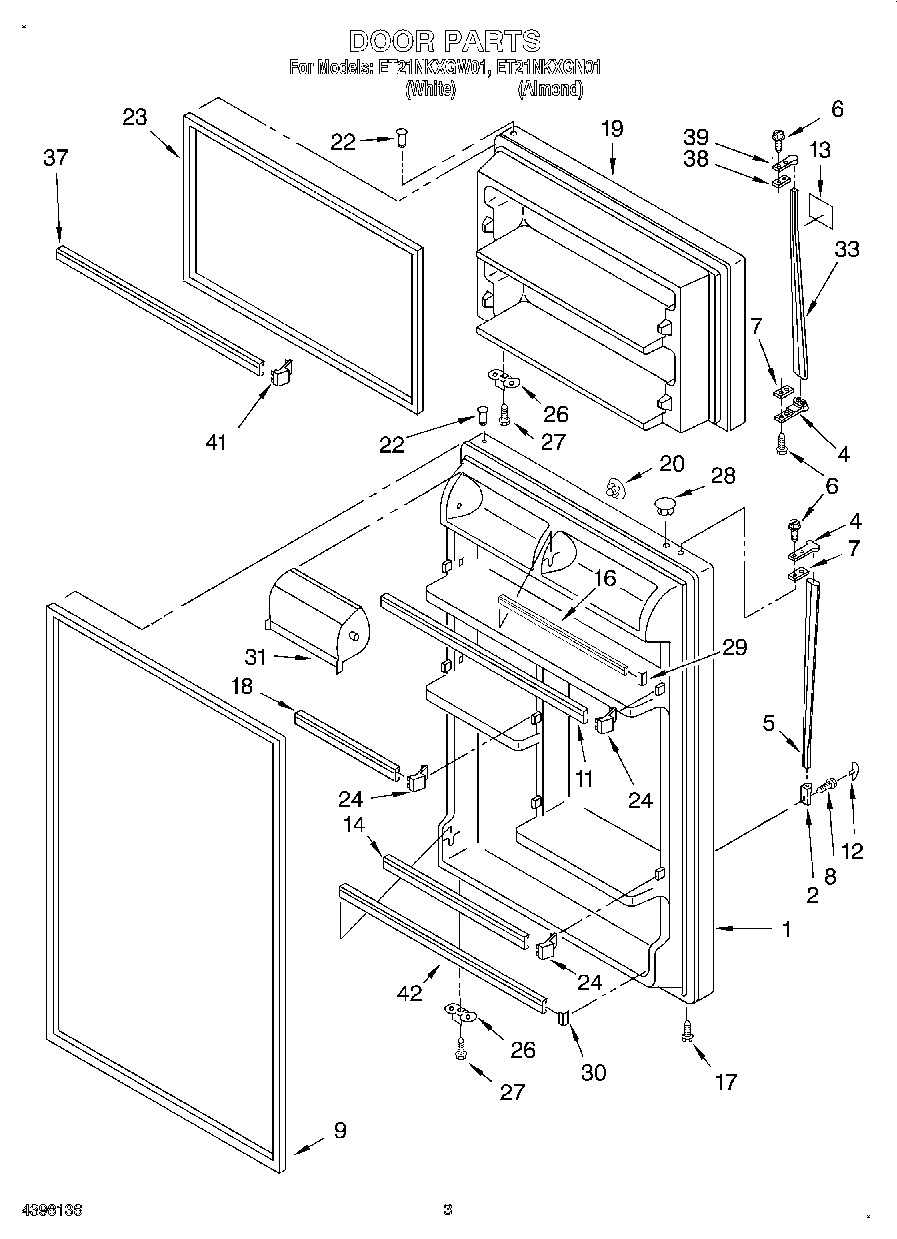

02 - DOOR

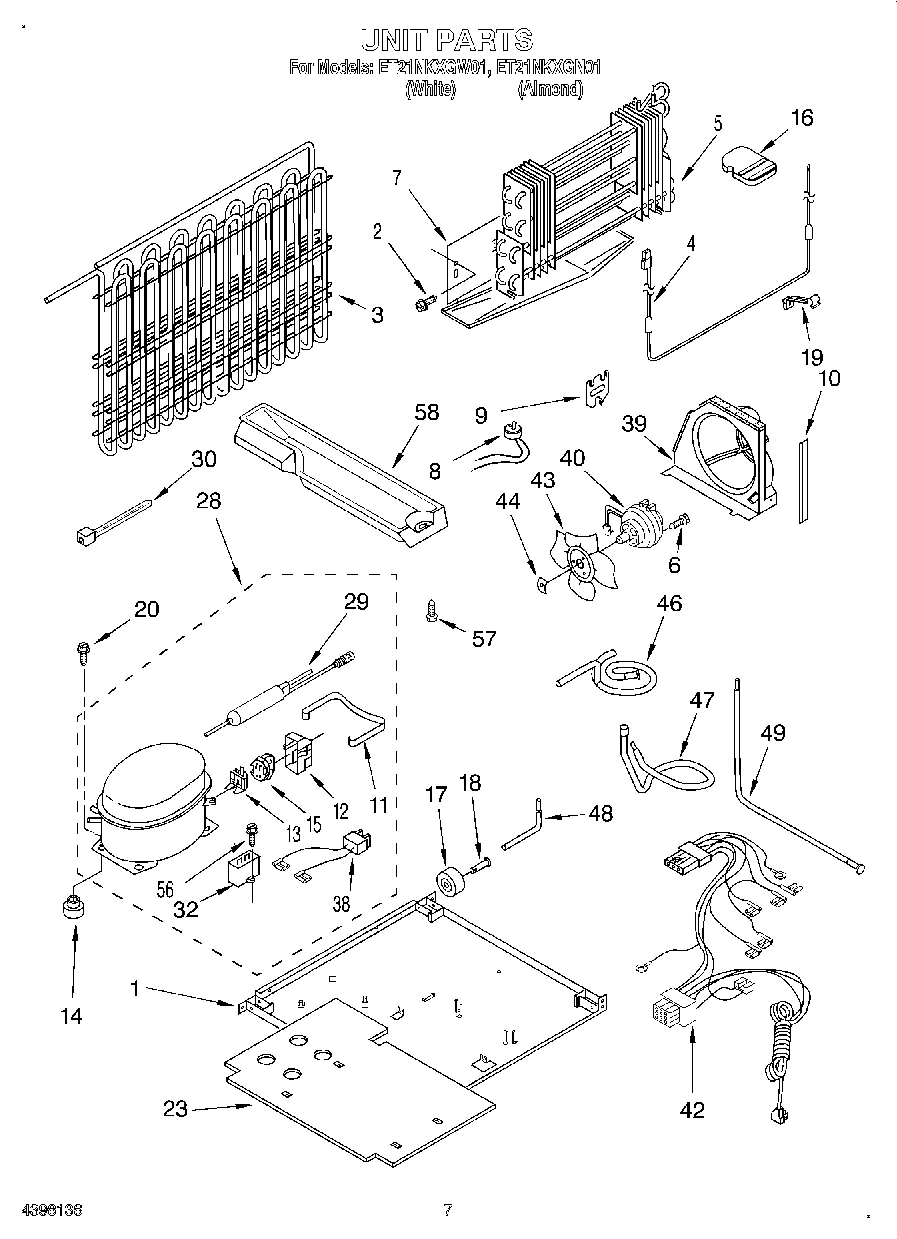

04 - UNIT
Common parts from model Whirlpool ET21NKXGN01 TOP MOUNT REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Refrigerator Door (Includes No.9 & No.22) (Wh WPL 2183946 Contact Us For Availability
1
Refrigerator Door (Includes No.9 & No.22) (Al WPL 2183947 Contact Us For Availability
1
Plate, Unit Mounting WPL 2188167 Contact Us For Availability
3
Condenser WPL 2195400 Contact Us For Availability
4
Screw Support WPL 2189314 Contact Us For Availability
5
Handle, Center (Almond) WPL 2148036 Contact Us For Availability
5
Evaporator Assy. WPL 2195390 Contact Us For Availability
7
Spacer WPL 943188 Contact Us For Availability
7
Drain Pan WPL 2172620 Contact Us For Availability
9
Bracket, Heater WPL 2176301 Contact Us For Availability
10
Extension, Air Baffle WPL 2163780 Contact Us For Availability
11
Trim, Door Shelf WPL 2195944 Contact Us For Availability
11
Cover, Strap WPL 943322 Contact Us For Availability
12
Cover, Screw (White) WPL 9791769 Contact Us For Availability
12
Cover, Screw (Almond) WPL 9791770 Contact Us For Availability
12
Cover, Meat Pan WPL 2163848 Contact Us For Availability
12
Cover WPL 1105055 Contact Us For Availability
13
Thermostat Assy. (Includes Items 5, 18 & 36) WPL 2200859 Contact Us For Availability
13
Nameplate (White Model) WPL 2175383 Contact Us For Availability
13
Nameplate (Almond Model) WPL 2175384 Contact Us For Availability
13
Overload (Service (Includes Relay)) WPL 4387733 Contact Us For Availability
16
Shelf, Full Cantilever WPL 2195398 Contact Us For Availability
16
Support Block WPL 2189906 Contact Us For Availability
18
Trim, Door Shelf WPL 2195945 Contact Us For Availability
19
Clip, Heater WPL 2182338 Contact Us For Availability
19
Freezer Door (Includes No.22 & No.23) (Almond WPL 2184400 Contact Us For Availability
20
Hole Plug (Almond) WPL 2189008 Contact Us For Availability
20
Screw WPL 489473 Contact Us For Availability
21
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
23
Shim, Bottom Hinge WPL 2172743 Contact Us For Availability
23
Air Tower WPL 2182340 Contact Us For Availability
23
Cover, Unit WPL 2198740 Contact Us For Availability
28
Installation Kit WPL 482801 Contact Us For Availability
28
Hole Plug (Almond) WPL 989196 Contact Us For Availability
32
Capacitor (Service Only) WPL 2169137 Contact Us For Availability
33
Handle, F.C. (Almond) WPL 2171044 Contact Us For Availability
37
TRIM, DOOR (2) WPL 2195947 Contact Us For Availability
38
Shim WPL 943187 Contact Us For Availability
39
CLIP, GRILLE WPL 2189356 Contact Us For Availability
39
Air Baffle WPL 2198921 Contact Us For Availability
42
Wire Assy. Unit WPL 2200629 Contact Us For Availability
43
Blade, Fan WPL 2190685 Contact Us For Availability
46
Tube, Discharge WPL 2184451 Contact Us For Availability
47
Tube, Suction WPL 2189173 Contact Us For Availability
49
Tube, Condenser To Heat Loop WPL 2174670 Contact Us For Availability
57
Screw WPL 489462 Contact Us For Availability
58
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
58
Tray, Evaporator WPL 2189433 Contact Us For Availability
58
Start Kit WPL 482278 Contact Us For Availability
58
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
100
KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability
100
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
100
KIT, PORCELAIN REPAIR (WHITE) WPL 799832 Contact Us For Availability
100
KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability
100
Enam WPL 978883 Contact Us For Availability
100
FeaturePak (Includes 11, 12, 14, 18, 24, 29, WPL 2182576 Contact Us For Availability
× ![]()
