Model Whirlpool ET18YKXAW00 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams

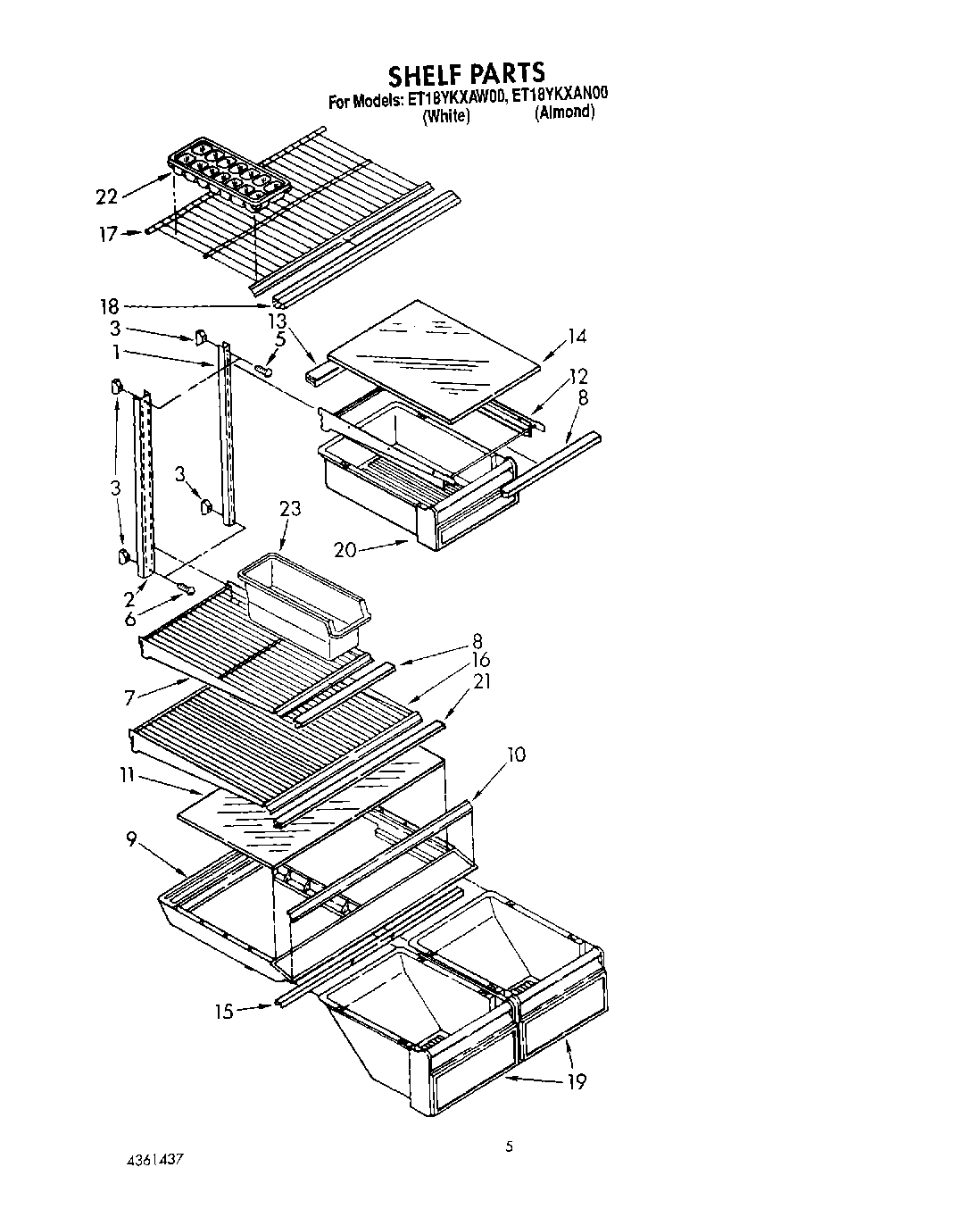

04 - SHELF

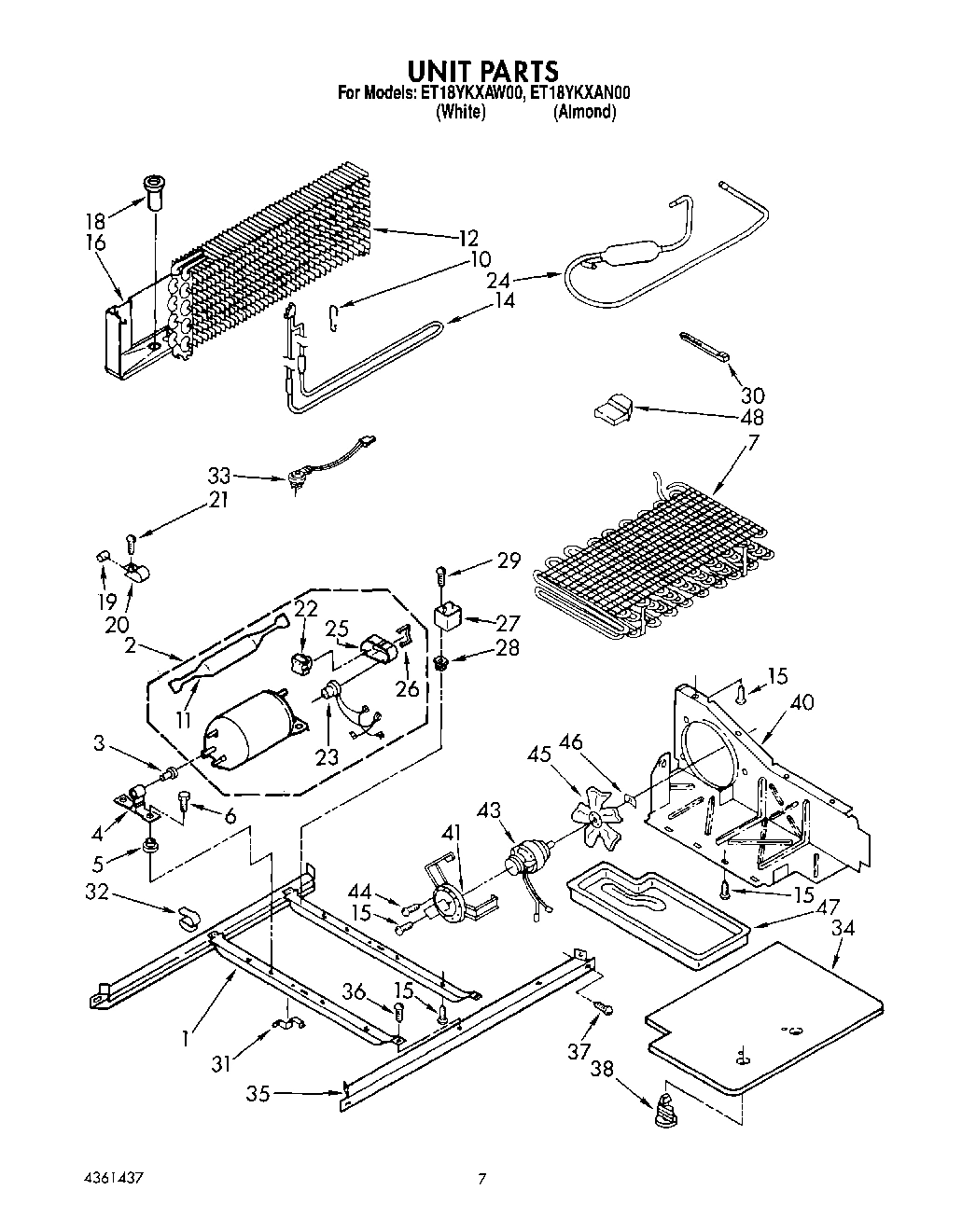

06 - UNIT
02 - LINER
03 - COMPARTMENT SEPARATOR
05 - FREEZER DOOR
07 - REFRIGERATOR DOOR, LIT/OPTIONAL
01 - CABINET
Common parts from model Whirlpool ET18YKXAW00 TOP MOUNT REFRIGERATOR
WPL LIT2154075 WPL LIT2154075 Contact Us For Availability
WPL LIT2159218 WPL LIT2159218 Contact Us For Availability
WPL LIT2159220 WPL LIT2159220 Contact Us For Availability
WPL LIT4361437 WPL LIT4361437 Contact Us For Availability
1
Liner (Not A Serviceable Part) WPL ARI45314A1 Contact Us For Availability
1
Bottom, Compartment Separator WPL 1116561 Contact Us For Availability
1
Panel, Freezer Door (Includes Item 8) (White) WPL 2156054 Contact Us For Availability
1
Panel, Freezer Door (Includes Item 8) (Almond WPL 2159223 Contact Us For Availability
1
Panel, Refrigerator Door (Includes Item 8) (W WPL 2156051 Contact Us For Availability
1
Panel, Refrigerator Door (Includes Item 8) (A WPL 2159222 Contact Us For Availability
1
Cabinet (Not A Serviceable Part) WPL ARI45313A9 Contact Us For Availability
2
Wiring, Fan Motor WPL 1127626 Contact Us For Availability
2
Box, Control WPL 2151992 Contact Us For Availability
2
Hole Plug (2) WPL 534927 Contact Us For Availability
2
Hole Plug (2) (Almond) WPL 989197 Contact Us For Availability
2
Roller, Front WPL 2152011 Contact Us For Availability
3
Screw, 5/16-24 x 1-1/4 WPL 489393 Contact Us For Availability
4
Bracket, Door Stop WPL 944035 Contact Us For Availability
4
Bracket, Door Stop WPL 1115910 Contact Us For Availability
5
Screw, 1/4-28 x 1/2 WPL 488454 Contact Us For Availability
7
Hole Plug (Almond) WPL 989196 Contact Us For Availability
8
Door Gasket, Magnetic WPL 2159052 Contact Us For Availability
8
Door Gasket, Magnetic WPL 2159053 Contact Us For Availability
8
Screw WPL 489327 Contact Us For Availability
9
Stud, Front (2) WPL 946356 Contact Us For Availability
9
Control, Front Cover WPL 2148582 Contact Us For Availability
10
Heater, Mullion WPL 2154064 Contact Us For Availability
11
Knob, Thermostat WPL 1114315 Contact Us For Availability
11
Clip, Mullion (3) WPL 2149060 Contact Us For Availability
12
Support Stud (4) WPL 946355 Contact Us For Availability
12
Handle, Center (Almond) WPL 2159623 Contact Us For Availability
12
Handle, Center (Almond) WPL 2148036 Contact Us For Availability
12
Spacer (3) WPL 2149077 Contact Us For Availability
13
Shim, Handle WPL 943187 Contact Us For Availability
13
Cover, Air Duct WPL 1116558 Contact Us For Availability
13
Center Rail (White) WPL 1116540 Contact Us For Availability
13
Center Rail (Almond) WPL 1116543 Contact Us For Availability
14
Spacer, Handle Door WPL 943188 Contact Us For Availability
14
Knob, Air Control WPL 1114314 Contact Us For Availability
16
Rod, Connecting WPL 1116565 Contact Us For Availability
17
Air Diffuser Assembly WPL 2157252 Contact Us For Availability
18
Nameplate WPL 2152334 Contact Us For Availability
18
Gasket, Air Diffuser WPL 2157255 Contact Us For Availability
18
Shim, Hinge Top WPL 2157269 Contact Us For Availability
19
Grommet (2) WPL 531933 Contact Us For Availability
19
Cover, Air Diffuser WPL 1108176 Contact Us For Availability
19
Hinge Cover (Almond) WPL 2160404 Contact Us For Availability
20
Trim, Door Shelf WPL 2159214 Contact Us For Availability
21
Screw WPL 489168 Contact Us For Availability
21
Trim, Door Shelf WPL 2159216 Contact Us For Availability
21
Hinge, Center WPL 2147335 Contact Us For Availability
22
Wiring Assembly, Control Box WPL 2153995 Contact Us For Availability
22
Shim, Hinge Center WPL 836155 Contact Us For Availability
23
Scroll, Fan WPL 1116598 Contact Us For Availability
23
Gasket, Bottom Separator WPL 2159733 Contact Us For Availability
23
Trim-Door Shelf WPL 2159047 Contact Us For Availability
24
Evaporator Cover WPL 2151668 Contact Us For Availability
24
Hole Plug, Handle (Almond) WPL 1122654 Contact Us For Availability
26
Insulation, Filler WPL 1108196 Contact Us For Availability
26
Divider, Door Shelf WPL 2160049 Contact Us For Availability
26
Hinge Butt, Bottom WPL 1123378 Contact Us For Availability
27
Hinge Pin, Bottom WPL 654366 Contact Us For Availability
27
Hole Plug WPL 1103725 Contact Us For Availability
27
Insulation, Compartment Separator WPL 1116569 Contact Us For Availability
28
Screw 10-32 x 5/16 WPL 488714 Contact Us For Availability
29
Endcap, Trim (2) WPL 2156001 Contact Us For Availability
29
Shim, Bottom WPL 1123379 Contact Us For Availability
31
Clip, Unit Cover WPL 548744 Contact Us For Availability
31
Spacer WPL 1121117 Contact Us For Availability
32
Clip, Wire (2) WPL 548745 Contact Us For Availability
33
Separator, Compartment (Top) WPL 1116570 Contact Us For Availability
33
Corner Filler, Grille WPL 1118078 Contact Us For Availability
34
Unit, Cover Bottom WPL 2160517 Contact Us For Availability
34
Filler, Wrapper Corner (2) (White) WPL 1118058 Contact Us For Availability
34
Filler, Wrapper Corner (2) (Almond) WPL 1118059 Contact Us For Availability
35
Unit, Rail WPL 1116622 Contact Us For Availability
35
Cup, Drain WPL 937065 Contact Us For Availability
35
Trim, Door Shelf WPL 2159215 Contact Us For Availability
35
Grille WPL 1118079 Contact Us For Availability
36
Hole Plug (5) (Almond) WPL 2151653 Contact Us For Availability
37
Bracket, Control Knob WPL 1105457 Contact Us For Availability
37
Trim-Door Shelf WPL 2159217 Contact Us For Availability
37
Wiring Assy. Intermediate WPL 2153994 Contact Us For Availability
39
WPL 876029 WPL 876029 Contact Us For Availability
39
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
39
Torx Key WPL 1117510 Contact Us For Availability
39
xEnamel, Gold (13 Oz. Spray Can) WPL 261890 Contact Us For Availability
39
Enamel, Gold (1 Qt. Uncut) WPL 261891 Contact Us For Availability
39
Leveler, Enamel (13 Oz. Spray Can) WPL 350941 Contact Us For Availability
39
CEMENT, AL WPL 542639 Contact Us For Availability
39
WPL 799833 WPL 799833 Contact Us For Availability
39
WPL 978883 WPL 978883 Contact Us For Availability
40
Air, Baffle WPL 2154102 Contact Us For Availability
41
Fan, Mounting Bracket WPL 2162060 Contact Us For Availability
41
Hole Plug (White) WPL 1129062 Contact Us For Availability
41
Hole Plug (Almond) WPL 1129063 Contact Us For Availability
44
Cord, Service WPL 937360 Contact Us For Availability
45
Fan Blade WPL 1115135 Contact Us For Availability
46
Fitting, Drain WPL 2154118 Contact Us For Availability
47
Tray, Evaporator WPL 1116604 Contact Us For Availability
48
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
48
Wedge, Air Baffle WPL 1118017 Contact Us For Availability
48
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
48
Cover, Unit WPL 2160514 Contact Us For Availability
61
Tap-Plate, Bottom Hinge WPL 2147310 Contact Us For Availability
× ![]()
