Model Whirlpool ET18PKXFN00 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams

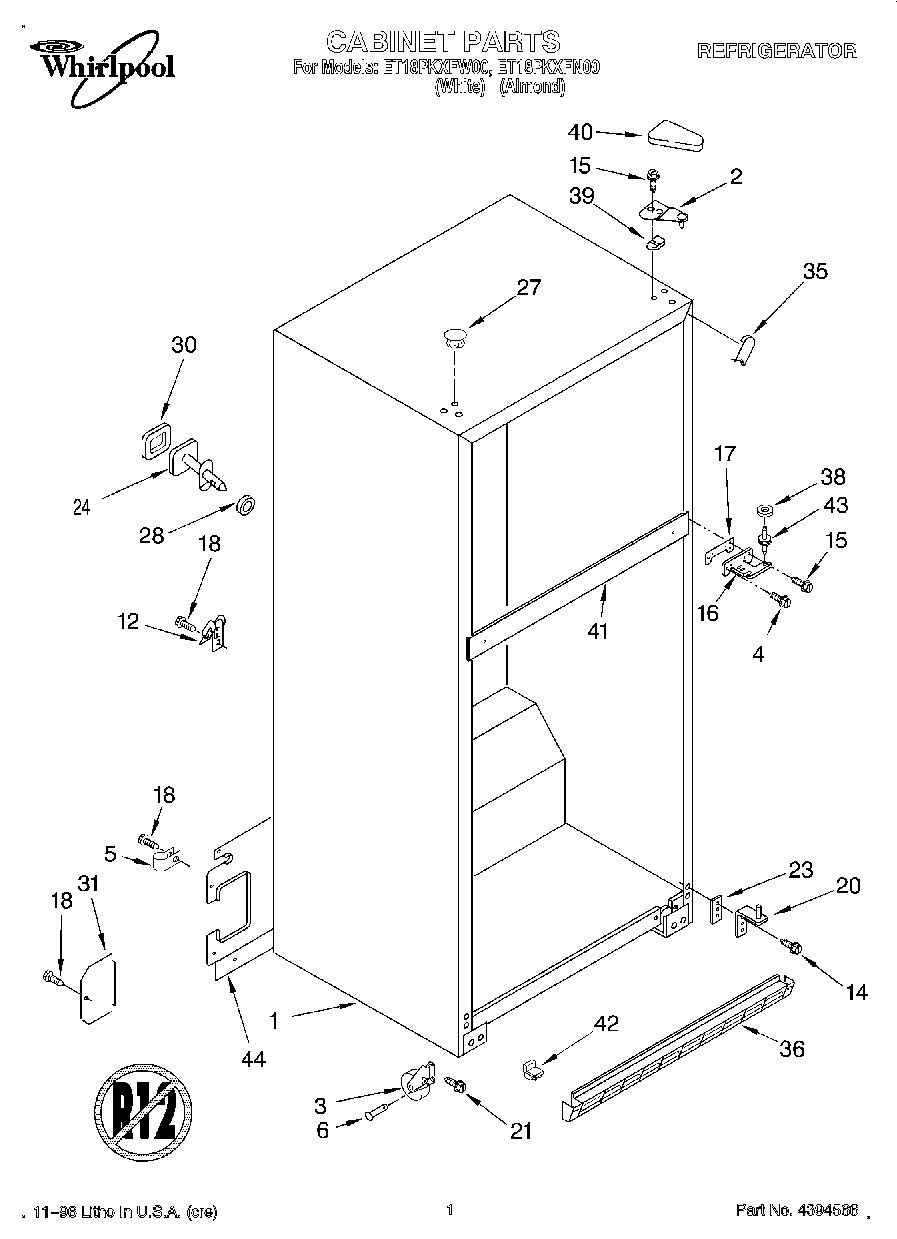

01 - CABINET

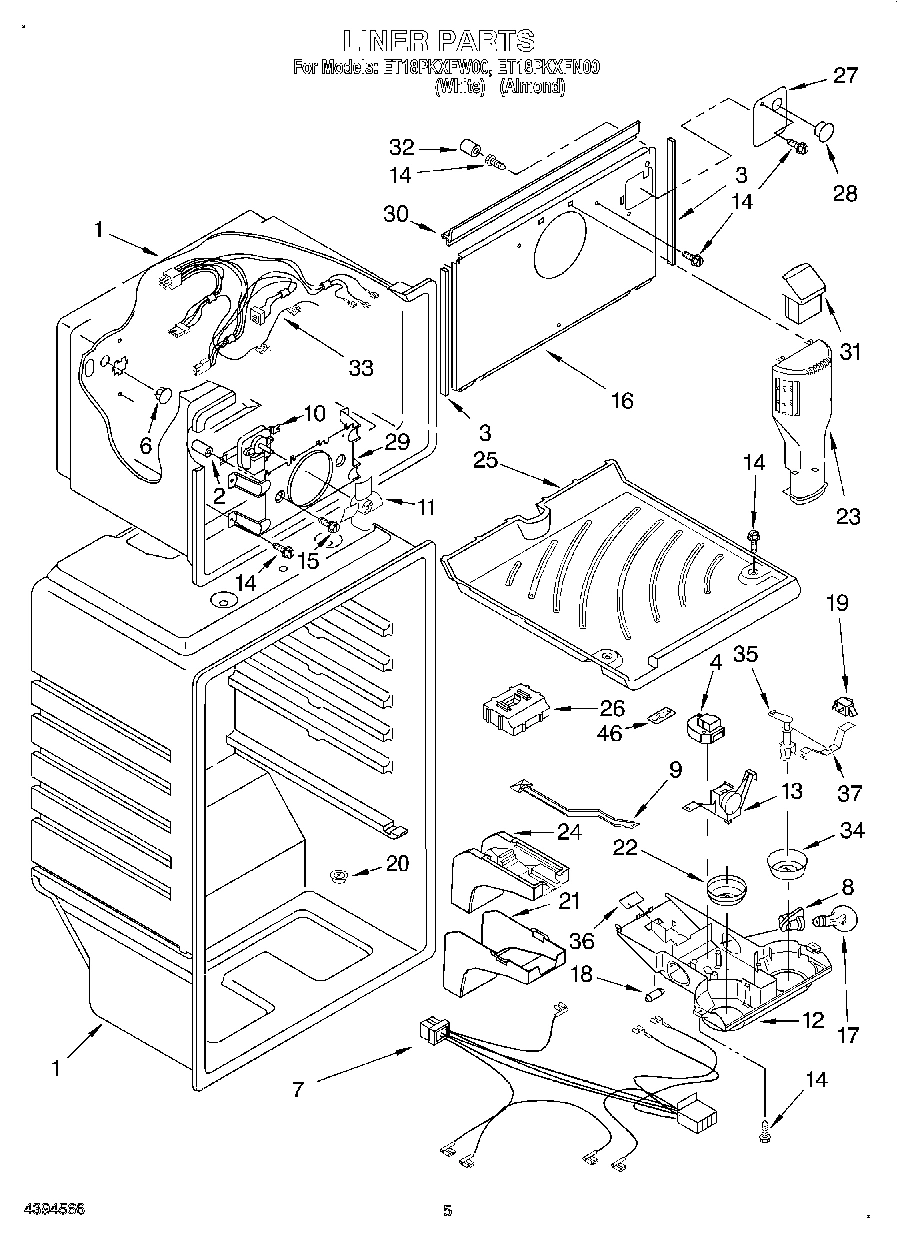

03 - LINER

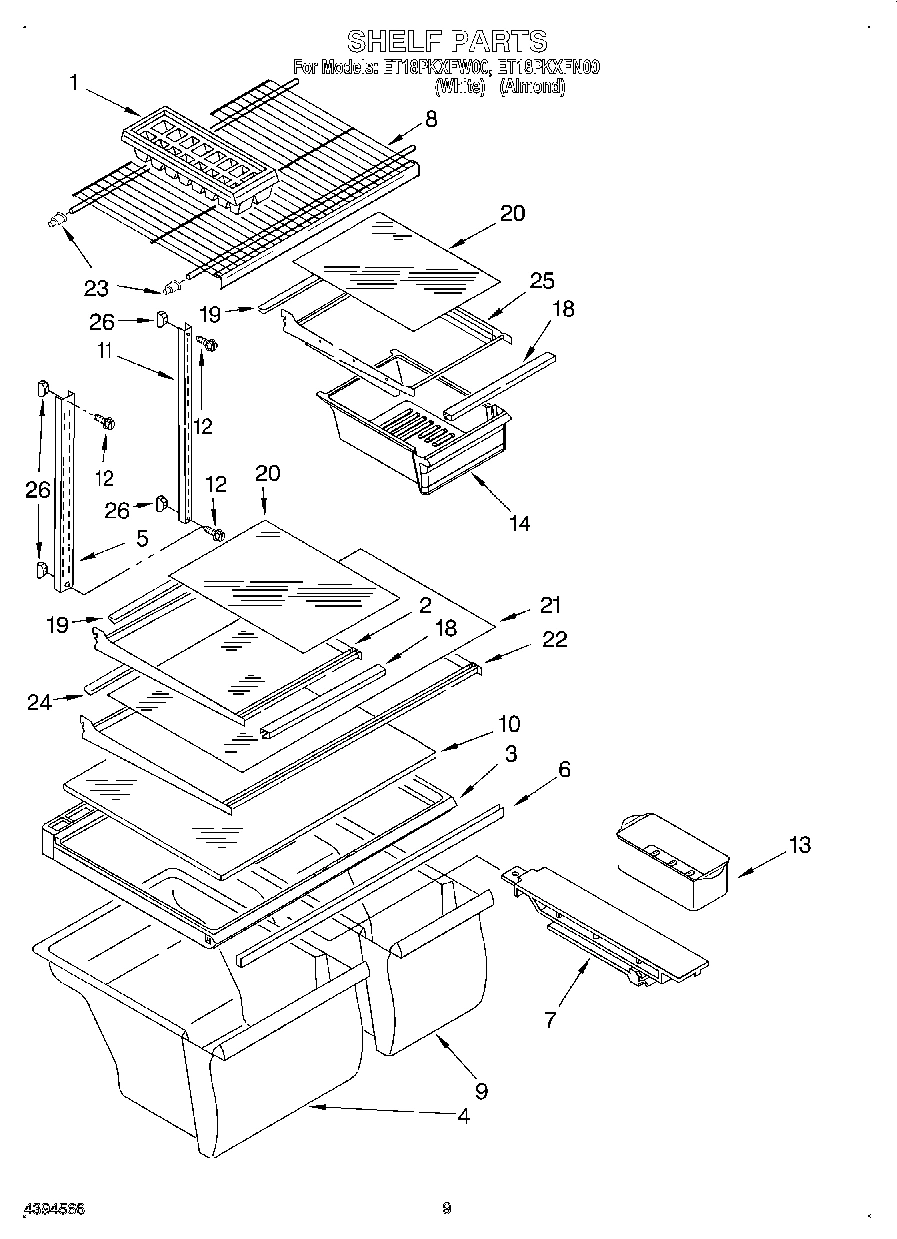

05 - SHELF, LIT/OPTIONAL

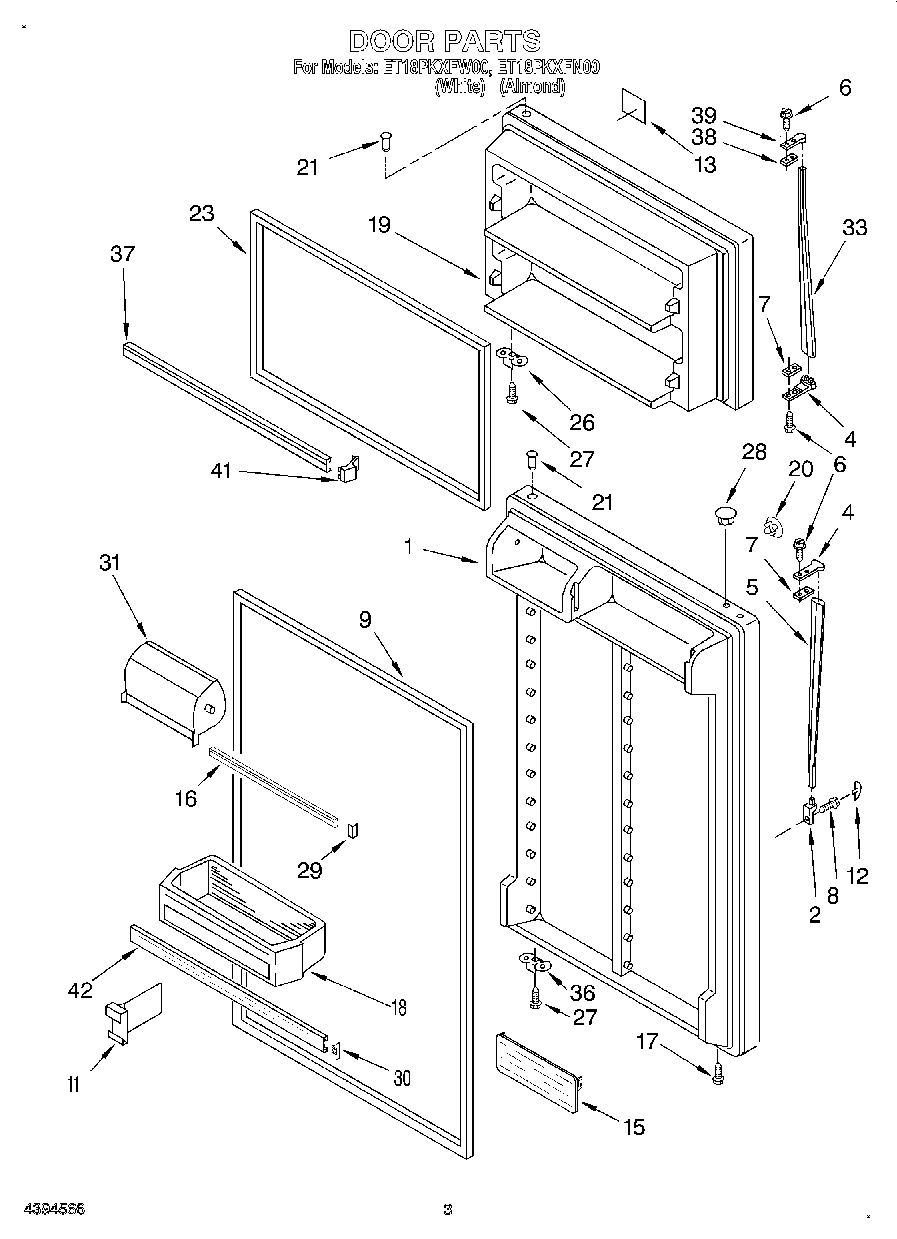

02 - DOOR

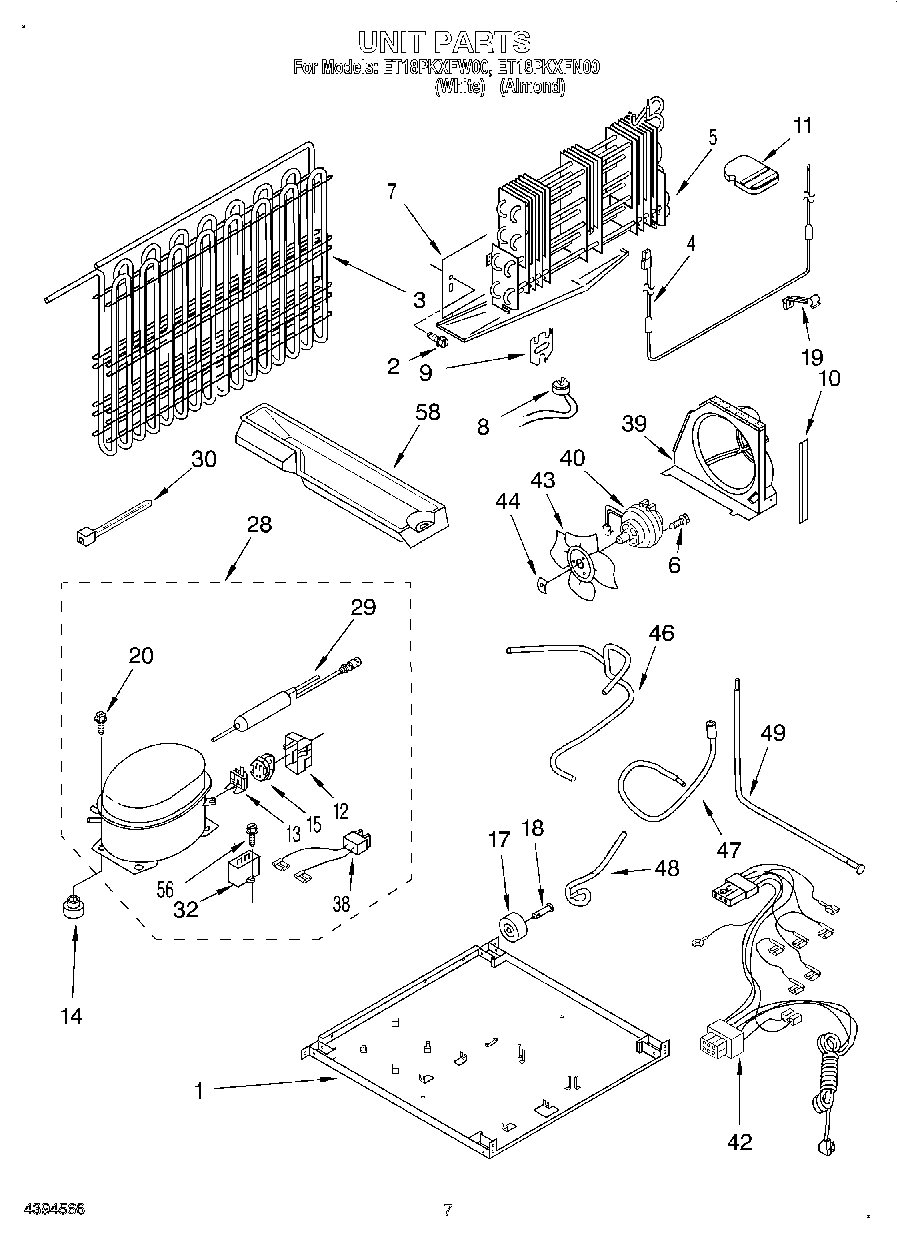

04 - UNIT
Common parts from model Whirlpool ET18PKXFN00 TOP MOUNT REFRIGERATOR
WPL 1117510 WPL 1117510 Contact Us For Availability
1
Refrigerator Door (Includes No.9 & No.21) (Wh WPL 2183898 Contact Us For Availability
1
Refrigerator Door (Includes No.9 & No.21) (Al WPL 2183899 Contact Us For Availability
1
Plate, Unit Mounting WPL 2195273 Contact Us For Availability
2
Shelf WPL 2163859 Contact Us For Availability
3
Condenser WPL 2195400 Contact Us For Availability
5
Shelf Ladder, WPL 2163826 Contact Us For Availability
5
Handle, Center (Almond) WPL 2148036 Contact Us For Availability
5
Evaporator Assy. WPL 2195391 Contact Us For Availability
6
Screw WPL 489490 Contact Us For Availability
7
Spacer WPL 943188 Contact Us For Availability
7
Drain Pan WPL 2172619 Contact Us For Availability
9
Bracket, Heater WPL 2176301 Contact Us For Availability
10
Extension, Air Baffle WPL 2163780 Contact Us For Availability
11
Shelf, Ladder (2) WPL 2163756 Contact Us For Availability
11
Divider, Bin WPL 2152335 Contact Us For Availability
11
Support Block WPL 2176302 Contact Us For Availability
12
Cover, Screw (White) WPL 9791769 Contact Us For Availability
12
Cover, Screw (Almond) WPL 9791770 Contact Us For Availability
13
Nameplate (White Model) WPL 2175383 Contact Us For Availability
13
Nameplate (Almond Model) WPL 2175384 Contact Us For Availability
15
Relay (See Overload) WPL ARI44855A8 Contact Us For Availability
18
Trim, Shelf Front WPL 2176262 Contact Us For Availability
18
Door Bin (3) WPL 2195394 Contact Us For Availability
19
Clip, Heater WPL 2182338 Contact Us For Availability
19
Trim, Shelf Rear WPL 2163882 Contact Us For Availability
19
Freezer Door Panel (White) WPL 2182487 Contact Us For Availability
19
Freezer Door Panel (Almond) WPL 2182491 Contact Us For Availability
20
Glass, Half Shelf WPL 2169917 Contact Us For Availability
20
Hole Plug (Almond) WPL 2189008 Contact Us For Availability
20
Screw, Compressor WPL 489473 Contact Us For Availability
21
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
21
Glass, Full Shelf WPL 2177824 Contact Us For Availability
22
Shelf, Cantilever WPL 2163862 Contact Us For Availability
23
Air Tower WPL 2182340 Contact Us For Availability
24
Trim, Shelf Rear WPL 2163884 Contact Us For Availability
25
Pan Shelf, Cantilever WPL 2176305 Contact Us For Availability
26
KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability
26
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
26
Door Reversal Instructions WPL 2172516 Contact Us For Availability
26
CEMENT, ALUMILASTIC (1 1/4 OZ.) WPL 542639 Contact Us For Availability
26
KIT, PORCELAIN REPAIR (WHITE) WPL 799832 Contact Us For Availability
26
KIT, EVAPORATOR REPAIR (ALUMINUM EPOXY) WPL 799833 Contact Us For Availability
26
WPL 978883 WPL 978883 Contact Us For Availability
28
Installation Kit WPL 482801 Contact Us For Availability
28
Hole Plug (Almond) WPL 989196 Contact Us For Availability
32
Capacitor (Service Only) WPL 2169137 Contact Us For Availability
33
Handle, F.C. (Almond) WPL 2171044 Contact Us For Availability
36
Bracket, Door Stop WPL 944035 Contact Us For Availability
37
Trim-Door (2) WPL 2171282 Contact Us For Availability
38
Shim WPL 943187 Contact Us For Availability
39
Air Baffle WPL 2195287 Contact Us For Availability
42
Trim, Door WPL 2193216 Contact Us For Availability
42
Wire Assy. Unit WPL 2184584 Contact Us For Availability
43
Blade, Fan WPL 2190685 Contact Us For Availability
46
Tube, Discharge WPL 2179722 Contact Us For Availability
47
Tube, Suction WPL 2184550 Contact Us For Availability
49
Tube, Condenser To Heat Loop WPL 2174670 Contact Us For Availability
58
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
58
Evap. Tray WPL 2163795 Contact Us For Availability
58
Start Kit WPL 482278 Contact Us For Availability
58
VALVE, ACCESS (1/2``) WPL 978028 Contact Us For Availability
× ![]()
