Model Whirlpool ET18GMXHW00 TOP MOUNT REFRIGERATOR – Common Parts & Diagrams

1
Refrigerator Door (Includes No.9 & No.22) (Bi
Refrigerator Door (Includes No.9 & No.22) (Bi WPL 2205285 Contact Us For Availability
View on Model
1

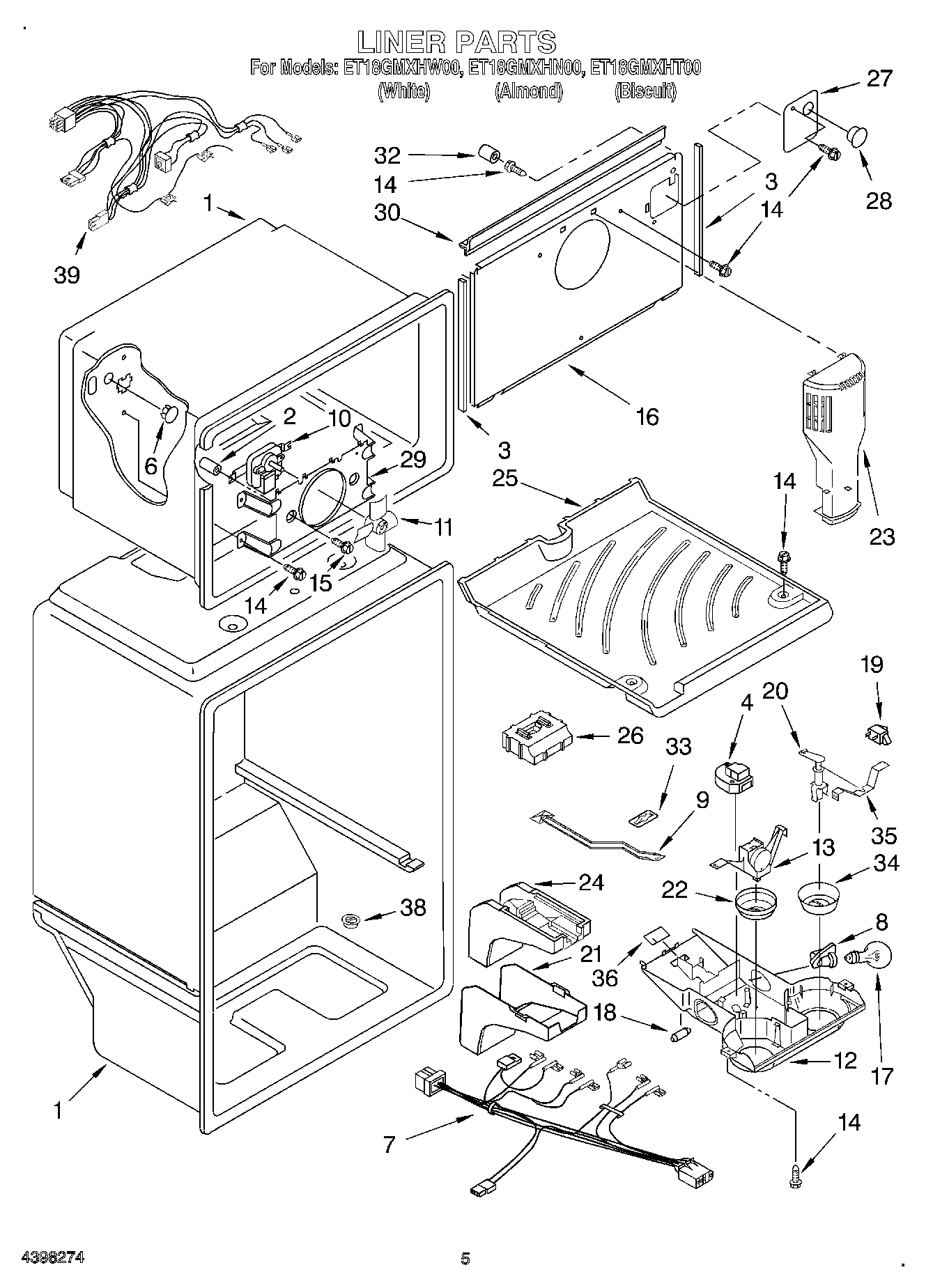

Liner (Not A Serviceable Part)
Liner (Not A Serviceable Part) WPL ARI43627A1 Contact Us For Availability
View on Model
2
Grommet (2)
Grommet (2) WPL 531933 Contact Us For Availability
View on Model
3
Glass, Full Shelf
Glass, Full Shelf WPL 2177824 Contact Us For Availability
View on Model
4
Timer, Defrost
Timer, Defrost WPL 2199008 Contact Us For Availability
View on Model
5
Handle Center (Biscuit)
Handle Center (Biscuit) WPL 2202807T Contact Us For Availability
View on Model
5
Handle Center (Almond)
Handle Center (Almond) WPL 2202807N Contact Us For Availability
View on Model
7
Wire Assy. Control Box
Wire Assy. Control Box WPL 2200632 Contact Us For Availability
View on Model
9
Damper, Air
Damper, Air WPL 2179858 Contact Us For Availability
View on Model
10
Fan Motor
Fan Motor WPL 2183448 Contact Us For Availability
View on Model
11
Trim, Door Shelf
Trim, Door Shelf WPL 2201051 Contact Us For Availability
View on Model
12
Cover, Screw (Biscuit)
Cover, Screw (Biscuit) WPL 2202819T Contact Us For Availability
View on Model
12
Cover, Screw (Almond)
Cover, Screw (Almond) WPL 2202819N Contact Us For Availability
View on Model
12
Control Box
Control Box WPL 2200820 Contact Us For Availability
View on Model
13
Tube, Water Inlet
Tube, Water Inlet WPL 2174755 Contact Us For Availability
View on Model
13
Nameplate (White)
Nameplate (White) WPL 2175383 Contact Us For Availability
View on Model
13
Nameplate (Almond)
Nameplate (Almond) WPL 2175384 Contact Us For Availability
View on Model
13
Nameplate (Biscuit Model)
Nameplate (Biscuit Model) WPL 2205769 Contact Us For Availability
View on Model
13
Thermostat Assy. (Includes Items 5, 18 & 36)
Thermostat Assy. (Includes Items 5, 18 & 36) WPL 2200830 Contact Us For Availability
View on Model
15
Screw
Screw WPL 489412 Contact Us For Availability
View on Model
16
Cover, Evaporator
Cover, Evaporator WPL 2183154 Contact Us For Availability
View on Model
17
Shelf, Freezer
Shelf, Freezer WPL 2189453 Contact Us For Availability
View on Model
18
Trim, Door
Trim, Door WPL 2201052 Contact Us For Availability
View on Model
18
Weight, Thermal
Weight, Thermal WPL 2200831 Contact Us For Availability
View on Model
19
Clip, Heater
Clip, Heater WPL 2182338 Contact Us For Availability
View on Model
19
Freezer Door (Includes No.22 & No.23) (White)
Freezer Door (Includes No.22 & No.23) (White) WPL 2182487 Contact Us For Availability
View on Model
19
Freezer Door (Includes No.22 & No.23) (Almond
Freezer Door (Includes No.22 & No.23) (Almond WPL 2182491 Contact Us For Availability
View on Model
19
Freezer Door (Includes No.22 & No.23) (Biscui
Freezer Door (Includes No.22 & No.23) (Biscui WPL 2205279 Contact Us For Availability
View on Model
20
Hole Plug (Almond)
Hole Plug (Almond) WPL 2189008 Contact Us For Availability
View on Model
20
Post, Damper
Post, Damper WPL 2179859 Contact Us For Availability
View on Model
21
Cover, Air Diffuser
Cover, Air Diffuser WPL 2176281 Contact Us For Availability
View on Model
23
Shim, Bottom Hinge
Shim, Bottom Hinge WPL 2172743 Contact Us For Availability
View on Model
23
Air Tower
Air Tower WPL 2182340 Contact Us For Availability
View on Model
25
Freezer Floor
Freezer Floor WPL 2172565 Contact Us For Availability
View on Model
26
Air Diffuser, Top
Air Diffuser, Top WPL 2200793 Contact Us For Availability
View on Model
27
Cement Alumilastic)
Cement Alumilastic) WPL 542369 Contact Us For Availability
View on Model
28
Installation Kit
Installation Kit WPL 482801 Contact Us For Availability
View on Model
28
Hole Plug (Almond)
Hole Plug (Almond) WPL 989196 Contact Us For Availability
View on Model
29
Bracket, Fan Motor
Bracket, Fan Motor WPL 2200641 Contact Us For Availability
View on Model
33
Handle, F.C. (Almond)
Handle, F.C. (Almond) WPL 2202806N Contact Us For Availability
View on Model
33
Handle, F.C. (Biscuit)
Handle, F.C. (Biscuit) WPL 2202806T Contact Us For Availability
View on Model
33
Clip, Defrost Timer
Clip, Defrost Timer WPL 2176341 Contact Us For Availability
View on Model
34
Knob, Damper
Knob, Damper WPL 2176297 Contact Us For Availability
View on Model
35
Bracket, Damper Knob
Bracket, Damper Knob WPL 2163810 Contact Us For Availability
View on Model
37
Trim-Door (2)
Trim-Door (2) WPL 2201050 Contact Us For Availability
View on Model
39
CLIP, GRILLE
CLIP, GRILLE WPL 2189356 Contact Us For Availability
View on Model
39
Wire Assembly, Freezer Compartment
Wire Assembly, Freezer Compartment WPL 2200630 Contact Us For Availability
View on Model
43
Blade, Fan
Blade, Fan WPL 2190685 Contact Us For Availability
View on Model
58
VALVE, ACCESS (5/8``)
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
View on Model
100
KIT, FOAM SLAB
KIT, FOAM SLAB WPL 876029 Contact Us For Availability
View on Model
100
TAPE, VINYL (3/4 X 108``)
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
View on Model
100
PAINT, BULK (1 QT.) (WHITE (UNCUT))
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
View on Model
100
Torx Key
Torx Key WPL 1117510 Contact Us For Availability
View on Model
100
FeaturePak (Includes 11,14, 16,18,24,29,30,31
FeaturePak (Includes 11,14, 16,18,24,29,30,31 WPL 2204715 Contact Us For Availability
View on Model
