Model Whirlpool ED5PVEXWS11 REFRIGERATOR – Common Parts & Diagrams

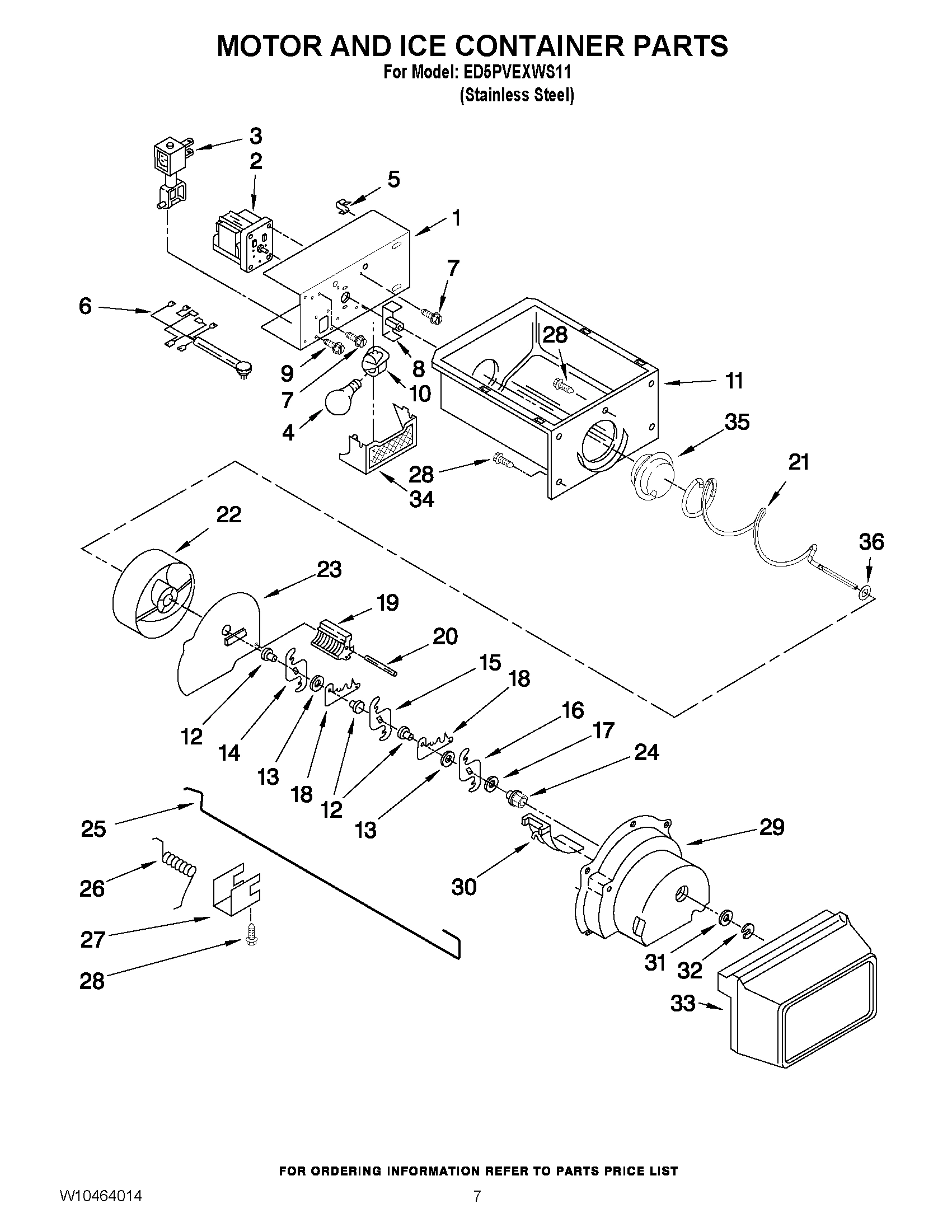

05 - MOTOR AND ICE CONTAINER PARTS

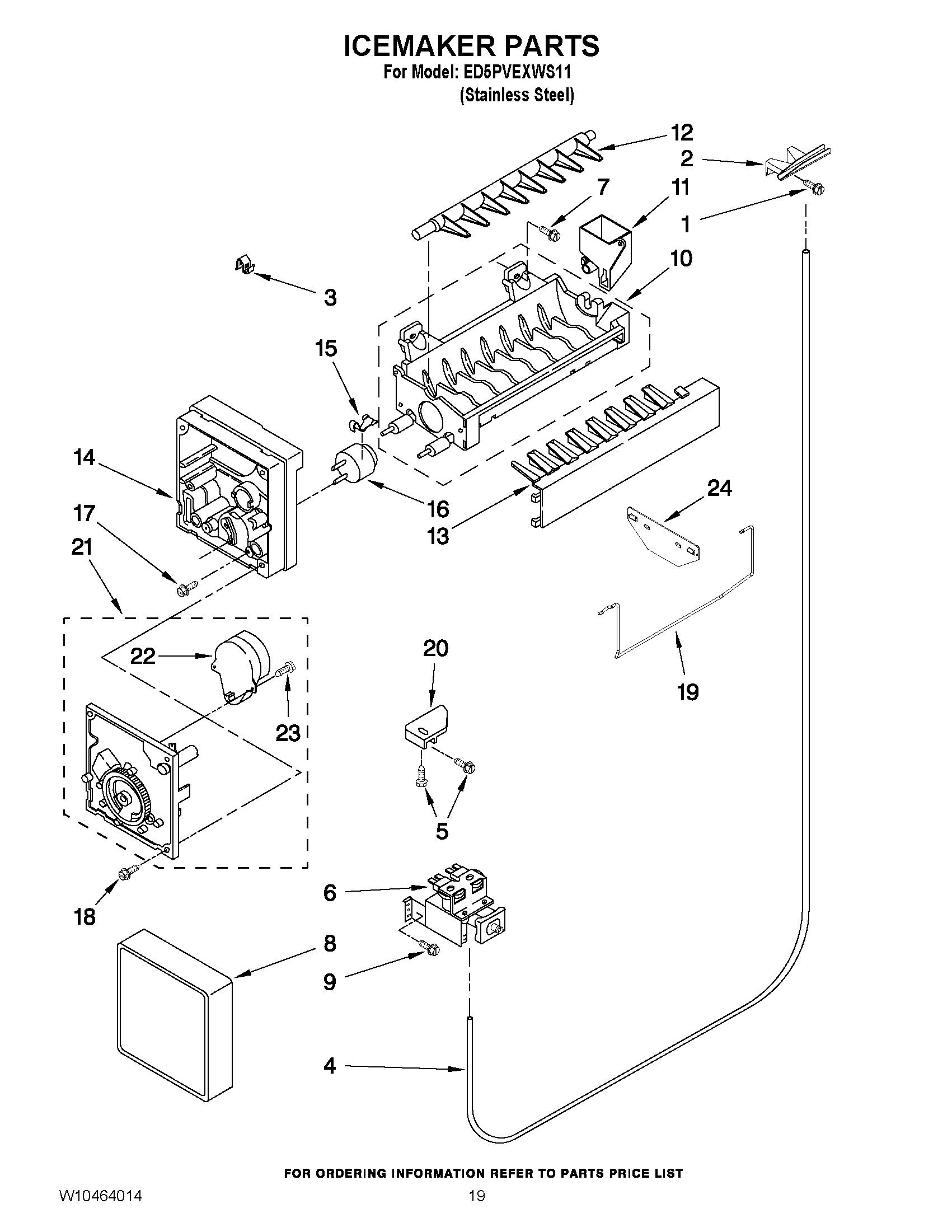

12 - ICEMAKER PARTS
01 - CABINET PARTS
03 - REFRIGERATOR SHELF PARTS
02 - REFRIGERATOR LINER PARTS
04 - FREEZER LINER PARTS
06 - REFRIGERATOR DOOR PARTS
07 - FREEZER DOOR PARTS
09 - UNIT PARTS
08 - DISPENSER FRONT PARTS
10 - AIR FLOW PARTS
11 - CONTROL PARTS
13 - OPTIONAL PARTS (NOT INCLUDED)
Common parts from model Whirlpool ED5PVEXWS11 REFRIGERATOR
1
BRACKET, MOTOR WPL W10304376 Contact Us For Availability
1
CONTROL BOX WPL W10159858 Contact Us For Availability
2
RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability
2
Mounting Bracket WPL 2311611 Contact Us For Availability
6
Screw WPL W10141518 Contact Us For Availability
7
Air Diffuser Cover WPL 2152019 Contact Us For Availability
9
HINGE, TOP (RC) WPL W10242649 Contact Us For Availability
10
SHELF, WIRE WPL W10318946 Contact Us For Availability
11
Cup, Water Fill WPL W10122561 Contact Us For Availability
11
BRACKET, DOOR STOP WPL W10219812 Contact Us For Availability
12
TUBE, SUCTION WPL 2205765 Contact Us For Availability
13
Lamp Holder WPL 2180200 Contact Us For Availability
13
HINGE, BOTTOM WPL W10138965 Contact Us For Availability
14
BLADE, ROTARY WPL W10278731 Contact Us For Availability
14
Screw WPL W10191952 Contact Us For Availability
14
CLIP, CONTROL BOX WPL 2311612 Contact Us For Availability
14
Pivot Arm WPL 1110559 Contact Us For Availability
15
BLADE, ROTARY WPL W10278732 Contact Us For Availability
15
Knob, Air Control WPL 2311615 Contact Us For Availability
16
BLADE, ROTARY WPL W10278733 Contact Us For Availability
16
Clamp WPL 2161324 Contact Us For Availability
17
Screw WPL 8533917 Contact Us For Availability
19
BLOCK BLADE WPL 2157405 Contact Us For Availability
19
CONTROL BOX HARNESS WPL W10354806 Contact Us For Availability
20
Roll Pin WPL 489229 Contact Us For Availability
20
Stud, Rear WPL 2196207 Contact Us For Availability
22
Connecting Rod WPL 2311631 Contact Us For Availability
23
Fastener, Push-On WPL 489285 Contact Us For Availability
23
SCREW WPL 489136 Contact Us For Availability
24
Spacer, Switch WPL 625834 Contact Us For Availability
25
COVER, LIGHT LENS WPL 2200096 Contact Us For Availability
26
Spring, Return WPL 1119020 Contact Us For Availability
27
Retainer Clip, Rod WPL 1119021 Contact Us For Availability
29
HOUSING, WATER FILTER WPL W10121143 Contact Us For Availability
31
Washer, Plain WPL 489234 Contact Us For Availability
34
Unit Mounting Rail WPL W10196313 Contact Us For Availability
36
TUBE, FILTER INLET WPL W10281289 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. WHITE) WPL 72017 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ. WHITE) WPL 350930 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2OZ. BLACK) WPL 72032 Contact Us For Availability
NI
VALVE, ACCESS (3/16``) WPL 876764 Contact Us For Availability
NI
SEALER, GUM (4 FEET) WPL 212643 Contact Us For Availability
NI
Valve, Access (5/16``) WPL 978026 Contact Us For Availability
NI
Valve, Access (3/8``) WPL 978027 Contact Us For Availability
NI
PAINT, TOUCH-UP (1/2oz.) (Graphite) WPL 80051 Contact Us For Availability
NI
VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability
NI
VALVE, ACCESS (3/4``) WPL 978030 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 oz.) (Graphite) WPL 8171357 Contact Us For Availability
NI
Kit, Terminal Connector WPL 833938 Contact Us For Availability
NI
PAINT, PRESSURIZED SPRAY (12 OZ.) (PRIMER, WH WPL 350942 Contact Us For Availability
NI
TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability
NI
PAINT, BULK (1 QT. WHITE) WPL 799344 Contact Us For Availability
NI
Torx Key WPL 1117510 Contact Us For Availability
× ![]()
