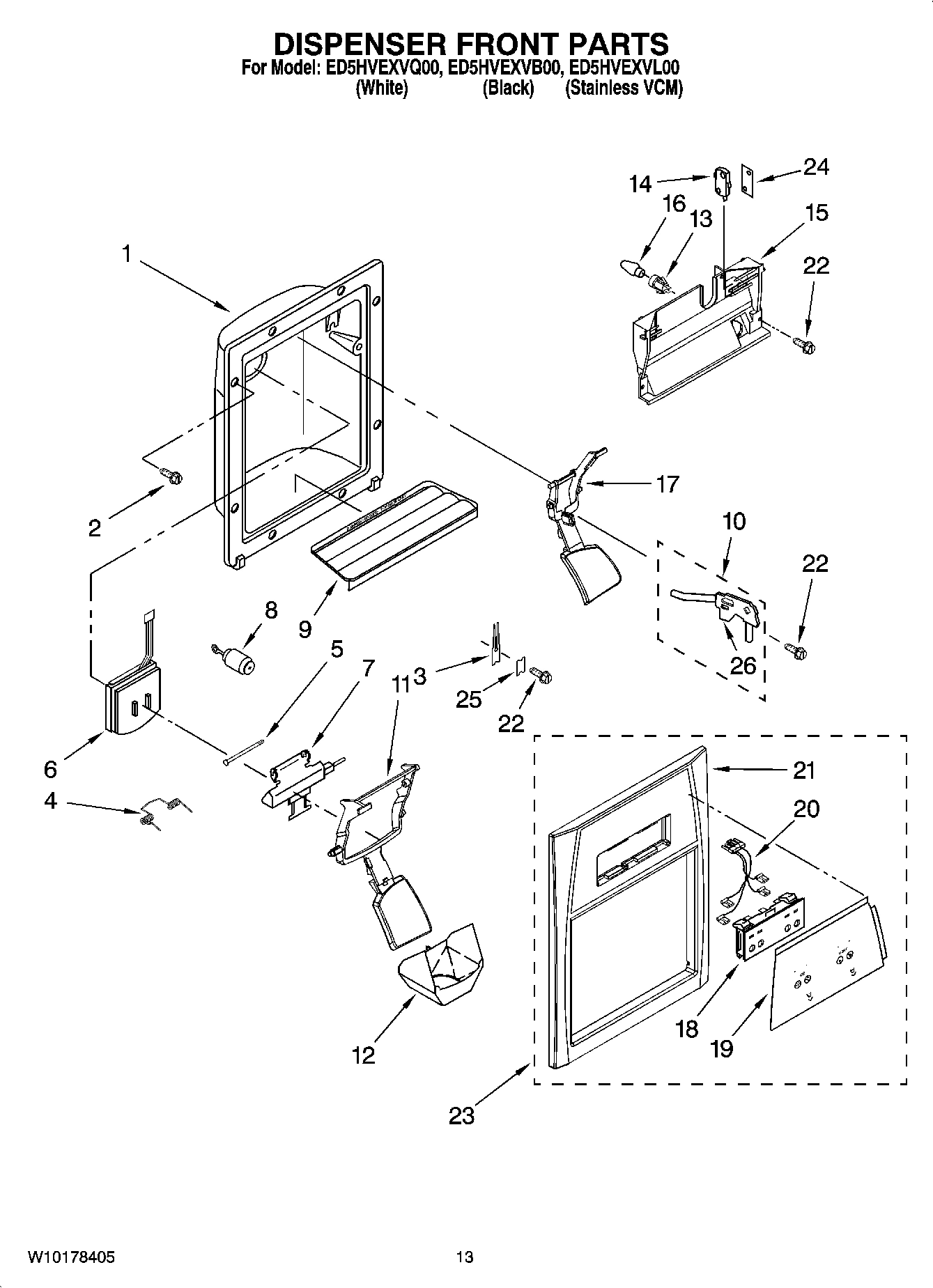

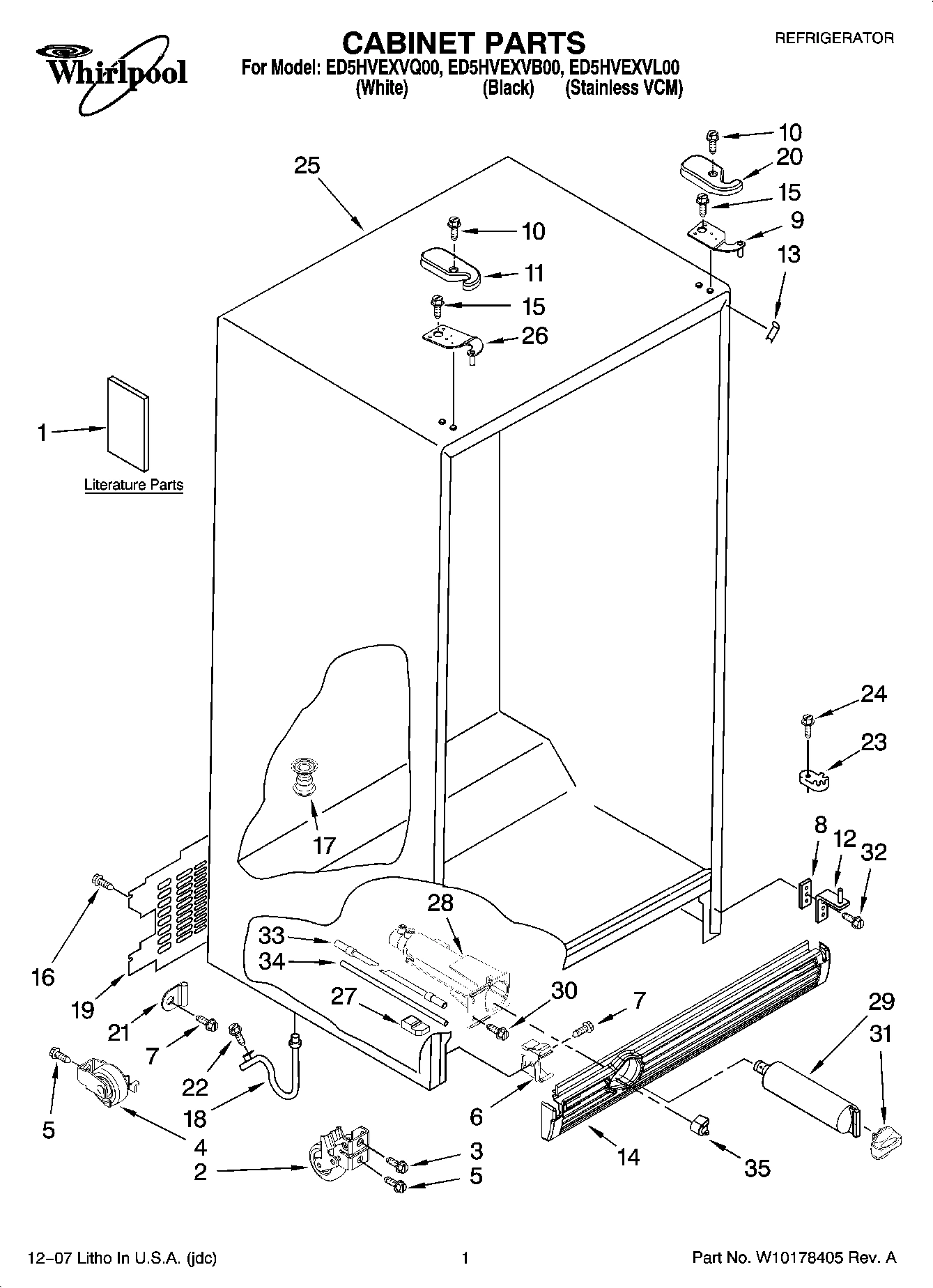

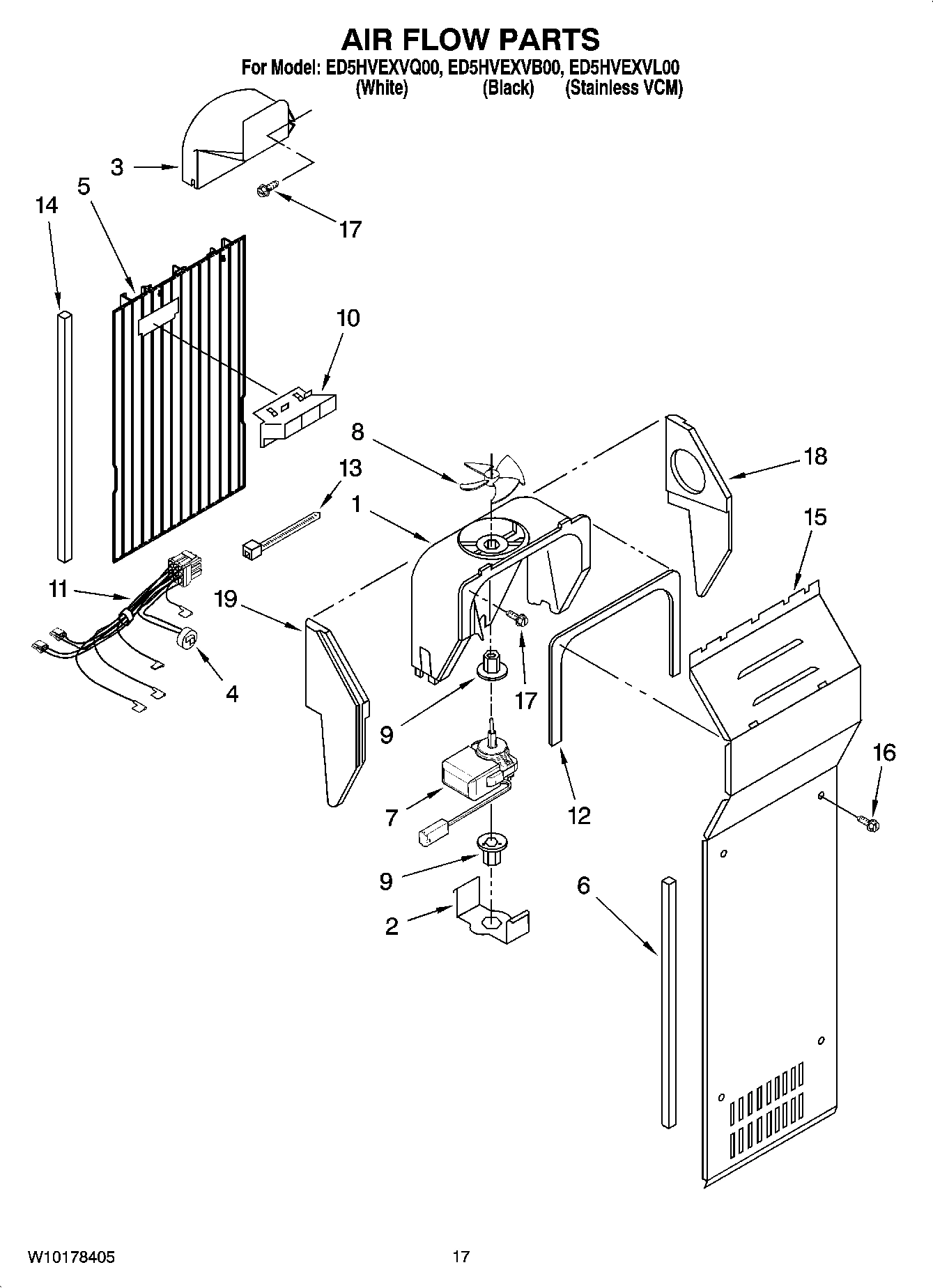

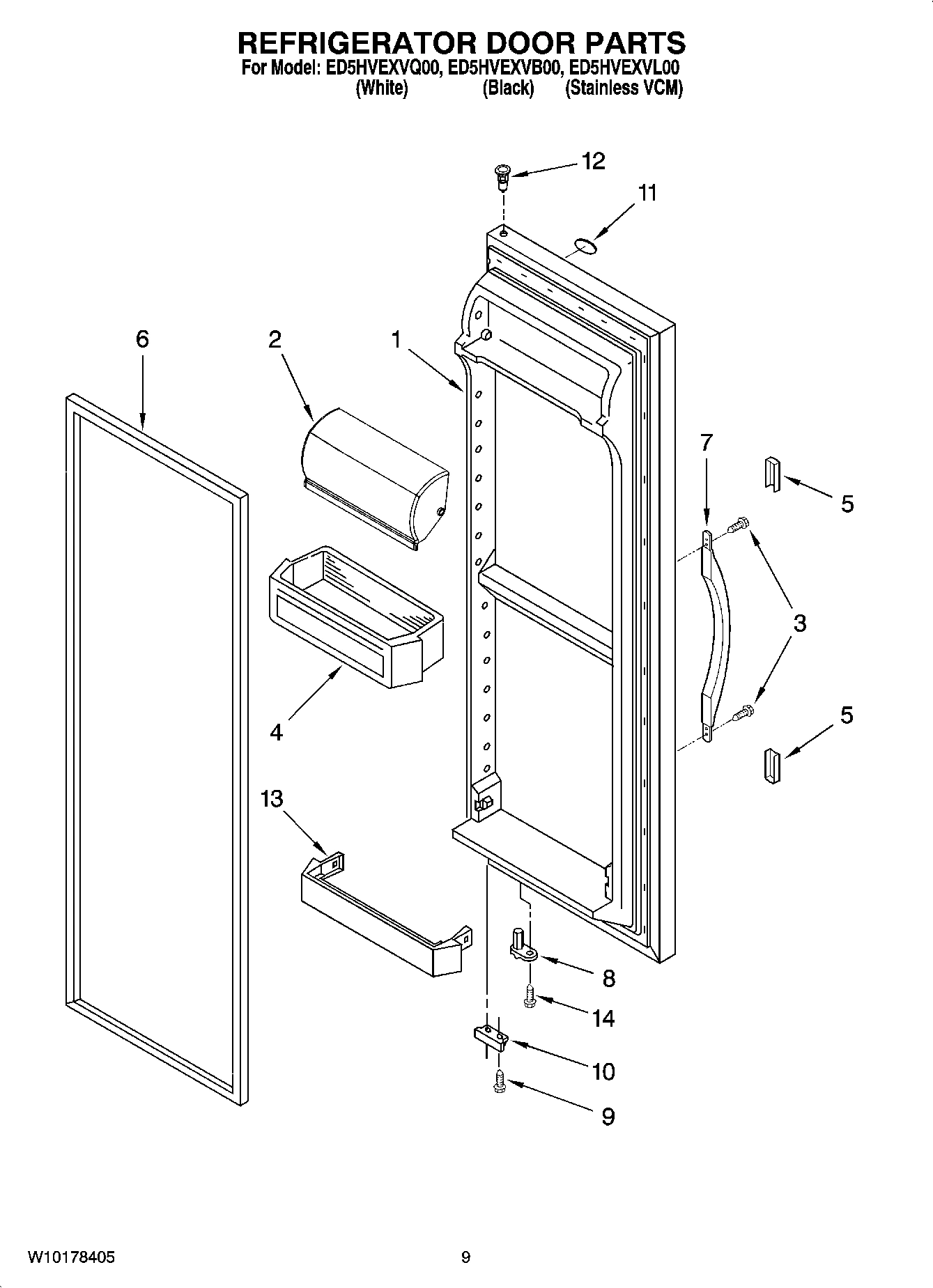

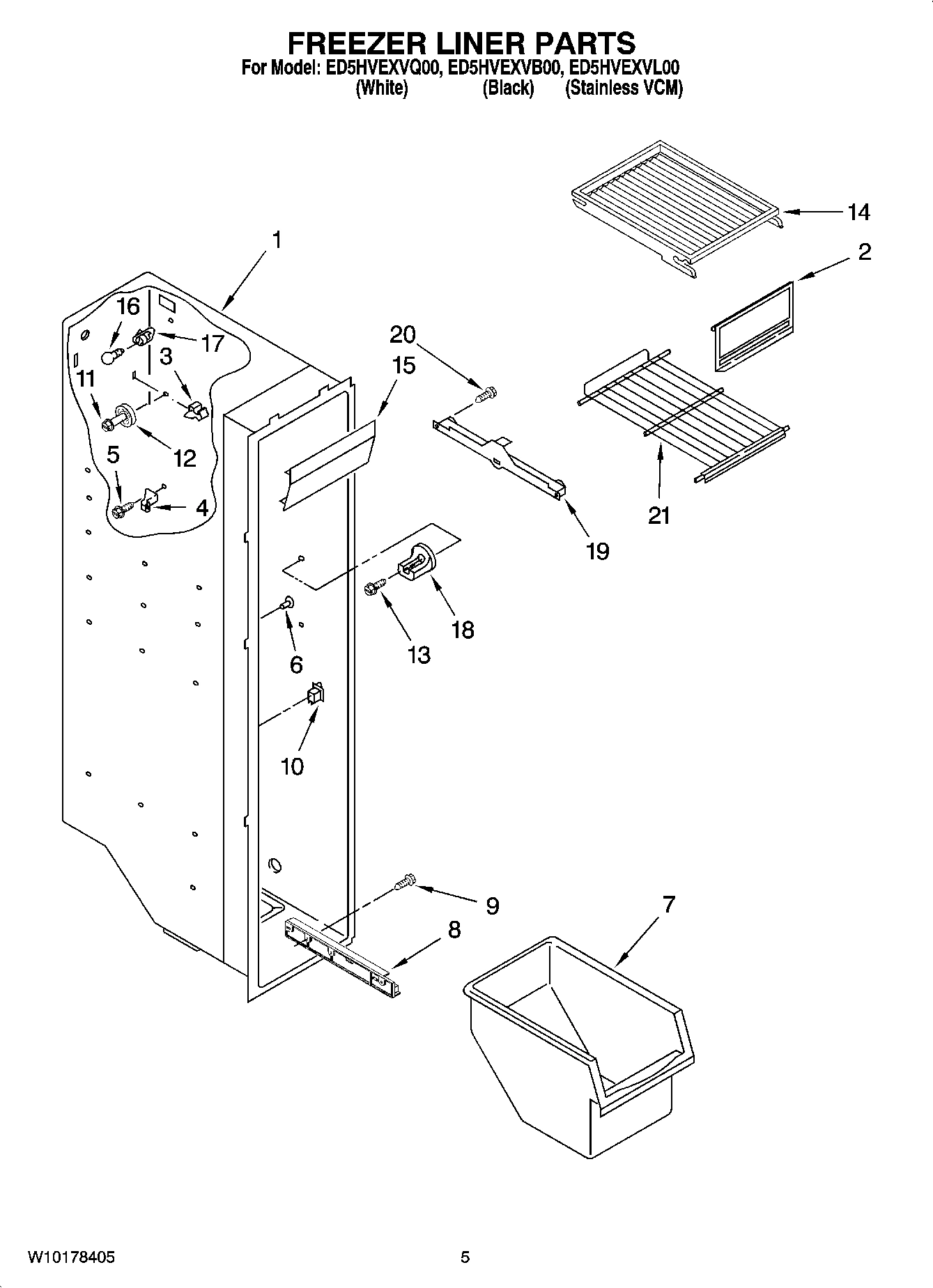

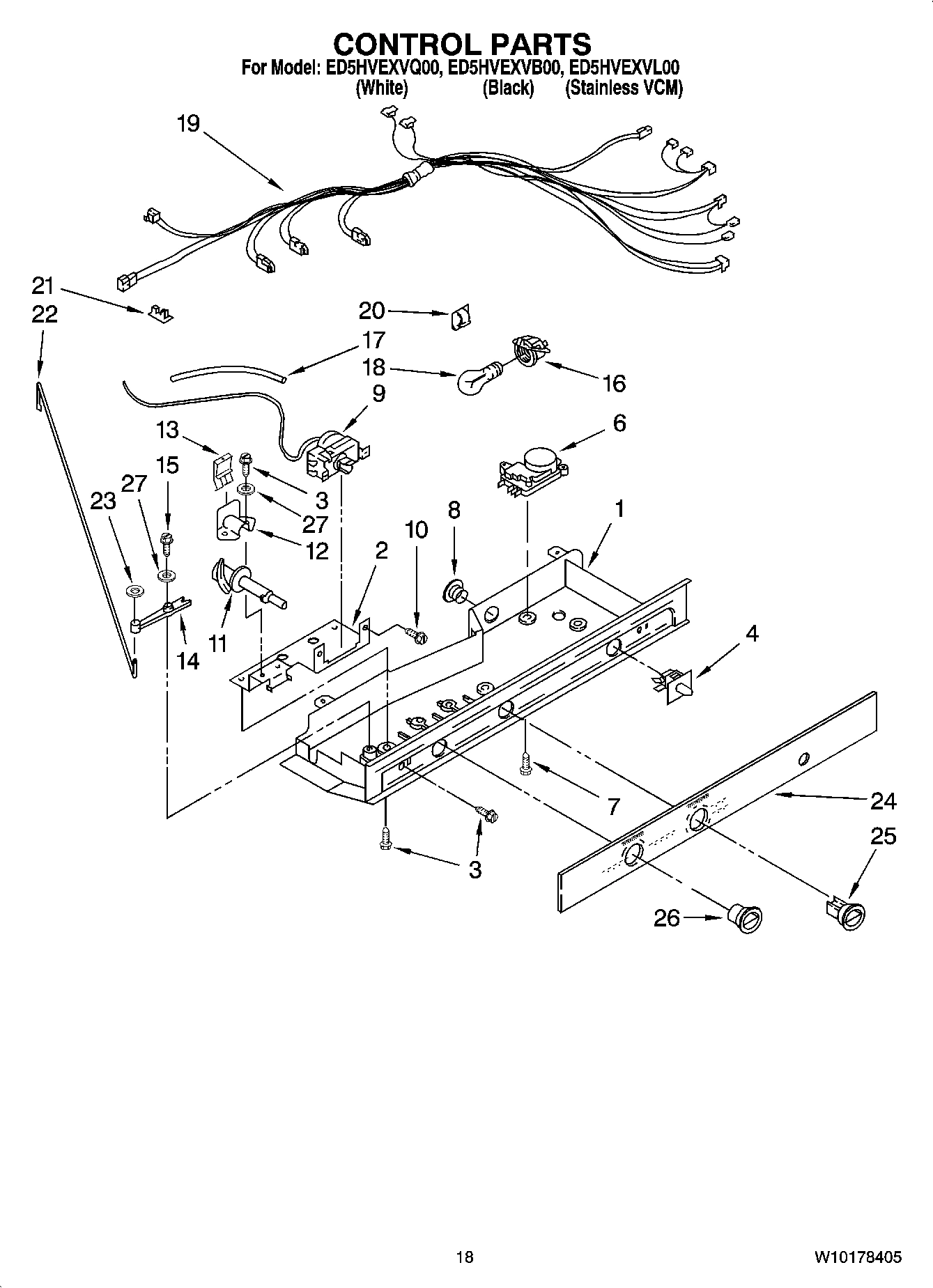

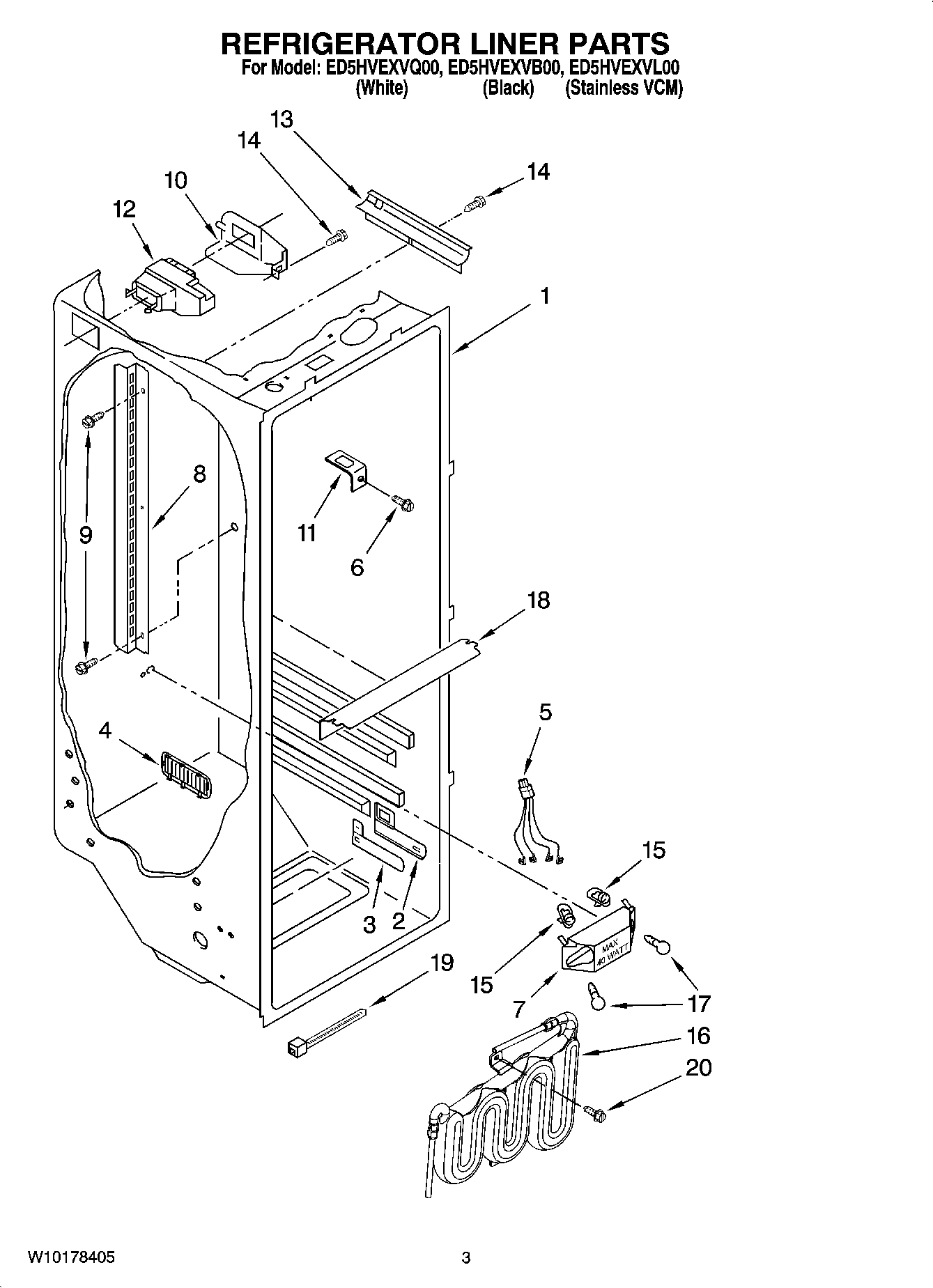

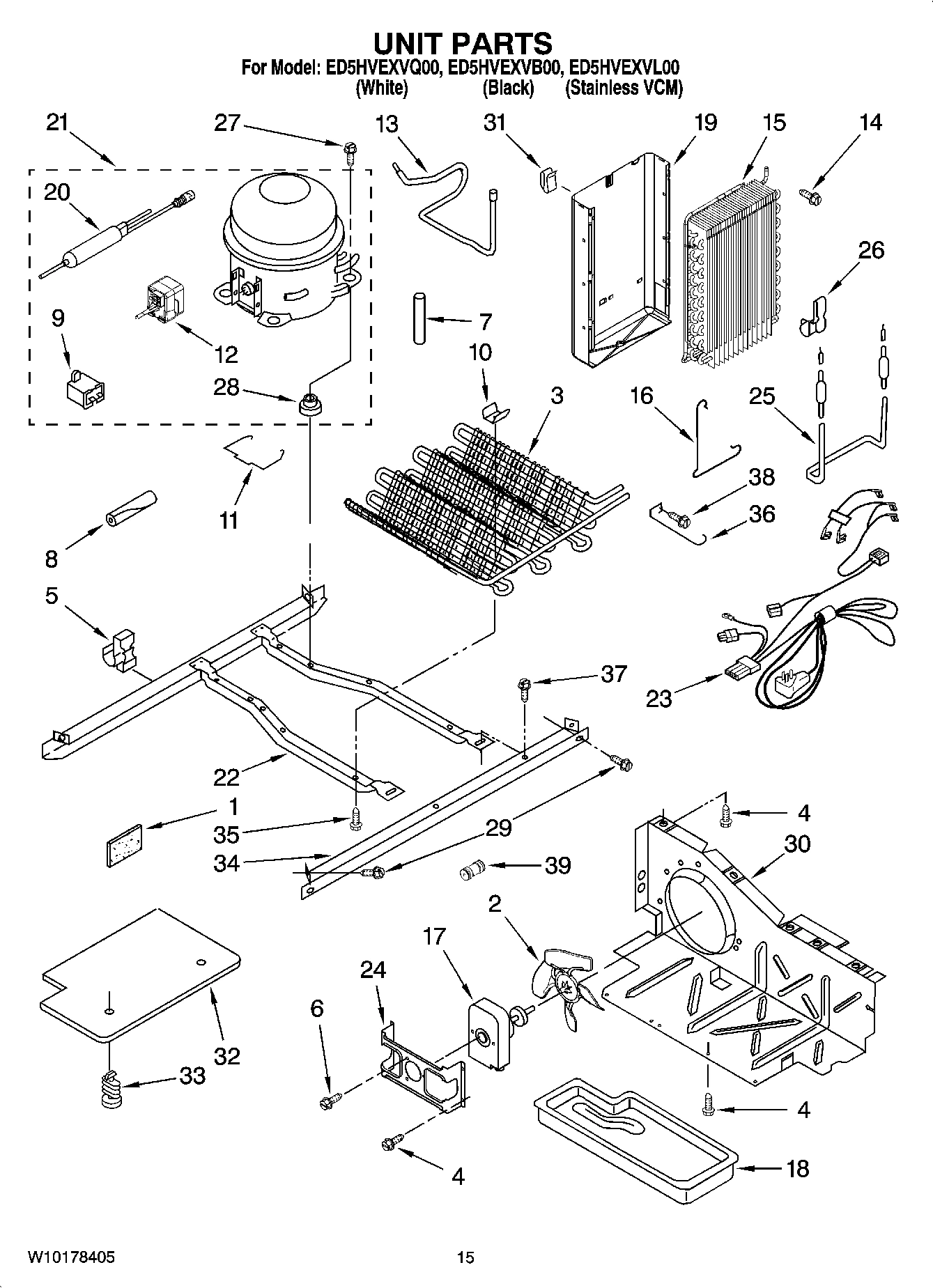

Model Whirlpool ED5HVEXVQ00 REFRIGERATOR – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.12

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $27.52

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.51

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $33.93

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.17

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $27.19

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

1

WP2182120 Whirlpool Refrigerator Scroll Fan Backorder WPL WP2182120 $34.61

1

Control Box WPL 2200137 Contact Us For Availability

1

Liner (Not A Seviceable Part) WPL ARI35526A7 Contact Us For Availability

1

REFRIGERATOR DOOR (INCLUDES ITEM 6) )(BLACK) WPL 2206825B Contact Us For Availability

1

Refrigerator Door (Includes Item 6) (Stainles WPL 2206825LG Contact Us For Availability

1

REFRIGERATOR DOOR (INCLUDES ITEM 6) )(WHITE) WPL 2206825W Contact Us For Availability

2

2194744 Whirlpool Refrigerator Escutcheon Backorder WPL 2194744 $30.25

2

W11505385 Whirlpool Refrigerator Chute In Stock WPL W11505385 $9.89

2

WP2171713 Whirlpool Refrigerator Ice Door Backorder WPL WP2171713 $43.13

2

WP2256101 Whirlpool Dairy Door In Stock WPL WP2256101 $69.06

2

Handle, Center (Black) WPL 2186649B Contact Us For Availability

2

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

2

Mounting Bracket WPL 1110629 Contact Us For Availability

2

Handle, Center (White) WPL 2186649W Contact Us For Availability

3

2215823 Whirlpool Refrigerator Clip Backorder WPL 2215823 $4.61

3

WP2152713 Whirlpool Refrigerator Solenoid In Stock WPL WP2152713 $100.42

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

3

WP3196557 Whirlpool Screw In Stock WPL WP3196557 $2.51

3

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

3

SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability

4

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $28.49

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $23.46

4

WP2187172 Whirlpool Refrigerator Door Shelf B In Stock WPL WP2187172 $24.03

4

WP489491 Whirlpool Refrigerator Screw Backorder WPL WP489491 $2.51

4

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $19.51

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

5

WP2193353W Whirlpool Refrigerator Trim Handle In Stock WPL WP2193353W $3.70

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $7.69

5

Extension, Handle Top (Black) WPL 2193353B Contact Us For Availability

6

2159075 Whirlpool Door Gasket Seal In Stock WPL 2159075 $157.17

6

2159083 Whirlpool Gasket Door In Stock WPL 2159083 $142.79

6

2313199 Whirlpool Refrigerator Door Trim Backorder WPL 2313199 $34.93

6

W10822278 Whirlpool Defrost Timer In Stock WPL W10822278 $17.41

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

6

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $7.21

6

WP2188661 Whirlpool Crisper Pan In Stock WPL WP2188661 $94.79

6

Grommet WPL 2176134 Contact Us For Availability

7

489392 Whirlpool Refrigerator Screw Backorder WPL 489392 $9.59

7

WP2182971 Whirlpool Refrigerator Freezer Bin Backorder WPL WP2182971 $75.48

7

WP2315549 Whirlpool Refrigerator Evaporator M In Stock WPL WP2315549 $141.58

8

940014 Whirlpool Refrigerator Primary Button Backorder WPL 940014 $10.25

8

W11223328 Whirlpool Refrigerator Shelf Stud In Stock WPL W11223328 $9.59

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $27.11

8

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $3.39

8

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $2.51

8

Shelf Ladder WPL 2319866 Contact Us For Availability

8

Slide, Basket (Left Side) WPL 2261448 Contact Us For Availability

8

SLIDE, BASKET (RIGHT, SIDE) WPL 2261449 Contact Us For Availability

9

W10759522 Whirlpool Screw Backorder WPL W10759522 $2.51

9

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

9

WP2198202 Whirlpool Refrigerator Temperature In Stock WPL WP2198202 $45.43

9

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $33.75

9

WP2206670B Whirlpool Dispenser Tray In Stock WPL WP2206670B $20.18

9

WP2206670W Whirlpool Dispenser Tray In Stock WPL WP2206670W $30.46

9

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

9

WPW10169511 Whirlpool Refrigerator Coupling In Stock WPL WPW10169511 $19.95

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $34.62

2182146 Whirlpool Refrigerator Duct Backorder WPL 2182146 $34.44

W11457217 Whirlpool Refrigerator Rocker Switc In Stock WPL W11457217 $14.86

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $4.58

WP965173 Whirlpool Dishwasher Screw Backorder WPL WP965173 $2.64

WP2182195 Whirlpool Refrigerator Cam Backorder WPL WP2182195 $5.14

WP2203407B Whirlpool Refrigerator Cover Backorder WPL WP2203407B $12.81

WP2203407W Whirlpool Refrigerator Cover Backorder WPL WP2203407W $11.51

WP2213265 Whirlpool Refrigerator Nameplate Backorder WPL WP2213265 $39.71

WP3400806 Whirlpool Screw In Stock WPL WP3400806 $2.51

WPW10152853 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152853 $35.83

WPW10152854 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152854 $26.52

1110560 Whirlpool Refrigerator Bearing Backorder WPL 1110560 $4.72

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $123.54

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $6.95

WP2196483 Whirlpool Refrigerator Shelf Stud In Stock WPL WP2196483 $4.34

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $30.25

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $32.98

W10142289 Whirlpool Air Conditioner Screw Backorder WPL W10142289 $5.16

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

WP2156022 Whirlpool Refrigerator Door Trim In Stock WPL WP2156022 $44.91

WP2182124 Whirlpool Refrigerator Stripper Arm Backorder WPL WP2182124 $28.15

WP2196062 Whirlpool Refrigerator Clip Backorder WPL WP2196062 $4.59

TUBE, SUCTION WPL 2205765 Contact Us For Availability

Filler, Wrapper (White) WPL 2304846 Contact Us For Availability

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $8.80

WP2206629B Whirlpool Refrigerator Bracket Backorder WPL WP2206629B $13.80

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $2.51

Pivot Arm WPL 1110559 Contact Us For Availability

Shelf, Top Compartment WPL 2171714K Contact Us For Availability

15

2171705 Whirlpool Refrigerator Light Lens Backorder WPL 2171705 $35.14

15

627068 Whirlpool Refrigerator Screw Backorder WPL 627068 $7.52

15

WP2188823 Whirlpool Refrigerator Evaporator In Stock WPL WP2188823 $192.85

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.89

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $31.82

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $3.88

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

Clamp WPL 2161324 Contact Us For Availability

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $32.34

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

W11566763 Whirlpool Fitting In Stock WPL W11566763 $19.82

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $10.76

WP2196003 Whirlpool Refrigerator Bar Riser Backorder WPL WP2196003 $3.70

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

WPW10152858 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152858 $45.45

WPW10152859 Whirlpool Refrigerator Dispenser Backorder WPL WPW10152859 $34.13

18

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

18

Extension Tube WPL 2304937 Contact Us For Availability

18

Stud, Rear WPL 2196207 Contact Us For Availability

2311636 Whirlpool Refrigerator Wire Harness Backorder WPL 2311636 $130.51

W10845583 Whirlpool Refrigerator Track Backorder WPL W10845583 $48.66

W10845585 Whirlpool Refrigerator Track Backorder WPL W10845585 $53.53

W11342242 Whirlpool Refrigerator Ice Level Ar In Stock WPL W11342242 $36.79

2157405 Whirlpool Refrigerator Blade Block Backorder WPL 2157405 $10.76

718257 Whirlpool Dishwasher Screw Backorder WPL 718257 $9.59

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $12.32

WP1115374 Whirlpool Refrigerator Clip Backorder WPL WP1115374 $2.51

WP2203408B Whirlpool Refrigerator Cover Backorder WPL WP2203408B $12.65

WP2203408W Whirlpool Refrigerator Cover Backorder WPL WP2203408W $11.66

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $28.47

WP2174267 Whirlpool Refrigerator Wire Shelf Backorder WPL WP2174267 $49.56

Shelf (2) WPL 2174268K Contact Us For Availability

CLIP, WIRING WPL 1115375 Contact Us For Availability

22

Connecting Rod WPL 1123960 Contact Us For Availability

23

Fastener, Push-On WPL 489285 Contact Us For Availability

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

W10852691 Whirlpool Refrigerator Baffle Backorder WPL W10852691 $13.16

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

Spacer, Switch (2) WPL 625834 Contact Us For Availability

Escutcheon, Control Box WPL W10127398 Contact Us For Availability

2182111 Whirlpool Refrigerator Thermal Knob Backorder WPL 2182111 $9.53

WP1119018 Whirlpool Refrigerator Bearing Backorder WPL WP1119018 $3.70

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

WP2323198 Whirlpool Refrigerator Heater In Stock WPL WP2323198 $30.17

W11596045 Whirlpool Refrigerator Control Arm In Stock WPL W11596045 $12.11

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $31.66

WP2304673 Whirlpool Refrigerator Bracket Backorder WPL WP2304673 $6.35

Knob, Air Control WPL 2197871 Contact Us For Availability

27

1119020 Whirlpool Refrigerator Spring Backorder WPL 1119020 $6.09

27

489203 Whirlpool Refrigerator Washer Backorder WPL 489203 $4.36

28

1119021 Whirlpool Refrigerator Clip Backorder WPL 1119021 $4.63

30

W10896764 Whirlpool Refrigerator Air Baffle In Stock WPL W10896764 $37.92

30

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $2.51

31

WP1119017 Whirlpool Refrigerator Deflector Backorder WPL WP1119017 $3.70

31

Clip, Heat Shield WPL 2155547 Contact Us For Availability

32

489234 Whirlpool Refrigerator Washer Backorder WPL 489234 $9.59

32

Unit Cover, Bottom WPL 2304899 Contact Us For Availability

33

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

33

WP489236 Whirlpool Refrigerator Ring In Stock WPL WP489236 $5.09

34

2305374 Whirlpool Refrigerator Unit Rail Backorder WPL 2305374 $27.52

35

2260503W Whirlpool Refrigerator Button Backorder WPL 2260503W $13.30

35

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

36

2260517 Whirlpool Fan Guard Backorder WPL 2260517 $27.52

36

WP2171706 Whirlpool Refrigerator Light Lens Backorder WPL WP2171706 $31.73

37

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

38

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59

39

WPW10334458 Whirlpool Refrigerator Connector Backorder WPL WPW10334458 $8.62
