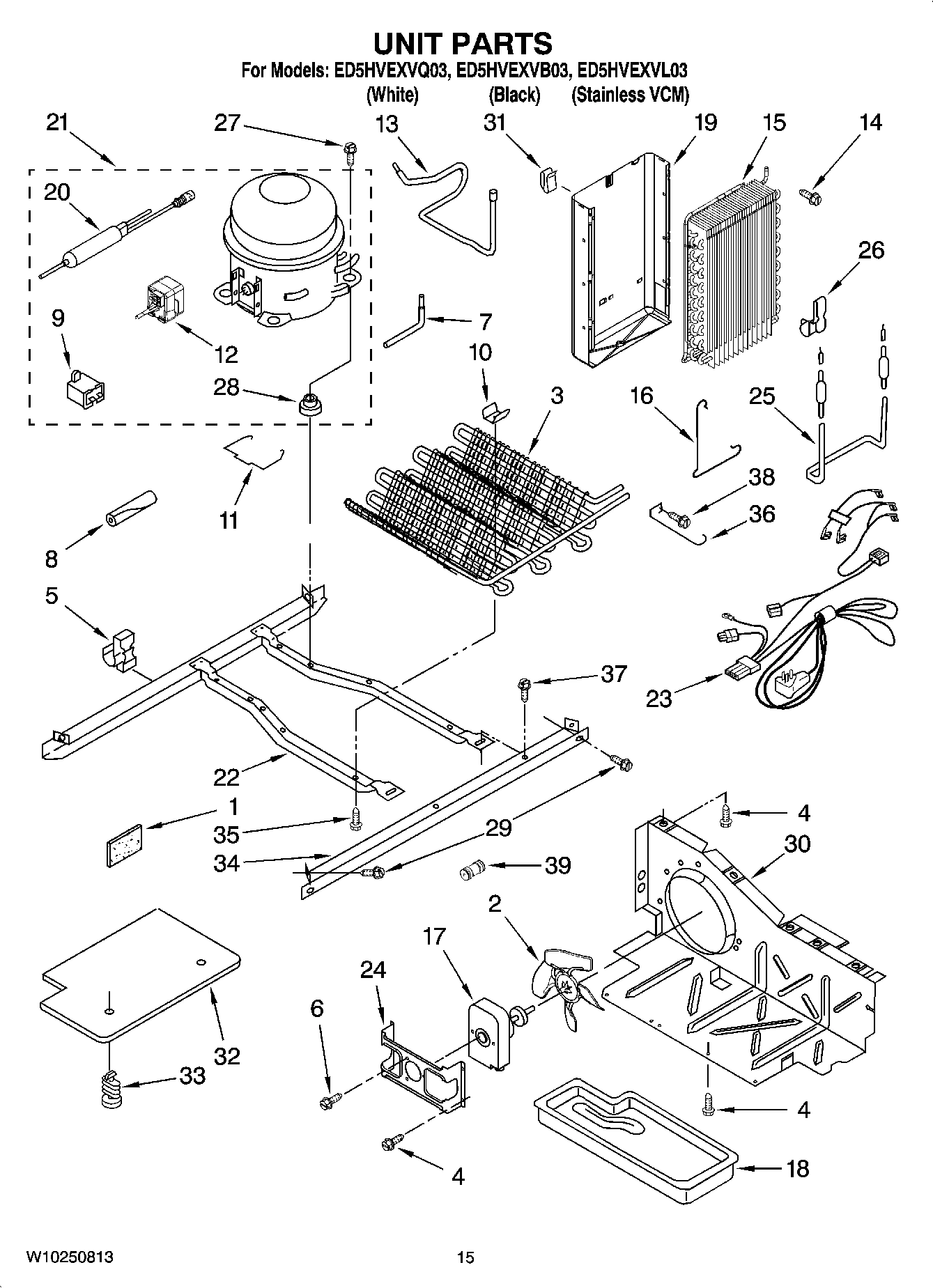

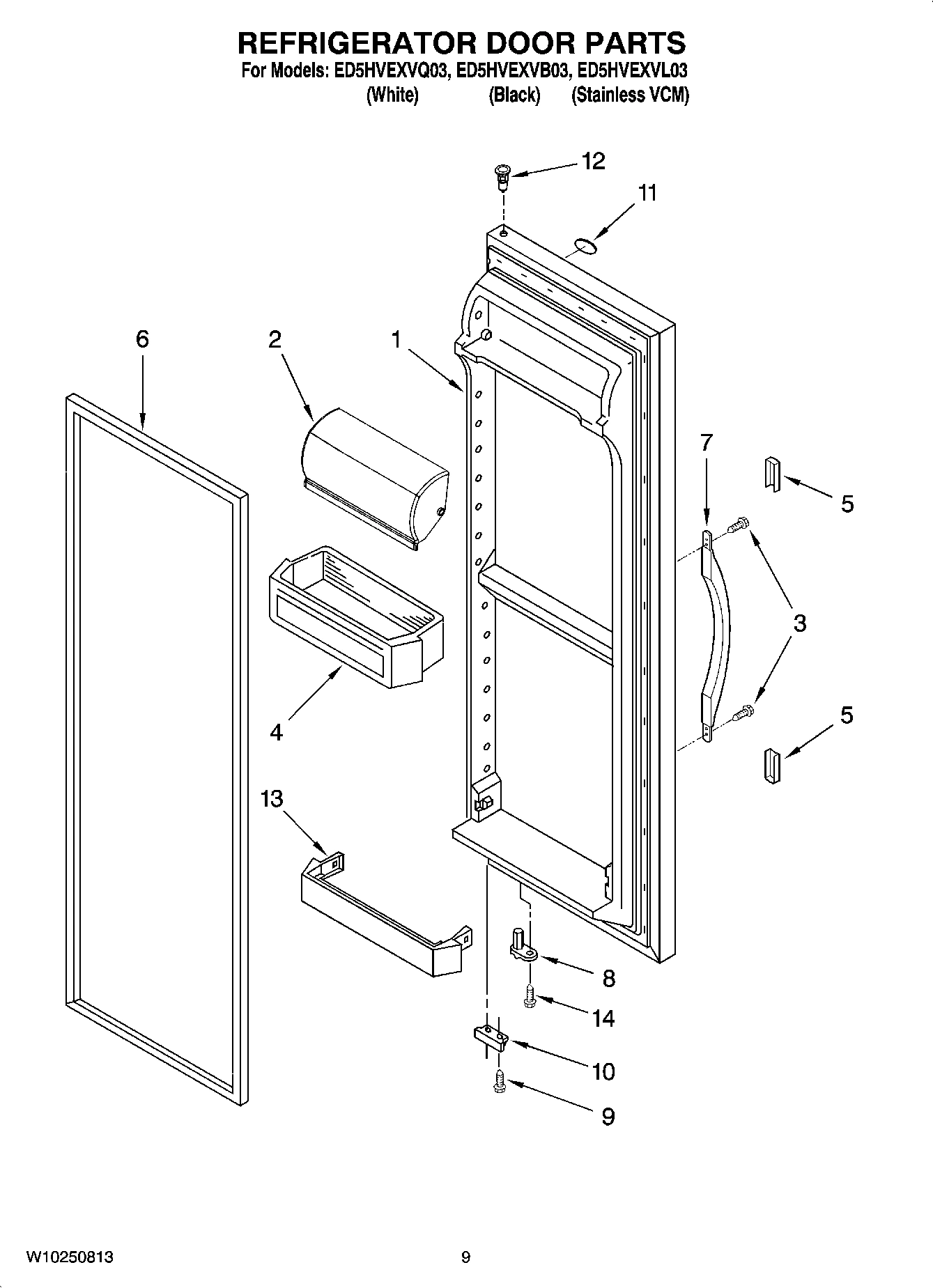

Model Whirlpool ED5HVEXVB03 REFRIGERATOR – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $13.94

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $27.52

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $4.25

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $15.46

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $23.44

978026 Whirlpool Refrigerator Primary Valve In Stock WPL 978026 $34.75

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $35.65

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $37.30

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $41.14

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $60.73

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $23.99

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $28.02

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Enamel, White (1 Qt. Uncut) WPL 799344 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

1

WP2182120 Whirlpool Refrigerator Scroll Fan Backorder WPL WP2182120 $34.61

1

Liner (Not A Seviceable Part) WPL ARI35451A1 Contact Us For Availability

1

INSTRUCTION SHEET, DOOR REMOVAL WPL 2216001 Contact Us For Availability

1

Modular Icemaker Service Sheet WPL 628370 Contact Us For Availability

1

Use & Care Guide WPL W10193160 Contact Us For Availability

1

Energy Guide WPL W10194139 Contact Us For Availability

1

Service & Wiring Sheet WPL W10207728 Contact Us For Availability

1

Shelf, Cantilever WPL W10141749 Contact Us For Availability

2

W10508993 Whirlpool Refrigerator Cover Pan In Stock WPL W10508993 $120.22

2

W11505385 Whirlpool Refrigerator Chute In Stock WPL W11505385 $9.89

2

WP2171713 Whirlpool Refrigerator Ice Door Backorder WPL WP2171713 $43.13

2

WP2256101 Whirlpool Dairy Door In Stock WPL WP2256101 $69.06

2

RETAINER, FAN MOTOR WPL 2155590 Contact Us For Availability

2

Mounting Bracket WPL 1110629 Contact Us For Availability

2

Front Roller (2) WPL 2174748 Contact Us For Availability

3

2215823 Whirlpool Refrigerator Clip Backorder WPL 2215823 $4.61

3

W10803597 Whirlpool Refrigerator Air Scoop Backorder WPL W10803597 $34.51

3

W10850698 Whirlpool Refrigerator Screw Backorder WPL W10850698 $4.72

3

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $123.54

3

WP2152713 Whirlpool Refrigerator Solenoid In Stock WPL WP2152713 $101.23

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

3

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

3

SLIDE MEAT PAN CONTROL WPL 2182757 Contact Us For Availability

4

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $28.49

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $24.28

4

WP489491 Whirlpool Refrigerator Screw Backorder WPL WP489491 $2.51

4

WPW10224328 Whirlpool Refrigerator Spring In Stock WPL WPW10224328 $33.21

4

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $20.33

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $8.51

5

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

5

Endcap, Handle (White) WPL 2194272W Contact Us For Availability

6

2313199 Whirlpool Refrigerator Door Trim Backorder WPL 2313199 $34.93

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $4.52

6

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $8.03

6

WP2188661 Whirlpool Crisper Pan In Stock WPL WP2188661 $95.60

6

WP488488 Whirlpool Refrigerator Screw Backorder WPL WP488488 $3.70

6

Grommet WPL 2176134 Contact Us For Availability

7

WP2182971 Whirlpool Refrigerator Freezer Bin Backorder WPL WP2182971 $75.48

7

WP2188664 Whirlpool Refrigerator Meat Crisper In Stock WPL WP2188664 $59.81

7

WP489478 Whirlpool Refrigerator Screw Backorder WPL WP489478 $2.51

8

W11223328 Whirlpool Refrigerator Shelf Stud In Stock WPL W11223328 $10.41

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $27.11

8

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $3.33

8

Shelf Ladder WPL 2319866 Contact Us For Availability

8

Slide, Basket (Left Side) WPL 2261448 Contact Us For Availability

8

SLIDE, BASKET (RIGHT, SIDE) WPL 2261449 Contact Us For Availability

9

W10759522 Whirlpool Screw Backorder WPL W10759522 $2.51

9

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $4.52

9

WP2198202 Whirlpool Refrigerator Temperature In Stock WPL WP2198202 $46.16

9

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $34.57

9

WP2206670B Whirlpool Dispenser Tray In Stock WPL WP2206670B $21.01

9

WP2206670W Whirlpool Dispenser Tray In Stock WPL WP2206670W $30.46

9

WP3-24004-109 Whirlpool Refrigerator Screw Backorder WPL WP3-24004-109 $2.51

9

WPW10169511 Whirlpool Refrigerator Coupling In Stock WPL WPW10169511 $19.95

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $34.62

2182146 Whirlpool Refrigerator Duct Backorder WPL 2182146 $34.44

W11457217 Whirlpool Refrigerator Rocker Switc In Stock WPL W11457217 $15.68

WP8281227 Whirlpool Screw In Stock WPL WP8281227 $4.58

W10122561 Whirlpool Refrigerator Cup Fill In Stock WPL W10122561 $10.21

W11234406 Whirlpool Refrigerator Wire Harness Backorder WPL W11234406 $60.47

W11661170 Whirlpool Clip Backorder WPL W11661170 $4.39

WP2182195 Whirlpool Refrigerator Cam Backorder WPL WP2182195 $5.14

WP2203407B Whirlpool Refrigerator Cover Backorder WPL WP2203407B $12.81

WP2203407W Whirlpool Refrigerator Cover Backorder WPL WP2203407W $11.51

WP2213265 Whirlpool Refrigerator Nameplate Backorder WPL WP2213265 $39.71

WP2256085 Whirlpool Refrigerator Retainer Backorder WPL WP2256085 $13.73

WP3400806 Whirlpool Screw In Stock WPL WP3400806 $3.33

WPW10152853 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152853 $36.65

WPW10152854 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152854 $26.52

1110560 Whirlpool Refrigerator Bearing Backorder WPL 1110560 $4.72

W10138965 Whirlpool Refrigerator Door Hinge Backorder WPL W10138965 $31.29

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $7.78

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $4.21

WP2196483 Whirlpool Refrigerator Shelf Stud In Stock WPL WP2196483 $4.34

WP627843 Whirlpool Refrigerator Ejector Arm In Stock WPL WP627843 $30.25

WPW10151374 Whirlpool Refrigerator Diffuser In Stock WPL WPW10151374 $50.99

WPW10189190 Whirlpool Start Device In Stock WPL WPW10189190 $68.49

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $32.98

W10142289 Whirlpool Air Conditioner Screw Backorder WPL W10142289 $5.16

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

WP2156022 Whirlpool Refrigerator Door Trim In Stock WPL WP2156022 $44.91

WPW10122563 Whirlpool Refrigerator Stripper A Backorder WPL WPW10122563 $34.31

Filler, Wrapper (White) WPL 2304846 Contact Us For Availability

Filler, Wrapper (Black) WPL 2304848 Contact Us For Availability

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $9.63

WP2206629B Whirlpool Refrigerator Bracket Backorder WPL WP2206629B $13.80

WP3400012 Whirlpool Refrigerator Screw In Stock WPL WP3400012 $2.51

WPW10311032 Whirlpool Refrigerator Grille Backorder WPL WPW10311032 $61.29

WPW10311033 Whirlpool Refrigerator Grille Backorder WPL WPW10311033 $78.41

Pivot Arm WPL 1110559 Contact Us For Availability

Shelf, Top Compartment WPL 2171714K Contact Us For Availability

15

2171705 Whirlpool Refrigerator Light Lens Backorder WPL 2171705 $35.14

15

WP2188823 Whirlpool Refrigerator Evaporator In Stock WPL WP2188823 $192.85

15

WP489497 Whirlpool Screw In Stock WPL WP489497 $5.40

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $7.63

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $31.82

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $4.70

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $4.52

WPW10276792 Whirlpool Refrigerator Water Rese In Stock WPL WPW10276792 $63.59

Clamp WPL 2161324 Contact Us For Availability

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $33.16

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $10.41

W11566763 Whirlpool Fitting In Stock WPL W11566763 $20.64

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $10.76

WP2188874 Whirlpool Refrigerator Condenser Mo In Stock WPL WP2188874 $59.32

WPW10152858 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152858 $45.45

WPW10152859 Whirlpool Refrigerator Dispenser Backorder WPL WPW10152859 $34.13

W11239891 Whirlpool Refrigerator Light Lens Backorder WPL W11239891 $38.12

W11512417 Whirlpool Drain Connector In Stock WPL W11512417 $13.85

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

Stud, Rear WPL 2196207 Contact Us For Availability

W10845583 Whirlpool Refrigerator Track Backorder WPL W10845583 $48.66

W10845585 Whirlpool Refrigerator Track Backorder WPL W10845585 $53.53

W11342242 Whirlpool Refrigerator Ice Level Ar In Stock WPL W11342242 $36.79

WP2188755 Whirlpool Rear Panel In Stock WPL WP2188755 $71.98

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $3.33

2157405 Whirlpool Refrigerator Blade Block Backorder WPL 2157405 $10.76

718257 Whirlpool Dishwasher Screw Backorder WPL 718257 $9.59

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $13.14

WP2203408B Whirlpool Refrigerator Cover Backorder WPL WP2203408B $13.47

WP2203408W Whirlpool Refrigerator Cover Backorder WPL WP2203408W $11.66

Screw (2) WPL 488280 Contact Us For Availability

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $28.47

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94

WP2174267 Whirlpool Refrigerator Wire Shelf Backorder WPL WP2174267 $49.56

Shelf (2) WPL 2174268K Contact Us For Availability

22

NLA:SCREW Backorder WPL WPW10141645 $3.70

23

WPW10329686 Whirlpool Door Cam Black In Stock WPL WPW10329686 $4.21

23

Fastener, Push-On WPL 489285 Contact Us For Availability

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

W10852691 Whirlpool Refrigerator Baffle Backorder WPL W10852691 $13.16

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

WP489483 Whirlpool Screw In Stock WPL WP489483 $5.40

Spacer, Switch (2) WPL 625834 Contact Us For Availability

2182111 Whirlpool Refrigerator Thermal Knob Backorder WPL 2182111 $9.53

WP1119018 Whirlpool Refrigerator Bearing Backorder WPL WP1119018 $3.70

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

WP2323198 Whirlpool Refrigerator Heater In Stock WPL WP2323198 $30.17

Cabinet, (Not A Serviceable Part) WPL ARI35449A4 Contact Us For Availability

W11596045 Whirlpool Refrigerator Control Arm In Stock WPL W11596045 $12.94

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $31.66

WP2304673 Whirlpool Refrigerator Bracket Backorder WPL WP2304673 $6.35

Knob, Air Control WPL 2197871 Contact Us For Availability

27

1119020 Whirlpool Refrigerator Spring Backorder WPL 1119020 $6.09

27

Block, Housing Support WPL 2260519 Contact Us For Availability

28

1119021 Whirlpool Refrigerator Clip Backorder WPL 1119021 $4.63

28

WPW10121138 Whirlpool Refrigerator Water Filt In Stock WPL WPW10121138 $57.79

29

everydrop® Filter 3 EDR3RXD1 Whirlpool Refri In Stock WPL EDR3RXD1 $56.07

30

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $2.51

31

WP1119017 Whirlpool Refrigerator Deflector Backorder WPL WP1119017 $3.70

31

WP2260518B Whirlpool Water Filter Cap In Stock WPL WP2260518B $12.93

31

WP2260518W Whirlpool Refrigerator Filter Cap In Stock WPL WP2260518W $17.09

32

489234 Whirlpool Refrigerator Washer Backorder WPL 489234 $9.59

33

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

33

WP489236 Whirlpool Refrigerator Ring In Stock WPL WP489236 $5.09

33

WPW10350006 Whirlpool Refrigerator Water Tube Backorder WPL WPW10350006 $42.73

34

8201597 Whirlpool Inlet Water Fill Tube Kit F In Stock WPL 8201597 $41.65

35

2260503W Whirlpool Refrigerator Button Backorder WPL 2260503W $13.30

35

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

35

WP2260503B Whirlpool Refrigerator Button Backorder WPL WP2260503B $28.11

36

WP2171706 Whirlpool Refrigerator Light Lens Backorder WPL WP2171706 $31.73

38

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59
