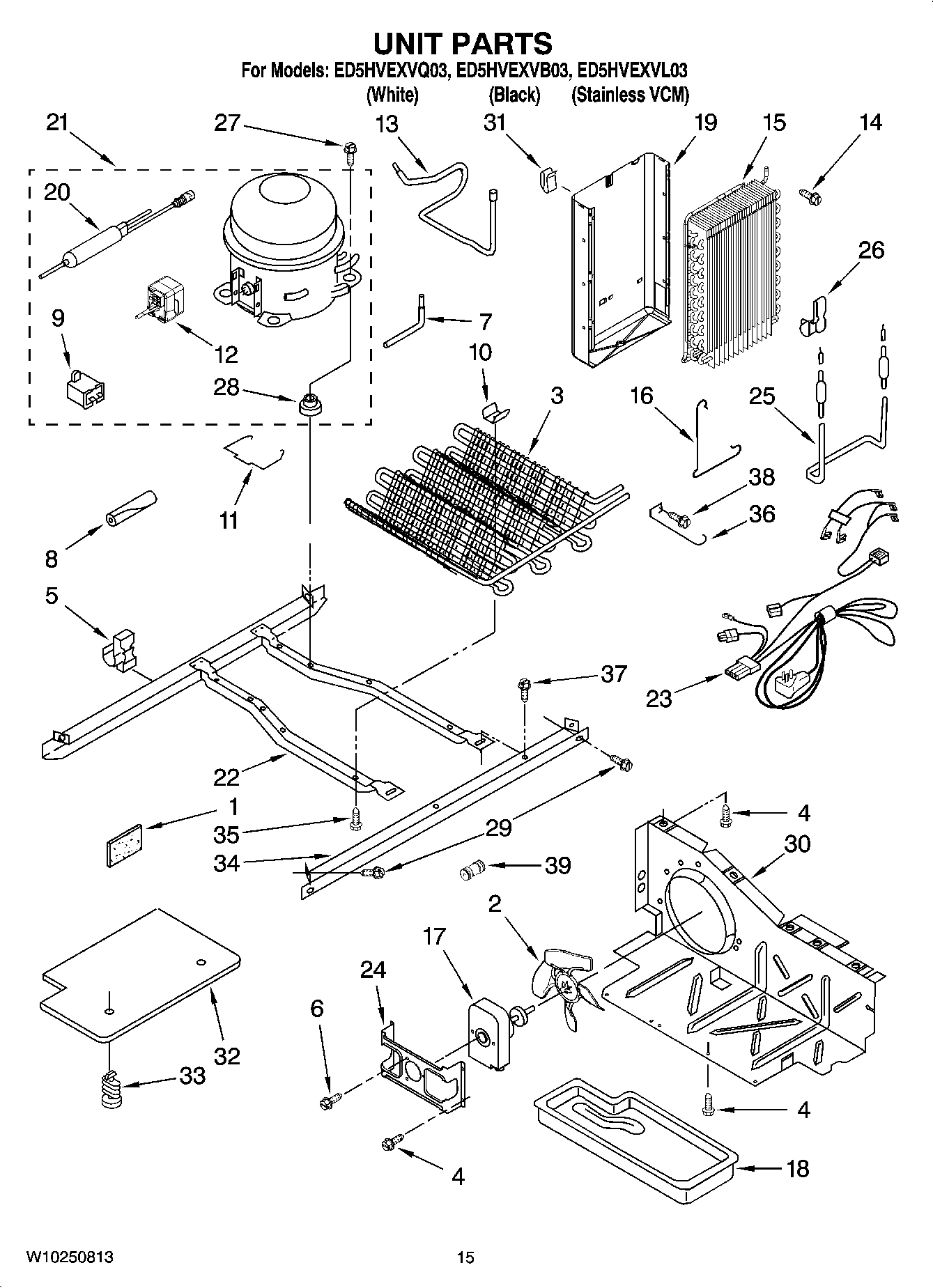

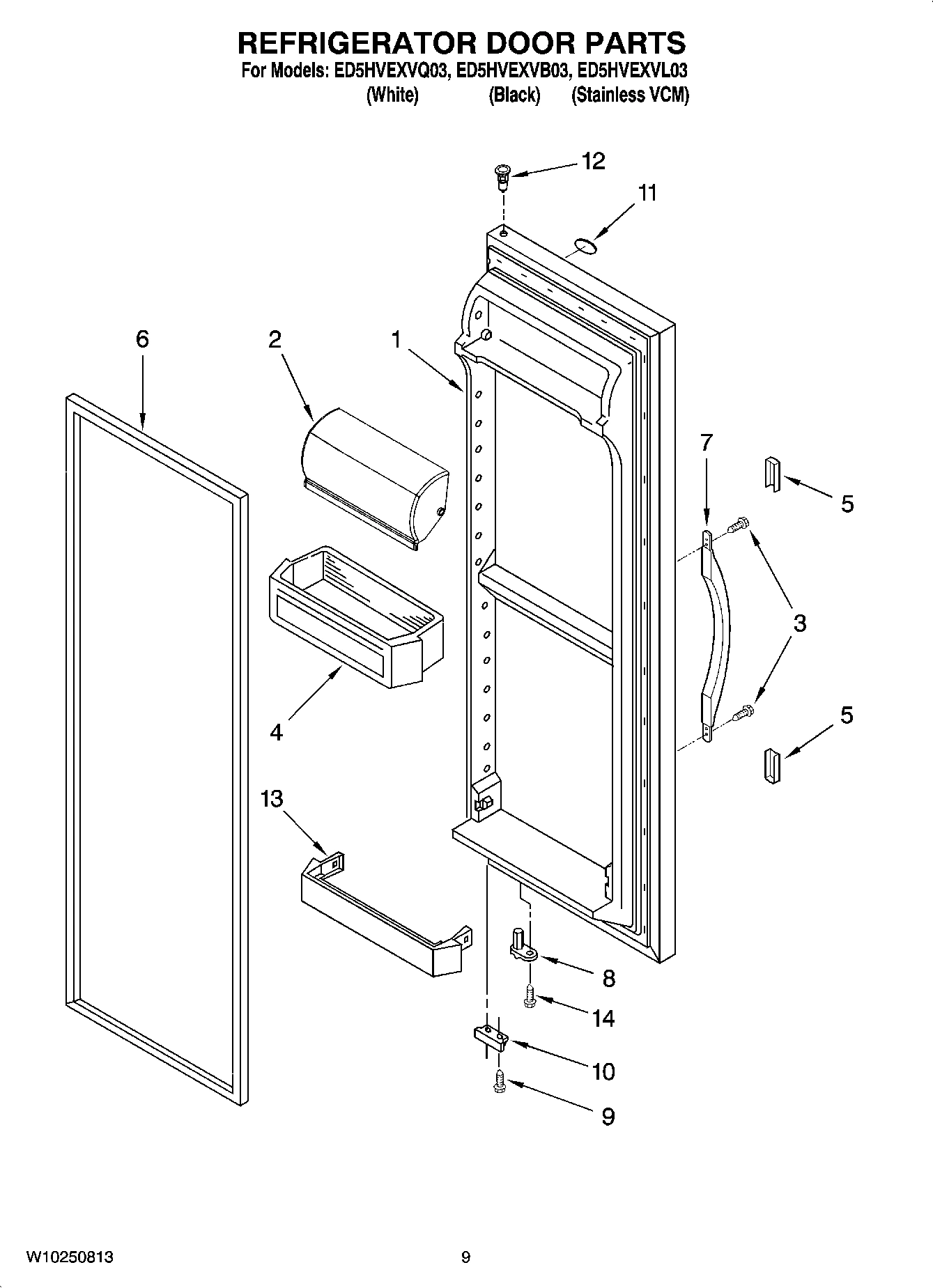

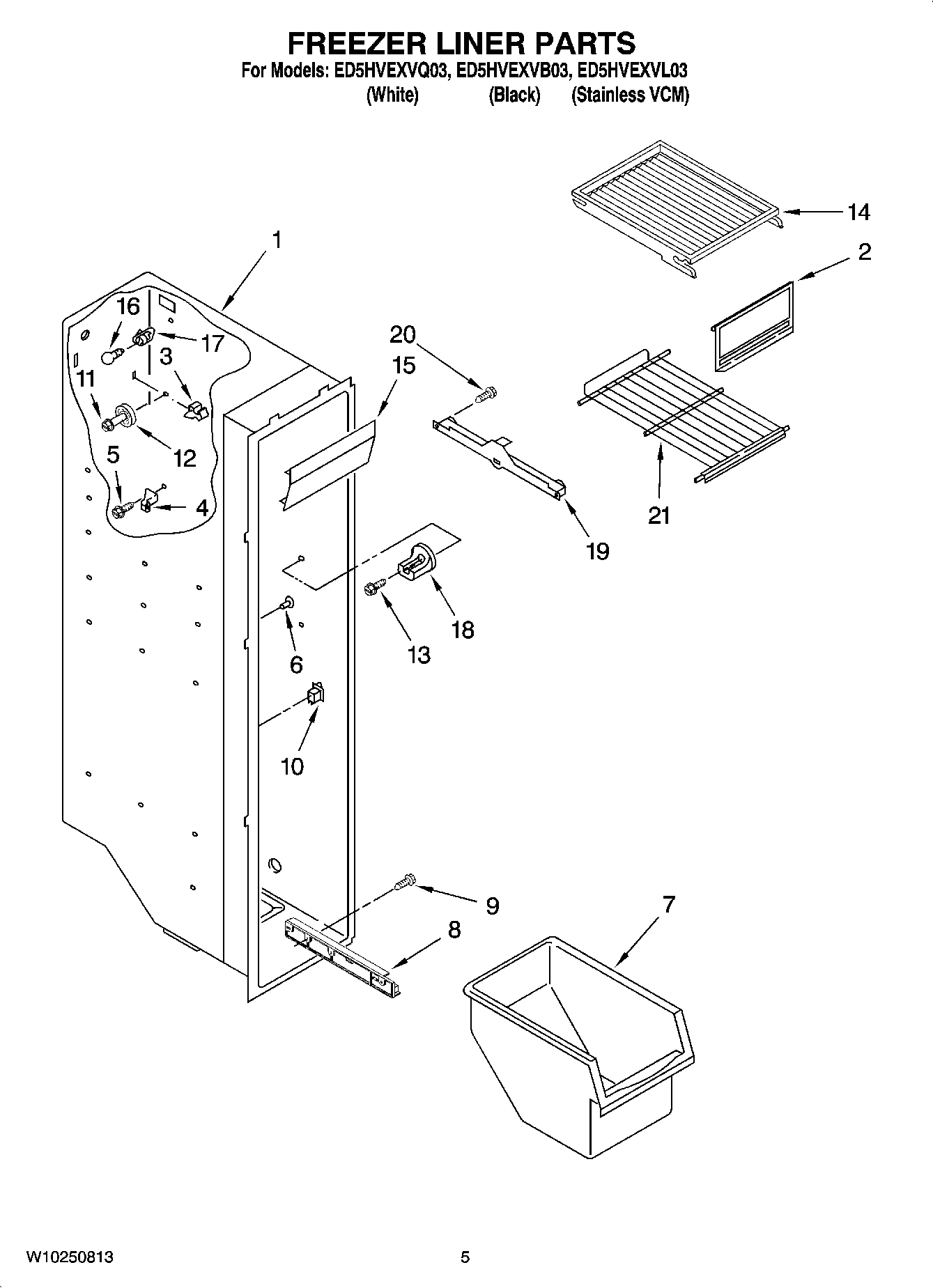

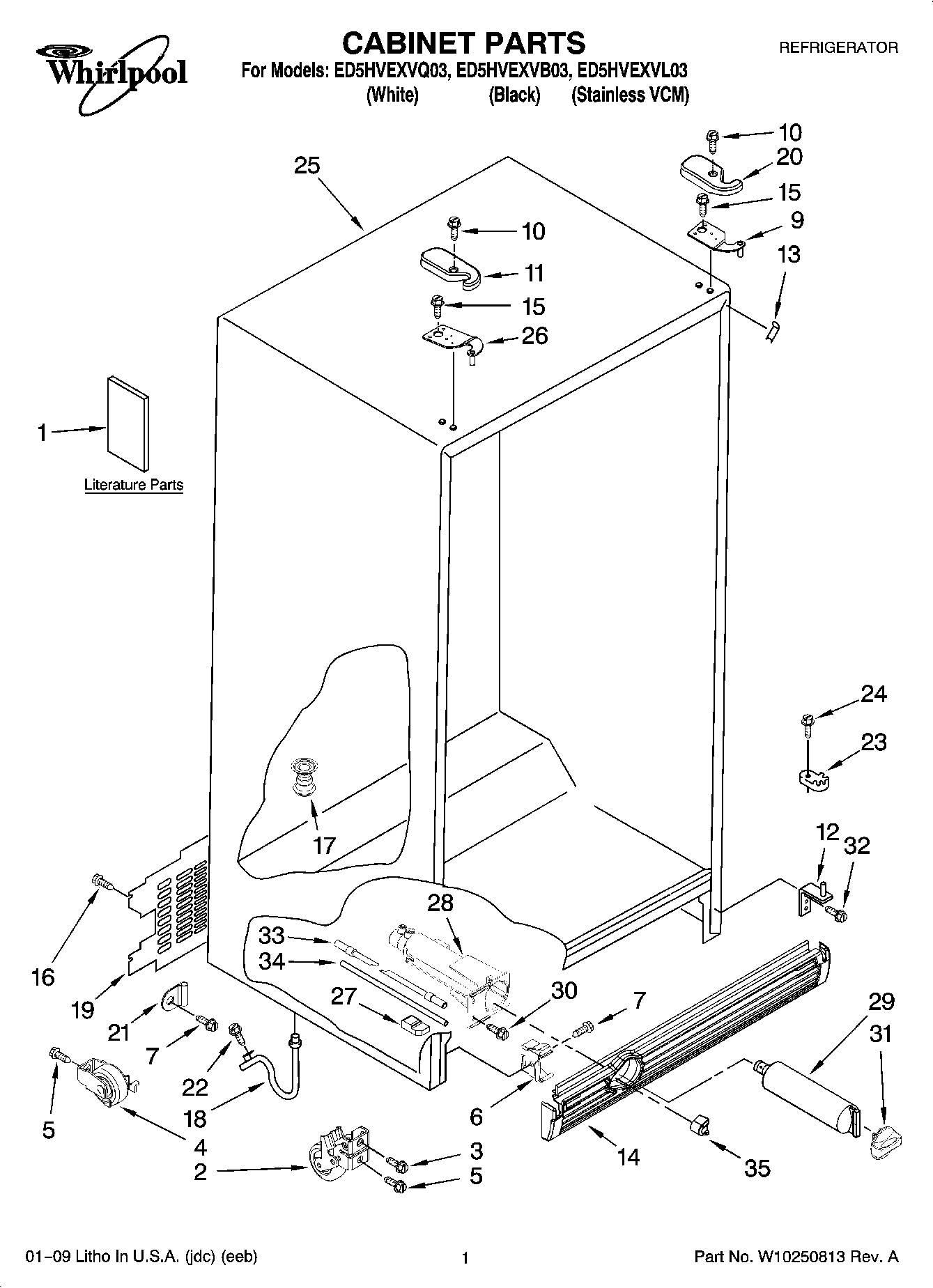

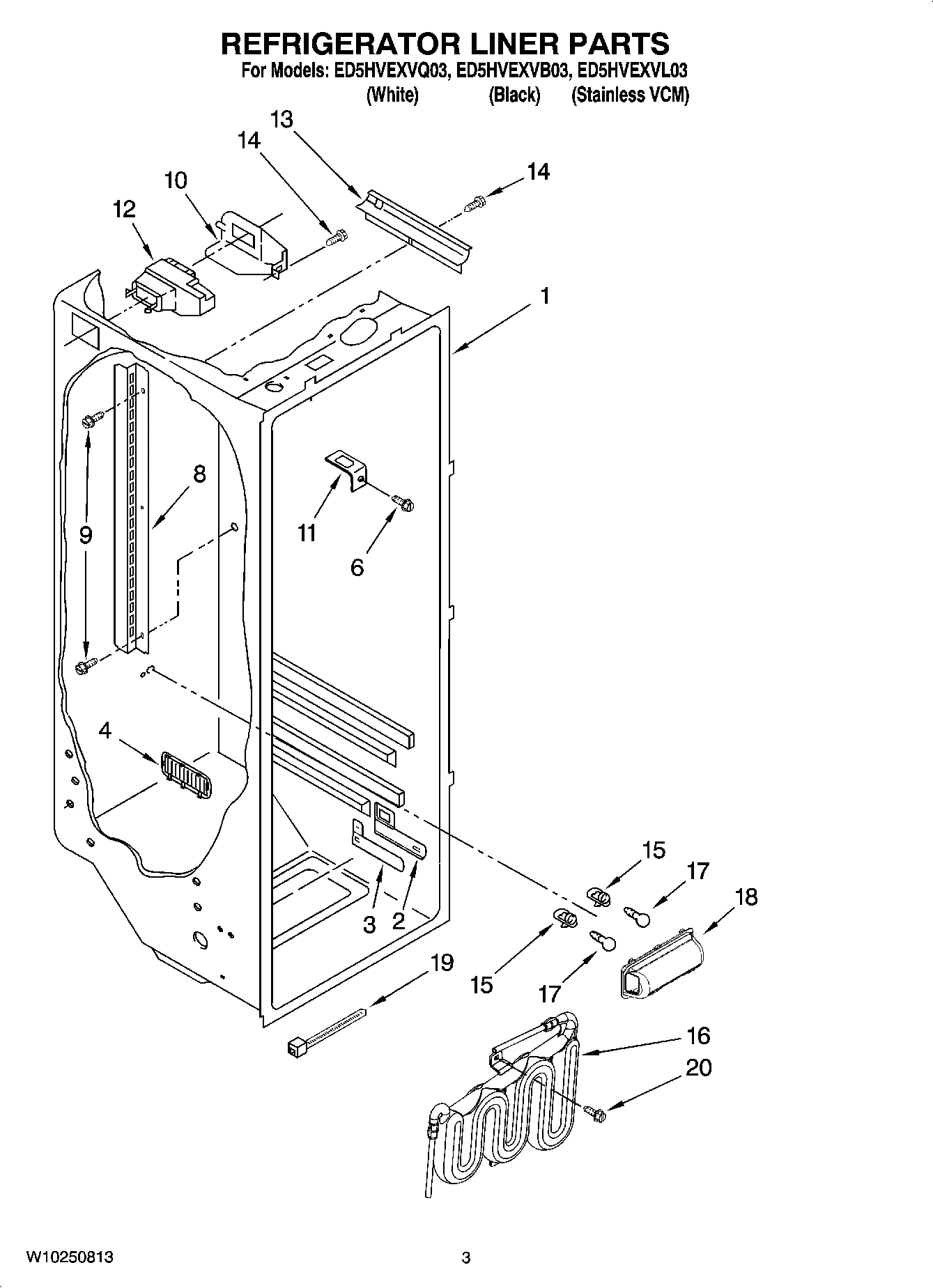

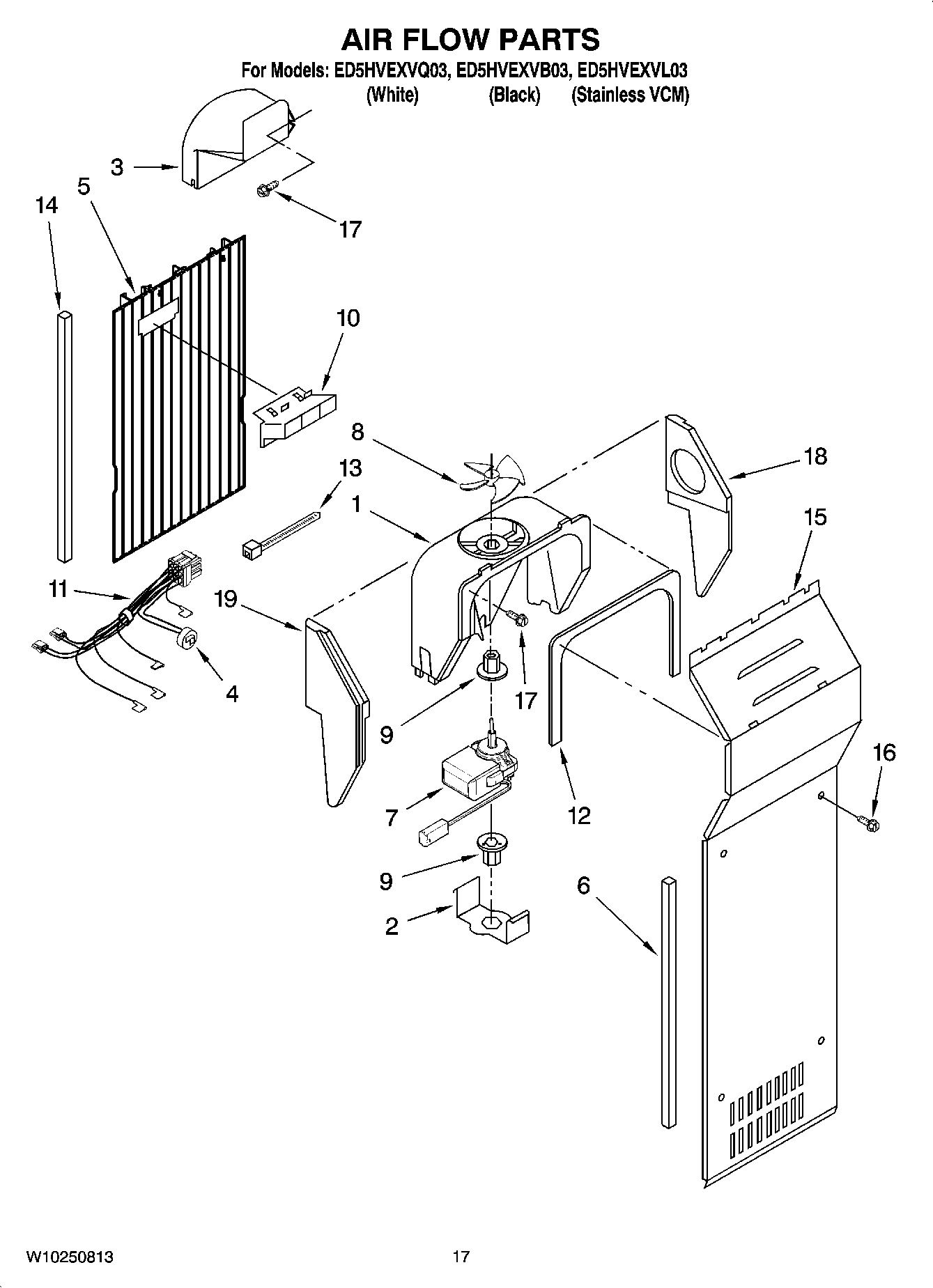

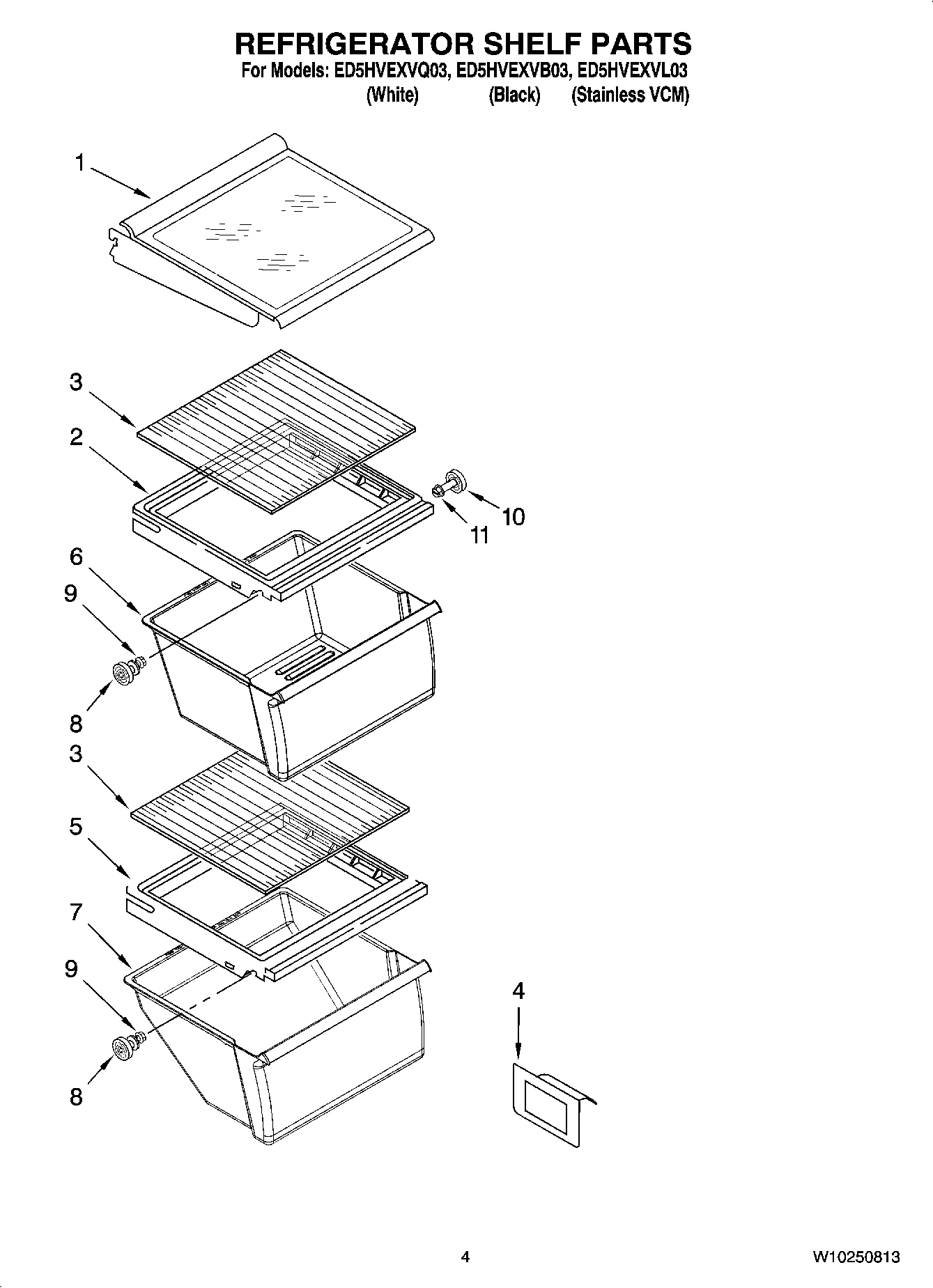

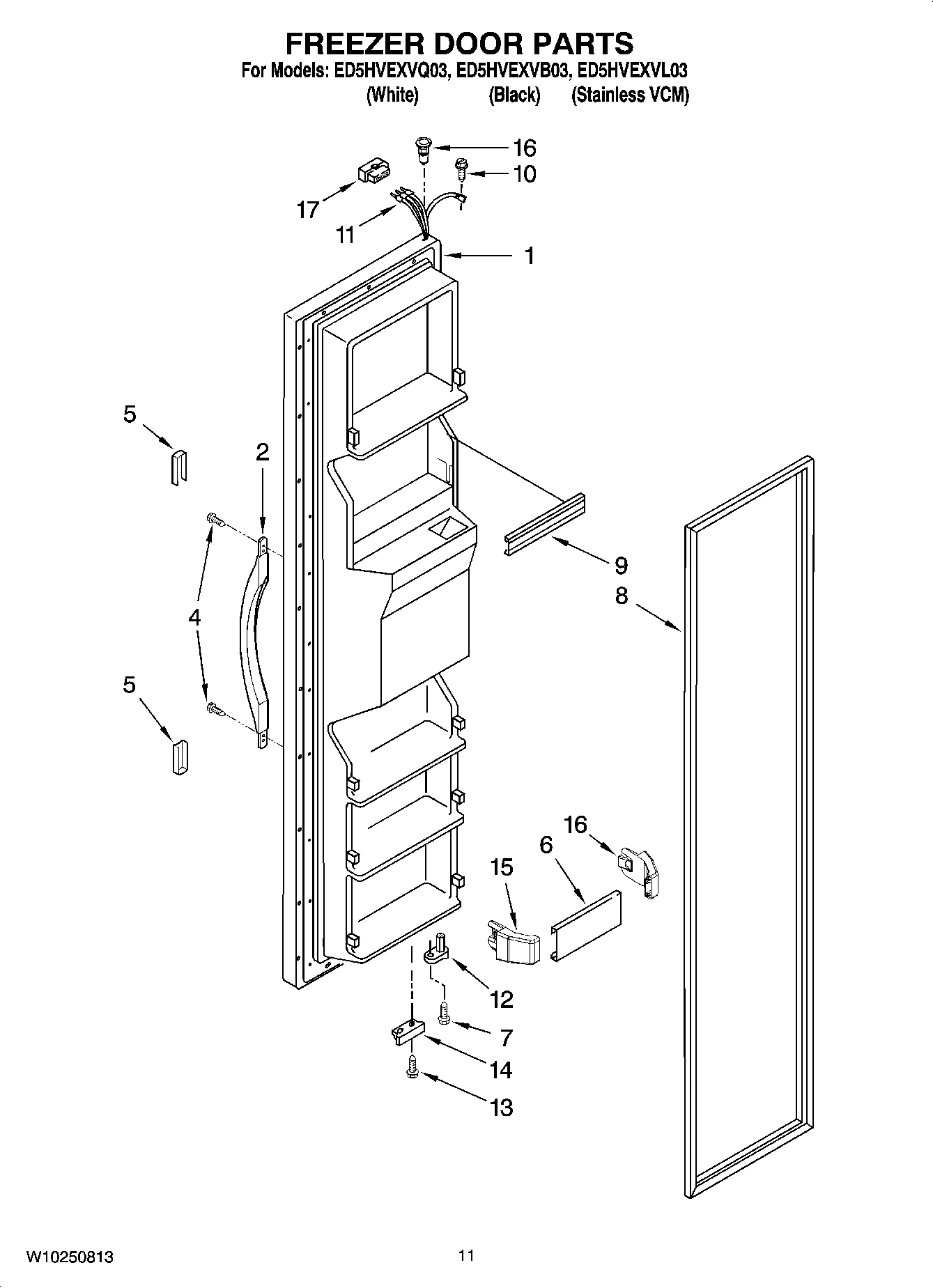

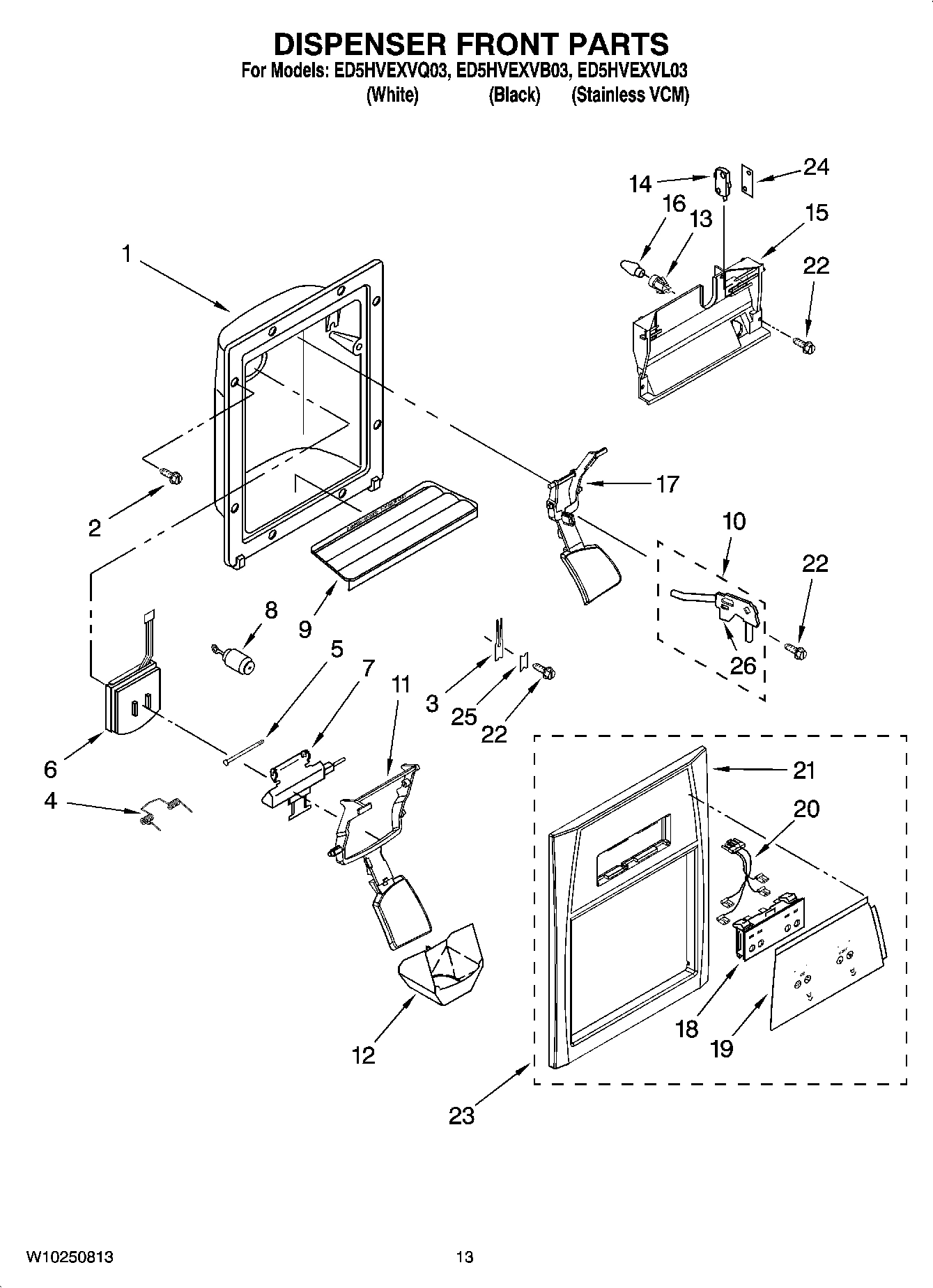

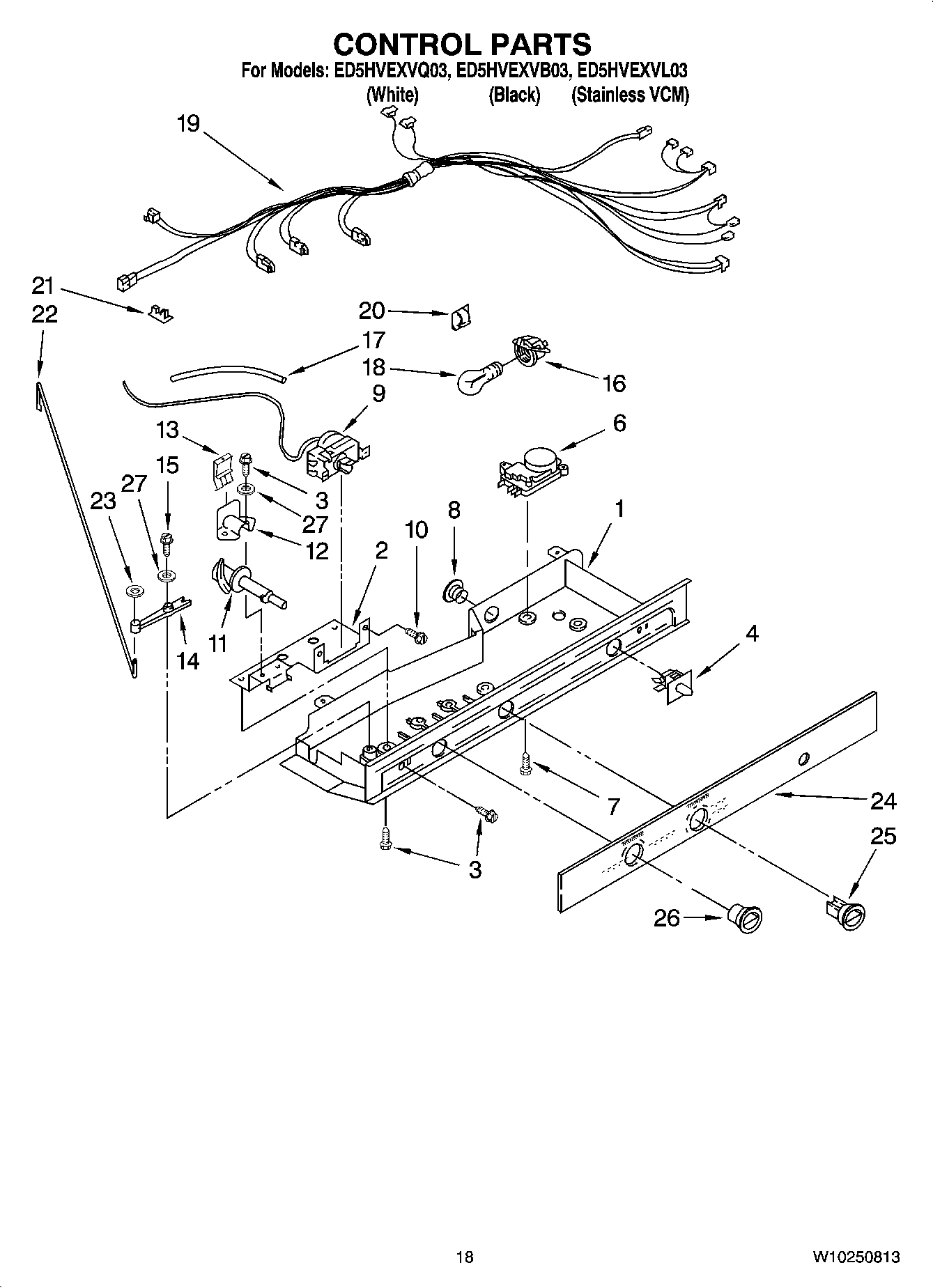

Model Whirlpool ED5HVEXVB03 REFRIGERATOR – Common Parts &amp; Diagrams

350930 Whirlpool White Spray Paint In Stock WPL 350930 $12.50

350942 Whirlpool Spray Paint Backorder WPL 350942 $32.57

511873 Whirlpool Refrigerator Paint Backorder WPL 511873 $19.22

606755 Whirlpool Refrigerator Bag Backorder WPL 606755 $26.21

72017 Whirlpool Appliance Touch-Up Paint Whit In Stock WPL 72017 $3.35

72032 Whirlpool Touch Up Paint Black In Stock WPL 72032 $5.60

799344 Whirlpool Refrigerator Paint Backorder WPL 799344 $93.22

833938 Whirlpool Refrigerator Terminal Backorder WPL 833938 $3.70

876764 Whirlpool Refrigerator Primary Valve In Stock WPL 876764 $27.18

978026 Whirlpool Refrigerator Primary Valve Backorder WPL 978026 $32.32

978027 Whirlpool Refrigerator Primary Valve Backorder WPL 978027 $33.95

978030 Whirlpool Refrigerator Valve Backorder WPL 978030 $35.52

WP503695 Whirlpool Refrigerator Sealer Backorder WPL WP503695 $39.18

WP505587 Whirlpool Refrigerator Sealer Backorder WPL WP505587 $57.83

WP542638 Whirlpool Refrigerator Grease In Stock WPL WP542638 $22.07

WP978025 Whirlpool Refrigerator Valve In Stock WPL WP978025 $25.89

VALVE, ACCESS (5/8``) WPL 978029 Contact Us For Availability

KIT, FOAM SLAB (30`` X 32 1/2`` X 1 1/2``) WPL 876029 Contact Us For Availability

TAPE, VINYL (3/4 X 108``) WPL 479502 Contact Us For Availability

Torx Key WPL 1117510 Contact Us For Availability

1

WP2182120 Whirlpool Refrigerator Scroll Fan In Stock WPL WP2182120 $32.96

1

Liner (Not A Seviceable Part) WPL ARI35451A1 Contact Us For Availability

1

INSTRUCTION SHEET, DOOR REMOVAL WPL 2216001 Contact Us For Availability

1

Modular Icemaker Service Sheet WPL 628370 Contact Us For Availability

1

Use & Care Guide WPL W10193160 Contact Us For Availability

1

Energy Guide WPL W10194139 Contact Us For Availability

1

Service & Wiring Sheet WPL W10207728 Contact Us For Availability

1

Shelf, Cantilever WPL W10141749 Contact Us For Availability

2

W10508993 Whirlpool Refrigerator Cover Pan In Stock WPL W10508993 $110.82

2

W11505385 Whirlpool Refrigerator Chute In Stock WPL W11505385 $9.89

2

WP2155590 Whirlpool Refrigerator Retainer Backorder WPL WP2155590 $2.51

2

WP2171713 Whirlpool Refrigerator Ice Door Backorder WPL WP2171713 $41.08

2

WP2256101 Whirlpool Dairy Door In Stock WPL WP2256101 $51.86

2

Mounting Bracket WPL 1110629 Contact Us For Availability

2

Front Roller (2) WPL 2174748 Contact Us For Availability

3

2182757 Whirlpool Refrigerator Slide Backorder WPL 2182757 $31.55

3

2215823 Whirlpool Refrigerator Clip Backorder WPL 2215823 $4.61

3

W10803597 Whirlpool Refrigerator Air Scoop Backorder WPL W10803597 $32.87

3

W10850698 Whirlpool Refrigerator Screw Backorder WPL W10850698 $4.72

3

W10864399 Whirlpool Glass Shelf In Stock WPL W10864399 $108.46

3

WP2152713 Whirlpool Refrigerator Solenoid In Stock WPL WP2152713 $95.64

3

WP2194719 Whirlpool Refrigerator Clip In Stock WPL WP2194719 $4.13

3

WP628379 Whirlpool Refrigerator Clip Backorder WPL WP628379 $4.61

4

2179350 Whirlpool Refrigerator Deflector Backorder WPL 2179350 $27.14

4

4388405 Whirlpool Refrigerator Shelf Stud In Stock WPL 4388405 $4.36

4

WP2149705 Whirlpool Refrigerator Door Switch In Stock WPL WP2149705 $22.34

4

WP489491 Whirlpool Refrigerator Screw In Stock WPL WP489491 $2.51

4

WPW10224328 Whirlpool Refrigerator Spring Backorder WPL WPW10224328 $30.85

4

WPW10225581 Whirlpool Refrigerator Defrost Th In Stock WPL WPW10225581 $19.51

4

WPW10250570 Whirlpool Refrigerator Cabinet Ro Backorder WPL WPW10250570 $14.49

5

WP2196195 Whirlpool Refrigerator Door Pin In Stock WPL WP2196195 $7.69

5

WP489427 Whirlpool Refrigerator Screw Backorder WPL WP489427 $3.70

5

Endcap, Handle (White) WPL 2194272W Contact Us For Availability

6

2313199 Whirlpool Refrigerator Door Trim Backorder WPL 2313199 $33.27

6

WP2155013 Whirlpool Refrigerator Clip In Stock WPL WP2155013 $3.70

6

WP2180353 Whirlpool Dispenser Door In Stock WPL WP2180353 $7.21

6

WP2188661 Whirlpool Crisper Pan In Stock WPL WP2188661 $90.28

6

Grommet WPL 2176134 Contact Us For Availability

7

WP2182971 Whirlpool Refrigerator Freezer Bin Backorder WPL WP2182971 $71.88

7

WP2188664 Whirlpool Dishwasher Meat Crisper P In Stock WPL WP2188664 $45.77

7

WP489478 Whirlpool Refrigerator Screw In Stock WPL WP489478 $2.51

8

W11223328 Whirlpool Refrigerator Shelf Stud Backorder WPL W11223328 $9.59

8

WP2169142 Whirlpool Fan Blade In Stock WPL WP2169142 $13.65

8

WP2261449 Whirlpool Refrigerator Track Backorder WPL WP2261449 $44.08

8

WP489399 Whirlpool Refrigerator Screw In Stock WPL WP489399 $2.51

8

Shelf Ladder WPL 2319866 Contact Us For Availability

8

Slide, Basket (Left Side) WPL 2261448 Contact Us For Availability

9

W10759522 Whirlpool Screw Backorder WPL W10759522 $2.51

9

WP2176759 Whirlpool Refrigerator Grommet In Stock WPL WP2176759 $3.70

9

WP2198202 Whirlpool Refrigerator Temperature In Stock WPL WP2198202 $45.43

9

WP2203771 Whirlpool Refrigerator Door Hinge In Stock WPL WP2203771 $32.13

9

WP2206670B Whirlpool Dispenser Tray In Stock WPL WP2206670B $20.18

9

WP2206670W Whirlpool Dispenser Tray In Stock WPL WP2206670W $30.46

9

WP3-24004-109 Whirlpool Refrigerator Screw Backorder WPL WP3-24004-109 $2.51

9

WPW10169511 Whirlpool Refrigerator Coupling In Stock WPL WPW10169511 $9.70

2152019 Whirlpool Refrigerator Cover Backorder WPL 2152019 $32.98

2182146 Whirlpool Refrigerator Duct Backorder WPL 2182146 $32.79

W11457217 Whirlpool Refrigerator Rocker Switc In Stock WPL W11457217 $14.15

WP8281227 Whirlpool Screw Backorder WPL WP8281227 $4.58

W10122561 Whirlpool Refrigerator Cup Fill Backorder WPL W10122561 $10.21

W11234406 Whirlpool Refrigerator Wire Harness Backorder WPL W11234406 $57.59

W11661170 Whirlpool Clip Backorder WPL W11661170 $4.39

WP2182195 Whirlpool Refrigerator Cam Backorder WPL WP2182195 $5.14

WP2203407B Whirlpool Refrigerator Cover Backorder WPL WP2203407B $12.81

WP2203407W Whirlpool Refrigerator Cover Backorder WPL WP2203407W $11.51

WP2213265 Whirlpool Refrigerator Nameplate Backorder WPL WP2213265 $37.83

WP2256085 Whirlpool Refrigerator Retainer Backorder WPL WP2256085 $13.73

WP3400806 Whirlpool Screw In Stock WPL WP3400806 $2.51

WPW10152853 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152853 $34.13

WPW10152854 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152854 $26.38

1110560 Whirlpool Refrigerator Bearing Backorder WPL 1110560 $4.72

W10138965 Whirlpool Refrigerator Door Hinge Backorder WPL W10138965 $29.81

WP2180224 Whirlpool Dispenser Funnel Guide In Stock WPL WP2180224 $6.95

WP2182179 Whirlpool Cam Closer In Stock WPL WP2182179 $3.39

WP2196483 Whirlpool Refrigerator Shelf Stud Backorder WPL WP2196483 $4.34

WP627843 Whirlpool Refrigerator Ejector Arm Backorder WPL WP627843 $28.80

WPW10151374 Whirlpool Refrigerator Diffuser In Stock WPL WPW10151374 $33.42

WPW10189190 Whirlpool Start Device In Stock WPL WPW10189190 $64.45

2150331 Whirlpool Refrigerator Wire Cover Backorder WPL 2150331 $11.11

2180200 Whirlpool Refrigerator Socket Backorder WPL 2180200 $31.40

W10142289 Whirlpool Air Conditioner Screw Backorder WPL W10142289 $5.16

WP1119005 Whirlpool Refrigerator Spacer Backorder WPL WP1119005 $4.67

WP2156022 Whirlpool Refrigerator Door Trim In Stock WPL WP2156022 $35.69

WPW10122563 Whirlpool Refrigerator Stripper A Backorder WPL WPW10122563 $32.68

Filler, Wrapper (White) WPL 2304846 Contact Us For Availability

Filler, Wrapper (Black) WPL 2304848 Contact Us For Availability

WP1119007 Whirlpool Refrigerator Spacer Backorder WPL WP1119007 $4.87

WP2162361 Whirlpool Switch In Stock WPL WP2162361 $8.38

WP2206629B Whirlpool Refrigerator Bracket Backorder WPL WP2206629B $13.80

WP3400012 Whirlpool Refrigerator Screw Backorder WPL WP3400012 $2.51

WPW10311032 Whirlpool Refrigerator Grille Backorder WPL WPW10311032 $58.37

WPW10311033 Whirlpool Refrigerator Grille Backorder WPL WPW10311033 $74.68

Pivot Arm WPL 1110559 Contact Us For Availability

Shelf, Top Compartment WPL 2171714K Contact Us For Availability

15

2171705 Whirlpool Refrigerator Light Lens Backorder WPL 2171705 $33.47

15

WP2188823 Whirlpool Refrigerator Evaporator In Stock WPL WP2188823 $192.85

15

WP489497 Whirlpool Screw In Stock WPL WP489497 $4.58

8009 Whirlpool 40W 120V Light Bulb In Stock WPL 8009 $6.56

W10278732 Whirlpool Refrigerator Blade Backorder WPL W10278732 $30.30

WP2182181 Whirlpool Refrigerator Thimble In Stock WPL WP2182181 $3.70

WP489464 Whirlpool Refrigerator Screw Backorder WPL WP489464 $3.70

WPW10276792 Whirlpool Refrigerator Water Rese In Stock WPL WPW10276792 $59.78

Clamp WPL 2161324 Contact Us For Availability

4387478 Whirlpool Refrigerator Light Socket In Stock WPL 4387478 $30.80

8533917 Whirlpool Refrigerator Screw In Stock WPL 8533917 $9.59

W11566763 Whirlpool Fitting In Stock WPL W11566763 $18.87

WP2154473 Whirlpool Refrigerator Connector Backorder WPL WP2154473 $10.76

WP2188874 Whirlpool Refrigerator Condenser Mo In Stock WPL WP2188874 $59.32

WPW10152858 Whirlpool Refrigerator Dispenser In Stock WPL WPW10152858 $34.73

WPW10152859 Whirlpool Refrigerator Dispenser Backorder WPL WPW10152859 $32.50

W11239891 Whirlpool Refrigerator Light Lens Backorder WPL W11239891 $36.31

W11512417 Whirlpool Drain Connector In Stock WPL W11512417 $13.03

WP489235 Whirlpool Refrigerator Washer Backorder WPL WP489235 $4.59

Stud, Rear WPL 2196207 Contact Us For Availability

W10845583 Whirlpool Refrigerator Track Backorder WPL W10845583 $46.34

W10845585 Whirlpool Refrigerator Track Backorder WPL W10845585 $50.98

W11342242 Whirlpool Refrigerator Ice Level Ar In Stock WPL W11342242 $25.51

WP2188755 Whirlpool Rear Panel In Stock WPL WP2188755 $67.78

WPW10339879 Whirlpool Wire Tie In Stock WPL WPW10339879 $2.51

2157405 Whirlpool Refrigerator Blade Block Backorder WPL 2157405 $10.76

718257 Whirlpool Dishwasher Screw Backorder WPL 718257 $9.59

W11500948 Whirlpool Refrigerator Bracket In Stock WPL W11500948 $12.32

WP2203408B Whirlpool Refrigerator Cover Backorder WPL WP2203408B $12.65

WP2203408W Whirlpool Refrigerator Cover Backorder WPL WP2203408W $11.66

Screw (2) WPL 488280 Contact Us For Availability

489229 Whirlpool Refrigerator Roll Pin Backorder WPL 489229 $27.12

549193 Whirlpool Refrigerator Power Clamp Backorder WPL 549193 $6.94

WP2174267 Whirlpool Refrigerator Wire Shelf Backorder WPL WP2174267 $47.20

Shelf (2) WPL 2174268K Contact Us For Availability

23

WPW10329686 Whirlpool Door Cam Black In Stock WPL WPW10329686 $3.39

23

Fastener, Push-On WPL 489285 Contact Us For Availability

489136 Whirlpool Refrigerator Screw Backorder WPL 489136 $4.56

W10852691 Whirlpool Refrigerator Baffle Backorder WPL W10852691 $13.16

WP2181929 Whirlpool Refrigerator Bracket Backorder WPL WP2181929 $5.67

WP489483 Whirlpool Screw In Stock WPL WP489483 $4.58

Spacer, Switch (2) WPL 625834 Contact Us For Availability

2182111 Whirlpool Refrigerator Thermal Knob Backorder WPL 2182111 $9.53

WP1119018 Whirlpool Refrigerator Bearing Backorder WPL WP1119018 $3.70

WP2195051 Whirlpool Refrigerator Clip Backorder WPL WP2195051 $4.81

WP2323198 Whirlpool Refrigerator Heater In Stock WPL WP2323198 $30.17

Cabinet, (Not A Serviceable Part) WPL ARI35449A4 Contact Us For Availability

W11596045 Whirlpool Refrigerator Control Arm In Stock WPL W11596045 $12.11

WP2203770 Whirlpool Refrigerator Door Hinge Backorder WPL WP2203770 $30.16

WP2304673 Whirlpool Refrigerator Bracket Backorder WPL WP2304673 $6.35

Knob, Air Control WPL 2197871 Contact Us For Availability

27

1119020 Whirlpool Refrigerator Spring Backorder WPL 1119020 $6.09

27

Block, Housing Support WPL 2260519 Contact Us For Availability

28

1119021 Whirlpool Refrigerator Clip Backorder WPL 1119021 $4.63

28

WPW10121138 Whirlpool Refrigerator Water Filt In Stock WPL WPW10121138 $56.98

29

everydrop® Filter 3 EDR3RXD1 Whirlpool Refri In Stock WPL EDR3RXD1 $55.44

30

WP489500 Whirlpool Refrigerator Screw Backorder WPL WP489500 $2.51

31

WP1119017 Whirlpool Refrigerator Deflector Backorder WPL WP1119017 $3.70

31

WP2260518B Whirlpool Water Filter Cap In Stock WPL WP2260518B $12.93

31

WP2260518W Whirlpool Refrigerator Filter Cap In Stock WPL WP2260518W $16.27

32

489234 Whirlpool Refrigerator Washer Backorder WPL 489234 $9.59

33

489396 Whirlpool Refrigerator Clip Backorder WPL 489396 $4.72

33

WP489236 Whirlpool Refrigerator Ring Backorder WPL WP489236 $5.09

33

WPW10350006 Whirlpool Refrigerator Water Tube Backorder WPL WPW10350006 $39.91

34

8201597 Whirlpool Inlet Water Fill Tube Kit F In Stock WPL 8201597 $25.33

35

2260503W Whirlpool Refrigerator Button Backorder WPL 2260503W $13.30

35

W11544659 Whirlpool Refrigerator Screw Backorder WPL W11544659 $9.59

35

WP2260503B Whirlpool Refrigerator Button Backorder WPL WP2260503B $26.77

36

WP2171706 Whirlpool Refrigerator Light Lens Backorder WPL WP2171706 $30.21

38

WPW10141625 Whirlpool Refrigerator Screw Asse Backorder WPL WPW10141625 $9.59
